Model Electrolux RT17F9WU3A REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

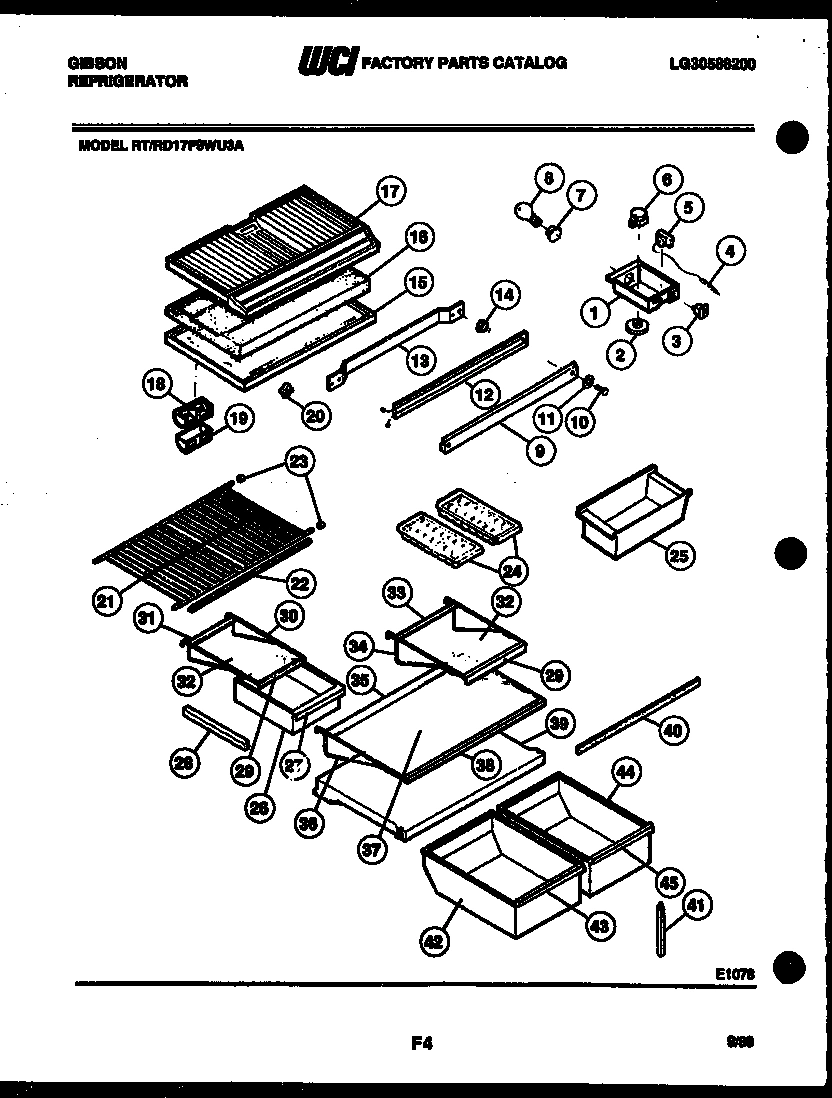

04 - SHELVES AND SUPPORTS

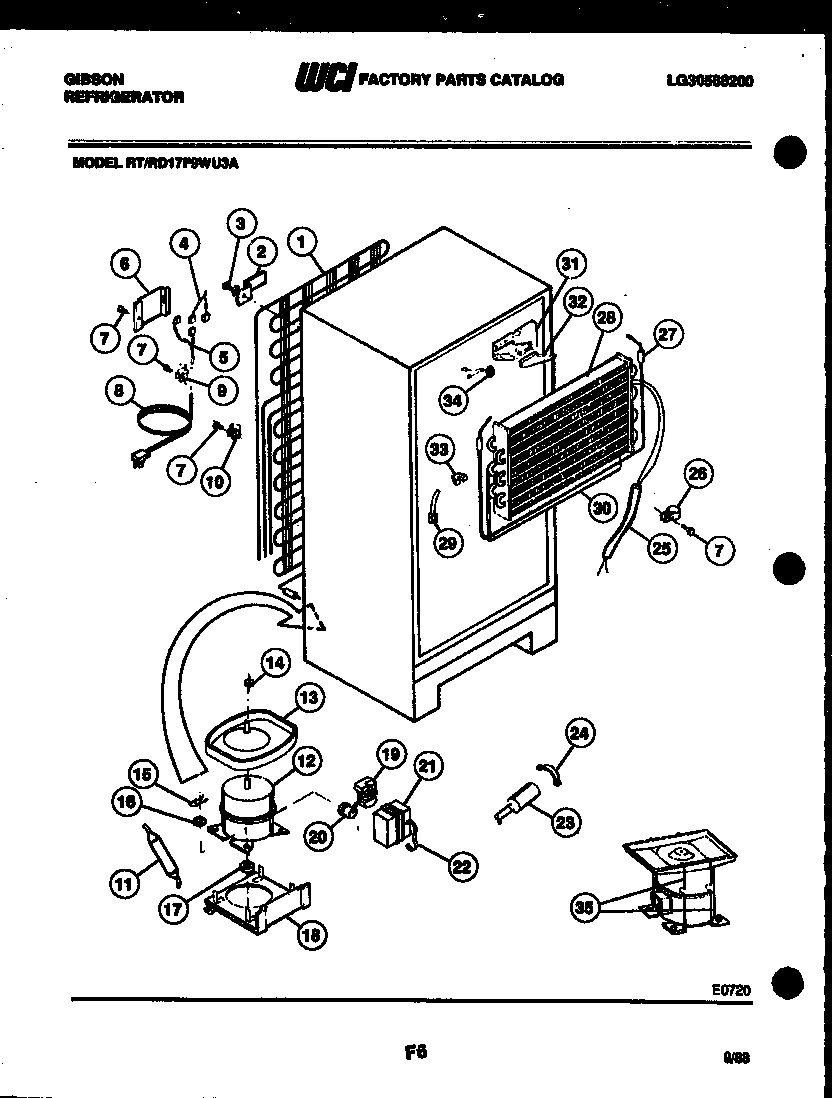

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F9WU3A REFRIGERATOR
*81897
PLUG-FREEZER LINER (5) WCI G187599 Contact Us For Availability
*82065
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
1
WCI G163061-76 WCI G163061-76 Contact Us For Availability
1
CONTROL BOX WCI G176722-03 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
1A
LABEL-CONTROL BOX (NON-ILLUSTRATED) WCI G188379-02 Contact Us For Availability
2
LABEL, FAN COVER WCI G186232 Contact Us For Availability
2
KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability
2
WCI G164637 WCI G164637 Contact Us For Availability
3
INNER PANEL-REFR WCI G187494-02 Contact Us For Availability
3
KNOB-DAMPER CONTROL WCI G168702 Contact Us For Availability
3
SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability
4
WCI 3201071 WCI 3201071 Contact Us For Availability
4
WCI G162662 WCI G162662 Contact Us For Availability
4
WCI G174818 WCI G174818 Contact Us For Availability
5
SUPPORT RS (3) WCI G178287-02 Contact Us For Availability
5
DAMPER WCI G162661 Contact Us For Availability
5
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
5
WCI G166062-01 WCI G166062-01 Contact Us For Availability
5A
WCI G107080 WCI G107080 Contact Us For Availability
6
SUPPORT LS (3) WCI G178284-02 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI 3017719 WCI 3017719 Contact Us For Availability
7
WCI G168302 WCI G168302 Contact Us For Availability
8
DAIRY DOOR-SMALL WCI G187490-02 Contact Us For Availability
8
WCI G167217 WCI G167217 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
DAIRY DOOR-LARGE WCI G187460-02 Contact Us For Availability
9
MULLION, WHITE WCI G490086-01 Contact Us For Availability
9
MULLION, AVOCADO WCI G490086-08 Contact Us For Availability
9
MULLION, WHEAT WCI G490086-09 Contact Us For Availability
9
MULLION, COFFEE WCI G490086-10 Contact Us For Availability
9
MULLION, ALMOND WCI G490086-11 Contact Us For Availability
10
UTILITY BIN WCI G187461-01 Contact Us For Availability
10
WCI G185302 WCI G185302 Contact Us For Availability
10
SCREW-MULLION (4) WCI G183103 Contact Us For Availability
10
WCI G73986 WCI G73986 Contact Us For Availability
11
WCI 3201070 WCI 3201070 Contact Us For Availability
11
WCI G176797 WCI G176797 Contact Us For Availability
11
WCI G166847 WCI G166847 Contact Us For Availability
11A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
12
RACK, JUICE CAN WCI G187492-02 Contact Us For Availability
12
WCI 3018768 WCI 3018768 Contact Us For Availability
12
WCI G177255 WCI G177255 Contact Us For Availability
12
COMPRESSOR W/ ELECTRICALS WCI 3916004 Contact Us For Availability
13
INNER PANEL-FRZR WCI G187511-02 Contact Us For Availability
13
WCI G162827-12 WCI G162827-12 Contact Us For Availability
13
WCI G166709 WCI G166709 Contact Us For Availability
13
PAN, DEFROST WCI G184715 Contact Us For Availability
14
WCI G169332-01 WCI G169332-01 Contact Us For Availability
14
WCI G169332-08 WCI G169332-08 Contact Us For Availability
14
WCI G169332-09 WCI G169332-09 Contact Us For Availability
14
WCI G169332-10 WCI G169332-10 Contact Us For Availability
14
WCI G169332-11 WCI G169332-11 Contact Us For Availability
14
SPACER, MULLION (2) WCI G490082 Contact Us For Availability
14
WCI G164958 WCI G164958 Contact Us For Availability
15
DOOR PANEL-WHITE WCI G189018 Contact Us For Availability
15
DOOR PANEL-AVOCADO WCI G189018-08 Contact Us For Availability
15
DOOR PANEL-WHEAT WCI G189018-09 Contact Us For Availability
15
DOOR PANEL-COFFEE WCI G189018-10 Contact Us For Availability
15
DOOR PANEL-ALMOND WCI G189018-11 Contact Us For Availability
15
WCI G185303 WCI G185303 Contact Us For Availability
15
WCI 3016378 WCI 3016378 Contact Us For Availability
15
CLIP (4) WCI G163204 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
16
NAMEPLATE-FRAME WCI G175117-02 Contact Us For Availability
16
WCI G164571 WCI G164571 Contact Us For Availability
16
WCI G176774 WCI G176774 Contact Us For Availability
16
WASHER (4) WCI G164634 Contact Us For Availability
16A
TAPE-NAMEPLATE MTG (NON-ILLUSTRATED) WCI G153407-12 Contact Us For Availability
17
LABEL-NAMEPLATE UPR WCI G188378-02 Contact Us For Availability
17
DRAIN TROUGH WCI G490043 Contact Us For Availability
17
BOTTOM PANEL-FRZR WCI G490022-01 Contact Us For Availability
18
LABEL-NAMEPLATE LWR WCI 3019041 Contact Us For Availability
18
SUPPORT-COIL CVR (2) WCI G163669 Contact Us For Availability
18
WCI G162675 WCI G162675 Contact Us For Availability
18
WCI G184599 WCI G184599 Contact Us For Availability
19
BEARING HINGE (8) WCI G183138 Contact Us For Availability
19
WCI G85642 WCI G85642 Contact Us For Availability
19
WCI G162178 WCI G162178 Contact Us For Availability
19
WCI G182225-18 WCI G182225-18 Contact Us For Availability
20
TRIM-FRZR DOOR WCI G167404-01 Contact Us For Availability
20
WCI G174733 WCI G174733 Contact Us For Availability
20
WCI G188877 WCI G188877 Contact Us For Availability
21
WCI G162977-08 WCI G162977-08 Contact Us For Availability
21
WCI G162977-09 WCI G162977-09 Contact Us For Availability
21
WCI G162977-10 WCI G162977-10 Contact Us For Availability
21
WCI G162977-11 WCI G162977-11 Contact Us For Availability
21
WCI G174734 WCI G174734 Contact Us For Availability
21
WCI G177059-10 WCI G177059-10 Contact Us For Availability
22
TRIM-REFR DOOR (2) WCI G167150-11 Contact Us For Availability
22
SEAL RING-DRAIN TUBE WCI G176853 Contact Us For Availability
22
TRIM-FRZR SHELF WCI G172410-09 Contact Us For Availability
23
WCI G155072 WCI G155072 Contact Us For Availability
23
WCI G184920-01 WCI G184920-01 Contact Us For Availability
23
END CAP (2) WCI G166495-01 Contact Us For Availability
23
CAPACITOR-COMPR RUN WCI G188885-02 Contact Us For Availability
23A
WCI G185566 WCI G185566 Contact Us For Availability
24
DOOR PANEL-WHITE WCI G189020 Contact Us For Availability
24
DOOR PANEL-AVOCADO WCI G189020-08 Contact Us For Availability
24
DOOR PANEL-WHEAT WCI G189020-09 Contact Us For Availability
24
DOOR PANEL-COFFEE WCI G189020-10 Contact Us For Availability
24
DOOR PANEL-ALMOND WCI G189020-11 Contact Us For Availability
24
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
24
WCI G188897 WCI G188897 Contact Us For Availability
25
HANDLE-REFR DOOR WCI G168505-01 Contact Us For Availability
25
PUSH PIN-SPOUT (2) WCI G185279 Contact Us For Availability
25
ICE CONTAINER WCI G163022-03 Contact Us For Availability
25
WCI G177531 WCI G177531 Contact Us For Availability
25A
HANDLE-FRZR DOOR WCI G168506-01 Contact Us For Availability
26
WCI G170695 WCI G170695 Contact Us For Availability
26
MEAT PAN WCI G176918-12 Contact Us For Availability
27
WCI G189341 WCI G189341 Contact Us For Availability
27
WCI G177343-10 WCI G177343-10 Contact Us For Availability
27
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
27A
SCREW-CHANNEL (3) (NON-ILLUSTRATED) WCI G187449 Contact Us For Availability
28
HANGER, PAN LS WCI G187215-03 Contact Us For Availability
28
WCI G176909 WCI G176909 Contact Us For Availability
28A
HANGER, PAN RS (NON-ILLUSTRATED) WCI G187216-03 Contact Us For Availability
28B
WCI G184823 WCI G184823 Contact Us For Availability
29
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
29
TRIM-SHELF FRONT (3) WCI G172410-18 Contact Us For Availability
30
BOLT 1/4-28 (2) WCI G177025 Contact Us For Availability
30
FRAME-MEAT PAN SHELF WCI G187218-07 Contact Us For Availability
30
INSULATOR-EVAP WCI G169024-03 Contact Us For Availability
31
WCI G172436-12 WCI G172436-12 Contact Us For Availability
31
WCI G185299 WCI G185299 Contact Us For Availability
32
ROLLER-FRONT (2) WCI G177021 Contact Us For Availability
32
GLASS-HALF SHELF (3) WCI G171654-55 Contact Us For Availability
32
WCI G185276 WCI G185276 Contact Us For Availability
33
SPRING-ROLLER ADJ (2) WCI G178494 Contact Us For Availability
33
TRIM-SHELF REAR (2) WCI G172436-11 Contact Us For Availability
33
WCI G188375 WCI G188375 Contact Us For Availability
34
SUPPORT, ROLLER (2) WCI G177302 Contact Us For Availability
34
FRAME-HALF SHELF (2) WCI G171608-18 Contact Us For Availability
35
SCREW-ROLLER ADJ (2) WCI G177024 Contact Us For Availability
35
TRIM-SHELF REAR WCI G172436-17 Contact Us For Availability
35
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
36
WASHER NYLON (2) WCI G182799 Contact Us For Availability
36
FRAME-FULL SHELF WCI G171608-19 Contact Us For Availability
37
WCI G166912 WCI G166912 Contact Us For Availability
37
GLASS-FULL SHELF WCI G171654-56 Contact Us For Availability
38
WCI G163203 WCI G163203 Contact Us For Availability
38
TRIM-SHELF FRONT WCI G172410-10 Contact Us For Availability
39
WCI G191474 WCI G191474 Contact Us For Availability
39
COVER-CRISPER PAN WCI G490016-01 Contact Us For Availability
40
GASKET-PAN COVER WCI G180108-04 Contact Us For Availability
40A
WCI G179797 WCI G179797 Contact Us For Availability
41
WCI G166310-02 WCI G166310-02 Contact Us For Availability
42
WCI G103903 No Longer Available
42
PAN-FRUIT LS WCI G490015-49 Contact Us For Availability
43
WCI G164355 WCI G164355 Contact Us For Availability
43
WCI 3201093 WCI 3201093 Contact Us For Availability
44
WCI G163207 WCI G163207 Contact Us For Availability
44
WCI 3201094 WCI 3201094 Contact Us For Availability
45
WCI 3201092 WCI 3201092 Contact Us For Availability
46
WCI G142220 WCI G142220 Contact Us For Availability
47
WCI G179684-01 WCI G179684-01 Contact Us For Availability
47
WCI G179684-08 WCI G179684-08 Contact Us For Availability
47
WCI G179684-09 WCI G179684-09 Contact Us For Availability
47
WCI G179684-10 WCI G179684-10 Contact Us For Availability
47
WCI G179684-11 WCI G179684-11 Contact Us For Availability
48
WCI G183714 WCI G183714 Contact Us For Availability
49
WCI G183861 WCI G183861 Contact Us For Availability
50
WCI G183558-01 WCI G183558-01 Contact Us For Availability
50
WCI G183558-08 WCI G183558-08 Contact Us For Availability
50
WCI G183558-09 WCI G183558-09 Contact Us For Availability
50
WCI G183558-10 WCI G183558-10 Contact Us For Availability
50
WCI G183558-11 WCI G183558-11 Contact Us For Availability
51
WCI G174747-01 WCI G174747-01 Contact Us For Availability
51
WCI G174747-08 WCI G174747-08 Contact Us For Availability
51
WCI G174747-09 WCI G174747-09 Contact Us For Availability
51
WCI G174747-10 WCI G174747-10 Contact Us For Availability
51
WCI G174747-11 WCI G174747-11 Contact Us For Availability
52
CABINET BASE WCI G490004-01 Contact Us For Availability
× ![]()
