Model Electrolux RT17F9WT3D REFRIGERATOR – Common Parts & Diagrams

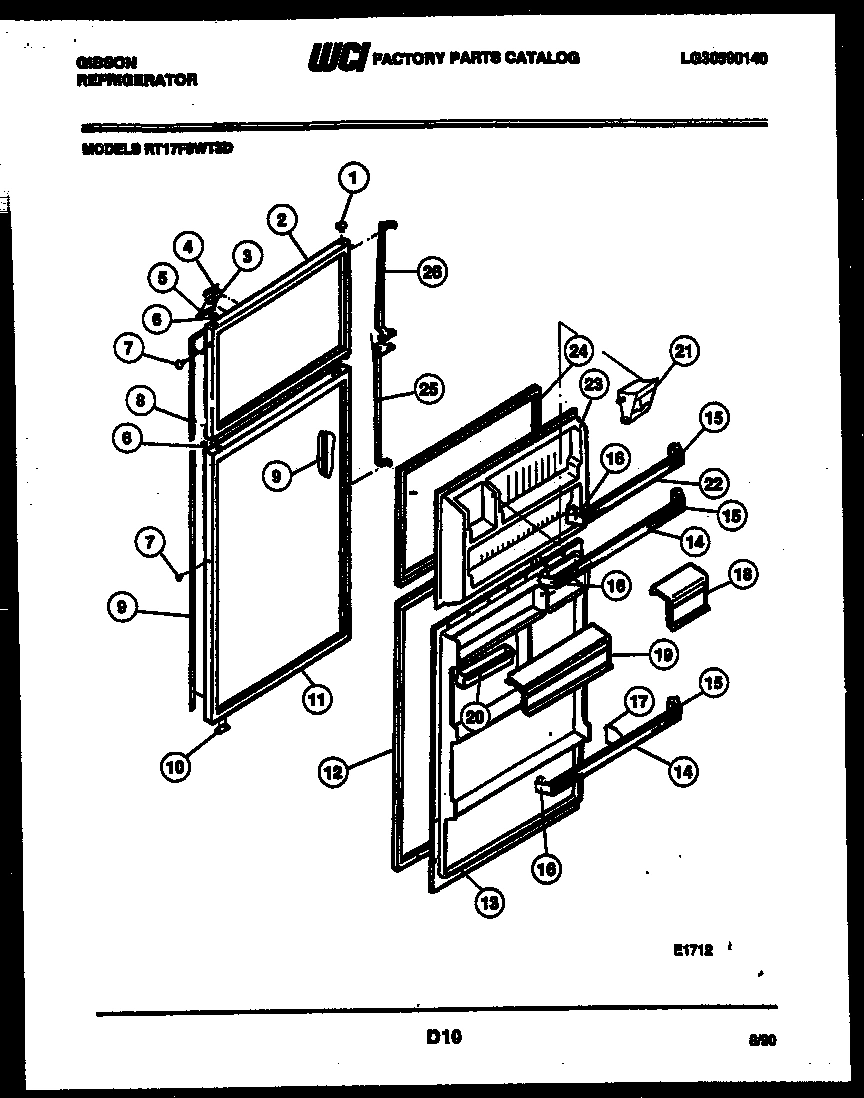

02 - DOOR PARTS

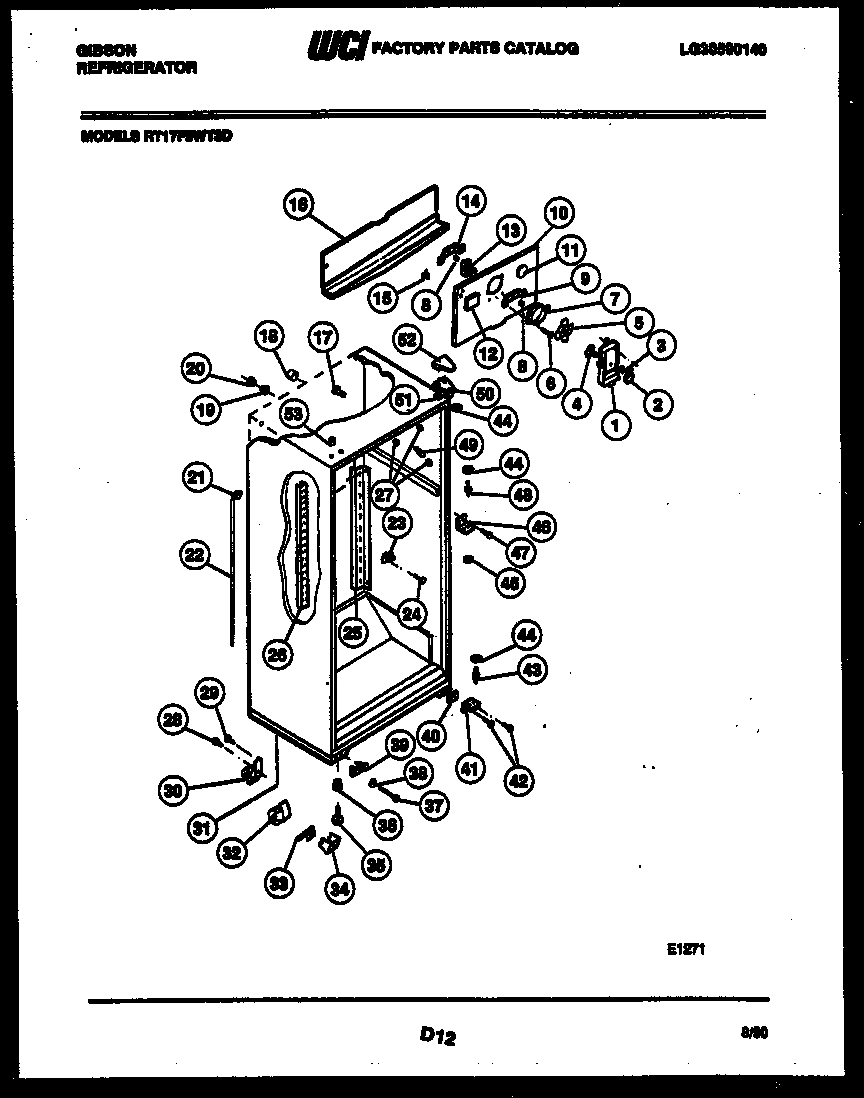

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F9WT3D REFRIGERATOR
*33315
PLUG-LINER (5) WCI 5308016571 Contact Us For Availability
*33340
HOT TUBE REPAIR KIT-SVCE WCI 5300189383 Contact Us For Availability
1
WCI 5303001308 WCI 5303001308 Contact Us For Availability
1
WCI 5308000134 WCI 5308000134 Contact Us For Availability
1
WCI 5316306176 WCI 5316306176 Contact Us For Availability
1
CONTROL BOX WCI 5317672203 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
1A
WCI 5300186232 WCI 5300186232 Contact Us For Availability
1A
LABEL-CONTROL BOX (NON-ILLUSTRATED) WCI G188379-02 Contact Us For Availability
2
WCI 5308011763 WCI 5308011763 Contact Us For Availability
2
WCI 5308010011 WCI 5308010011 Contact Us For Availability
2
WCI 5303001342 WCI 5303001342 Contact Us For Availability
3
WCI 5303001028 WCI 5303001028 Contact Us For Availability
3
WCI 5303001670 WCI 5303001670 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
WCI 5303001331 WCI 5303001331 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3001383 Contact Us For Availability
5
WCI 5303200810 WCI 5303200810 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
5A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
7
WCI 5308000124 WCI 5308000124 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303001226 WCI 5303001226 Contact Us For Availability
9
WCI 3916132 WCI 3916132 Contact Us For Availability
9
WCI 3916133 WCI 3916133 Contact Us For Availability
9
WCI 3916135 WCI 3916135 Contact Us For Availability
9
WCI 5303200465 WCI 5303200465 Contact Us For Availability
9
WCI 5303916134 WCI 5303916134 Contact Us For Availability
10
COVER - EVAPORATOR COIL WCI 3001527 Contact Us For Availability
10
WCI 5308012258 WCI 5308012258 Contact Us For Availability
10A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
11
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
12
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
12
WCI 5308017408 WCI 5308017408 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
WCI 5308003604 WCI 5308003604 Contact Us For Availability
14
WCI 5303001227 WCI 5303001227 Contact Us For Availability
14
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
15
INSULATOR-EVAP WCI 5316651102 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5303016378 WCI 5303016378 Contact Us For Availability
15A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
16
WCI 5308009754 No Longer Available
16
WCI 08010005 WCI 08010005 Contact Us For Availability
16
WCI 5308009750 WCI 5308009750 Contact Us For Availability
17
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
17
WCI 5303001537 WCI 5303001537 Contact Us For Availability
17
WCI 5308009756 WCI 5308009756 Contact Us For Availability
17A
WCI 08000185 WCI 08000185 Contact Us For Availability
18
WCI 5308000071 WCI 5308000071 Contact Us For Availability
18
WCI 5303001198 WCI 5303001198 Contact Us For Availability
19
WCI 5303001546 WCI 5303001546 Contact Us For Availability
19
DAIRY DOOR-LARGE WCI G187460-02 Contact Us For Availability
19
WCI 5303001286 WCI 5303001286 Contact Us For Availability
19
WCI 5308013648 WCI 5308013648 Contact Us For Availability
20
UTILITY BIN WCI G187461-01 Contact Us For Availability
20
WCI 5303001287 WCI 5303001287 Contact Us For Availability
20
WCI 5303007287 WCI 5303007287 Contact Us For Availability
21
WCI 5303207353 WCI 5303207353 Contact Us For Availability
21
DISPENSER-JUICE CAN WCI 3202032 Contact Us For Availability
21
WCI 5303211199 WCI 5303211199 Contact Us For Availability
21
WCI 5308017227 WCI 5308017227 Contact Us For Availability
22
DRAIN TUBE WCI 5303210377 Contact Us For Availability
22
RACK-FRZR UPPER WCI 5303201070 Contact Us For Availability
22
WCI 5303211200 WCI 5303211200 Contact Us For Availability
23
END CAP (2) WCI 3201150 No Longer Available
23
WCI 5308000056 WCI 5308000056 Contact Us For Availability
23
PANEL-FREEZER INNER DOOR WCI 3204553 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
24
GASKET - FRZR DOOR WCI 5303001399 Contact Us For Availability
24
PUSH-PIN SPOUT (2) WCI 5303001361 Contact Us For Availability
25
HANDLE-REFR DOOR WCI 5316850501 Contact Us For Availability
25
CHANNEL-RS & LS WCI 5308000302 Contact Us For Availability
25
ICE CONTAINER WCI G163022-03 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
26
HANDLE-FRZR DOOR WCI 5316850601 Contact Us For Availability
26
WCI 5303015409 WCI 5303015409 Contact Us For Availability
26
MEAT PAN WCI G176918-12 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
26A
SCREW-CHANNEL (3) (NON-ILLUSTRATED) WCI 5308016568 Contact Us For Availability
27
WCI G177343-10 WCI G177343-10 Contact Us For Availability
27
WCI 5300184715 WCI 5300184715 Contact Us For Availability
28
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
28
HANGER-PAN LS WCI 5303210016 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
28A
HANGER-PAN RS (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
28B
SCREW-HANGER MTG (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
29
PAN RETAINER KIT-SVCE WCI 5303916001 Contact Us For Availability
29
WCI 5303209133 WCI 5303209133 Contact Us For Availability
30
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
30
WCI 5303211198 WCI 5303211198 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS WCI 5303916411 Contact Us For Availability
31
WCI 08010091 WCI 08010091 Contact Us For Availability
32
ROLLER, FRONT (2) WCI 5308009760 Contact Us For Availability
32
WCI 5303211197 WCI 5303211197 Contact Us For Availability
33
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
33
WCI 5303211195 WCI 5303211195 Contact Us For Availability
34
SUPPORT-ROLLER (2) WCI 5308013678 Contact Us For Availability
34
WCI 5303211196 WCI 5303211196 Contact Us For Availability
35
WCI 5303205540 WCI 5303205540 Contact Us For Availability
35
TRIM-SHELF REAR WCI 5303211192 Contact Us For Availability
36
WCI 5308003584 WCI 5308003584 Contact Us For Availability
36
FRAME-FULL SHELF WCI 5303211193 Contact Us For Availability
37
SCREW-ROLLER ADJ (2) WCI 5308009761 Contact Us For Availability
37
GLASS-FULL SHELF WCI 5303211194 Contact Us For Availability
38
WASHER-NYLON (2) WCI 5308011326 Contact Us For Availability
38
TRIM-SHELF FRONT WCI 5303209119 Contact Us For Availability
39
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
39
WCI 5308009999 WCI 5308009999 Contact Us For Availability
40
WCI 5303001323 WCI 5303001323 Contact Us For Availability
40
GASKET-PAN COVER WCI 5308009647 Contact Us For Availability
40A
WCI 5308012296 WCI 5308012296 Contact Us For Availability
41
SUPPORT-PAN COVER WCI 5303205987 Contact Us For Availability
41
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
42
PAN-FRUIT LS WCI G490015-46 Contact Us For Availability
43
WCI 3201093 WCI 3201093 Contact Us For Availability
44
WCI 5308000007 WCI 5308000007 Contact Us For Availability
44
PAN-VEGETABLE RS WCI 3201094 Contact Us For Availability
45
WASHER-5/16 NYLON WCI 5308000186 Contact Us For Availability
45
WCI 3201092 WCI 3201092 Contact Us For Availability
46
WCI 5303001369 WCI 5303001369 Contact Us For Availability
48
WCI 5308000184 WCI 5308000184 Contact Us For Availability
49
CORNER TRIM-WHITE (4) WCI 5303202336 Contact Us For Availability
49
CORNER TRIM-AVOC (4) WCI 5303202337 Contact Us For Availability
49
CORNER TRIM-WHEAT (4) WCI 5303202338 Contact Us For Availability
49
CORNER TRIM-COFFEE (4) WCI 5303202339 Contact Us For Availability
49
CORNER TRIM-ALMOND (4) WCI 5303202340 Contact Us For Availability
50
WCI 5308012843 WCI 5308012843 Contact Us For Availability
51
WCI 5303001037 WCI 5303001037 Contact Us For Availability
52
WCI 5303001664 WCI 5303001664 Contact Us For Availability
52
WCI 5303001665 WCI 5303001665 Contact Us For Availability
52
WCI 5303001666 WCI 5303001666 Contact Us For Availability
52
WCI 5308012820 WCI 5308012820 Contact Us For Availability
52
WCI 5308012933 WCI 5308012933 Contact Us For Availability
53
WCI 5303001389 WCI 5303001389 Contact Us For Availability
53
WCI 5303001388 WCI 5303001388 Contact Us For Availability
53
WCI 5303001677 WCI 5303001677 Contact Us For Availability
53
WCI 5303001678 WCI 5303001678 Contact Us For Availability
53
WCI 5303001679 WCI 5303001679 Contact Us For Availability
× ![]()
