Model Electrolux RT17F9WT3B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - SYSTEM AND AUTOMATIC DEFROST PARTS

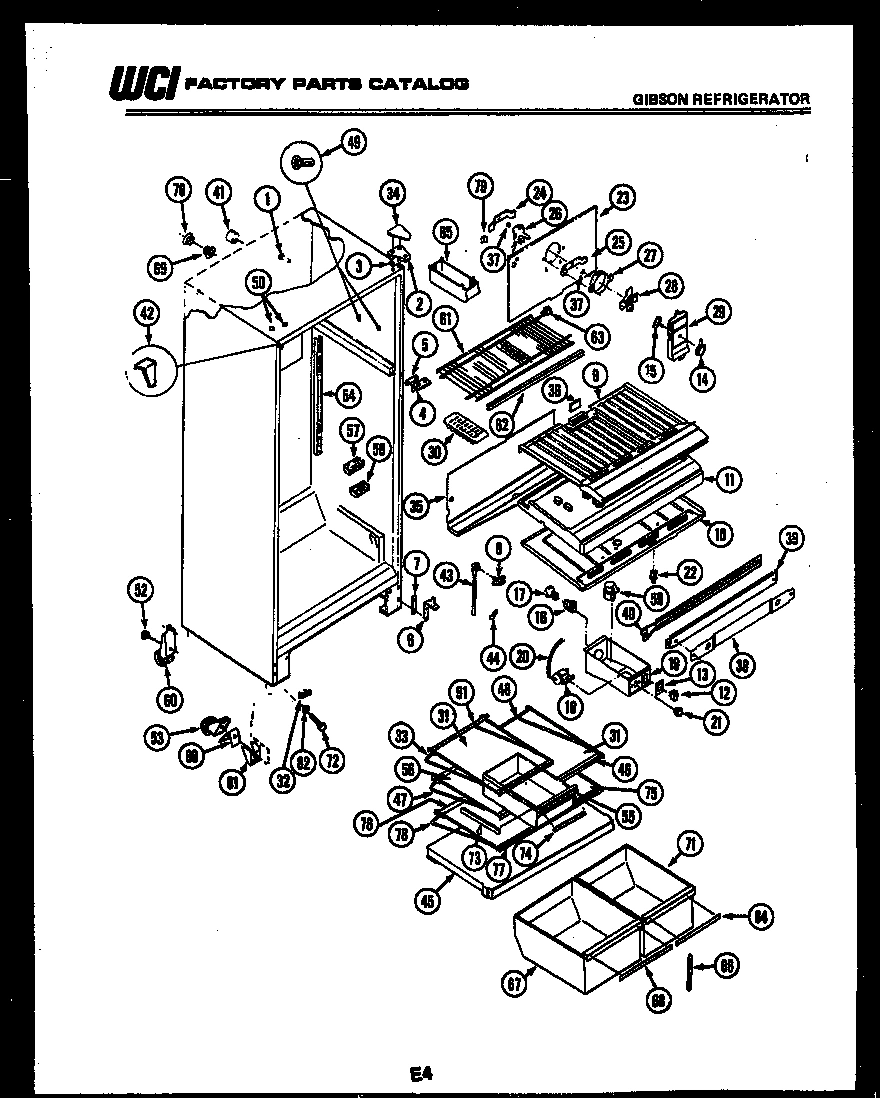

04 - CABINET PARTS

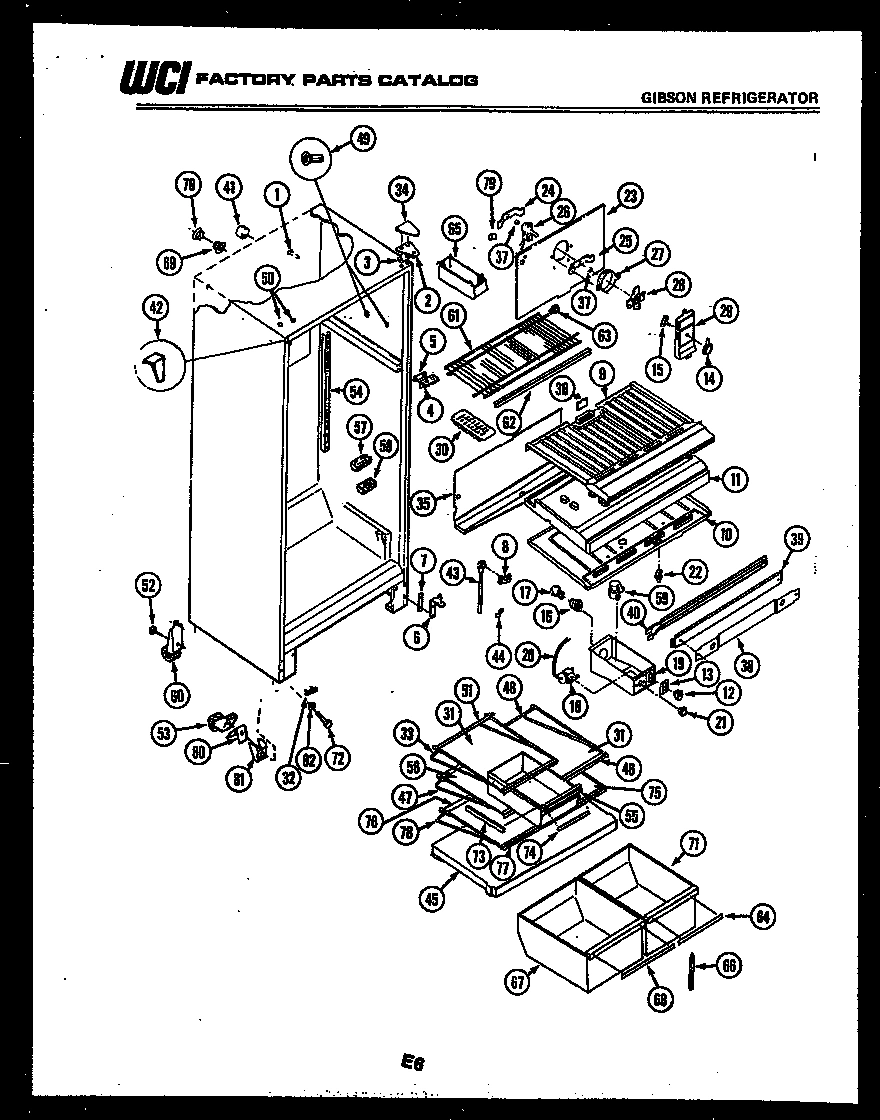

05 - CABINET PARTS
Common parts from model Electrolux RT17F9WT3B REFRIGERATOR
*50512
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*50514
HARNESS-COMPR. WIRING WCI G166062-01 Contact Us For Availability
*50514
WCI G189229-07 WCI G189229-07 Contact Us For Availability
*50515
RETAINER KIT-DRAIN PAN WCI G167234 Contact Us For Availability
*50692
WCI G186765 WCI G186765 Contact Us For Availability
*50695
BUTTON-PLUG-I.M. HOLES WCI G187599 Contact Us For Availability
*50697
BTN.-WTR. INLT. HOLE WCI G142625 Contact Us For Availability
*50697
PLUG - DECOR. WCI G162827-12 Contact Us For Availability
*50698
BTN.-I.M. HARNS. HOLE WCI G161046 Contact Us For Availability
*50699
HARNS.-WRNG.-DIVIDER WCI G174818 Contact Us For Availability
*50702
BTN.-LINER HOLES (2) WCI G162892-01 Contact Us For Availability
*50703
WCI G188124 WCI G188124 Contact Us For Availability
*50706
WCI G183100-59 WCI G183100-59 Contact Us For Availability
1
WCI G189018-08 WCI G189018-08 Contact Us For Availability
1
WCI G189018-09 WCI G189018-09 Contact Us For Availability
1
WCI G189018-10 WCI G189018-10 Contact Us For Availability
1
WCI G189018-11 WCI G189018-11 Contact Us For Availability
1
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
1
WCI G163669 WCI G163669 Contact Us For Availability
2
STOP,DOOR WCI G155072 Contact Us For Availability
2
HINGE-UPPER WCI G183714 Contact Us For Availability
2C
WASHER-NYLON (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
3
WCI G168506-01 WCI G168506-01 Contact Us For Availability
3
EVAPORATOR WCI G176909 Contact Us For Availability
3
SHIM, HINGE WCI G183861 Contact Us For Availability
4
HANDLE - REFRIG. DOOR WCI G168505-01 Contact Us For Availability
4
HINGE-CENTER WCI G163207 Contact Us For Availability
4A
WCI G103903 No Longer Available
4A
WCI G185566 WCI G185566 Contact Us For Availability
4B
SCREW-NO. 10-24 X 3/4 (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
4C
WCI G142220 WCI G142220 Contact Us For Availability
5
WCI G167150-11 WCI G167150-11 Contact Us For Availability
5
WCI G177531 WCI G177531 Contact Us For Availability
5
SHIM, HINGE WCI G162683 Contact Us For Availability
6
WCI G167404-01 WCI G167404-01 Contact Us For Availability
6
HINGE - LOWER WCI G181019 Contact Us For Availability
6A
WCI G141673 WCI G141673 Contact Us For Availability
6B
PLATE - TAPPING WCI G157591 Contact Us For Availability
7
GASKET WCI G186932-03 Contact Us For Availability
7
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
7
SHIM, HINGE WCI G163203 Contact Us For Availability
8
PANEL INTERIOR DOOR WCI G187511-02 Contact Us For Availability
8
WCI G182225-11 WCI G182225-11 Contact Us For Availability
8
SPOUT, DRAIN WCI G162179 Contact Us For Availability
8A
PIN, PUSH (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
8B
TAPE - NAME PLATE (NON-ILLUSTRATED) WCI G141624-04 Contact Us For Availability
9
SUPPORT RACKS (3) WCI G178287-02 Contact Us For Availability
9
BOTTOM, FREEZER WCI G490022-01 Contact Us For Availability
10
SUPPORT RACKS (3) WCI G178284-02 Contact Us For Availability
10
TOP, REFRIGERATOR WCI G490021-01 Contact Us For Availability
10A
SCREW NO. 8 X 1 3/4 (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
11
RACK-FZR.-UPPER WCI G161019-63 Contact Us For Availability
11
WCI G185810 WCI G185810 Contact Us For Availability
11
DVDR.-COMPARTMENT WCI G176774 Contact Us For Availability
12
RACK - DOOR WCI G161019-64 Contact Us For Availability
12
CORD, SERVICE WCI G162549-01 Contact Us For Availability
12
WCI G178402-02 WCI G178402-02 Contact Us For Availability
12A
SNUGGER RACK (NON-ILLUSTRATED) WCI G187079-01 Contact Us For Availability
13
DOOR-DAIRY RS WCI G187490-02 Contact Us For Availability
13
LABEL-BOX WCI G188379-02 Contact Us For Availability
14
WCI G187460-02 WCI G187460-02 Contact Us For Availability
14
KNOB-DAMPER CONT. WCI G162747-06 Contact Us For Availability
14
WCI G168701 WCI G168701 Contact Us For Availability
15
WCI G187461-01 WCI G187461-01 Contact Us For Availability
15
WCI G178225 WCI G178225 Contact Us For Availability
15
DAMPER FAN COVER WCI G162661 Contact Us For Availability
15A
NUT-DAMPER MOUNTING (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
16
RACK, JUICE CAN WCI G187492-02 Contact Us For Availability
16
BRKT. CONDENSER MTG. WCI G164637 Contact Us For Availability
16
SOCKET LIGHT WCI G168302 Contact Us For Availability
17
WCI G187494-02 WCI G187494-02 Contact Us For Availability
17
BLOCK-EVAPORATOR LS WCI G188375 Contact Us For Availability
18
WASHER COMPR. MTG WCI G164634 Contact Us For Availability
18
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
18A
WCI G107080 WCI G107080 Contact Us For Availability
19
LABEL, LOWER WCI G175393-01 Contact Us For Availability
19
CLIP, COMPR MTG WCI G163204 Contact Us For Availability
19
WCI G176722-03 WCI G176722-03 Contact Us For Availability
20
LABEL, UPPER WCI G188378-02 Contact Us For Availability
20
WCI G184599 WCI G184599 Contact Us For Availability
21
NAMEPLATE WCI G175117-02 Contact Us For Availability
21
WCI G184669 WCI G184669 Contact Us For Availability
21
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
22
WCI G189020 WCI G189020 Contact Us For Availability
22
WCI G189020-08 WCI G189020-08 Contact Us For Availability
22
WCI G189020-09 WCI G189020-09 Contact Us For Availability
22
WCI G189020-10 WCI G189020-10 Contact Us For Availability
22
WCI G189020-11 WCI G189020-11 Contact Us For Availability
23
PAN, DEFROST WCI G184715 Contact Us For Availability
23
WCI G176979 WCI G176979 Contact Us For Availability
24
NUT WCI G164958 Contact Us For Availability
24
WCI G185303 WCI G185303 Contact Us For Availability
25
BLOCK - EVAPORATOR RS WCI G185299 Contact Us For Availability
25
WCI G185302 WCI G185302 Contact Us For Availability
26
PLUG - BLOCK RS WCI G185276 Contact Us For Availability
27
WCI G183584 WCI G183584 Contact Us For Availability
27
RING-FAN ORFICE WCI G167217 Contact Us For Availability
27A
NUT-SPEED (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
28
INSUL. - EVAPORATOR WCI G169024-03 Contact Us For Availability
29
WCI G163061-76 WCI G163061-76 Contact Us For Availability
29A
LABEL - FAN COVER (NON-ILLUSTRATED) WCI G186232 Contact Us For Availability
32
BUTTON-PLUG WCI G166912 Contact Us For Availability
33
WCI G171608-18 WCI G171608-18 Contact Us For Availability
34
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
34
COVER HINGE, AVOC. WCI G183558-08 Contact Us For Availability
34
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
34
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
34
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
35
TROUGH-DRAIN WCI G490043 Contact Us For Availability
36
PAD FOAM WCI G168866 Contact Us For Availability
38
STRAP-MULLION WCI G166709 Contact Us For Availability
39
MULLION, WHITE WCI G490086-01 Contact Us For Availability
39
WCI G490086-08 WCI G490086-08 Contact Us For Availability
39
MULLION, WHEAT WCI G490086-09 Contact Us For Availability
39
MULLION, COFFEE WCI G490086-10 Contact Us For Availability
39
MULLION, ALMOND WCI G490086-11 Contact Us For Availability
40
WCI G187921 WCI G187921 Contact Us For Availability
41
TUBE-IN FERRULE WCI G85642 Contact Us For Availability
42
TRIM, CORNER, WHITE WCI G179684-01 Contact Us For Availability
42
TRIM CORNER AVOC. WCI G179684-08 Contact Us For Availability
42
TRIM, CORNER, WHEAT WCI G179684-09 Contact Us For Availability
42
TRIM, CORNER, COFFEE WCI G179684-10 Contact Us For Availability
42
TRIM-CORNER-AL WCI G179684-11 Contact Us For Availability
43
WCI G184920-02 WCI G184920-02 Contact Us For Availability
44
WCI G101747 WCI G101747 Contact Us For Availability
45
WCI G490016-01 WCI G490016-01 Contact Us For Availability
45A
WCI G180108-04 WCI G180108-04 Contact Us For Availability
46
WCI G172410-18 WCI G172410-18 Contact Us For Availability
47
WCI G187218-07 WCI G187218-07 Contact Us For Availability
48
WCI G172436-11 WCI G172436-11 Contact Us For Availability
50
WCI G174747-01 WCI G174747-01 Contact Us For Availability
50
WCI G174747-08 WCI G174747-08 Contact Us For Availability
50
WCI G174747-09 WCI G174747-09 Contact Us For Availability
50
WCI G174747-10 WCI G174747-10 Contact Us For Availability
50
WCI G174747-11 WCI G174747-11 Contact Us For Availability
51
WCI G172436-12 WCI G172436-12 Contact Us For Availability
52
BOLT WCI G177025 Contact Us For Availability
53
ROLLER, ASSY FRONT WCI G177021 Contact Us For Availability
54
CHANNEL, SHELF (2) WCI G170695 Contact Us For Availability
54B
CHANNEL, CENTER (NON-ILLUSTRATED) WCI G175612 Contact Us For Availability
55
WCI G176918-12 WCI G176918-12 Contact Us For Availability
56
SHELF-GLASS WCI G171654-55 Contact Us For Availability
57
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
58
DEFLECTOR AIR WCI G162675 Contact Us For Availability
60
ROLLER ASSY REAR WCI G183407 Contact Us For Availability
61
WCI G177059-10 WCI G177059-10 Contact Us For Availability
62
TRIM - SHELF WCI G172410-09 Contact Us For Availability
63
WCI G166495-01 WCI G166495-01 Contact Us For Availability
64
WCI G177343-16 WCI G177343-16 Contact Us For Availability
65
WCI G163022-03 WCI G163022-03 Contact Us For Availability
66
SUPT-CRISPER COVER WCI G166310-02 Contact Us For Availability
67
WCI G490015-49 WCI G490015-49 Contact Us For Availability
68
WCI G177343-17 WCI G177343-17 Contact Us For Availability
69
WCI G174733 WCI G174733 Contact Us For Availability
70
WCI G174734 WCI G174734 Contact Us For Availability
71
WCI G490015-48 WCI G490015-48 Contact Us For Availability
72
BOLT WCI G177024 Contact Us For Availability
73
WCI G187215-03 WCI G187215-03 Contact Us For Availability
73A
WCI G187216-03 WCI G187216-03 Contact Us For Availability
74
WCI G177343-10 WCI G177343-10 Contact Us For Availability
75
WCI G171654-56 WCI G171654-56 Contact Us For Availability
76
WCI G172436-17 WCI G172436-17 Contact Us For Availability
77
WCI G172410-10 WCI G172410-10 Contact Us For Availability
78
WCI G171608-19 WCI G171608-19 Contact Us For Availability
79
WCI G164571 WCI G164571 Contact Us For Availability
80
SPRING, ROLLER ADJ. WCI G178494 Contact Us For Availability
81
SUPPORT WCI G177302 Contact Us For Availability
82
WCI G183799 WCI G183799 Contact Us For Availability
× ![]()
