Model Electrolux RT17F8WT3B REFRIGERATOR – Common Parts & Diagrams

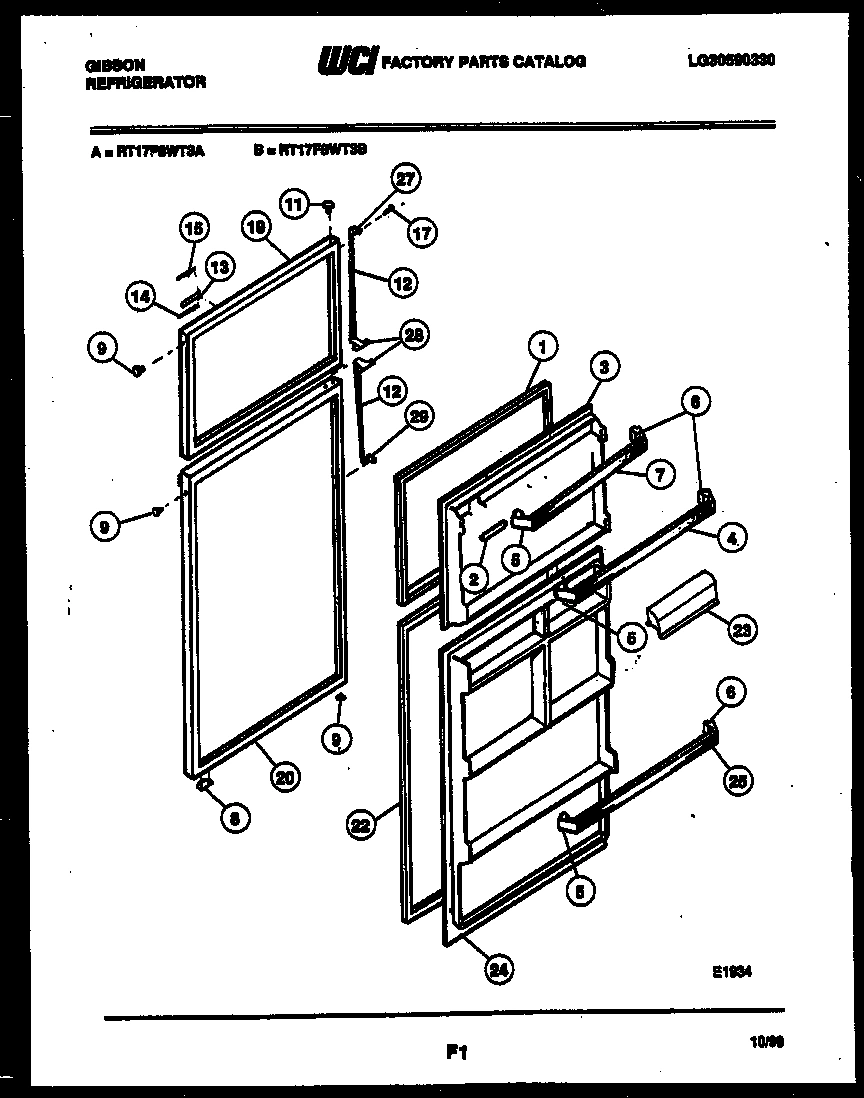

02 - DOOR PARTS

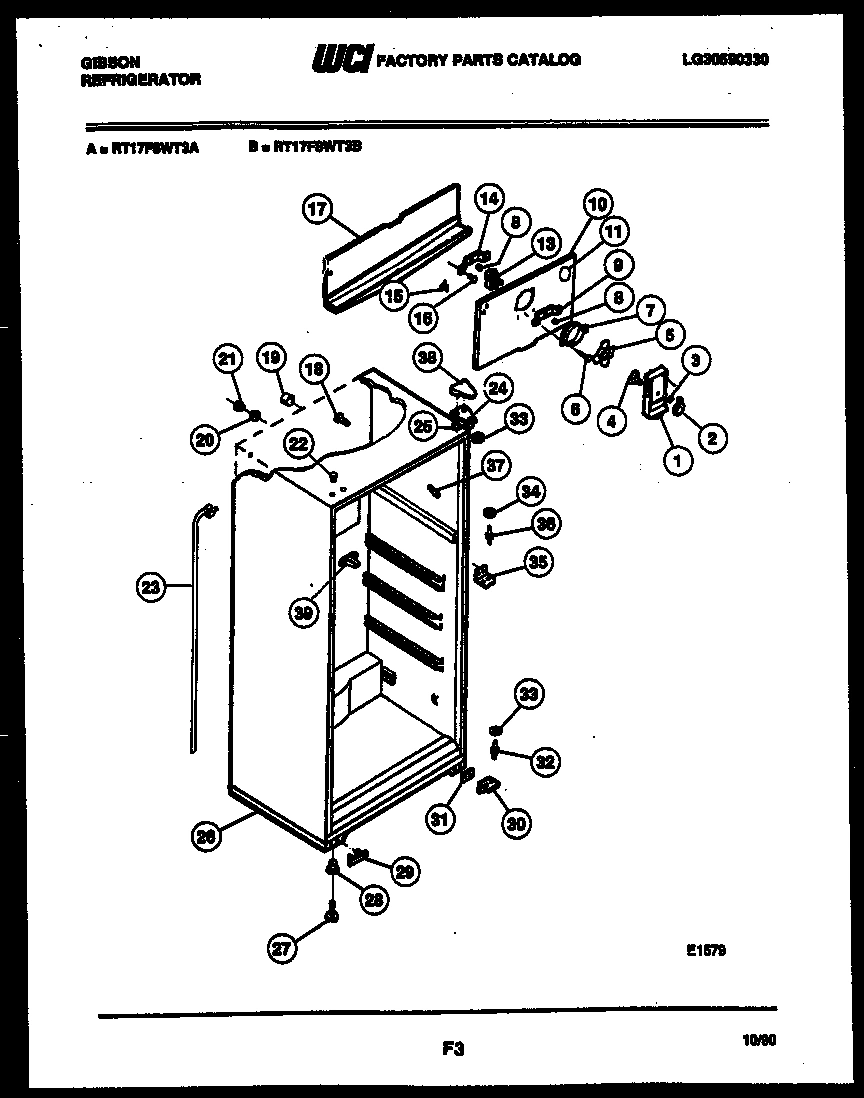

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
06 - ICE MAKER INSTALLATION PARTS
07 - ICE MAKER PARTS
Common parts from model Electrolux RT17F8WT3B REFRIGERATOR
*28879
PLUG - LINER (3) WCI 5308016571 Contact Us For Availability
*28879
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
*28902
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*28907
WCI 5303015102 WCI 5303015102 Contact Us For Availability
*28907
WCI 5308000247 WCI 5308000247 Contact Us For Availability
*28908
WCI 5303001191 WCI 5303001191 Contact Us For Availability
*28912
LABEL-COVER WCI 3200851 Contact Us For Availability
1
WCI G163061-81 WCI G163061-81 Contact Us For Availability
1
CONTROL BOX WCI 5317672203 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
1
WIRING HARNESS-I/M WCI 5303001567 Contact Us For Availability
1
WCI 5308001254 WCI 5308001254 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
WCI 5308010011 WCI 5308010011 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
2
WCI 5308001243 WCI 5308001243 Contact Us For Availability
3
WCI 5303001028 WCI 5303001028 Contact Us For Availability
3
LABEL-CONTROL BOX WCI G188379-01 Contact Us For Availability
3
WCI 5303001576 WCI 5303001576 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
WCI 5303001331 WCI 5303001331 Contact Us For Availability
4
WIRING HARNESS-CNTRL WCI 3001383 Contact Us For Availability
4
WCI 5308001253 WCI 5308001253 Contact Us For Availability
5
WCI 5303200810 WCI 5303200810 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
5
WCI 5303001606 WCI 5303001606 Contact Us For Availability
5A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6
WCI 5303206614 WCI 5303206614 Contact Us For Availability
7
WCI 5308000124 WCI 5308000124 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WCI 5308001235 WCI 5308001235 Contact Us For Availability
8
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
8
WCI 5303206615 WCI 5303206615 Contact Us For Availability
9
WCI 5303001226 WCI 5303001226 Contact Us For Availability
10
COVER-EVAPORATOR COIL WCI 5308012296 Contact Us For Availability
10
WCI 3916132 WCI 3916132 Contact Us For Availability
10
WCI 3916133 WCI 3916133 Contact Us For Availability
10
WCI 3916135 WCI 3916135 Contact Us For Availability
10
WCI 5303200465 WCI 5303200465 Contact Us For Availability
10
WCI 5303916134 WCI 5303916134 Contact Us For Availability
10
WCI 5303001563 WCI 5303001563 Contact Us For Availability
10
WCI 5303206616 WCI 5303206616 Contact Us For Availability
10A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
11
PLUG, HINGE, ALMOND WCI 5303001308 Contact Us For Availability
11
PLUG, HINGE, WHITE WCI 5308000134 Contact Us For Availability
11
PLUG-SHORT TEST HOLE WCI 5303203044 Contact Us For Availability
11
WCI 5308012258 WCI 5308012258 Contact Us For Availability
12
WASHER, NO. 10 STEEL (2) WCI 5308003607 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
12
WCI 5308000200 WCI 5308000200 Contact Us For Availability
12
WCI 5303206617 WCI 5303206617 Contact Us For Availability
13
WCI 5308017408 WCI 5308017408 Contact Us For Availability
13
WCI 5308001250 WCI 5308001250 Contact Us For Availability
14
WCI 5303205119 WCI 5303205119 Contact Us For Availability
14
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
14
WCI 5303200619 WCI 5303200619 Contact Us For Availability
15
INSULATOR-EVAP WCI 5316651102 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5308003604 WCI 5308003604 Contact Us For Availability
15
WCI 5303001577 WCI 5303001577 Contact Us For Availability
16
WCI 5308009754 No Longer Available
16
WCI 5303016378 WCI 5303016378 Contact Us For Availability
16
WCI 5308001238 WCI 5308001238 Contact Us For Availability
16A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
17
WCI 08010005 WCI 08010005 Contact Us For Availability
17
WCI 5308009750 WCI 5308009750 Contact Us For Availability
17
WCI 5308009756 WCI 5308009756 Contact Us For Availability
17
WCI 5308014553 WCI 5308014553 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
WCI 5303001537 WCI 5303001537 Contact Us For Availability
18
WCI 5303001583 WCI 5303001583 Contact Us For Availability
19
WCI 5308000071 WCI 5308000071 Contact Us For Availability
19
WCI 5303001198 WCI 5303001198 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
BRACKET-VALVE TO REAR PNL WCI 5303001561 Contact Us For Availability
19
WCI 5308001244 WCI 5308001244 Contact Us For Availability
20
WCI 5303001546 WCI 5303001546 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION PUG-RH WCI 5303007287 Contact Us For Availability
20
VALVE SOLENOID WCI 5303204159 Contact Us For Availability
20
WCI 5308001148 WCI 5308001148 Contact Us For Availability
21
WCI 3206360 WCI 3206360 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001574 WCI 5303001574 Contact Us For Availability
22
WCI 5303001389 WCI 5303001389 Contact Us For Availability
22
WCI 5303001388 WCI 5303001388 Contact Us For Availability
22
WCI 5303001677 WCI 5303001677 Contact Us For Availability
22
WCI 5303001678 WCI 5303001678 Contact Us For Availability
22
WCI 5303001679 WCI 5303001679 Contact Us For Availability
22
WCI 5317241002 WCI 5317241002 Contact Us For Availability
22
WCI 5303001589 WCI 5303001589 Contact Us For Availability
23
DEFROST DRAIN TUBE-W/ SEAL RING WCI 5303210377 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5308001242 WCI 5308001242 Contact Us For Availability
23A
SEAL-RING (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
24
WCI 5308012843 WCI 5308012843 Contact Us For Availability
24
SHELF-REFR (3) WCI G181153-05 Contact Us For Availability
24
SWITCH-FILL WCI 5303001575 Contact Us For Availability
25
WCI 5303001037 WCI 5303001037 Contact Us For Availability
25
WCI 5349001601 WCI 5349001601 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
25
WCI 3018588 WCI 3018588 Contact Us For Availability
26
WCI 08010091 WCI 08010091 Contact Us For Availability
26
PAN-CRISPER-RH WCI G490015-38 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
26
WCI 5303206622 WCI 5303206622 Contact Us For Availability
27
WCI 5303205540 WCI 5303205540 Contact Us For Availability
27
PAN-CRISPER-LH WCI G490015-39 Contact Us For Availability
27
WCI 5300184715 WCI 5300184715 Contact Us For Availability
27
WCI 5303001590 WCI 5303001590 Contact Us For Availability
28
SUPPORT-PAN COVER ADJ WCI 5303205987 Contact Us For Availability
28
WCI 5303001296 WCI 5303001296 Contact Us For Availability
28
WCI 5308003584 WCI 5308003584 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN RETAINER KIT-SVCE WCI 5303916001 Contact Us For Availability
29
WCI 5303001295 WCI 5303001295 Contact Us For Availability
29
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
29
SLIDE-SWITCH-ENERGY SAVER WCI 5303001670 Contact Us For Availability
29
WCI 5303206624 WCI 5303206624 Contact Us For Availability
30
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
30
WCI G184572-03 WCI G184572-03 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS WCI 5303916411 Contact Us For Availability
30
WCI 5308001251 WCI 5308001251 Contact Us For Availability
30A
WCI 5303001601 WCI 5303001601 Contact Us For Availability
31
CAP PROTECTOR (2) WCI 3201150 No Longer Available
31
WCI 5303007171 WCI 5303007171 Contact Us For Availability
31
WCI 5303001323 WCI 5303001323 Contact Us For Availability
31
WCI 5303206625 WCI 5303206625 Contact Us For Availability
32
WCI 5303007416 WCI 5303007416 Contact Us For Availability
32
WCI 5300159902 WCI 5300159902 Contact Us For Availability
32A
WCI 5303017762 WCI 5303017762 Contact Us For Availability
33
WCI 5303206626 WCI 5303206626 Contact Us For Availability
33A
WASHER-1/4 X 5/8 OD-NYLON (2) WCI 5308000007 Contact Us For Availability
34
WCI 5308000236 WCI 5308000236 Contact Us For Availability
34A
WASHER, NYLON WCI 5308000186 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
WCI 5308001246 WCI 5308001246 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
CORNER TRIM-WHITE (4) WCI 5303202336 Contact Us For Availability
37
CORNER TRIM-AVOC (4) WCI 5303202337 Contact Us For Availability
37
CORNER TRIM-WHEAT (4) WCI 5303202338 Contact Us For Availability
37
CORNER TRIM-COFFEE (4) WCI 5303202339 Contact Us For Availability
37
CORNER TRIM-ALMD (4) WCI 5303202340 Contact Us For Availability
38
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
38
WCI 5303001665 WCI 5303001665 Contact Us For Availability
38
WCI 5303001666 WCI 5303001666 Contact Us For Availability
38
WCI 5308012820 WCI 5308012820 Contact Us For Availability
38
WCI 5308012933 WCI 5308012933 Contact Us For Availability
38
COVER-ICE MAKER WCI 5308000214 Contact Us For Availability
39
WCI 5308000056 WCI 5308000056 Contact Us For Availability
× ![]()
