Model Electrolux RT17F7WX4A REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

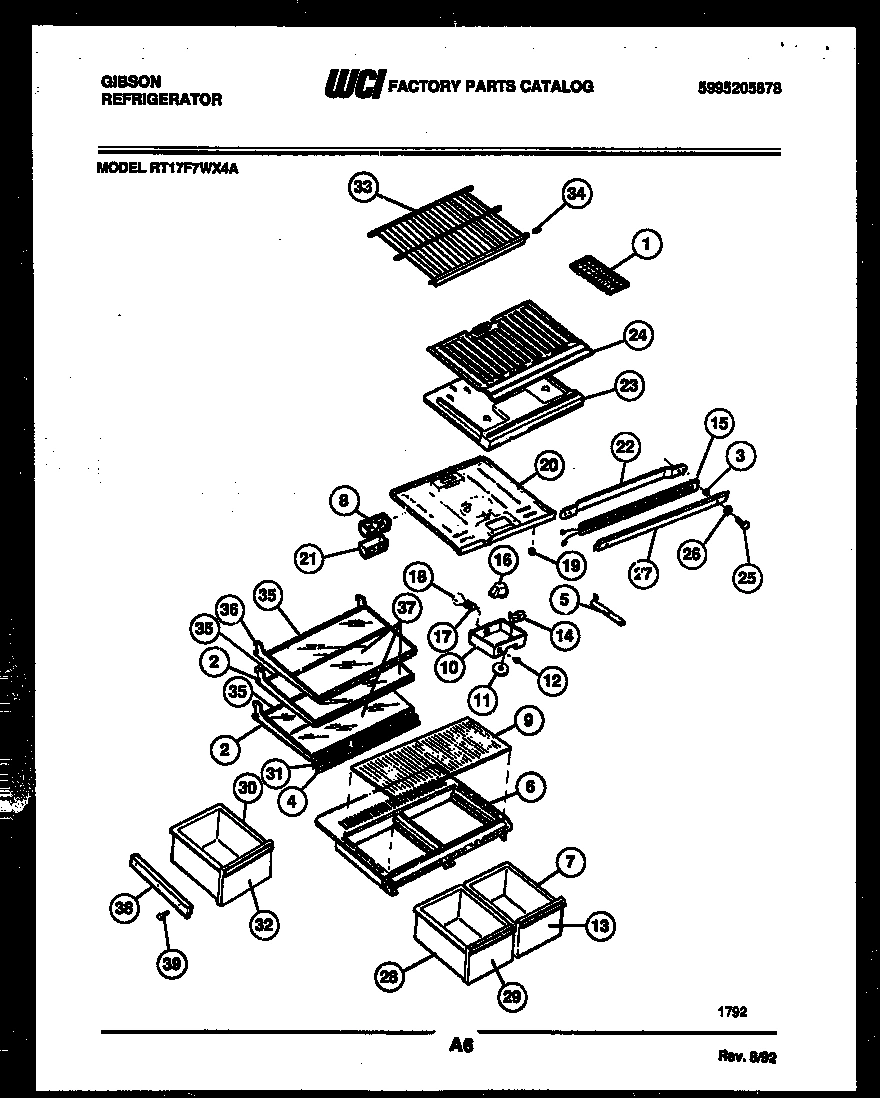

04 - SHELVES AND SUPPORTS

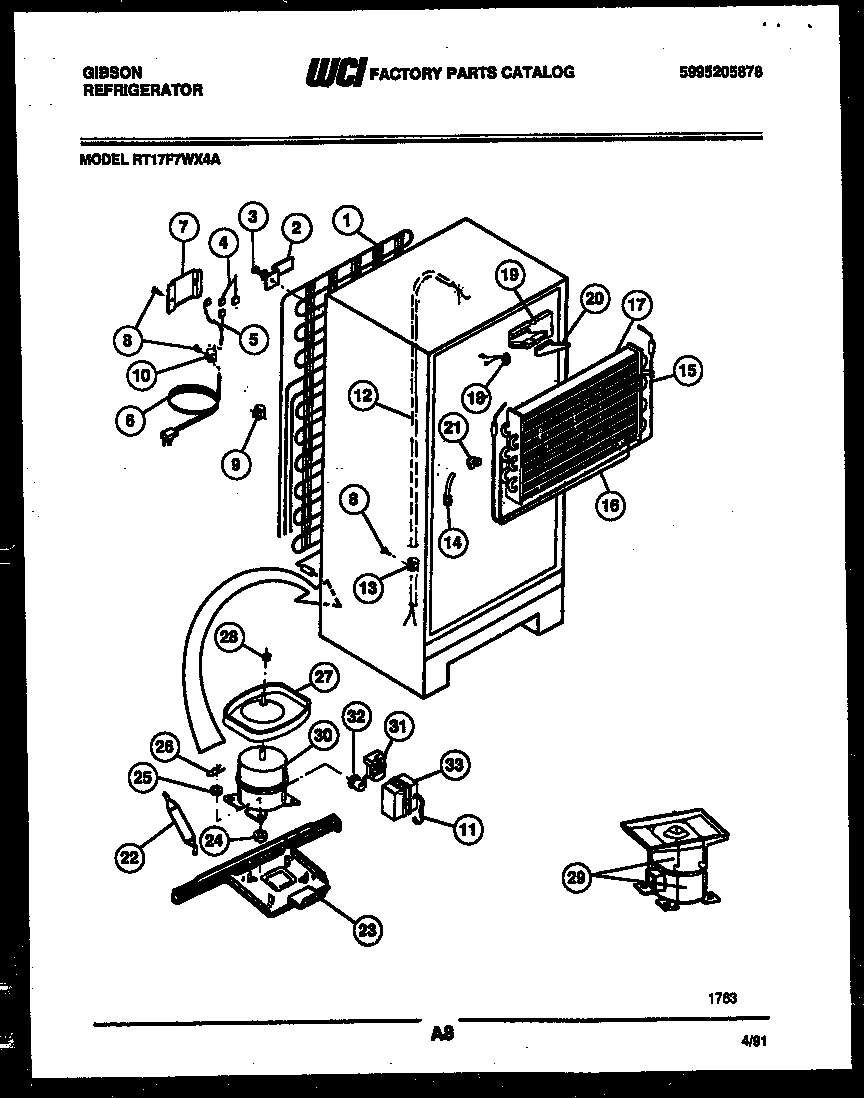

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F7WX4A REFRIGERATOR
*47597
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
*47598
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*47618
HOT TUBE REPAIR KIT-SVCE WCI 3916557 Contact Us For Availability
*47618
CAPACITOR WCI 5303916391 Contact Us For Availability
1
WCI 5303272512 WCI 5303272512 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
1A
WCI 5303272493 WCI 5303272493 Contact Us For Availability
2
PLUG BUTTON, ALMD (2) WCI 5303001308 Contact Us For Availability
2
PLUG BUTTON, WHITE (2) WCI 5308000134 Contact Us For Availability
2
WCI 3206381 WCI 3206381 Contact Us For Availability
2
FRAME-SHELF (2) WCI 5303211193 Contact Us For Availability
2
WCI 5303001342 WCI 5303001342 Contact Us For Availability
3
WCI 5303001028 WCI 5303001028 Contact Us For Availability
3
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
3A
WASHER - NO. 10 EXT TOOTH LOCK (2) (NON-ILLUS WCI 5308009617 Contact Us For Availability
4
DAMPER-FAN WCI 3206110 Contact Us For Availability
4
TRIM-SHELF (3) WCI 5303272551 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
5
WCI 3018891 WCI 3018891 Contact Us For Availability
5
WIRING HARNESS-COMPR WCI 3206113 Contact Us For Availability
6
CRISPER COVER WCI 3206183 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
WCI 5308000124 WCI 5308000124 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
8A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
9
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
9
WCI 5303272526 WCI 5303272526 Contact Us For Availability
10
COVER-EVAPORATOR COIL WCI 3206119 Contact Us For Availability
10
CONTROL BOX WCI 5303272507 Contact Us For Availability
10A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 5303209251 Contact Us For Availability
12
PLUG-DECORATIVE WCI 5303272494 Contact Us For Availability
12
SWITCH-ROCKER WCI 5303272508 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
WCI 5303272513 WCI 5303272513 Contact Us For Availability
14
WCI 5303205119 WCI 5303205119 Contact Us For Availability
14
WCI 5303018894 WCI 5303018894 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 3206120 WCI 3206120 Contact Us For Availability
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
16
DRAIN TROUGH WCI 3206146 Contact Us For Availability
17
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
17
WCI 5308009756 WCI 5308009756 Contact Us For Availability
18
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
PLUG-UPR HINGE HOLES-ALMOND (2) WCI 5303001389 Contact Us For Availability
19
PLUG-UPR HINGE HOLES-WHITE (2) WCI 5303001388 Contact Us For Availability
19
PLUG-UPR HINGE HOLES-WHEAT (2) WCI 5303001678 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
HINGE COVER-WHITE WCI 3206101 Contact Us For Availability
20
WCI 3206103 WCI 3206103 Contact Us For Availability
20
HINGE COVER-ALMOND WCI 3206105 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 3206185 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
WCI 5303001448 WCI 5303001448 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
DRAIN TUBE & RING SEAL WCI 5303269702 Contact Us For Availability
22
WCI 5308003604 WCI 5308003604 Contact Us For Availability
23
WCI 5308000056 WCI 5308000056 Contact Us For Availability
23
DOOR STOP (2) WCI 5308000255 Contact Us For Availability
23
WCI 3206186 WCI 3206186 Contact Us For Availability
23
MTG PLATE & RAIL-COMPR WCI 3206126 Contact Us For Availability
24
TRIM WCI 5318755101 Contact Us For Availability
24
PUSH-IN SPOUT (2) WCI 5303001361 Contact Us For Availability
24
BOTTOM-FREEZER WCI 3206187 Contact Us For Availability
25
SCREW - MULLION (2) WCI 3206134 Contact Us For Availability
25
WCI 5308003633 WCI 5308003633 Contact Us For Availability
26
BUTTON PLUG (2) WCI 3206142 Contact Us For Availability
26
WASHER, NO. 10 STEEL (2) WCI 5308003607 Contact Us For Availability
26
WCI 5308003596 WCI 5308003596 Contact Us For Availability
27
ROLLER-FRONT (2) WCI 5300188673 Contact Us For Availability
27
WCI 3206121 WCI 3206121 Contact Us For Availability
27
WCI 3206123 WCI 3206123 Contact Us For Availability
27
WCI 3206125 WCI 3206125 Contact Us For Availability
27
WCI 5300184715 WCI 5300184715 Contact Us For Availability
28
PAN-LH WCI 3206180 No Longer Available
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN-RETAINER KIT-INCLUDED W/ SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
BOLT-1/4-20 (2) WCI 5308009761 Contact Us For Availability
29
WCI 5303272514 WCI 5303272514 Contact Us For Availability
30
COVER-HINGE SCREWS WCI 3206135 Contact Us For Availability
30
MEAT PAN WCI 3206351 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS - SERVICE WCI 5303916004 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
BRACKET-BOTTOM HINGE WCI 3206136 Contact Us For Availability
31
SHELF-RETAINER (3) WCI 5303209274 Contact Us For Availability
32
WCI 5303272515 WCI 5303272515 Contact Us For Availability
32
WCI 3201680 WCI 3201680 Contact Us For Availability
33
WCI 5303001321 WCI 5303001321 Contact Us For Availability
33
WCI 5317705906 WCI 5317705906 Contact Us For Availability
34
CAP PROTECTOR (2) WCI 3201150 No Longer Available
34
WASHER-1/4 X 5/8 OD NYLON (3) WCI 5308000007 Contact Us For Availability
35
WASHER-5/16 X 5/8 OD NYLON WCI 5308000186 No Longer Available
35
TRIM-SHELF (3) WCI 5303272552 Contact Us For Availability
36
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
FRAME-SHELF WCI 5303272553 Contact Us For Availability
37
GLASS-SHELF (3) WCI 5303272554 Contact Us For Availability
38
WCI 5308000184 WCI 5308000184 Contact Us For Availability
38
HANGER-MEAT PAN-LH WCI 3206379 Contact Us For Availability
38A
WCI 3206380 WCI 3206380 Contact Us For Availability
39
TRIM-CAB CORNER-WHITE WCI 5303202336 Contact Us For Availability
39
TRIM-CAB CORNER-WHEAT WCI 5303202338 Contact Us For Availability
39
TRIM-CAB CORNER-ALMD WCI 5303202340 Contact Us For Availability
39
SCREW MTG WCI 08014528 Contact Us For Availability
40
HINGE, TOP WCI 3206100 Contact Us For Availability
41
WCI 5303001037 WCI 5303001037 Contact Us For Availability
43
WCI 3206237 WCI 3206237 Contact Us For Availability
44
WCI 5308009710 WCI 5308009710 Contact Us For Availability
45
WASHER-NYLON (2) WCI 5308011326 Contact Us For Availability
47
CHANNEL-SHELF MTG (2) WCI 3206202 Contact Us For Availability
× ![]()
