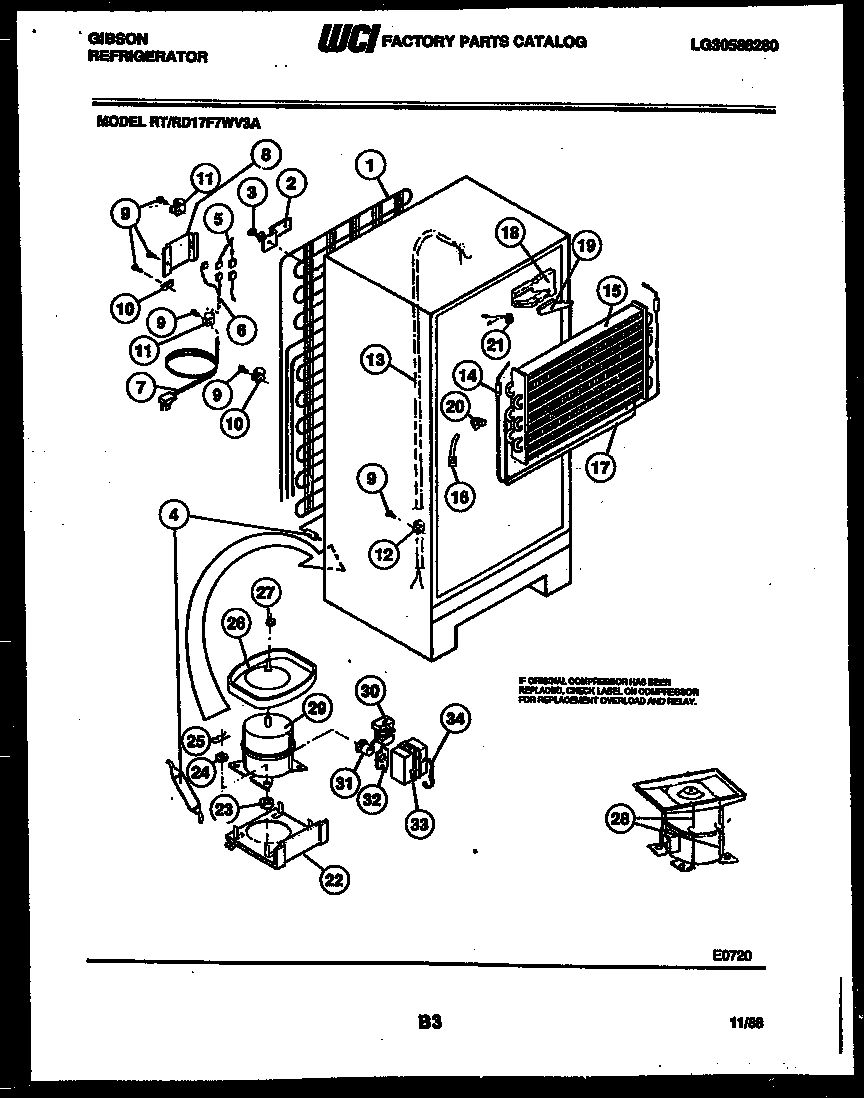

Model Electrolux RT17F7WV3A REFRIGERATOR – Common Parts &amp; Diagrams

*12857

PLUG-FREEZER LINER (6) WCI G187599 Contact Us For Availability

*12875

HOT TUBE REPAIR KIT-SERVICE WCI G189383 Contact Us For Availability

1

FREEZER DOOR-WHITE WCI G178571 Contact Us For Availability

1

FREEZER DOOR-AVOCADO WCI G178571-08 Contact Us For Availability

1

FREEZER DOOR-WHEAT WCI G178571-09 Contact Us For Availability

1

FREEZER DOOR-COFFEE WCI G178571-10 Contact Us For Availability

1

FREEZER DOOR-ALMOND WCI G178571-11 Contact Us For Availability

1

WCI G163061-76 WCI G163061-76 Contact Us For Availability

1

WCI 3200465 WCI 3200465 Contact Us For Availability

1

WCI 3916132 WCI 3916132 Contact Us For Availability

1

WCI 3916133 WCI 3916133 Contact Us For Availability

1

WCI 3916134 WCI 3916134 Contact Us For Availability

1

WCI 3916135 WCI 3916135 Contact Us For Availability

1

WCI G178225 WCI G178225 Contact Us For Availability

2

WCI G169332-01 WCI G169332-01 Contact Us For Availability

2

WCI G169332-08 WCI G169332-08 Contact Us For Availability

2

WCI G169332-09 WCI G169332-09 Contact Us For Availability

2

WCI G169332-10 WCI G169332-10 Contact Us For Availability

2

WCI G169332-11 WCI G169332-11 Contact Us For Availability

2

KNOB-DAMPER CONTROL WCI G168702 Contact Us For Availability

2

SCREW-MULLION (4) WCI G183103 Contact Us For Availability

2

BRACKET-CONDENSER MTG (4) WCI G164637 Contact Us For Availability

3

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.55

3

NAMEPLATE-FRAME WCI G175117-02 Contact Us For Availability

3

WCI G162662 WCI G162662 Contact Us For Availability

3

WCI G166847 WCI G166847 Contact Us For Availability

3A

LABEL-NAMEPLATE-UPPER (NON-ILLUSTRATED) WCI G188378-02 Contact Us For Availability

3B

WCI 3201688 WCI 3201688 Contact Us For Availability

3C

WCI G153407-12 WCI G153407-12 Contact Us For Availability

4

240494001 Frigidaire Refrigerator Plug Button Backorder WCI 240494001 $10.68

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $8.69

4

WCI G162977-08 WCI G162977-08 Contact Us For Availability

4

WCI G162977-09 WCI G162977-09 Contact Us For Availability

4

WCI G162977-10 WCI G162977-10 Contact Us For Availability

4

WCI G162977-11 WCI G162977-11 Contact Us For Availability

4

WCI G162661 WCI G162661 Contact Us For Availability

4

WCI 3200464 WCI 3200464 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.41

5

TRIM-REFRIGERATOR DOOR WCI G167150-13 Contact Us For Availability

5

WCI G177255 WCI G177255 Contact Us For Availability

5

WCI G174818 WCI G174818 Contact Us For Availability

6

REFRIGERATOR DOOR-WHITE WCI G178574 Contact Us For Availability

6

REFRIGERATOR DOOR-AVOCADO WCI G178574-08 Contact Us For Availability

6

REFRIGERATOR DOOR-WHEAT WCI G178574-09 Contact Us For Availability

6

REFRIGERATOR DOOR-COFFEE WCI G178574-10 Contact Us For Availability

6

REFRIGERATOR DOOR-ALMOND WCI G178574-11 Contact Us For Availability

6

STRAP, MULLION MOUNTING WCI G166709 Contact Us For Availability

6

WCI G166062-01 WCI G166062-01 Contact Us For Availability

6A

BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability

7

DOOR STOP-REFR/FREEZER (2) WCI G155072 Contact Us For Availability

7

WCI G167217 WCI G167217 Contact Us For Availability

7

TOP PANEL-REFRIGERATOR WCI 3016378 Contact Us For Availability

7

WCI G162549-01 WCI G162549-01 Contact Us For Availability

7A

SCREW-PANEL MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability

8

218730603 Frigidaire Door Gasket In Stock WCI 218730603 $34.91

8

G187559 Frigidaire Refrigerator Bushing Backorder WCI G187559 $30.30

8

WCI G176774 WCI G176774 Contact Us For Availability

8

WCI G183584 WCI G183584 Contact Us For Availability

9

INNER PANEL-REFRIGERATOR WCI G184558-01 Contact Us For Availability

9

WCI G185302 WCI G185302 Contact Us For Availability

9

BOTTOM PANEL-FREEZER WCI G490022-01 Contact Us For Availability

215667501 Frigidaire Refrigerator Ice Tray Pr In Stock WCI 215667501 $3.38

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $40.97

RACK-REFRIGERATOR DOOR (2) WCI G162887-12 Contact Us For Availability

COVER-EVAPORATOR COIL WCI G176797 Contact Us For Availability

10A

NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.04

SUPPORT RS (4) WCI G152888-04 Contact Us For Availability

WCI 3018768 WCI 3018768 Contact Us For Availability

END CAP-SHELF (2) WCI G166495-01 Contact Us For Availability

12

SUPPORT LS (4) WCI G152887-04 Contact Us For Availability

12

WCI G162827-12 WCI G162827-12 Contact Us For Availability

12

WCI G184572-03 WCI G184572-03 Contact Us For Availability

5300158289 Frigidaire Evaporator Fan Motor In Stock WCI 5300158289 $80.01

WCI G178500-17 WCI G178500-17 Contact Us For Availability

WCI G162675 WCI G162675 Contact Us For Availability

WCI G177531 WCI G177531 Contact Us For Availability

WCI G178501-10 WCI G178501-10 Contact Us For Availability

WCI G185303 WCI G185303 Contact Us For Availability

WCI G162178 WCI G162178 Contact Us For Availability

HEATER, DEFROST WCI G176807-01 Contact Us For Availability

5309918806 Frigidaire Refrigerator Light Swit Backorder WCI 5309918806 $13.79

RACK-FREEZER DOOR (2) WCI G162887-15 Contact Us For Availability

WCI G164571 WCI G164571 Contact Us For Availability

WCI G176909 WCI G176909 Contact Us For Availability

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.44

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.44

5308000110 Frigidaire Refrigerator Evaporator Backorder WCI 5308000110 $38.80

INNER PANEL-FREEZER WCI G184557-01 Contact Us For Availability

WCI G186932-03 WCI G186932-03 Contact Us For Availability

DRAIN TROUGH WCI G490043 Contact Us For Availability

WCI G168302 WCI G168302 Contact Us For Availability

INSULATOR-EVAPORATOR WCI G169024-03 Contact Us For Availability

WCI G170495-24 WCI G170495-24 Contact Us For Availability

WCI G163669 WCI G163669 Contact Us For Availability

WCI G174765-03 WCI G174765-03 Contact Us For Availability

WCI G185299 WCI G185299 Contact Us For Availability

18A

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $8.91

WCI G187329-01 WCI G187329-01 Contact Us For Availability

WCI G85642 WCI G85642 Contact Us For Availability

WCI G174759-01 WCI G174759-01 Contact Us For Availability

WCI G185276 WCI G185276 Contact Us For Availability

WCI G179801 WCI G179801 Contact Us For Availability

WCI G174733 WCI G174733 Contact Us For Availability

WCI G178402-05 WCI G178402-05 Contact Us For Availability

WCI G188375 WCI G188375 Contact Us For Availability

5303917954 Frigidaire Refrigerator Defrost Li In Stock WCI 5303917954 $17.84

WCI G179800 WCI G179800 Contact Us For Availability

WCI G174734 WCI G174734 Contact Us For Availability

LABEL - CONTROL BOX WCI G185865 Contact Us For Availability

WCI G174747-01 WCI G174747-01 Contact Us For Availability

WCI G174747-08 WCI G174747-08 Contact Us For Availability

WCI G174747-09 WCI G174747-09 Contact Us For Availability

WCI G174747-10 WCI G174747-10 Contact Us For Availability

WCI G174747-11 WCI G174747-11 Contact Us For Availability

WCI 3200810 WCI 3200810 Contact Us For Availability

WCI G184599 WCI G184599 Contact Us For Availability

22A

WCI G107080 WCI G107080 Contact Us For Availability

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $26.72

23

5303916855 Frigidaire Refrigerator Tube In Stock WCI 5303916855 $37.92

23

WCI G184920-01 WCI G184920-01 Contact Us For Availability

24

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

24

WCI G176853 WCI G176853 Contact Us For Availability

24

WASHER (4) WCI G164634 Contact Us For Availability

24A

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.68

25

WCI G162179 WCI G162179 Contact Us For Availability

25

SHELF-REFRIGERATOR (3) WCI G181153-05 Contact Us For Availability

25

CLIP (4) WCI G163204 Contact Us For Availability

25A

PUSH PIN-SPOUT (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability

26

CABINET BASE WCI G490004-01 Contact Us For Availability

26

TRIM-SHELF (3) WCI G172410-04 Contact Us For Availability

26

DRAIN PAN-ORIGINAL WCI G171778 Contact Us For Availability

26A

DRAIN PAN-SERVICE COMPR WCI G184715 Contact Us For Availability

26B

5303307583 Frigidaire Refrigerator P1 Pad Noi In Stock WCI 5303307583 $41.87

27

WCI G185713 WCI G185713 Contact Us For Availability

27

COVER-PAN WCI G490016-01 Contact Us For Availability

27

WCI G164958 WCI G164958 Contact Us For Availability

27A

GASKET-PAN COVER (NON-ILLUSTRATED) WCI G180108-04 Contact Us For Availability

28

WCI G183073 WCI G183073 Contact Us For Availability

28

WCI G490015-33 WCI G490015-33 Contact Us For Availability

28

PAN RETAINER KIT-SERVICE WCI 3916001 Contact Us For Availability

29

WCI G166912 WCI G166912 Contact Us For Availability

29

WCI G490015-34 WCI G490015-34 Contact Us For Availability

29

COMPRESSOR W/ELECTRICALS-SERVICE WCI 3916021 Contact Us For Availability

30

WCI G191474 WCI G191474 Contact Us For Availability

30

WCI G166310-02 WCI G166310-02 Contact Us For Availability

30

RELAY-ORIGINAL WCI G182225-12 Contact Us For Availability

30A

RELAY-SERVICE COMPR WCI 3007171 Contact Us For Availability

31

WCI G163203 WCI G163203 Contact Us For Availability

31

OVERLOAD-ORIGINAL WCI G185797 Contact Us For Availability

31A

WCI G179797 WCI G179797 Contact Us For Availability

31A

OVERLOAD-SERVICE COMPR WCI 3007416 Contact Us For Availability

32

5303001321 Frigidaire Refrigerator Lower Hing Backorder WCI 5303001321 $10.84

32

OVERLOAD CLIP-SERVICE COMPR WCI 3007535 Contact Us For Availability

33

WCI G103903 WCI G103903 Contact Us For Availability

33

TERMINAL COVER-ORIGINAL WCI G185792 Contact Us For Availability

34

WCI G164355 WCI G164355 Contact Us For Availability

34

COVER STRAP-ORIGINAL WCI G185790 Contact Us For Availability

34A

5303006412 Frigidaire Refrigerator Cover Moun Backorder WCI 5303006412 $1.76

35

WCI G163207 WCI G163207 Contact Us For Availability

36

WCI G142220 WCI G142220 Contact Us For Availability

WCI G179684-01 WCI G179684-01 Contact Us For Availability

WCI G179684-08 WCI G179684-08 Contact Us For Availability

WCI G179684-09 WCI G179684-09 Contact Us For Availability

WCI G179684-10 WCI G179684-10 Contact Us For Availability

WCI G179684-11 WCI G179684-11 Contact Us For Availability

38

WCI G183714 WCI G183714 Contact Us For Availability

38A

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.46

39

WCI G183861 WCI G183861 Contact Us For Availability

WCI G183558-01 WCI G183558-01 Contact Us For Availability

HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability

WCI G183558-09 WCI G183558-09 Contact Us For Availability

WCI G183558-10 WCI G183558-10 Contact Us For Availability

WCI G183558-11 WCI G183558-11 Contact Us For Availability

41

5304509705 Frigidaire Refrigerator Grommet In Stock WCI 5304509705 $5.78
