Model Electrolux RT17F5DX4B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

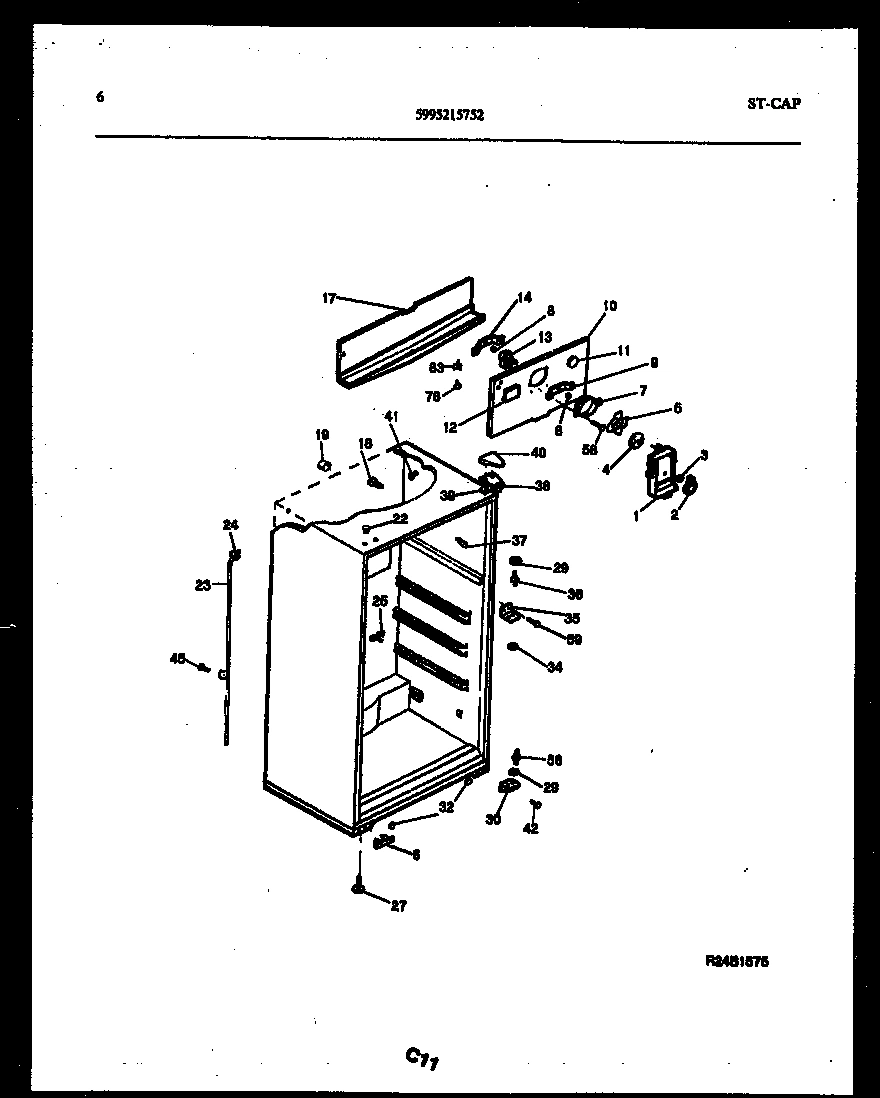

04 - CABINET PARTS

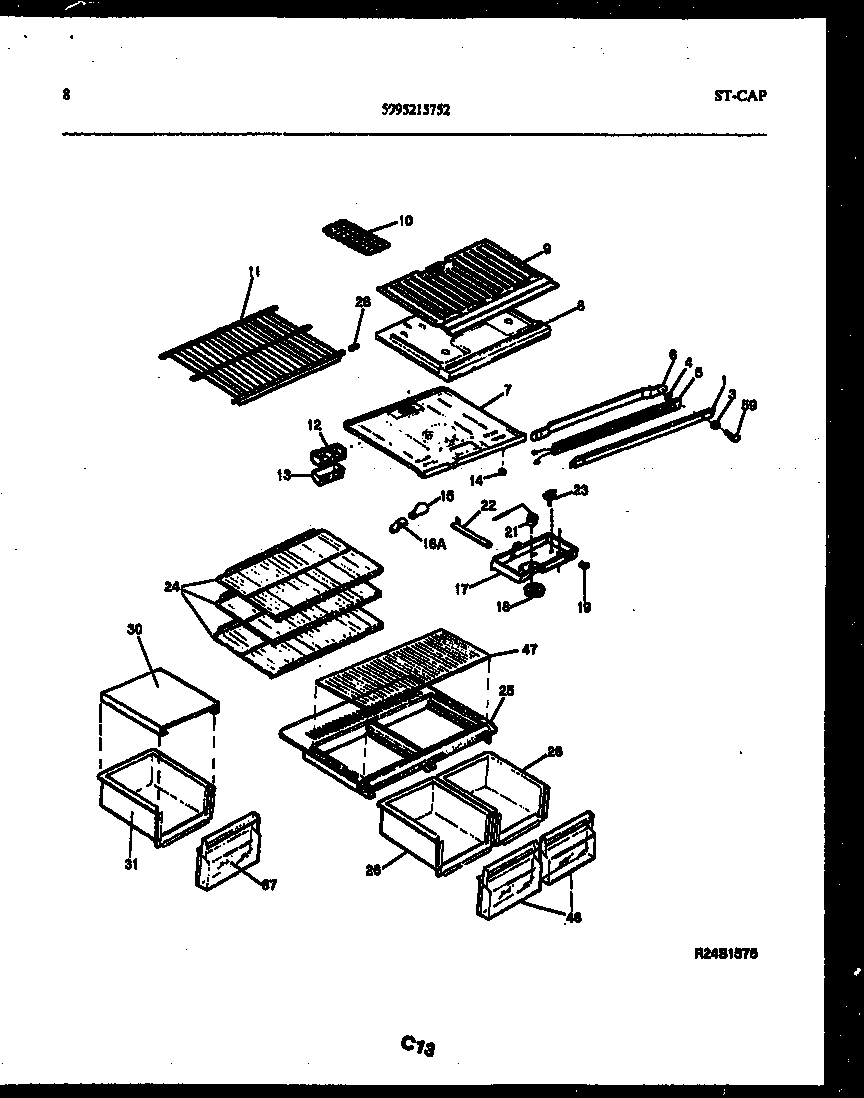

05 - SHELVES AND SUPPORTS

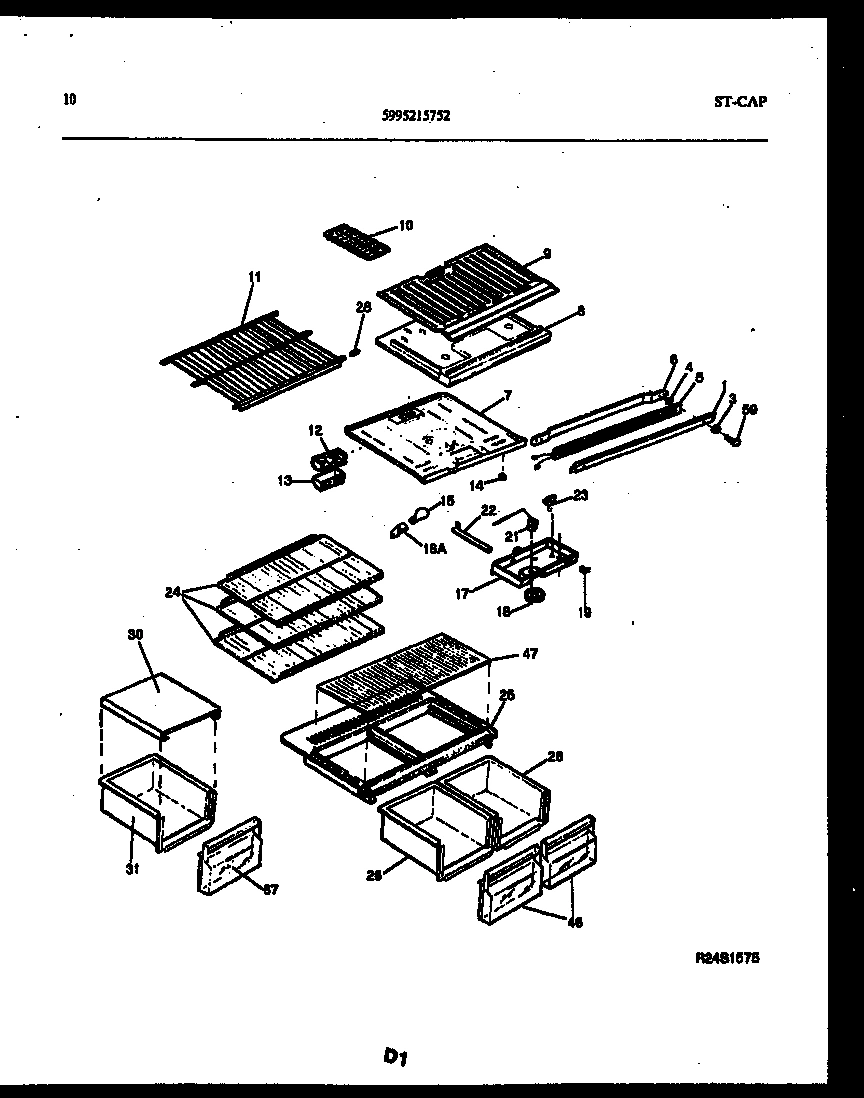

06 - SHELVES AND SUPPORTS

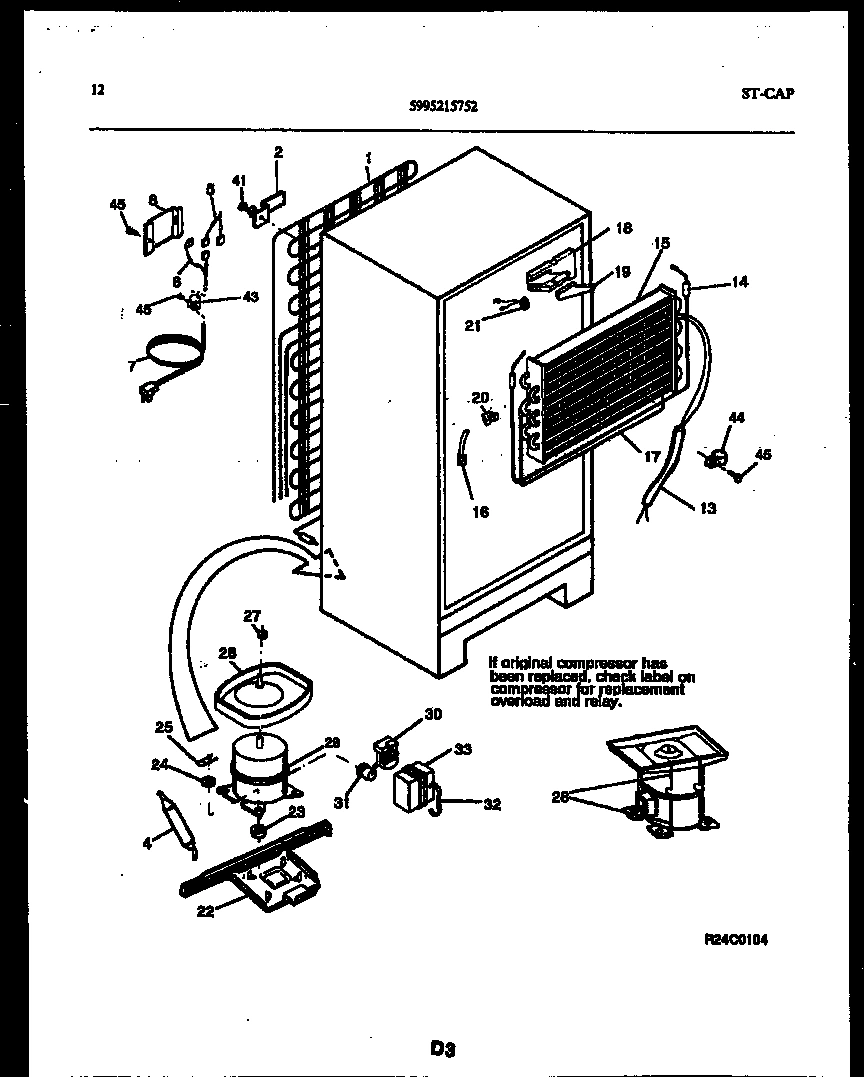

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F5DX4B REFRIGERATOR
*46097
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*46097
WCI 5303210622 WCI 5303210622 Contact Us For Availability
*46113
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 3206125 WCI 3206125 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/23 X 7/16 OD WCI 5308003607 Contact Us For Availability
4
WCI 3206110 WCI 3206110 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 3206120 WCI 3206120 Contact Us For Availability
5
WIRING HARNESS,CONTROL/DIVIDER WCI 3018900 Contact Us For Availability
6
WCI 3206135 WCI 3206135 Contact Us For Availability
6
WCI 5308003604 WCI 5308003604 Contact Us For Availability
6
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206185 WCI 3206185 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 3206186 WCI 3206186 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 3206187 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206119 WCI 3206119 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
WCI 5303283107 WCI 5303283107 Contact Us For Availability
12
WCI 5303272494 WCI 5303272494 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
13A
WCI 5303200590 WCI 5303200590 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5308009756 WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
DRAIN TROUGH WCI 3206146 Contact Us For Availability
17
WCI 5303272507 WCI 5303272507 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5303209251 WCI 5303209251 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303001296 WCI 5303001296 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303272508 WCI 5303272508 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
PLATE-COMPRESSOR MTG, WITH RAIL WCI 3206126 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303269702 Contact Us For Availability
23A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
24
WCI 530320735 WCI 530320735 Contact Us For Availability
24
SHELF-SLIDING, REFR, (3) WCI 5303283106 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 3206183 WCI 3206183 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 3206180 No Longer Available
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
WCI 3206141 WCI 3206141 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5303916004 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303272517 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
30
WCI 3206350 WCI 3206350 Contact Us For Availability
31
WCI 3206351 WCI 3206351 Contact Us For Availability
31
WCI 5303274700 WCI 5303274700 Contact Us For Availability
32
PLUG-BUTTON, CABINET BASE, (2) WCI 3206142 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
46
WCI 5303272513 WCI 5303272513 Contact Us For Availability
46
WCI 5303272514 WCI 5303272514 Contact Us For Availability
47
WCI 5303271945 WCI 5303271945 Contact Us For Availability
56
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
59
SCREW-HNG/MULL MTG,ACORN HX WSH HD,10-24(23)X WCI 3206134 Contact Us For Availability
67
WCI 5303272515 WCI 5303272515 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
