Model Electrolux RT17F3WT3B REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS

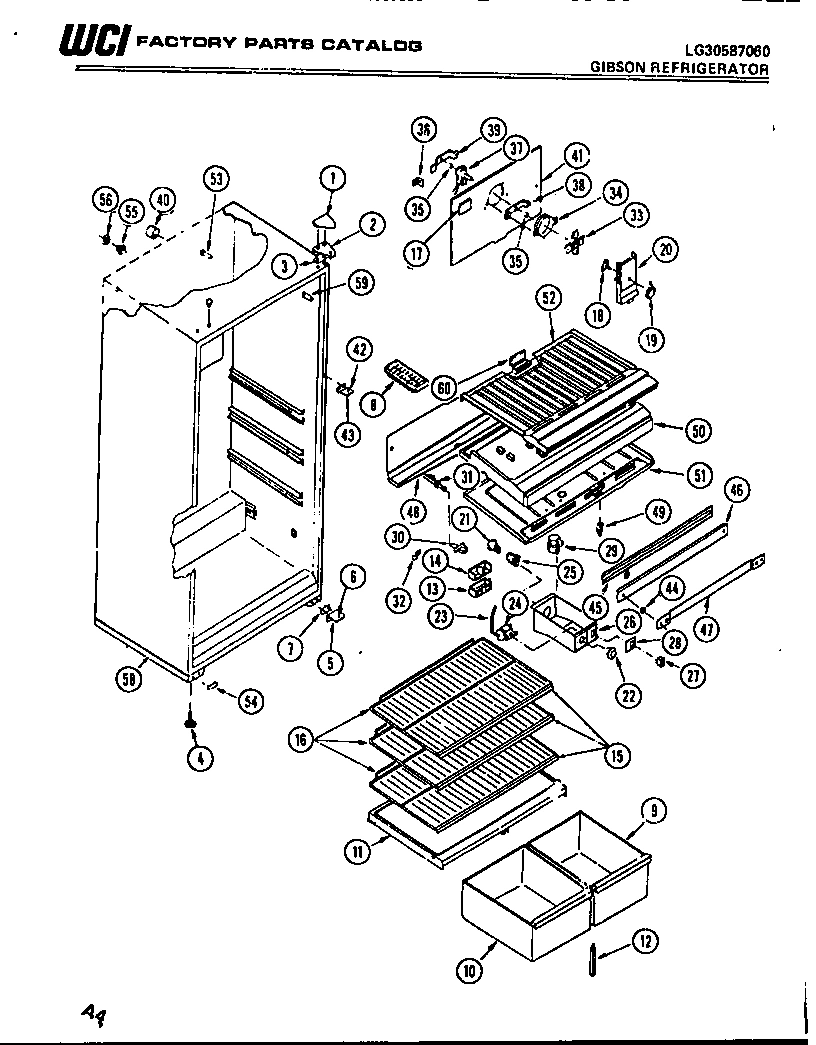

03 - CABINET PARTS

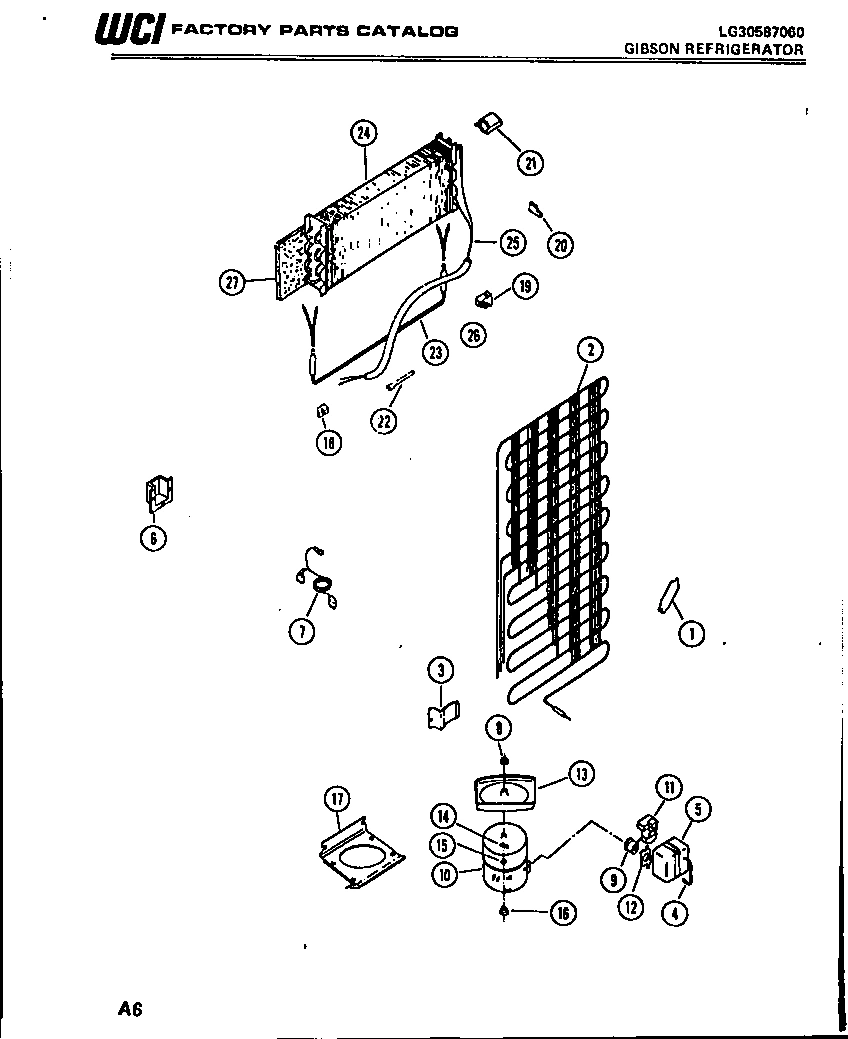

04 - SYSTEM PARTS
Common parts from model Electrolux RT17F3WT3B REFRIGERATOR
*93565
BUTTON PLUG (2) WCI G162892-01 Contact Us For Availability
*93566
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
*93567
BUTTON-PLUG (6) WCI G187599 Contact Us For Availability
*93568
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*93569
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*93570
WCI G189229-07 WCI G189229-07 Contact Us For Availability
*93571
WCI G182730-01 WCI G182730-01 Contact Us For Availability
1
GASKET WCI G186932-03 Contact Us For Availability
1
COVER, WHITE WCI G183558-01 Contact Us For Availability
2
WCI G187492-01 WCI G187492-01 Contact Us For Availability
2
HINGE WCI G183714 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
2B
WCI G103903 No Longer Available
2C
WASHER, 5/16 X 5/8 (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
3
WCI G187511-02 WCI G187511-02 Contact Us For Availability
3
SHIM, HINGE WCI G183861 Contact Us For Availability
3
BRACKET, CONDENSER (4) WCI G164637 Contact Us For Availability
4
WCI G161019-58 WCI G161019-58 Contact Us For Availability
4
SCREW, LEVELING WCI G185713 Contact Us For Availability
4A
NUT-ANCHOR (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
5
WCI G178284-02 WCI G178284-02 Contact Us For Availability
5
BRACKET, HINGE WCI G181019 Contact Us For Availability
6
WCI G178287-02 WCI G178287-02 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
6A
COVER-SERVICE WCI G162549-01 Contact Us For Availability
7
STOP,DOOR WCI G155072 Contact Us For Availability
7
SHIM WCI G163203 Contact Us For Availability
8
WCI G156376 WCI G156376 Contact Us For Availability
8
NUT WCI G164958 Contact Us For Availability
9
WCI G169332-01 WCI G169332-01 Contact Us For Availability
9
PAN-CRISPER WCI G490015-38 Contact Us For Availability
9
WCI G185810 WCI G185810 Contact Us For Availability
10
GRIP-HANDLE WCI G170495-24 Contact Us For Availability
10
PAN-CRISPER WCI G490015-39 Contact Us For Availability
10
COMPRESSOR WITH ELECTRICALS WCI G184669 Contact Us For Availability
11
NAMEPLATE WCI G175117-02 Contact Us For Availability
11
COVER-CRISPER WCI G490016-01 Contact Us For Availability
11
WCI G182225-11 WCI G182225-11 Contact Us For Availability
12
LABEL, LOWER WCI G175393-01 Contact Us For Availability
12
SUPPORT-CRISPER WCI G166310-02 Contact Us For Availability
12
RET-OVID WCI G188957 Contact Us For Availability
13
LABEL, UPPER WCI G188378-02 Contact Us For Availability
13
WCI G162178 WCI G162178 Contact Us For Availability
13
PAN, DEFROST WCI G184715 Contact Us For Availability
14
PANEL, OUTER, WHITE WCI G178571 Contact Us For Availability
14
DEFLECTOR AIR WCI G162675 Contact Us For Availability
14
CLIP (4) WCI G163204 Contact Us For Availability
15
END-HANDLE WCI G179800 Contact Us For Availability
15
WCI G172410-04 WCI G172410-04 Contact Us For Availability
15
WASHER (4) WCI G164634 Contact Us For Availability
16
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
16
SHELF WCI G181153-05 Contact Us For Availability
16A
WCI G185566 WCI G185566 Contact Us For Availability
17
WCI G161019-57 WCI G161019-57 Contact Us For Availability
17
BUTTON-DECORATIVE WCI G162827-12 Contact Us For Availability
17
PLATE WCI G184599 Contact Us For Availability
18
DAMPER WCI G162661 Contact Us For Availability
18
WCI G157807 WCI G157807 Contact Us For Availability
18A
NUT-PUSH (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
19
WCI G187490-01 WCI G187490-01 Contact Us For Availability
19
KNOB-DAMPER WCI G162747-05 Contact Us For Availability
19
BLOCK, RIGHT SIDE WCI G185299 Contact Us For Availability
20
WCI G187557-02 WCI G187557-02 Contact Us For Availability
20
WCI G163061-50 WCI G163061-50 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
PANEL, OUTER, WHITE WCI G178574 Contact Us For Availability
21A
BEARING HINGE (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
22
END-HANDLE WCI G179801 Contact Us For Availability
22
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
23
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
24
CONTROL-TEMPERATURE (NON-ILLUSTRATED) WCI G162205-11 Contact Us For Availability
24
EVAPORATOR WCI G176909 Contact Us For Availability
24A
WCI G107080 WCI G107080 Contact Us For Availability
25
SOCKET LIGHT WCI G168302 Contact Us For Availability
25
HEAT EXCHANGER WCI G147918 Contact Us For Availability
26
WCI G176722-03 WCI G176722-03 Contact Us For Availability
26
WCI G125963-68 WCI G125963-68 Contact Us For Availability
27
WCI G178402-02 WCI G178402-02 Contact Us For Availability
27
INSULATOR, PLASTIC WCI G169024-03 Contact Us For Availability
28
WCI G188379-01 WCI G188379-01 Contact Us For Availability
30
SPOUT, DRAIN WCI G162179 Contact Us For Availability
30A
PIN, PUSH (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
31
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
31A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
32
WCI G101747 WCI G101747 Contact Us For Availability
34
RING-ORIFICE WCI G167217 Contact Us For Availability
36
BRACKET WCI G164571 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
40
TUBE, RUBBER WCI G85642 Contact Us For Availability
41
COVER-COIL WCI G176797 Contact Us For Availability
41A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
BRACKET, HINGE WCI G163207 Contact Us For Availability
42A
WASHER (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
42B
SCREW (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
43
WCI G142220 WCI G142220 Contact Us For Availability
44
SPACER (2) WCI G490082 Contact Us For Availability
45
WCI G187921 WCI G187921 Contact Us For Availability
46
MULLION-WHITE WCI G490086 Contact Us For Availability
47
STRAP-MULLION WCI G166709 Contact Us For Availability
48
TROUGH-DRAIN WCI G490043 Contact Us For Availability
50
DIVIDER-STYRO WCI G176774 Contact Us For Availability
51
TOP, REFRIGERATOR WCI G490021-01 Contact Us For Availability
51A
SCREW, 8 X 1 3/4 (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
52
BOTTOM, FREEZER WCI G490022-01 Contact Us For Availability
53
SUPPORT-COIL COVER WCI G163669 Contact Us For Availability
54
WCI G166512 WCI G166512 Contact Us For Availability
55
WCI G174733 WCI G174733 Contact Us For Availability
56
WCI G174734 WCI G174734 Contact Us For Availability
57
WCI G174747-01 WCI G174747-01 Contact Us For Availability
58
BASE, CABINET WCI G490004-01 Contact Us For Availability
59
TRIM, WHITE WCI G179684-01 Contact Us For Availability
60
PAD FOAM WCI G168866 Contact Us For Availability
× ![]()
