Model Electrolux RT17F2WT3B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

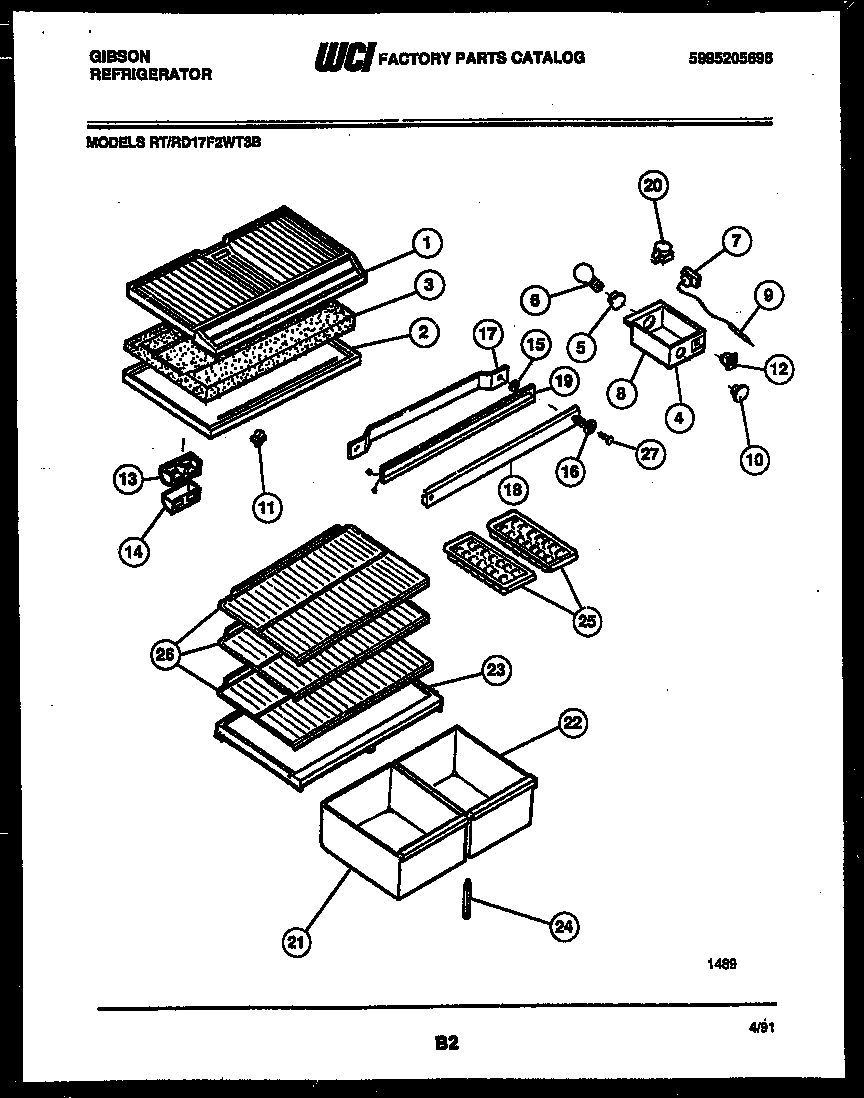

04 - SHELVES AND SUPPORTS

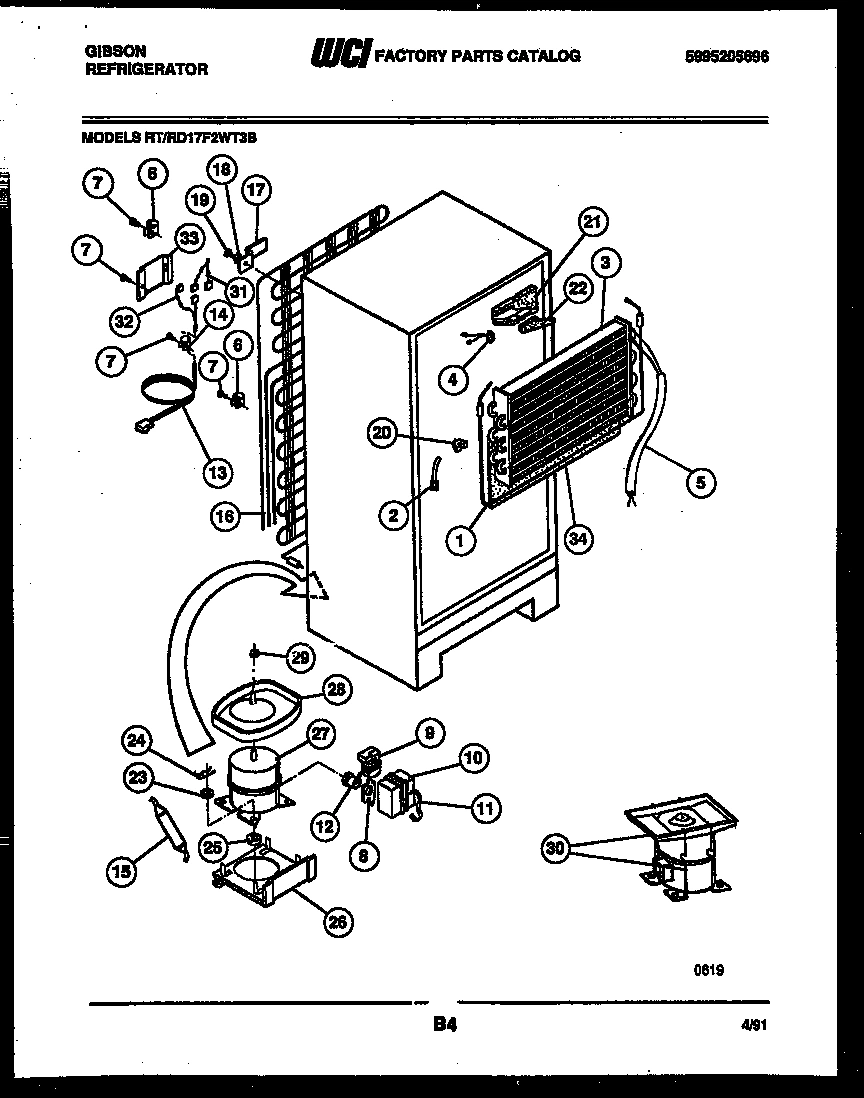

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F2WT3B REFRIGERATOR
*43444
BUTTON PLUG-WHITE WCI 5308000134 Contact Us For Availability
*43445
BUTTON PLUG-ALMOND WCI 5303001308 Contact Us For Availability
*43457
PLUG-LINER (6) WCI 5308016571 Contact Us For Availability
*43457
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*43473
HOT TUBE REPAIR KIT WCI 5300189377 Contact Us For Availability
1
WCI 5308009754 No Longer Available
1
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
1
BOTTOM-FREEZER WCI 5303001537 Contact Us For Availability
2
BRACKET-HINGE TOP WCI 5308012843 Contact Us For Availability
2
TOP REFRIGERATOR WCI 5303212518 Contact Us For Availability
2A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
3
WASHER-NYLON (3) WCI 5308000007 Contact Us For Availability
3
DIVIDER WCI 5308009750 Contact Us For Availability
3
EVAPORATOR WCI 5308009756 Contact Us For Availability
4
PLUG BUTTON-HINGE-ALMOND WCI 5303001389 Contact Us For Availability
4
PLUG BUTTON-HINGE-WHITE WCI 5303001388 Contact Us For Availability
4
PLUG BUTTON-HINGE-AVOC WCI 5303001677 Contact Us For Availability
4
PLUG BUTTON-HINGE-WHEAT WCI 5303001678 Contact Us For Availability
4
PLUG BUTTON-HINGE-COFFEE WCI 5303001679 Contact Us For Availability
4
LABEL, BOX WCI G186126 Contact Us For Availability
5
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
5
WASHER-NYLON WCI 5303001038 Contact Us For Availability
5
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
6
SHIM-HINGE TOP WCI 5303001037 Contact Us For Availability
7
CONTROL-TEMP WCI 5303200810 Contact Us For Availability
7
BRACKET-HINGE-CENTER WCI 5303001369 Contact Us For Availability
7A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
8
WCI 5308009730 WCI 5308009730 Contact Us For Availability
8
CLIP-OVERLOAD WCI 5303017762 Contact Us For Availability
9
WCI 5303007171 WCI 5303007171 Contact Us For Availability
9
PIN-HINGE CENTER WCI 5308000184 Contact Us For Availability
10
BRACKET-HINGE (LOWER) WCI 5303202834 Contact Us For Availability
10
WCI 08006978 WCI 08006978 Contact Us For Availability
12
SHIM-HINGE LOWER WCI 5303001323 Contact Us For Availability
12
SWITCH-SLIDE WCI 5303200998 Contact Us For Availability
12
WCI 5303007416 WCI 5303007416 Contact Us For Availability
13
WCI 5308000071 WCI 5308000071 Contact Us For Availability
13
WCI 5316254901 WCI 5316254901 Contact Us For Availability
14
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
14
WCI 5303001286 WCI 5303001286 Contact Us For Availability
15
WCI 5317857411 WCI 5317857411 Contact Us For Availability
15
WCI 5303001287 WCI 5303001287 Contact Us For Availability
15
WCI 5308010007 WCI 5308010007 Contact Us For Availability
15A
BEARING-HINGE (4) (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
16
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
16
STOP-DOOR (2) WCI 5308000255 Contact Us For Availability
16
WASHER MULLION (2) WCI 5308003607 Contact Us For Availability
16
WCI 5303001341 WCI 5303001341 Contact Us For Availability
17
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
17
WCI 5308003604 WCI 5308003604 Contact Us For Availability
17
BRACKET-COND (4) WCI 5303001342 Contact Us For Availability
18
WCI 5308000081 WCI 5308000081 Contact Us For Availability
18
WCI 5318455801 WCI 5318455801 Contact Us For Availability
18
WCI 3916132 WCI 3916132 Contact Us For Availability
18
WCI 3916133 WCI 3916133 Contact Us For Availability
18
MULLION-AVOC WCI 3916135 Contact Us For Availability
18
WCI 5303200465 WCI 5303200465 Contact Us For Availability
18
WCI 5303916134 WCI 5303916134 Contact Us For Availability
18
WASHER (2) WCI 5308009617 Contact Us For Availability
19
END-HANDLE TOP WCI 5303001297 Contact Us For Availability
19
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
19
WCI 5308017408 WCI 5308017408 Contact Us For Availability
20
END-HANDLE (2) WCI 5303001296 Contact Us For Availability
20
NUT, PUSH WCI 5303001028 Contact Us For Availability
20
BLOCK INSULATION-LH WCI 5308017227 Contact Us For Availability
21
END-HANDLE BOTTOM WCI 5303001295 Contact Us For Availability
21
COVER-COIL WCI 3001527 Contact Us For Availability
21
PAN-CRISPER LH WCI G490015-38 Contact Us For Availability
21
BLOCK INSULATION-RH WCI 5308013648 Contact Us For Availability
21A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
22
WCI 5303270835 WCI 5303270835 Contact Us For Availability
22
PLUG-INSULATION RH WCI 5303007287 Contact Us For Availability
23
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
23
COVER-CRISPER WCI 5349001601 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI 5308003633 Contact Us For Availability
24
SUPPORT-CRISPER COVER WCI 5303205987 Contact Us For Availability
24
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
24
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
26
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
26
WCI G181153-05 WCI G181153-05 Contact Us For Availability
26
PLATE-COMPRESSOR WCI 5308013663 Contact Us For Availability
27
WCI 5308012258 WCI 5308012258 Contact Us For Availability
27
COMPRESSOR W/ ELECTRICALS WCI 5303916411 Contact Us For Availability
28
WCI 5303001334 WCI 5303001334 Contact Us For Availability
28
PAN-DEFROST WCI 5300184715 Contact Us For Availability
29
WCI 5308000107 WCI 5308000107 Contact Us For Availability
29
NUT-LOCK WCI 5303001348 Contact Us For Availability
30
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
30
WCI 5303001198 WCI 5303001198 Contact Us For Availability
31
TUBE-DRAIN WCI 5303210377 Contact Us For Availability
31
HARNESS-DIVIDER WCI 3001383 Contact Us For Availability
31A
RING SEAL (NON-ILLUSTRATED) WCI 5308009755 Contact Us For Availability
32
HARNESS-COMPRESSOR WCI 5303001347 Contact Us For Availability
33
WCI 08010005 WCI 08010005 Contact Us For Availability
33
WCI 5303001197 WCI 5303001197 Contact Us For Availability
33A
CLAMP-CABLE (NON-ILLUSTRATED) WCI 3007728 Contact Us For Availability
34
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
34
TRIM-CORNER CABINET-WHITE WCI 5303202336 Contact Us For Availability
34
TRIM-CORNER CABINET-AVOC WCI 5303202337 Contact Us For Availability
34
TRIM-CORNER CABINET-WHEAT WCI 5303202338 Contact Us For Availability
34
TRIM-CORNER CABINET-COFFEE WCI 5303202339 Contact Us For Availability
34
TRIM-CORNER CABINET-ALMOND WCI 5303202340 Contact Us For Availability
35
PLUG-LOWER HINGE WCI 5303001478 Contact Us For Availability
36
SCREW, LEVELING (2) WCI 5303205540 Contact Us For Availability
36A
NUT ANCHOR (2) (NON-ILLUSTRATED) WCI 5308003584 Contact Us For Availability
37
COVER - HINGE-AVOC WCI 5303001664 Contact Us For Availability
37
COVER - HINGE-WHEAT WCI 5303001665 Contact Us For Availability
37
COVER - HINGE-COFFEE WCI 5303001666 Contact Us For Availability
37
COVER - HINGE-WHITE WCI 5308012820 Contact Us For Availability
37
COVER-HINGE-ALMOND WCI 5308012933 Contact Us For Availability
38
BASE-CABINET WCI 08010091 Contact Us For Availability
39
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
40
PLUG-SHORT TEST HOLE WCI 5303203044 Contact Us For Availability
× ![]()
