Model Electrolux RT17F2WT3A REFRIGERATOR – Common Parts & Diagrams

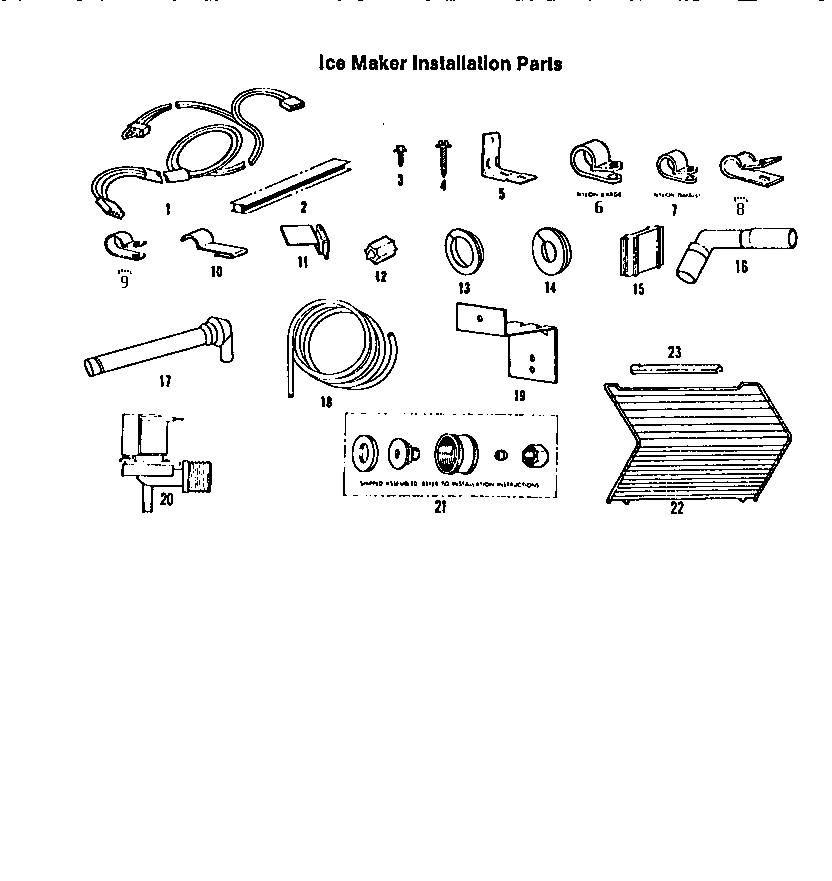

01 - ICE MAKER INSTALLATION
02 - ICE MAKER
03 - DOOR PARTS
04 - CABINET PARTS
05 - CABINET PARTS
06 - SYSTEM & AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F2WT3A REFRIGERATOR
*24049
KIT, DOOR CONVERSION WCI G168981-01 Contact Us For Availability
*24050
WCI G169332-01 WCI G169332-01 Contact Us For Availability
*24051
WCI G176210 WCI G176210 Contact Us For Availability
1
WCI G159377 WCI G159377 Contact Us For Availability
1
WCI G175393-01 WCI G175393-01 Contact Us For Availability
1
WCI G163669 WCI G163669 Contact Us For Availability
1
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
2
WCI G175118-02 WCI G175118-02 Contact Us For Availability
2
BRACKET, HINGE TOP WCI G183714 Contact Us For Availability
2B
WCI G103903 No Longer Available
2C
WCI G174747-01 WCI G174747-01 Contact Us For Availability
3
WCI G159904 WCI G159904 Contact Us For Availability
3
NAMEPLATE WCI G175117-02 Contact Us For Availability
3
SHIM, UPPER HINGE WCI G183861 Contact Us For Availability
3
WCI G176806 WCI G176806 Contact Us For Availability
3A
WCI G141624-04 WCI G141624-04 Contact Us For Availability
4
WCI G183892 WCI G183892 Contact Us For Availability
4
WCI G163207 WCI G163207 Contact Us For Availability
4A
SCREW, HINGE AND MULLION (4) WCI G183103 Contact Us For Availability
4B
WCI G142220 WCI G142220 Contact Us For Availability
5
SCREW WCI G159901 Contact Us For Availability
5
BRACKET, LOWER HINGE WCI G181019 Contact Us For Availability
5
WCI G177531 WCI G177531 Contact Us For Availability
5C
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
6
WCI G164772 WCI G164772 Contact Us For Availability
6
HANDLE, REFRIGERATOR DOOR WCI G170495-24 Contact Us For Availability
6
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
6
WCI G101747 WCI G101747 Contact Us For Availability
6A
WCI G185566 WCI G185566 Contact Us For Availability
7
CLAMP, HARNESS & INLET TUBE MOUNTING WCI G161655 Contact Us For Availability
7
WCI G137735 WCI G137735 Contact Us For Availability
7
WCI G186932-03 WCI G186932-03 Contact Us For Availability
7
WCI G174733 WCI G174733 Contact Us For Availability
7
CLIP, OVERLOAD WCI G166053 Contact Us For Availability
8
WCI G159909 WCI G159909 Contact Us For Availability
8
WCI G184557-01 WCI G184557-01 Contact Us For Availability
8
WCI G174734 WCI G174734 Contact Us For Availability
8
WCI G150618-32 WCI G150618-32 Contact Us For Availability
9
WCI G159905 WCI G159905 Contact Us For Availability
9
WCI G152888-04 WCI G152888-04 Contact Us For Availability
9
BOTTOM, FREEZER WCI G490022-01 Contact Us For Availability
10
CLIP, HARNESS LOCATION WCI G163706 Contact Us For Availability
10
SPACER, HOLDING SWITCH WCI G137737 Contact Us For Availability
10
WCI G152887-04 WCI G152887-04 Contact Us For Availability
10
TOP, REFRIGERATOR WCI G490021-01 Contact Us For Availability
10A
SCREW (3) WCI G162673 Contact Us For Availability
11
WCI G154167 WCI G154167 Contact Us For Availability
11
WCI G137738 WCI G137738 Contact Us For Availability
11
WCI G162887-15 WCI G162887-15 Contact Us For Availability
11
DIVIDER, COMPARTMENT WCI G176774 Contact Us For Availability
11
WCI G176002 WCI G176002 Contact Us For Availability
12
NUT, INLET TO SOLENOID VALVE WCI G143689 Contact Us For Availability
12
WCI G137739 WCI G137739 Contact Us For Availability
12
WCI G162887-12 WCI G162887-12 Contact Us For Availability
12
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
12
CORD, SERVICE WCI G162549-01 Contact Us For Availability
12A
WCI G185279 WCI G185279 Contact Us For Availability
13
WCI G171079 WCI G171079 Contact Us For Availability
13
WCI G137740 WCI G137740 Contact Us For Availability
13
WCI G178500-22 WCI G178500-22 Contact Us For Availability
13
LABEL, BOX WCI G186126 Contact Us For Availability
14
SCREW 4, 40 X 1 WCI G137741 Contact Us For Availability
14
WCI G178501-11 WCI G178501-11 Contact Us For Availability
14
WCI G162747-05 WCI G162747-05 Contact Us For Availability
14B
WASHER, NO. 10 WCI G164820 Contact Us For Availability
15
WCI G160347 WCI G160347 Contact Us For Availability
15
WCI G137742 WCI G137742 Contact Us For Availability
15
WCI G183896 WCI G183896 Contact Us For Availability
15
DAMPER FAN COVER WCI G162661 Contact Us For Availability
15
WCI G178225 WCI G178225 Contact Us For Availability
15A
BEARING, HINGE (4) WCI G183138 Contact Us For Availability
15A
NUT, DAMPER MOUNTING WCI G162662 Contact Us For Availability
16
WCI G165773 WCI G165773 Contact Us For Availability
16
SCREW 8, 32 X 1 WCI G137743 Contact Us For Availability
16
STOP, DOOR (2) WCI G155072 Contact Us For Availability
16
SOCKET LIGHT WCI G168302 Contact Us For Availability
16
BRACKET, COND. MOUNTING (4) WCI G164637 Contact Us For Availability
17
SCREW 4, 40 X 3/4 WCI G137744 Contact Us For Availability
17
BLOCK, EVAPORATOR, LH WCI G162807 Contact Us For Availability
18
WCI G159906 WCI G159906 Contact Us For Availability
18
WCI G184558-01 WCI G184558-01 Contact Us For Availability
18
WCI G162667-11 WCI G162667-11 Contact Us For Availability
18
WASHER, COMPRESSOR MTG. (4) WCI G164634 Contact Us For Availability
18A
WCI G107080 WCI G107080 Contact Us For Availability
19
BRACKET, VALVE TO REAR PANEL WCI G163309 Contact Us For Availability
19
WCI G137745 WCI G137745 Contact Us For Availability
19
END, HANDLE TOP WCI G179800 Contact Us For Availability
19
BOX, CONTROL WCI G174765-03 Contact Us For Availability
19
CLIP, COMPRESSOR MTG. (4) WCI G163204 Contact Us For Availability
20
WCI G159907 WCI G159907 Contact Us For Availability
20
WCI G170507-01 WCI G170507-01 Contact Us For Availability
20
WCI G182757 WCI G182757 Contact Us For Availability
21
WCI G159415 WCI G159415 Contact Us For Availability
21
END, HANDLE, BOTTOM WCI G179801 Contact Us For Availability
21
KNOB, CONTROL WCI G174759-01 Contact Us For Availability
21
WCI G179327 WCI G179327 Contact Us For Availability
22
WCI G163311 WCI G163311 Contact Us For Availability
22
WCI G159898 WCI G159898 Contact Us For Availability
22A
WCI G163105 WCI G163105 Contact Us For Availability
22B
SCREW, SUPPORTS (2) WCI G163104 Contact Us For Availability
23
WCI G163312 WCI G163312 Contact Us For Availability
23
WCI G137748 WCI G137748 Contact Us For Availability
23
COVER-COIL WCI G176797 Contact Us For Availability
23
PAN, DEFROST WCI G184715 Contact Us For Availability
24
SCREW, SHOULDER WCI G159913 Contact Us For Availability
24
BRACKET, REAR MOTOR MTG. WCI G162048 Contact Us For Availability
24
NUT, LOCK WCI G164958 Contact Us For Availability
25
ARM, SHUT OFF WCI G164767 Contact Us For Availability
25
BRACKET, FRONT MOTOR MTG. WCI G162049 Contact Us For Availability
25
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
26
PLUG EVAP, INSUL R.H. WCI G185276 Contact Us For Availability
27
WCI G137753 WCI G137753 Contact Us For Availability
27
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
27A
NUT, ORIFICE (2) WCI G167542 Contact Us For Availability
28
WCI G159911 WCI G159911 Contact Us For Availability
29
WCI G137756 WCI G137756 Contact Us For Availability
29
WCI G163061-81 WCI G163061-81 Contact Us For Availability
30
STRIPPER-ICE WCI G159910 Contact Us For Availability
30
SWITCH, SLIDE WCI G178402-05 Contact Us For Availability
31
WCI G159900 WCI G159900 Contact Us For Availability
31
WCI G164571 WCI G164571 Contact Us For Availability
32
MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATI WCI G159912 Contact Us For Availability
32
DEFLECTOR AIR WCI G162675 Contact Us For Availability
33
WCI G137760 WCI G137760 Contact Us For Availability
33
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
34
WIRE ASSEMBLY WCI G185809 Contact Us For Availability
34
SPACER MULLION MOUNTING (2) WCI G490082 Contact Us For Availability
34A
WASHER, MULLION MTG. (4) WCI G166847 Contact Us For Availability
35
WCI G159902 WCI G159902 Contact Us For Availability
35
PAD FOAM WCI G168866 Contact Us For Availability
36
WCI G159908 WCI G159908 Contact Us For Availability
36
STRAP, MULLION MOUNTING WCI G166709 Contact Us For Availability
36A
WCI G187182 WCI G187182 Contact Us For Availability
37
SHIELD WCI G164769 Contact Us For Availability
37
MULLION (NOT ILLUSTRATED) WCI G490086 Contact Us For Availability
38
WCI G164766 WCI G164766 Contact Us For Availability
38
WCI G177255 WCI G177255 Contact Us For Availability
39
TUBE, FERRULE (2) WCI G85642 Contact Us For Availability
41
WCI G490015-38 WCI G490015-38 Contact Us For Availability
41A
WCI G490015-39 WCI G490015-39 Contact Us For Availability
42
TUBE, DEFROST DRAIN WCI G184920-01 Contact Us For Availability
44
COVER-CRISPER WCI G490016-01 Contact Us For Availability
45
SUPPORT, CRISPER COVER WCI G166310-02 Contact Us For Availability
47
TROUGH-DRAIN WCI G490043 Contact Us For Availability
48
TRIM, CORNER CABINET (4) (NOT ILLUSTRATED) WCI G179684-01 Contact Us For Availability
50
BOTTOM PLUG, LOWER LH HINGE HOLE WCI G166912 Contact Us For Availability
51
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
51A
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
52
WCI G181153-05 WCI G181153-05 Contact Us For Availability
53
COVER, TOP HINGE (NOT ILLUSTRATED) WCI G183558-01 Contact Us For Availability
× ![]()
