Model Electrolux RT179MCH0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

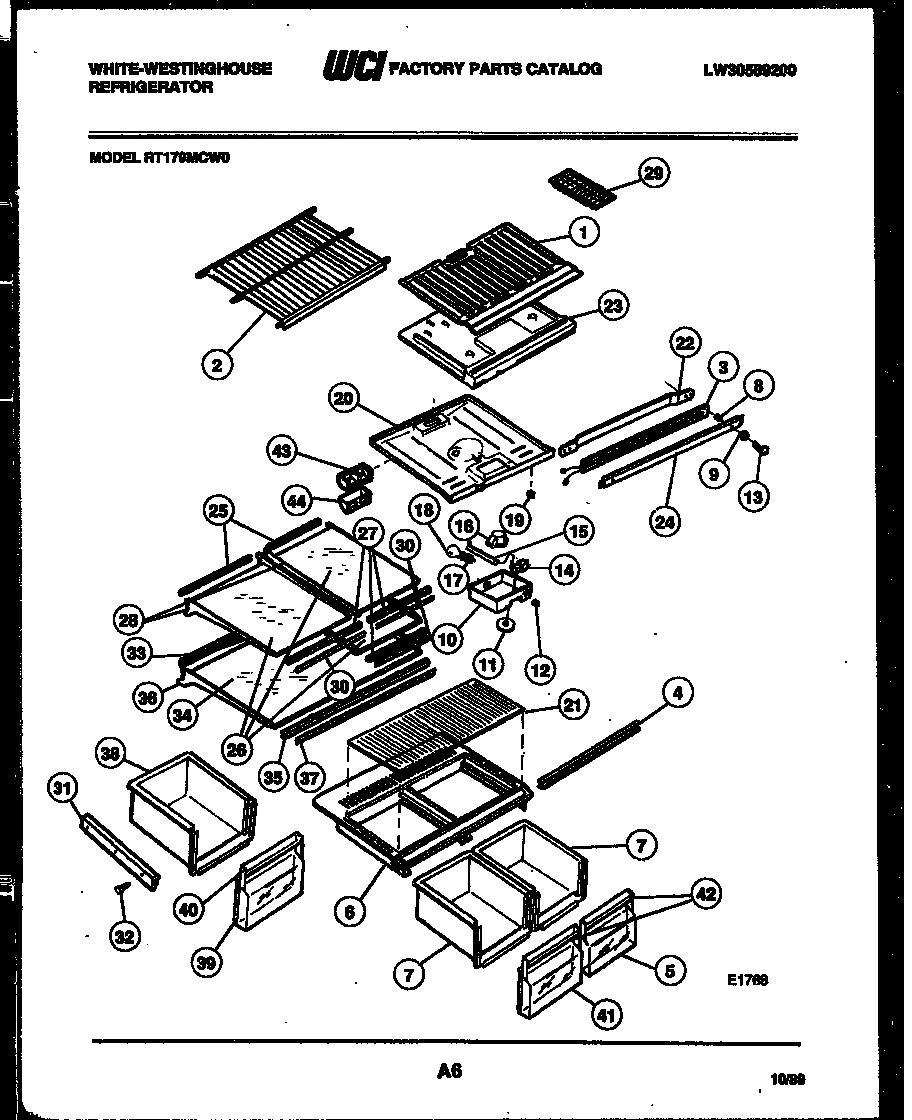

04 - SHELVES AND SUPPORTS

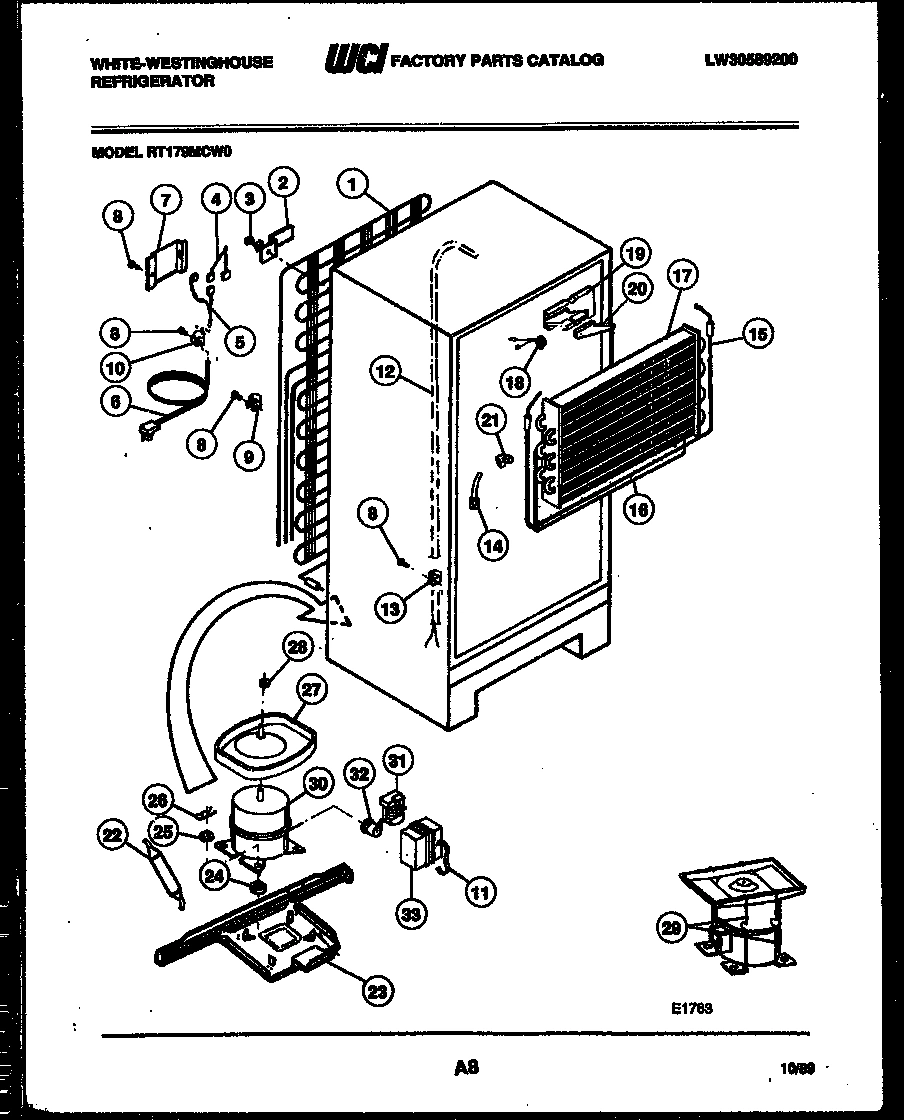

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT179MCH0 REFRIGERATOR
*23243
PLUG-FRZR LINER (3) WCI G187599 Contact Us For Availability
*23249
CLIP-CANTI SHELF (8) (SHIPPING) WCI G170910 Contact Us For Availability
*23253
HOT TUBE REPAIR KIT-SVCE WCI 3916557 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
BOTTOM-FREEZER WCI 3206187 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
2
WCI 3206353 WCI 3206353 Contact Us For Availability
2
BRACKET-CONDENSER MTG (4) WCI 3001342 Contact Us For Availability
2A
CAP-PROTECTOR (2) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
2B
TRIM-SHELF (NON-ILLUSTRATED) WCI 3206203 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3206120 WCI 3206120 Contact Us For Availability
3A
WCI G164820 WCI G164820 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
WCI 3206372 WCI 3206372 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
5
DOOR STOP (2) WCI 08000255 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
WCI 3206354 WCI 3206354 Contact Us For Availability
5
WIRING HARNESS-COMPR WCI 3206113 Contact Us For Availability
6
COVER-CRISPER WCI 3206183 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
7
WCI 3206180 WCI 3206180 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI G162977-09 WCI G162977-09 Contact Us For Availability
8
DAMPER WCI 3206110 Contact Us For Availability
8
WCI 3200464 WCI 3200464 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI G166847 WCI G166847 Contact Us For Availability
10
WCI 08007123 WCI 08007123 Contact Us For Availability
10
WCI 3206381 WCI 3206381 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
11
PANEL-FREEZER-INNER WCI 3206138 Contact Us For Availability
11
WCI 3206207 WCI 3206207 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 3201777 Contact Us For Availability
11B
WCI 3206208 WCI 3206208 Contact Us For Availability
12
RACK-FREEZER WCI 3206163 Contact Us For Availability
12
WCI 3206103 WCI 3206103 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
12
WCI G177531 WCI G177531 Contact Us For Availability
13
SUPPORT-RACK RH WCI 3206161 Contact Us For Availability
13
HINGE, TOP WCI 3206100 Contact Us For Availability
13
SCREW-MULLION (4) WCI 3206134 Contact Us For Availability
13A
SUPPORT-RACK-LH WCI 3206162 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14A
WCI G107080 WCI G107080 Contact Us For Availability
15
WCI 3206191 WCI 3206191 Contact Us For Availability
15
WCI 3202338 WCI 3202338 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
15
WCI 08009754 WCI 08009754 Contact Us For Availability
16
DOOR-DAIRY, RH WCI 3206149 Contact Us For Availability
16
WASHER-HINGE WCI 08000186 Contact Us For Availability
16
WCI G166511-02 WCI G166511-02 Contact Us For Availability
16A
TRIM-RH DAIRY DOOR (NON-ILLUSTRATED) WCI 3206220 Contact Us For Availability
16B
DOOR-DAIRY-LH (NON-ILLUSTRATED) WCI 3206222 Contact Us For Availability
16C
TRIM-LH DAIRY DOOR (NON-ILLUSTRATED) WCI 3206221 Contact Us For Availability
17
HANDLE-FREEZER WCI 3206217 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G176909 WCI G176909 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
19
INSULATION BLOCK-RH WCI G185299 Contact Us For Availability
20
RACK-REFRIGERATOR WCI 3206152 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 3206185 Contact Us For Availability
20
INSULATION PLUG-RH WCI G185276 Contact Us For Availability
20A
WCI G162673 WCI G162673 Contact Us For Availability
21
WCI 3206355 WCI 3206355 Contact Us For Availability
21
INSULATION BLOCK-LH WCI G188375 Contact Us For Availability
22
WCI 3916602 WCI 3916602 Contact Us For Availability
22
WCI G166709 WCI G166709 Contact Us For Availability
23
HANDLE-REF WCI 3206418 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 3206136 Contact Us For Availability
23
WCI 3206186 WCI 3206186 Contact Us For Availability
23
PLATE-COMPR MTG WCI 3206126 Contact Us For Availability
24
RACK-FRZR WCI 3206164 Contact Us For Availability
24
WCI 3206123 WCI 3206123 Contact Us For Availability
25
WCI 3206189 WCI 3206189 Contact Us For Availability
25
WCI 3203044 WCI 3203044 Contact Us For Availability
25
WCI 3206413 WCI 3206413 Contact Us For Availability
25
WCI G164634 WCI G164634 Contact Us For Availability
26
SUPPORT-RACK-RH WCI 3206150 Contact Us For Availability
26
COVER-HINGE SCREW WCI 3206135 Contact Us For Availability
26
WCI 3206415 WCI 3206415 Contact Us For Availability
26
WCI G163204 WCI G163204 Contact Us For Availability
26A
SUPPORT-RACK-LH WCI 3206151 Contact Us For Availability
27
WCI 3206190 WCI 3206190 Contact Us For Availability
27
ROLLER-REAR (2) WCI 3206237 Contact Us For Availability
27
RETAINER-GLASS (3) WCI 3206400 Contact Us For Availability
27
PAN-DEFROST DRAIN WCI G184715 Contact Us For Availability
28
WCI 3206115 WCI 3206115 Contact Us For Availability
28
FRAME-HALF SHELF (2) WCI 3018880 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
28A
FRAME-MEAT KEEPER SHELF WCI 3206401 Contact Us For Availability
29
WCI G177142 WCI G177142 Contact Us For Availability
29
WCI G177024 WCI G177024 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
29A
WCI G000177144 WCI G000177144 Contact Us For Availability
29B
WCI G000179270 WCI G000179270 Contact Us For Availability
30
WCI G000177143 WCI G000177143 Contact Us For Availability
30
WCI G174747-09 WCI G174747-09 Contact Us For Availability
30
WCI 3206416 WCI 3206416 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 3916020 Contact Us For Availability
31
WCI 08000056 WCI 08000056 Contact Us For Availability
31
HANGER-MEAT PAN-LH WCI 3206379 Contact Us For Availability
31A
WCI 3206380 WCI 3206380 Contact Us For Availability
32
PUSH PLN-DRAIN SPOUT WCI 3001361 Contact Us For Availability
32
SCREW-HANGER (6) WCI 08014528 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
33
TRIM-REAR SHELF RETAINER-FULL SHELF WCI 3206374 Contact Us For Availability
34
COVER-EVAPORATOR COIL WCI 3206119 Contact Us For Availability
34
SHELF-GLASS-FULL SHELF WCI 3206376 Contact Us For Availability
34A
RAIL - GLASS SUPPORT (2) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
35
RETAINER-GLASS-FULL SHELF WCI 3206375 Contact Us For Availability
36
WCI 3206142 WCI 3206142 Contact Us For Availability
36
FRAME-FULL SHELF WCI 3203935 Contact Us For Availability
37
DRAIN TROUGH WCI 3206146 Contact Us For Availability
37
TRIM-FULL SHELF WCI 3206206 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
38
WCI 3206351 WCI 3206351 Contact Us For Availability
39
WCI G188673 WCI G188673 Contact Us For Availability
39
WCI 3206210 WCI 3206210 Contact Us For Availability
39A
ROLLER (2) (NON-ILLUSTRATED) WCI G177021 Contact Us For Availability
39B
SPRING-ROLLER ADJ (2) (NON-ILLUSTRATED) WCI G178494 Contact Us For Availability
40
RING, SEAL WCI G176853 Contact Us For Availability
40
TRIM-MEAT PAN WCI 3206211 Contact Us For Availability
41
WASHER NYLON (2) WCI G182799 Contact Us For Availability
41
FRONT-CRISPER PAN-LH WCI 3206181 Contact Us For Availability
42
WCI 3206202 WCI 3206202 Contact Us For Availability
42
TRIM-CRISPER PAN (2) WCI 3206213 Contact Us For Availability
43
DEFLECTOR - AIR WCI 3204206 Contact Us For Availability
44
CHANNEL-SHELF MTG-CENTER WCI 3015409 Contact Us For Availability
44
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
45
SCREW-CTR CHNL MTG (3) WCI 08016568 Contact Us For Availability
46
DECORATIVE PLUG WCI 3018193 Contact Us For Availability
× ![]()
