Model Electrolux RT178GCD2 REFRIGERATOR – Common Parts & Diagrams

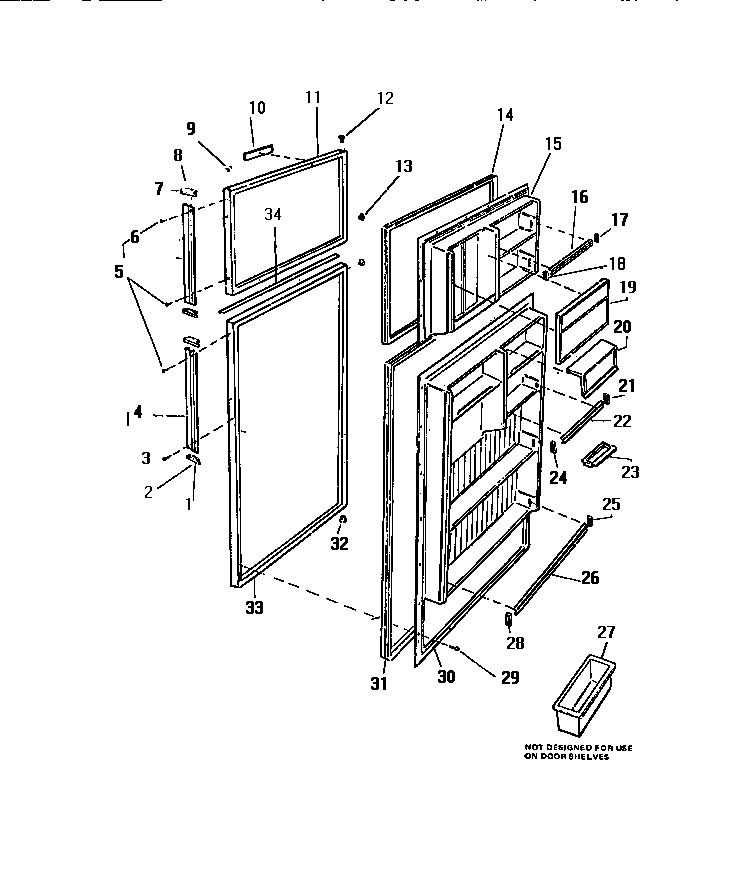

02 - DOOR

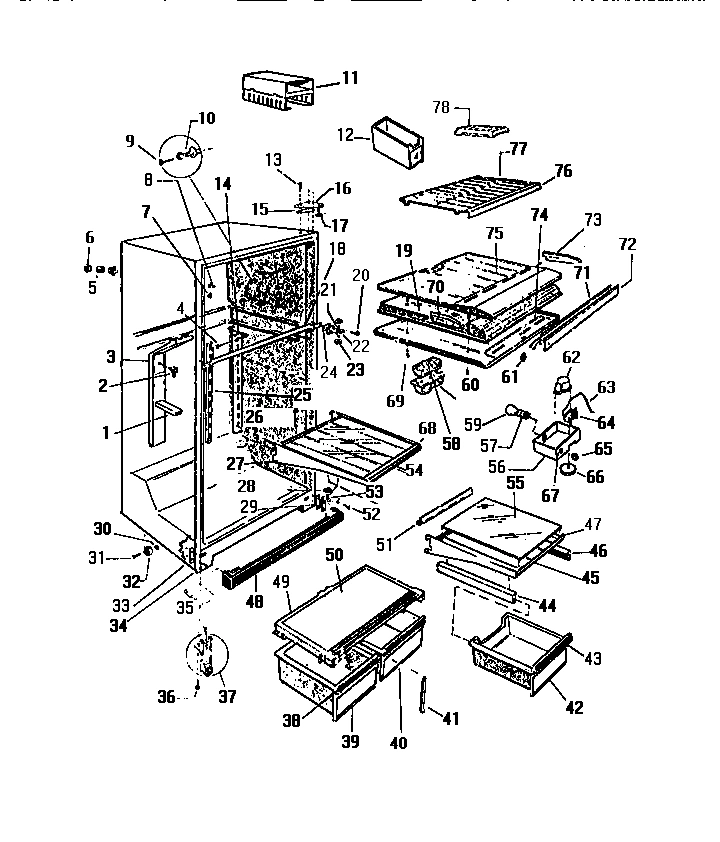

03 - CABINET, SHELVES, DIVIDER, FAN ASSE
04 - COOLING SYSTEM
Common parts from model Electrolux RT178GCD2 REFRIGERATOR
*86400
WCI C36536 WCI C36536 Contact Us For Availability
*86402
WCI 4678371H22 WCI 4678371H22 Contact Us For Availability
*86403
WIRING HARNESS COMPRESSOR WCI G162733-02 Contact Us For Availability
*86404
VINYL TAPE, ELM BURL (CUT TO SIZE) WCI R900622 Contact Us For Availability
*86405
WCI CR31X WCI CR31X Contact Us For Availability
*86406
INSULATION FIBERGLASS CUT TO SIZE-34`` X 48`` WCI C69111 Contact Us For Availability
*86407
INSULATION FIBERGLASS CUT TO SIZE-34`` X 48`` WCI C69110 Contact Us For Availability
*86408
INSULATION, FIBERGLASS CUT TO SIZE-34`` X 48` WCI C69109 Contact Us For Availability
*86410
WCI G162051-11 WCI G162051-11 Contact Us For Availability
*86414
WCI G176210 WCI G176210 Contact Us For Availability
1
WCI G181292-02 WCI G181292-02 Contact Us For Availability
1
TUBE REAR OF CAB WCI G155529-04 Contact Us For Availability
2
TRIM, BTM WCI G179271 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3
CLIP, HANDLE WCI G177144 Contact Us For Availability
3
WCI R900665 WCI R900665 Contact Us For Availability
4
WCI G177141-06 WCI G177141-06 Contact Us For Availability
4
SCREW WCI G163989 Contact Us For Availability
4
WCI G162180 WCI G162180 Contact Us For Availability
5
WCI G155660 WCI G155660 Contact Us For Availability
5
TUBE WCI G85642 Contact Us For Availability
5
TROUGH WCI G170071 Contact Us For Availability
5A
FERRULE WCI G174733 Contact Us For Availability
6
WCI G177141-03 WCI G177141-03 Contact Us For Availability
6
FERRULE WCI G174734 Contact Us For Availability
6
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
7
END CAP, TOP WCI G177142 Contact Us For Availability
7
END CAP, BOTTOM WCI G177143 Contact Us For Availability
7
PLUG BUTTON (6 REQ) WCI G162659 Contact Us For Availability
7
WCI G162715 WCI G162715 Contact Us For Availability
8
TRIM, TOP WCI G179270 Contact Us For Availability
8
SUPPORT EVAP. COVER WCI G163669 Contact Us For Availability
8
WCI G101620 WCI G101620 Contact Us For Availability
9
WCI G169332-11 WCI G169332-11 Contact Us For Availability
9
SCREW WCI G163104 Contact Us For Availability
9
BLOCK, RH WCI G163099 Contact Us For Availability
10
WCI R304001 WCI R304001 Contact Us For Availability
10
SUPPORT (8) WCI G163105 Contact Us For Availability
10
DRIER-REGULAR WCI C101601 Contact Us For Availability
10
WCI R900125 WCI R900125 Contact Us For Availability
11
PANEL, ALMOND WCI G178431-11 Contact Us For Availability
11
WCI G162739 WCI G162739 Contact Us For Availability
12
WCI G161015-13 WCI G161015-13 Contact Us For Availability
13
WCI G162977-11 WCI G162977-11 Contact Us For Availability
13
BRACKET WCI G164571 Contact Us For Availability
14
WCI G180647-06 WCI G180647-06 Contact Us For Availability
14
STRINGER (RT OR LT SIDE) WCI G170695 Contact Us For Availability
14
BRACKET WCI G162048 Contact Us For Availability
15
WCI G179822-01 WCI G179822-01 Contact Us For Availability
15
SHIM WCI G158344 Contact Us For Availability
16
FRONT WCI G490079-08 Contact Us For Availability
16
HINGE WCI G162385 Contact Us For Availability
17
WASHER, NYLON WCI G101970 Contact Us For Availability
17
BRACKET WCI G162049 Contact Us For Availability
18
WCI G16578 WCI G16578 Contact Us For Availability
19
WCI G179939-01 WCI G179939-01 Contact Us For Availability
19
CENTER (STYRO) WCI G170073 Contact Us For Availability
20
DOOR (2) WCI G179967-02 Contact Us For Availability
20
WCI Q500010 WCI Q500010 Contact Us For Availability
21
END CAP, RH WCI G177221-01 Contact Us For Availability
21
WCI G142220 WCI G142220 Contact Us For Availability
21
CUP WCI G162179 Contact Us For Availability
22
WCI G177220-03 WCI G177220-03 Contact Us For Availability
22
HINGE WCI G162384 Contact Us For Availability
22A
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
22B
WCI G162545 WCI G162545 Contact Us For Availability
23
WCI 161079 WCI 161079 Contact Us For Availability
24
END CAP, LH WCI G177222-01 Contact Us For Availability
24
SHIM WCI G162683 Contact Us For Availability
24
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
25
END CAP RH WCI G176891-01 Contact Us For Availability
25
STRINGER, CENTER WCI G175612 Contact Us For Availability
25
COVER WCI G162050-01 Contact Us For Availability
26
FRONT (2) WCI G490079-07 Contact Us For Availability
26
TRIM, REAR WCI G172409-10 Contact Us For Availability
26
WCI G162701 WCI G162701 Contact Us For Availability
27
WCI G173948-19 WCI G173948-19 Contact Us For Availability
27
FRAME WCI G178323-03 Contact Us For Availability
27
RING WCI G167217 Contact Us For Availability
28
END CAP LH WCI G176892-01 Contact Us For Availability
28
WASHER (NYLON) WCI G164355 Contact Us For Availability
29
SHIM WCI G162903 Contact Us For Availability
29
WCI Q401601 WCI Q401601 Contact Us For Availability
30
WCI G179809-01 WCI G179809-01 Contact Us For Availability
30
LABEL WCI G180298 Contact Us For Availability
31
GASKET WCI G180547-07 Contact Us For Availability
31
WCI G162663-13 WCI G162663-13 Contact Us For Availability
31
PIN WCI G162809 Contact Us For Availability
32
WCI G162889 WCI G162889 Contact Us For Availability
32
CLIP WCI G162662 Contact Us For Availability
32
ROLLER, REAR WCI G162808 Contact Us For Availability
32A
WCI G152473 WCI G152473 Contact Us For Availability
32B
WCI G155072 WCI G155072 Contact Us For Availability
33
PANEL OUTER DOOR, ALMOND WCI G180158-11 Contact Us For Availability
33
TAP PLATE WCI G157591 Contact Us For Availability
33
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
34
WCI G178328-02 WCI G178328-02 Contact Us For Availability
34
WCI G142361 WCI G142361 Contact Us For Availability
34
WCI G179792-01 WCI G179792-01 Contact Us For Availability
35
CLIP WCI G162994 Contact Us For Availability
35
COMPRESSOR W/OVLD RELAY (4`` X 6 1/2``) SEE N WCI C620102 Contact Us For Availability
36
BOLT WCI G145103 Contact Us For Availability
36
RELAY (2) WCI G150618-26 Contact Us For Availability
37
ROLLER, COMPLETE WCI G166138 Contact Us For Availability
37
RETAINER (2) WCI G166053 Contact Us For Availability
39
PAN, CRISPER WCI G179706-02 Contact Us For Availability
40
PAN, FRUIT WCI G179706-03 Contact Us For Availability
40
OVERLOAD (2) WCI G176001 Contact Us For Availability
41
SUPPORT WCI G166310-01 Contact Us For Availability
41
PLATE, DEFROST (2) WCI G175411 Contact Us For Availability
42
WCI G177013-01 WCI G177013-01 Contact Us For Availability
42
WCI G162549-01 WCI G162549-01 Contact Us For Availability
43
TRIM, PAN (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
43
PAN WCI G162890 Contact Us For Availability
44
WCI G174365-01 WCI G174365-01 Contact Us For Availability
45
SLEEVE WCI G154588 Contact Us For Availability
46
WCI G174366-01 WCI G174366-01 Contact Us For Availability
46
WASHER WCI G164634 Contact Us For Availability
47
FRAME, SHELF WCI G178324-02 Contact Us For Availability
48
TOE GRILL (LESS CLIPS) WCI G163080-03 Contact Us For Availability
49
GASKET WCI G180108-02 Contact Us For Availability
50
COVER WCI G162840-01 Contact Us For Availability
51
TRIM, REAR WCI G172409-09 Contact Us For Availability
52
SCREW WCI G162656 Contact Us For Availability
53
HINGE WCI G162383 Contact Us For Availability
55
SHELF, GLASS WCI G171654-27 Contact Us For Availability
56
BOX WCI G176722-01 Contact Us For Availability
57
SOCKET WCI G168302 Contact Us For Availability
58
BAFFLE WCI G162675 Contact Us For Availability
59
WCI Q63749 WCI Q63749 Contact Us For Availability
60
COVER WCI G162178 Contact Us For Availability
64
CONTROL WCI G162667-10 Contact Us For Availability
65
SWITCH WCI G177727-02 Contact Us For Availability
66
KNOB WCI G490107-02 Contact Us For Availability
67
WCI G180197 WCI G180197 Contact Us For Availability
68
TRIM, SHELF, CUT TO SIZE WCI G177060-03 Contact Us For Availability
69
SCREW WCI G162673 Contact Us For Availability
70
WCI G162177 WCI G162177 Contact Us For Availability
71
HEATER WCI G177254 Contact Us For Availability
73
WCI G162176 WCI G162176 Contact Us For Availability
74
DIVIDER, TOP OF REF. (METAL) WCI G174714 Contact Us For Availability
75
DIVIDER BTM WCI G161919-01 Contact Us For Availability
76
WCI G177080-03 WCI G177080-03 Contact Us For Availability
77
SHELF (1 REQ) WCI G177415-02 Contact Us For Availability
78
ICE TRAY WCI R2901 Contact Us For Availability
× ![]()
