Model Electrolux RT177GCF1 REFRIGERATOR – Common Parts & Diagrams

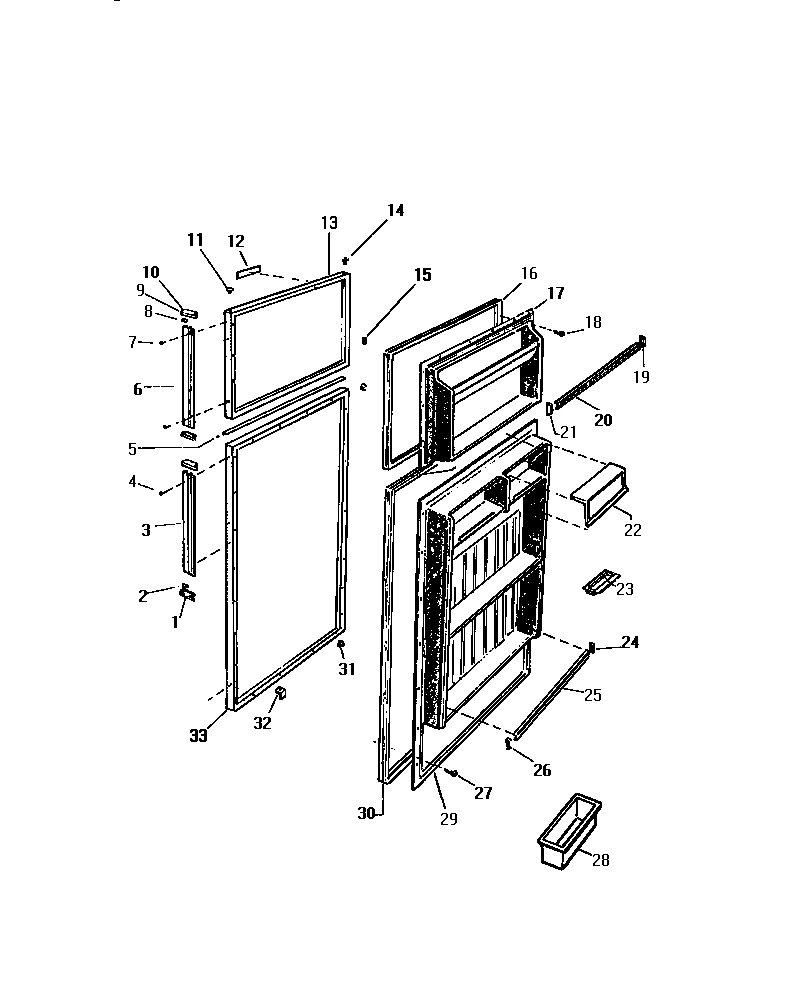

02 - DOORS

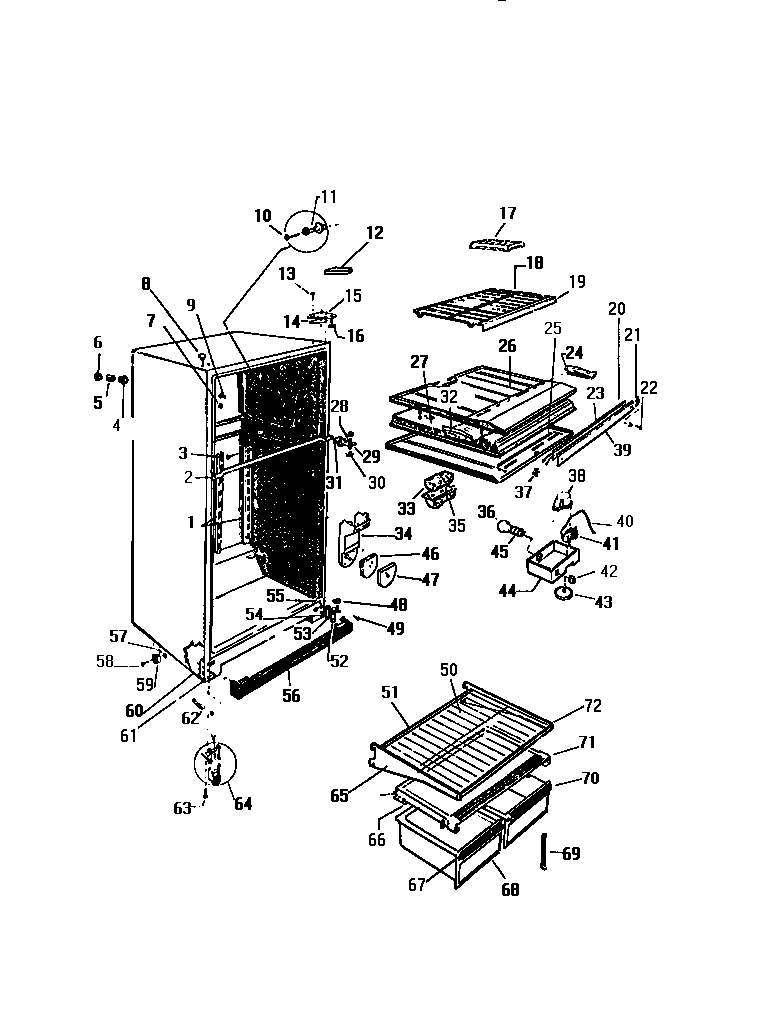

03 - CABINET, SHELVES, DIVIDER

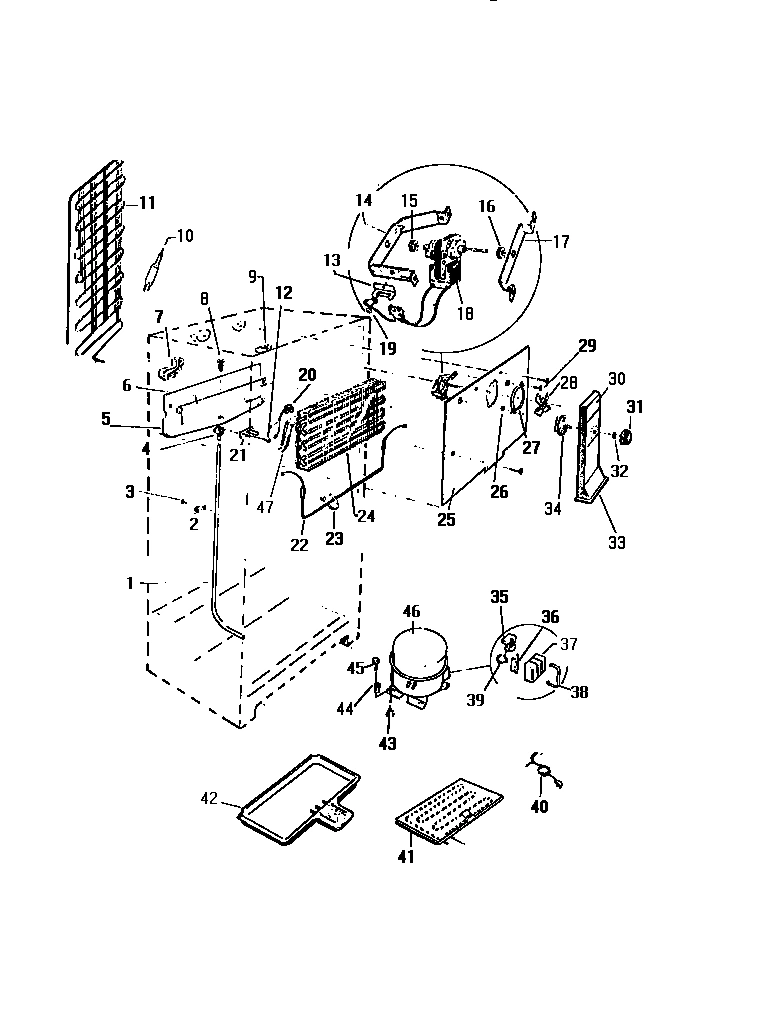

04 - EVAPORATOR, FAN ASSY.
Common parts from model Electrolux RT177GCF1 REFRIGERATOR
*69240
INSULATION FIBERGLASS, CUT TO SIZE, 34`` X 48 WCI C69110 Contact Us For Availability
*69241
INSULATION FIBERGLASS CUT TO SIZE, 34`` X 48` WCI C69111 Contact Us For Availability
*69242
WCI G176210 WCI G176210 Contact Us For Availability
*69243
PLASTIC BAG WCI C35536 Contact Us For Availability
*69244
INSULATION, FIBERGLASS CUT TO SIZE 34`` X 48` WCI C69109 Contact Us For Availability
*69245
CLEANING FLUID TAPE RESIDUE WCI 467B372H36 Contact Us For Availability
1
TRIM, BTM WCI G179271 Contact Us For Availability
1
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
1
TUBE REAR OF CAB WCI G155529-04 Contact Us For Availability
1B
NUT WCI G77210 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3A
VINYL TAPE, HANDLE ( CUT TO SIZE ) WCI R900622 Contact Us For Availability
4
FERRULE WCI G174733 Contact Us For Availability
4
WCI G162180 WCI G162180 Contact Us For Availability
5
TRIM WCI G178328-02 Contact Us For Availability
5
TUBE WCI G85642 Contact Us For Availability
5
TROUGH WCI G170071 Contact Us For Availability
5A
TAPE DOUBLE FACE WCI C460947 Contact Us For Availability
6
HANDLE WCI G177141-03 Contact Us For Availability
6
WCI Q174734 WCI Q174734 Contact Us For Availability
6
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
7
WCI G155660 WCI G155660 Contact Us For Availability
7
WCI G162959 WCI G162959 Contact Us For Availability
7
WCI G162715 WCI G162715 Contact Us For Availability
8
CLIP, HANDLE WCI G177144 Contact Us For Availability
8
WCI G174747-10 WCI G174747-10 Contact Us For Availability
8
WCI G101620 WCI G101620 Contact Us For Availability
9
TRIM, TOP WCI G179270 Contact Us For Availability
9
SUPPORT EVAP. COVER WCI G163669 Contact Us For Availability
9
BLOCK, RH WCI G163099 Contact Us For Availability
10
END CAP BTM RH TOP LH WCI G177143 Contact Us For Availability
10
SCREW (8) WCI G163104 Contact Us For Availability
10
DRIER-REGULAR WCI C101601 Contact Us For Availability
10A
TOP RH BTM LH WCI G177142 Contact Us For Availability
10A
WCI R900125 WCI R900125 Contact Us For Availability
11
WCI G169332-10 WCI G169332-10 Contact Us For Availability
11
SUPPORT (8) WCI G163105 Contact Us For Availability
11
WCI G162739 WCI G162739 Contact Us For Availability
12
WCI R304001 WCI R304001 Contact Us For Availability
12
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
13
WCI G178431-10 WCI G178431-10 Contact Us For Availability
13
BRACKET WCI G164571 Contact Us For Availability
14
WCI G183161 WCI G183161 Contact Us For Availability
14
BRACKET WCI G162048 Contact Us For Availability
15
WCI G162977-10 WCI G162977-10 Contact Us For Availability
15
HINGE WCI G183714 Contact Us For Availability
16
GASKET WCI G180547-06 Contact Us For Availability
16
WASHER, NYLON WCI G101970 Contact Us For Availability
17
INNER PANEL WCI G179881-01 Contact Us For Availability
17
ICE TRAY WCI R2901 Contact Us For Availability
17
BRACKET WCI G162049 Contact Us For Availability
18
WCI G177415-02 WCI G177415-02 Contact Us For Availability
20
FRONT WCI G490079-09 Contact Us For Availability
21
CLIP WCI G165781 Contact Us For Availability
21
CUP WCI G162179 Contact Us For Availability
22
WCI G17996701 WCI G17996701 Contact Us For Availability
23
HEATER WCI G177254 Contact Us For Availability
24
END CAP RH WCI G176891-01 Contact Us For Availability
24
FILLETT, RH WCI G162176 Contact Us For Availability
24
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
25
FRONT WCI G490079-07 Contact Us For Availability
25
DIVIDER, TOP OF REF. (METAL) WCI G174714 Contact Us For Availability
25
COVER WCI G162050-01 Contact Us For Availability
26
END CAP LH WCI G176892-01 Contact Us For Availability
26
DIVIDER BTM ( STYRO ) WCI G161919-01 Contact Us For Availability
26
WCI G162701 WCI G162701 Contact Us For Availability
27
CENTER (STYRO) WCI G170073 Contact Us For Availability
27
RING WCI G167217 Contact Us For Availability
28
EGG CONTAINER WCI G173948-17 Contact Us For Availability
28
WCI G142220 WCI G142220 Contact Us For Availability
29
INNER PANEL WCI G179873-01 Contact Us For Availability
29
HINGE WCI G162384 Contact Us For Availability
29
SCREW ( 2 REQ ) WCI Q401601 Contact Us For Availability
30
GASKET WCI G180547-07 Contact Us For Availability
30
LABEL WCI G180137 Contact Us For Availability
31
BEARING WCI G183138 Contact Us For Availability
31
SHIM WCI G162683 Contact Us For Availability
31
WCI G162663-13 WCI G162663-13 Contact Us For Availability
32
DOOR STOP UPPER-LW DOOR WCI G155072 Contact Us For Availability
32
FILLETT, LH WCI G162177 Contact Us For Availability
32
CLIP WCI G162662 Contact Us For Availability
33
OUTER PANEL TEXT, COFFEE, INCL. BEARING WCI G178429-10 Contact Us For Availability
33
BAFFLE WCI G162675 Contact Us For Availability
33
COVER WCI G179793-01 Contact Us For Availability
34
WCI G173551-01 WCI G173551-01 Contact Us For Availability
34
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
35
COVER WCI G162178 Contact Us For Availability
35
WCI G150618-32 WCI G150618-32 Contact Us For Availability
36
WCI Q63749 WCI Q63749 Contact Us For Availability
36
REETAINER WCI G166053 Contact Us For Availability
39
WCI G162051-10 WCI G162051-10 Contact Us For Availability
39
OVERLOAD WCI G176001 Contact Us For Availability
40
WCI G162549-01 WCI G162549-01 Contact Us For Availability
41
CONTROL WCI G162667-10 Contact Us For Availability
41
DEFROST PLATE WCI G175411 Contact Us For Availability
42
SWITCH WCI G177727-02 Contact Us For Availability
42
PAN WCI G162890 Contact Us For Availability
43
KNOB WCI G490107-02 Contact Us For Availability
44
BOX WCI G176722-01 Contact Us For Availability
44
SLEEVE WCI G154588 Contact Us For Availability
45
WCI G163802 WCI G163802 Contact Us For Availability
45
WCI G154589 WCI G154589 Contact Us For Availability
46
WCI G173552 WCI G173552 Contact Us For Availability
46
COMPRESSOR W/OVLD RELAY WCI C620102 Contact Us For Availability
47
WCI G184547 WCI G184547 Contact Us For Availability
47
WCI G162545 WCI G162545 Contact Us For Availability
47A
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
48
WASHER (NYLON) WCI G164355 Contact Us For Availability
49
SCREW WCI G162656 Contact Us For Availability
50
SHELF, GLASS (FULL WIDTH) WCI G171654-29 Contact Us For Availability
51
WCI G172409-11 WCI G172409-11 Contact Us For Availability
52
HINGE WCI G162383 Contact Us For Availability
53
WCI G142361 WCI G142361 Contact Us For Availability
54
SHIM WCI G162903 Contact Us For Availability
55
WCI G141673 WCI G141673 Contact Us For Availability
56
TOE GRILL WCI G163080-03 Contact Us For Availability
58
PIN WCI G162809 Contact Us For Availability
59
WCI G162806 WCI G162806 Contact Us For Availability
60
TAP PLATE WCI G157591 Contact Us For Availability
61
WCI Q142361 WCI Q142361 Contact Us For Availability
62
CLIP WCI G162994 Contact Us For Availability
62A
WCI G172797 WCI G172797 Contact Us For Availability
63
BOLT (2) WCI G145103 Contact Us For Availability
64
ROLLER COMPL. WCI G166138 Contact Us For Availability
65
FRAME, SHELF WCI G178323-05 Contact Us For Availability
66
GASKET WCI G180108-02 Contact Us For Availability
67
TRIM, PANS (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
69
SUPPORT WCI G166310-01 Contact Us For Availability
70
PAN WCI G179706-01 Contact Us For Availability
71
COVER WCI G162840-01 Contact Us For Availability
72
TRIM (CUT TO SIZE) WCI G177060-03 Contact Us For Availability
× ![]()
