Model Electrolux RT176MCD0 REFRIGERATOR – Common Parts & Diagrams

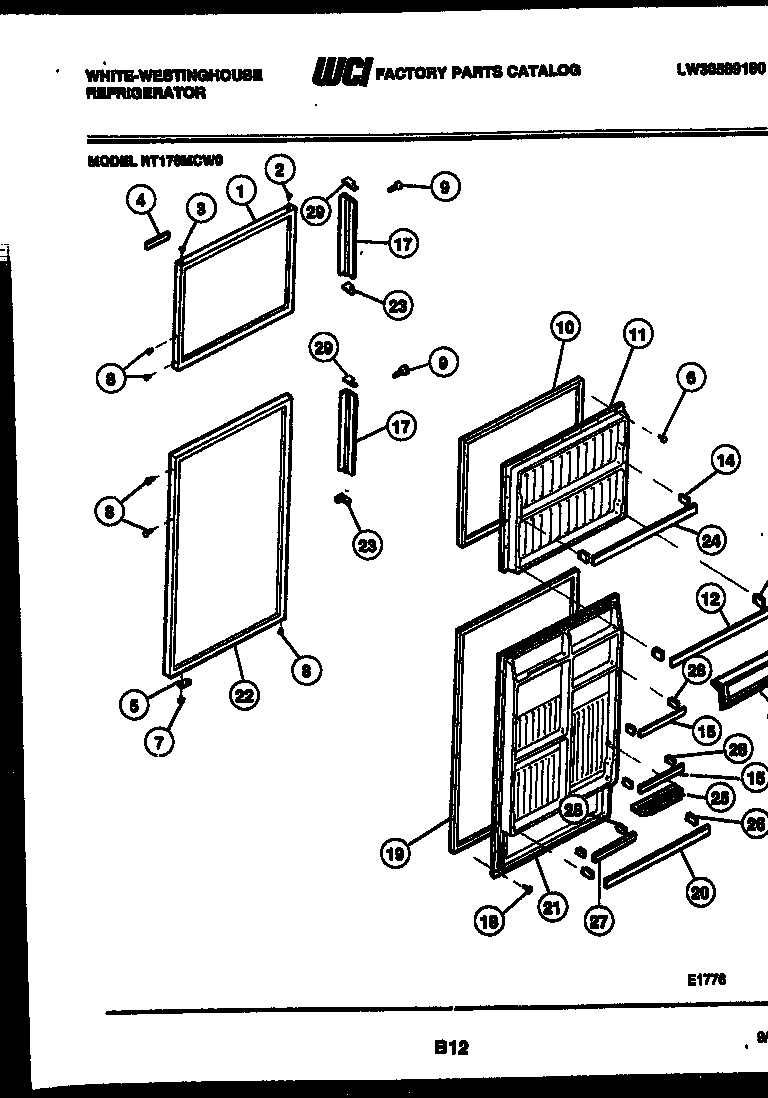

02 - DOOR PARTS

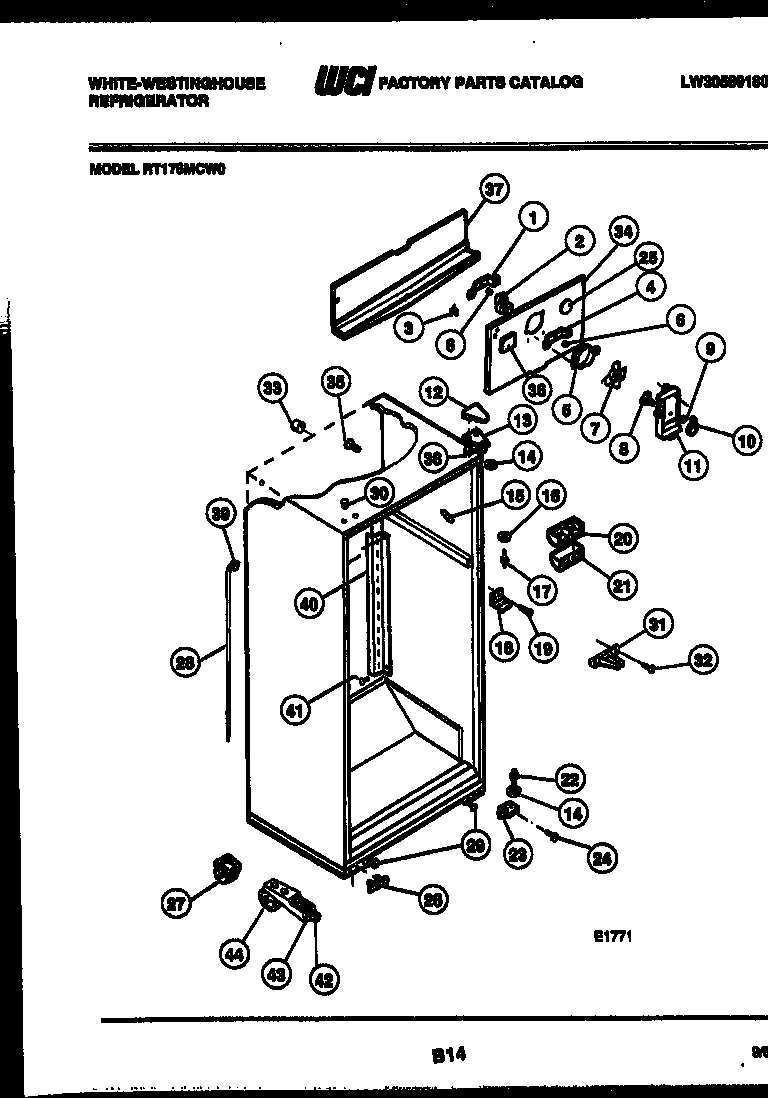

03 - CABINET PARTS

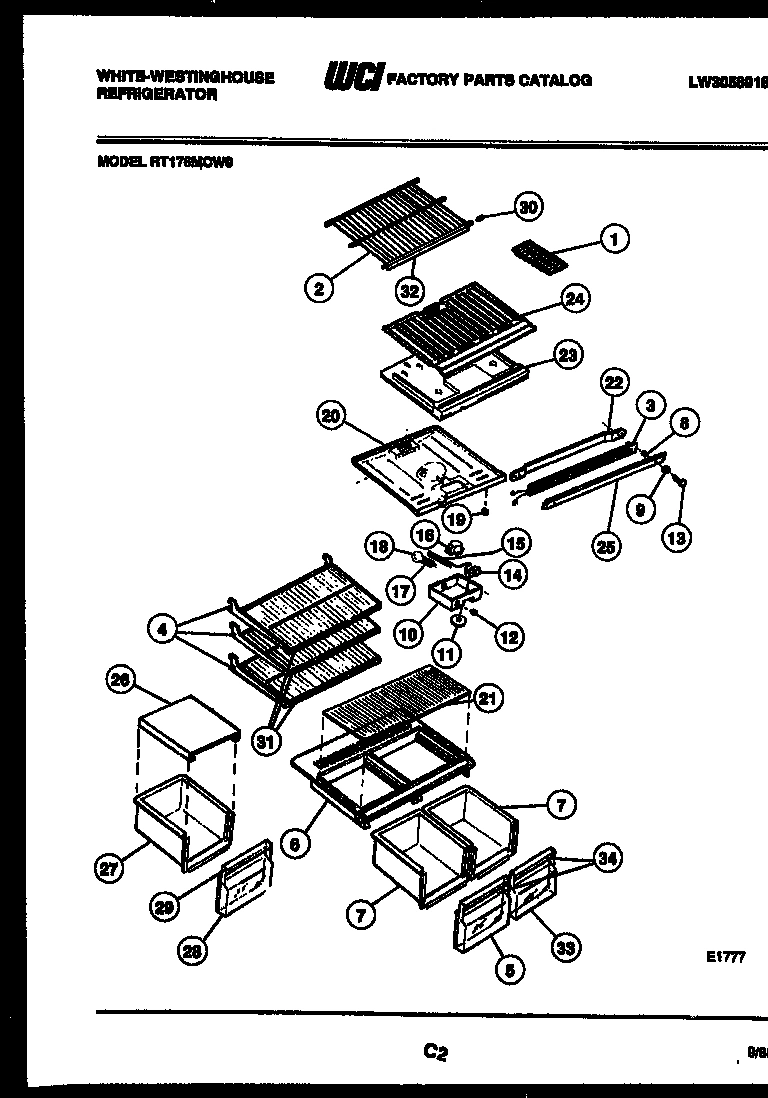

04 - SHELVES AND SUPPORTS

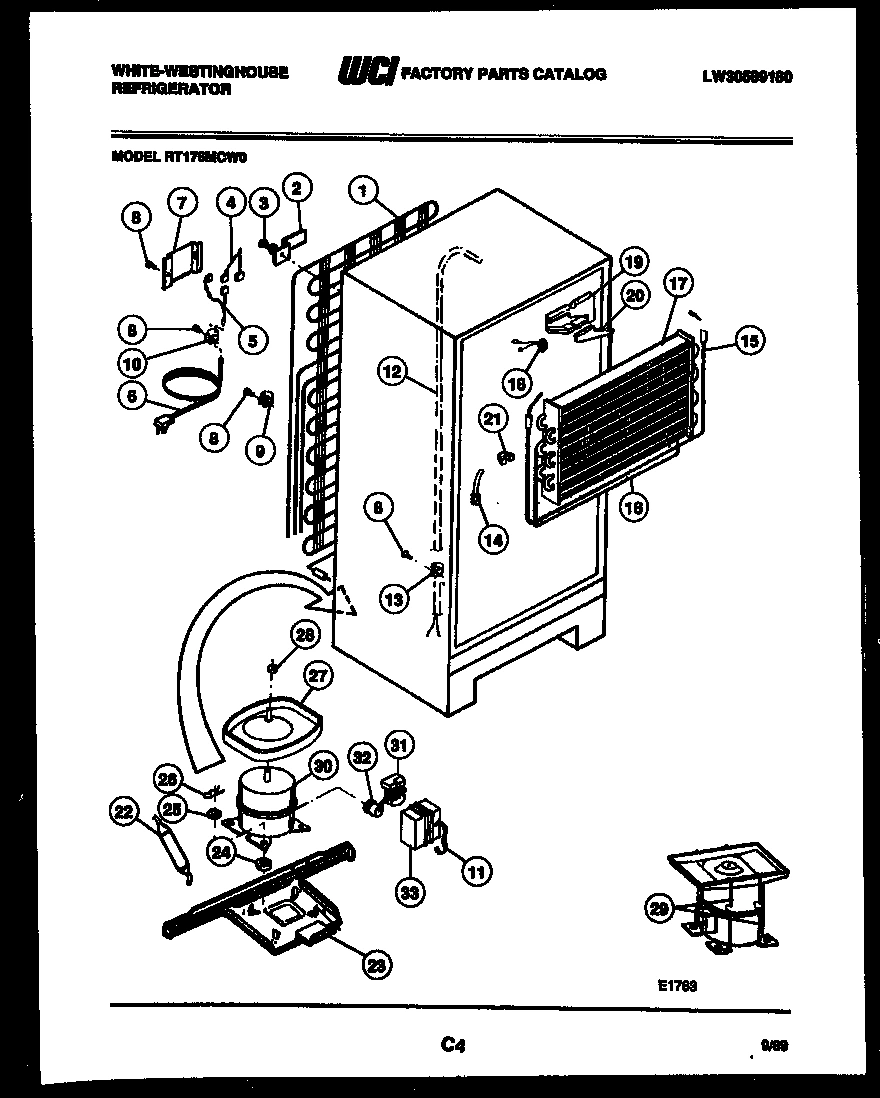

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT176MCD0 REFRIGERATOR
*22270
ROLLER (2) WCI G177021 Contact Us For Availability
*22270
WCI G178494 WCI G178494 Contact Us For Availability
*22270
PLUG-FREEZER LINER (3) WCI G187599 Contact Us For Availability
*22273
CLIP-CANTILEVER SHELF (6) WCI G170910 Contact Us For Availability
*22277
HOT TUBE REPAIR KIT-SVCE WCI 3916557 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
2
WCI 3206353 WCI 3206353 Contact Us For Availability
2
BRACKET-CONDENSER MTG (4) WCI 3001342 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3206120 WCI 3206120 Contact Us For Availability
3A
WASHER-NO. 10 EXT TOOTH WCI G164820 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
WCI 3206352 WCI 3206352 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
5
DOOR STOP (2) WCI 08000255 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
FRONT-CRISPER PAN-LH WCI 3206181 Contact Us For Availability
5
WIRING HARNESS-COMPR WCI 3206113 Contact Us For Availability
6
WCI G1576666 WCI G1576666 Contact Us For Availability
6
COVER-CRISPER WCI 3206183 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
7
WCI 3206180 WCI 3206180 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI G162977-11 WCI G162977-11 Contact Us For Availability
8
DAMPER WCI 3206110 Contact Us For Availability
8
WCI 3200464 WCI 3200464 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI G166847 WCI G166847 Contact Us For Availability
10
WCI 08007123 WCI 08007123 Contact Us For Availability
10
KNOB-DAMPER CONTROL WCI 3206109 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
11
WCI 3206188 WCI 3206188 Contact Us For Availability
11
WCI 3206207 WCI 3206207 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 3201777 Contact Us For Availability
11B
WCI 3206208 WCI 3206208 Contact Us For Availability
12
RACK-FREEZER WCI 3206163 Contact Us For Availability
12
HINGE COVER-ALMOND WCI 3206105 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
12
WCI G177531 WCI G177531 Contact Us For Availability
13
SUPPORT-RACK RH WCI 3206161 Contact Us For Availability
13
SUPPORT-RACK-LH WCI 3206162 Contact Us For Availability
13
HINGE, TOP WCI 3206100 Contact Us For Availability
13
SCREW-MULLION (4) WCI 3206134 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14A
WCI G107080 WCI G107080 Contact Us For Availability
15
WCI 3206191 WCI 3206191 Contact Us For Availability
15
WCI 3202340 WCI 3202340 Contact Us For Availability
15
HSG-CONT CAP TUBE WCI 3018891 Contact Us For Availability
15
WCI 08009754 WCI 08009754 Contact Us For Availability
16
DOOR-DAIRY-RH (SMALL) WCI 3206149 Contact Us For Availability
16
TRIM-RH DOOR WCI 3206220 Contact Us For Availability
16
TRIM-LH DOOR WCI 3206221 Contact Us For Availability
16
DOOR-DAIRY-LH (LARGE) WCI 3206222 Contact Us For Availability
16
WASHER-HINGE WCI 08000186 Contact Us For Availability
16
WCI G166511-02 WCI G166511-02 Contact Us For Availability
17
WCI 3206217 WCI 3206217 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G176909 WCI G176909 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
19
WCI G185299 WCI G185299 Contact Us For Availability
20
RACK-REFRIGERATOR WCI 3206152 Contact Us For Availability
20
WCI 3204206 WCI 3204206 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 3206185 Contact Us For Availability
20
WCI G185276 WCI G185276 Contact Us For Availability
20A
WCI G162673 WCI G162673 Contact Us For Availability
21
PANEL-REFRIGERATOR INNER WCI 3206369 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
WCI 3206355 WCI 3206355 Contact Us For Availability
21
WCI G188375 WCI G188375 Contact Us For Availability
22
WCI 3916577 WCI 3916577 Contact Us For Availability
22
WCI G166709 WCI G166709 Contact Us For Availability
23
WCI G000177143 WCI G000177143 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 3206136 Contact Us For Availability
23
WCI 3206186 WCI 3206186 Contact Us For Availability
23
PLATE-COMPR MTG WCI 3206126 Contact Us For Availability
23A
CLIP-DOOR HANDLE (2) (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
23B
WCI G000179271 WCI G000179271 Contact Us For Availability
24
RACK-FRZR (NARROW) WCI 3206164 Contact Us For Availability
24
BOTTOM-FREEZER WCI 3206187 Contact Us For Availability
25
WCI 3206189 WCI 3206189 Contact Us For Availability
25
WCI 3203044 WCI 3203044 Contact Us For Availability
25
WCI 3206125 WCI 3206125 Contact Us For Availability
25
WCI G164634 WCI G164634 Contact Us For Availability
26
SUPT-RACK-RH WCI 3206150 Contact Us For Availability
26
SUPT-RACK-LH WCI 3206151 Contact Us For Availability
26
COVER-HINGE SCREW WCI 3206135 Contact Us For Availability
26
WCI 3206350 WCI 3206350 Contact Us For Availability
26
WCI G163204 WCI G163204 Contact Us For Availability
27
WCI 3206190 WCI 3206190 Contact Us For Availability
27
WCI 3206237 WCI 3206237 Contact Us For Availability
27
WCI 3206351 WCI 3206351 Contact Us For Availability
27
PAN-DEFROST DRAIN WCI G184715 Contact Us For Availability
28
WCI 3206115 WCI 3206115 Contact Us For Availability
28
WCI 3206210 WCI 3206210 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
29
WCI G177142 WCI G177142 Contact Us For Availability
29
PLUG-CABINET WCI 3206142 Contact Us For Availability
29
TRIM-MEAT PAN FRONT WCI 3206211 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
30
CAP PROTECTOR (2) WCI 3201150 No Longer Available
30
WCI G174747-11 WCI G174747-11 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 3916020 Contact Us For Availability
31
WCI 08000056 WCI 08000056 Contact Us For Availability
31
TRIM-SHELF (3) WCI 3206206 Contact Us For Availability
32
PUSH PIN-DRAIN SPOUT WCI 3001361 Contact Us For Availability
32
TRIM-FREEZER SHELF WCI 3206203 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
33
WCI 3206354 WCI 3206354 Contact Us For Availability
34
COVER-EVAPORATOR COIL WCI 3206119 Contact Us For Availability
34
TRIM-CRISPER PAN-FRONT (2) WCI 3206213 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
36
WCI 3018193 WCI 3018193 Contact Us For Availability
37
DRAIN TROUGH WCI 3206146 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
39
RING, SEAL WCI G176853 Contact Us For Availability
40
CHANNEL-SHELF MTG (2) WCI 3206202 Contact Us For Availability
42
SCREW-ADJ (2) WCI G177024 Contact Us For Availability
43
WASHER NYLON (2) WCI G182799 Contact Us For Availability
44
WCI G188673 WCI G188673 Contact Us For Availability
× ![]()
