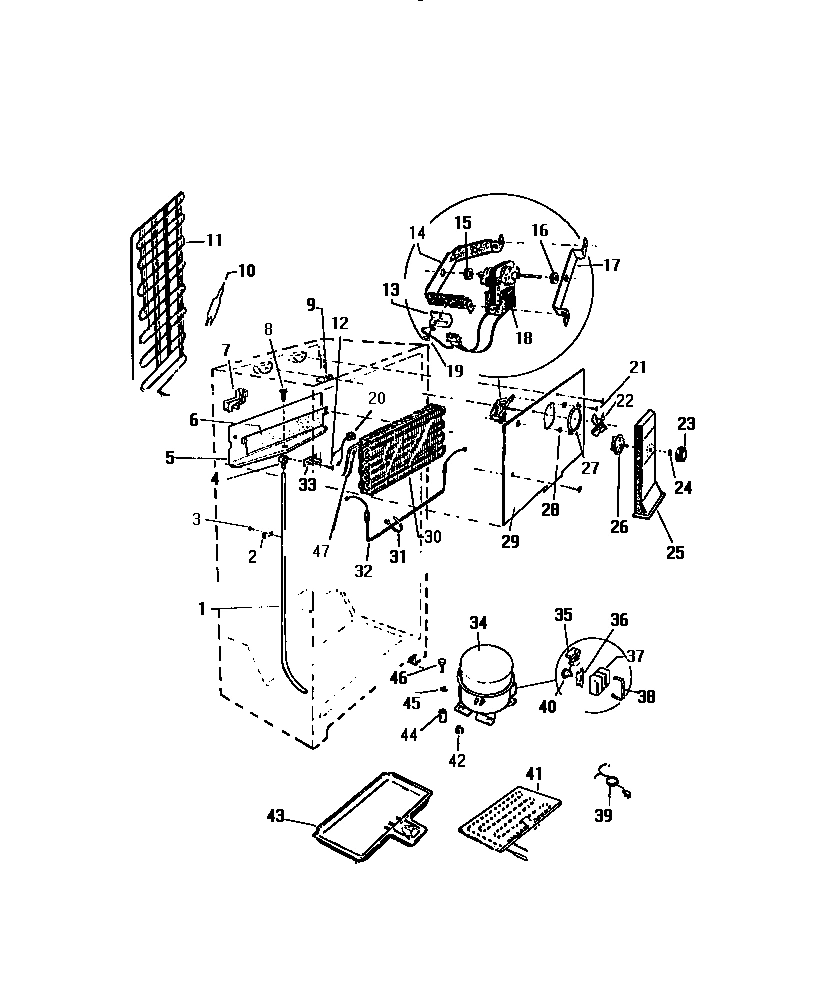

04 - COOLING SYSTEM
Common parts from model Electrolux RT176GCV3 REFRIGERATOR
*90360
VINYL TAPE, HANDLE, ELM BURL FINISH WCI R900622 Contact Us For Availability
*90361
INSULATION, FIBERGLASS CUT TO SIZE 34`` X 48` WCI C69109 Contact Us For Availability
*90362
INSULATION FIBERGLASS CUT TO SIZE, 34`` X 48` WCI C69110 Contact Us For Availability
*90363
WCI C29111 WCI C29111 Contact Us For Availability
*90364
PLASTIC BAG WCI C35536 Contact Us For Availability
*90366
GASKET CRISPER COVER WCI G180108-02 Contact Us For Availability
1
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
1
WCI G156529-04 WCI G156529-04 Contact Us For Availability
2
TRIM, BTM WCI G179271 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3
CLIP, HANDLE WCI G177144 Contact Us For Availability
4
FERRULE WCI G174733 Contact Us For Availability
4
WCI G162180 WCI G162180 Contact Us For Availability
5
WCI G155660 WCI G155660 Contact Us For Availability
5
TUBE WCI G85642 Contact Us For Availability
5
THROUGH WCI G170071 Contact Us For Availability
6
HANDLE WCI G177141-03 Contact Us For Availability
6
FERRULE WCI G174734 Contact Us For Availability
6
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
7
END CAP, TOP WCI G177142 Contact Us For Availability
7
WCI G102059 WCI G102059 Contact Us For Availability
7
WCI G162715 WCI G162715 Contact Us For Availability
7A
END CAP BTM WCI G177143 Contact Us For Availability
8
TRIM, TOP WCI G179270 Contact Us For Availability
8
SUPPORT EVAP. COVER WCI G163669 Contact Us For Availability
8
WCI G101620 WCI G101620 Contact Us For Availability
9
WCI G169332-08 WCI G169332-08 Contact Us For Availability
9
SCREW (8) WCI G163104 Contact Us For Availability
9
BLOCK, RH WCI G163099 Contact Us For Availability
10
WCI R304001 WCI R304001 Contact Us For Availability
10
SUPPORT (8) WCI G163105 Contact Us For Availability
10
DRIER BURNOOUT WCI R900125 Contact Us For Availability
10A
DRIER-REGULAR WCI C101601 Contact Us For Availability
11
PANEL, OUTER DOOR, AVCO., INCL THIMBLE & SEAL WCI G178431-08 Contact Us For Availability
11
COVER HINGE, AVCO. WCI G183558-08 Contact Us For Availability
11
WCI G162739 WCI G162739 Contact Us For Availability
11A
WCI G176210 WCI G176210 Contact Us For Availability
13
WCI G162977-08 WCI G162977-08 Contact Us For Availability
13
SHIM WCI G158344 Contact Us For Availability
13
BRACKET WCI G164571 Contact Us For Availability
14
GASKET WCI G180547-06 Contact Us For Availability
14
HINGE WCI G162385 Contact Us For Availability
14
BRACKET WCI G162048 Contact Us For Availability
15
WCI G179822-01 WCI G179822-01 Contact Us For Availability
15
WASHER, NYLON WCI G101970 Contact Us For Availability
16
FRONT WCI G490079-08 Contact Us For Availability
16
CENTER (STYRO) WCI G170073 Contact Us For Availability
17
WCI G178316-01 WCI G178316-01 Contact Us For Availability
17
BRACKET WCI G162049 Contact Us For Availability
18
ICE TRAY WCI R2901 Contact Us For Availability
19
WCI G179939-01 WCI G179939-01 Contact Us For Availability
19
WCI G177415-02 WCI G177415-02 Contact Us For Availability
20
DOOR (2) WCI G179967-02 Contact Us For Availability
20
WCI G177080-03 WCI G177080-03 Contact Us For Availability
21
END CAP, RH WCI G177221-01 Contact Us For Availability
21
DIVIDER BTM ( STYRO ) WCI G161919-01 Contact Us For Availability
21
WCI Q401601 WCI Q401601 Contact Us For Availability
22
WCI G177220-03 WCI G177220-03 Contact Us For Availability
22
DIVIDER, TOP OF REF, MENTAL WCI G174714 Contact Us For Availability
22
WCI Q126599 WCI Q126599 Contact Us For Availability
23
END CAP, LH WCI G177222-01 Contact Us For Availability
23
FILLETT, RH WCI G162176 Contact Us For Availability
23
LABEL WCI G180298 Contact Us For Availability
23A
WCI G162663-13 WCI G162663-13 Contact Us For Availability
24
CLIP WCI G165781 Contact Us For Availability
24
CLIP WCI G162662 Contact Us For Availability
25
END CAP RH WCI G176891-01 Contact Us For Availability
25
HEATER WCI G177254 Contact Us For Availability
25
COVER WCI G179793-02 Contact Us For Availability
26
FRONT (2) WCI G490079-07 Contact Us For Availability
26
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
27
EGG CONTAINER WCI G173948-17 Contact Us For Availability
27
WCI G162061-08 WCI G162061-08 Contact Us For Availability
27
RING WCI G167217 Contact Us For Availability
28
END CAP LH WCI G176892-01 Contact Us For Availability
28
WCI G162701 WCI G162701 Contact Us For Availability
29
COVER WCI G162050-01 Contact Us For Availability
30
WCI G179809-01 WCI G179809-01 Contact Us For Availability
30
COVER WCI G162178 Contact Us For Availability
30
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
31
GASKET WCI G180547-07 Contact Us For Availability
31
FILLETT, LH WCI G162177 Contact Us For Availability
32
WCI G162889 WCI G162889 Contact Us For Availability
32
WCI G142220 WCI G142220 Contact Us For Availability
32A
WCI G152473 WCI G152473 Contact Us For Availability
33
WCI G178429-08 WCI G178429-08 Contact Us For Availability
33
HINGE WCI G162384 Contact Us For Availability
33
CUP WCI G162179 Contact Us For Availability
34
COMPRESSOR W/ OVERLOAD RELAY 4`` X 6 1/2`` M WCI C620102 Contact Us For Availability
35
SHIM WCI G162683 Contact Us For Availability
35
WCI G150618-26 WCI G150618-26 Contact Us For Availability
36
STRINGER CTR WCI G175612 Contact Us For Availability
36
RETAINER WCI G147941 Contact Us For Availability
37
TRIM WCI G172409-10 Contact Us For Availability
37
COVER WCI G147942 Contact Us For Availability
38
BAFFLE WCI G162675 Contact Us For Availability
39
WCI G63749 WCI G63749 Contact Us For Availability
39
WCI G162549-01 WCI G162549-01 Contact Us For Availability
40
WCI G176981 WCI G176981 Contact Us For Availability
41
CONTROL WCI G162667-10 Contact Us For Availability
41
WCI G172813 WCI G172813 Contact Us For Availability
42
SWITCH WCI G177727-02 Contact Us For Availability
43
KNOB WCI G490107-02 Contact Us For Availability
43
PAN WCI G162890 Contact Us For Availability
43A
WCI G180197 WCI G180197 Contact Us For Availability
44
BOX WCI G176722-01 Contact Us For Availability
44
SLEEVE WCI G154588 Contact Us For Availability
45
WCI G163802 WCI G163802 Contact Us For Availability
45
WASHER WCI G164634 Contact Us For Availability
46
WCI G154589 WCI G154589 Contact Us For Availability
47
WCI G162545 WCI G162545 Contact Us For Availability
47A
HEAT EXCHANGER REPAIR KIT WCI G161672 Contact Us For Availability
48
HINGE WCI G162383 Contact Us For Availability
49
SCREW WCI G162656 Contact Us For Availability
51
WCI G177106-04 WCI G177106-04 Contact Us For Availability
52
TRIM (CUT TO SIZE) WCI G177060-03 Contact Us For Availability
53
HAFL SHELF WIRE WCI G180195-03 Contact Us For Availability
55
PAN, MEAT WCI G176918-03 Contact Us For Availability
56
SUPPORT WCI G166310-01 Contact Us For Availability
57
PAN, FRUIT WCI G179706-03 Contact Us For Availability
58
NUT WCI G77210 Contact Us For Availability
59
PAN, MOIST WCI G179706-02 Contact Us For Availability
60
TRIM (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
61
COVER WCI G162840-01 Contact Us For Availability
62
TOE GRILL (LESS CLIPS) WCI G163080-03 Contact Us For Availability
63
ROLLER COMPL. WCI G166138 Contact Us For Availability
64
BOLT (2) WCI G145103 Contact Us For Availability
65
CLIP WCI G162994 Contact Us For Availability
66
WCI G142361 WCI G142361 Contact Us For Availability
67
TAP PLATE WCI G157591 Contact Us For Availability
68
ROLLER, REAR WCI G162808 Contact Us For Availability
69
PIN WCI G162809 Contact Us For Availability
71
SHIM WCI G162903 Contact Us For Availability
72
WASHER (NYLON) WCI G164355 Contact Us For Availability
× ![]()
