Model Electrolux RT175LLV0 REFRIGERATOR – Common Parts & Diagrams

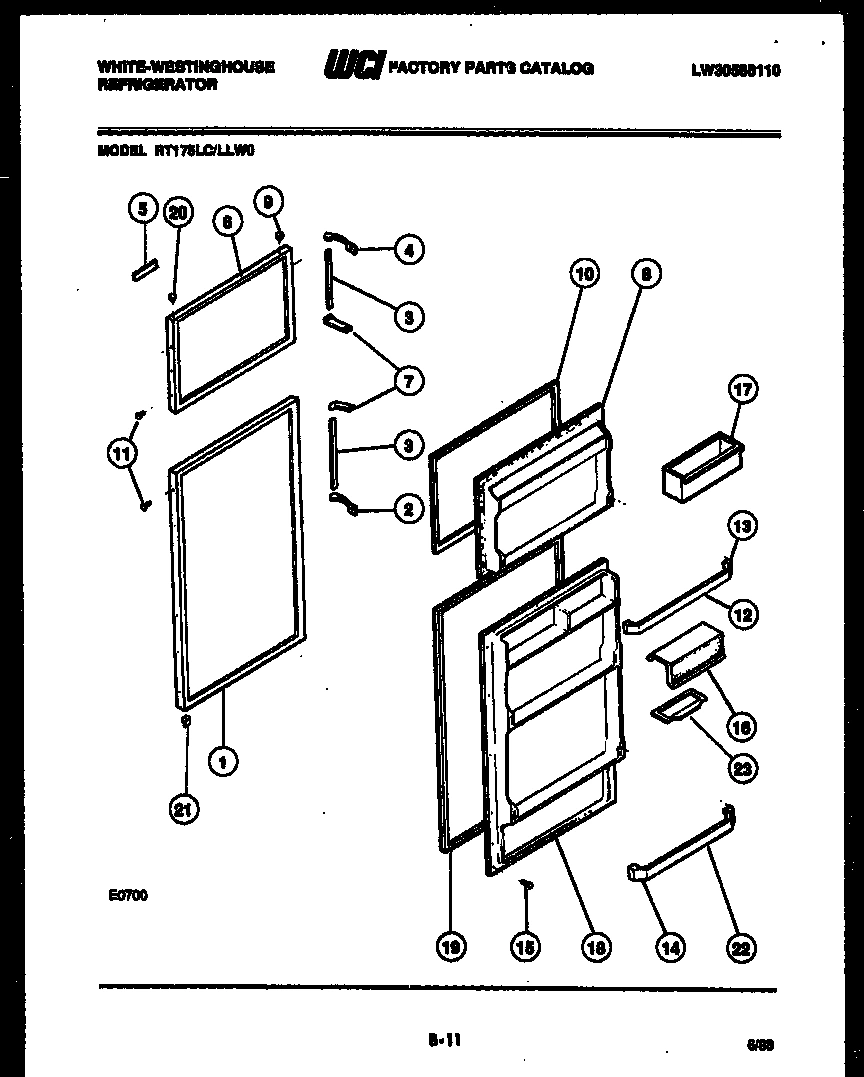

02 - DOOR PARTS

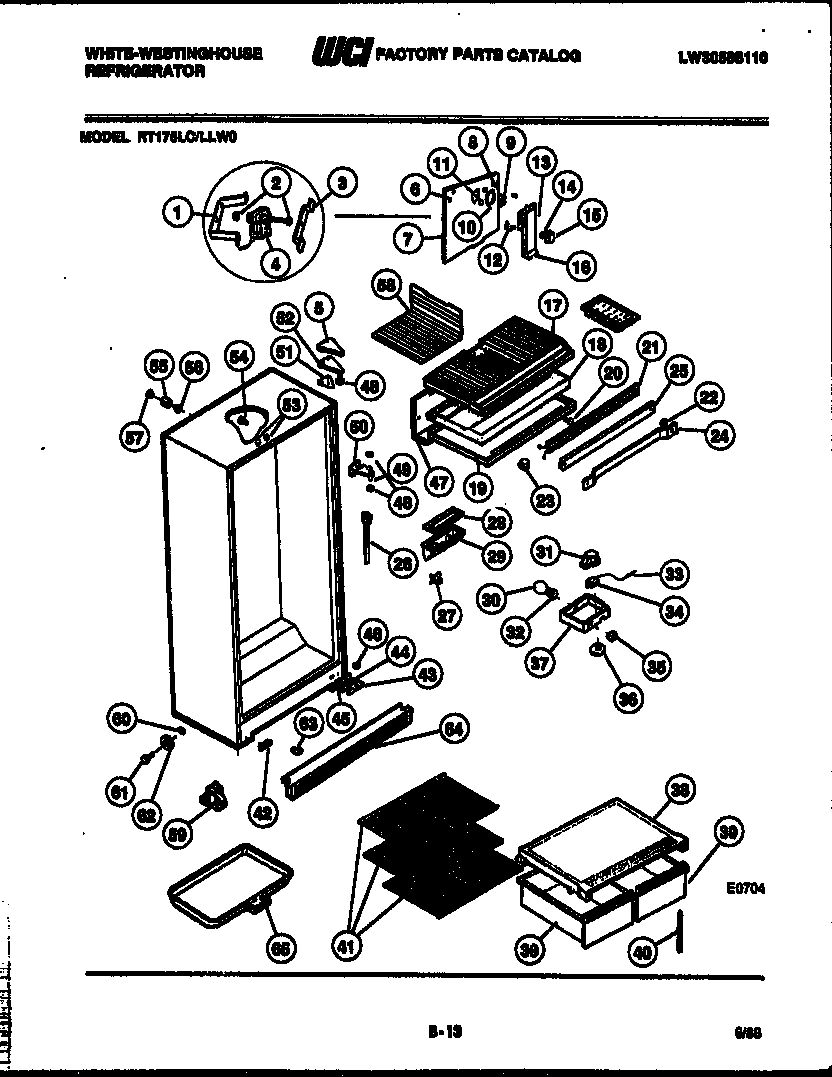

03 - CABINET PARTS

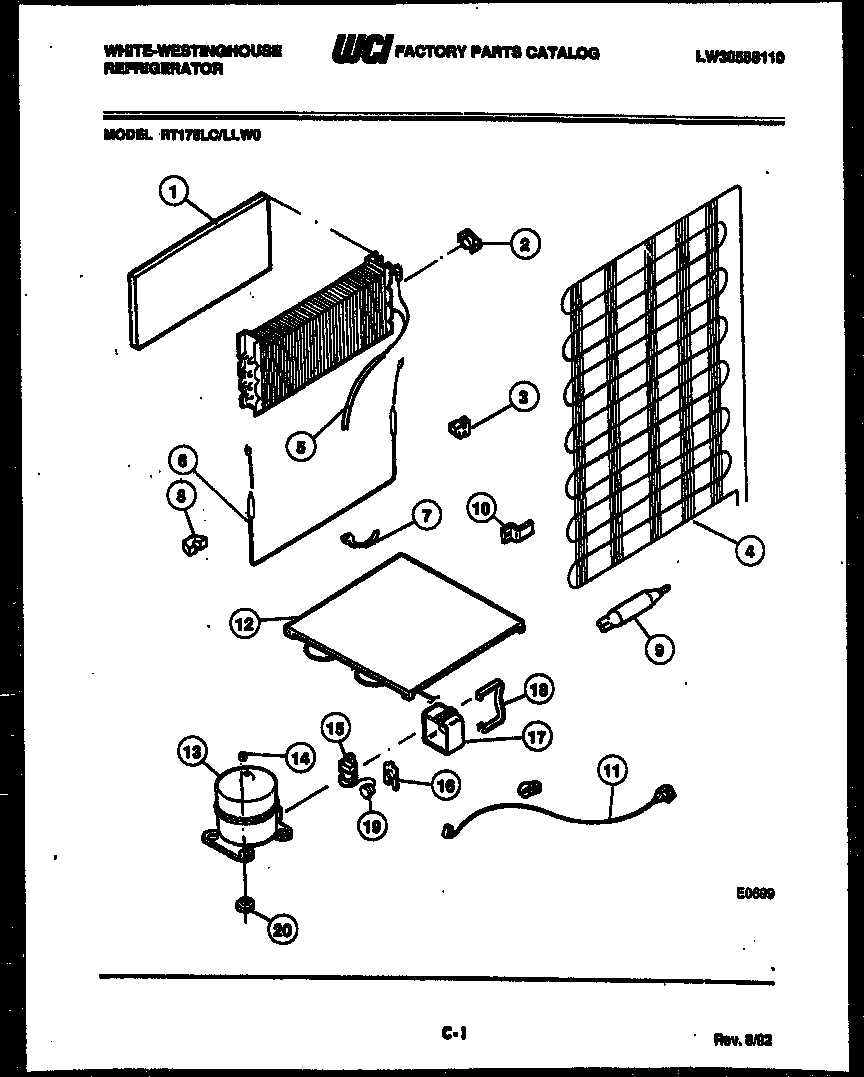

04 - SYSTEM AND AUTOMATIC DEFROST PARTS

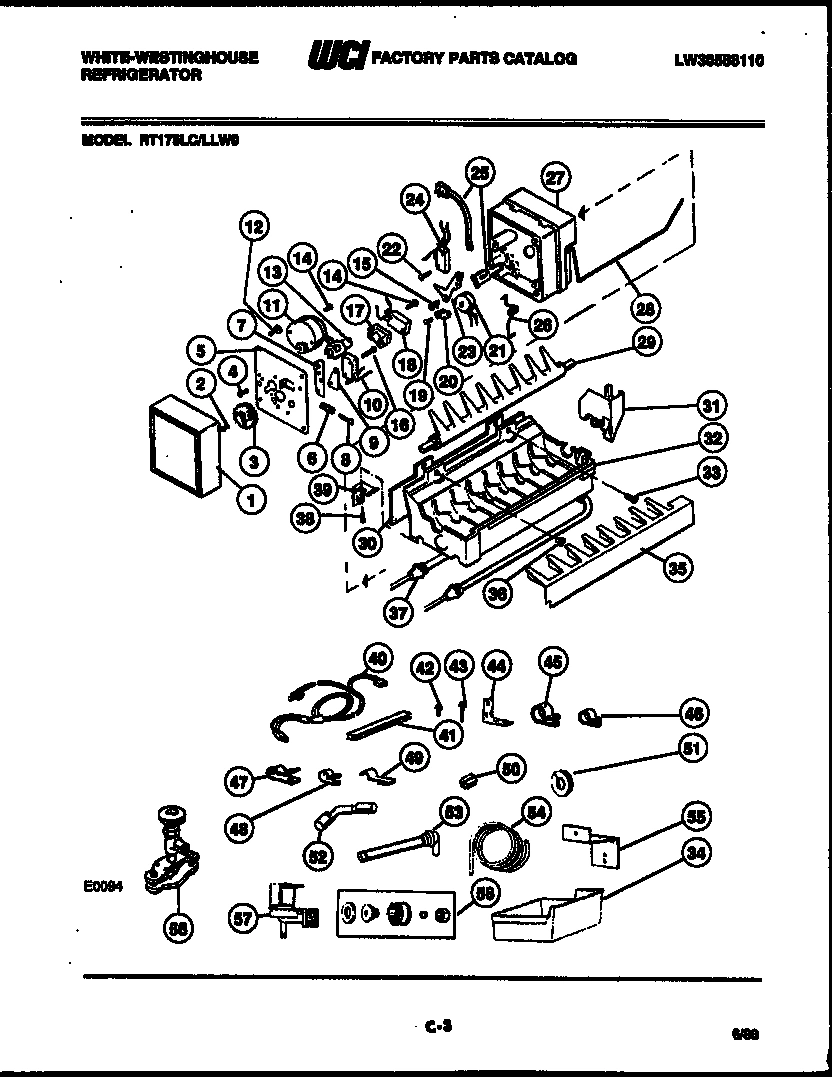

05 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux RT175LLV0 REFRIGERATOR
*12855
WCI G162733-02 WCI G162733-02 Contact Us For Availability
*12855
WCI G174831 WCI G174831 Contact Us For Availability
*12855
WCI G183584 WCI G183584 Contact Us For Availability
*12855
KIT-HOT TUBE REPAIR WCI G189377 Contact Us For Availability
1
BRACKET-MOUNTING REAR WCI G185303 Contact Us For Availability
1
WCI 3018157 WCI 3018157 Contact Us For Availability
1
WCI R262301 WCI R262301 Contact Us For Availability
1A
LABEL-COVER (NON-ILLUSTRATED) WCI G161119 Contact Us For Availability
2
WCI G175810 WCI G175810 Contact Us For Availability
2
WCI G159901 WCI G159901 Contact Us For Availability
3
WCI G175666-18 WCI G175666-18 Contact Us For Availability
3
BRACKET-MOUNTING FRONT WCI G185302 Contact Us For Availability
3
BLOCK-EVAPORATOR RH WCI G188374 Contact Us For Availability
3
WCI C460057 WCI C460057 Contact Us For Availability
3A
WCI G185566 WCI G185566 Contact Us For Availability
3A
PLUG-EVAPORATOR (NON-ILLUSTRATED) WCI G185277 Contact Us For Availability
4
END-HANDLE TOP WCI G175809 Contact Us For Availability
4
WCI G163133 WCI G163133 Contact Us For Availability
4
SCREW (3) WCI M1090016 Contact Us For Availability
5
WCI G176985 WCI G176985 Contact Us For Availability
5
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
5
EXCHANGER-HEAT WCI 3018158 Contact Us For Availability
5
WCI G186572 WCI G186572 Contact Us For Availability
6
WCI G192011-08 WCI G192011-08 Contact Us For Availability
6
WCI G162827-18 WCI G162827-18 Contact Us For Availability
6
WCI G159909 WCI G159909 Contact Us For Availability
7
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
7
WCI G162050-01 WCI G162050-01 Contact Us For Availability
7
WCI G159905 WCI G159905 Contact Us For Availability
8
PANEL-INNER FREEZER WCI G179881-01 Contact Us For Availability
8
BLOCK, EVAPORATOR, LH WCI G185298 Contact Us For Availability
9
BEARING HINGE (8) WCI G183138 Contact Us For Availability
9
WCI 3018588 WCI 3018588 Contact Us For Availability
10
WCI G186932-06 WCI G186932-06 Contact Us For Availability
10
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
10
BRACKET, CONDENSOR MOUNTING (4) WCI G164637 Contact Us For Availability
11
WCI G162977-08 WCI G162977-08 Contact Us For Availability
11
NUT-SPEED (2) WCI G167542 Contact Us For Availability
11
CORD, SERVICE WCI G162549-01 Contact Us For Availability
11
MOTOR WCI C460053 Contact Us For Availability
12
WCI G490079-09 WCI G490079-09 Contact Us For Availability
12
DAMPER FAN COVER WCI G162661 Contact Us For Availability
12
DEFROST PLATE WCI G172513 Contact Us For Availability
12
SCREW-GROUND 8-32 X 1/4 WCI G159898 Contact Us For Availability
13
SUPPORT-RH (3) WCI G176891-01 Contact Us For Availability
13
WCI G180137 WCI G180137 Contact Us For Availability
13
WCI G184669 WCI G184669 Contact Us For Availability
13
WCI C460056 WCI C460056 Contact Us For Availability
14
SUPPORT-LH (3) WCI G176892-01 Contact Us For Availability
14
SLEEVE, COMPRESSOR (3) WCI G154588 Contact Us For Availability
14
SCREW 4-40 X 1 (2) WCI R900801 Contact Us For Availability
15
KNOB-DAMPER CONTAINER WCI G162663-15 Contact Us For Availability
15
WCI G182225-11 WCI G182225-11 Contact Us For Availability
15
SHOULDER SCREW WCI C62874 Contact Us For Availability
16
DOOR-DAIRY (2) WCI G179967-01 Contact Us For Availability
16
WCI G179793-01 WCI G179793-01 Contact Us For Availability
16
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
16
SCREW 4-40 X 3/4 (2) WCI R900802 Contact Us For Availability
17
WCI G173948-17 WCI G173948-17 Contact Us For Availability
17
WCI G161919-01 WCI G161919-01 Contact Us For Availability
17
WCI G137737 WCI G137737 Contact Us For Availability
18
PANEL-INNER REFRIGERATOR WCI G179873-01 Contact Us For Availability
18
WCI G170073 WCI G170073 Contact Us For Availability
18
SWITCH-SPDT WCI C627848 Contact Us For Availability
19
WCI G186932-07 WCI G186932-07 Contact Us For Availability
19
WCI 3017053 WCI 3017053 Contact Us For Availability
19
WCI G187874 WCI G187874 Contact Us For Availability
19
SCREW 8, 32 X 1 WCI G137743 Contact Us For Availability
20
WCI G169332-08 WCI G169332-08 Contact Us For Availability
20
SCREW (3) WCI G162673 Contact Us For Availability
20
WCI C460043 WCI C460043 Contact Us For Availability
21
STOP, DOOR (2) WCI G155072 Contact Us For Availability
21
WCI G168722 WCI G168722 Contact Us For Availability
21
WCI G159907 WCI G159907 Contact Us For Availability
22
WCI G490079-07 WCI G490079-07 Contact Us For Availability
22
SPACER-MULLION WCI G490082 Contact Us For Availability
22
SCREW 4-24 X 3/4 WCI R900803 Contact Us For Availability
23
LEVER ARM WCI C460044 Contact Us For Availability
24
WCI G165781 WCI G165781 Contact Us For Availability
24
SWITCH-SHUT-OFF WCI G164770 Contact Us For Availability
25
WCI G162051-08 WCI G162051-08 Contact Us For Availability
25
WIRING HARNESS-MOTOR WCI G185809 Contact Us For Availability
26
TUBE-DRAIN WCI G155529-02 Contact Us For Availability
26
WCI C460046 WCI C460046 Contact Us For Availability
27
SPOUT, DRAIN WCI G162179 Contact Us For Availability
27
SUPPORT-HOUSING WCI C460041 Contact Us For Availability
28
DEFLECTOR AIR WCI G162675 Contact Us For Availability
28
SHUT-OFF ARM WCI C460718 Contact Us For Availability
29
WCI G162178 WCI G162178 Contact Us For Availability
29
WCI C460720 WCI C460720 Contact Us For Availability
30
HEAT SHIELD WCI G164769 Contact Us For Availability
31
BEARING & INLET WCI G137760 Contact Us For Availability
32
SOCKET LIGHT WCI G168302 Contact Us For Availability
32
MOLD & HEATER ASSEMBLY INCLUDING ITEM 37 WCI G159912 Contact Us For Availability
33
SCREW 8-16 X 3/8 WCI C403801 Contact Us For Availability
34
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
35
WCI G178402-02 WCI G178402-02 Contact Us For Availability
35
ICE STRIPPER WCI C460719 Contact Us For Availability
36
WCI G490107-02 WCI G490107-02 Contact Us For Availability
36
EYELET (2) WCI G164766 Contact Us For Availability
37
WCI G176722-01 WCI G176722-01 Contact Us For Availability
37
HEATER ELEMENT WCI G137756 Contact Us For Availability
37A
WCI G180105 WCI G180105 Contact Us For Availability
38
WCI G162840-01 WCI G162840-01 Contact Us For Availability
38
WCI R900363 WCI R900363 Contact Us For Availability
39
WCI G179706-01 WCI G179706-01 Contact Us For Availability
39
WCI G159906 WCI G159906 Contact Us For Availability
40
SUPPORT-COVER WCI G166310-01 Contact Us For Availability
40
WIRING HARNESS-EXTERNAL WCI G185266 Contact Us For Availability
41
WCI G169226-01 WCI G169226-01 Contact Us For Availability
42
PLUG-BUTTON WCI G166912 Contact Us For Availability
43
BRACKET-LOWER HINGE WCI G162383 Contact Us For Availability
44
SHIM-LOWER HINGE WCI G162903 Contact Us For Availability
45
PLATE, TAPPING ( 2 ) WCI G179797 Contact Us For Availability
46
WCI G103903 No Longer Available
46
CLAMP-INLET TUBE WCI G161655 Contact Us For Availability
47
WCI G170071 WCI G170071 Contact Us For Availability
48
WASHER-NYLON (3) WCI G164355 Contact Us For Availability
49
WCI G142220 WCI G142220 Contact Us For Availability
49
CLIP, HARNESS WCI G163706 Contact Us For Availability
50
WCI G162384 WCI G162384 Contact Us For Availability
50
NUT-INLET TO VALVE WCI G143689 Contact Us For Availability
50A
WCI G162683 WCI G162683 Contact Us For Availability
51
WCI G183861 WCI G183861 Contact Us For Availability
52
BRACKET, TOP HINGE WCI G183714 Contact Us For Availability
52
WCI G154156 WCI G154156 Contact Us For Availability
53
WCI G174747-08 WCI G174747-08 Contact Us For Availability
54
WCI G163669 WCI G163669 Contact Us For Availability
55
WCI G85642 WCI G85642 Contact Us For Availability
55
BRACKET-VALVE MOUNTING WCI G163309 Contact Us For Availability
56
WCI G174733 WCI G174733 Contact Us For Availability
56
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
57
WCI G174734 WCI G174734 Contact Us For Availability
57
WATER VALVE-SOLENOID WCI G159914 Contact Us For Availability
58
SHELF-FREEZER WCI G163311 Contact Us For Availability
58
WCI G159415 WCI G159415 Contact Us For Availability
58A
HANGER-SHELF (NON-ILLUSTRATED) WCI G163312 Contact Us For Availability
58B
SUPPORT-SHELF (2) (NON-ILLUSTRATED) WCI G163105 Contact Us For Availability
59
ROLLER-ADJUSTMENT WCI G186731 Contact Us For Availability
60
NUT - PUSH (2) WCI G162662 Contact Us For Availability
61
WCI G162809 WCI G162809 Contact Us For Availability
62
ROLLER (2) WCI G162808 Contact Us For Availability
63
CLIP-GRILL (2) WCI G162994 Contact Us For Availability
64
GRILLE-KICK PLATE WCI G163080-02 Contact Us For Availability
65
PAN-DRAIN WCI G162890 Contact Us For Availability
× ![]()
