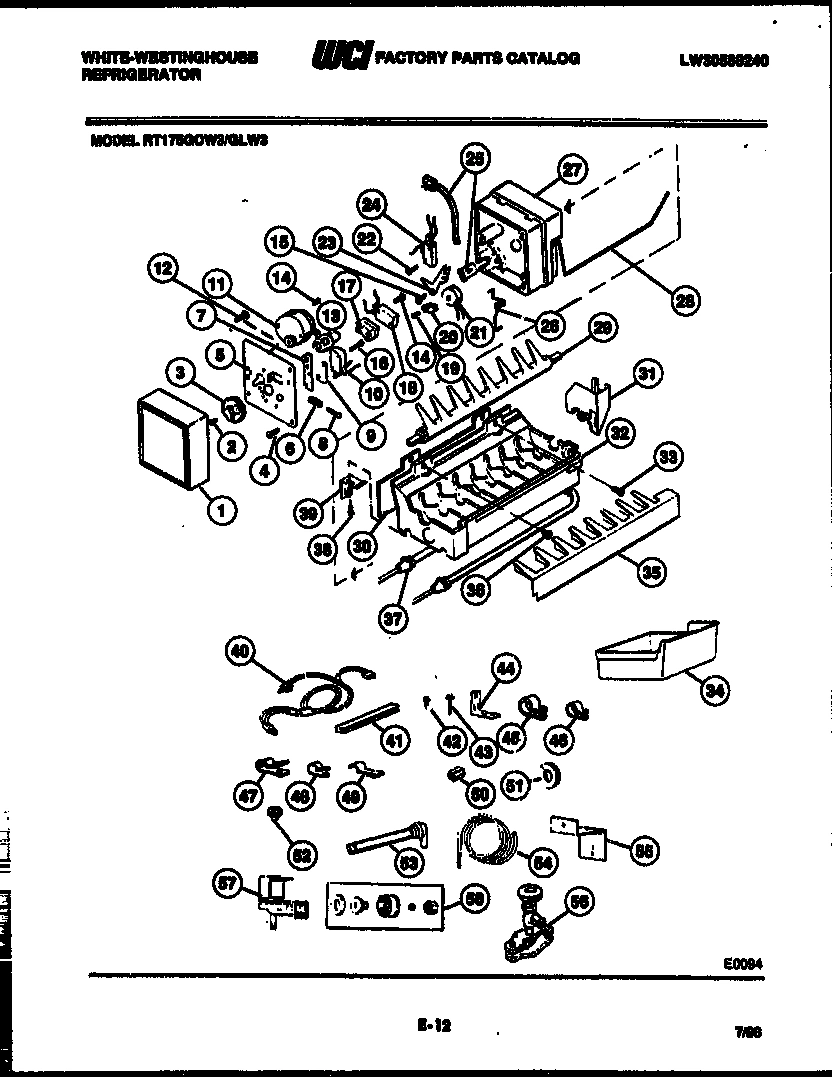

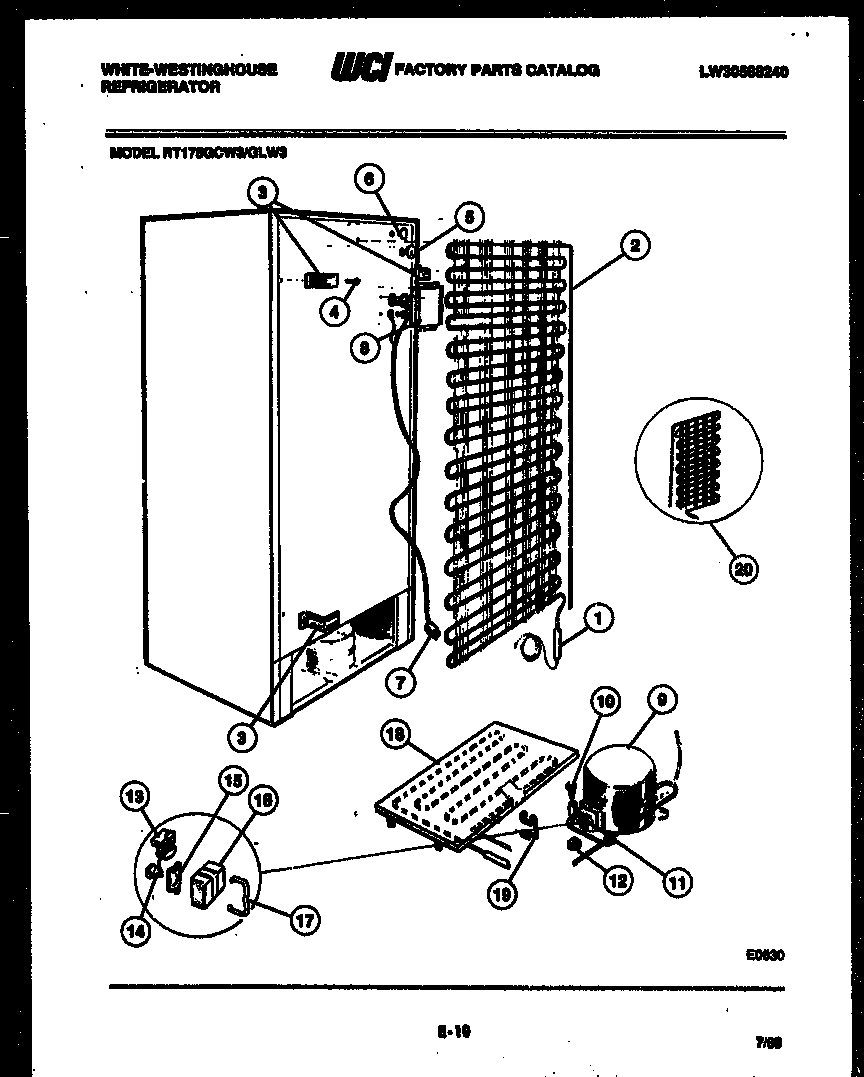

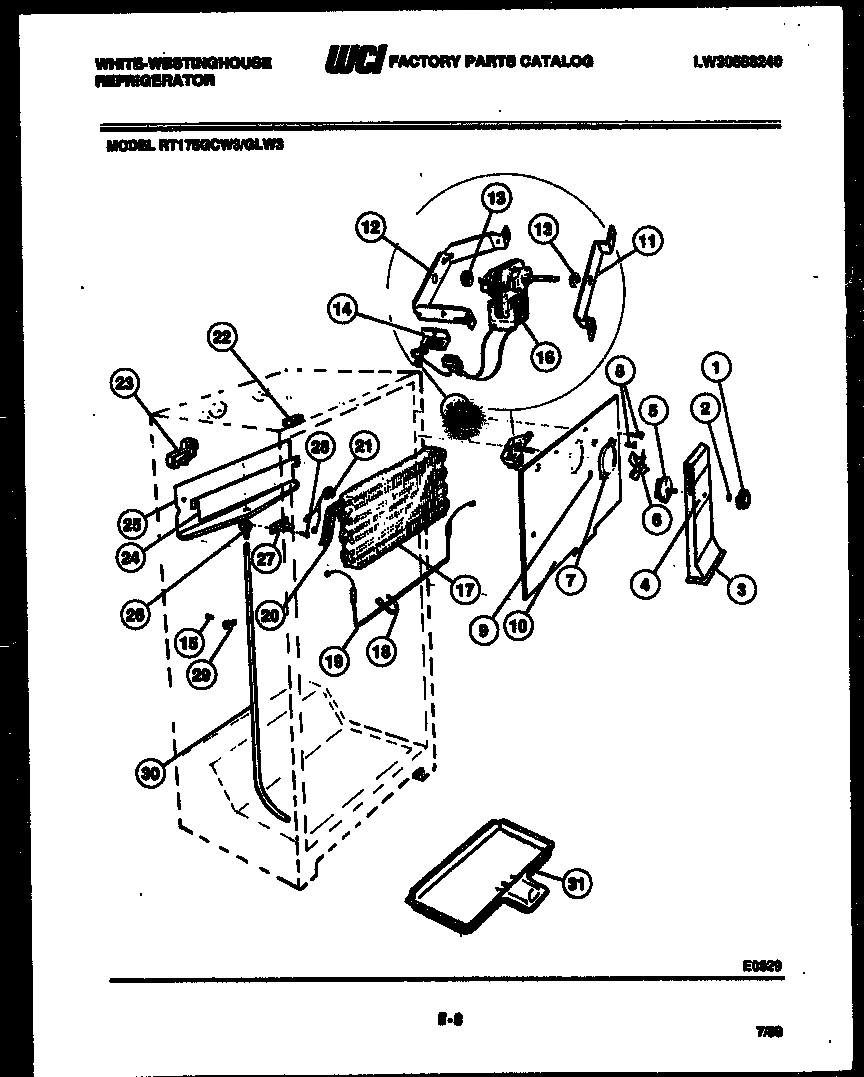

Model Electrolux RT175GCF3 REFRIGERATOR – Common Parts &amp; Diagrams

1

FREEZER DOOR-COFFEE WCI G177885-10 Contact Us For Availability

1

WCI G183714 WCI G183714 Contact Us For Availability

1

WCI G162663-15 WCI G162663-15 Contact Us For Availability

1

WCI R262301 WCI R262301 Contact Us For Availability

1A

LABEL-COVER (NON-ILLUSTRATED) WCI G161119 Contact Us For Availability

2

HINGE BEARING (8) WCI G183138 Contact Us For Availability

2

WASHER, NYLON WCI G101970 Contact Us For Availability

2

WCI G162662 WCI G162662 Contact Us For Availability

2

WCI G184719 WCI G184719 Contact Us For Availability

2

WCI G159901 WCI G159901 Contact Us For Availability

3

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

3

WCI G162977-10 WCI G162977-10 Contact Us For Availability

3

FAN COVER WCI G179793-01 Contact Us For Availability

3

WCI G164637 WCI G164637 Contact Us For Availability

3

WCI C460057 WCI C460057 Contact Us For Availability

4

GASKET-FRZR DOOR WCI G186932-06 Contact Us For Availability

4

WCI G183558-10 WCI G183558-10 Contact Us For Availability

4

WCI G180137 WCI G180137 Contact Us For Availability

4

SCREW (3) WCI M1090016 Contact Us For Availability

5

INNER PANEL-FRZR WCI G179881-01 Contact Us For Availability

5

WCI G183861 WCI G183861 Contact Us For Availability

5

DAMPER WCI G162661 Contact Us For Availability

5

WCI G186572 WCI G186572 Contact Us For Availability

6

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

WCI G163311 WCI G163311 Contact Us For Availability

6

WCI G159909 WCI G159909 Contact Us For Availability

6A

HANGER-SHELF (NON-ILLUSTRATED) WCI G163312 Contact Us For Availability

7

DOOR RACK-FRZR WCI G490079-09 Contact Us For Availability

7

WCI G163105 WCI G163105 Contact Us For Availability

7

WCI G167217 WCI G167217 Contact Us For Availability

7

WCI G162549-01 WCI G162549-01 Contact Us For Availability

7

WCI G159905 WCI G159905 Contact Us For Availability

7A

WIRING HARNESS-COMPR (NON-ILLUSTRATED) WCI G162733-02 Contact Us For Availability

8

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

8

SUPPORT-RS (3) WCI G176891-01 Contact Us For Availability

8

SCREW-SPRT MTG (2) WCI G187527 Contact Us For Availability

8

WCI G183584 WCI G183584 Contact Us For Availability

9

SUPPORT-LS (3) WCI G176892-01 Contact Us For Availability

9

SUPPORT-COIL COV (2) WCI G163669 Contact Us For Availability

9

NUT-U TYPE (2) WCI G167542 Contact Us For Availability

9

COMPRESSOR W/ELEC WCI C620106 Contact Us For Availability

9

WCI 3018588 WCI 3018588 Contact Us For Availability

DAIRY DOOR (2) WCI G179967-01 Contact Us For Availability

WCI G174747-10 WCI G174747-10 Contact Us For Availability

COVER-EVAP COIL WCI G162050-01 Contact Us For Availability

SCREW-COMPR MTG (3) WCI G183344 Contact Us For Availability

5308000716 Frigidaire Refrigerator Dish Backorder WCI 5308000716 $12.24

WCI G174734 WCI G174734 Contact Us For Availability

WCI G185302 WCI G185302 Contact Us For Availability

SLEEVE-COMPR MTG (3) WCI G154588 Contact Us For Availability

MOTOR WCI C460053 Contact Us For Availability

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

DOOR RACK-REFR (2) WCI G490079-07 Contact Us For Availability

TUBE, RUBBER WCI G85642 Contact Us For Availability

WCI G185303 WCI G185303 Contact Us For Availability

SCREW-GND 8-32 X 1/4 WCI G159898 Contact Us For Availability

EGG CONTAINER WCI G173948-17 Contact Us For Availability

WCI G174733 WCI G174733 Contact Us For Availability

WCI G182225-11 WCI G182225-11 Contact Us For Availability

WCI C460056 WCI C460056 Contact Us For Availability

WCI G141673 WCI G141673 Contact Us For Availability

WCI G164571 WCI G164571 Contact Us For Availability

WCI G187874 WCI G187874 Contact Us For Availability

SCREW 4-40 X 1 (2) WCI R900801 Contact Us For Availability

14A

WCI G179797 WCI G179797 Contact Us For Availability

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

INNER PANEL-REFR WCI G179873-01 Contact Us For Availability

WCI G142361 WCI G142361 Contact Us For Availability

CLIP-OVERLOAD WCI G188957 Contact Us For Availability

SHOULDER SCREW WCI C62874 Contact Us For Availability

5300158289 Frigidaire Evaporator Fan Motor In Stock WCI 5300158289 $90.14

GASKET-REFR DOOR WCI G186932-07 Contact Us For Availability

HINGE-BOTTOM WCI G162383 Contact Us For Availability

SCREW 4-40 X 3/4 (2) WCI R900802 Contact Us For Availability

5303006412 Frigidaire Refrigerator Cover Moun Backorder WCI 5303006412 $1.79

REFR DOOR-COFFEE WCI G177889-10 Contact Us For Availability

SCREW-HINGE MTG (2) WCI G99167 Contact Us For Availability

EVAPORATOR COIL WCI 3018157 Contact Us For Availability

WCI G137737 WCI G137737 Contact Us For Availability

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

HANDLE GRIP (2) WCI G175666-17 Contact Us For Availability

SPEED NUT (2) WCI G77210 Contact Us For Availability

DEFROST PLATE ASSY WCI G172513 Contact Us For Availability

SWITCH-SPDT WCI C627848 Contact Us For Availability

5317842502 Frigidaire Defrost Heater Assembly Backorder WCI 5317842502 $82.40

HANDLE END-TOP (2) WCI G175809 Contact Us For Availability

SHIM-BOTTOM HINGE WCI G162903 Contact Us For Availability

BRACKET, DRAIN TUBE WCI G166301 Contact Us For Availability

SCREW 8, 32 X 1 WCI G137743 Contact Us For Availability

HANDLE END-BOT (2) WCI G175810 Contact Us For Availability

WASHER-NYLON (2) WCI G170156 Contact Us For Availability

WCI 3018158 WCI 3018158 Contact Us For Availability

HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability

WCI C460043 WCI C460043 Contact Us For Availability

5303917954 Frigidaire Refrigerator Defrost Li In Stock WCI 5303917954 $18.14

WCI G185566 WCI G185566 Contact Us For Availability

GRILLE WCI G163080-02 Contact Us For Availability

WCI G159907 WCI G159907 Contact Us For Availability

21A

PLUG-LOWER GRILL (NON-ILLUSTRATED) WCI G154397 Contact Us For Availability

WCI G169332-10 WCI G169332-10 Contact Us For Availability

CLIP-GRILL MTG (2) WCI G162994 Contact Us For Availability

INSULATION BLOCK RS WCI G188374 Contact Us For Availability

SCREW 4-24 X 3/4 WCI R900803 Contact Us For Availability

FRAME-NAMEPLATE WCI G176986 Contact Us For Availability

WCI G177218-01 WCI G177218-01 Contact Us For Availability

WCI G89643 WCI G89643 Contact Us For Availability

LEVELING SCREW (2) WCI 3018437 Contact Us For Availability

INSULATION BLOCK LS WCI G185298 Contact Us For Availability

LEVER ARM WCI C460044 Contact Us For Availability

23A

INSULATION PLUG LS (NON-ILLUSTRATED) WCI G185277 Contact Us For Availability

24

STRAP, MULLION MTG WCI G165781 Contact Us For Availability

24

INSULATOR-EVAP WCI G166511-01 Contact Us For Availability

24

SWITCH-SHUT-OFF WCI G164770 Contact Us For Availability

25

SHIM-CENTER HINGE WCI G162683 Contact Us For Availability

25

DRAIN TROUGH WCI G170071 Contact Us For Availability

25

WIRING HARNESS-MOTOR WCI G185809 Contact Us For Availability

26

WASHER-NYLON (2) WCI G164355 Contact Us For Availability

26

ELBOW, DRAIN WCI G162180 Contact Us For Availability

26

WCI C460046 WCI C460046 Contact Us For Availability

27

HINGE BRACKET-CTR WCI G162384 Contact Us For Availability

27

WCI G162179 WCI G162179 Contact Us For Availability

27

SUPPORT-HOUSING WCI C460041 Contact Us For Availability

28

WCI G142220 WCI G142220 Contact Us For Availability

28

PUSH PIN (2) WCI G185279 Contact Us For Availability

28

SHUT-OFF ARM WCI C460718 Contact Us For Availability

29

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

29

SCREW-HNG MTG (4) WCI G183103 Contact Us For Availability

29

WCI C460720 WCI C460720 Contact Us For Availability

30

WCI G162051-10 WCI G162051-10 Contact Us For Availability

30

DRAIN TUBE WCI G155529-04 Contact Us For Availability

30

HEAT SHIELD WCI G164769 Contact Us For Availability

31

WCI G177254 WCI G177254 Contact Us For Availability

31

DRAIN PAN WCI G162890 Contact Us For Availability

31

BEARING & INLET WCI G137760 Contact Us For Availability

32

FILLET-FRZR BOT RS WCI G162176 Contact Us For Availability

32

MOLD & HEATER ASSY-INCL. ITEM 37 WCI G159912 Contact Us For Availability

33

FILLET-FRZR BOT LS WCI G162177 Contact Us For Availability

33

SCREW 8-16 X 3/8 WCI C403801 Contact Us For Availability

34

5303212918 Frigidaire Refrigerator Control Backorder WCI 5303212918 $61.86

34

REFR TOP-DIVIDER WCI 3017053 Contact Us For Availability

35

FRZR BOTTOM-DIVIDER WCI G161919-01 Contact Us For Availability

35

ICE STRIPPER WCI C460719 Contact Us For Availability

36

DIVIDER ( STYRO ) WCI G170073 Contact Us For Availability

36

EYELET (2) WCI G164766 Contact Us For Availability

37

SCREW-DIVIDER (3) WCI G162673 Contact Us For Availability

37

HEATER ELEMENT WCI G137756 Contact Us For Availability

37A

WIRING HARNESS-DIVIDER (NON-ILLUSTRATED) WCI G174831 Contact Us For Availability

38

WCI G162675 WCI G162675 Contact Us For Availability

38

WCI R900363 WCI R900363 Contact Us For Availability

39

COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability

39

WCI G159906 WCI G159906 Contact Us For Availability

40

5309918806 Frigidaire Refrigerator Light Swit Backorder WCI 5309918806 $14.02

40

WIRING HARNESS-EXTERNAL WCI G185266 Contact Us For Availability

41

5305877995 Frigidaire Refrigerator P-1 Sealin In Stock WCI 5305877995 $27.08

41

LIGHT BULB WCI R900925 Contact Us For Availability

42

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

42

WCI G168302 WCI G168302 Contact Us For Availability

43

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

43

CONTROL BOX WCI G176722-01 Contact Us For Availability

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

LABEL-CONTROL BOX WCI G180105 Contact Us For Availability

45

KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability

46

SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability

46

CLAMP-INLET TUBE WCI G161655 Contact Us For Availability

47

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

47

CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability

48

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

48

5303916855 Frigidaire Refrigerator Tube Backorder WCI 5303916855 $38.55

49

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

49

CLIP, HARNESS WCI G163706 Contact Us For Availability

50

WCI G169226-01 WCI G169226-01 Contact Us For Availability

50

NUT-INLET TO VALVE WCI G143689 Contact Us For Availability

51

5303001147 Frigidaire Refrigerator Hole Harne Backorder WCI 5303001147 $14.26

51

COVER-STORAGE PAN WCI G162840-01 Contact Us For Availability

52

SUPPORT-COVER WCI G166310-01 Contact Us For Availability

52

WCI G154156 WCI G154156 Contact Us For Availability

53

215456100 Frigidaire Refrigerator Water Inlet In Stock WCI 215456100 $66.78

53

PAN-STORAGE (2) WCI G179706-01 Contact Us For Availability

54

5308010366 Frigidaire Refrigerator Water Inle In Stock WCI 5308010366 $10.39

55

BRACKET-VALVE MTG WCI G163309 Contact Us For Availability

56

SADDLE VALVE KIT WCI G99428 Contact Us For Availability

57

WATER VALVE-SOLENOID WCI G159914 Contact Us For Availability

58

WATER SUPPLY ADPTR WCI G159415 Contact Us For Availability
