Model Electrolux RT174LCH2 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

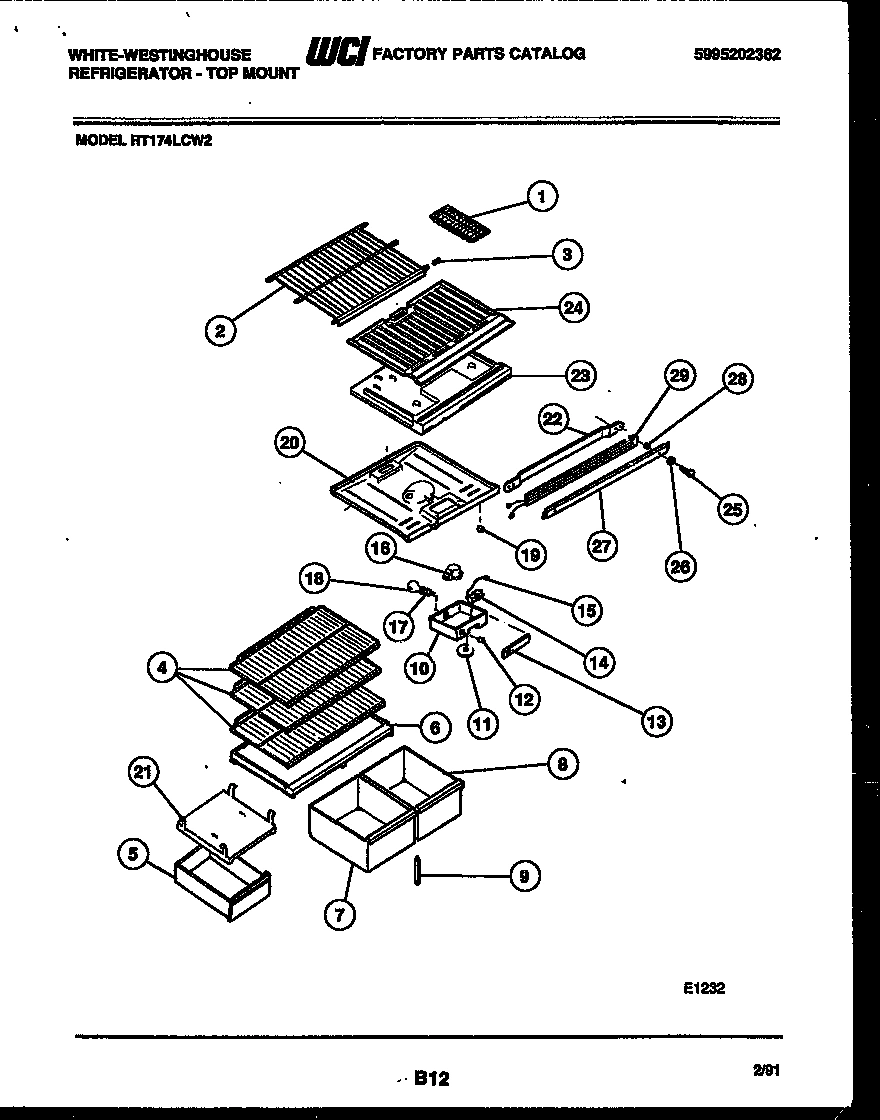

04 - SHELVES AND SUPPORTS

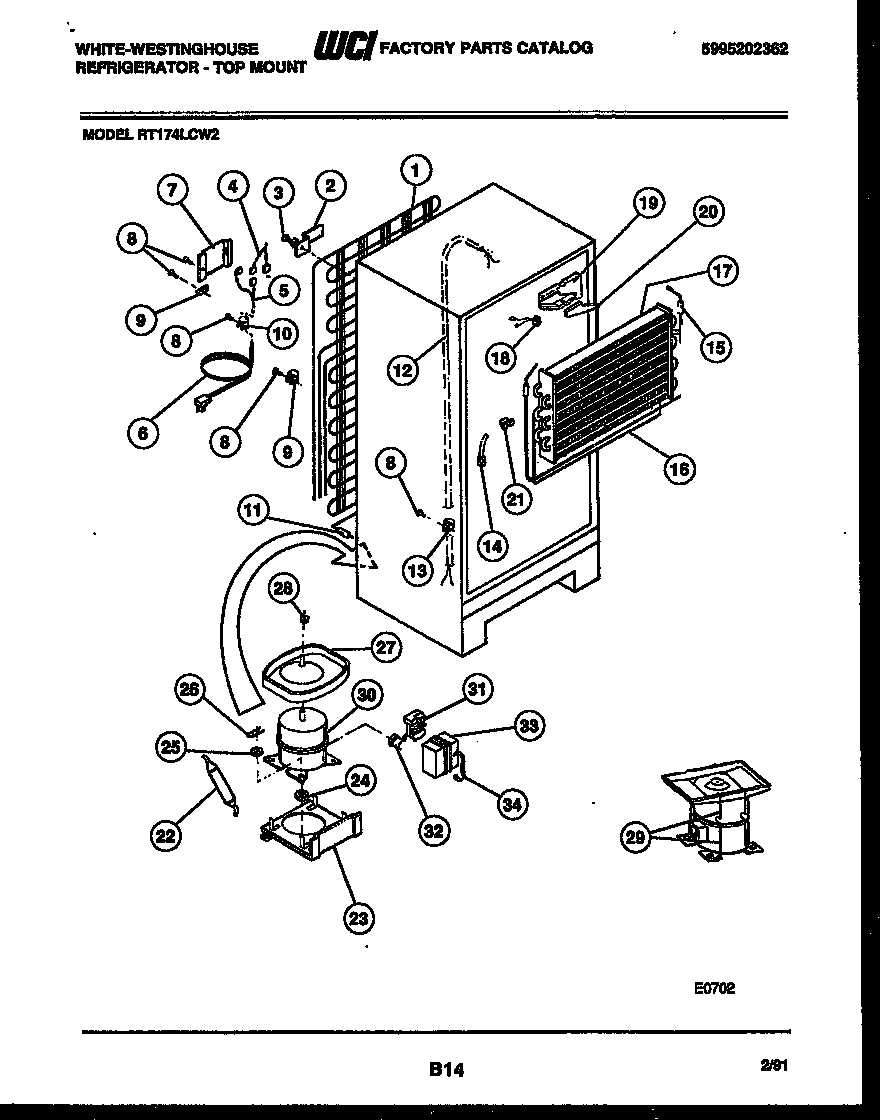

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT174LCH2 REFRIGERATOR
*41823
HOT TUBE REPAIR KIT-SVC WCI 5300189383 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5317705901 WCI 5317705901 Contact Us For Availability
2
WCI 5303001342 WCI 5303001342 Contact Us For Availability
3
END CAP-SHELF (2) WCI 3201150 No Longer Available
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
SHELF-REFRIGERATOR (3) WCI 5317941501 Contact Us For Availability
4
WIRING HARN-CONTROL WCI 3001383 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WCI G176918-22 WCI G176918-22 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
COVER-PAN WCI 5349001603 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
END-HANDLE BOTTOM WCI 5303001296 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
PAN - RH WCI 5349001501 Contact Us For Availability
9
SUPPORT - ADJ CRISPER COVER WCI 5303205987 Contact Us For Availability
10
WCI 5317672201 WCI 5317672201 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 5308010011 Contact Us For Availability
11
SPACER-TUBE (3) WCI G103457 Contact Us For Availability
11B
WCI G000187640 WCI G000187640 Contact Us For Availability
12
WCI 5303001665 WCI 5303001665 Contact Us For Availability
12
WCI 5303001670 WCI 5303001670 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
13
WCI G000180105 WCI G000180105 Contact Us For Availability
14
WCI 5303200810 WCI 5303200810 Contact Us For Availability
14
SUPPORT-RACK LH (4) WCI 5303007297 Contact Us For Availability
14
WASHER-HINGE (2) WCI 5308000007 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
16
WASHER-HINGE (3) WCI 5308000186 No Longer Available
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
17
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
17
WCI 5308009756 WCI 5308009756 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
WCI 5308000071 WCI 5308000071 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 5303016378 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
WCI 5303001546 WCI 5303001546 Contact Us For Availability
21
WCI 5308000263 WCI 5308000263 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
WCI 5308003604 WCI 5308003604 Contact Us For Availability
23
WCI 5303212489 WCI 5303212489 Contact Us For Availability
23
WCI 5308009750 WCI 5308009750 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
23B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
23C
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
24
BOTTOM-FREEZER WCI 5303001537 Contact Us For Availability
25
WCI 5308012258 WCI 5308012258 Contact Us For Availability
25
WCI 5303212488 WCI 5303212488 Contact Us For Availability
25
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
26
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
26
CLIP-COMPR MTG (4) WCI 5308003596 Contact Us For Availability
27
LEVELING LEG (2) WCI 5303212922 Contact Us For Availability
27
WCI 3916132 WCI 3916132 Contact Us For Availability
27
WCI 5300184715 WCI 5300184715 Contact Us For Availability
28
DRAIN TUBE & SEAL RING ASSY WCI 5303210377 Contact Us For Availability
28
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
28A
SPOUT-DRAIN TUBE (NON-ILLUSTRATED) WCI 5308000056 Contact Us For Availability
28B
PUSH PIN-DRAIN-SPOUT (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
WCI 5303269889 WCI 5303269889 Contact Us For Availability
29
WCI 5308017408 WCI 5308017408 Contact Us For Availability
30
PLUG - HINGE - WHEAT (2) WCI 5303001678 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 5303916411 Contact Us For Availability
31
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303270406 WCI 5303270406 Contact Us For Availability
32
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
COVER-EVAPORATOR COIL (2) WCI 3001527 Contact Us For Availability
34A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
35
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
36
WCI 5303018193 WCI 5303018193 Contact Us For Availability
37
WCI 08010005 WCI 08010005 Contact Us For Availability
38
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
38A
PLUG-FREEZER LINER (5) (NON-ILLUSTRATED) WCI G187599 Contact Us For Availability
39
RING - SEAL WCI 5303207353 Contact Us For Availability
40
BUTTON PLUG (2) WCI 5303212923 Contact Us For Availability
× ![]()
