Model Electrolux RT174GCFA REFRIGERATOR – Common Parts & Diagrams

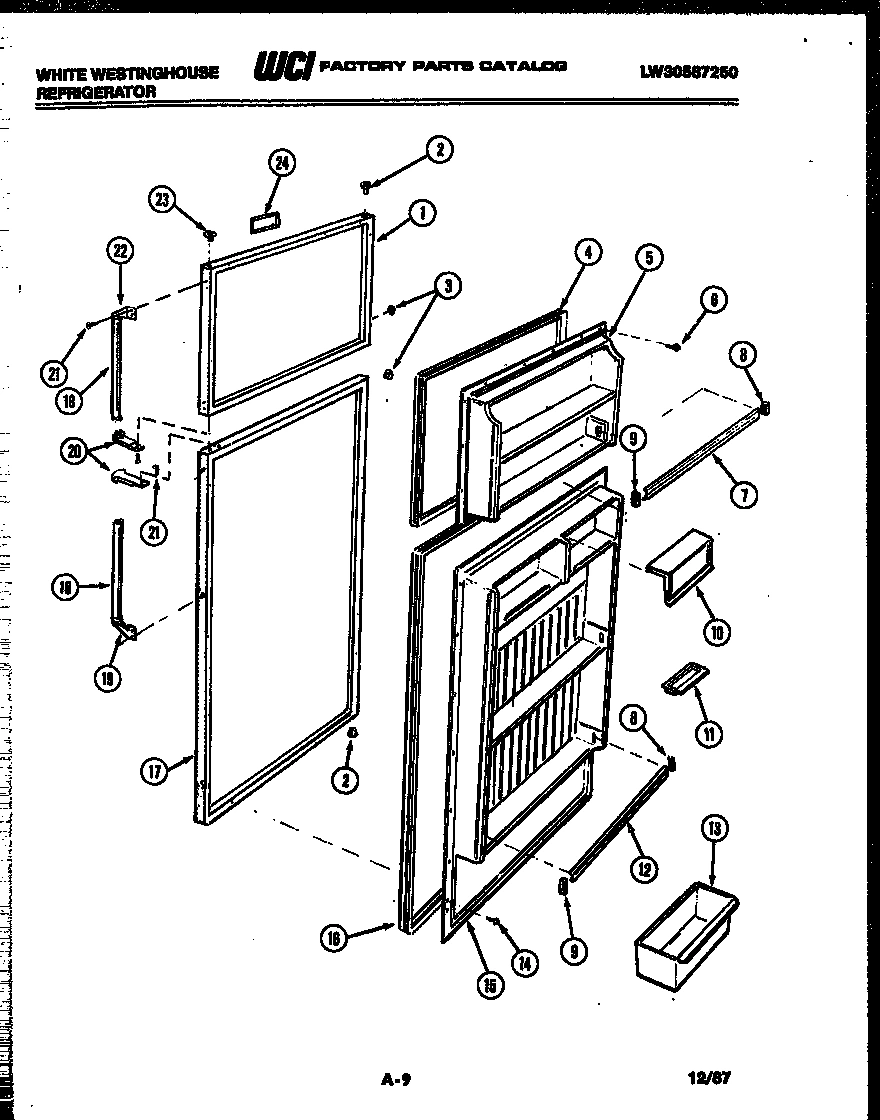

02 - DOOR PARTS
03 - CABINET PARTS

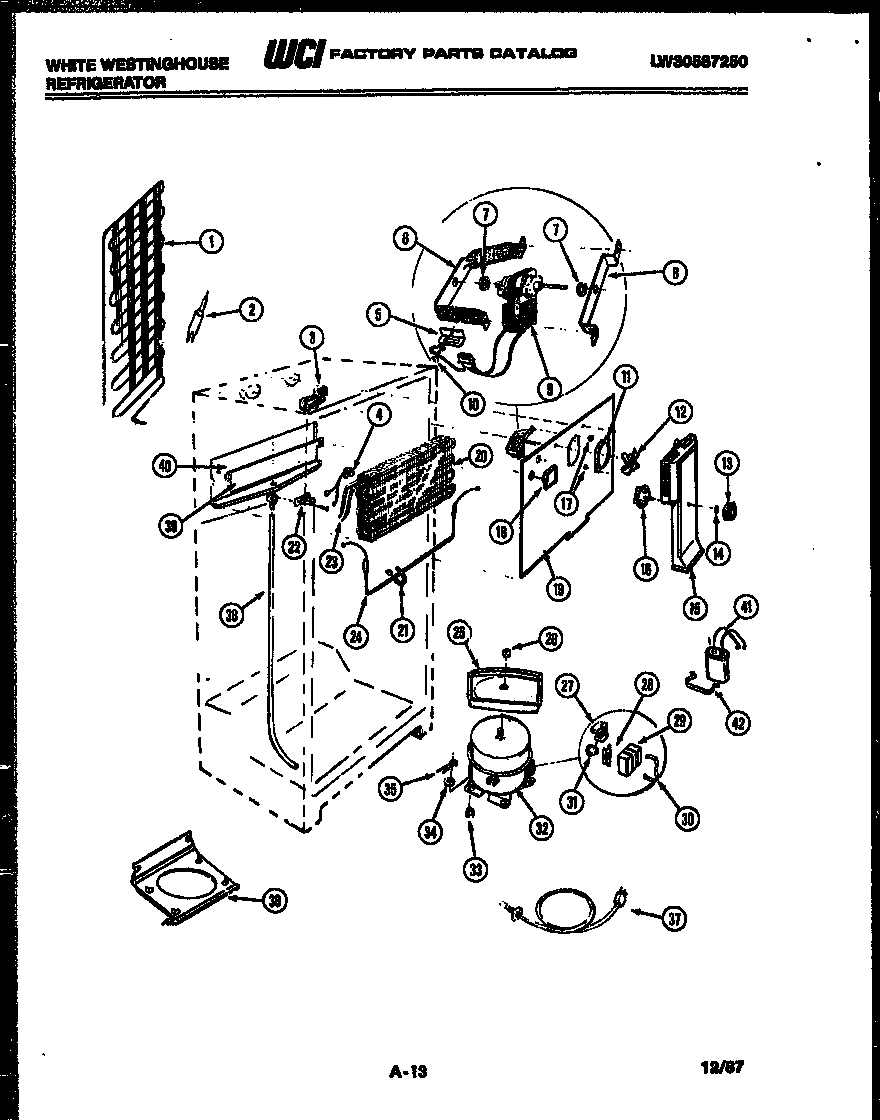

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT174GCFA REFRIGERATOR
*44999
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*45000
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*45000
WCI G183584 WCI G183584 Contact Us For Availability
1
WCI G174747-10 WCI G174747-10 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
1A
BRACKET-COND MTG (4) (NON-ILLUSTRATED) WCI G164637 Contact Us For Availability
2
BEARING HINGE (8) WCI G183138 Contact Us For Availability
2
WCI G163669 WCI G163669 Contact Us For Availability
3
WCI G162977-10 WCI G162977-10 Contact Us For Availability
3
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
3A
BLOCK-EVAPORATOR LH (NON-ILLUSTRATED) WCI G188375 Contact Us For Availability
4
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
4
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
5
WCI G185509-02 WCI G185509-02 Contact Us For Availability
5
BRACKET, TOP HINGE WCI G183714 Contact Us For Availability
5
WCI G164571 WCI G164571 Contact Us For Availability
6
WCI G103903 No Longer Available
6
BRACKET-MTR MTG REAR WCI G185303 Contact Us For Availability
7
WCI G161019-54 WCI G161019-54 Contact Us For Availability
7
TRIM-CAB CORNER (4)-COFE WCI G179684-10 Contact Us For Availability
8
SUPPORT-RACK RH (4) WCI G185363-01 Contact Us For Availability
8
BRACKET-MTR MTG FRONT WCI G185302 Contact Us For Availability
9
SUPPORT-RACK LH (4) WCI G185364-01 Contact Us For Availability
9
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
10
WCI G178500-09 WCI G178500-09 Contact Us For Availability
10
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
10A
WCI G178501-06 WCI G178501-06 Contact Us For Availability
11
BOTTOM, FREEZER WCI G490022-01 Contact Us For Availability
11
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
12
WCI G161019-55 WCI G161019-55 Contact Us For Availability
12
DIVIDER WCI G176774 Contact Us For Availability
13
WCI G173948-17 WCI G173948-17 Contact Us For Availability
13
TOP-REFRIGERATOR WCI 3016378 Contact Us For Availability
13
WCI G162663-15 WCI G162663-15 Contact Us For Availability
13A
WCI G187640 WCI G187640 Contact Us For Availability
14
SPACER-MULLION MTG (2) WCI G490082 Contact Us For Availability
14
NUT, PUSH WCI G162662 Contact Us For Availability
15
WCI G185508-02 WCI G185508-02 Contact Us For Availability
15
WCI G187921 WCI G187921 Contact Us For Availability
15
WCI G490076-01 WCI G490076-01 Contact Us For Availability
16
WCI G490086-10 WCI G490086-10 Contact Us For Availability
16
DAMPER FAN COVER WCI G162661 Contact Us For Availability
17
PANEL-EXT REF-COFE WCI R2001025 Contact Us For Availability
17
NUT-SPEED WCI G167542 Contact Us For Availability
18
HANDLE GRIP (2) WCI G175666-18 Contact Us For Availability
18
WCI G142220 WCI G142220 Contact Us For Availability
18
PLUG-DECORATIVE WCI G162827-18 Contact Us For Availability
19
WCI G175810 WCI G175810 Contact Us For Availability
19
HINGE-CENTER WCI G163207 Contact Us For Availability
19
COVER-COIL WCI G176797 Contact Us For Availability
20
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
20
WASHER-NYLON (3) WCI G164355 Contact Us For Availability
20
EVAPORATOR WCI G176909 Contact Us For Availability
21
WCI G185566 WCI G185566 Contact Us For Availability
21
STAP-MULLION MGT WCI G166709 Contact Us For Availability
22
END-HANDLE TOP WCI G175809 Contact Us For Availability
22
DEFLECTOR AIR WCI G162675 Contact Us For Availability
22
SPOUT, DRAIN WCI G162179 Contact Us For Availability
23
WCI G169332-10 WCI G169332-10 Contact Us For Availability
23
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
23
EXCHANGER-HEAT WCI G147918 Contact Us For Availability
24
NAMEPLATE-ASSY WCI R304001 Contact Us For Availability
24
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
25
PAN-DRAIN WCI G184715 Contact Us For Availability
26
WCI G1422176-43 WCI G1422176-43 Contact Us For Availability
26
NUT, LOCK WCI G164958 Contact Us For Availability
27
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
27
WCI G182225-18 WCI G182225-18 Contact Us For Availability
28
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
28
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
29
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
30
SOCKET LIGHT WCI G168302 Contact Us For Availability
31
WCI G176722-01 WCI G176722-01 Contact Us For Availability
31
WCI G188877 WCI G188877 Contact Us For Availability
32
WCI G177795 WCI G177795 Contact Us For Availability
32
WCI G190374 WCI G190374 Contact Us For Availability
33
SHELF-SLIDING (3) WCI G179415-01 Contact Us For Availability
34
WASHER-COMP MTG (4) WCI G164634 Contact Us For Availability
35
HINGE-LOWER WCI G191474 Contact Us For Availability
35
CLIP-COMP MTG (4) WCI G163204 Contact Us For Availability
36
PLATE COMP. MTG WCI G184599 Contact Us For Availability
37
SUPPORT-CRISPER CVR WCI G166310-02 Contact Us For Availability
37
CORD, SERVICE WCI G162549-01 Contact Us For Availability
38
PAN-CRISPER WCI G490015-01 Contact Us For Availability
38
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
39
WCI G490016-03 WCI G490016-03 Contact Us For Availability
39
TROUGH-DRAIN WCI G490043 Contact Us For Availability
40
PLUG-BUTTON WCI G166912 Contact Us For Availability
40
INSULATION-PLASTIC WCI G166511-02 Contact Us For Availability
41
WCI G85642 WCI G85642 Contact Us For Availability
41
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
42
WCI G174734 WCI G174734 Contact Us For Availability
42
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
43
WCI G174733 WCI G174733 Contact Us For Availability
× ![]()
