Model Electrolux RT173GCW2 REFRIGERATOR – Common Parts & Diagrams

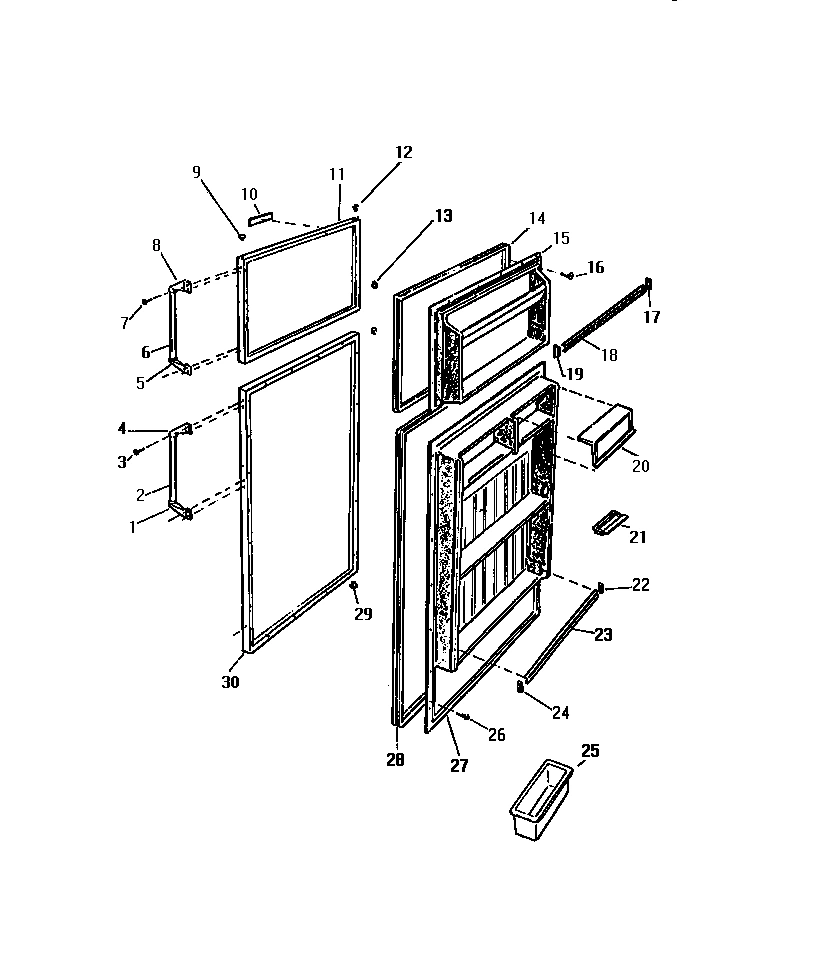

02 - DOOR

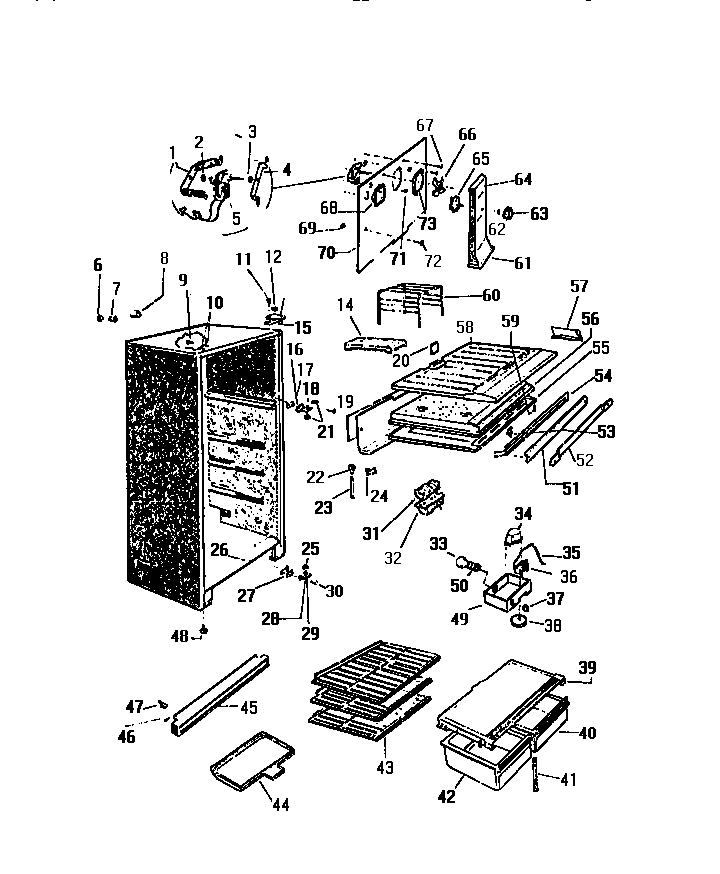

03 - CABINET, SHELVES, DIVIDER, FAN ASSE

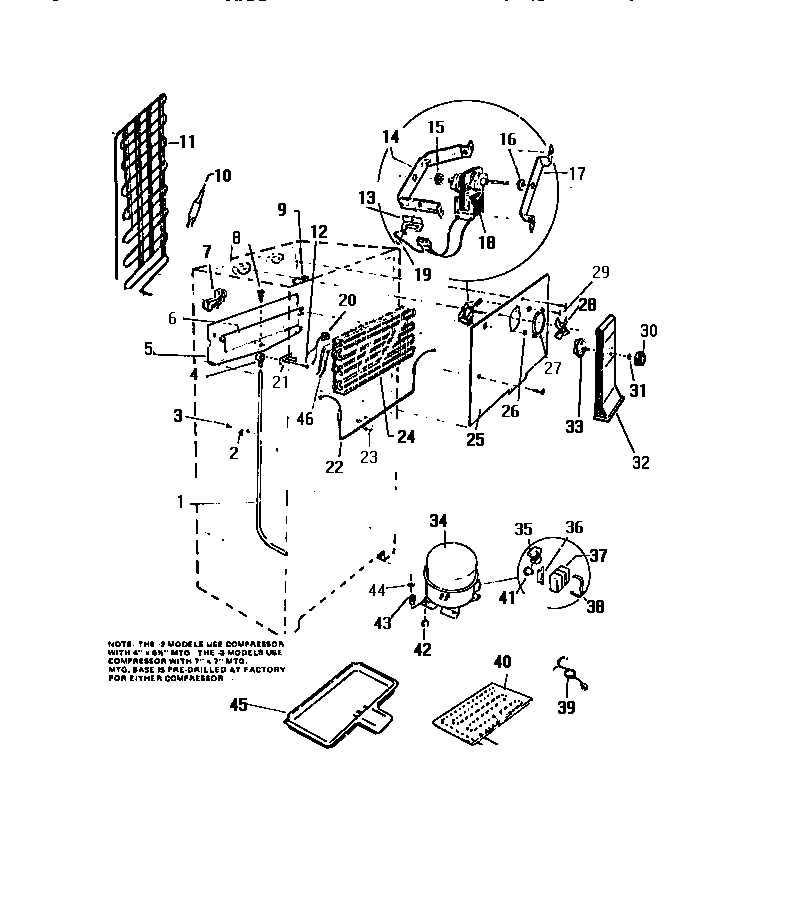

04 - COOLING SYSTEM
Common parts from model Electrolux RT173GCW2 REFRIGERATOR
*60201
TAPE WCI C460947 Contact Us For Availability
*60206
FREEZER SHELF (SEE NOTE) WCI G177415-02 Contact Us For Availability
*60207
SUPPORT, FREEZER SHELF (4) WCI G163105 Contact Us For Availability
*60208
SCREW, FREEZER SHELF (4) WCI G163104 Contact Us For Availability
1
TUBE REAR OF CAB WCI G155529-04 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
4
WCI G162180 WCI G162180 Contact Us For Availability
5
CAP WCI G175810 Contact Us For Availability
5
TROUGH WCI G170071 Contact Us For Availability
6
WCI G175666-17 WCI G175666-17 Contact Us For Availability
6
WCI G174733 WCI G174733 Contact Us For Availability
6
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
7
WCI C505715 WCI C505715 Contact Us For Availability
7
FERRULE WCI G174734 Contact Us For Availability
7
WCI G162715 WCI G162715 Contact Us For Availability
8
CAP WCI G175809 Contact Us For Availability
8
TUBE WCI G85642 Contact Us For Availability
8
WCI G101620 WCI G101620 Contact Us For Availability
9
WCI G169332-01 WCI G169332-01 Contact Us For Availability
9
SUPT EVAP. COVER ( 2 REQ ) WCI G163669 Contact Us For Availability
9
BLOCK, RH WCI G163099 Contact Us For Availability
10
NAEMPLATE WCI R304001 Contact Us For Availability
10
WCI G174747-01 WCI G174747-01 Contact Us For Availability
10
WCI R900125 WCI R900125 Contact Us For Availability
10A
DRIER-REGULAR WCI C101601 Contact Us For Availability
11
WCI G177885-01 WCI G177885-01 Contact Us For Availability
11
WCI G162739 WCI G162739 Contact Us For Availability
11A
WCI G166001 WCI G166001 Contact Us For Availability
12
WASHER WCI G101970 Contact Us For Availability
12A
WCI G152473 WCI G152473 Contact Us For Availability
13
HINGE, RT SD/ L.SD WCI G162385 Contact Us For Availability
13
BRACKET WCI G164571 Contact Us For Availability
14
GASKET WCI G180547-06 Contact Us For Availability
14
BRACKET WCI G162048 Contact Us For Availability
14
WCI R2901 WCI R2901 Contact Us For Availability
15
INNER PANEL WCI G179881-01 Contact Us For Availability
15
SHIM WCI G158344 Contact Us For Availability
16
WCI G167683 WCI G167683 Contact Us For Availability
17
BRACKET WCI G162049 Contact Us For Availability
17
WCI G162364 WCI G162364 Contact Us For Availability
18
FRONT WCI G490079-09 Contact Us For Availability
18
WCI G142220 WCI G142220 Contact Us For Availability
19
WCI Q500010 WCI Q500010 Contact Us For Availability
20
DAIRY DOOR (2) WCI G179967-01 Contact Us For Availability
20
PAD WCI G168866 Contact Us For Availability
21
BEARING WCI G164355 Contact Us For Availability
21
CUP WCI G162179 Contact Us For Availability
22
END CAP RH WCI G176891-01 Contact Us For Availability
23
FRONT WCI G490079-07 Contact Us For Availability
24
END CAP LH WCI G176892-01 Contact Us For Availability
24
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
25
WCI G103903 No Longer Available
25
EGG CONTAINER WCI G173948-17 Contact Us For Availability
25
COVER WCI G162050-01 Contact Us For Availability
26
TAP PLATE ( 2 REQ ) WCI G157591 Contact Us For Availability
26
WCI G162701 WCI G162701 Contact Us For Availability
27
WCI Q179873-01 WCI Q179873-01 Contact Us For Availability
27
SHIM WCI G162903 Contact Us For Availability
27
RING WCI G167217 Contact Us For Availability
28
GASKET WCI G180547-07 Contact Us For Availability
28
WCI G142331 WCI G142331 Contact Us For Availability
29
WCI G162889 WCI G162889 Contact Us For Availability
29
HINGE WCI G162383 Contact Us For Availability
29
WCI Q401601 WCI Q401601 Contact Us For Availability
30
WCI G177889-01 WCI G177889-01 Contact Us For Availability
30
WCI G162663-13 WCI G162663-13 Contact Us For Availability
31
DEFLECTOR WCI G162675 Contact Us For Availability
31
CLIP WCI G162662 Contact Us For Availability
31A
LABEL WCI G180137 Contact Us For Availability
32
COVER WCI G162178 Contact Us For Availability
32
COVER WCI G179793-01 Contact Us For Availability
33
WCI Q63749 WCI Q63749 Contact Us For Availability
33
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
34
COMPRESSOR W/OVLD RELAY (4`` X 6 1/2``) SEE N WCI C620102 Contact Us For Availability
35
WCI G150618-32 WCI G150618-32 Contact Us For Availability
36
CONTROL TEMP. WCI G162667-10 Contact Us For Availability
36
WCI G166063 WCI G166063 Contact Us For Availability
37
SWITCH WCI G177727-02 Contact Us For Availability
38
KNOB WCI G490107-02 Contact Us For Availability
39
COVER WCI G162840-01 Contact Us For Availability
39
WCI G16254901 WCI G16254901 Contact Us For Availability
40
DEFROST PLATE WCI G175411 Contact Us For Availability
41
SUPPORT WCI G166310-01 Contact Us For Availability
41
OVERLOAD WCI G176001 Contact Us For Availability
42
PAN WCI G179706-01 Contact Us For Availability
43
SHELF WCI G169226-01 Contact Us For Availability
43
SLEEVE WCI G154588 Contact Us For Availability
44
WASHER WCI G164634 Contact Us For Availability
45
PAN WCI G162890 Contact Us For Availability
45
TOE GRILLE WCI G163080-03 Contact Us For Availability
46
PLUG WCI G154397 Contact Us For Availability
46
WCI G162545 WCI G162545 Contact Us For Availability
46A
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
47
CLIP GRILLE WCI G162994 Contact Us For Availability
48
LEVELING SCREW WCI G166739 Contact Us For Availability
48A
WCI G164702 WCI G164702 Contact Us For Availability
49
WCI G176772-01 WCI G176772-01 Contact Us For Availability
49A
WCI G180106 WCI G180106 Contact Us For Availability
50
SOCKET WCI G168302 Contact Us For Availability
51
MULLION, WHITE WCI G162051 Contact Us For Availability
52
WCI G165781 WCI G165781 Contact Us For Availability
54
HEATER WCI G177254 Contact Us For Availability
55
TOP ( REF SECT. ) WCI G174714 Contact Us For Availability
56
DIVIDER ( STYRO ) WCI G170073 Contact Us For Availability
57
SPACER LH WCI G162177 Contact Us For Availability
57A
WCI G167176 WCI G167176 Contact Us For Availability
58
WCI G161919-01 WCI G161919-01 Contact Us For Availability
59
SCREW WCI G162673 Contact Us For Availability
68
WCI G162511-29 WCI G162511-29 Contact Us For Availability
69
CLIP WCI G167542 Contact Us For Availability
72
WCI Q301267 WCI Q301267 Contact Us For Availability
× ![]()
