Model Electrolux RT171MCD0 REFRIGERATOR – Common Parts & Diagrams

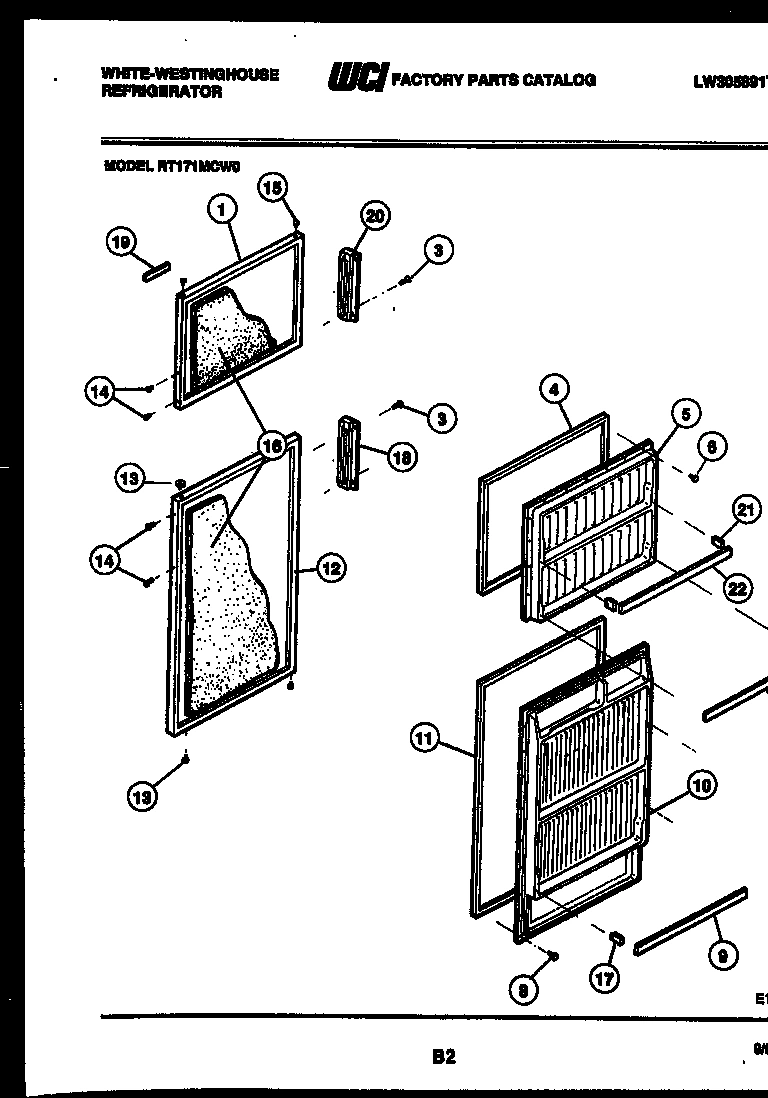

02 - DOOR PARTS

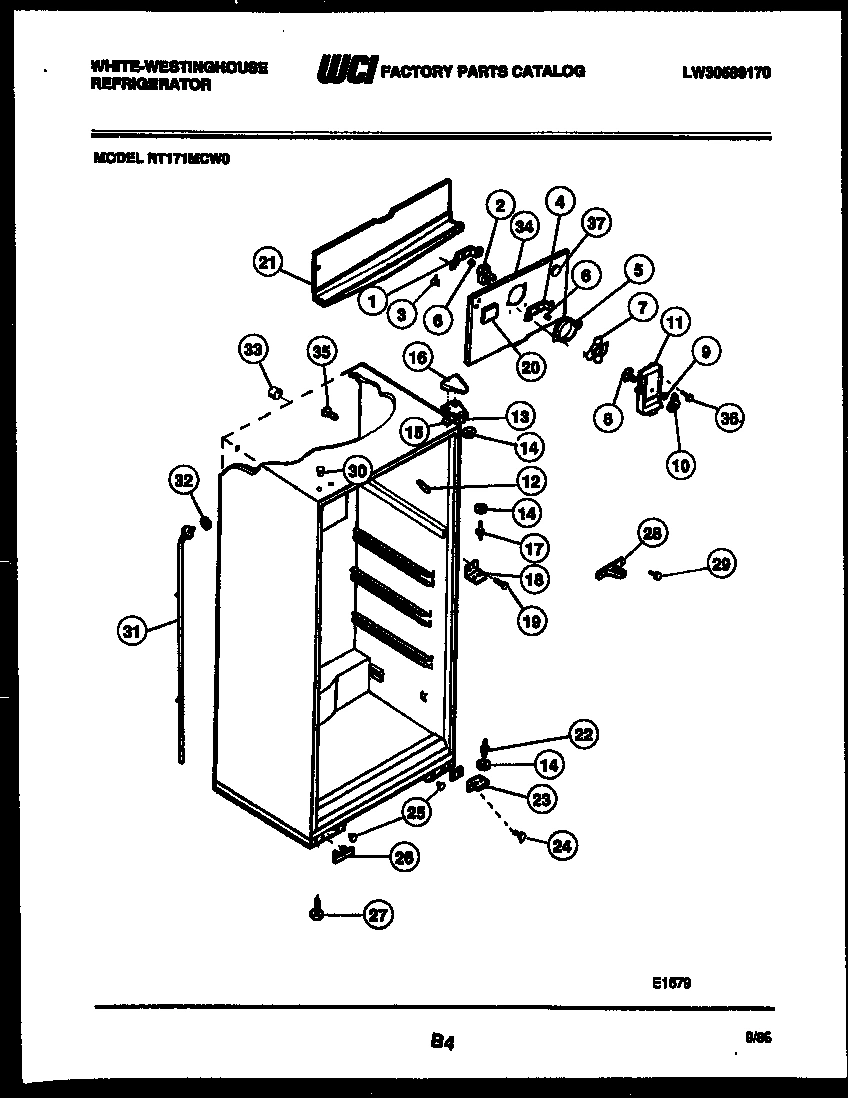

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT171MCD0 REFRIGERATOR
*22196
PLUG-LINER (6) WCI G187599 Contact Us For Availability
*22201
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
1
WCI 3001227 WCI 3001227 Contact Us For Availability
1
KNOB-TEMP CONTROL WCI 3201777 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
2
CONTROL BOX WCI 3206130 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
2A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
3
SCREW-HANDLE MTG (4) WCI 08011745 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3206129 WCI 3206129 Contact Us For Availability
4
WCI 08007123 WCI 08007123 Contact Us For Availability
4
WCI 3001226 WCI 3001226 Contact Us For Availability
4
HSG-CONT CAP TUBE WCI 3018891 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3018900 Contact Us For Availability
5
WCI 3206160 WCI 3206160 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
5
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
5A
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI 3001197 WCI 3001197 Contact Us For Availability
7
DOOR RACK-FREEZER WCI 3206163 Contact Us For Availability
8
DAMPER WCI 3206110 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
DOOR RACK-REFR (2) WCI 3206152 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI 3206121 WCI 3206121 Contact Us For Availability
10
WCI 3206154 WCI 3206154 Contact Us For Availability
10
KNOB-DAMPER CNTRL WCI 3206109 Contact Us For Availability
10
SCREW-MULLION (4) WCI 3206134 Contact Us For Availability
11
FAN COVER WCI 3206108 Contact Us For Availability
11
WCI G166847 WCI G166847 Contact Us For Availability
12
WCI 3206120 WCI 3206120 Contact Us For Availability
12A
COMPRESSOR WITH ELECTRICALS WCI 3916020 Contact Us For Availability
13
WCI 3206153 WCI 3206153 Contact Us For Availability
13
HINGE, TOP WCI 3206100 Contact Us For Availability
13
WCI G166709 WCI G166709 Contact Us For Availability
13
PAN, DEFROST WCI G184715 Contact Us For Availability
14
WASHER-HINGE (3) WCI 08000186 Contact Us For Availability
14
SPACER-MULLION MTG (2) WCI 3200464 Contact Us For Availability
14
WCI G164958 WCI G164958 Contact Us For Availability
15
WCI G183861 WCI G183861 Contact Us For Availability
15
TOP PANEL-REFRIG WCI 3206185 Contact Us For Availability
15
WCI G163204 WCI G163204 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
16
INSULATION-BULK (FIBERGLASS) WCI 3007739 Contact Us For Availability
16
WCI 3206186 WCI 3206186 Contact Us For Availability
16
WCI G164634 WCI G164634 Contact Us For Availability
17
END CAP-LH (2) WCI 3206151 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI 3206187 WCI 3206187 Contact Us For Availability
17A
END CAP-RH (2) (NON-ILLUSTRATED) WCI 3206150 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WCI 3204206 WCI 3204206 Contact Us For Availability
18
PLATE-COMPRESSOR MOUNTING WCI 3206126 Contact Us For Availability
19
WCI 3206159 WCI 3206159 Contact Us For Availability
19
WCI 3001546 WCI 3001546 Contact Us For Availability
20
WCI 3018193 WCI 3018193 Contact Us For Availability
21
DRAIN TROUGH WCI 3206146 Contact Us For Availability
22
DOOR RACK-FREEZER-UPR WCI 3206164 Contact Us For Availability
22
SHELF-SLIDING (2) WCI 3206179 Contact Us For Availability
23
BRACKET-BTTM HINGE WCI 3206136 Contact Us For Availability
23
COVER-CRISPER (LESS INSERT) WCI 3206183 Contact Us For Availability
24
WCI 3206325 WCI 3206325 Contact Us For Availability
24
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
25
WCI 3206142 WCI 3206142 Contact Us For Availability
25
INSERT-CRISPER COVER WCI 3206182 Contact Us For Availability
25
WCI 08000728 WCI 08000728 Contact Us For Availability
26
COVER-HINGE SCREW WCI 3206135 Contact Us For Availability
27
LEVELING SCREW (2) WCI 3206141 Contact Us For Availability
27
WCI 08009754 WCI 08009754 Contact Us For Availability
28
WCI 08000056 WCI 08000056 Contact Us For Availability
28
EVAPORATOR WCI 08009756 Contact Us For Availability
29
PIN-PUSH (2) WCI 3001361 Contact Us For Availability
30
INSULATOR-EVAP (PLASTIC) WCI G166511-02 Contact Us For Availability
31
TUBE-DEFROST DRAIN WCI 3206115 Contact Us For Availability
31
WCI G185299 WCI G185299 Contact Us For Availability
32
RING-SEAL WCI 08009755 Contact Us For Availability
32
WCI G185276 WCI G185276 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
33
WCI G188375 WCI G188375 Contact Us For Availability
34
WCI 3206119 WCI 3206119 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
WCI G163669 WCI G163669 Contact Us For Availability
37
WCI 3203044 WCI 3203044 Contact Us For Availability
× ![]()
