Model Electrolux RT170GCF3 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR
03 - CABINET, SHELVES, DIVIDER, FAN ASSE

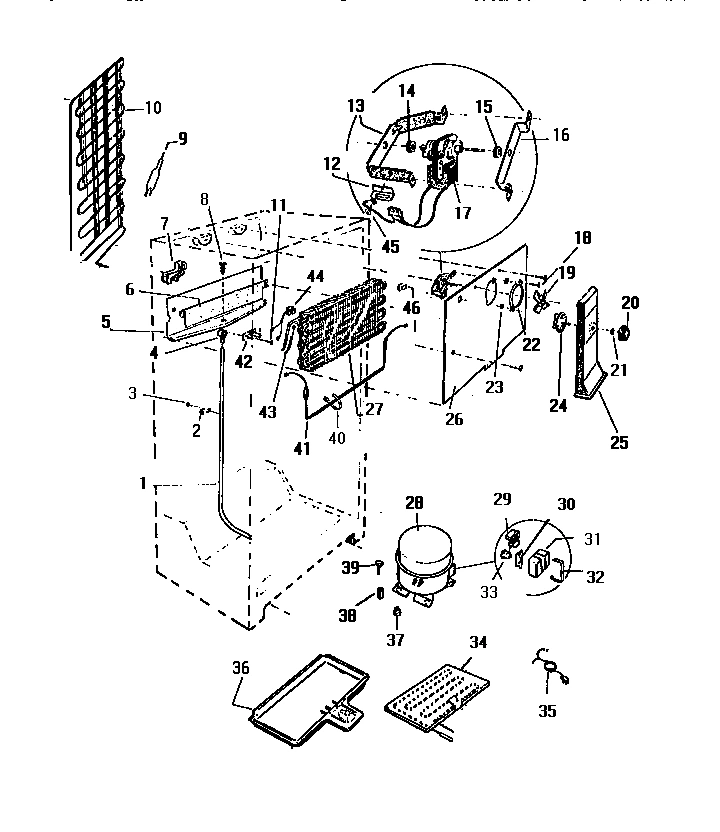

04 - COOLING SYSTEM
Common parts from model Electrolux RT170GCF3 REFRIGERATOR
*11920
VINYL TAPE, DOOR HANDLE, ELM BURL WCI R900622 Contact Us For Availability
*11922
INSULATION, FIBERGLASS CUT TO SIZE 34`` X 48` WCI C69109 Contact Us For Availability
*11923
INSULATION FIBERGLASS CUT TO SIZE, 34`` X 48` WCI C69110 Contact Us For Availability
*11924
INSULAION FIBERGLASS CUT TO SIZE , 34`` X 48` WCI C69111 Contact Us For Availability
*11925
PLASTIC BAG WCI C35536 Contact Us For Availability
*11926
WCI Q168338 WCI Q168338 Contact Us For Availability
*11927
WCI 467B371H22 WCI 467B371H22 Contact Us For Availability
*11928
WCI G162051-10 WCI G162051-10 Contact Us For Availability
*11931
ROLLER, COMPLETE WCI G166138 Contact Us For Availability
*11932
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
*11935
LABEL WCI G180298 Contact Us For Availability
*11936
HOTE TUBE REPAIR KIT WCI G176210 Contact Us For Availability
1
WCI G177141-06 WCI G177141-06 Contact Us For Availability
1
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
1
DRAIN TUBE (CUT TO LENGTH) WCI G155529-05 Contact Us For Availability
1A
CLIP, HANDLE WCI G177144 Contact Us For Availability
1A
SCREW, STRINGER WCI G163989 Contact Us For Availability
2
WCI G155660 WCI G155660 Contact Us For Availability
2
STRAP WCI G165781 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3
WCI G177141-03 WCI G177141-03 Contact Us For Availability
4
TRIM WCI G178328-02 Contact Us For Availability
4
TUBE WCI G85642 Contact Us For Availability
4
WCI G162180 WCI G162180 Contact Us For Availability
4A
WCI C460647 WCI C460647 Contact Us For Availability
4B
CLEANING FLUIDE WCI 467B372H36 Contact Us For Availability
5
FERRULE WCI G174733 Contact Us For Availability
5
TROUGH WCI G170071 Contact Us For Availability
6
TRIM, TOP WCI G179270 Contact Us For Availability
6
FERRULE WCI G174734 Contact Us For Availability
6
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
7
WCI G169332-10 WCI G169332-10 Contact Us For Availability
7
PLUG BUTTON (6 REQ) WCI G162659 Contact Us For Availability
7
WCI G162715 WCI G162715 Contact Us For Availability
8
WCI R304001 WCI R304001 Contact Us For Availability
8
SUPPORT, EVAPORATOR COVER WCI G163669 Contact Us For Availability
8
WCI G101620 WCI G101620 Contact Us For Availability
9
WCI G178431-10 WCI G178431-10 Contact Us For Availability
9
SCREW WCI G163104 Contact Us For Availability
9
DRIER-REGULAR WCI C101601 Contact Us For Availability
9A
WCI R900125 WCI R900125 Contact Us For Availability
10
WCI G163356 WCI G163356 Contact Us For Availability
11
WCI G162977-10 WCI G162977-10 Contact Us For Availability
11
SUPPORT (8) WCI G163105 Contact Us For Availability
12
GASKET WCI G180547-06 Contact Us For Availability
12
BRACKET WCI G164571 Contact Us For Availability
13
INNER PANEL WCI G179881-01 Contact Us For Availability
13
SHIM WCI G158344 Contact Us For Availability
13
BRACKET WCI G162048 Contact Us For Availability
14
HINGE WCI G183714 Contact Us For Availability
15
WCI G176892-02 WCI G176892-02 Contact Us For Availability
15
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
16
FRONT WCI G490079-09 Contact Us For Availability
16
WCI G161015-13 WCI G161015-13 Contact Us For Availability
16
BRACKET WCI G162049 Contact Us For Availability
17
DOOR (2) WCI G179967-02 Contact Us For Availability
17
ICE TRAY WCI R2901 Contact Us For Availability
18
WCI G177415-02 WCI G177415-02 Contact Us For Availability
19
END CAP RH WCI G176891-01 Contact Us For Availability
20
FRONT (2) WCI G490079-07 Contact Us For Availability
20
WASHER, NYLON WCI G101970 Contact Us For Availability
20
WCI G162663-13 WCI G162663-13 Contact Us For Availability
21
END CAP LH WCI G176892-01 Contact Us For Availability
21
CENTER (STYRO) WCI G170073 Contact Us For Availability
21
CLIP WCI G162662 Contact Us For Availability
22
WCI Q500010 WCI Q500010 Contact Us For Availability
22
RING WCI G167217 Contact Us For Availability
23
WCI G173948-19 WCI G173948-19 Contact Us For Availability
23
WCI G142220 WCI G142220 Contact Us For Availability
23
WCI G162701 WCI G162701 Contact Us For Availability
24
INNER PANEL WCI G179873-01 Contact Us For Availability
24
HINGE WCI G162384 Contact Us For Availability
24
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
25
GASKET WCI G180547-07 Contact Us For Availability
25
COVER WCI G179793-01 Contact Us For Availability
26
WCI G180158-10 WCI G180158-10 Contact Us For Availability
26
SHIM WCI G162683 Contact Us For Availability
26
COVER WCI G162050-02 Contact Us For Availability
27
WCI G155072 WCI G155072 Contact Us For Availability
27
STRINGER, CENTER WCI G175612 Contact Us For Availability
27
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
28
BEARING WCI G183138 Contact Us For Availability
28
TRIM WCI G172409-10 Contact Us For Availability
28
COMPRESSOR W/OVLD. RELAY (4`` X 6 1/2`` MTG) WCI C620102 Contact Us For Availability
29
END CAP, TOP WCI G177142 Contact Us For Availability
29
END CAP BTM WCI G177143 Contact Us For Availability
29
FRAME WCI G178323-03 Contact Us For Availability
29
WCI G150618-26 WCI G150618-26 Contact Us For Availability
30
TRIM, BTM WCI G179271 Contact Us For Availability
30
WASHER (NYLON) WCI G164355 Contact Us For Availability
31
SHIM WCI G162903 Contact Us For Availability
31
COVER WCI G147942 Contact Us For Availability
33
PIN WCI G162809 Contact Us For Availability
33
WCI G176981 WCI G176981 Contact Us For Availability
34
ROLLER, REAR WCI G162808 Contact Us For Availability
34
DEFROST PLATE WCI G172513 Contact Us For Availability
35
TAPE PLATE WCI G157591 Contact Us For Availability
35
WCI G162549-01 WCI G162549-01 Contact Us For Availability
36
WCI G142361 WCI G142361 Contact Us For Availability
36
PAN WCI G162890 Contact Us For Availability
37
CLIP WCI G162994 Contact Us For Availability
38
BOLT WCI G145103 Contact Us For Availability
38
SLEEVE WCI G154588 Contact Us For Availability
39
TOE GRILL (LESS CLIPS) WCI G163080-03 Contact Us For Availability
39
WCI G154589 WCI G154589 Contact Us For Availability
40
COVER WCI G162840-01 Contact Us For Availability
42
WCI G179706-03 WCI G179706-03 Contact Us For Availability
42
CUP WCI G162179 Contact Us For Availability
43
SUPPORT WCI G166310-01 Contact Us For Availability
43
WCI G162545 WCI G162545 Contact Us For Availability
44
WCI G179706-02 WCI G179706-02 Contact Us For Availability
45
PAN, MEAT WCI G176918-03 Contact Us For Availability
45
WCI Q401601 WCI Q401601 Contact Us For Availability
46
TRIM, PAN (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
46
BLOCK, RH WCI G163099 Contact Us For Availability
47
WCI G174365-01 WCI G174365-01 Contact Us For Availability
49
WCI G174366-01 WCI G174366-01 Contact Us For Availability
50
WCI G178324-02 WCI G178324-02 Contact Us For Availability
52
TRIM, REAR WCI G172409-09 Contact Us For Availability
53
SCREW WCI G162656 Contact Us For Availability
54
HINGE WCI G162383 Contact Us For Availability
55
SHELF, GLASS (3) WCI G171654-27 Contact Us For Availability
56
BOX WCI G176722-01 Contact Us For Availability
57
KNOB WCI G490107-02 Contact Us For Availability
58
SWITCH WCI G177727-02 Contact Us For Availability
59
CONTROL WCI G162667-10 Contact Us For Availability
62
HEATER WCI G177254 Contact Us For Availability
64
WCI G162176 WCI G162176 Contact Us For Availability
65
DIVIDER, TOP OF REF. (METAL) WCI G174714 Contact Us For Availability
66
DIVIDER BTM WCI G161919-01 Contact Us For Availability
67
WCI G162177 WCI G162177 Contact Us For Availability
68
SCREW WCI G162673 Contact Us For Availability
69
TRIM, SHELF, CUT TO SIZE WCI G177060-03 Contact Us For Availability
70
BAFFLE WCI G162675 Contact Us For Availability
71
COVER WCI G162178 Contact Us For Availability
73
SOCKET WCI G168302 Contact Us For Availability
× ![]()
