Model Electrolux RT164HCF0 REFRIGERATOR – Common Parts & Diagrams

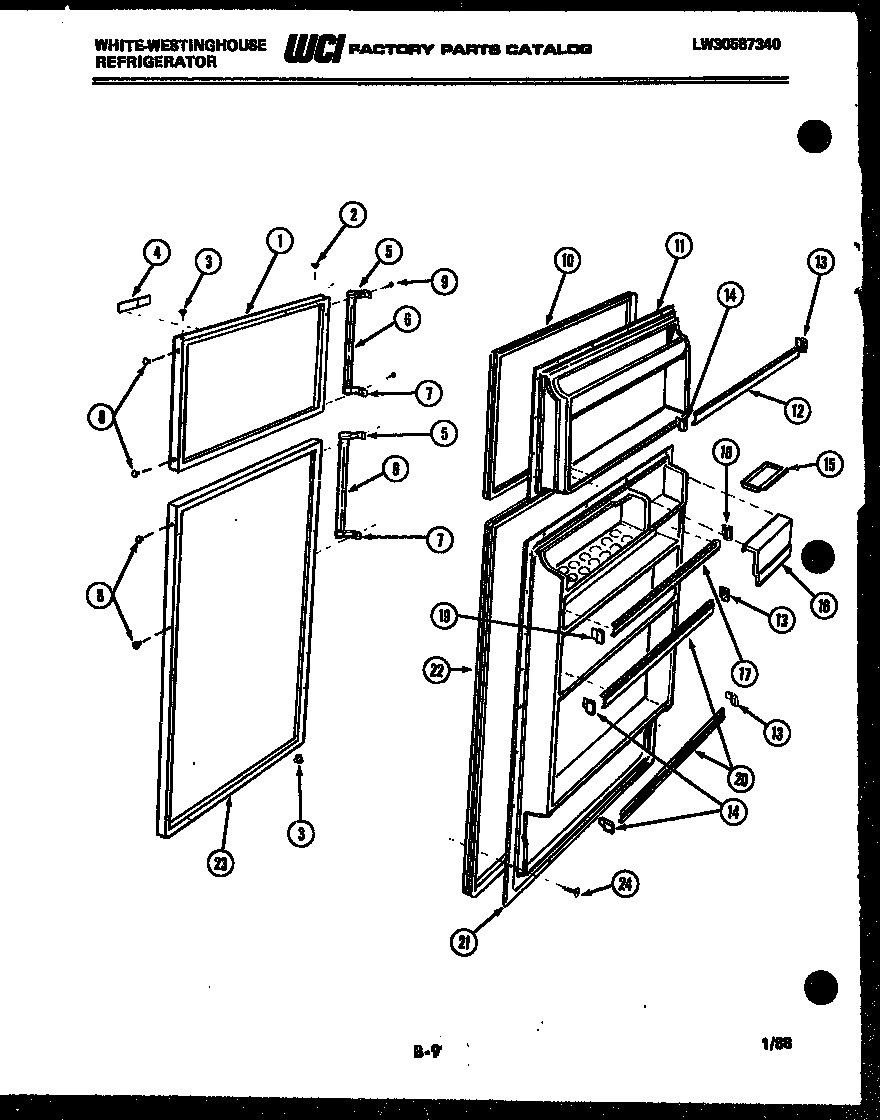

02 - DOOR PARTS

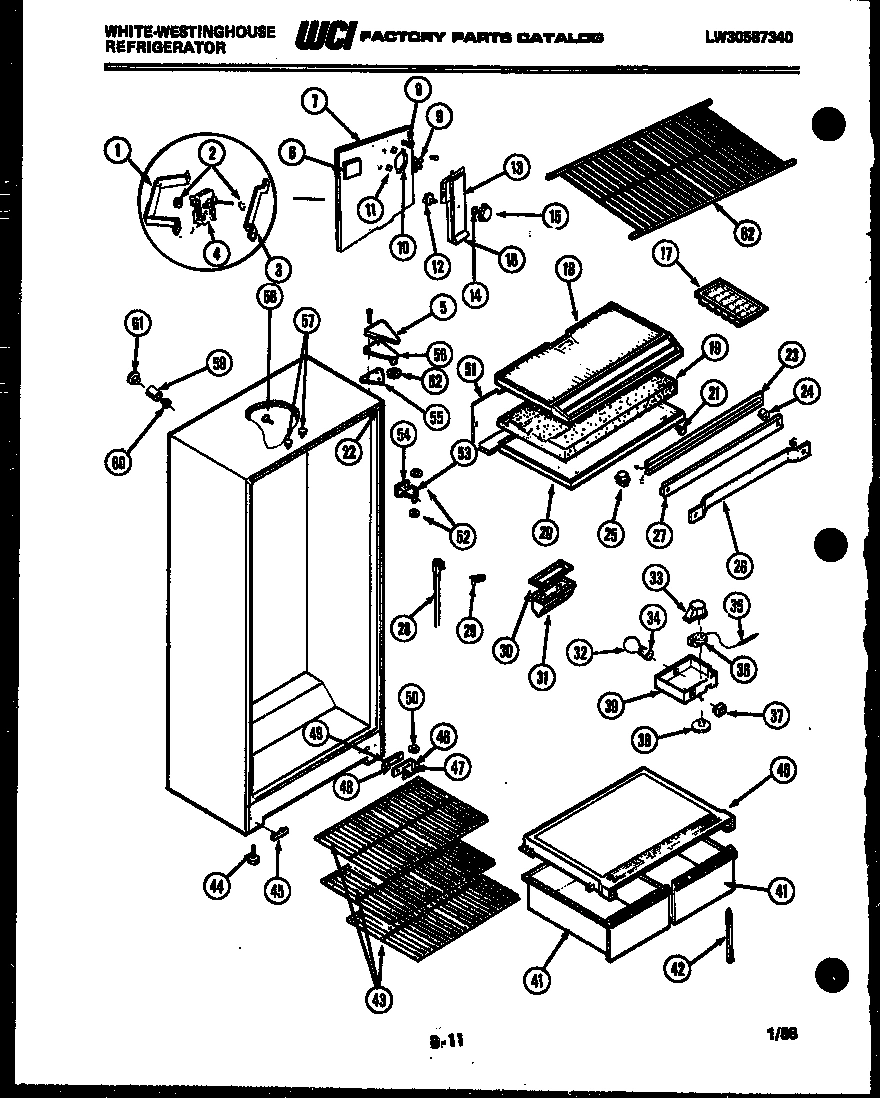

03 - CABINET PARTS

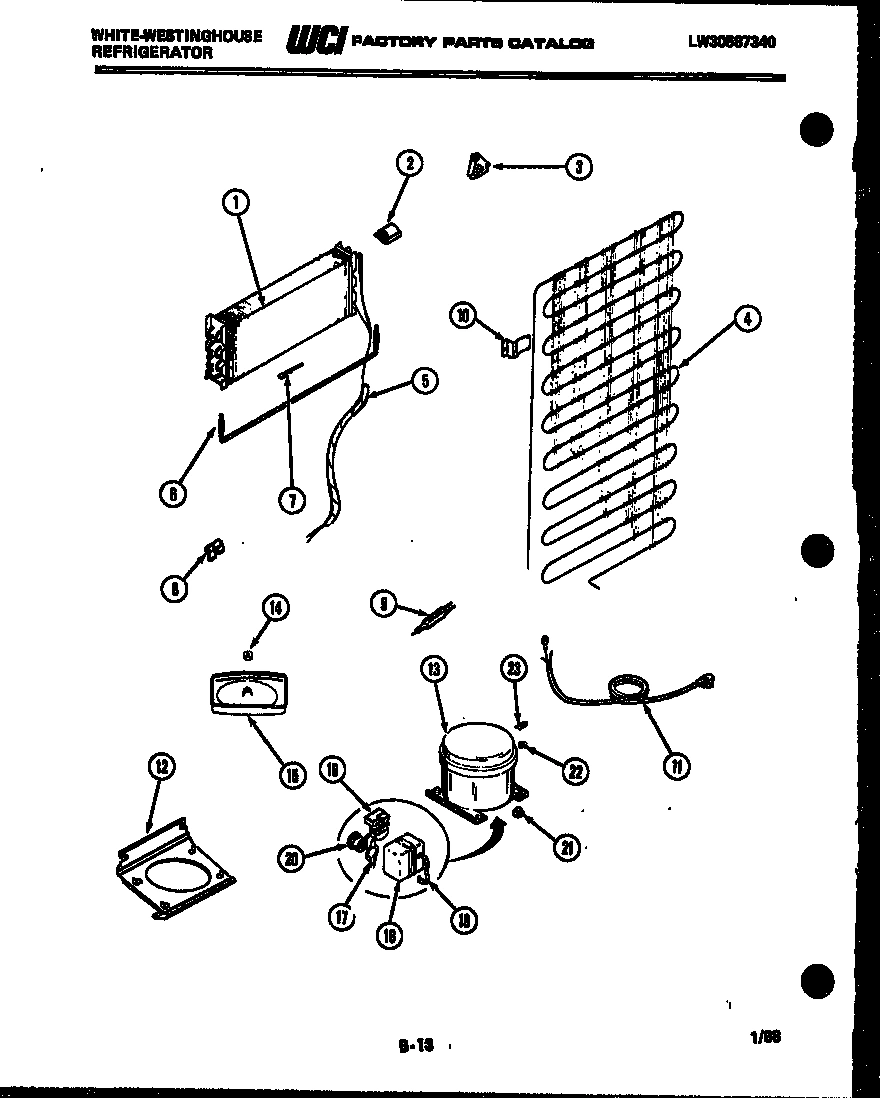

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT164HCF0 REFRIGERATOR
*54883
COVER-WIRING WCI G183854 Contact Us For Availability
*54884
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*54885
KIT-HOT TUBE REPAIR WCI G189383 Contact Us For Availability
1
BRACKET-MTR MTG REAR WCI G185303 Contact Us For Availability
1
EVAPORATOR WCI G176909 Contact Us For Availability
2
WCI G169332-10 WCI G169332-10 Contact Us For Availability
3
BEARING HINGE (8) WCI G183138 Contact Us For Availability
3
BRACKET-MTR MTG FRONT WCI G185302 Contact Us For Availability
3
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
3A
PLUG-EVAPORATOR (NON-ILLUSTRATED) WCI G185276 Contact Us For Availability
4
WCI R304001 WCI R304001 Contact Us For Availability
4
WCI G178225 WCI G178225 Contact Us For Availability
5
END-HANDLE TOP (2) WCI G175809 Contact Us For Availability
5
COVER-HNG COFE WCI G183558-10 Contact Us For Availability
5
EXCHANGER-HEAT WCI G147918 Contact Us For Availability
6
WCI G175666-09 WCI G175666-09 Contact Us For Availability
6
PLUG-BUTTN DECOR WCI G162827-18 Contact Us For Availability
6
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
7
END-HANDLE BTM (2) WCI G175810 Contact Us For Availability
7
COVER-COIL WCI G176797 Contact Us For Availability
8
WCI G162977-10 WCI G162977-10 Contact Us For Availability
8
BLOCK-EVAPORATOR LH WCI G188375 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
10
GASKET-FRZR WCI G186932-03 Contact Us For Availability
10
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
10
WCI G164637 WCI G164637 Contact Us For Availability
11
WCI G176904-01 WCI G176904-01 Contact Us For Availability
11
NUT-SPEED (2) WCI G167542 Contact Us For Availability
11
CORD, SERVICE WCI G162549-01 Contact Us For Availability
12
WCI G490079-01 WCI G490079-01 Contact Us For Availability
12
DAMPER FAN COVER WCI G162661 Contact Us For Availability
12
PLATE COMP. MTG WCI G184599 Contact Us For Availability
13
SUPPORT-RACK RH (3) WCI G176891-01 Contact Us For Availability
13
LABEL-FAN COVER WCI G180179 Contact Us For Availability
13
WCI C620106 WCI C620106 Contact Us For Availability
14
SUPPORT-RACK LH (3) WCI G176892-01 Contact Us For Availability
14
NUT, PUSH WCI G162662 Contact Us For Availability
14
NUT, LOCK WCI G164958 Contact Us For Availability
15
KNOB-DAMPR CONT WCI G162663-15 Contact Us For Availability
15
PAN, DEFROST WCI G184715 Contact Us For Availability
16
WCI G176911-01 WCI G176911-01 Contact Us For Availability
16
WCI G490076-01 WCI G490076-01 Contact Us For Availability
16
WCI G182225-11 WCI G182225-11 Contact Us For Availability
17
WCI G177220-01 WCI G177220-01 Contact Us For Availability
17
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
18
WCI G177221-01 WCI G177221-01 Contact Us For Availability
18
BOTTOM-FRZR WCI G490022-01 Contact Us For Availability
19
WCI G177222-01 WCI G177222-01 Contact Us For Availability
19
DIVIDER WCI G176774 Contact Us For Availability
20
WCI G490079-02 WCI G490079-02 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 3016378 Contact Us For Availability
20
WCI G185810 WCI G185810 Contact Us For Availability
21
PANEL-REF INNER WCI G176988-01 Contact Us For Availability
21
SCREW (3) WCI G162673 Contact Us For Availability
22
TRIM-CAB CORNER-COFE WCI G179684-10 Contact Us For Availability
22
WASHER-COMP MTG (4) WCI G164634 Contact Us For Availability
23
WCI G176863-10 WCI G176863-10 Contact Us For Availability
23
WCI G177255 WCI G177255 Contact Us For Availability
23
CLIP-COMP MTG (4) WCI G163204 Contact Us For Availability
24
SPACER, MULLION (2) WCI G490082 Contact Us For Availability
26
STRAP-MULLION WCI G166709 Contact Us For Availability
27
WCI G490086-10 WCI G490086-10 Contact Us For Availability
28
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
29
SPOUT, DRAIN WCI G162179 Contact Us For Availability
30
DEFLECTOR AIR WCI G162675 Contact Us For Availability
31
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
34
SOCKET LIGHT WCI G168302 Contact Us For Availability
36
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
37
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
38
KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability
39
WCI G176722-01 WCI G176722-01 Contact Us For Availability
39A
WCI G180105 WCI G180105 Contact Us For Availability
40
WCI G490016-03 WCI G490016-03 Contact Us For Availability
41
WCI G490015-01 WCI G490015-01 Contact Us For Availability
42
SUPPORT-CRISPER CVR WCI G166310-02 Contact Us For Availability
43
SHELF-SLIDING (3) WCI G179415-01 Contact Us For Availability
44
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
44A
NUT ANCHOR (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
45
PLUG-BUTTON WCI G166912 Contact Us For Availability
46
BRACKT-LWR HINGE WCI G191474 Contact Us For Availability
48
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
49
PLATE, TAPPING ( 2 ) WCI G179797 Contact Us For Availability
50
WCI G103903 No Longer Available
51
TROUGH-DRAIN WCI G490043 Contact Us For Availability
52
WASHER-NYLON (3) WCI G164355 Contact Us For Availability
53
WCI G142220 WCI G142220 Contact Us For Availability
54
BRACKET-CTR HINGE WCI G163207 Contact Us For Availability
55
WCI G183861 WCI G183861 Contact Us For Availability
56
BRACKET, TOP HINGE WCI G183714 Contact Us For Availability
57
WCI G174747-10 WCI G174747-10 Contact Us For Availability
58
SUPPORT-COIL CVR (2) WCI G163669 Contact Us For Availability
59
WCI G85642 WCI G85642 Contact Us For Availability
60
WCI G174733 WCI G174733 Contact Us For Availability
61
WCI G174734 WCI G174734 Contact Us For Availability
61A
HARNESS-DIVIDER (NON-ILLUSTRATED) WCI G174818 Contact Us For Availability
62
WCI G184193-01 WCI G184193-01 Contact Us For Availability
× ![]()
