Model Electrolux RT15F5DX4B REFRIGERATOR – Common Parts & Diagrams

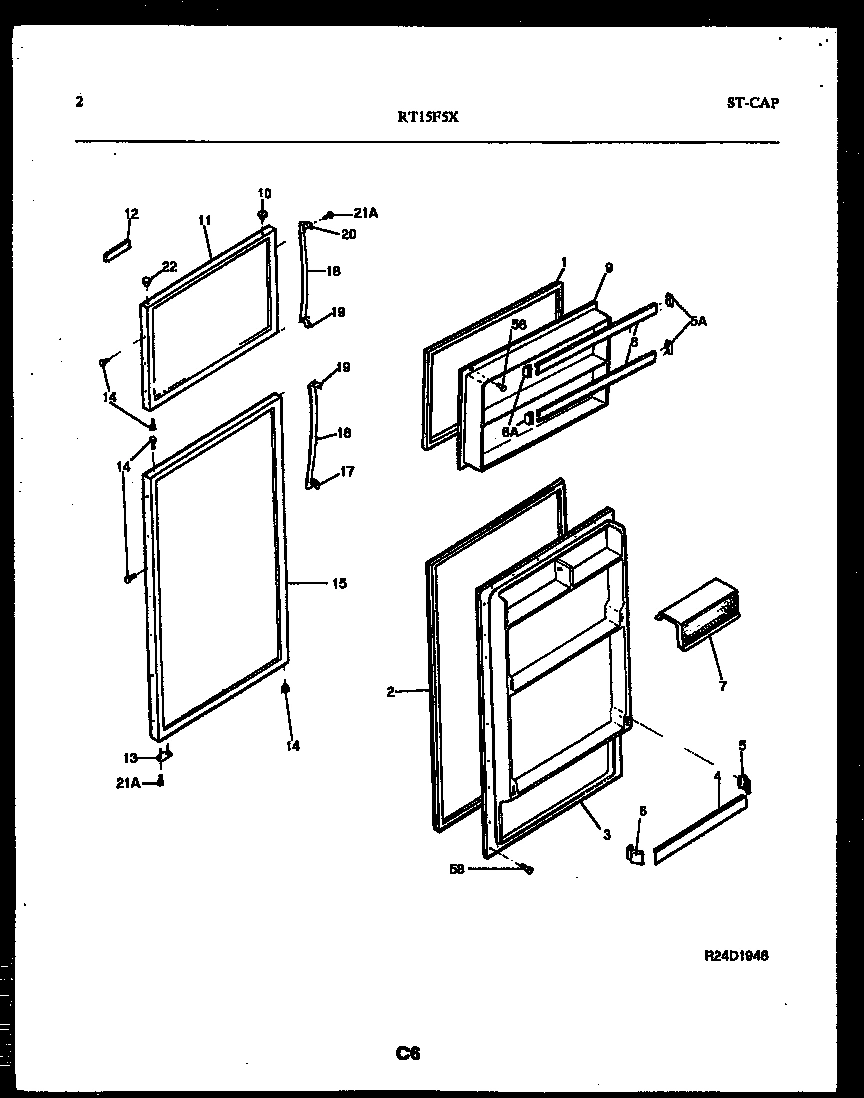

02 - DOOR PARTS

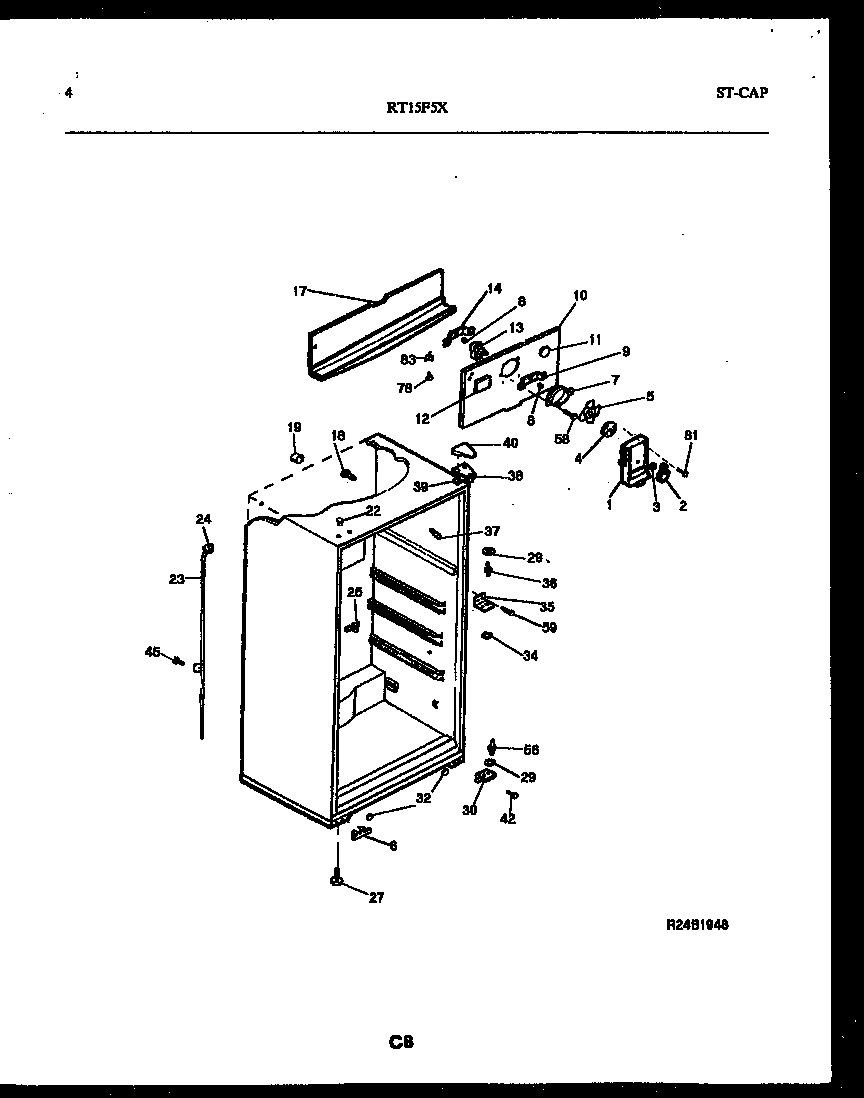

03 - CABINET PARTS

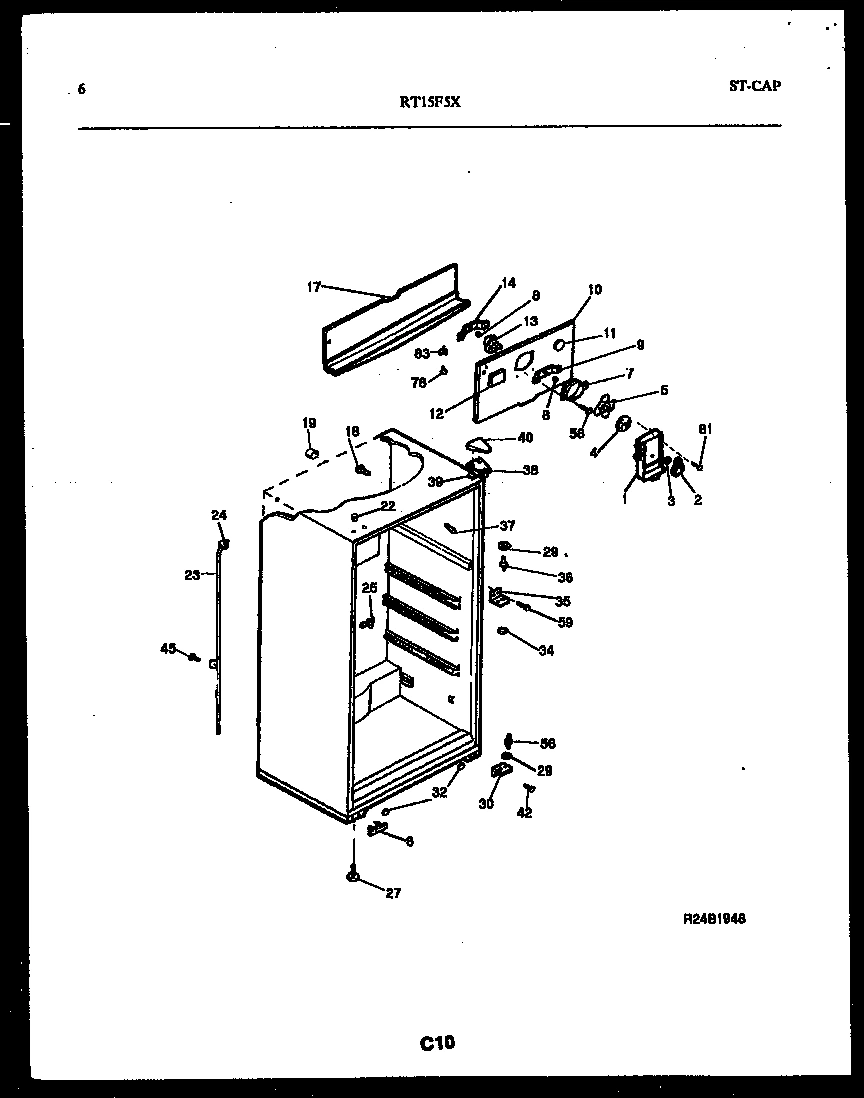

04 - CABINET PARTS

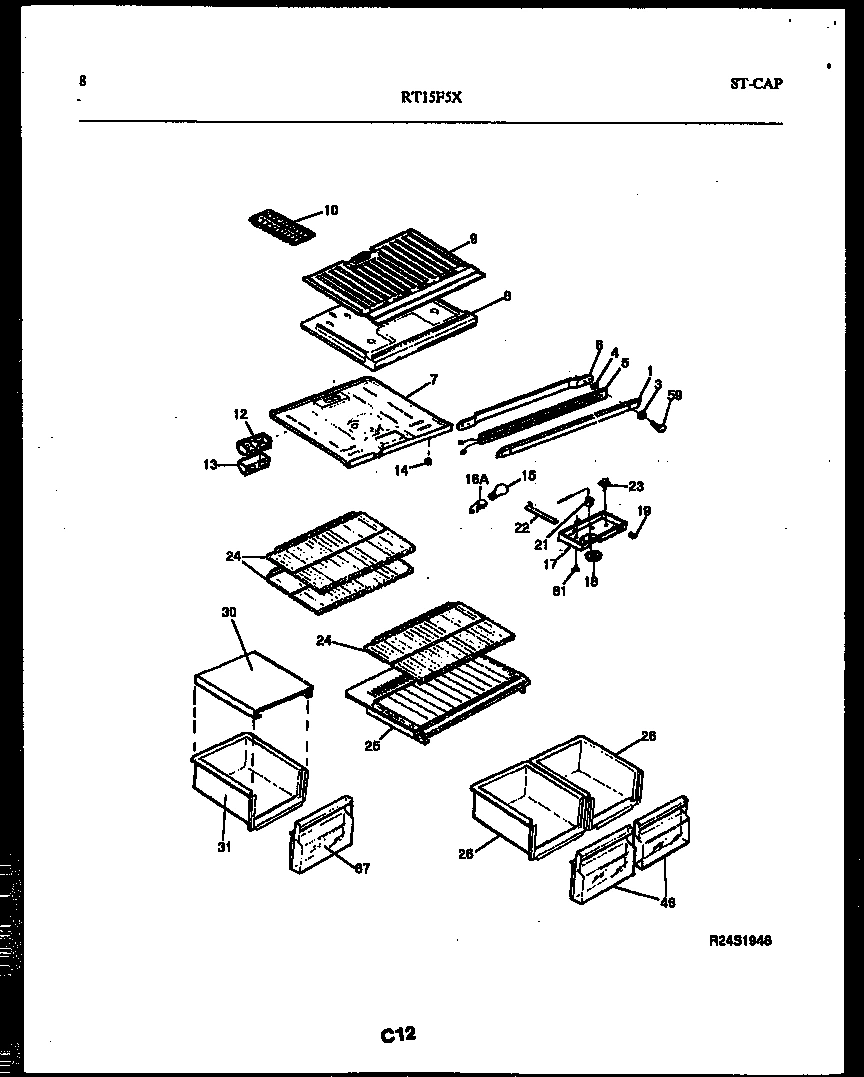

05 - SHELVES AND SUPPORTS
Common parts from model Electrolux RT15F5DX4B REFRIGERATOR
*56443
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*56444
WCI 5303210622 WCI 5303210622 Contact Us For Availability
1
WCI 5303272512 WCI 5303272512 Contact Us For Availability
1
WCI 3206125 WCI 3206125 Contact Us For Availability
1A
LABEL-FAN COVER (COVER-FAN COVER) (NON-ILLUST WCI 5303272493 Contact Us For Availability
2
WCI 3206381 WCI 3206381 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/23 X 7/16 OD WCI 5308003607 Contact Us For Availability
4
WCI 3206110 WCI 3206110 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 3206120 WCI 3206120 Contact Us For Availability
6
WCI 3206135 WCI 3206135 Contact Us For Availability
6
WCI 5308003604 WCI 5308003604 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206128 WCI 3206128 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 3206131 WCI 3206131 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206132 WCI 3206132 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206119 WCI 3206119 Contact Us For Availability
10A
SCREW-COIL COVER, PHL HD SPC TRUS, 8-15A X 5/ WCI 5303209636 Contact Us For Availability
10B
NUT, ``U`` TYPE, NO. 8(A), COIL COVER, (2) ( WCI 5303209814 Contact Us For Availability
12
WCI 5303272494 WCI 5303272494 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
17
WCI 3206146 WCI 3206146 Contact Us For Availability
17
WCI 5303272507 WCI 5303272507 Contact Us For Availability
18
WCI 5303272495 WCI 5303272495 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5303209251 WCI 5303209251 Contact Us For Availability
19
WCI 5303001296 WCI 5303001296 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303272508 WCI 5303272508 Contact Us For Availability
20
HANDLE END WCI 5303001295 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3206153 WCI 3206153 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF-SLIDING, REFR, (3) WCI 5303283111 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303283113 WCI 5303283113 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
26
WCI 3206212 WCI 3206212 Contact Us For Availability
27
WCI 3206141 WCI 3206141 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
30
WCI 3206205 WCI 3206205 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
32
PLUG-BUTTON, CABINET BASE, (2) WCI 3206142 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
46
WCI 5303272513 WCI 5303272513 Contact Us For Availability
46
WCI 5303272514 WCI 5303272514 Contact Us For Availability
56
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
59
WCI 3206134 WCI 3206134 Contact Us For Availability
67
WCI 5303272515 WCI 5303272515 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
