Model Electrolux RT15F4WU2D REFRIGERATOR – Common Parts & Diagrams

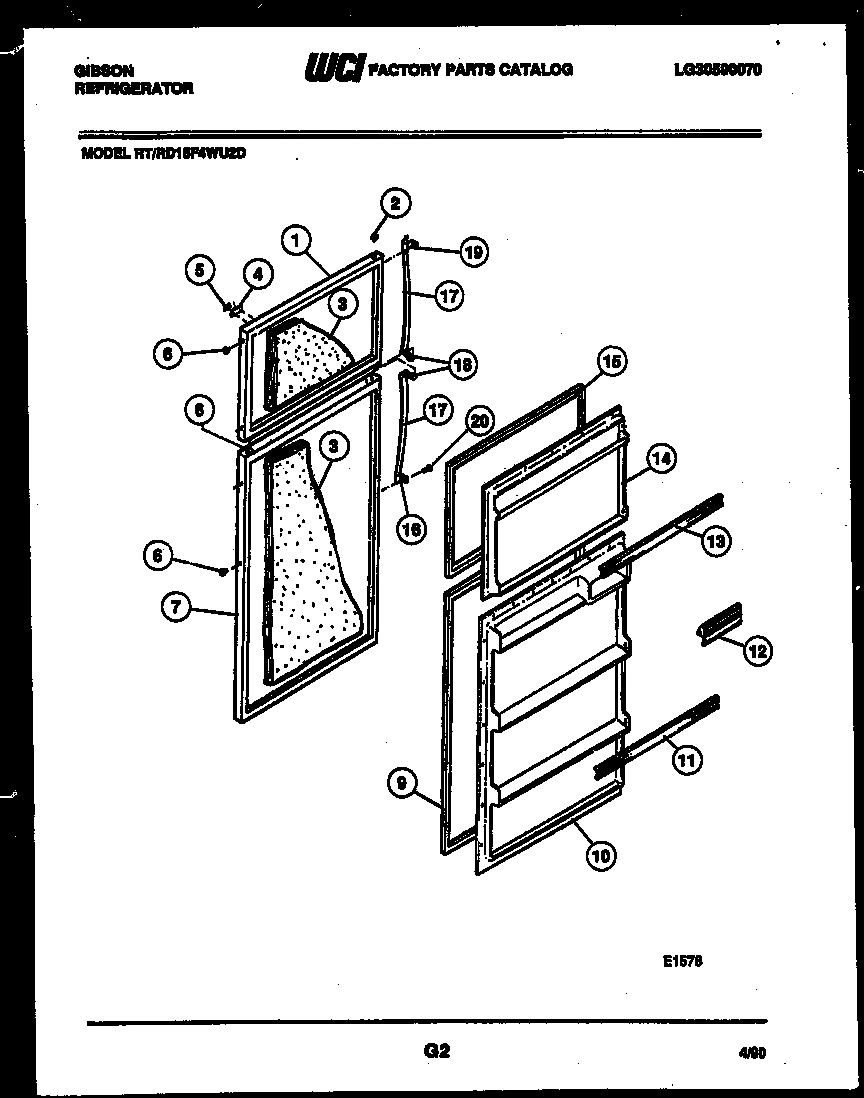

02 - DOOR PARTS

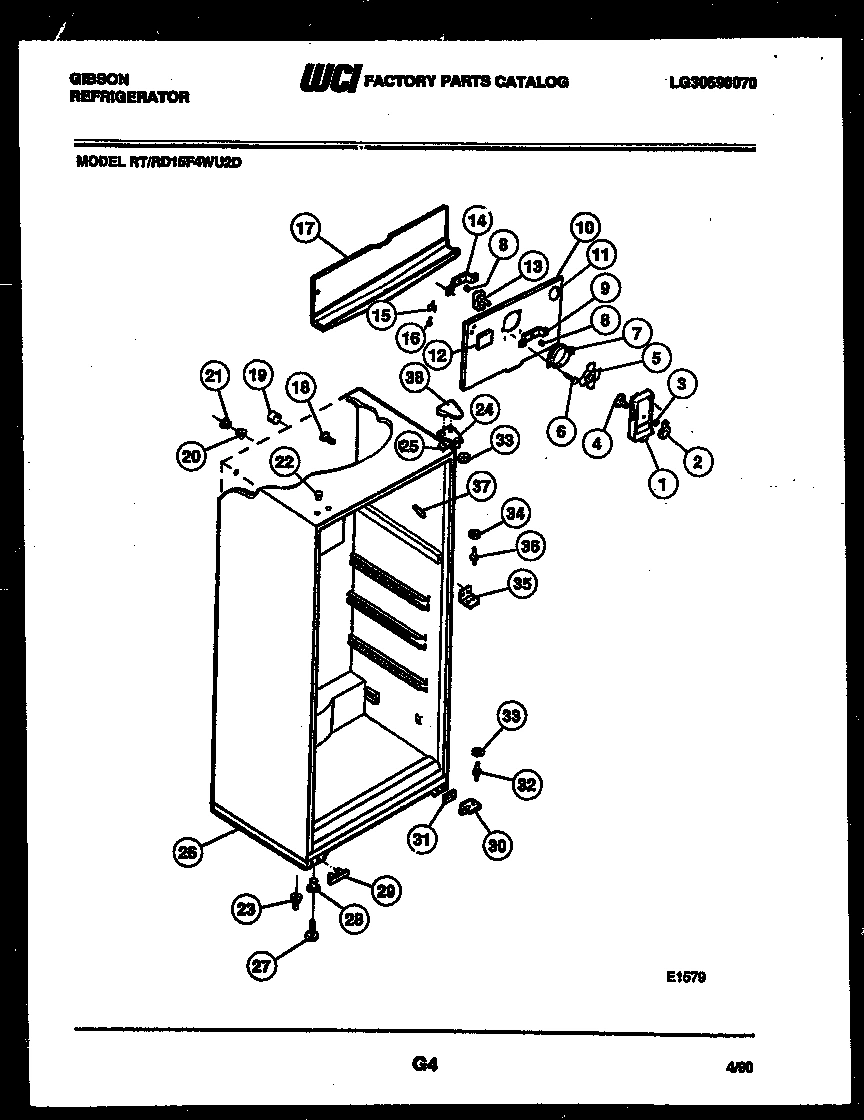

03 - CABINET PARTS

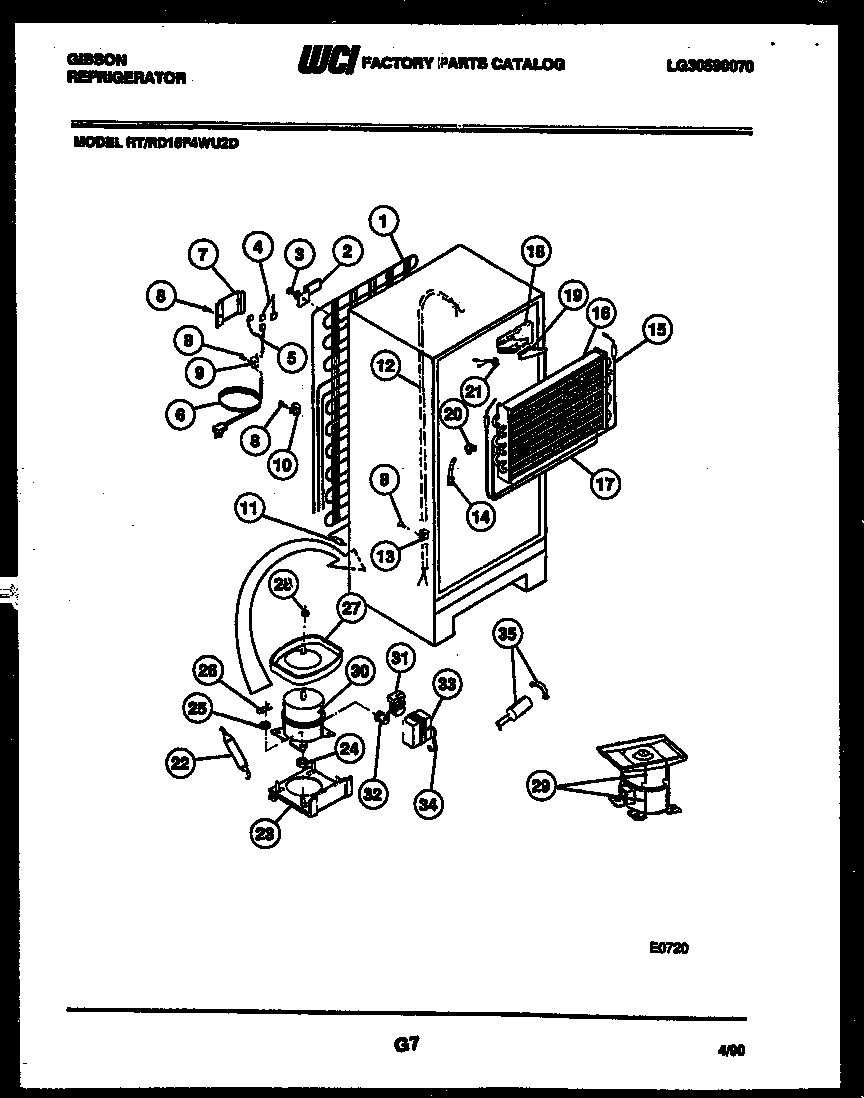

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT15F4WU2D REFRIGERATOR
*33650
PLUG-LINER (8) WCI 5308016571 Contact Us For Availability
*33650
TAPPING PLATE (4) WCI 5308012296 Contact Us For Availability
*33669
WCI 3018428 WCI 3018428 Contact Us For Availability
*33669
HOT TUBE REPAIR KIT-SERVICE WCI 5300189377 Contact Us For Availability
1
WCI 5316306174 WCI 5316306174 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5303001308 WCI 5303001308 Contact Us For Availability
2
WCI 5308000134 WCI 5308000134 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
3
WCI 5303001028 WCI 5303001028 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
WCI 5303001331 WCI 5303001331 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3001383 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
WCI 5308000124 WCI 5308000124 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7A
BEARING-HINGE (4) (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
9
WCI 5303001398 WCI 5303001398 Contact Us For Availability
9
WCI 5303001226 WCI 5303001226 Contact Us For Availability
10
INNER PANEL-REFR WCI G189034-02 Contact Us For Availability
10
COVER, EVAPORATOR COIL WCI 3001358 Contact Us For Availability
10A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
11
RACK-REFR DOOR (2) WCI 5316469848 Contact Us For Availability
12
WCI 3015679 WCI 3015679 Contact Us For Availability
12
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
12
WCI 5303201079 WCI 5303201079 Contact Us For Availability
13
WCI 5316469847 WCI 5316469847 Contact Us For Availability
14
INNER PANEL-FRZR WCI G188754-02 Contact Us For Availability
14
WCI 5303205119 WCI 5303205119 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5303001362 WCI 5303001362 Contact Us For Availability
15
GASKET - FRZR DOOR WCI 5303001399 Contact Us For Availability
16
WCI 5303001295 WCI 5303001295 Contact Us For Availability
16
WCI 5303201078 WCI 5303201078 Contact Us For Availability
17
INSULATOR, COIL WCI 5316651102 Contact Us For Availability
17
WCI 5303200545 WCI 5303200545 Contact Us For Availability
17
WCI 08003638 WCI 08003638 Contact Us For Availability
18
WCI 5303001296 WCI 5303001296 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303001297 WCI 5303001297 Contact Us For Availability
19
WCI 5303001198 WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5308011745 WCI 5308011745 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
22
WCI 5303001389 WCI 5303001389 Contact Us For Availability
22
WCI 5303001388 WCI 5303001388 Contact Us For Availability
22
WCI 5303001677 WCI 5303001677 Contact Us For Availability
22
WCI 5303001678 WCI 5303001678 Contact Us For Availability
22
WCI 5303001679 WCI 5303001679 Contact Us For Availability
22A
WCI 3201679 WCI 3201679 Contact Us For Availability
23
DEFROST DRAIN TUBE WCI 5303001386 Contact Us For Availability
23
WCI 5308009596 WCI 5308009596 Contact Us For Availability
24
WCI 5308012843 WCI 5308012843 Contact Us For Availability
25
WCI 5303001037 WCI 5303001037 Contact Us For Availability
25
WCI 5308003633 WCI 5308003633 Contact Us For Availability
26
CABINET BASE WCI 5303006086 Contact Us For Availability
26
WCI 5308003596 WCI 5308003596 Contact Us For Availability
27
WCI 5303205540 WCI 5303205540 Contact Us For Availability
27
DRAIN PAN-DEFROST (SVCE COMP) WCI 5300184715 Contact Us For Availability
27A
DRAIN PAN-DEFROST (ORIG COMP) (NON-ILLUSTRATE WCI 5300171129 Contact Us For Availability
28
WCI 5308003584 WCI 5308003584 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN RETAINER KIT - SERVICE COMPRESSOR WCI 5303916001 Contact Us For Availability
29
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
30
WCI 5308010251 WCI 5308010251 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS WCI 5303916012 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
WCI 5303001323 WCI 5303001323 Contact Us For Availability
32
WCI 3202863 WCI 3202863 Contact Us For Availability
32A
WCI 3202891 WCI 3202891 Contact Us For Availability
33
WASHER-1/4 X 5/8 OD NYLON (3) WCI 5308000007 Contact Us For Availability
33
WCI 08016583 WCI 08016583 Contact Us For Availability
34
WASHER- 5/16X 5/8 OD NYLON (2) WCI 5303001038 Contact Us For Availability
34
STRAP-COVER MTG WCI 08016584 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
CAPACITOR-COMPR RUN WCI 5303018427 Contact Us For Availability
35A
WCI 5308012258 WCI 5308012258 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
CORNER TRIM, COFFEE (4) WCI 08003615 Contact Us For Availability
37
WCI 08003616 WCI 08003616 Contact Us For Availability
37
CORNER TRIM-ALMD (4) WCI 08003618 Contact Us For Availability
37
CORNER TRIM, WHITE (4) WCI 5308003582 Contact Us For Availability
37
CORNER TRIM, WHEAT (4) WCI 5308003617 Contact Us For Availability
38
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
38
WCI 5303001665 WCI 5303001665 Contact Us For Availability
38
WCI 5303001666 WCI 5303001666 Contact Us For Availability
38
WCI 5308012820 WCI 5308012820 Contact Us For Availability
38
WCI 5308012933 WCI 5308012933 Contact Us For Availability
× ![]()
