Model Electrolux RT15F1WU2B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

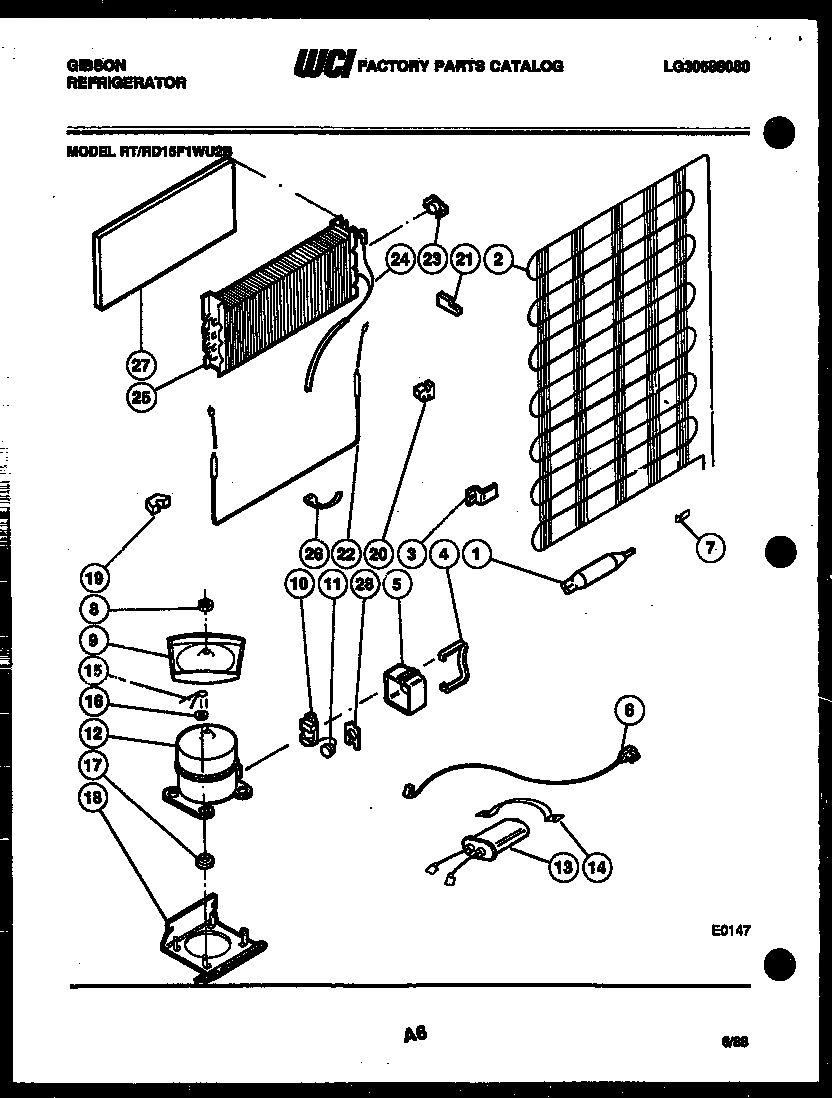

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT15F1WU2B REFRIGERATOR
*10270
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
*10270
BUTTON PLUG-LINER (8) WCI G187599 Contact Us For Availability
*10275
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*10275
WCI G183584 WCI G183584 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
1
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
2
HINGE WCI G183714 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
2A
TAPE, NAMEPLATE (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
3
END-HANDLE WCI G179800 Contact Us For Availability
3
SHIM WCI G183861 Contact Us For Availability
3
BRACKET (4) WCI G164637 Contact Us For Availability
3A
WCI G103903 No Longer Available
3A
WASHER-NYLON (2) (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
4
OUTER PANEL-WHITE WCI G171704 Contact Us For Availability
4
OUTER PANEL-AVOCADO WCI G171704-08 Contact Us For Availability
4
OUTER PANEL-WHEAT WCI G171704-09 Contact Us For Availability
4
OUTER PANEL-COFFEE WCI G171704-10 Contact Us For Availability
4
OUTER PANEL-ALMOND WCI G171704-11 Contact Us For Availability
4
LEG-LEVELING WCI G185713 Contact Us For Availability
4A
NUT-ANCHOR (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
5
WCI G170495-24 WCI G170495-24 Contact Us For Availability
5
WCI G142220 WCI G142220 Contact Us For Availability
6
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
6
BRACKET, HINGE WCI G181019 Contact Us For Availability
6
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7
END-HANDLE WCI G179801 Contact Us For Availability
7
WCI G101747 WCI G101747 Contact Us For Availability
7A
WCI G185566 WCI G185566 Contact Us For Availability
8
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
8
SHIM WCI G163203 Contact Us For Availability
8
NUT WCI G164958 Contact Us For Availability
9
INNER PANEL-FREEZER WCI G188754-02 Contact Us For Availability
9
WCI G162973-31 WCI G162973-31 Contact Us For Availability
9
PAN & NUT WCI G184715 Contact Us For Availability
10
WCI G182225-18 WCI G182225-18 Contact Us For Availability
11
RACK-FREEZER WCI G164698-47 Contact Us For Availability
11
COVER-CRISPER WCI G162957-01 Contact Us For Availability
11
WCI G188877 WCI G188877 Contact Us For Availability
12
DOOR-DAIRY WCI G187490-04 Contact Us For Availability
12
BUTTON-DECORATIVE WCI G162827-12 Contact Us For Availability
12
COMPRESSOR W/ ELECTRIC WCI G189457 Contact Us For Availability
13
RACK-REFRIGERATOR (2) WCI G164698-48 Contact Us For Availability
13
SHELF (2) WCI G172174-02 Contact Us For Availability
13
WCI G188885-01 WCI G188885-01 Contact Us For Availability
14
INNER PANEL-REFRIGERATOR WCI G189034-02 Contact Us For Availability
14
KNOB-DAMPER WCI G162747-05 Contact Us For Availability
14
STRAP WCI G188897 Contact Us For Availability
15
GASKET-REFRIGERATOR WCI G186932-02 Contact Us For Availability
15
COVER-FAN WCI G163061-74 Contact Us For Availability
15
WCI G163204 WCI G163204 Contact Us For Availability
16
BEARING HINGE (8) WCI G183138 Contact Us For Availability
16
DAMPER WCI G162661 Contact Us For Availability
16
WCI G164634 WCI G164634 Contact Us For Availability
16A
NUT-PUSH (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
17
WCI G89643 WCI G89643 Contact Us For Availability
18
OUTER PANEL-WHITE WCI G171701 Contact Us For Availability
18
OUTER PANEL-AVOCADO WCI G171701-08 Contact Us For Availability
18
OUTER PANEL-WHEAT WCI G171701-09 Contact Us For Availability
18
OUTER PANEL-COFFEE WCI G171701-10 Contact Us For Availability
18
OUTER PANEL-ALMOND WCI G171701-11 Contact Us For Availability
18
KNOB WCI G490107-02 Contact Us For Availability
18
PLATE-MOUNTING WCI G162822 Contact Us For Availability
19
WCI G162977-08 WCI G162977-08 Contact Us For Availability
19
WCI G162977-09 WCI G162977-09 Contact Us For Availability
19
WCI G162977-10 WCI G162977-10 Contact Us For Availability
19
WCI G162977-11 WCI G162977-11 Contact Us For Availability
19
BLOCK-LH WCI G188375 Contact Us For Availability
20
WCI G169332-01 WCI G169332-01 Contact Us For Availability
20
WCI G169332-08 WCI G169332-08 Contact Us For Availability
20
WCI G169332-09 WCI G169332-09 Contact Us For Availability
20
WCI G169332-10 WCI G169332-10 Contact Us For Availability
20
WCI G169332-11 WCI G169332-11 Contact Us For Availability
20
CONTROL WCI G162205-12 Contact Us For Availability
20
BLOCK RH WCI G185299 Contact Us For Availability
20A
WCI G107080 WCI G107080 Contact Us For Availability
21
SOCKET WCI G168302 Contact Us For Availability
21
PLUG, BLOCK WCI G185276 Contact Us For Availability
22
WCI G176722-03 WCI G176722-03 Contact Us For Availability
22
WCI G162432-02 WCI G162432-02 Contact Us For Availability
22A
WCI G183060 WCI G183060 Contact Us For Availability
23
WCI G178402-02 WCI G178402-02 Contact Us For Availability
24
WCI G163389 WCI G163389 Contact Us For Availability
25
WCI G188379-01 WCI G188379-01 Contact Us For Availability
25
WCI G164563 WCI G164563 Contact Us For Availability
27
RING-ORIFICE WCI G167217 Contact Us For Availability
27
INSULATOR WCI G169024-02 Contact Us For Availability
28
BRACKET WCI G164571 Contact Us For Availability
28
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
30
WCI G185302 WCI G185302 Contact Us For Availability
31
WCI G185303 WCI G185303 Contact Us For Availability
32
BUSHING (2) WCI G187559 Contact Us For Availability
33A
COVER-COIL WCI G163290 Contact Us For Availability
34
WCI G85642 WCI G85642 Contact Us For Availability
35
BRACKET, HINGE WCI G163207 Contact Us For Availability
35A
SCREW (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
36
WCI G174520-01 WCI G174520-01 Contact Us For Availability
36
WCI G174520-08 WCI G174520-08 Contact Us For Availability
36
WCI G174520-09 WCI G174520-09 Contact Us For Availability
36
MULLION-ALMOND WCI G174520-10 Contact Us For Availability
36A
WCI G166848 WCI G166848 Contact Us For Availability
36B
WASHER (2) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
37
STRAP-MULLION WCI G166709 Contact Us For Availability
38
WCI G187921 WCI G187921 Contact Us For Availability
39
TROUGH-DRAIN WCI G163292 Contact Us For Availability
41
WCI G162178 WCI G162178 Contact Us For Availability
42
DEFLECTOR AIR WCI G162675 Contact Us For Availability
43
BOTTOM ( FREEZER ) WCI G162857 Contact Us For Availability
44
WCI G163219 WCI G163219 Contact Us For Availability
45
TOP-REFRIGERATOR WCI 3015448 Contact Us For Availability
45A
SCREW (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
46
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
47
PAD WCI G168866 Contact Us For Availability
48
TRIM CORNER-WHITE WCI G162364-01 Contact Us For Availability
48
TRIM CORNER-AVOCADO WCI G162364-08 Contact Us For Availability
48
TRIM CORNER-WHEAT WCI G162364-09 Contact Us For Availability
48
TRIM CORNER-COFFEE WCI G162364-10 Contact Us For Availability
48
WCI G162365-11 WCI G162365-11 Contact Us For Availability
49
TUBE-DRAIN WCI G163205 Contact Us For Availability
50
BUTTON-PLUG WCI G166912 Contact Us For Availability
51
BASE-CABINET WCI G161998-01 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
54
WCI G171747-10 WCI G171747-10 Contact Us For Availability
54
WCI G171747-11 WCI G171747-11 Contact Us For Availability
54
WCI G174747-01 WCI G174747-01 Contact Us For Availability
54
WCI G174747-08 WCI G174747-08 Contact Us For Availability
54
WCI G174747-09 WCI G174747-09 Contact Us For Availability
55
HARNESS, WIRING DIVIDER WCI G174818 Contact Us For Availability
× ![]()
