Model Electrolux RT156LCV0 REFRIGERATOR – Common Parts & Diagrams

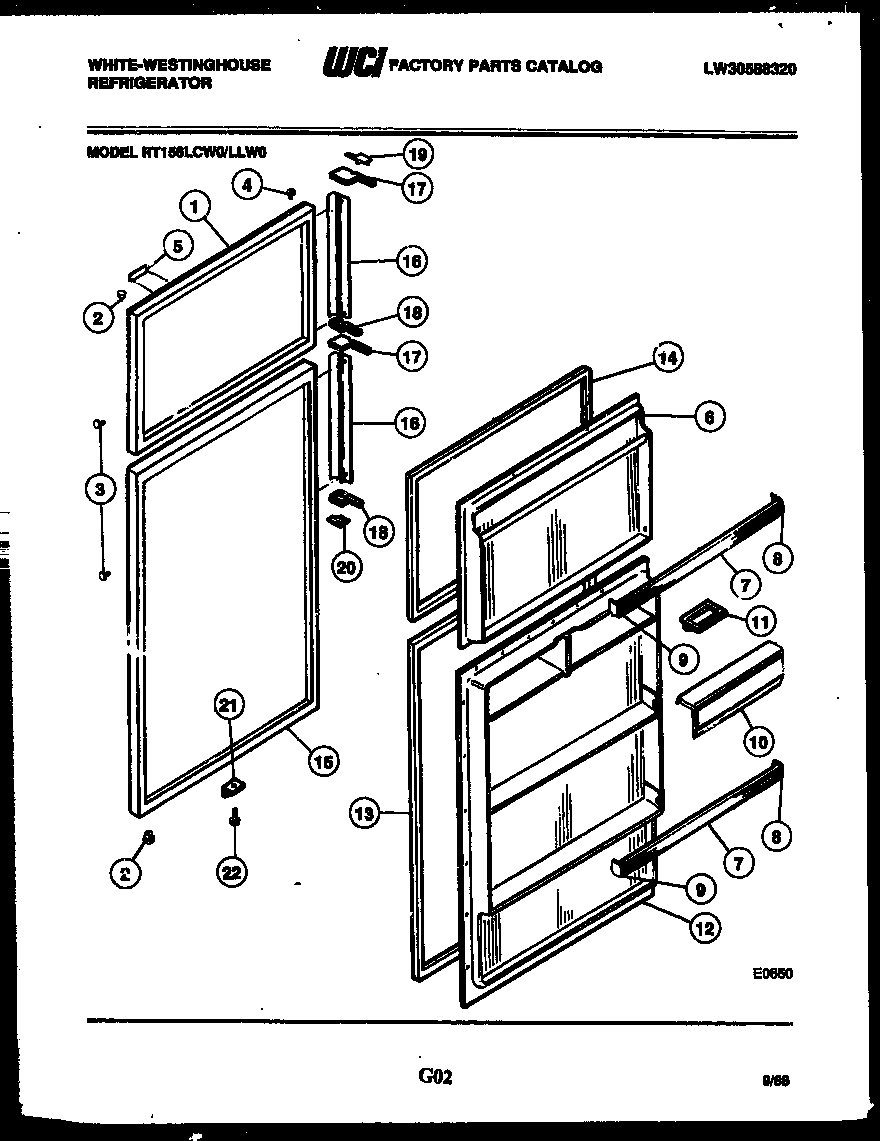

02 - DOOR PARTS

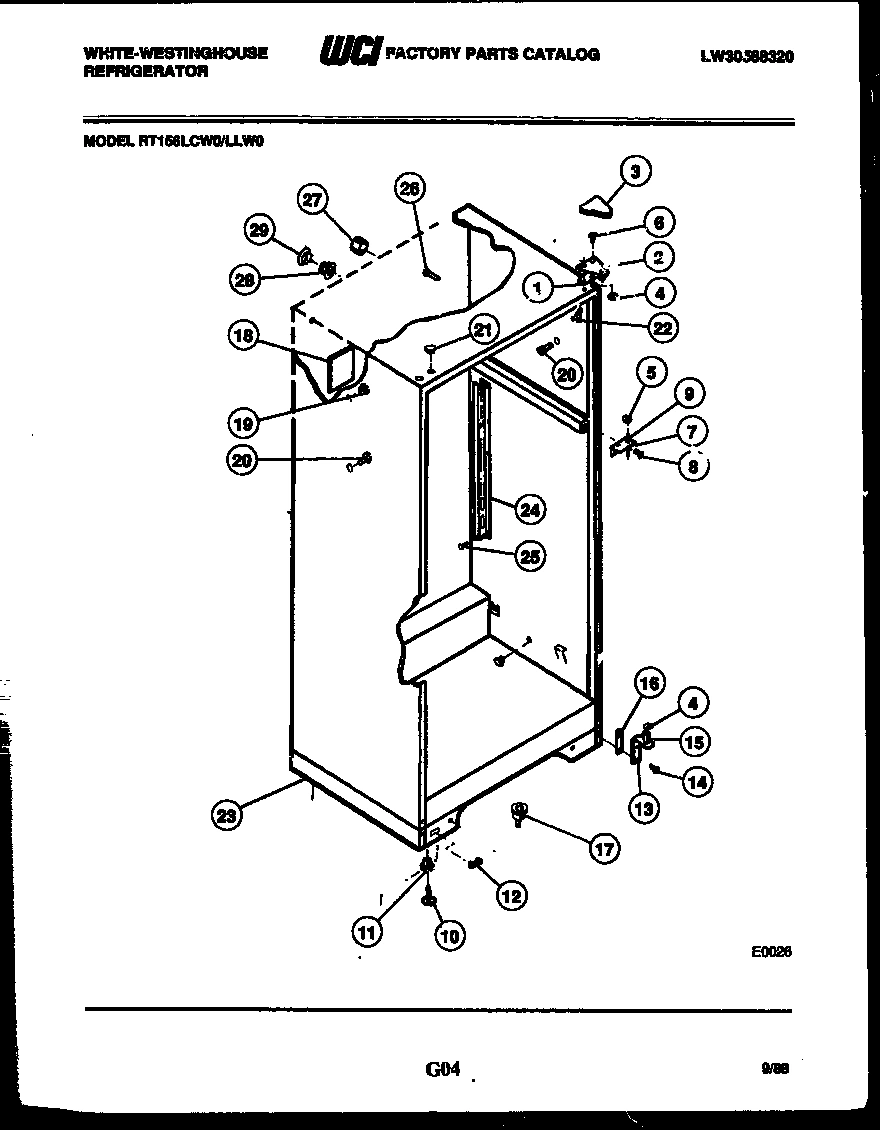

03 - CABINET PARTS

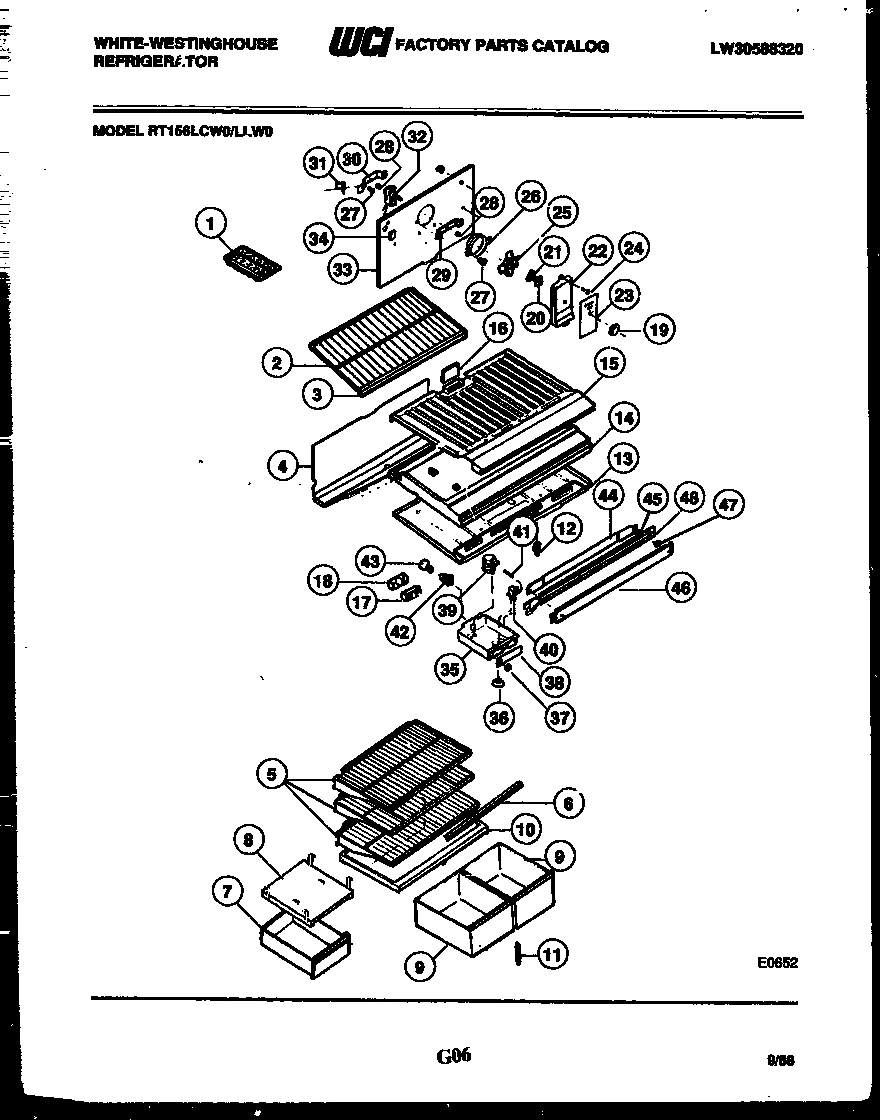

04 - SHELVES AND SUPPORTS

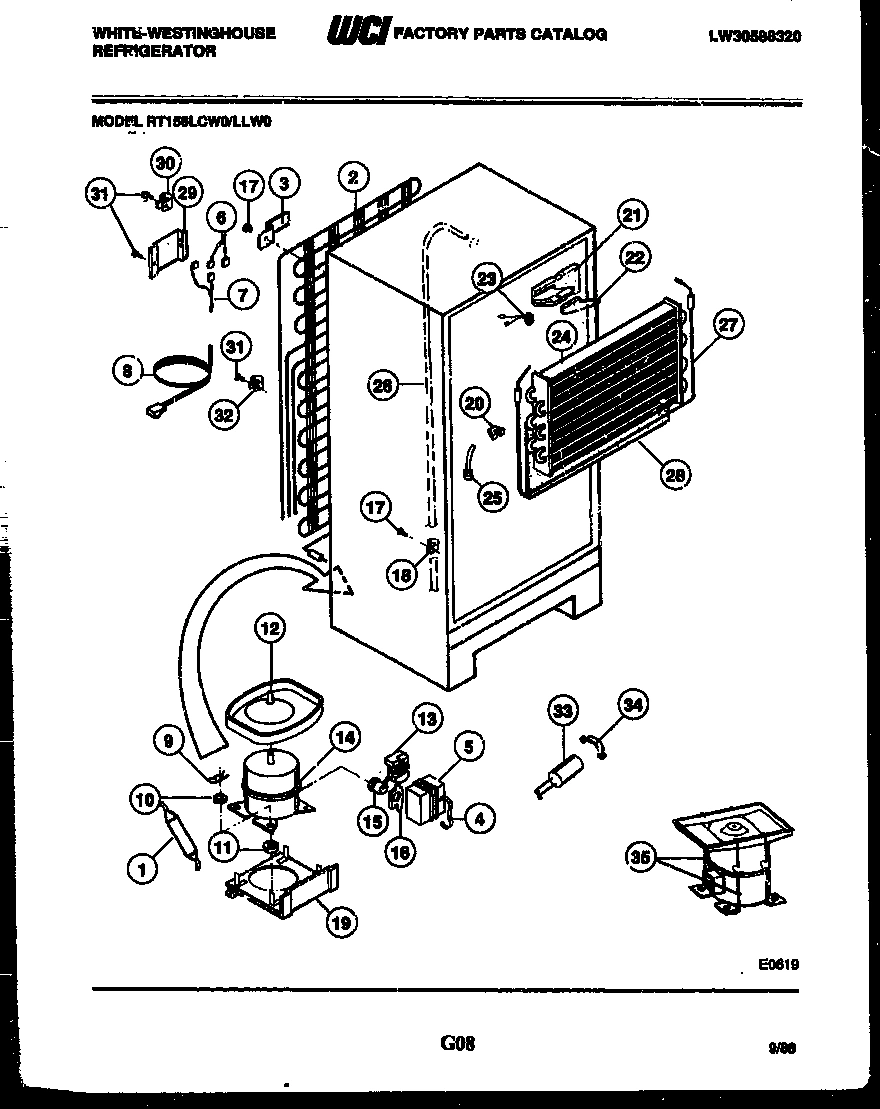

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT156LCV0 REFRIGERATOR
*16686
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
1
WCI 3916219 WCI 3916219 Contact Us For Availability
1
WCI G183861 WCI G183861 Contact Us For Availability
2
HINGE BEARING (8) WCI G183138 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI G177415-05 WCI G177415-05 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
3
WCI G162977-08 WCI G162977-08 Contact Us For Availability
3
HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability
3
WCI 3016690 WCI 3016690 Contact Us For Availability
3
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
4
WCI G103903 No Longer Available
4
WCI G169332-08 WCI G169332-08 Contact Us For Availability
4
WCI G163292 WCI G163292 Contact Us For Availability
5
FRAME-NAMEPLATE WCI G176986 Contact Us For Availability
5
WASHER, NYLON WCI G170156 Contact Us For Availability
5
WCI 3018194 WCI 3018194 Contact Us For Availability
5A
TAPE-FRAME MOUNTING (NON-ILLUSTRATED) WCI G153407-12 Contact Us For Availability
5B
LABEL-NAMEPLATE (NON-ILLUSTRATED) WCI G177218-01 Contact Us For Availability
6
INNER PANEL-FREEZER WCI G186463-01 Contact Us For Availability
6
WCI 3018195 WCI 3018195 Contact Us For Availability
6
WCI G174818 WCI G174818 Contact Us For Availability
7
WCI G490079-19 WCI G490079-19 Contact Us For Availability
7
WCI G163207 WCI G163207 Contact Us For Availability
7
WCI G166062-01 WCI G166062-01 Contact Us For Availability
8
SUPPORT-RS (3) WCI G176891-01 Contact Us For Availability
8
WCI G180103 WCI G180103 Contact Us For Availability
8
COVER-MEAT PAN WCI R177471-03 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
SUPPORT-LS (3) WCI G176892-01 Contact Us For Availability
9
WCI G142220 WCI G142220 Contact Us For Availability
9
CRISPER PAN (2) WCI R177253-09 Contact Us For Availability
9
WCI G163204 WCI G163204 Contact Us For Availability
10
DAIRY DOOR-LARGE RS WCI G179967-02 Contact Us For Availability
10
WCI G185713 WCI G185713 Contact Us For Availability
10
COVER-CRISPER PAN WCI G162957-01 Contact Us For Availability
10
WCI G164634 WCI G164634 Contact Us For Availability
10A
DAIRY DOOR-SMALL LS (NON-ILLUSTRATED) WCI R186414-02 Contact Us For Availability
11
WCI G183073 WCI G183073 Contact Us For Availability
11
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
12
WCI G186469-01 WCI G186469-01 Contact Us For Availability
12
WCI G166912 WCI G166912 Contact Us For Availability
12
DEFROST PAN WCI G184715 Contact Us For Availability
12A
LOCK NUT-PAN (NON-ILLUSTRATED) WCI G164958 Contact Us For Availability
13
GASKET-REFRIGERATOR DOOR WCI G186932-02 Contact Us For Availability
13
WCI G181019 WCI G181019 Contact Us For Availability
13
REFRIGERATOR TOP WCI 3015448 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
13A
SCREW-TOP MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
14
WCI G186932-03 WCI G186932-03 Contact Us For Availability
14
DIVIDER-FOAM WCI G163219 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI 3916004 Contact Us For Availability
14A
WCI G179797 WCI G179797 Contact Us For Availability
15
WCI 3916224 WCI 3916224 Contact Us For Availability
15
FREEZER BOTTOM WCI G162857 Contact Us For Availability
15
WCI G188877 WCI G188877 Contact Us For Availability
16
HANDLE (2) WCI G177141-01 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
PAD-TAPE WCI G168866 Contact Us For Availability
16
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
17
WCI G177142 WCI G177142 Contact Us For Availability
17
WCI G163205 WCI G163205 Contact Us For Availability
17
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
18
WCI G177143 WCI G177143 Contact Us For Availability
18
WCI G162675 WCI G162675 Contact Us For Availability
19
END TRIM-TOP (2) WCI G179270 Contact Us For Availability
19
PLUG-FREEZER LINER (4) WCI G187599 Contact Us For Availability
19
WCI G162633-15 WCI G162633-15 Contact Us For Availability
19
WCI G162822 WCI G162822 Contact Us For Availability
20
END TRIM-BOTTOM (2) WCI G179271 Contact Us For Availability
20
SUPPORT-SHELF (4) WCI G163105 Contact Us For Availability
20
WCI G162662 WCI G162662 Contact Us For Availability
20
WCI G188375 WCI G188375 Contact Us For Availability
20A
CLIP-HANDLE END (4) (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
20A
SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED) WCI G187527 Contact Us For Availability
21
DOOR STOP (2) WCI G155072 Contact Us For Availability
21
WCI G174747-08 WCI G174747-08 Contact Us For Availability
21
DAMPER WCI G162661 Contact Us For Availability
21
WCI G185299 WCI G185299 Contact Us For Availability
22
WCI G185566 WCI G185566 Contact Us For Availability
22
WCI G162364-08 WCI G162364-08 Contact Us For Availability
22
FAN COVER WCI G490076-02 Contact Us For Availability
22
WCI G185276 WCI G185276 Contact Us For Availability
23
WCI G161998-01 WCI G161998-01 Contact Us For Availability
23
LABEL-FAN COVER WCI G180184 Contact Us For Availability
24
CHANNEL-SHELF MOUNTING (2) WCI G170695 Contact Us For Availability
24
EVAPORATOR COIL WCI 3201078 Contact Us For Availability
26
WCI G163669 WCI G163669 Contact Us For Availability
26
WCI G167217 WCI G167217 Contact Us For Availability
26
WCI 3201079 WCI 3201079 Contact Us For Availability
27
WCI G85642 WCI G85642 Contact Us For Availability
27
WCI G162432-02 WCI G162432-02 Contact Us For Availability
28
WCI G174733 WCI G174733 Contact Us For Availability
28
INSULATION-EVAPORATOR WCI G169024-02 Contact Us For Availability
29
WCI G174734 WCI G174734 Contact Us For Availability
29
WCI G185302 WCI G185302 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
30
WCI G185303 WCI G185303 Contact Us For Availability
30
CLAMP-CABLE WCI 3007728 Contact Us For Availability
31
CONNECTOR-REAR BRACKET WCI G164571 Contact Us For Availability
33
WCI G163290 WCI G163290 Contact Us For Availability
33
CAPACITOR RUN WCI 3018427 Contact Us For Availability
33A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
33B
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 3018768 Contact Us For Availability
34
WCI 3018193 WCI 3018193 Contact Us For Availability
34
STRAP CAPACITOR WCI 3018428 Contact Us For Availability
35
CONTROL BOX WCI G176722-01 Contact Us For Availability
35
WCI G167234 WCI G167234 Contact Us For Availability
35A
PLUG-TIMER ACCESS (NON-ILLUSTRATED) WCI 3007220 Contact Us For Availability
36
WCI G490107-02 WCI G490107-02 Contact Us For Availability
37
SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability
38
LABEL-CONTROL BOX WCI G180197 Contact Us For Availability
40
WCI G162205-12 WCI G162205-12 Contact Us For Availability
40A
WCI G107080 WCI G107080 Contact Us For Availability
42
WCI G168302 WCI G168302 Contact Us For Availability
44
STRAP, MULLION MOUNTING WCI G166709 Contact Us For Availability
45
SPACER-MULLION (2) WCI G166848 Contact Us For Availability
47
WASHER-STEEL (2) WCI G166847 Contact Us For Availability
47A
SCREW-MULLION MOUNTING (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
48
WCI G187921 WCI G187921 Contact Us For Availability
× ![]()
