Model Electrolux RT155MCH1 REFRIGERATOR – Common Parts & Diagrams

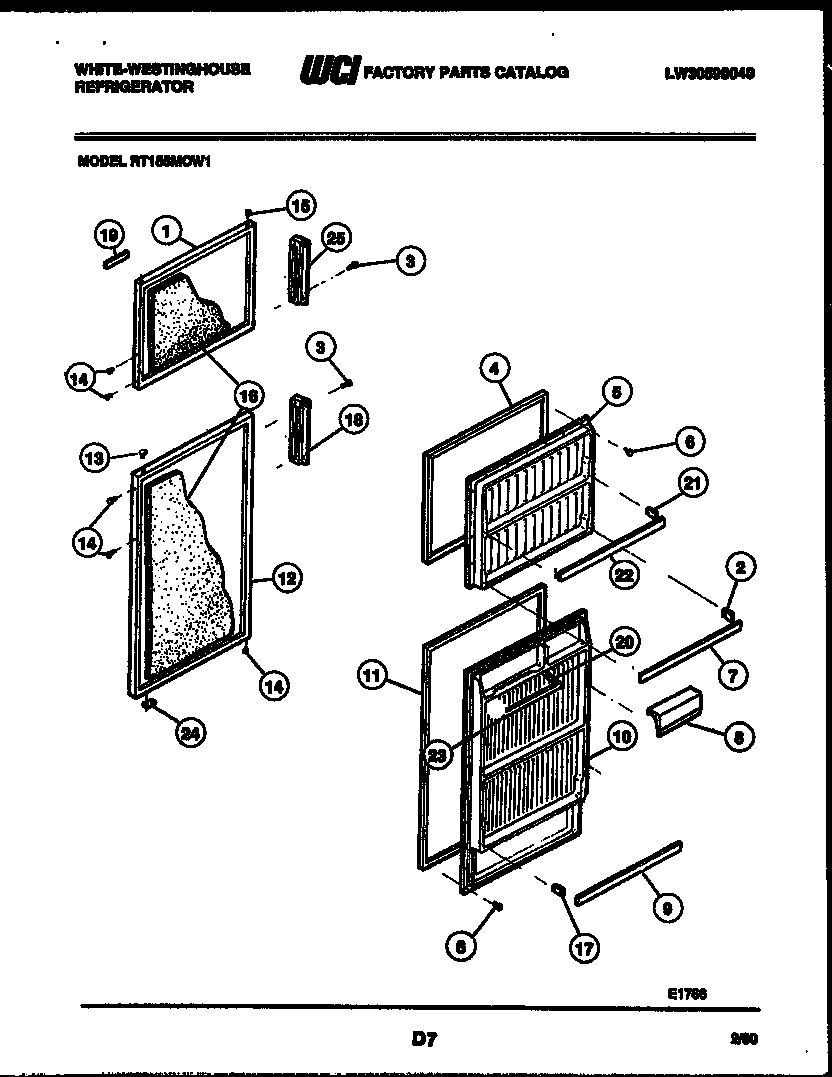

02 - DOOR PARTS

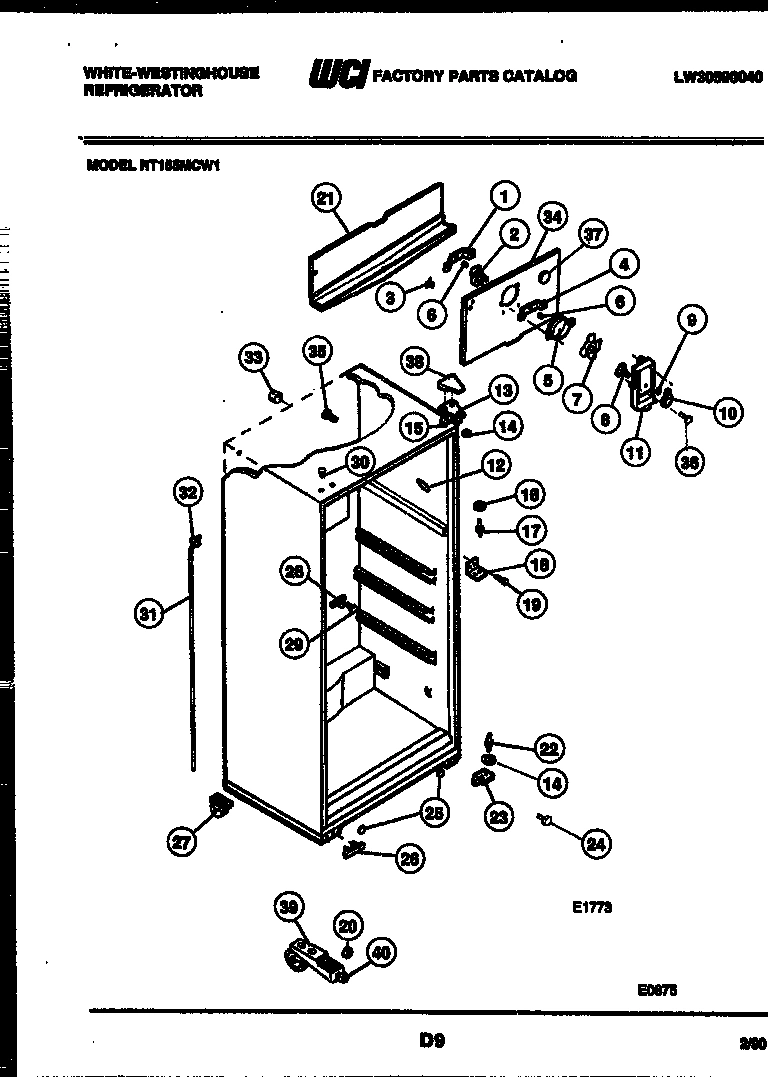

03 - CABINET PARTS

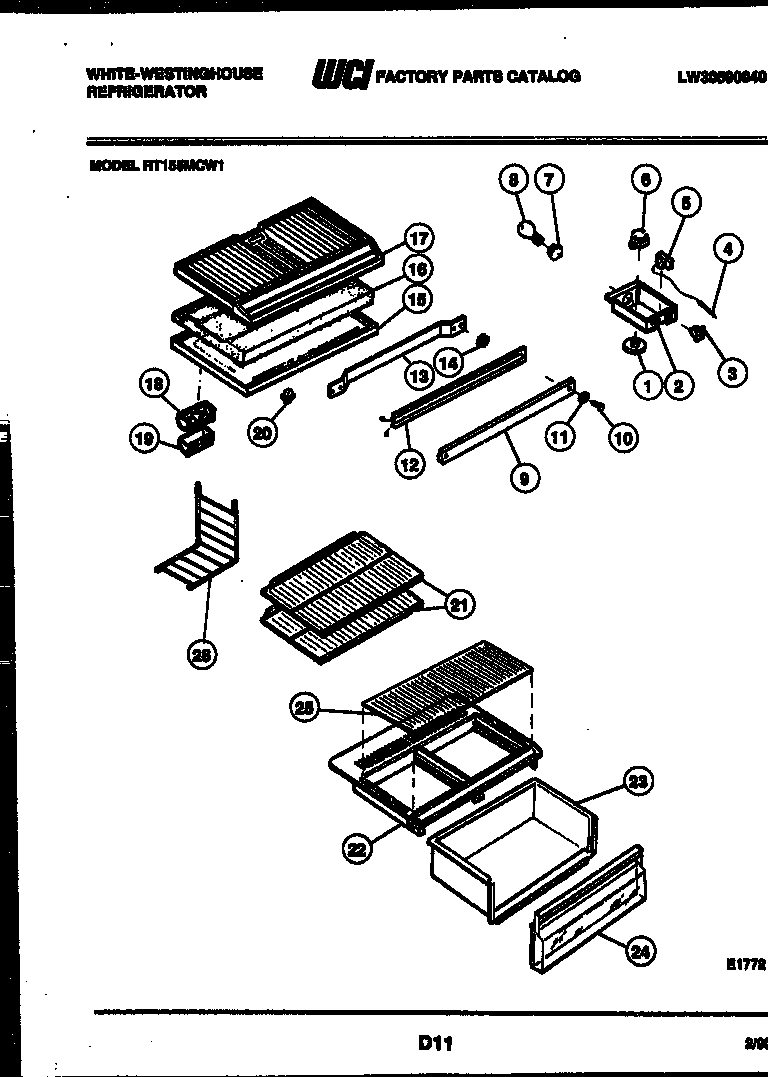

04 - SHELVES AND SUPPORTS

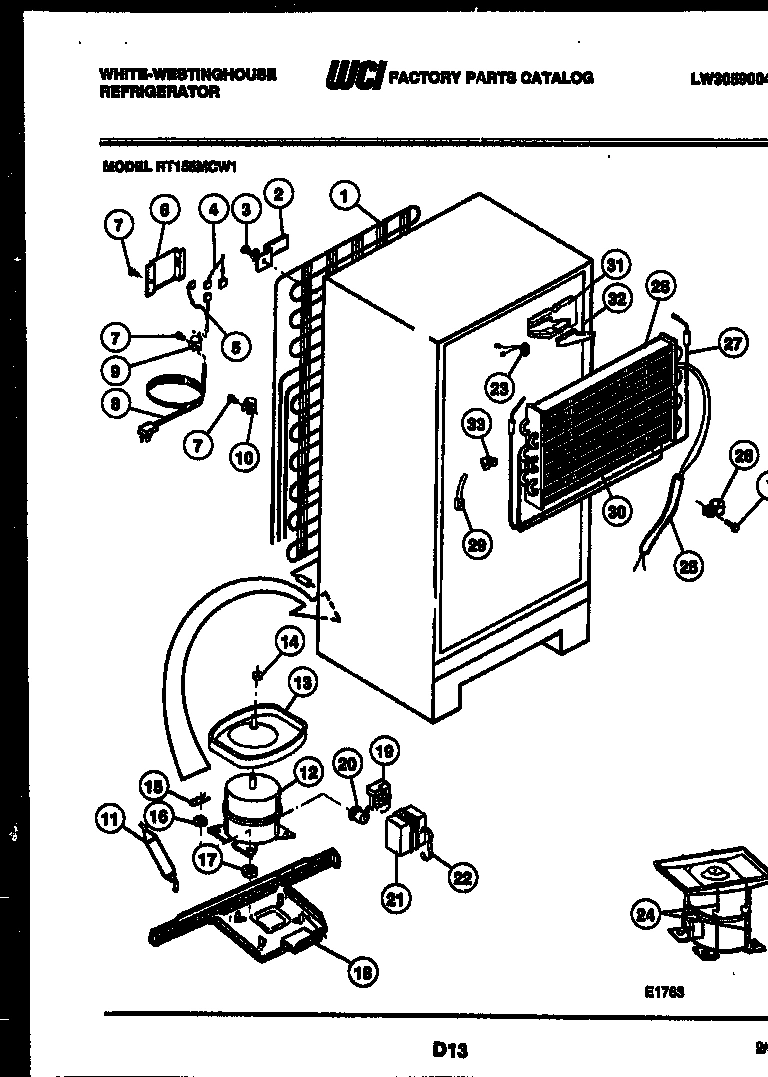

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

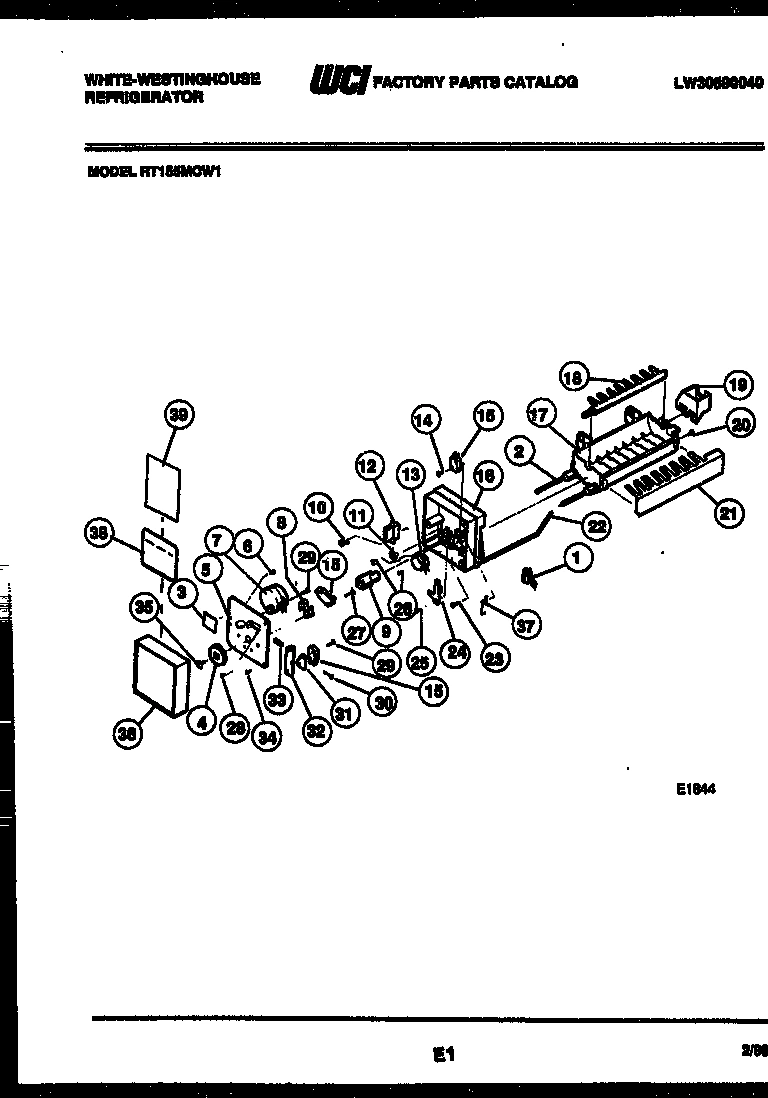

06 - ICE MAKER PARTS

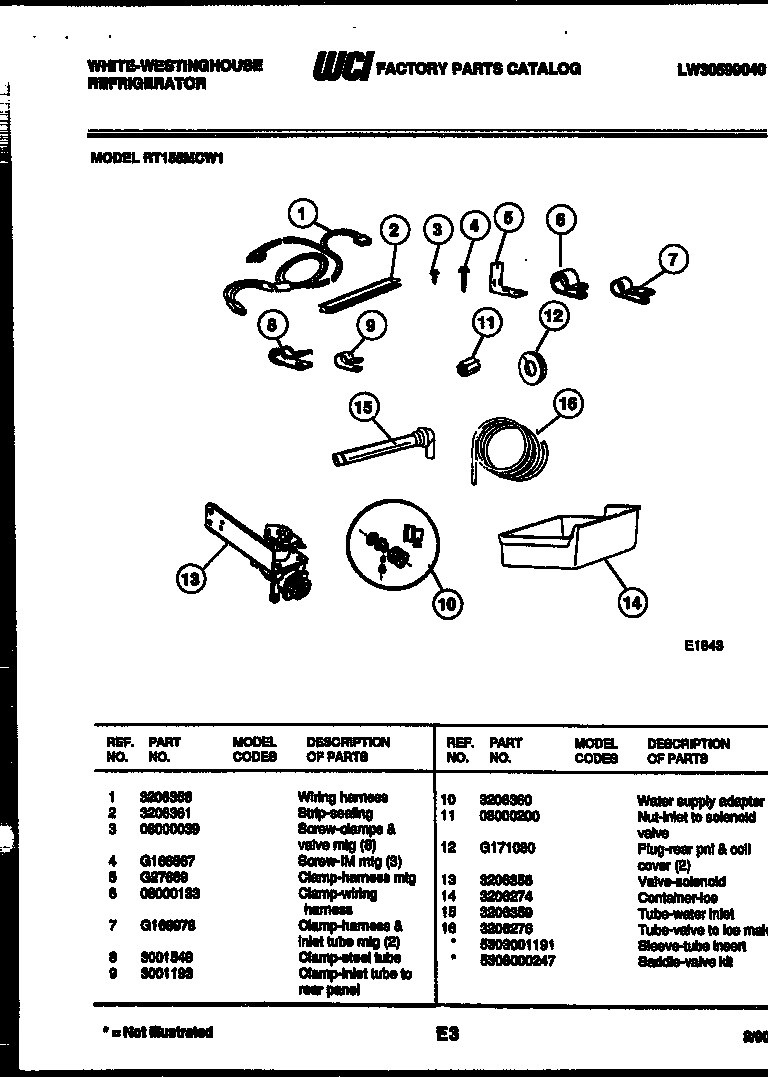

07 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux RT155MCH1 REFRIGERATOR
*25302
BUTTON PLUG-FRZR LINER WCI 5308016571 Contact Us For Availability
*25307
SUPPORT-SHELF (2) WCI 08000244 Contact Us For Availability
*25307
SCREW-SUPPORT (2) WCI 3001290 Contact Us For Availability
*25307
WCI 3001562 WCI 3001562 Contact Us For Availability
*25308
WCI G186773 WCI G186773 Contact Us For Availability
*25315
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
*25327
WCI 5303001191 WCI 5303001191 Contact Us For Availability
*25327
WCI 5308000247 WCI 5308000247 Contact Us For Availability
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
WCI 3001227 WCI 3001227 Contact Us For Availability
1
KNOB-TEMP CONTROL WCI 3201777 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
1
WCI 3206358 WCI 3206358 Contact Us For Availability
2
CONTROL BOX WCI 3206130 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
2A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3206129 WCI 3206129 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
4
GASKET-FREEZER WCI 5308007123 Contact Us For Availability
4
WCI 3001226 WCI 3001226 Contact Us For Availability
4
HSG-CAP TUBE WCI 3018891 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3206127 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
5
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI 3001197 WCI 3001197 Contact Us For Availability
8
DAMPER WCI 3206110 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI 3206123 WCI 3206123 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206360 WCI 3206360 Contact Us For Availability
10
KNOB-DAMPER CNTRL WCI 3206109 Contact Us For Availability
10
SCREW-MULLION (4) WCI 3206134 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
FAN COVER WCI 3206108 Contact Us For Availability
11
WCI G166847 WCI G166847 Contact Us For Availability
11
WCI 08000200 WCI 08000200 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 3202338 WCI 3202338 Contact Us For Availability
12
WCI 3206120 WCI 3206120 Contact Us For Availability
12
COMPRESSOR WITH ELECTRICALS WCI 5303916020 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
HINGE, TOP WCI 3206100 Contact Us For Availability
13
WCI 5303207247 WCI 5303207247 Contact Us For Availability
13
PAN, DEFROST WCI G184715 Contact Us For Availability
13
WCI 3206356 WCI 3206356 Contact Us For Availability
13B
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
WCI 5303206753 WCI 5303206753 Contact Us For Availability
14
WCI G164958 WCI G164958 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
15
WCI G183861 WCI G183861 Contact Us For Availability
15
TOP PANEL-REFRIG WCI 3206128 Contact Us For Availability
15
WCI G163204 WCI G163204 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
16
INSULATION-BULK (FIBERGLASS) WCI 3007739 Contact Us For Availability
16
WASHER-CNTR HNGE WCI 08000186 Contact Us For Availability
16
WCI 3206131 WCI 3206131 Contact Us For Availability
16
WCI G164634 WCI G164634 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
END CAP-LH (2) WCI 3206151 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI 3206132 WCI 3206132 Contact Us For Availability
17A
END CAP-RH (2) (NON-ILLUSTRATED) WCI 3206150 Contact Us For Availability
18
WCI 3206148 WCI 3206148 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WCI 3204206 WCI 3204206 Contact Us For Availability
18
PLATE-COMPRESSOR MOUNTING WCI 3206126 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 5303001546 WCI 5303001546 Contact Us For Availability
19
WCI 3206159 WCI 3206159 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
END CAP-RH WCI 3206156 Contact Us For Availability
20
WASHER NYLON (2) WCI G182799 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
END CAP-LH WCI 3206157 Contact Us For Availability
21
DRAIN TROUGH WCI 3206146 Contact Us For Availability
21
WCI 3206099 WCI 3206099 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
DOOR RACK FREEZER-UPPER NARROW WCI 3206164 Contact Us For Availability
22
WCI 3206112 WCI 3206112 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 3206155 WCI 3206155 Contact Us For Availability
23
BRACKET-BTM HINGE WCI 3206136 Contact Us For Availability
23
WCI 3206334 WCI 3206334 Contact Us For Availability
24
DOOR STOP (2) WCI 08000255 Contact Us For Availability
24
WCI 3206106 WCI 3206106 Contact Us For Availability
24
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
24A
SCREW-DOOR STOP (2) (NON-ILLUSTRATED) WCI 08011745 Contact Us For Availability
25
WCI 3206158 WCI 3206158 Contact Us For Availability
25
WCI 3206142 WCI 3206142 Contact Us For Availability
25
WCI 3206111 WCI 3206111 Contact Us For Availability
25
WCI 08000728 WCI 08000728 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
26
COVER-HINGE SCREW WCI 3206135 Contact Us For Availability
26
WCI 3001570 WCI 3001570 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
ROLLER-REAR (2) WCI 3206237 Contact Us For Availability
27
WCI 08009754 WCI 08009754 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
28
WCI 08000056 WCI 08000056 Contact Us For Availability
28
EVAPORATOR WCI 08009756 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
29
PIN-PUSH (2) WCI 3001361 Contact Us For Availability
29
SCREW-4-40 X 3/4 MOTOR SWITCH TO PLATE (4) WCI 3206340 Contact Us For Availability
30
WCI 5316651102 WCI 5316651102 Contact Us For Availability
30
WCI G174747-09 WCI G174747-09 Contact Us For Availability
30
WCI 3206341 WCI 3206341 Contact Us For Availability
31
TUBE-DEFROST DRAIN WCI 3206115 Contact Us For Availability
31
WCI G185299 WCI G185299 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
RING-SEAL WCI 08009755 Contact Us For Availability
32
WCI G185276 WCI G185276 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
33
WCI G188375 WCI G188375 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 3206119 WCI 3206119 Contact Us For Availability
34
WCI 3206345 WCI 3206345 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
WCI G163669 WCI G163669 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
LABEL, IM (NON-ILLUSTRATED) WCI 3204647 Contact Us For Availability
37
WCI 3203044 WCI 3203044 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
38
COVER-TOP HINGE-WHEAT WCI 3206103 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI G188673 WCI G188673 Contact Us For Availability
39
WCI 5303207442 WCI 5303207442 Contact Us For Availability
39A
ROLLER (2) (NON-ILLUSTRATED) WCI G177021 Contact Us For Availability
39B
SPRING-ADJ (2) (NON-ILLUSTRATED) WCI G178494 Contact Us For Availability
40
SCREW-ADJ (2) WCI G177024 Contact Us For Availability
× ![]()
