Model Electrolux RT155MCF0 REFRIGERATOR – Common Parts & Diagrams

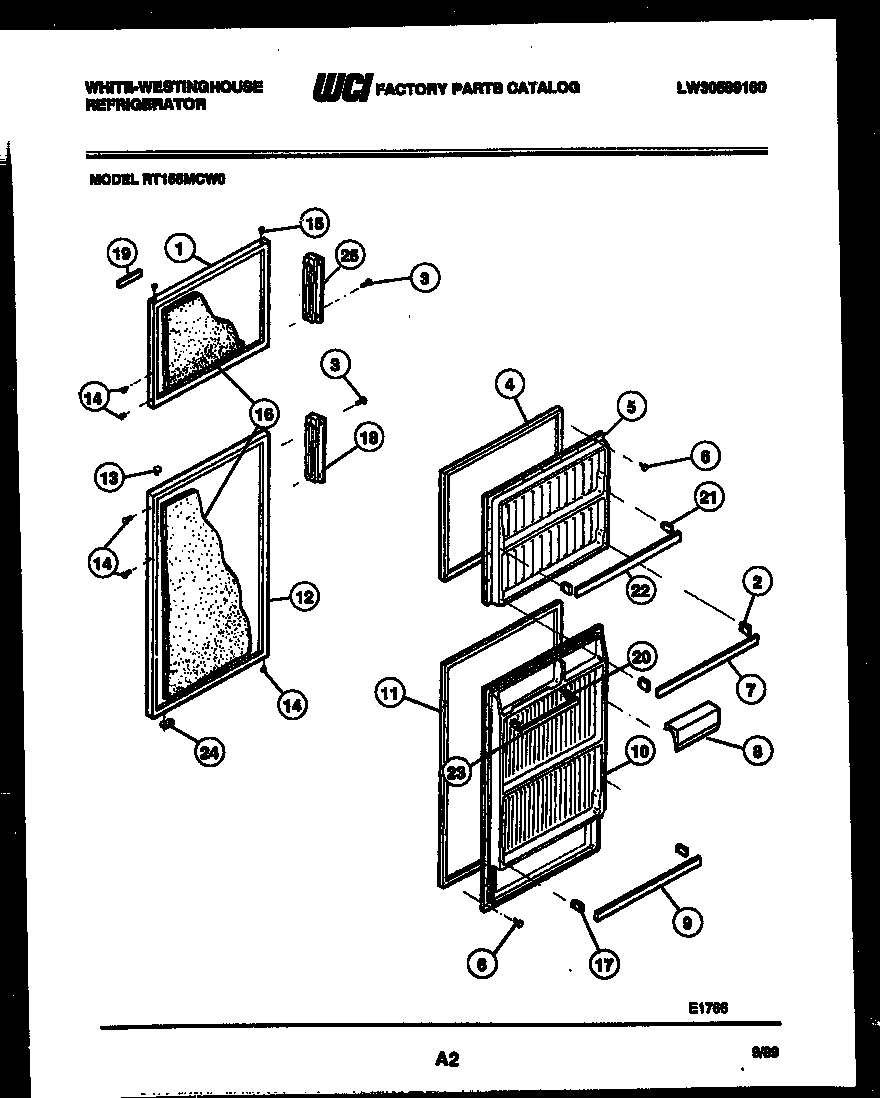

02 - DOOR PARTS

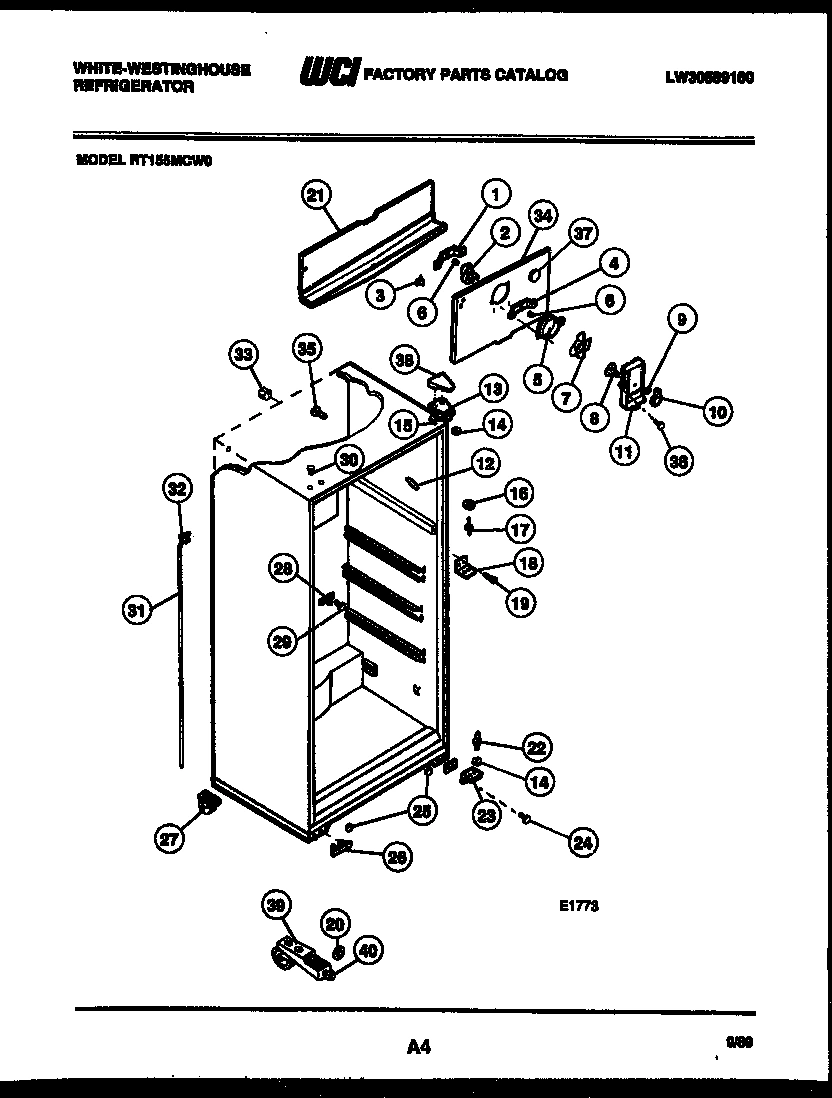

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
06 - ICE MAKER PARTS
07 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux RT155MCF0 REFRIGERATOR
*22095
TAPPING PLATE (2) WCI G157591 Contact Us For Availability
*22097
SUPPORT-SHELF (2) WCI 08000244 Contact Us For Availability
*22097
SCREW-SUPPORT (2) WCI 3001290 Contact Us For Availability
*22097
WCI 3001562 WCI 3001562 Contact Us For Availability
*22097
WCI G186773 WCI G186773 Contact Us For Availability
*22100
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
*22105
LABEL-COVER WCI 3206277 Contact Us For Availability
*22108
WCI 3015102 WCI 3015102 Contact Us For Availability
1
WCI 3001227 WCI 3001227 Contact Us For Availability
1
KNOB-TEMP CONTROL WCI 3201777 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
1
MOLD & HEATER ASSY INCLUDES ITEM 2 WCI G159912 Contact Us For Availability
1
WIRING HARN EXTERNAL WCI G185266 Contact Us For Availability
2
CONTROL BOX WCI 3206130 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
2
HEATER ELEMENT WCI G137756 Contact Us For Availability
2A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3206129 WCI 3206129 Contact Us For Availability
3
WCI G181117 WCI G181117 Contact Us For Availability
4
WCI 3001226 WCI 3001226 Contact Us For Availability
4
HSG-CAP TUBE WCI 3018891 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 3206127 Contact Us For Availability
4
WCI G159911 WCI G159911 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
5
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
5
WCI G159910 WCI G159910 Contact Us For Availability
5A
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI 3001197 WCI 3001197 Contact Us For Availability
6
SCREW 8- 16 X 3/8 (2) WCI M1090120 Contact Us For Availability
7
WCI 3206163 WCI 3206163 Contact Us For Availability
7
SUPPORT-HOUSING WCI G137748 Contact Us For Availability
7
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
8
WCI 3206149 WCI 3206149 Contact Us For Availability
8
DAMPER WCI 3206110 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
8
SCREW 8-32 X 1 (3) WCI 08001150 Contact Us For Availability
9
DOOR RACK-REFR (2) WCI 3206152 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI 3206124 WCI 3206124 Contact Us For Availability
10
WCI 3206154 WCI 3206154 Contact Us For Availability
10
KNOB-DAMPER CNTRL WCI 3206109 Contact Us For Availability
10
SCREW-MULLION (4) WCI 3206134 Contact Us For Availability
10
WCI G137745 WCI G137745 Contact Us For Availability
10
CLIP-TUBE WCI G163706 Contact Us For Availability
11
FAN COVER WCI 3206108 Contact Us For Availability
11
WCI G166847 WCI G166847 Contact Us For Availability
11
NUT-INLET TO VALVE WCI G143689 Contact Us For Availability
12
WCI 3916561 WCI 3916561 Contact Us For Availability
12
WCI 3202339 WCI 3202339 Contact Us For Availability
12
WCI 3206120 WCI 3206120 Contact Us For Availability
12
COMPRESSOR WITH ELECTRICALS WCI 3916020 Contact Us For Availability
12
WCI G159913 WCI G159913 Contact Us For Availability
13
WCI 3206153 WCI 3206153 Contact Us For Availability
13
HINGE, TOP WCI 3206100 Contact Us For Availability
13
WCI G166709 WCI G166709 Contact Us For Availability
13
PAN, DEFROST WCI G184715 Contact Us For Availability
13
WCI G159907 WCI G159907 Contact Us For Availability
13
WCI G154156 WCI G154156 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
WCI G162977-10 WCI G162977-10 Contact Us For Availability
14
SPACER-MULLION MTG (2) WCI 3200464 Contact Us For Availability
14
WCI G164958 WCI G164958 Contact Us For Availability
14
WCI G137742 WCI G137742 Contact Us For Availability
15
WCI G169332-10 WCI G169332-10 Contact Us For Availability
15
WCI G183861 WCI G183861 Contact Us For Availability
15
TOP PANEL-REFRIG WCI 3206128 Contact Us For Availability
15
WCI G163204 WCI G163204 Contact Us For Availability
15
WCI G164767 WCI G164767 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
16
INSULATION-BULK (FIBERGLASS) WCI 3007739 Contact Us For Availability
16
WASHER-CNTR HNGE WCI 08000186 Contact Us For Availability
16
WCI 3206131 WCI 3206131 Contact Us For Availability
16
WCI G164634 WCI G164634 Contact Us For Availability
16
WCI G137753 WCI G137753 Contact Us For Availability
16
BRACKET-WATER VALVE WCI G163309 Contact Us For Availability
17
END CAP-LH (2) WCI 3206151 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI 3206132 WCI 3206132 Contact Us For Availability
17
WIRING HARN-INTERNAL WCI G185809 Contact Us For Availability
17
WATER VALVE-SOLENOID WCI 3204159 Contact Us For Availability
17A
END CAP-RH (2) (NON-ILLUSTRATED) WCI 3206150 Contact Us For Availability
18
WCI 3206148 WCI 3206148 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WCI 3204206 WCI 3204206 Contact Us For Availability
18
PLATE-COMPRESOR MOUNTING WCI 3206126 Contact Us For Availability
18
WCI G186572 WCI G186572 Contact Us For Availability
18
WCI G159415 WCI G159415 Contact Us For Availability
19
WCI 3206159 WCI 3206159 Contact Us For Availability
19
WCI 3001546 WCI 3001546 Contact Us For Availability
19
MOTOR-ICE MAKER WCI G137735 Contact Us For Availability
20
END CAP-RH WCI 3206156 Contact Us For Availability
20
END CAP-LH WCI 3206157 Contact Us For Availability
20
WASHER NYLON (2) WCI G182799 Contact Us For Availability
20
WCI G137741 WCI G137741 Contact Us For Availability
21
DRAIN TROUGH WCI 3206146 Contact Us For Availability
21
WCI 3206099 WCI 3206099 Contact Us For Availability
21
WCI 3001574 WCI 3001574 Contact Us For Availability
22
DOOR RACK-FREEZER-UPPER WCI 3206164 Contact Us For Availability
22
WCI 3206112 WCI 3206112 Contact Us For Availability
22
SPACER-HOLD SWITCH WCI G137737 Contact Us For Availability
23
WCI 3206155 WCI 3206155 Contact Us For Availability
23
BRACKET-BTM HINGE WCI 3206136 Contact Us For Availability
23
WCI G159905 WCI G159905 Contact Us For Availability
24
DOOR STOP (2) WCI 08000255 Contact Us For Availability
24
WCI 3206106 WCI 3206106 Contact Us For Availability
24
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
24
SWITCH-FILL WCI 3001575 Contact Us For Availability
24A
SCREW-DOOR STOP (2) (NON-ILLUSTRATED) WCI 08011745 Contact Us For Availability
25
WCI 3206158 WCI 3206158 Contact Us For Availability
25
WCI 3206142 WCI 3206142 Contact Us For Availability
25
WCI 3206111 WCI 3206111 Contact Us For Availability
25
WCI 08000728 WCI 08000728 Contact Us For Availability
25
WCI 3018588 WCI 3018588 Contact Us For Availability
26
COVER-HINGE SCREW WCI 3206135 Contact Us For Availability
26
WCI 3001570 WCI 3001570 Contact Us For Availability
26
WCI G137744 WCI G137744 Contact Us For Availability
27
ROLLER-REAR (2) WCI 3206237 Contact Us For Availability
27
WCI 08009754 WCI 08009754 Contact Us For Availability
27
WCI G137738 WCI G137738 Contact Us For Availability
28
WCI 08000056 WCI 08000056 Contact Us For Availability
28
EVAPORATOR WCI 08009756 Contact Us For Availability
29
PIN-PUSH (2) WCI 3001361 Contact Us For Availability
29
WCI G159901 WCI G159901 Contact Us For Availability
30
WCI G174747-10 WCI G174747-10 Contact Us For Availability
30
WCI G166511-02 WCI G166511-02 Contact Us For Availability
30
WCI G159909 WCI G159909 Contact Us For Availability
31
TUBE-DEFROST DRAIN WCI 3206115 Contact Us For Availability
31
WCI G185299 WCI G185299 Contact Us For Availability
31
SCREW 8-32 X 1/4 WCI G159898 Contact Us For Availability
32
RING-SEAL WCI 08009755 Contact Us For Availability
32
WCI G185276 WCI G185276 Contact Us For Availability
32
WCI G159902 WCI G159902 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
33
WCI G188375 WCI G188375 Contact Us For Availability
33
WCI M1090016 WCI M1090016 Contact Us For Availability
34
WCI 3206119 WCI 3206119 Contact Us For Availability
34
HEAT SHIELD-WIRING WCI G164769 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
WCI G163669 WCI G163669 Contact Us For Availability
35
WCI G159906 WCI G159906 Contact Us For Availability
37
WCI 3203044 WCI 3203044 Contact Us For Availability
38
COVER-TOP HINGE-COFFEE WCI 3206104 Contact Us For Availability
38
WCI 3001581 WCI 3001581 Contact Us For Availability
39
WCI G188673 WCI G188673 Contact Us For Availability
39A
ROLLER (2) (NON-ILLUSTRATED) WCI G177021 Contact Us For Availability
39B
SPRING-ADJ (2) (NON-ILLUSTRATED) WCI G178494 Contact Us For Availability
40
SCREW-ADJ (2) WCI G177024 Contact Us For Availability
× ![]()
