Model Electrolux RT155LCD1 REFRIGERATOR – Common Parts & Diagrams

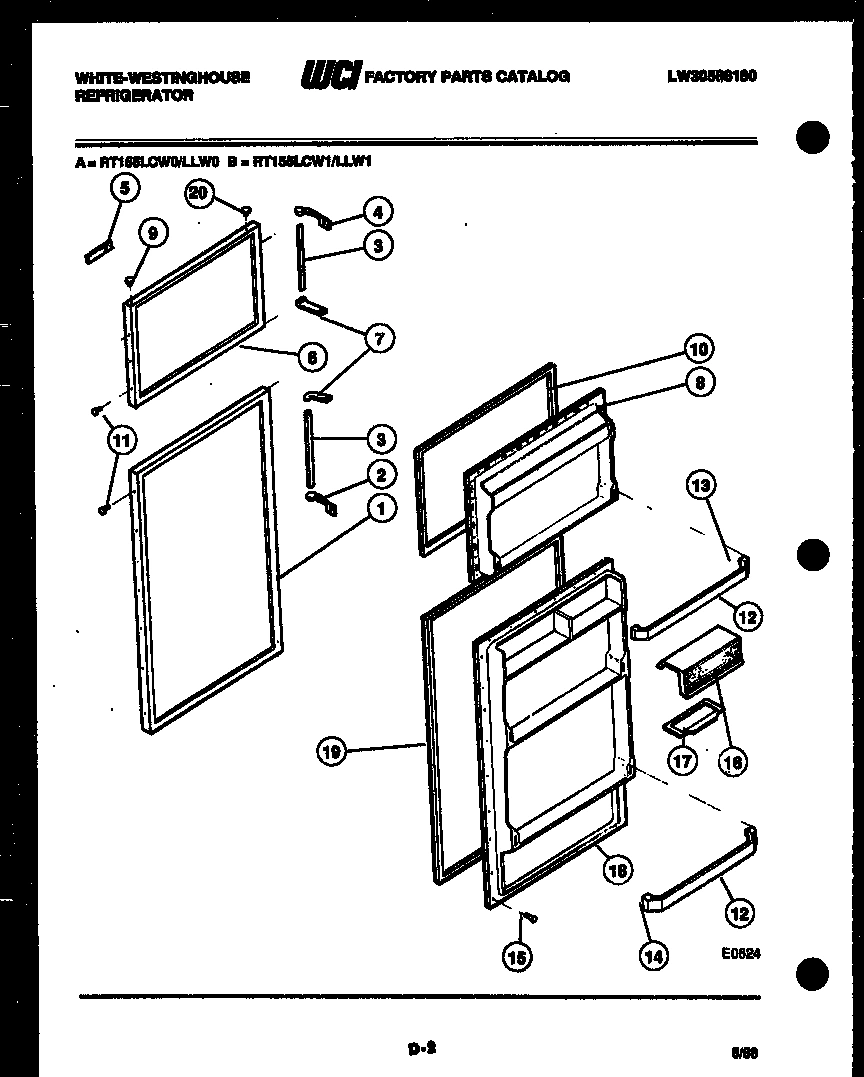

02 - DOOR PARTS

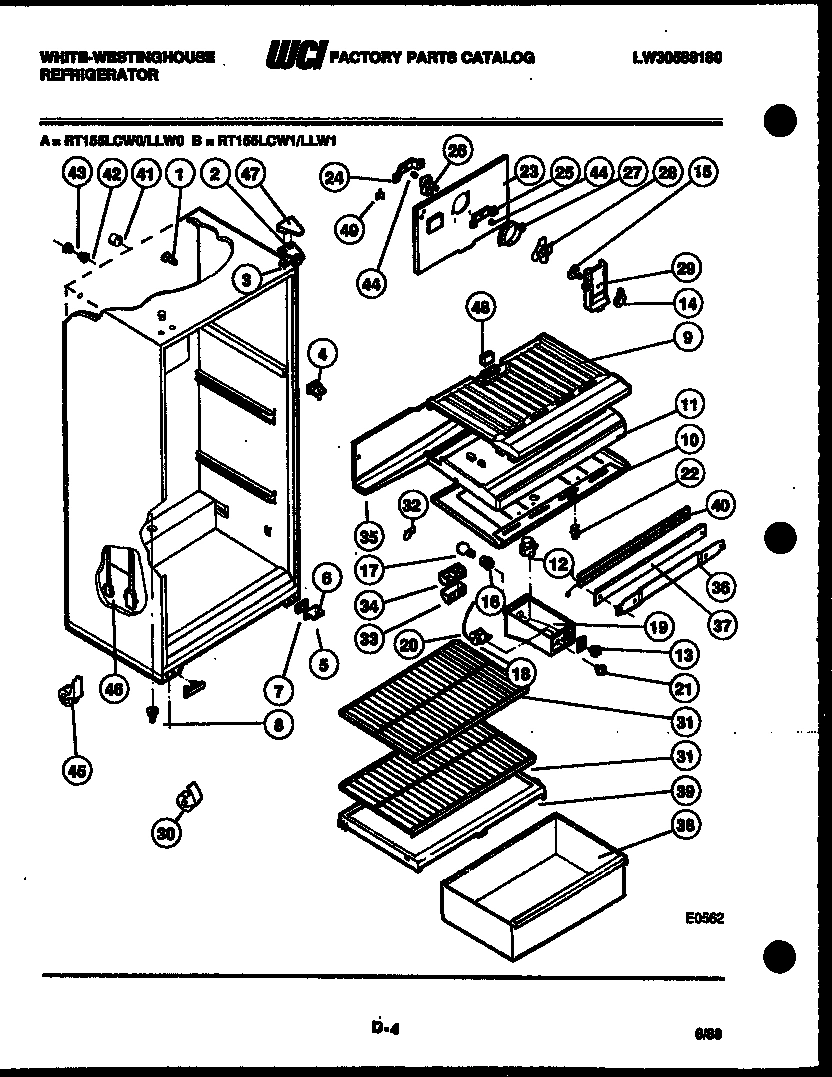

03 - CABINET PARTS

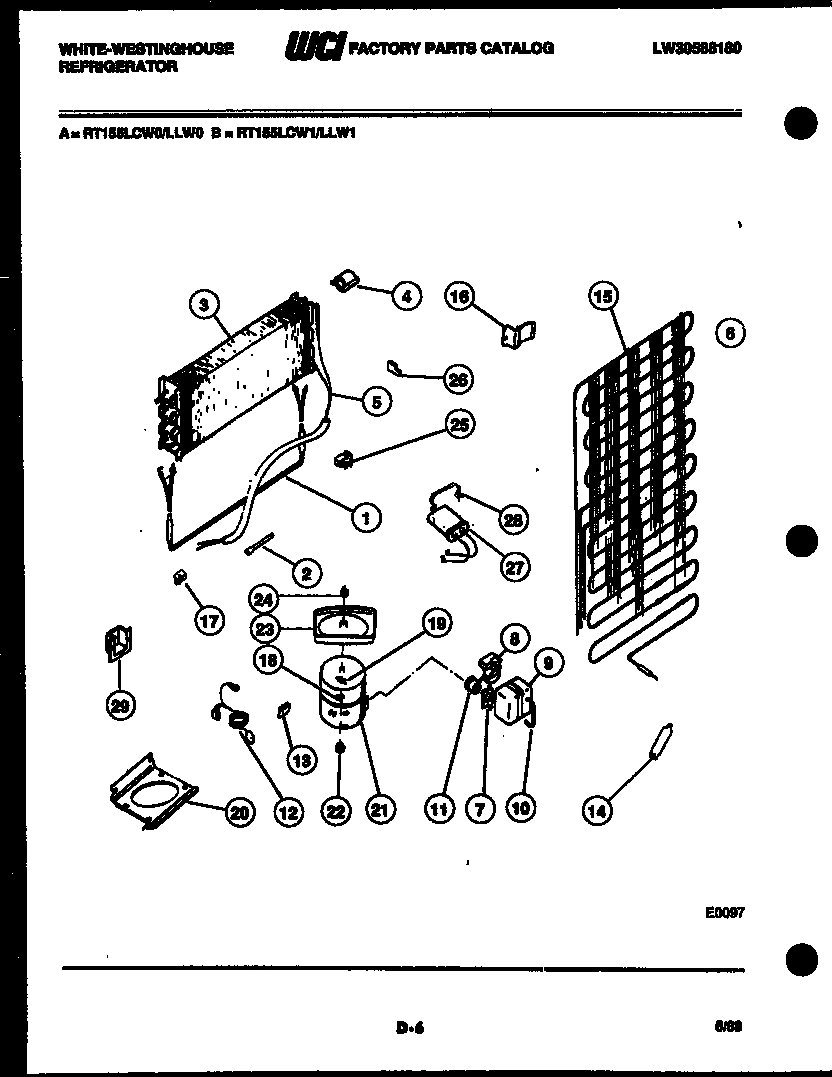

04 - SYSTEM AND AUTOMATIC DEFROST PARTS

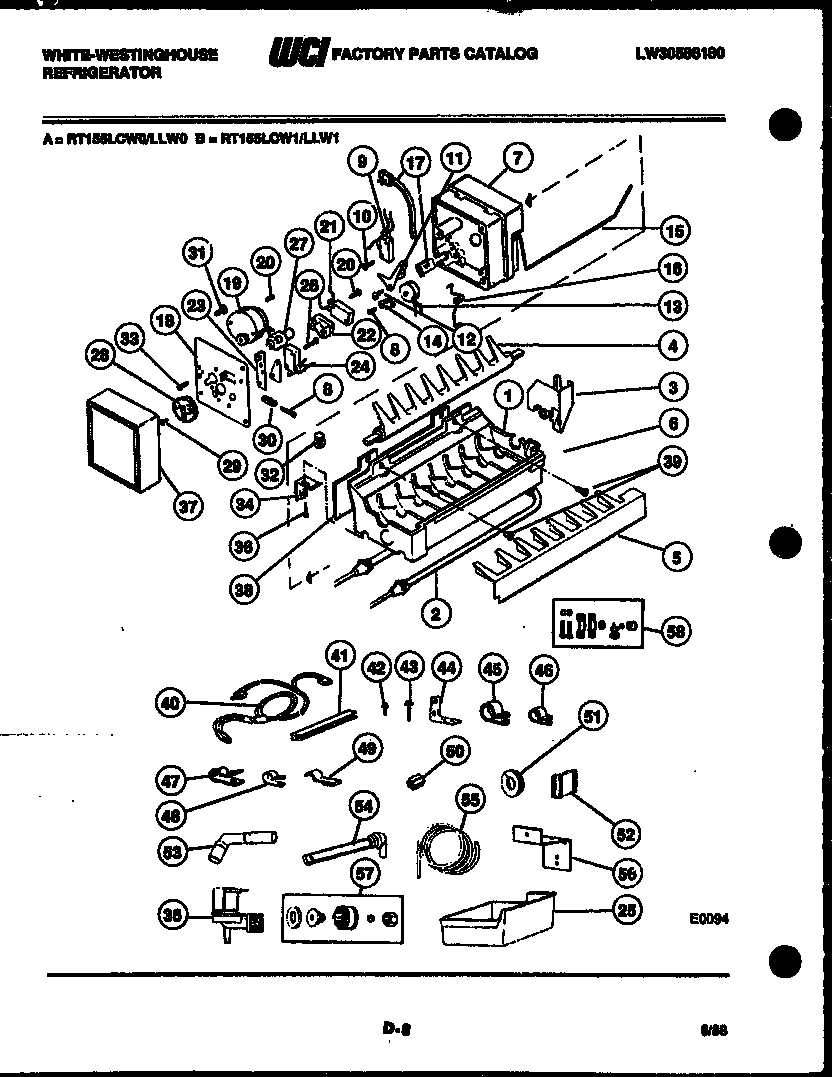

05 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux RT155LCD1 REFRIGERATOR
*12986
BUTTON PLUG-LOWER LH HINGE HOLE WCI G166912 Contact Us For Availability
*12986
BUTTON-PLUG-LINER HOLES (2) WCI G187599 Contact Us For Availability
1
WCI G163669 WCI G163669 Contact Us For Availability
1
WCI G162432-02 WCI G162432-02 Contact Us For Availability
1
MOLD & HEATER ASSEMBLY WCI G159912 Contact Us For Availability
2
WCI G175810 WCI G175810 Contact Us For Availability
2
HINGE, UPPER DOOR WCI G183714 Contact Us For Availability
2
WCI G137756 WCI G137756 Contact Us For Availability
2A
WCI G103903 No Longer Available
3
WCI G175666-09 WCI G175666-09 Contact Us For Availability
3
SHIM, UPPER HINGE WCI G183861 Contact Us For Availability
3
WCI G164563 WCI G164563 Contact Us For Availability
3
WCI G181117 WCI G181117 Contact Us For Availability
3A
WCI G185566 WCI G185566 Contact Us For Availability
4
END-HANDLE TOP WCI G175809 Contact Us For Availability
4
HINGE, CENTER DOOR WCI G163207 Contact Us For Availability
4
WCI G159911 WCI G159911 Contact Us For Availability
4A
SCREW-HINGE (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
4B
WCI G142220 WCI G142220 Contact Us For Availability
5
WCI G176985 WCI G176985 Contact Us For Availability
5
HINGE, LOWER DOOR WCI G181019 Contact Us For Availability
5
WCI G149013 WCI G149013 Contact Us For Availability
5
WCI G159910 WCI G159910 Contact Us For Availability
6
WCI G191896-11 WCI G191896-11 Contact Us For Availability
6
CLAMP-TUBE WCI G73986 Contact Us For Availability
7
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
7
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
7
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
7
WCI G137748 WCI G137748 Contact Us For Availability
8
WCI G186463-01 WCI G186463-01 Contact Us For Availability
8
TUBE-DRAIN WCI G163205 Contact Us For Availability
8
WCI G182225-18 WCI G182225-18 Contact Us For Availability
8
WCI G137743 WCI G137743 Contact Us For Availability
9
BEARING HINGE (8) WCI G183138 Contact Us For Availability
9
BOTTOM ( FREEZER ) WCI G162857 Contact Us For Availability
10
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
10
TOP-REFRIGERATOR WCI 3015448 Contact Us For Availability
10
WCI G137745 WCI G137745 Contact Us For Availability
10A
SCREW, 8 X 1 3/4 (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
11
WCI G162977-11 WCI G162977-11 Contact Us For Availability
11
DIVIDER-COMPARTMENT WCI G163219 Contact Us For Availability
11
WCI G188877 WCI G188877 Contact Us For Availability
12
RACK DOOR (3) WCI R490079-21 Contact Us For Availability
12
CORD, SERVICE WCI G162549-01 Contact Us For Availability
12
WCI G159913 WCI G159913 Contact Us For Availability
13
SUPPORT-RACK RH (3) WCI G176891-01 Contact Us For Availability
13
LABEL-BOX WCI G180105 Contact Us For Availability
13
WCI G159907 WCI G159907 Contact Us For Availability
14
SUPPORT-RACK LH (3) WCI G176892-01 Contact Us For Availability
14
WCI G162663-15 WCI G162663-15 Contact Us For Availability
14
WCI G137742 WCI G137742 Contact Us For Availability
15
DAMPER FAN COVER WCI G162661 Contact Us For Availability
15
WCI G178225 WCI G178225 Contact Us For Availability
15
WCI G164767 WCI G164767 Contact Us For Availability
15A
NUT-DAMPER MOUNTING (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
16
DOOR-DAIRY WCI R186414-02 Contact Us For Availability
16
SOCKET LIGHT WCI G168302 Contact Us For Availability
16
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
16
WCI G137753 WCI G137753 Contact Us For Availability
17
BLOCK-EVAPORATOR LH WCI G188375 Contact Us For Availability
17
WCI G185809 WCI G185809 Contact Us For Availability
17A
DOOR STOPS (2) (NON-ILLUSTRATED) WCI G155072 Contact Us For Availability
18
PANEL-INNER REFRIGERATOR WCI R186469-02 Contact Us For Availability
18
CONTROL-COLD WCI G162205-12 Contact Us For Availability
18
WASHER, COMPRESSOR MOUNTING (3) WCI G164634 Contact Us For Availability
18
WCI G186572 WCI G186572 Contact Us For Availability
18A
WCI G107080 WCI G107080 Contact Us For Availability
19
GASKET-REFRIGERATOR WCI G186932-02 Contact Us For Availability
19
WCI G176722-01 WCI G176722-01 Contact Us For Availability
19
CLIP, COMPRESSOR MOUNTING (3) WCI G163204 Contact Us For Availability
19
WCI G137735 WCI G137735 Contact Us For Availability
19A
SWITCH-SLIDE (NON-ILLUSTRATED) WCI G178402-01 Contact Us For Availability
20
WCI G169332-11 WCI G169332-11 Contact Us For Availability
20
WCI G162822 WCI G162822 Contact Us For Availability
20
WCI G137741 WCI G137741 Contact Us For Availability
20A
HARNESS-COMPRESSOR (NON-ILLUSTRATED) WCI G166062-01 Contact Us For Availability
21
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
21
COMPRESSOR WCI G189457 Contact Us For Availability
22
WCI G137737 WCI G137737 Contact Us For Availability
23
COVER-COIL WCI G163290 Contact Us For Availability
23
WCI G184716 WCI G184716 Contact Us For Availability
23
WCI G159905 WCI G159905 Contact Us For Availability
24
BRACKET-REAR MOTOR MOUNTING WCI G185303 Contact Us For Availability
24
NUT, LOCK WCI G164958 Contact Us For Availability
24
SWITCH-SPST WCI G164770 Contact Us For Availability
25
BRACKET-FRONT MOTOR MOUNTING WCI G185302 Contact Us For Availability
25
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
26
PLUG, EVAPORATOR INSULATION BLOCK, R H WCI G185276 Contact Us For Availability
26
WCI G137744 WCI G137744 Contact Us For Availability
26A
HOT TUBE REPAIR KIT (NON-ILLUSTRATED) WCI G189377 Contact Us For Availability
27
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
27
WCI 3001650 WCI 3001650 Contact Us For Availability
27
WCI G137738 WCI G137738 Contact Us For Availability
27A
NUT NO. 8 U-TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
28
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
29
WCI G490076-02 WCI G490076-02 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
29
WCI G159901 WCI G159901 Contact Us For Availability
30
ROLLER-FRONT (2) WCI G188673 Contact Us For Availability
30
WCI G159909 WCI G159909 Contact Us For Availability
31
WCI R172173-03 WCI R172173-03 Contact Us For Availability
31
SCREW 8-32/1/4 WCI G159898 Contact Us For Availability
32
WCI G159902 WCI G159902 Contact Us For Availability
33
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
33
WCI M1090016 WCI M1090016 Contact Us For Availability
34
DEFLECTOR AIR WCI G162675 Contact Us For Availability
34
WCI G159906 WCI G159906 Contact Us For Availability
35
TROUGH-DRAIN WCI G163292 Contact Us For Availability
35
WCI G159914 WCI G159914 Contact Us For Availability
36
STRAP, MULLION MOUNTING WCI G166709 Contact Us For Availability
36
WCI M1090120 WCI M1090120 Contact Us For Availability
37
MULLION WCI G174520-01 Contact Us For Availability
37
WCI G159908 WCI G159908 Contact Us For Availability
37A
WASHER-MULLION MOUNTING (2) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
37A
WCI G161199 WCI G161199 Contact Us For Availability
37B
SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED) WCI G166848 Contact Us For Availability
38
WCI G162973-34 WCI G162973-34 Contact Us For Availability
38
WCI G164769 WCI G164769 Contact Us For Availability
39
COVER-CRISPER WCI G162957-01 Contact Us For Availability
39
WCI G164766 WCI G164766 Contact Us For Availability
40
WCI G187921 WCI G187921 Contact Us For Availability
40
WCI G185266 WCI G185266 Contact Us For Availability
41
TUBE, IN FERRULE (2) WCI G85642 Contact Us For Availability
42
WCI G174734 WCI G174734 Contact Us For Availability
43
WCI G174733 WCI G174733 Contact Us For Availability
45
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
46
CLAMP HARNESS & INLET TUBE MOUNTING (3) WCI G161655 Contact Us For Availability
47
COVER, TOP HINGE, ALMOND WCI G183558-11 Contact Us For Availability
48
PAD FOAM WCI G168866 Contact Us For Availability
49
WCI G164571 WCI G164571 Contact Us For Availability
49
CLIP, HARNESS LOCATION WCI G163706 Contact Us For Availability
50
NUT INLET TO SOLE. WCI G143689 Contact Us For Availability
52
WCI G160347 WCI G160347 Contact Us For Availability
53
TUBE WATER FILL WCI G165773 Contact Us For Availability
56
BRACKET, VALVE TO REAR PANEL WCI G163309 Contact Us For Availability
57
WATER SUPPLY ADAP WCI G159415 Contact Us For Availability
58
WCI G99428 WCI G99428 Contact Us For Availability
× ![]()
