Model Electrolux RT153NCD0 REFRIGERATOR – Common Parts & Diagrams

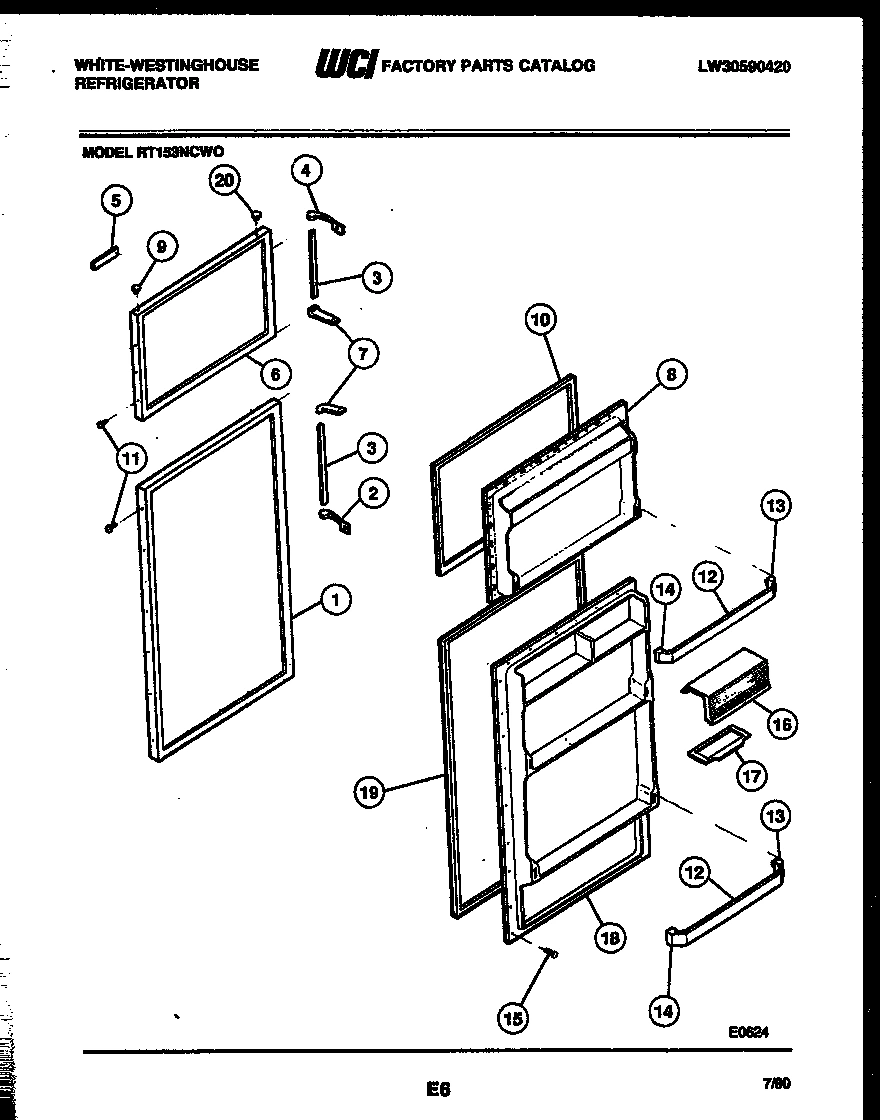

02 - DOOR PARTS

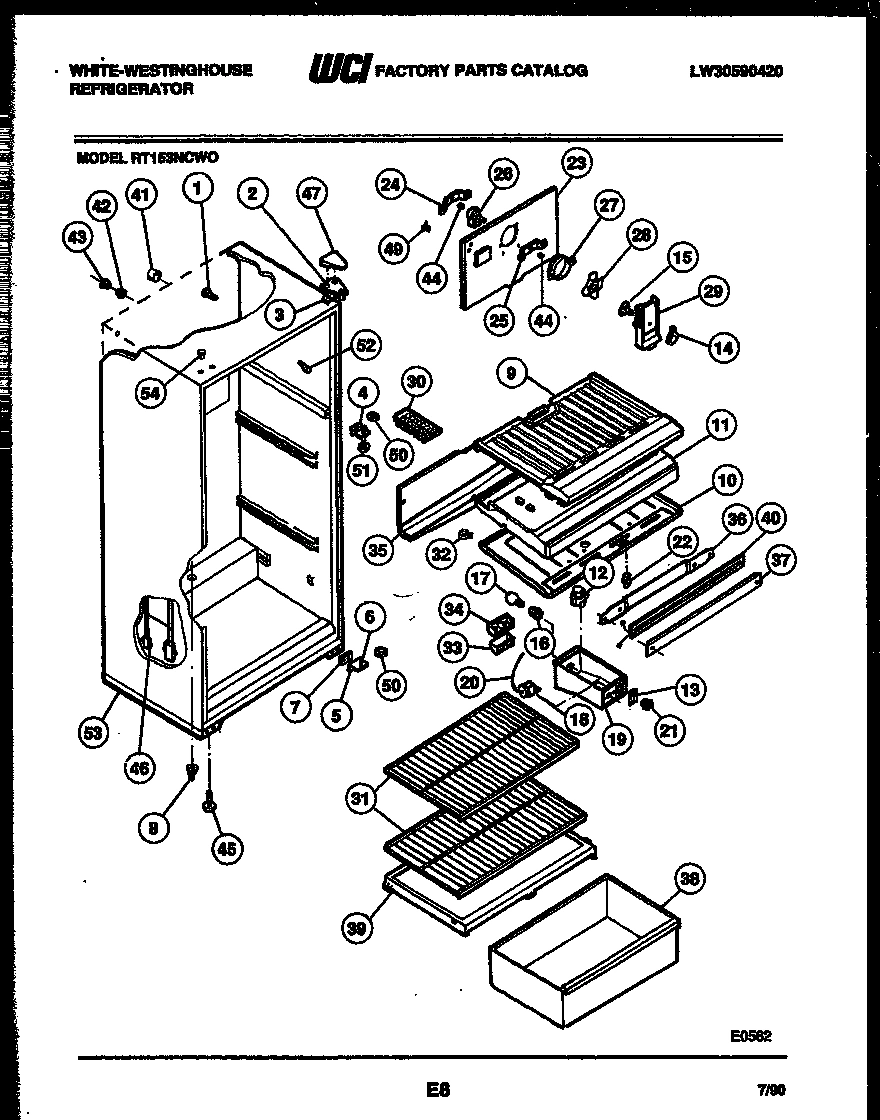

03 - CABINET PARTS

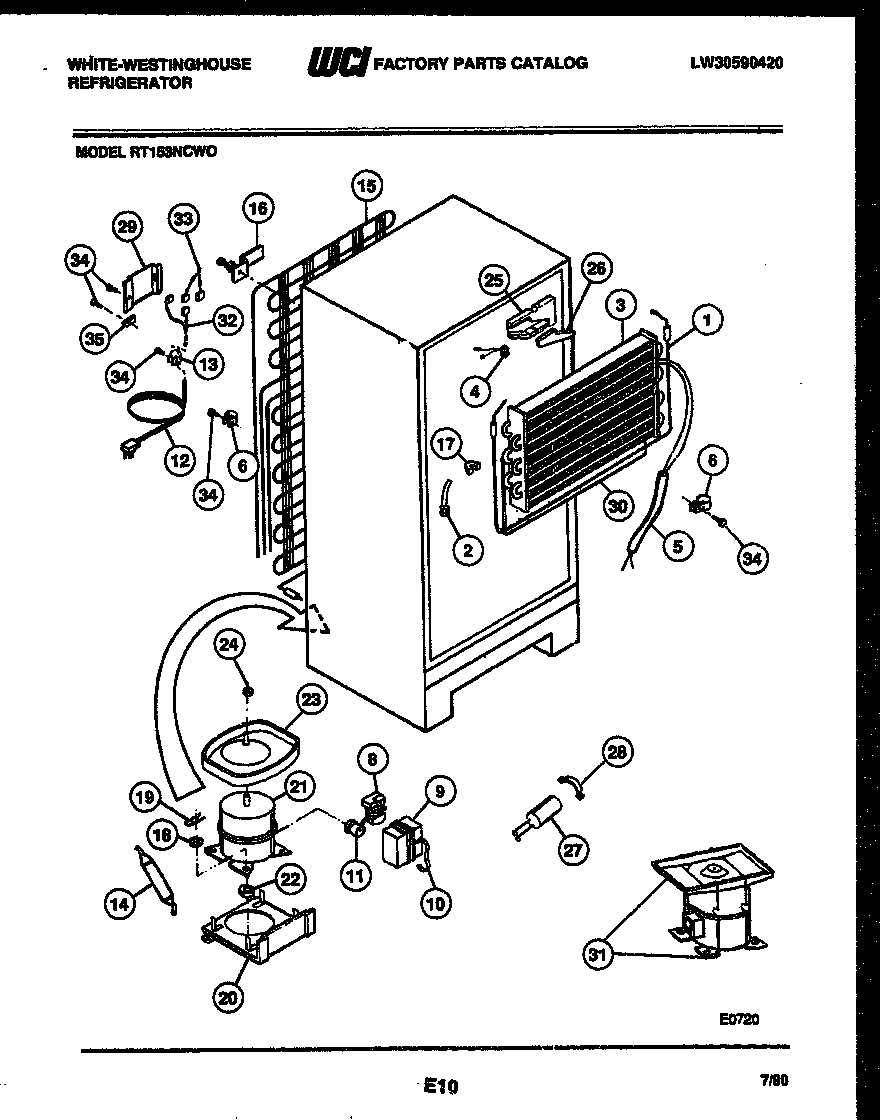

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT153NCD0 REFRIGERATOR
1
WCI 5303001362 WCI 5303001362 Contact Us For Availability
2
HINGE - UPPER DOOR WCI 5308012843 Contact Us For Availability
2
WCI 5303001015 WCI 5303001015 Contact Us For Availability
3
EVAPORATOR WCI 5303201078 Contact Us For Availability
4B
PIN - CENTER HINGE (NON-ILLUSTRATED) WCI 5308000184 Contact Us For Availability
5
WCI 5303201079 WCI 5303201079 Contact Us For Availability
6
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
6
WCI 53080001333 WCI 53080001333 Contact Us For Availability
7
END-HANDLE (2) WCI 5303001296 Contact Us For Availability
8
WCI 5303007173 WCI 5303007173 Contact Us For Availability
9
BOTTOM-FREEZER WCI 5308000748 Contact Us For Availability
10
TOP-REFRIGERATOR WCI 5303015448 Contact Us For Availability
10A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
11
DIVIDER - COMPARTMENT WCI 5308000759 Contact Us For Availability
11
WCI 5303001713 WCI 5303001713 Contact Us For Availability
12
CORD-SERVICE WCI 5316254901 Contact Us For Availability
13
WCI G00180105 WCI G00180105 Contact Us For Availability
14
WCI 5316266315 WCI 5316266315 Contact Us For Availability
15
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
15
WCI 5303001341 WCI 5303001341 Contact Us For Availability
15A
NUT - DAMPER MTG (NON-ILLUSTRATED) WCI 5303001028 Contact Us For Availability
16
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
16
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
17
BLOCK EVAPORATOR LH WCI 5308017227 Contact Us For Availability
18
TEMPERATURE - CONTROL WCI 5308015762 Contact Us For Availability
18
WASHER - COMPRESSOR MOUNTING (3) WCI 5308003633 Contact Us For Availability
18A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
19
BOX-CONTROL WCI 5317672201 Contact Us For Availability
19
CLIP - COMPRESSOR MOUNTING (3) WCI 5308003596 Contact Us For Availability
19A
SWITCH-ENERGY SAVER (NON-ILLUSTRATED) WCI 5303001670 Contact Us For Availability
20
PLUG-BUTTON-ALMOND WCI 5303001308 Contact Us For Availability
20
PLATE-COMPRESSOR MOUNTING WCI 5308009596 Contact Us For Availability
21
KNOB-CONTROL WCI 5308010011 Contact Us For Availability
21
COMPRESSOR WCI 5303916004 Contact Us For Availability
23
COVER, COIL WCI 3001358 Contact Us For Availability
23
PAN-DEFROST WCI 5300184715 Contact Us For Availability
24
BRKT - REAR MOTOR MTG WCI 5303001227 Contact Us For Availability
24
NUT-LOCK WCI 5303001348 Contact Us For Availability
25
BRKT - FRONT MOTOR MTG WCI 5303001226 Contact Us For Availability
25
BLOCK EVAPORATOR RH WCI 5308013648 Contact Us For Availability
26
PLUG - EVAPORATOR INSULATION - RH WCI 5303007287 Contact Us For Availability
27
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
27
WCI 5303018427 WCI 5303018427 Contact Us For Availability
27A
NUT NO. 8 U-TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
28
STRAP CAPACITOR WCI 3018428 Contact Us For Availability
28A
HOT TUBE REPAIR KIT (NON-ILLUSTRATED) WCI 5300189377 Contact Us For Availability
29
WCI 5349007602 WCI 5349007602 Contact Us For Availability
29
WCI 5303001197 WCI 5303001197 Contact Us For Availability
29B
WCI G000187640 WCI G000187640 Contact Us For Availability
30
INSULATOR-EVAP WCI 5316651102 Contact Us For Availability
31
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
31
WCI 5317217303 WCI 5317217303 Contact Us For Availability
32
HARNESS-COMPRESSOR WCI 5303001347 Contact Us For Availability
33
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
33
HARNESS CONTROL WCI 3001383 Contact Us For Availability
34
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
34A
WASHER - NO. 10 EXT. LOCK (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
35
WCI 5308003638 WCI 5308003638 Contact Us For Availability
36
WCI 5308003604 WCI 5308003604 Contact Us For Availability
37
WCI 5303916134 WCI 5303916134 Contact Us For Availability
37A
WASHER - MULLION MTG (2) (NON-ILLUSTRATED) WCI 5308003607 Contact Us For Availability
37B
WCI 53001370 WCI 53001370 Contact Us For Availability
38
PAN - CRISPER WCI 5316297334 Contact Us For Availability
39
COVER-CRISPER WCI 5316295701 Contact Us For Availability
40
WCI 5308017408 WCI 5308017408 Contact Us For Availability
41
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
42
WCI 5303001287 WCI 5303001287 Contact Us For Availability
43
WCI 5308001286 WCI 5308001286 Contact Us For Availability
44
WCI 5300157666 WCI 5300157666 Contact Us For Availability
45
SCREW-LEVEL (2) WCI 5303205540 Contact Us For Availability
45A
NUT ANCHOR (2) (NON-ILLUSTRATED) WCI 5308003584 Contact Us For Availability
47
COVER-TOP HINGE-ALMD WCI 5308012933 Contact Us For Availability
49
WCI 5308000107 WCI 5308000107 Contact Us For Availability
49B
BUTTON PLUG - LOWER LH HINGE HOLE (NON-ILLUST WCI 5303001478 Contact Us For Availability
49C
BUTTON - DECOR. PLUG (NON-ILLUSTRATED) WCI 5303018193 Contact Us For Availability
49D
BUTTON - PLUG - LINER (NON-ILLUSTRATED) WCI 5308016571 Contact Us For Availability
50
WASHER - NYLON 1/4 X 5/8 OD - (2) WCI 5308000007 Contact Us For Availability
51
WASHER, WCI 5308000186 No Longer Available
51A
WCI 5308012296 WCI 5308012296 Contact Us For Availability
52
WCI 5303202340 WCI 5303202340 Contact Us For Availability
53
WCI 5303006086 WCI 5303006086 Contact Us For Availability
54
WCI 5303001389 WCI 5303001389 Contact Us For Availability
× ![]()
