Model Whirlpool RT14ZKXEN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

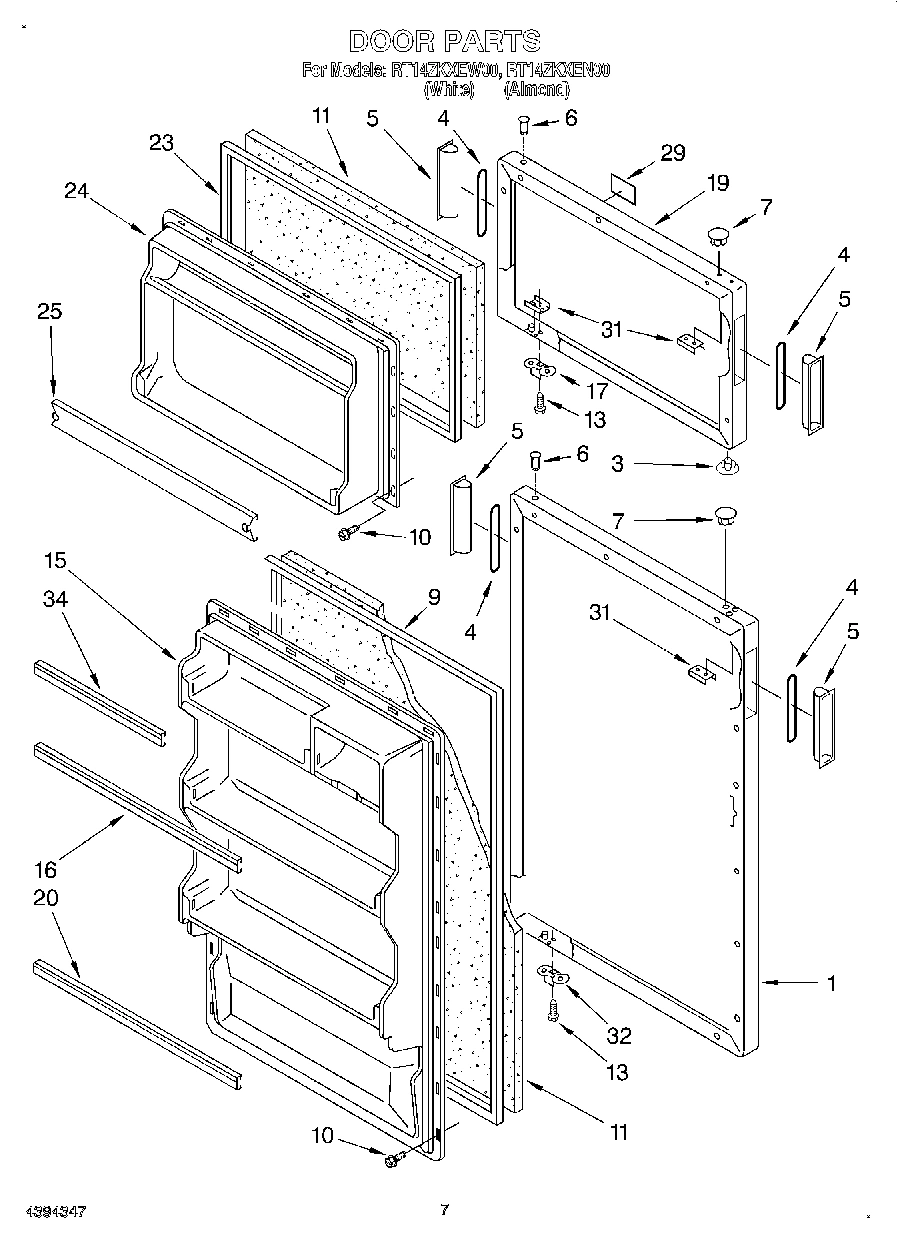

05 - DOOR

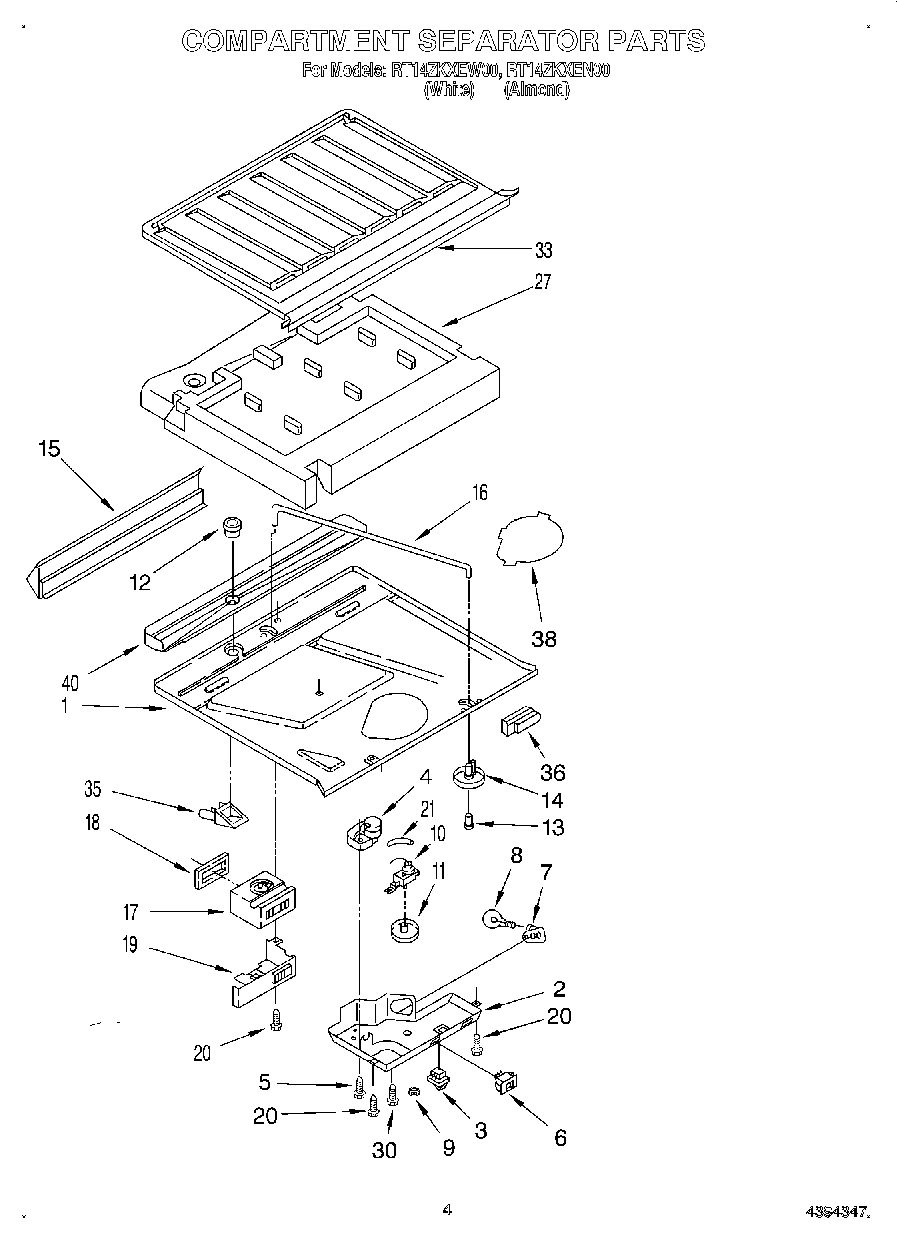

03 - COMPARTMENT SEPARATOR

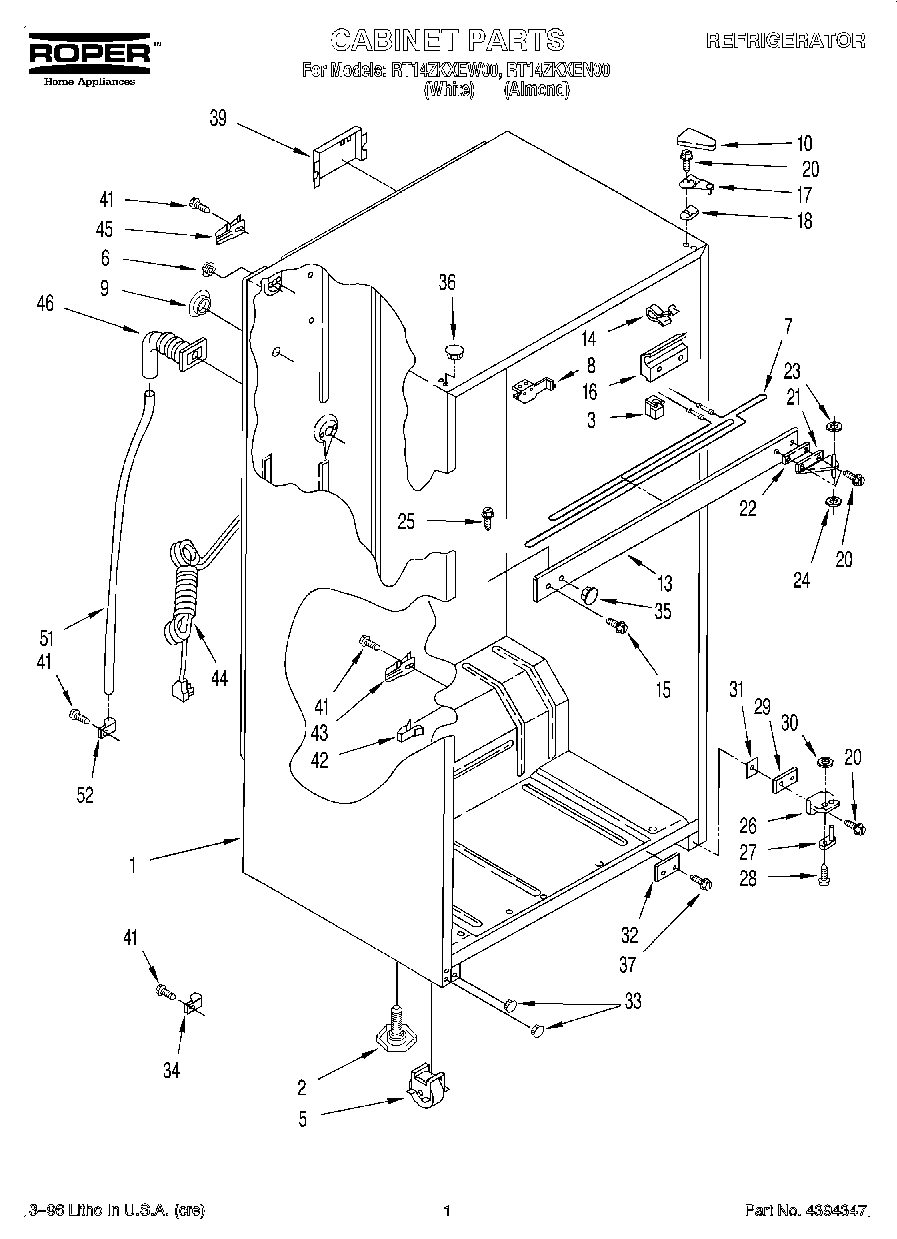

01 - CABINET

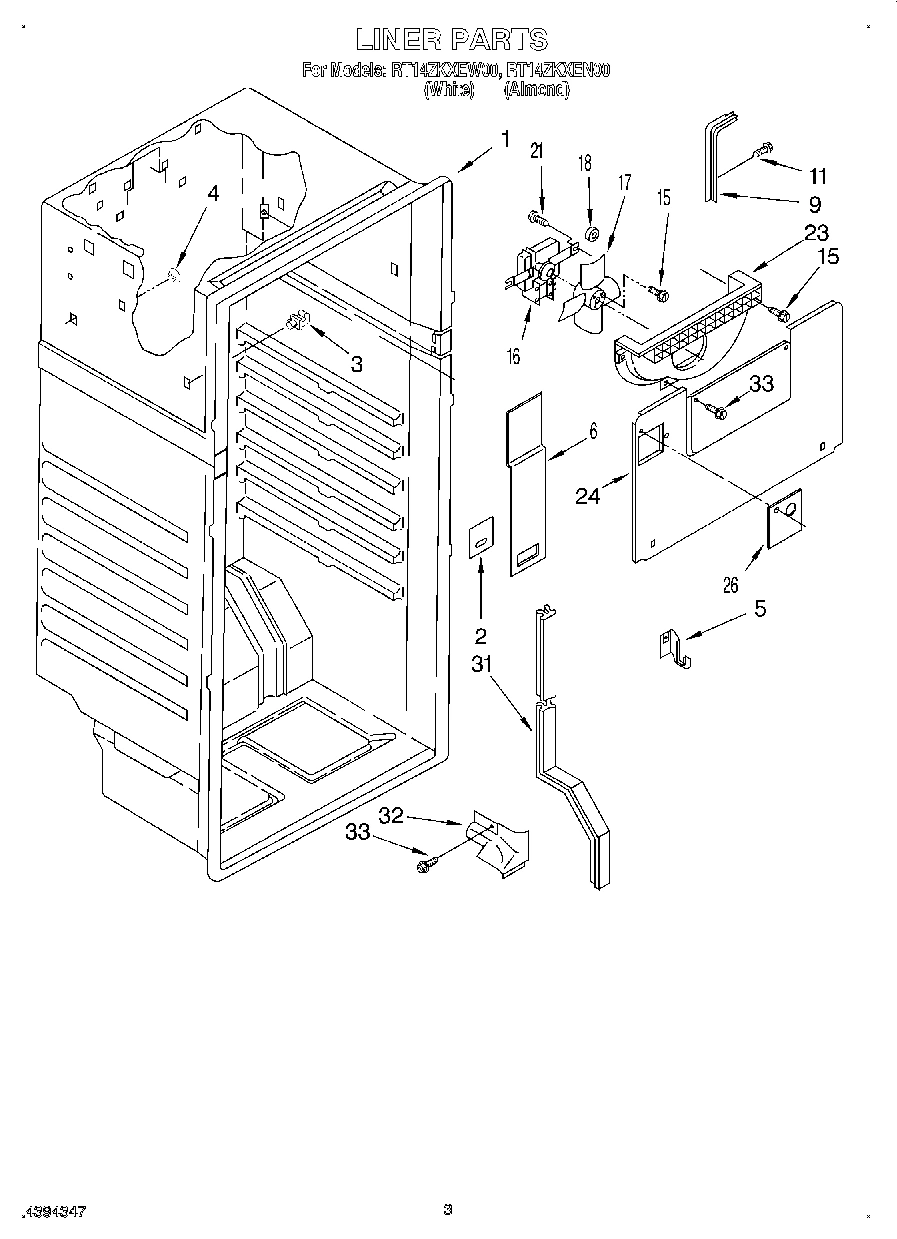

02 - LINER

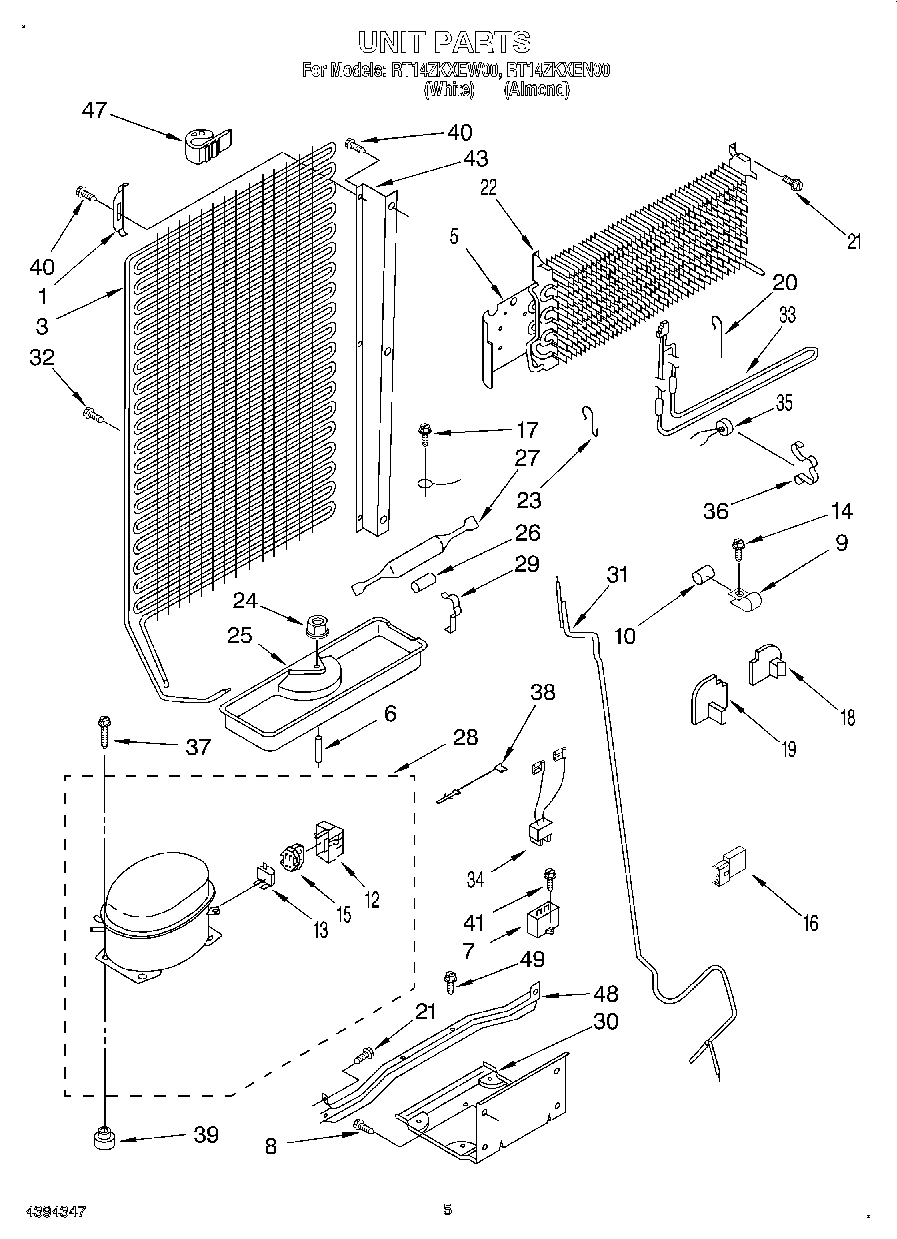

04 - UNIT

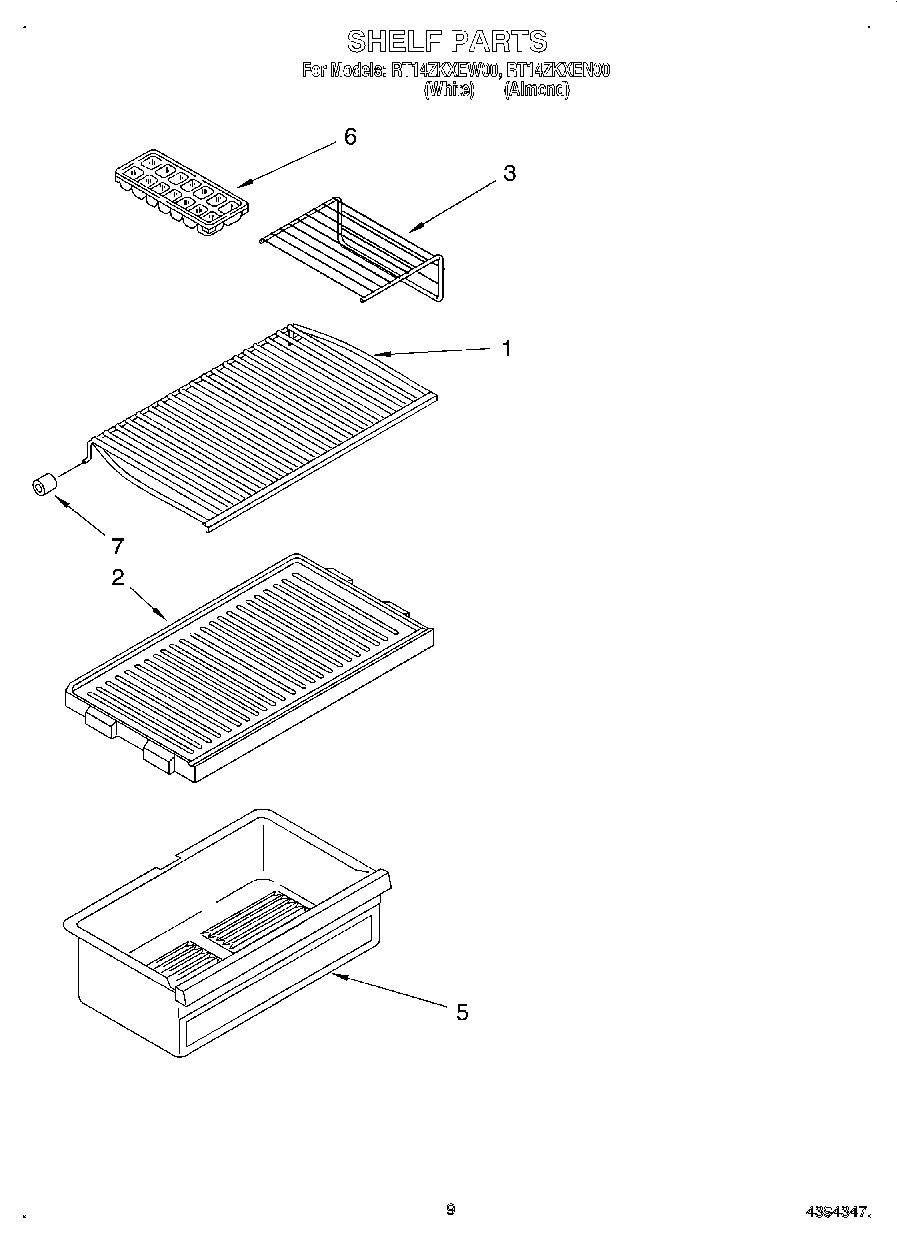

06 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool RT14ZKXEN00 TOP MOUNT REFRIGERATOR
Care & Use Guide WPL LIT2172354 Contact Us For Availability
Service & Wiring Sheet WPL LIT2178980 Contact Us For Availability
Energy Label WPL LIT2191080 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI125842A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI125843A Contact Us For Availability
1
Bracket WPL 2150664 Contact Us For Availability
1
Shelf, Pullout (2) WPL 940006 Contact Us For Availability
2
Shield, Wiring WPL 946207 Contact Us For Availability
2
Cover, Crisper WPL 2151348 Contact Us For Availability
3
Stud Hook WPL 939065 Contact Us For Availability
3
Spacer WPL 1116484 Contact Us For Availability
3
Condenser Assembly WPL 2172124 Contact Us For Availability
3
Cover, Ice Tray WPL 2147583 Contact Us For Availability
5
Roller WPL 2152014 Contact Us For Availability
5
Evaporator, Support WPL 935700 Contact Us For Availability
5
Heat Shield WPL 935699 Contact Us For Availability
5
Pan, Crisper WPL 2172388 Contact Us For Availability
6
Cover, Air Duct WPL 2178975 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
7
Heater, Mullion WPL 2190815 Contact Us For Availability
7
Running Capacitor WPL 2169137 Contact Us For Availability
7
Door Reversal Instructions WPL 2172356 Contact Us For Availability
7
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
7
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
7
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
7
Bumper WPL 845287 Contact Us For Availability
7
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
8
Center Rail, Bracket WPL 935692 Contact Us For Availability
9
Hole Plug WPL 655411 Contact Us For Availability
9
Air Deflector Side (2) WPL 2150905 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Screw, 8-32 WPL 2151280 Contact Us For Availability
13
Center Rail WPL 935685 Contact Us For Availability
14
Breaker, Trim Clip WPL 534365 Contact Us For Availability
15
Relay (See Overload) WPL ARI125844A Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Grommet WPL 531933 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2151218 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2151219 Contact Us For Availability
20
Clip, Heater WPL 850721 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2178207 Contact Us For Availability
23
Scroll, Fan WPL 2178956 Contact Us For Availability
23
Support, Heater WPL 851358 Contact Us For Availability
24
Evaporator Cover WPL 2152289 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1128495 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Tap Plate WPL 935743 Contact Us For Availability
31
Cover Tube, Rear WPL 935704 Contact Us For Availability
31
Exchanger, Heat WPL 2172126 Contact Us For Availability
32
Rail, Cover (White) WPL 935707 Contact Us For Availability
32
Rail, Cover (Almond) WPL 935711 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
33
Top, Compartment Separator WPL 935717 Contact Us For Availability
33
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
33
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
33
Heater, Defrost WPL 2151216 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Hole Plug WPL 1119707 Contact Us For Availability
36
Rear Corner, Block WPL 939056 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
38
Heat Shield WPL 937227 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
40
Drain Pan WPL 935718 Contact Us For Availability
40
Screw WPL VS9993 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 2150543 Contact Us For Availability
47
Bumper (2) WPL 2150954 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
