Model Whirlpool RT14CKXVG10 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

1

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

1

Shelf, Pullout (2) WPL 1104455 Contact Us For Availability

1

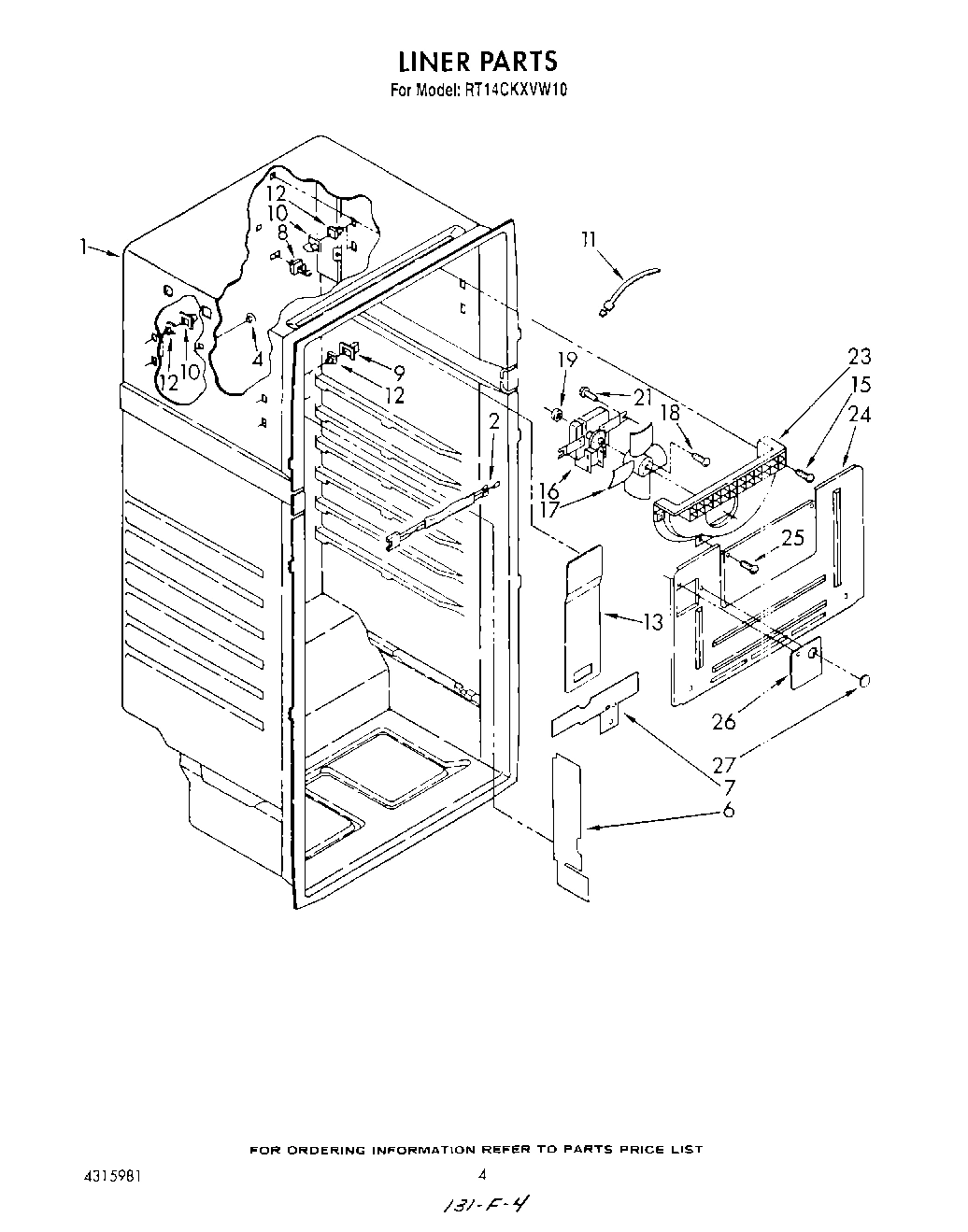

Liner (Not A Serviceable Part) WPL ARI125002A Contact Us For Availability

1

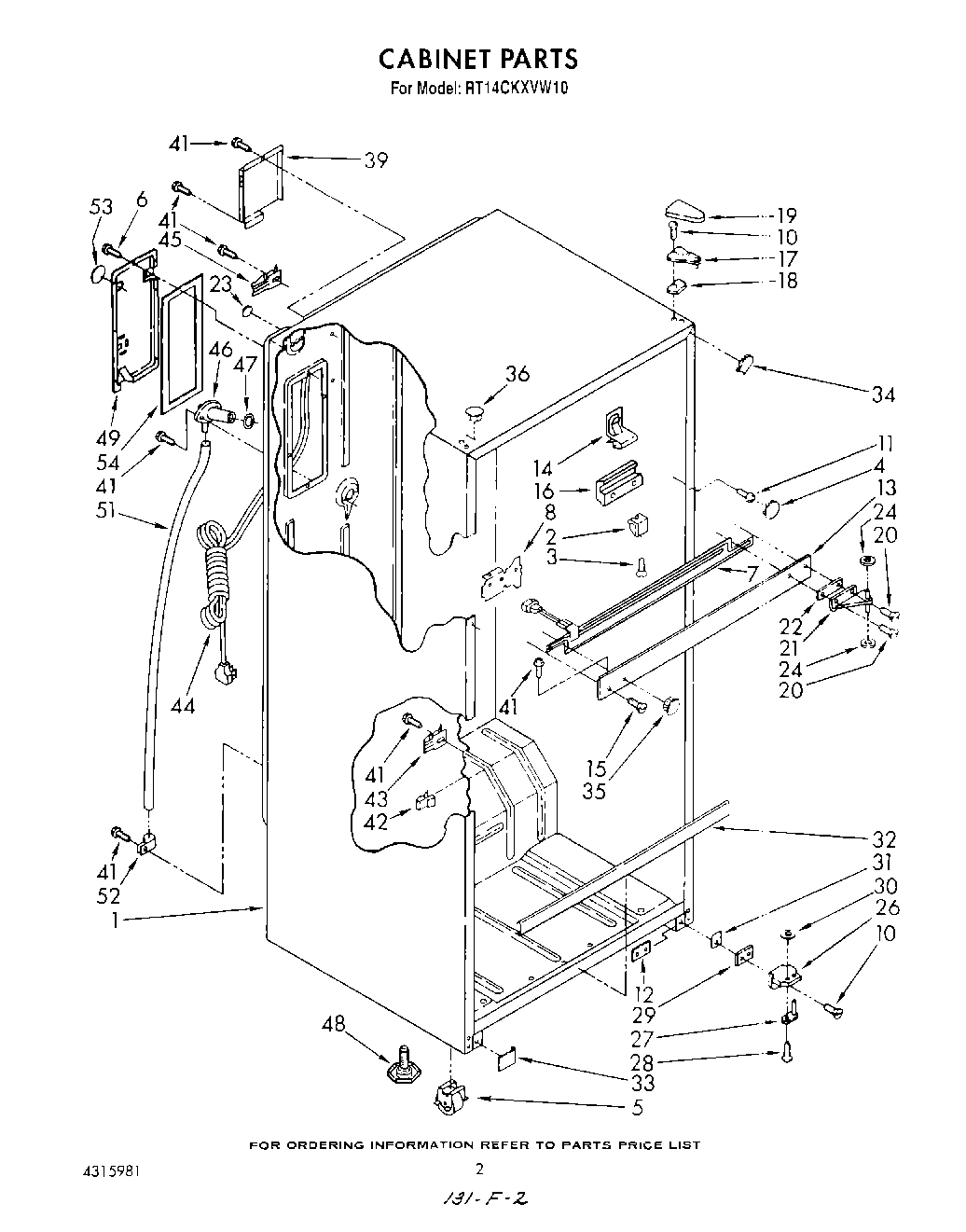

Cabinet (Not A Serviceable Part) WPL ARI125001A Contact Us For Availability

1

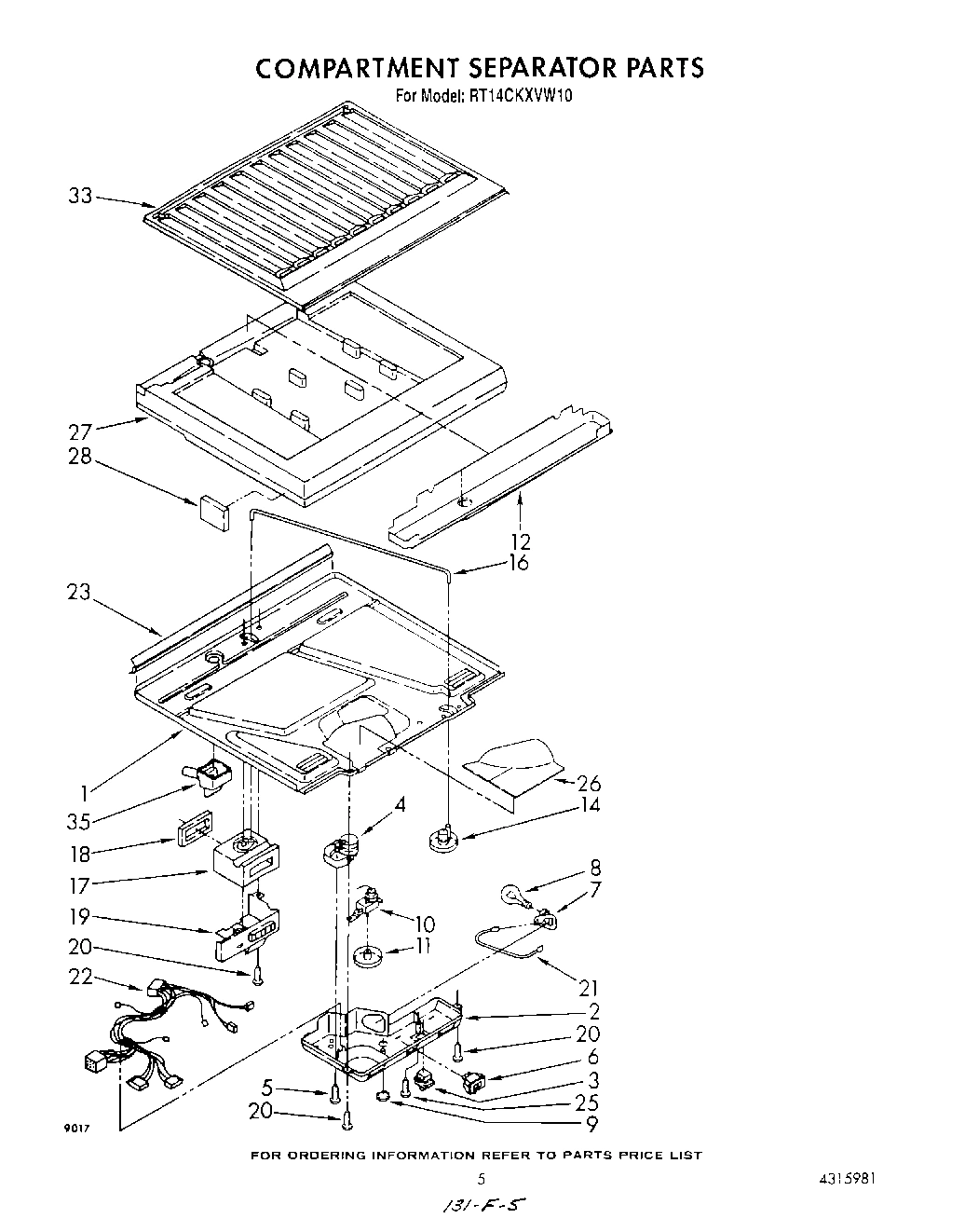

Bottom, Compartment Separator WPL 1111798 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Trim, Shelf (Front) WPL 1124308 Contact Us For Availability

2

Bumper (2) WPL 944772 Contact Us For Availability

2

Spacer WPL 940024 Contact Us For Availability

2

Box, Control WPL 1126703 Contact Us For Availability

2

Hole Plug (White) WPL 534927 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

3

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

3

Cover, Crisper WPL 1124673 Contact Us For Availability

3

Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Clip, Tube (2) WPL 1118652 Contact Us For Availability

4

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

4

Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability

4

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

4

Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Cover, Meat Pan WPL 1104924 Contact Us For Availability

5

Roller (4) WPL 937216 Contact Us For Availability

6

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Shelf, Freezer WPL 1104560 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Spacer WPL 1105130 Contact Us For Availability

6

Screw (Repair) WPL 488930 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Top, Electric Shield WPL 1129067 Contact Us For Availability

7

Heat Shield Evaporator WPL 1108169 Contact Us For Availability

7

Heater, Mullion WPL 1118897 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $100.80

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

Pan, Crisper (2) WPL 1124305 Contact Us For Availability

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

Pan, Meat WPL 1124309 Contact Us For Availability

9

Stud (2) WPL 946356 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Dampener WPL 945593 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

End Cap, Handle (2) WPL 944157 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Clip, Strap WPL 1123230 Contact Us For Availability

Screw (2) WPL 488844 Contact Us For Availability

Knob, Thermostat WPL 943798 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Case, Relay WPL 1108115 Contact Us For Availability

Tap Plate (2) WPL 2147312 Contact Us For Availability

Drain Pan WPL 1108170 Contact Us For Availability

Handle, Center WPL 1109183 Contact Us For Availability

Support, Crisper Cover WPL 1103731 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Overload WPL 1105172 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Post, Cripser Cover WPL 836410 Contact Us For Availability

Clip, Center Rail (3) WPL 1129018 Contact Us For Availability

Knob, Air Control WPL 1126710 Contact Us For Availability

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Screw WPL 489319 Contact Us For Availability

15

Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Trim, Pan (2) WPL 1124306 Contact Us For Availability

Center, Rail Shim WPL 939034 Contact Us For Availability

Rod, Connecting WPL 1111270 Contact Us For Availability

Screw (Repair) WPL 488923 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

Hinge, Top WPL 1129045 Contact Us For Availability

Air Diffuser Assembly WPL 1118973 Contact Us For Availability

Trim, Door Shelf WPL 1120710 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Shim, Hinge Top WPL 1100511 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Nameplate WPL 1124315 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Grommet (2) WPL 531933 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Cover, Air Diffuser WPL 937226 Contact Us For Availability

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

Screw (Repair) WPL 489297 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

21

Screw (2) WPL 489168 Contact Us For Availability

21

Hinge, Center WPL 1129047 Contact Us For Availability

21

Wiring Assembly WPL 937078 Contact Us For Availability

Evaporator WPL 1108180 Contact Us For Availability

Shim, Hinge Center WPL 836194 Contact Us For Availability

Wiring Assembly, Control Box & Cabinet WPL 2149660 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

Scroll, Fan WPL 1122814 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Gasket, Bottom Separator WPL 1123916 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

24

Evaporator Cover WPL 942847 Contact Us For Availability

25

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

25

Evaporator Tray WPL 1101002 Contact Us For Availability

25

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Restrictor Sleeve WPL 510446 Contact Us For Availability

Hinge Butt, Bottom (R.H) WPL 1123882 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Pin, Hinge WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1123389 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

28

Pad (2) WPL 946367 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

29

Shim, Bottom WPL 943708 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Unit Mounting Plate WPL 1118781 Contact Us For Availability

Washer, 7/64 WPL 489201 Contact Us For Availability

Exchanger, Heat WPL 1127874 Contact Us For Availability

Cover, Glider Rail (White) WPL 1129052 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 1129053 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 2147332 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Heater, Defrost WPL 1127659 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability

Separator, Compartment (Top) WPL 1119323 Contact Us For Availability

34

Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability

34

Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability

34

Filler, Wrap Corner (2) (Golden Harvest) WPL 1110686 Contact Us For Availability

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

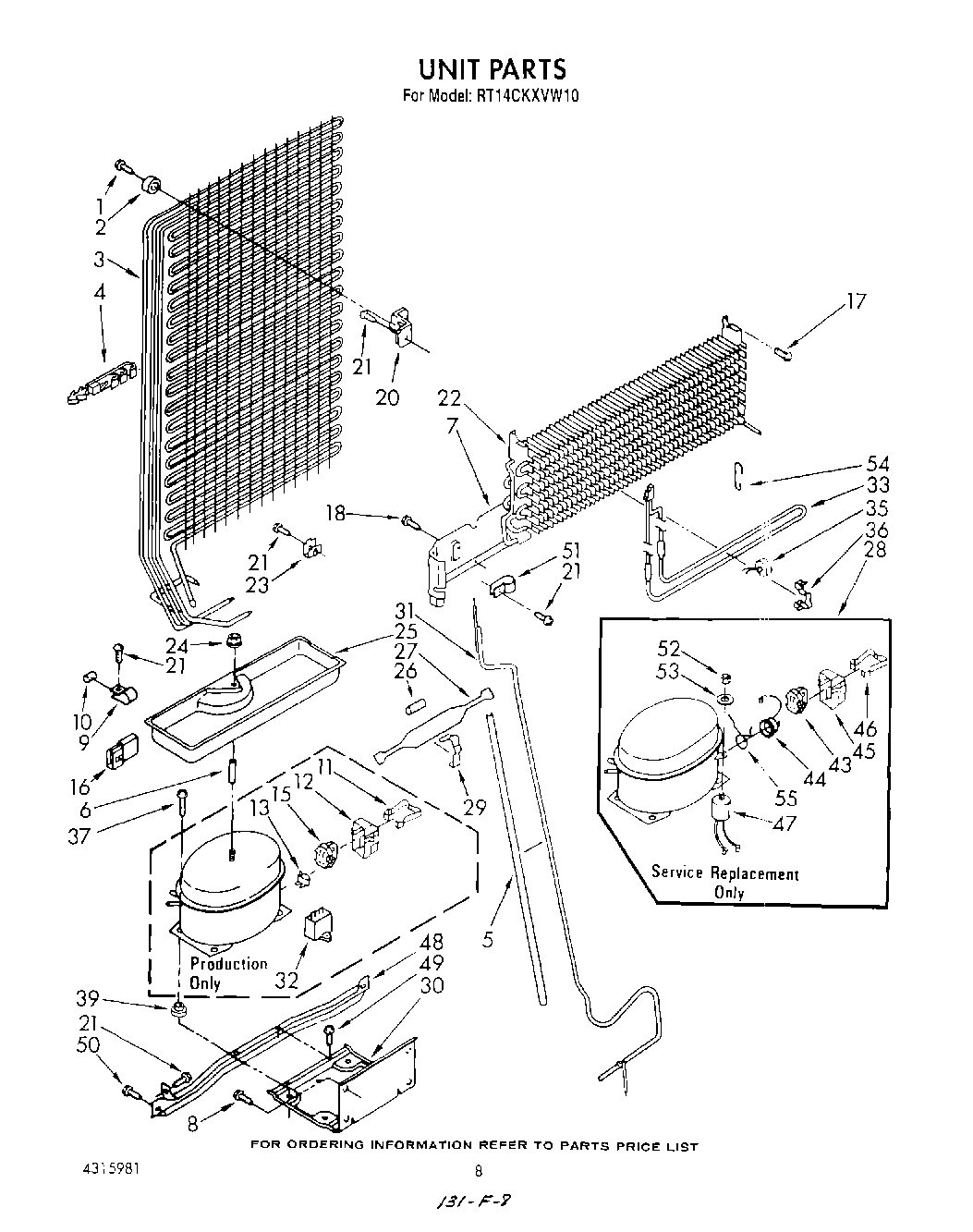

Cup, Drain WPL 939191 Contact Us For Availability

Hole Plug (White) WPL 1119707 Contact Us For Availability

Hole Plug (Golden Harves WPL 1119708 Contact Us For Availability

WPL 1119709 WPL 1119709 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

WPL 1129062 WPL 1129062 Contact Us For Availability

WPL 1129063 WPL 1129063 Contact Us For Availability

WPL 1129064 WPL 1129064 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WPL 942845 WPL 942845 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Overload WPL 483037 Contact Us For Availability

44

WPL 937360 WPL 937360 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

48

Unit Mounting Rail WPL 1118782 Contact Us For Availability

48

WPL 944766 WPL 944766 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

WPL 1106511 WPL 1106511 Contact Us For Availability

50

Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

51

Clamp WPL 489151 Contact Us For Availability

52

Nut WPL 489142 Contact Us For Availability

52

WPL 519405 WPL 519405 Contact Us For Availability

53

Washer WPL 489143 Contact Us For Availability

53

WPL 1120224 WPL 1120224 Contact Us For Availability

54

Support, Heater WPL 1108172 Contact Us For Availability

54

WPL 1106510 WPL 1106510 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
