Model Whirlpool RT12VKXKQ03 REFRIGERATOR – Common Parts & Diagrams

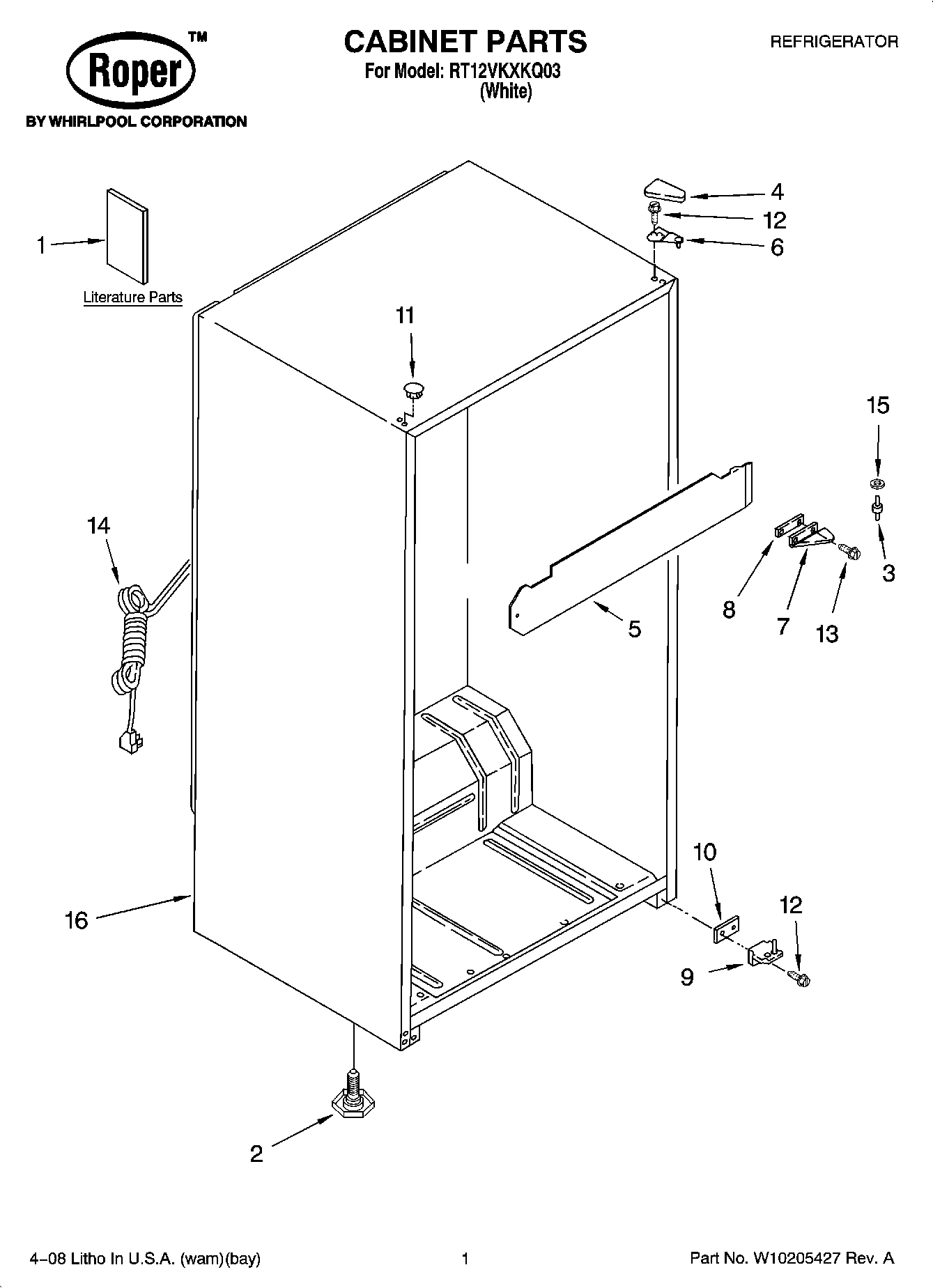

01 - CABINET PARTS

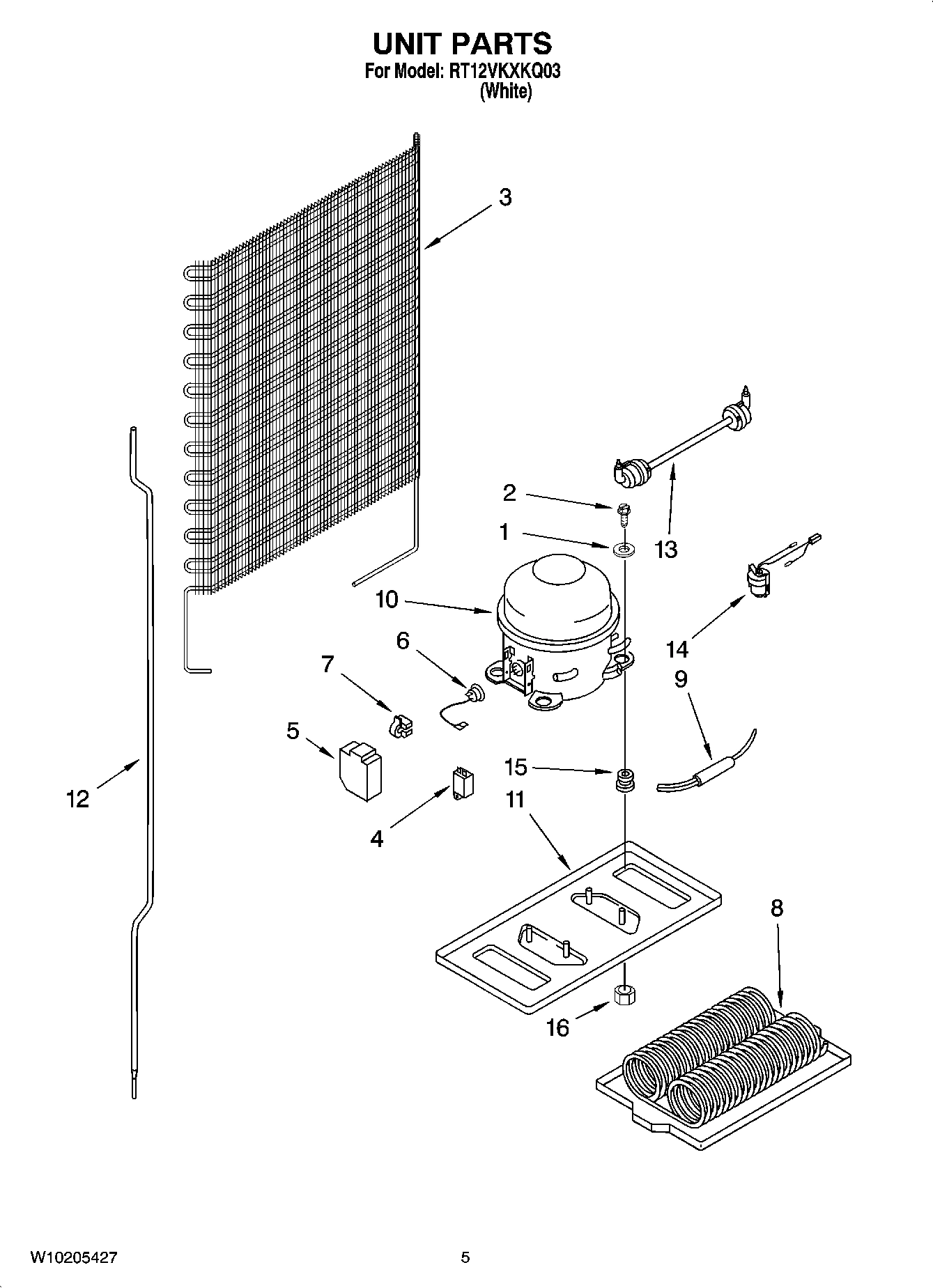

03 - UNIT PARTS
04 - DOOR PARTS
05 - SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)
02 - LINER PARTS
Common parts from model Whirlpool RT12VKXKQ03 REFRIGERATOR
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
Customer Touch-Up Material WPL ARI124861A Contact Us For Availability
Important: The spray paint is not to be used WPL ARI124862A Contact Us For Availability
REFINISHING MATERIAL WPL ARI124863A Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4390736 Contact Us For Availability
1
Shelf, Wire (2) WPL 4390728 Contact Us For Availability
1
Bottom, Compartment Separator WPL 8210214 Contact Us For Availability
2
Cover, Crisper WPL 4390472 Contact Us For Availability
2
Box, Control WPL 4390536 Contact Us For Availability
3
Condenser WPL 4390647 Contact Us For Availability
3
Handle Kit (White) WPL 4390641 Contact Us For Availability
3
Trim, Shelf (2) WPL 4390729 Contact Us For Availability
4
Timer, Defrost WPL 4390515 Contact Us For Availability
4
Hinge Cover (White) WPL 4357279 Contact Us For Availability
4
Capacitor WPL 8210284 Contact Us For Availability
4
Anchor, Screw WPL 4356306 Contact Us For Availability
4
Pan, Crisper WPL 4390471 Contact Us For Availability
5
Door Gasket, Magnetic (White) WPL 4390727 Contact Us For Availability
5
Liner (Not A Servicable Part) WPL ARI124859A Contact Us For Availability
6
Socket, Light WPL 4390644 Contact Us For Availability
7
Relay WPL 4356738 Contact Us For Availability
7
Interior Door Panel (Refrigerator) WPL 4390726 Contact Us For Availability
8
Evaporator WPL 4390936 Contact Us For Availability
8
Trim, Door Shelf WPL 8210216 Contact Us For Availability
8
Plug, Evaporator WPL 4390457 Contact Us For Availability
9
Thermostat WPL 4390730 Contact Us For Availability
9
Freezer Door Panel (White) WPL 4390737 Contact Us For Availability
10
Trim, Door Shelf WPL 8210215 Contact Us For Availability
10
Knob, Thermostat WPL 4390480 Contact Us For Availability
11
Door Gasket, Magnetic (White Model) WPL 4390724 Contact Us For Availability
11
Unit Mounting Plate WPL 8210219 Contact Us For Availability
11
Insert WPL W10204283 Contact Us For Availability
12
Exchanger, Heat WPL 4390721 Contact Us For Availability
12
Interior Door Panel (Freezer) WPL 4390725 Contact Us For Availability
12
Insulation WPL 4390477 Contact Us For Availability
13
Heater, Defrost WPL 4390940 Contact Us For Availability
13
Nameplate (White) WPL 4390739 Contact Us For Availability
14
Bi-Metal, Defrost WPL 8210213 Contact Us For Availability
14
Bracket, Door Stop WPL 4390738 Contact Us For Availability
14
Drain Cup WPL 4390483 Contact Us For Availability
15
Grommet WPL 4356335 Contact Us For Availability
15
Compartment Door WPL 4390578 Contact Us For Availability
15
Elbow, Drain WPL 4390484 Contact Us For Availability
16
Nut WPL 4390590 Contact Us For Availability
16
REFRIGERANT CHARGE 3.0 oz. (R-134A) WPL ARI124860A Contact Us For Availability
16
Drain Tube WPL 4390537 Contact Us For Availability
17
Plate, Defrost Timer WPL 4390514 Contact Us For Availability
18
Cover, Evaporator Housing WPL 4390517 Contact Us For Availability
19
Insulation, Compartment WPL 4390722 Contact Us For Availability
20
Separator, Compartment (Top) WPL 4390720 Contact Us For Availability
21
Bracket, Motor WPL 4390452 Contact Us For Availability
22
Motor, Fan WPL 4390451 Contact Us For Availability
23
Blade, Fan WPL 4390518 Contact Us For Availability
24
Scroll, Fan WPL 4390519 Contact Us For Availability
× ![]()
