Model Whirlpool RT12VKXKQ01 REFRIGERATOR – Common Parts & Diagrams
04 - DOOR PARTS
03 - UNIT PARTS

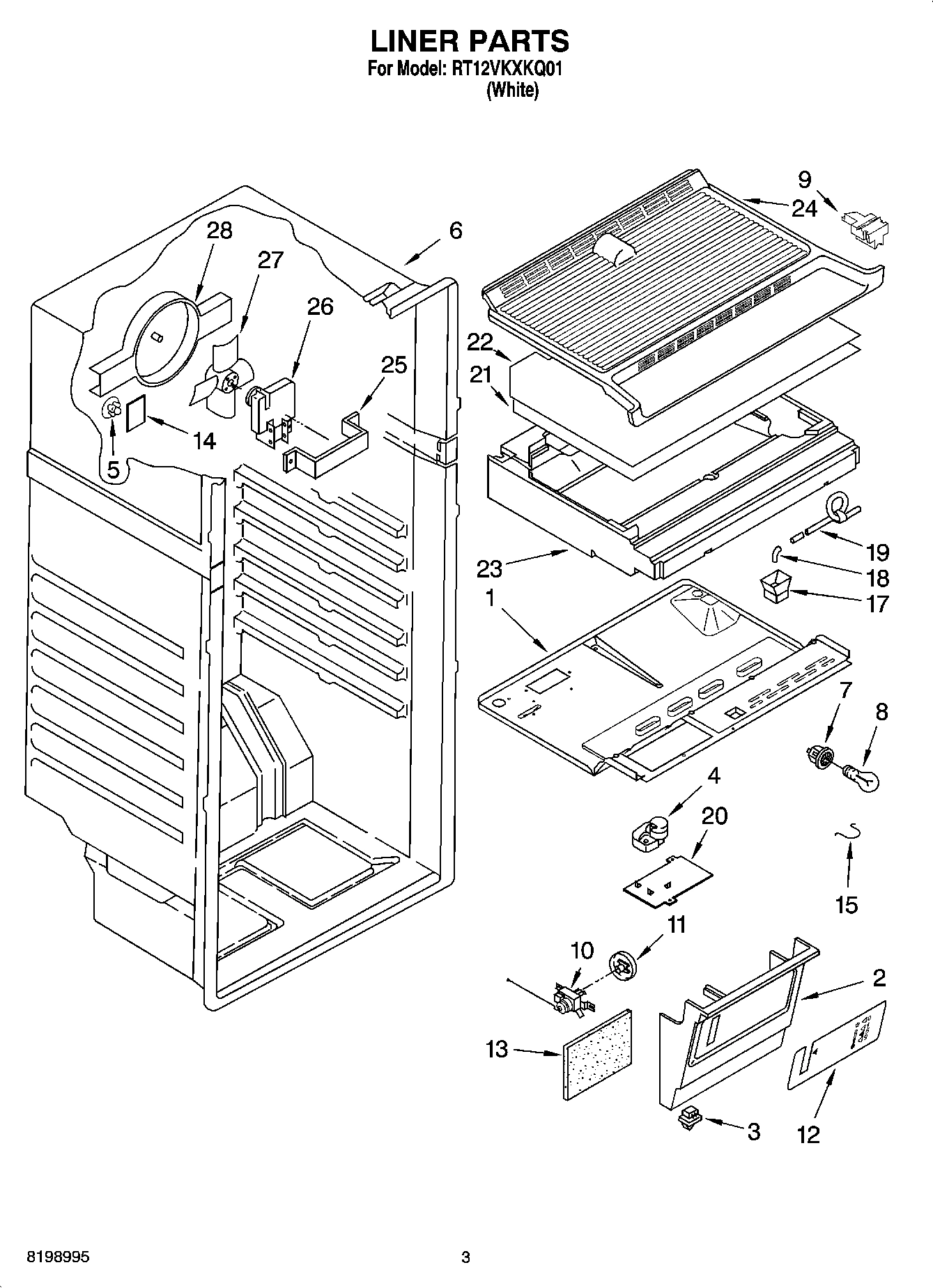

02 - LINER PARTS

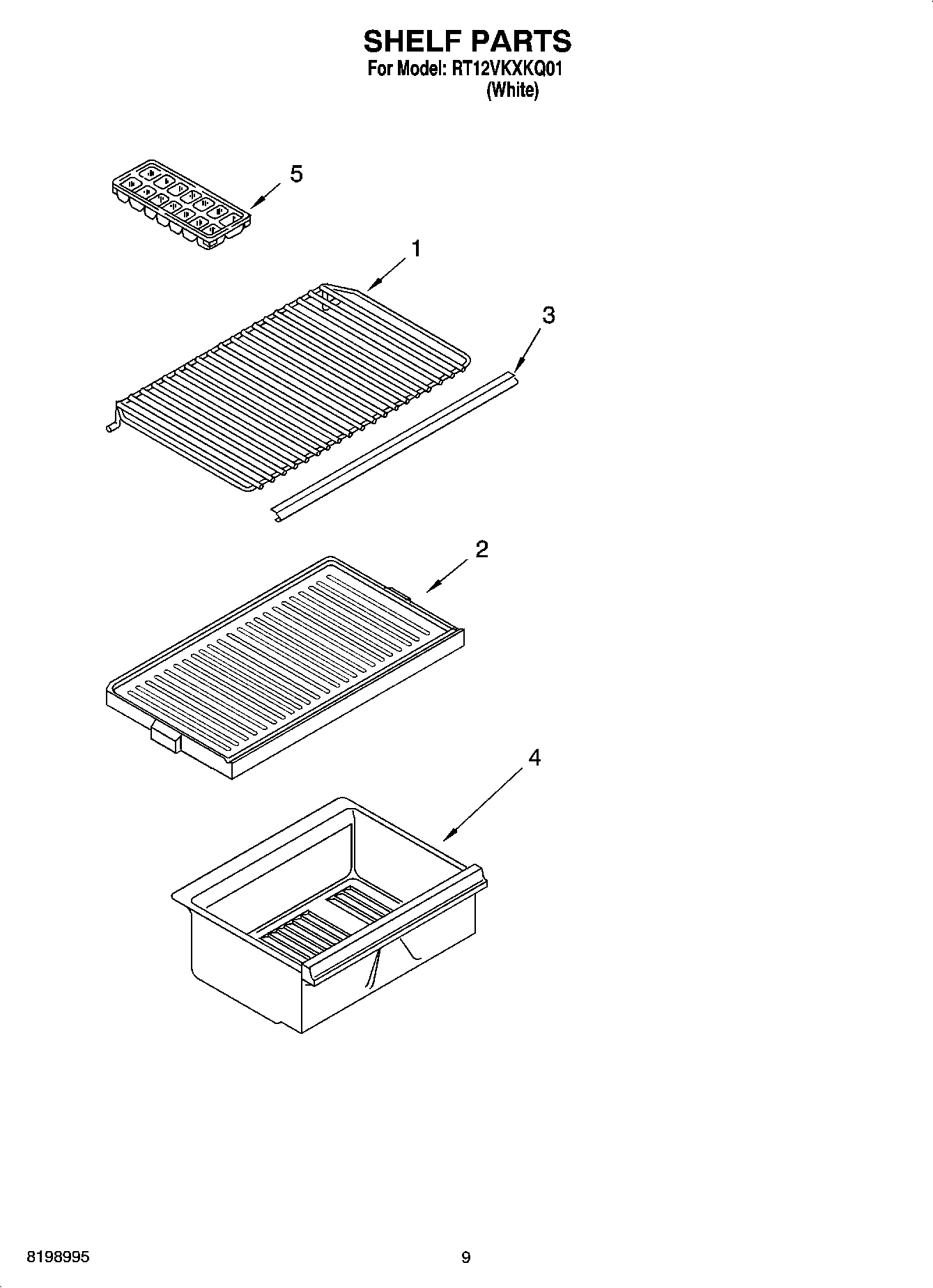

05 - SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)

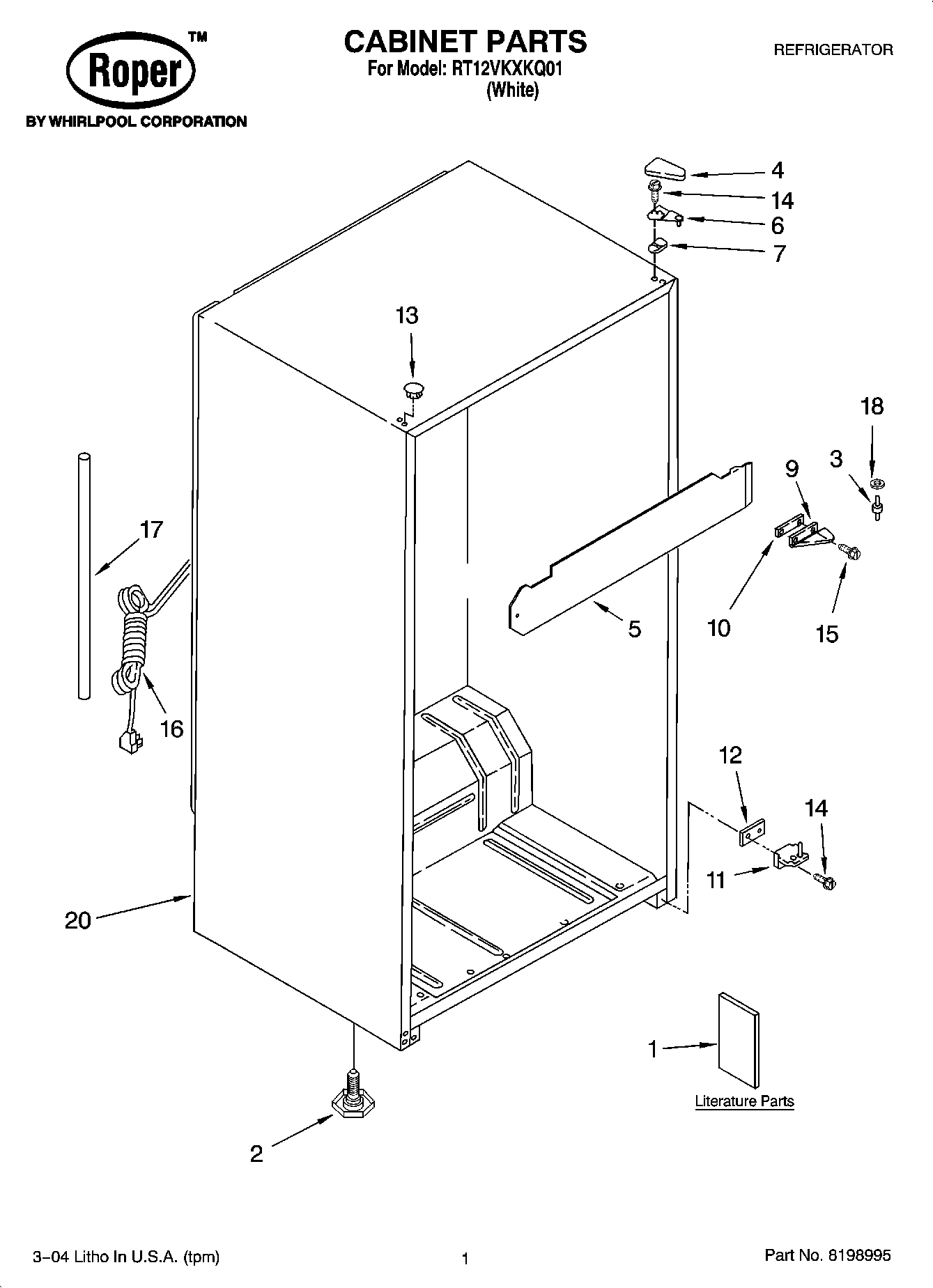

01 - CABINET PARTS
Common parts from model Whirlpool RT12VKXKQ01 REFRIGERATOR
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
Customer Touch-Up Material WPL ARI124849A Contact Us For Availability
REFINISHING MATERIAL WPL ARI124850A Contact Us For Availability
FIELD INSTALLABLE ICE MAKER WPL ARI124851A Contact Us For Availability
1
Bottom, Compartment Separator WPL 4390458 Contact Us For Availability
1
Shelf, Wire (2) WPL 4390728 Contact Us For Availability
1
Literature Parts (Owner`s Manual) WPL LIT4390593 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT4390740 Contact Us For Availability
2
Box, Control WPL 4390536 Contact Us For Availability
2
Cover, Crisper WPL 4390472 Contact Us For Availability
3
Condenser WPL 4390647 Contact Us For Availability
3
Trim, Shelf (2) WPL 4390729 Contact Us For Availability
3
Pin, Center Hinge WPL 4390544 Contact Us For Availability
4
Timer, Defrost WPL 4390515 Contact Us For Availability
4
Pan, Crisper WPL 4390471 Contact Us For Availability
5
Center Rail WPL 4390723 Contact Us For Availability
6
Liner (Not A Servicable Part) WPL ARI124847A Contact Us For Availability
6
Hinge, Top (White) WPL 4390673 Contact Us For Availability
7
Socket, Light WPL 4390644 Contact Us For Availability
8
Relay WPL 4356738 Contact Us For Availability
8
Door Gasket, Magnetic (White) WPL 4390727 Contact Us For Availability
9
Evaporator WPL 4390936 Contact Us For Availability
9
Plug, Evaporator WPL 4390457 Contact Us For Availability
9
Center Hinge (White) WPL 4390732 Contact Us For Availability
10
Thermostat WPL 4390730 Contact Us For Availability
10
Shim, Center Hinge WPL 4390646 Contact Us For Availability
11
Knob, Thermostat WPL 4390480 Contact Us For Availability
11
Bottom Hinge (White) WPL 4390733 Contact Us For Availability
12
Unit Mounting Plate WPL 4390735 Contact Us For Availability
12
Insert WPL 4390476 Contact Us For Availability
12
Shim, Bottom Hinge WPL 4390497 Contact Us For Availability
13
Exchanger, Heat WPL 4390721 Contact Us For Availability
13
Insulation WPL 4390477 Contact Us For Availability
13
Hole Plug (White) WPL 4390836 Contact Us For Availability
14
Heater, Defrost WPL 4390940 Contact Us For Availability
15
Bi-Metal, Defrost WPL 4390584 Contact Us For Availability
15
Clip WPL 4390481 Contact Us For Availability
16
Door Gasket, Magnetic (White Model) WPL 4390724 Contact Us For Availability
16
Grommet WPL 4356335 Contact Us For Availability
16
Cord, Service WPL 4390591 Contact Us For Availability
17
Nut WPL 4390590 Contact Us For Availability
17
Drain Cup WPL 4390483 Contact Us For Availability
17
Tube Insulation, Heat Exchanger WPL 4390648 Contact Us For Availability
18
REFRIGERANT CHARGE 3.0 oz. (R-134A) WPL ARI124848A Contact Us For Availability
18
Elbow, Drain WPL 4390484 Contact Us For Availability
18
Washer, Door Adjust WPL 4390623 Contact Us For Availability
19
Drain Tube WPL 4390537 Contact Us For Availability
20
Plate, Defrost Timer WPL 4390514 Contact Us For Availability
20
Cabinet (Not A Serviceable Part) WPL ARI124846A Contact Us For Availability
21
Shield, Heater (Aluminum) WPL 4390556 Contact Us For Availability
22
Cover, Evaporator Housing WPL 4390517 Contact Us For Availability
23
Insulation, Compartment WPL 4390722 Contact Us For Availability
24
Separator, Compartment (Top) WPL 4390720 Contact Us For Availability
25
Bracket, Motor WPL 4390452 Contact Us For Availability
26
Motor, Fan WPL 4390451 Contact Us For Availability
27
Blade, Fan WPL 4390518 Contact Us For Availability
28
Scroll, Fan WPL 4390519 Contact Us For Availability
× ![]()
