Model Whirlpool RT12DKXEL00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - DOOR, LIT/OPTIONAL
06 - SHELF

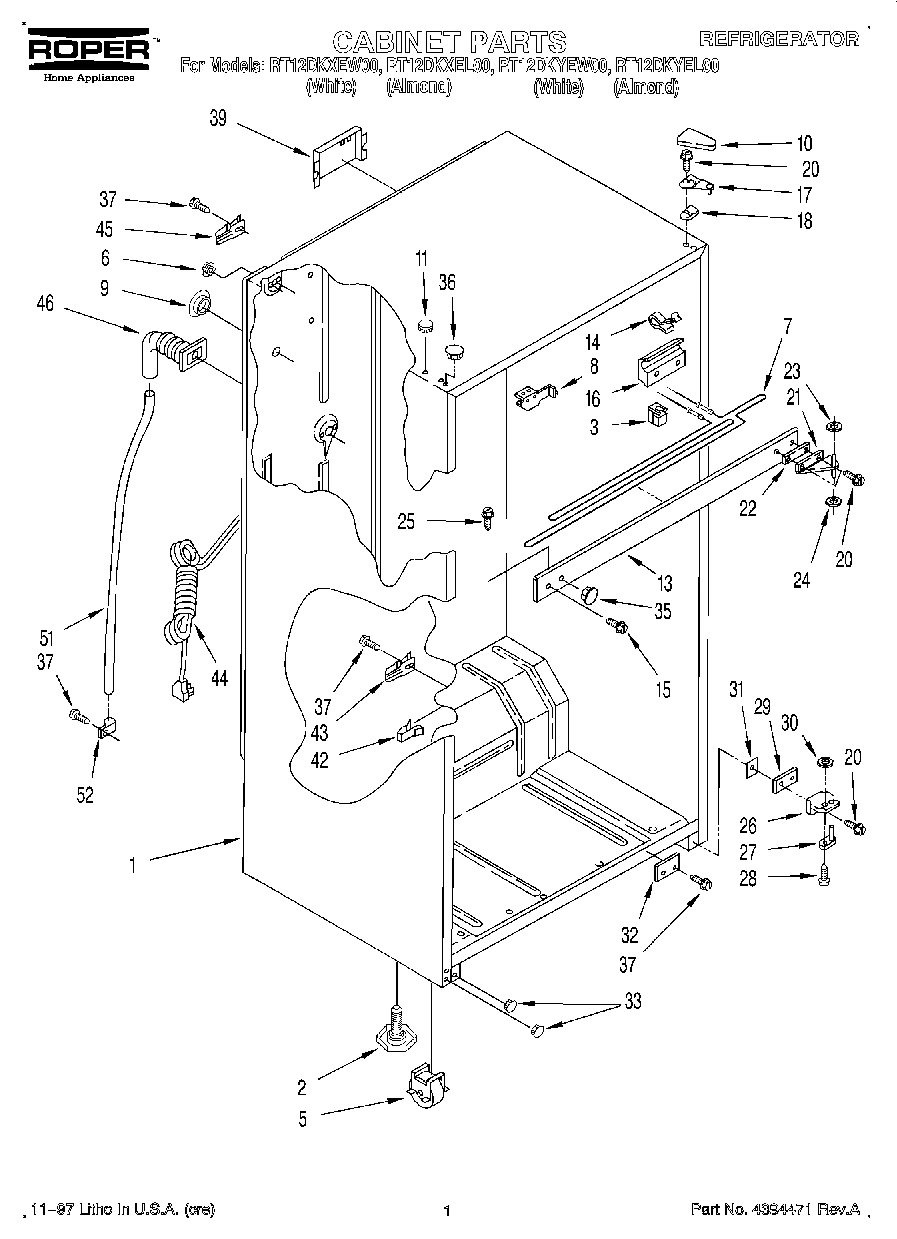

01 - CABINET

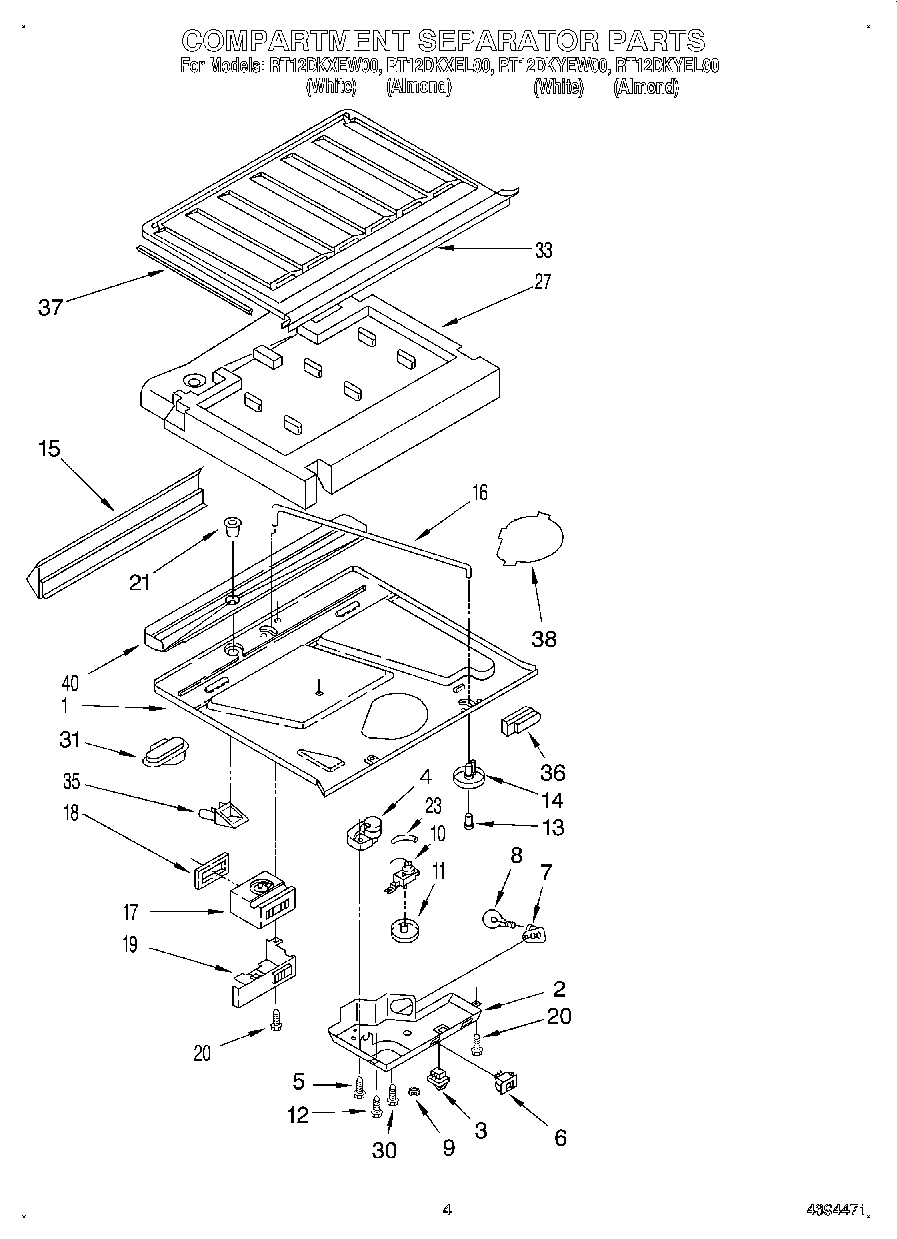

03 - COMPARTMENT SEPARATOR

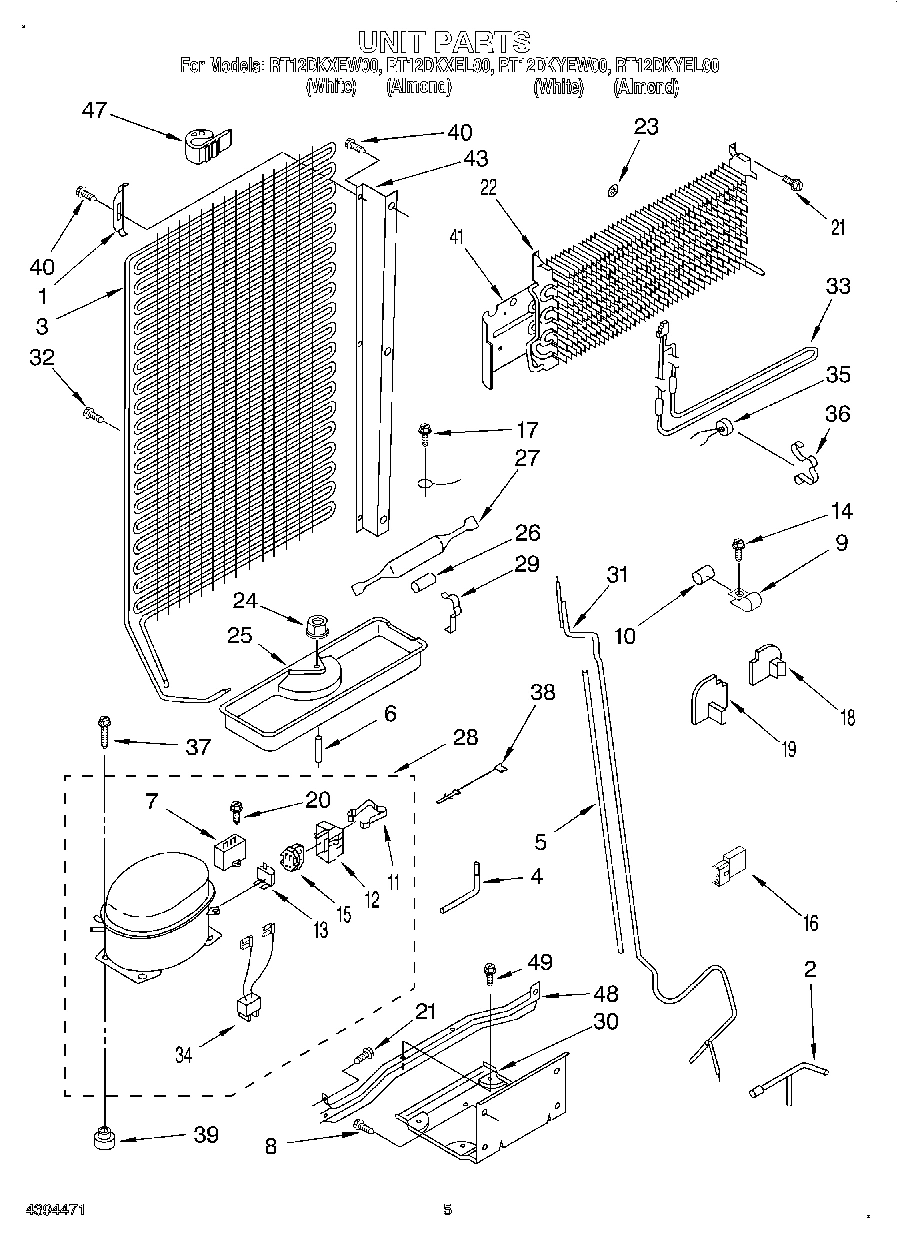

04 - UNIT

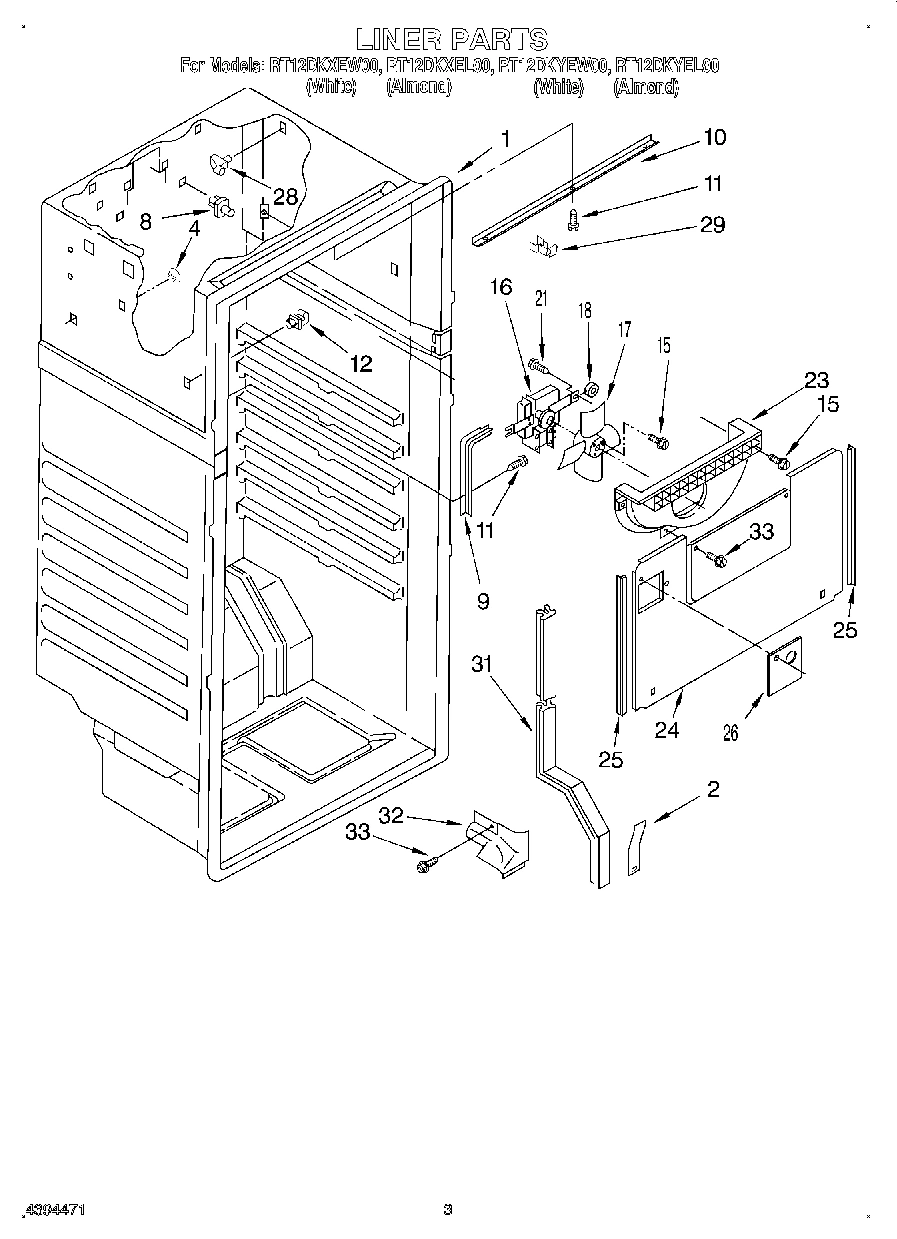

02 - LINER
Common parts from model Whirlpool RT12DKXEL00 TOP MOUNT REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI124782A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1114546 Contact Us For Availability
1
Bracket WPL 2150664 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124783A Contact Us For Availability
2
Box, Control WPL 2178972 Contact Us For Availability
2
Tube Extension Assembly WPL 2178220 Contact Us For Availability
2
Cover, Air Duct WPL 2178976 Contact Us For Availability
3
Spacer WPL 1116484 Contact Us For Availability
3
Condenser Assembly WPL 2178217 Contact Us For Availability
4
Process Tube WPL 2178206 Contact Us For Availability
5
Roller WPL 2152014 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Bumper WPL 845287 Contact Us For Availability
7
Heater, Mullion WPL 2178952 Contact Us For Availability
7
Running Capacitor WPL 2169137 Contact Us For Availability
8
Center Rail, Bracket WPL 2178822 Contact Us For Availability
8
Stud, Evaporator WPL 1108519 Contact Us For Availability
9
Hole Plug WPL 655411 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
9
Air Deflector Side WPL 2150905 Contact Us For Availability
10
Dampener WPL 510769 Contact Us For Availability
10
Air Deflector Top WPL 2150906 Contact Us For Availability
11
Knob, Thermostat WPL 937144 Contact Us For Availability
11
Retainer (Service Only) WPL 938384 Contact Us For Availability
11
Screw, 8-32 WPL 2151280 Contact Us For Availability
12
Stud Hook WPL 939065 Contact Us For Availability
12
Cover, Terminal (Service) WPL 1108115 Contact Us For Availability
13
Center Rail WPL 944868 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
14
Breaker, Trim Clip WPL 1114428 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
15
Screw WPL VS9993 Contact Us For Availability
15
Gasket, Bottom Seperator WPL 2151233 Contact Us For Availability
15
Relay (See Overload) WPL ARI124784A Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
16
Rod, Connecting WPL 1111270 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Air Diffuser Assembly WPL 935721 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Side Block, Right Evaporator WPL 2150558 Contact Us For Availability
18
Grommet WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108522 Contact Us For Availability
19
Side Block, Left Evaporator WPL 2150946 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
21
Spacer, Handle WPL 943188 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Separator, Drain Insert WPL 937359 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 2178222 Contact Us For Availability
23
Retainer, Evaporator WPL 1108520 Contact Us For Availability
23
Scroll, Fan WPL 2178956 Contact Us For Availability
24
Evaporator Cover WPL 1108509 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
25
Gasket WPL 2179021 Contact Us For Availability
26
Shim WPL 943187 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment WPL 1114430 Contact Us For Availability
28
Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw (Bottom L.H.) WPL 488714 Contact Us For Availability
28
Support, Stud WPL 939203 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Clip, Ground WPL 1108523 Contact Us For Availability
30
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Tap Plate WPL 2183198 Contact Us For Availability
31
Tap Plate WPL 935743 Contact Us For Availability
31
Hood, Air Return WPL 1108521 Contact Us For Availability
31
Exchanger, Heat WPL 2172172 Contact Us For Availability
31
Cover Tube, Rear WPL 1110678 Contact Us For Availability
32
Rail, Cover (White) WPL 935707 Contact Us For Availability
32
Rail, Cover (Almond) WPL 935711 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
33
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
33
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1128228 Contact Us For Availability
33
Heater, Defrost WPL 2151192 Contact Us For Availability
34
WPL 876029 WPL 876029 Contact Us For Availability
34
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
34
WPL 799344 WPL 799344 Contact Us For Availability
35
Hole Plug WPL 1119707 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Bi-Metal, Defrost WPL 2151193 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Rear Corner, Block WPL 939056 Contact Us For Availability
36
Clamp WPL 1110548 Contact Us For Availability
37
Gasket WPL 1114468 Contact Us For Availability
38
Heat Shield WPL 937227 Contact Us For Availability
38
Overload Wiring (White) WPL 1101124 Contact Us For Availability
38
Overload Wiring (Red) WPL 1101125 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
40
Drain Pan WPL 1108512 Contact Us For Availability
41
Heat Shield, Evaporator WPL 1108486 Contact Us For Availability
43
Channel, Condenser (Right) WPL 2150553 Contact Us For Availability
43
Channel, Condenser (Left) WPL 2150554 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 2150543 Contact Us For Availability
47
Bumper (2) WPL 2150954 Contact Us For Availability
48
Unit Mounting Rail WPL 945449 Contact Us For Availability
49
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
