Model Electrolux RT123GLDA REFRIGERATOR – Common Parts & Diagrams

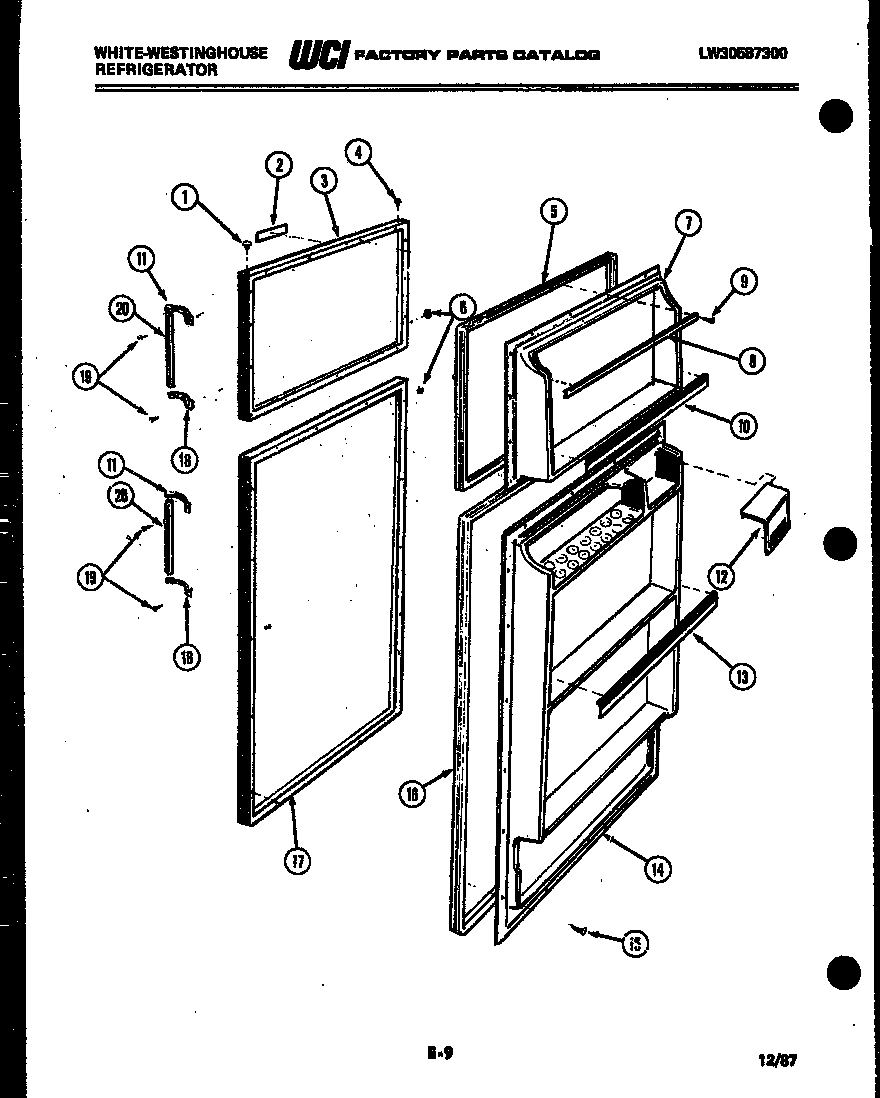

02 - DOOR PARTS

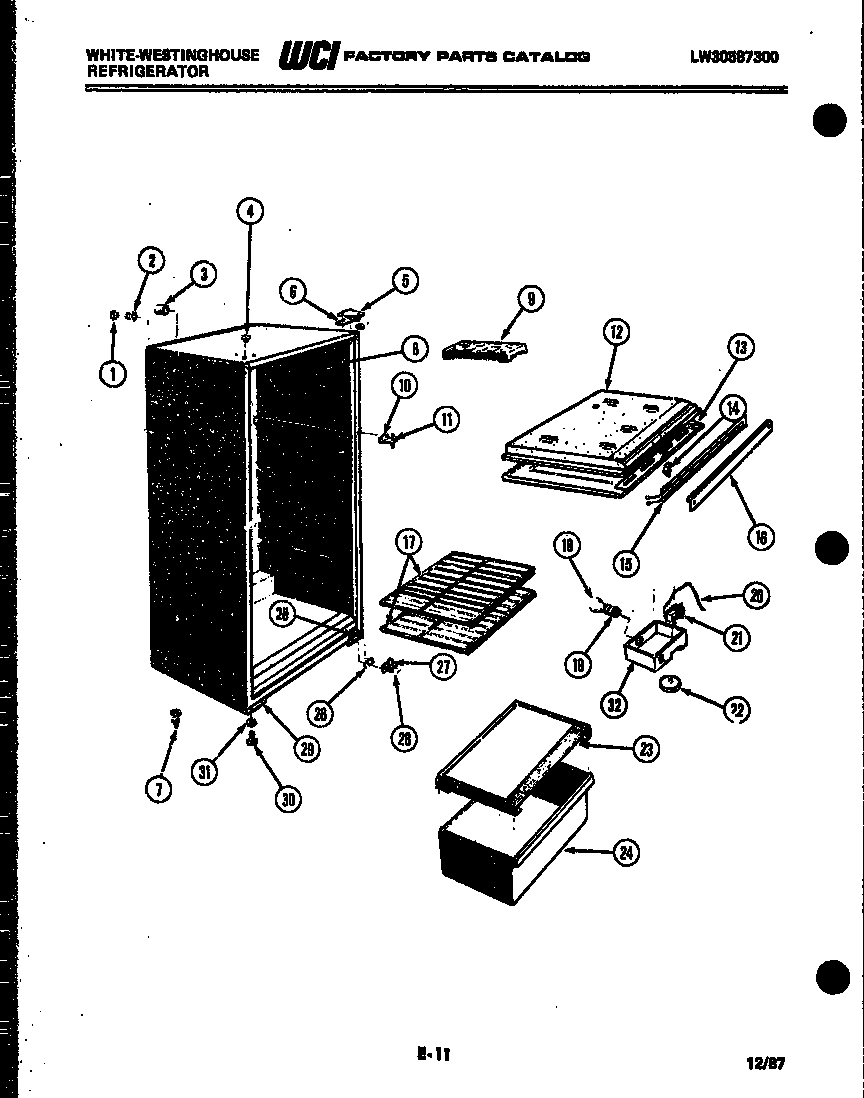

03 - CABINET PARTS

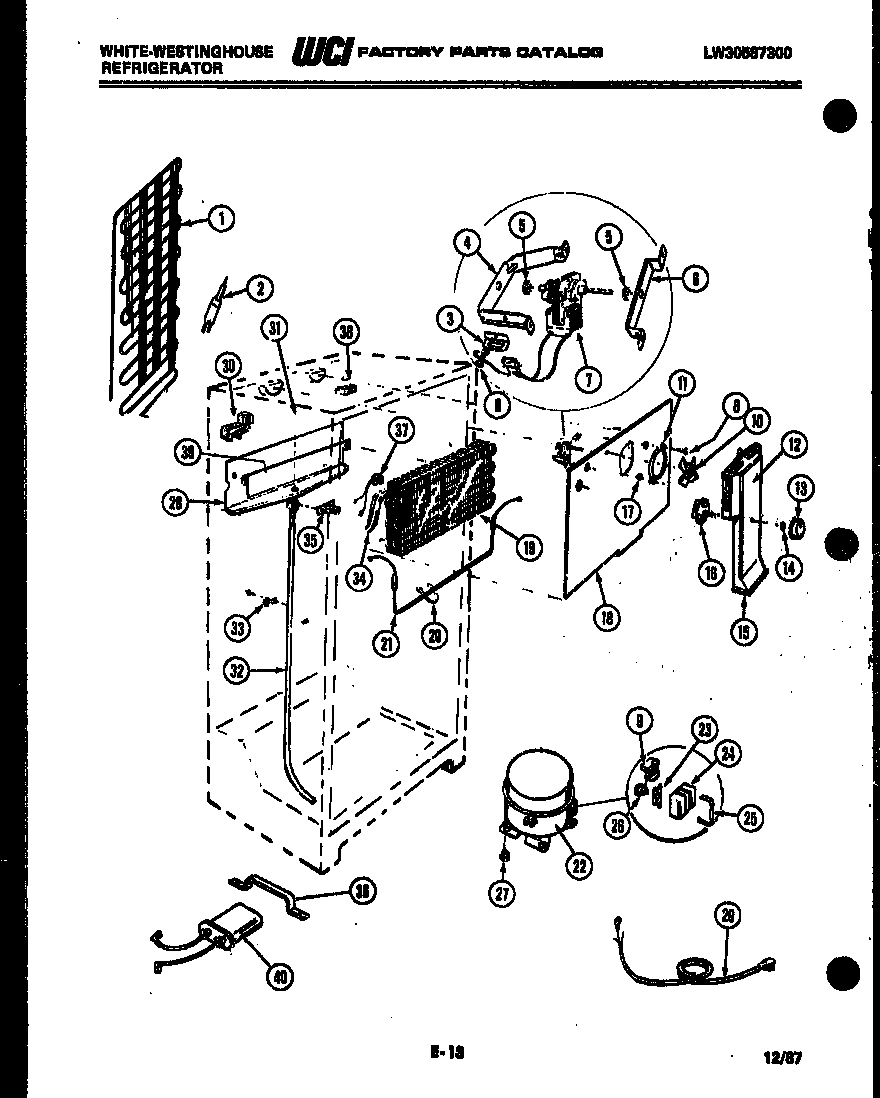

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT123GLDA REFRIGERATOR
1
WCI G174733 WCI G174733 Contact Us For Availability
1
WCI G164924 WCI G164924 Contact Us For Availability
2
WCI R304001 WCI R304001 Contact Us For Availability
2
WCI G174734 WCI G174734 Contact Us For Availability
3
PANEL-EXT FRZR ALMD WCI G177299-11 Contact Us For Availability
3
TUBE, RUBBER WCI G85642 Contact Us For Availability
3
BRACKET WCI G164571 Contact Us For Availability
4
BEARING HINGE (8) WCI G183138 Contact Us For Availability
4
WCI G174747-11 WCI G174747-11 Contact Us For Availability
4
BRACKET-MTR REAR WCI G185303 Contact Us For Availability
5
GASKET-FREEZER WCI G186932-05 Contact Us For Availability
5
BRACKET-UPR HINGE WCI G183714 Contact Us For Availability
6
WCI G162977-11 WCI G162977-11 Contact Us For Availability
6
SHIM, UPPER HINGE WCI G183861 Contact Us For Availability
6
BRKT-MTR FRNT WCI G185302 Contact Us For Availability
6A
WCI G103903 No Longer Available
6A
WASHER-NYLON (2) (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
7
PANEL-INNER FRZR WCI G180238-01 Contact Us For Availability
8
WCI G166151-03 WCI G166151-03 Contact Us For Availability
8
TRIM-CABINET ALM (4) WCI G162364-11 Contact Us For Availability
9
WCI G182225-18 WCI G182225-18 Contact Us For Availability
10
WCI G163316-65 WCI G163316-65 Contact Us For Availability
10
BRACKET-CTR HINGE WCI G163207 Contact Us For Availability
11
END-HANDLE TOP (2) WCI G175809 Contact Us For Availability
11
WCI G142220 WCI G142220 Contact Us For Availability
11
RING-ORIFICE WCI G167217 Contact Us For Availability
12
WCI G161776-33 WCI G161776-33 Contact Us For Availability
12
DIVIDER WCI G163219 Contact Us For Availability
12
WCI 3016523 WCI 3016523 Contact Us For Availability
13
RACK-REF DOOR (2) WCI G163316-66 Contact Us For Availability
13
TOP-REFRIGERATOR WCI 3015448 Contact Us For Availability
13
KNOB DAMPER WCI G162663-15 Contact Us For Availability
14
PANEL-INNER REF WCI G180236-01 Contact Us For Availability
14
CLIP WCI G162662 Contact Us For Availability
15
WCI G187921 WCI G187921 Contact Us For Availability
15
WCI 3016524 WCI 3016524 Contact Us For Availability
16
GASKET-REFRIGERATOR WCI G186932-04 Contact Us For Availability
16
MULLION-ALMD WCI G174520-11 Contact Us For Availability
16
DAMPER WCI G162661 Contact Us For Availability
16A
STRAP-MULLION (NON-ILLUSTRATED) WCI G166709 Contact Us For Availability
16B
WCI G166848 WCI G166848 Contact Us For Availability
17
PANEL-EXT REF ALMD WCI G177296-11 Contact Us For Availability
17
SHELF-SLIDING (2) WCI G172173-01 Contact Us For Availability
17
NUT-SPEED (2) WCI G167542 Contact Us For Availability
18
END-HANDLE BTM (2) WCI G175810 Contact Us For Availability
18
COVER-COIL WCI G163214 Contact Us For Availability
19
WCI G185566 WCI G185566 Contact Us For Availability
19
SOCKET LIGHT WCI G168302 Contact Us For Availability
19
EVAPORATOR WCI G162297 Contact Us For Availability
20
HANDLE-DOOR (2) WCI G175666-10 Contact Us For Availability
21
CONTROL-TEMP. WCI G162205-12 Contact Us For Availability
21
WCI G162432-02 WCI G162432-02 Contact Us For Availability
22
KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability
22
COMPRESSOR WCI G190360 Contact Us For Availability
22A
WCI G180105 WCI G180105 Contact Us For Availability
23
WCI G162957-02 WCI G162957-02 Contact Us For Availability
23
RETAINER WCI G188957 Contact Us For Availability
24
WCI G162973-34 WCI G162973-34 Contact Us For Availability
25
PLATE, TAPPING ( 2 ) WCI G179797 Contact Us For Availability
26
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
26
WCI G188877 WCI G188877 Contact Us For Availability
28
BRACKET-LWR HINGE WCI G181019 Contact Us For Availability
28
TROUGH-DRAIN WCI G163216 Contact Us For Availability
29
BUTTON-PLUG WCI G166912 Contact Us For Availability
29
WCI G162549-01 WCI G162549-01 Contact Us For Availability
30
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
30
BLOCK-EVAP LH WCI G188375 Contact Us For Availability
31
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
31
WCI G101620 WCI G101620 Contact Us For Availability
31A
SWITCH-SLIDE (NON-ILLUSTRATED) WCI G178402-01 Contact Us For Availability
32
TUBE-DRAIN WCI G163205 Contact Us For Availability
32
WCI G176722-01 WCI G176722-01 Contact Us For Availability
34
WCI G149013 WCI G149013 Contact Us For Availability
35
CUP WCI G162179 Contact Us For Availability
36
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
38
BLOCK-EVAP R.H. WCI G185276 Contact Us For Availability
38A
HEAT EXCH REP KIT (NON-ILLUSTRATED) WCI G189377 Contact Us For Availability
39
WCI G169024-01 WCI G169024-01 Contact Us For Availability
40
CAPACITOR WCI G188885-01 Contact Us For Availability
× ![]()
