Model Electrolux RT120LCV0 REFRIGERATOR – Common Parts & Diagrams

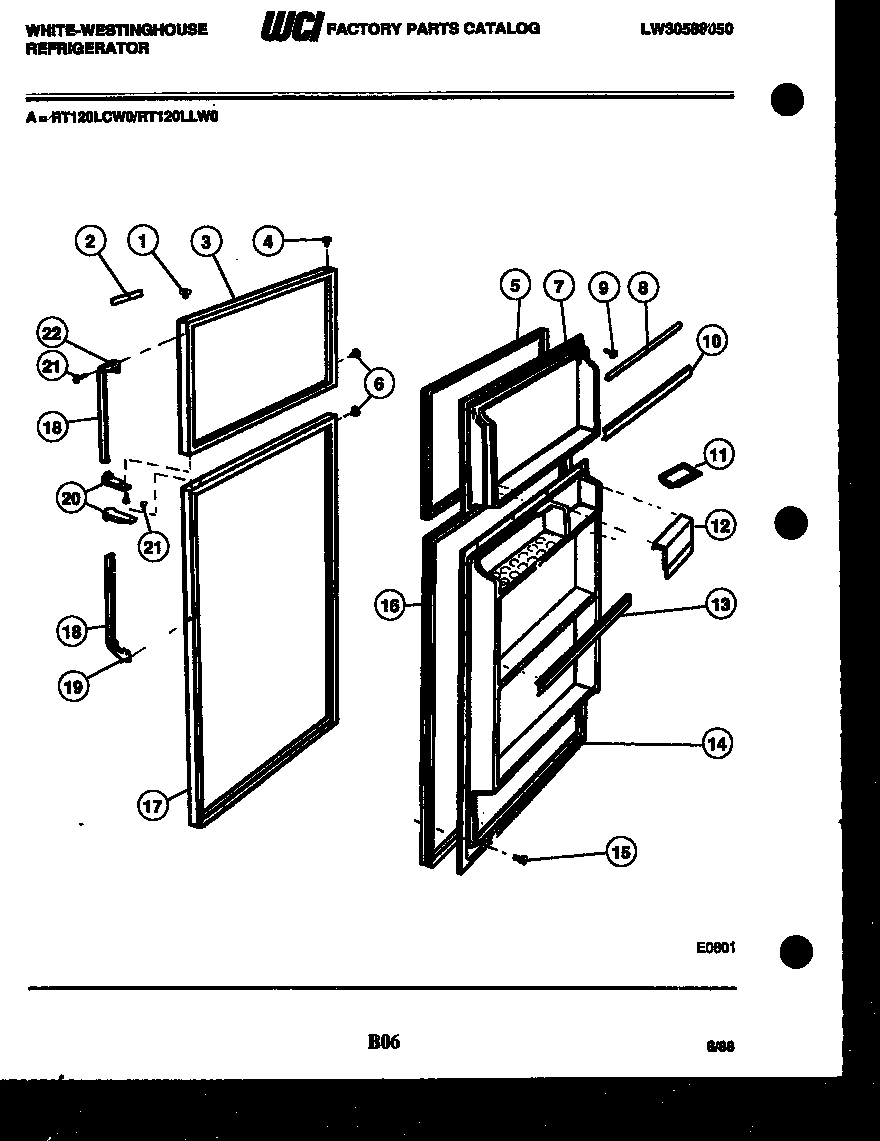

02 - DOOR PARTS

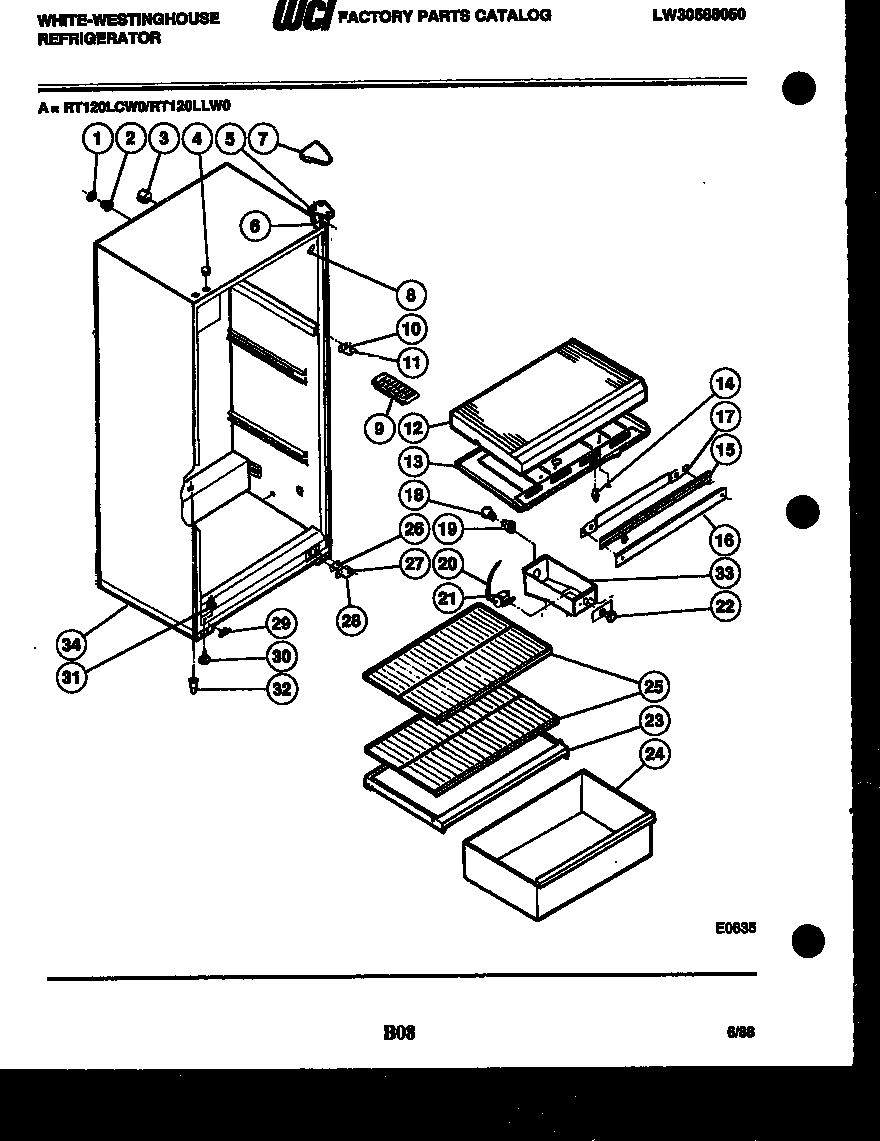

03 - CABINET PARTS

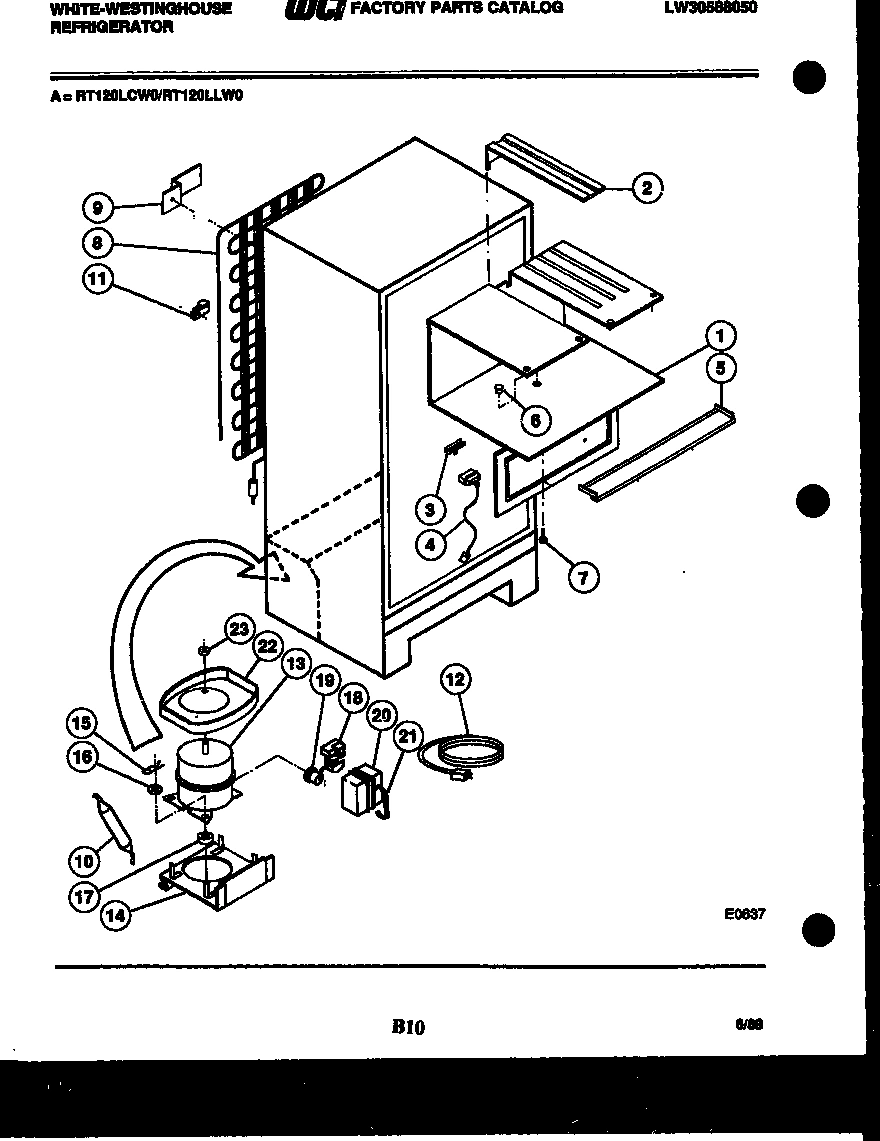

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT120LCV0 REFRIGERATOR
*14509
PLUG-REFRIGERATOR LINER (2) WCI G162892-01 Contact Us For Availability
*14512
WCI G167234 WCI G167234 Contact Us For Availability
*14513
WIRING HARNESS WCI G174793 Contact Us For Availability
*14513
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
1
WCI G174733 WCI G174733 Contact Us For Availability
1
WCI G186727 WCI G186727 Contact Us For Availability
2
WCI G177290 WCI G177290 Contact Us For Availability
2
WCI G174734 WCI G174734 Contact Us For Availability
2
WCI 189211 WCI 189211 Contact Us For Availability
3
WCI G191888-08 WCI G191888-08 Contact Us For Availability
3
TUBE, RUBBER WCI G85642 Contact Us For Availability
3
WCI G178497 WCI G178497 Contact Us For Availability
4
BEARING HINGE (8) WCI G183138 Contact Us For Availability
4
WCI G174747-08 WCI G174747-08 Contact Us For Availability
4
WCI G186467 WCI G186467 Contact Us For Availability
5
GASKET-FREEZER WCI G186932-05 Contact Us For Availability
5
WCI G183714 WCI G183714 Contact Us For Availability
5
WCI G162980-01 WCI G162980-01 Contact Us For Availability
6
WCI G162977-08 WCI G162977-08 Contact Us For Availability
6
WCI G183861 WCI G183861 Contact Us For Availability
6
WCI G164854 WCI G164854 Contact Us For Availability
7
INNER PANEL-FREEZER WCI G180238-01 Contact Us For Availability
7
HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability
7
SCREW-SPACER WCI G162673 Contact Us For Availability
8
JUICE RACK WCI G166151-03 Contact Us For Availability
8
WCI G162364-08 WCI G162364-08 Contact Us For Availability
8
WCI G164857 WCI G164857 Contact Us For Availability
9
BRACKET, CONDENSER (4) WCI G164637 Contact Us For Availability
10
DOOR RACK-FREEZER WCI G163316-65 Contact Us For Availability
10
WCI G163207 WCI G163207 Contact Us For Availability
11
WCI G142220 WCI G142220 Contact Us For Availability
11A
WASHER-HINGE PIN (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
12
BUTTER DOOR WCI G161776-33 Contact Us For Availability
12
DIVIDER WCI G163220 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
13
DOOR RACK (2) WCI G163316-66 Contact Us For Availability
13
TOP-REFRIGERATOR WCI 3016980 Contact Us For Availability
13
COMPRESSOR W/ ELEC WCI G186043 Contact Us For Availability
14
INNER PANEL-REFRIGERATOR WCI G180236-01 Contact Us For Availability
14
WCI G162822 WCI G162822 Contact Us For Availability
15
WCI G187921 WCI G187921 Contact Us For Availability
15
CLIP-MOUNTING (3) WCI G163204 Contact Us For Availability
16
GASKET-REFRIGERATOR WCI G186932-04 Contact Us For Availability
16
WASHER-MOUNTING (3) WCI G164634 Contact Us For Availability
17
WCI G191892-08 WCI G191892-08 Contact Us For Availability
17
STRAP-MULLION WCI G166709 Contact Us For Availability
17A
SCREW-MOUNTING (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
17B
WCI G166848 WCI G166848 Contact Us For Availability
17C
WASHER-STEEL (2) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
18
HANDLE GRIP (2) WCI G175666-10 Contact Us For Availability
18
WCI G182225-13 WCI G182225-13 Contact Us For Availability
19
HANDLE-END BOTTOM WCI G175810 Contact Us For Availability
19
WCI G168302 WCI G168302 Contact Us For Availability
19
WCI G187172 WCI G187172 Contact Us For Availability
20
WCI G187329-01 WCI G187329-01 Contact Us For Availability
20
WCI G185792 WCI G185792 Contact Us For Availability
21
WCI G185566 WCI G185566 Contact Us For Availability
21
WCI G162205-02 WCI G162205-02 Contact Us For Availability
21
STRAP-COVER WCI G185790 Contact Us For Availability
22
WCI G175809 WCI G175809 Contact Us For Availability
22
WCI G490107-02 WCI G490107-02 Contact Us For Availability
22
DEFROST PAN WCI G171778 Contact Us For Availability
23
COVER-PAN WCI G162957-02 Contact Us For Availability
23
LOCK NUT-PAN WCI G164958 Contact Us For Availability
24
PAN-STORAGE WCI G162973-34 Contact Us For Availability
25
SHELF-SLIDING (2) WCI G172173-01 Contact Us For Availability
26
WCI G163203 WCI G163203 Contact Us For Availability
27A
WCI G103903 No Longer Available
28
WCI G181019 WCI G181019 Contact Us For Availability
28B
TAPPING PLATE (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
29
WCI G166912 WCI G166912 Contact Us For Availability
30
LEVELING LEG (2) WCI G185713 Contact Us For Availability
31
WCI G183073 WCI G183073 Contact Us For Availability
32
WCI G163205 WCI G163205 Contact Us For Availability
33
CONTROL BOX WCI G176722-02 Contact Us For Availability
33A
WCI G180037 WCI G180037 Contact Us For Availability
34
BASE-CABINET WCI G161998-01 Contact Us For Availability
× ![]()
