Model Electrolux RT114LLH4 REFRIGERATOR – Common Parts & Diagrams

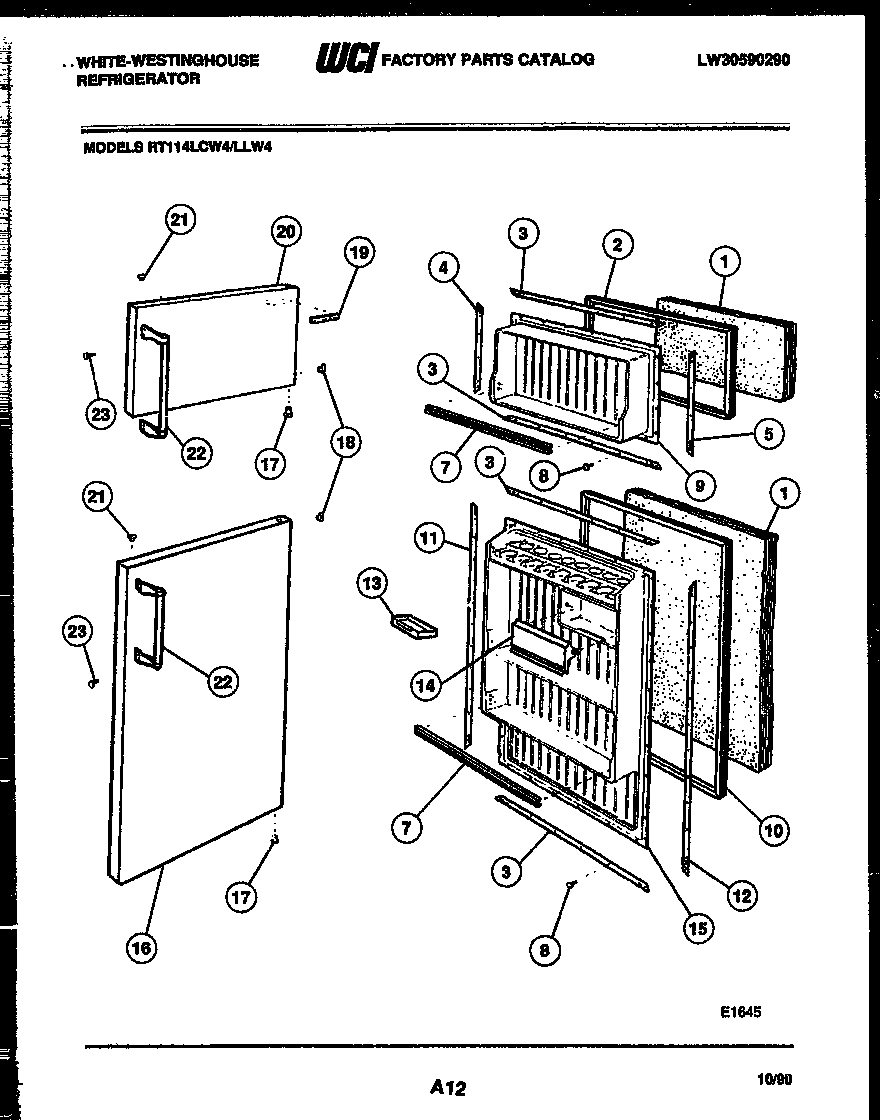

02 - DOOR PARTS

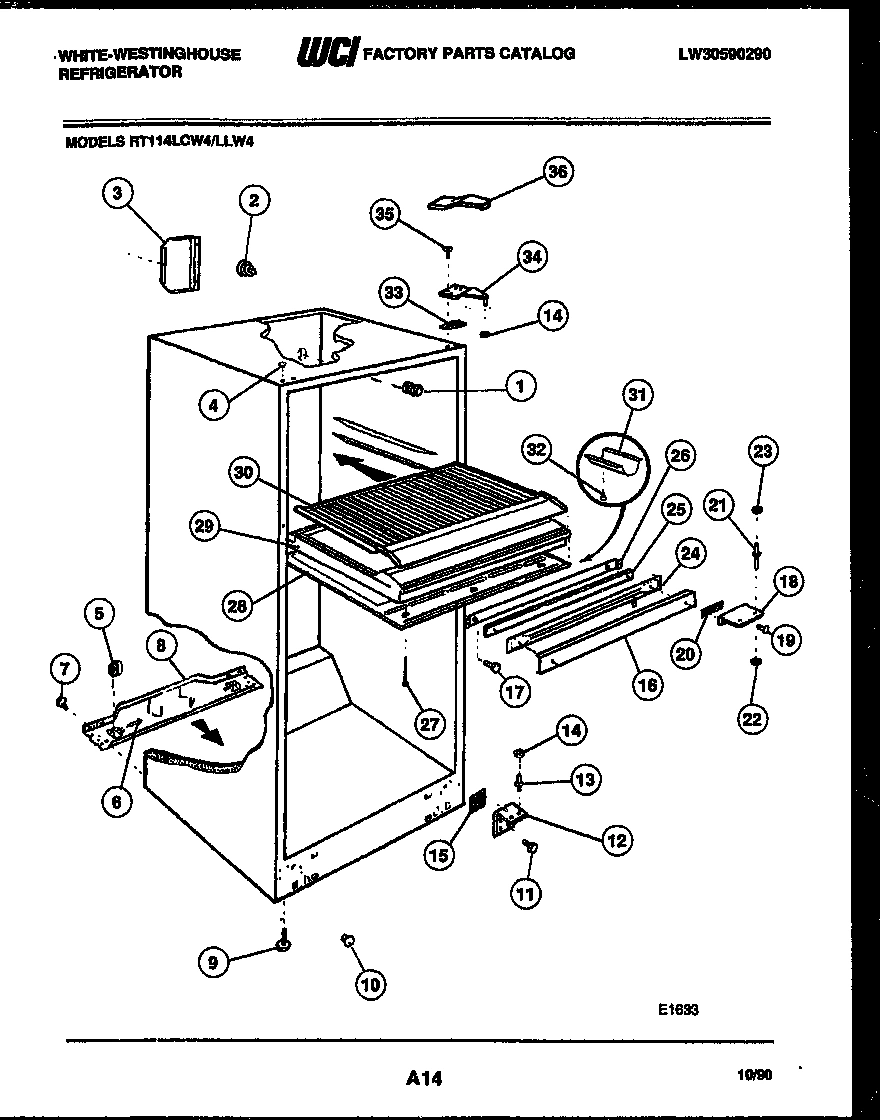

03 - CABINET PARTS

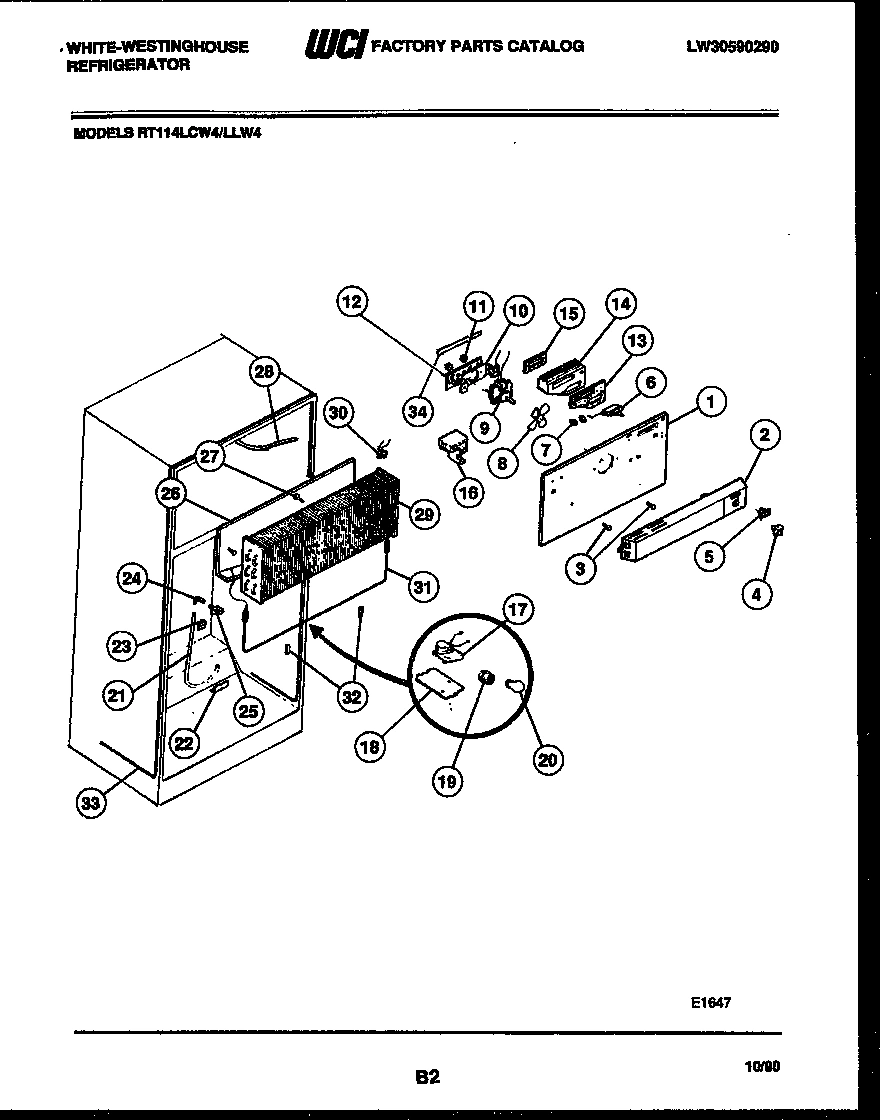

04 - INNER PARTS

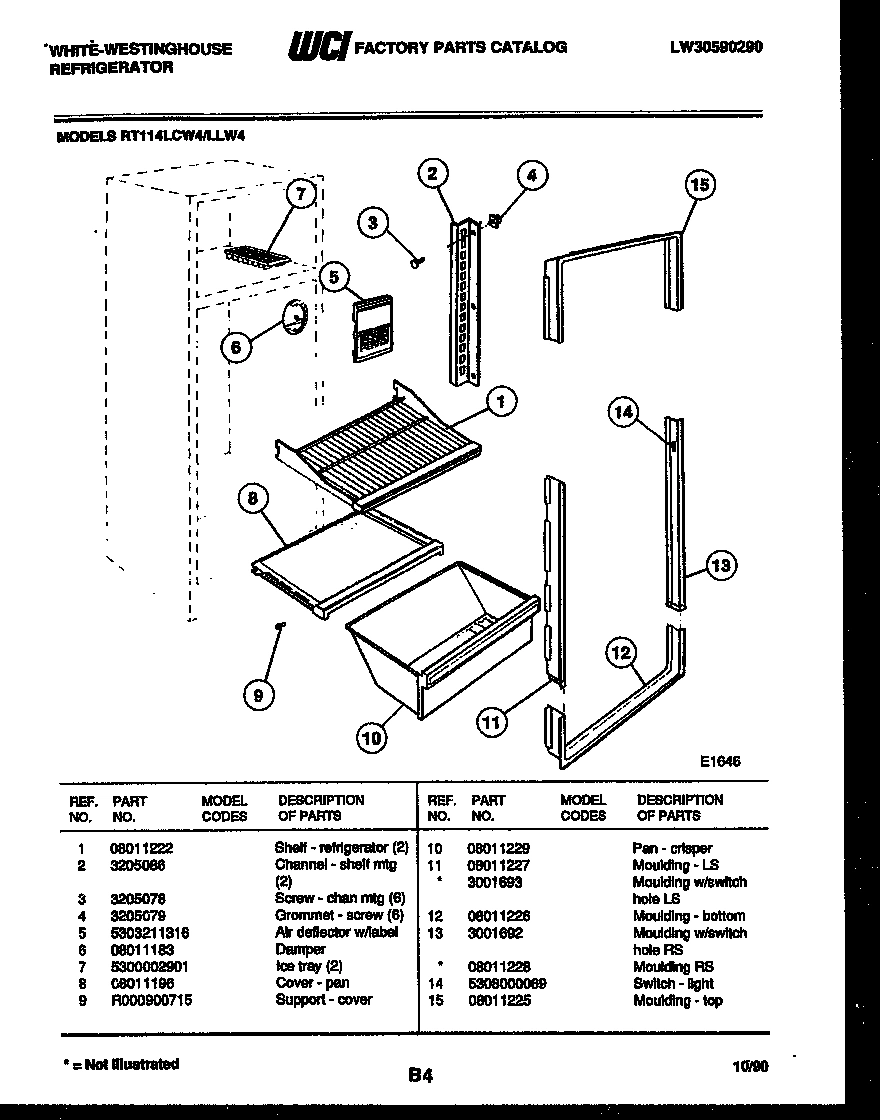

05 - SHELVES AND SUPPORTS

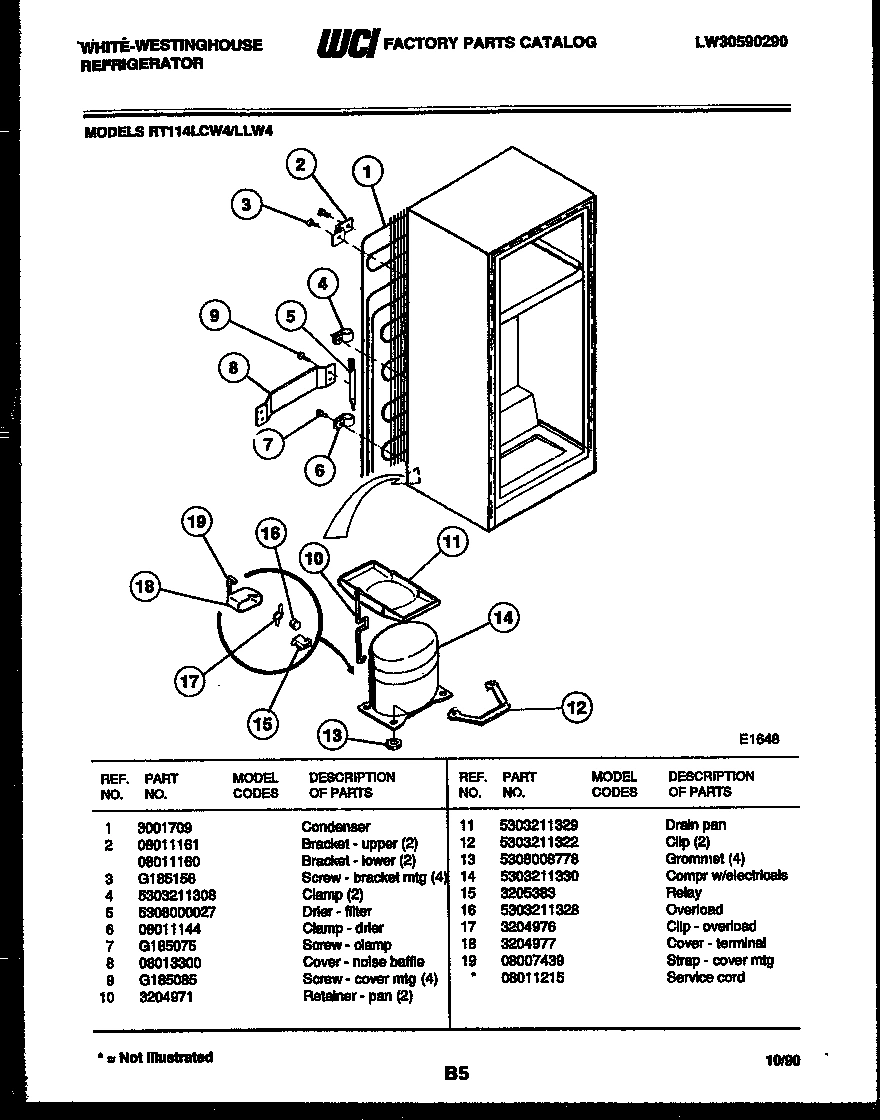

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT114LLH4 REFRIGERATOR
*37751
WCI 08011215 WCI 08011215 Contact Us For Availability
1
WCI R000900680 WCI R000900680 Contact Us For Availability
1
COVER-EVAP COIL WCI 5303211321 Contact Us For Availability
1
WCI 08011222 WCI 08011222 Contact Us For Availability
1
WCI 3001709 WCI 3001709 Contact Us For Availability
1A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
2
WCI R000900676 WCI R000900676 Contact Us For Availability
2
WCI 3205111 WCI 3205111 Contact Us For Availability
2
CHANNEL-SHELF MTG (2) WCI 3205086 Contact Us For Availability
2
WCI 08011161 WCI 08011161 Contact Us For Availability
2A
BRACKET-LOWER (2) WCI 08011160 Contact Us For Availability
3
WCI 08011184 WCI 08011184 Contact Us For Availability
3
SCREW-COVER MTG (4) WCI 08011122 Contact Us For Availability
3
SCREW-BRACKET MTG (4) WCI G185156 Contact Us For Availability
3
SCREW-CHAN MTG (6) WCI 3205078 Contact Us For Availability
4
PLUG - WHEAT (2) WCI 5303211325 Contact Us For Availability
4
KNOB-TEMP CONTROL WCI 5303211327 Contact Us For Availability
4
WCI 3205079 WCI 3205079 Contact Us For Availability
4
WCI 5303211308 WCI 5303211308 Contact Us For Availability
5
RETAINER-RS WCI 08011189 Contact Us For Availability
5
ROLLER-REAR (2) WCI 08011155 Contact Us For Availability
5
WCI 3204943 WCI 3204943 Contact Us For Availability
5
AIR DEFLECTOR W/ LABEL WCI 5303211316 Contact Us For Availability
6
WCI 5303211156 WCI 5303211156 Contact Us For Availability
6
PIN-ROLLER (2) WCI 08011131 Contact Us For Availability
6
WCI 08011183 WCI 08011183 Contact Us For Availability
6
WCI 08011144 WCI 08011144 Contact Us For Availability
6A
SCREW-CONTROL MTG (2) (NON-ILLUSTRATED) WCI 08011121 Contact Us For Availability
7
WCI 5303211080 WCI 5303211080 Contact Us For Availability
7
SCREW-CLAMP WCI G185075 Contact Us For Availability
7
WCI 08011134 WCI 08011134 Contact Us For Availability
7
WCI 5300002901 WCI 5300002901 Contact Us For Availability
8
WCI 08012871 WCI 08012871 Contact Us For Availability
8
WCI 5308011156 WCI 5308011156 Contact Us For Availability
8
WCI 08011196 WCI 08011196 Contact Us For Availability
8
COVER-NOISE BAFFLE WCI 08013300 Contact Us For Availability
9
WCI G185131 WCI G185131 Contact Us For Availability
9
WCI 08011117 WCI 08011117 Contact Us For Availability
9
SCREW-COVER MTG (4) WCI G185085 Contact Us For Availability
9
WCI 5308011165 WCI 5308011165 Contact Us For Availability
9
WCI R000900715 WCI R000900715 Contact Us For Availability
9A
ANCHOR NUT-SCREW (2) (NON-ILLUSTRATED) WCI 3001700 Contact Us For Availability
10
GASKET - REFRIGERATOR DOOR WCI R000900734 Contact Us For Availability
10
PLUG-WHEAT WCI 3204941 Contact Us For Availability
10
BRACKET - MOTOR MTG WCI 5303211320 Contact Us For Availability
10
WCI 08011229 WCI 08011229 Contact Us For Availability
10
RETAINER - PAN (2) WCI 3204971 Contact Us For Availability
11
RETAINER-LS WCI 08011188 Contact Us For Availability
11
SCREW-HINGE MTG (3) WCI 08011142 Contact Us For Availability
11
WCI 08011129 WCI 08011129 Contact Us For Availability
11
WCI 08011227 WCI 08011227 Contact Us For Availability
11
WCI 5303211329 WCI 5303211329 Contact Us For Availability
11A
MOULDING W/ SWITCH HOLE LS (NON-ILLUSTRATED) WCI 3001693 Contact Us For Availability
12
RETAINER-RS WCI 08011187 Contact Us For Availability
12
WCI 08011174 WCI 08011174 Contact Us For Availability
12
REAR SUPPORT MOTOR WCI 5303211318 Contact Us For Availability
12
WCI 08011226 WCI 08011226 Contact Us For Availability
12
CLIP (2) WCI 5303211322 Contact Us For Availability
13
WCI 08011203 WCI 08011203 Contact Us For Availability
13
MOULDING W/ SWITCH HOLE RS WCI 3001692 Contact Us For Availability
13A
MOULDING RS (NON-ILLUSTRATED) WCI 08011228 Contact Us For Availability
14
DAIRY DOOR WCI G185139 Contact Us For Availability
14
WCI 08011152 WCI 08011152 Contact Us For Availability
14
WCI 08011220 WCI 08011220 Contact Us For Availability
14
COMPR W/ ELECTRICALS WCI 5303211330 Contact Us For Availability
15
INNER PANEL - REFRIGERATOR WCI G185138 Contact Us For Availability
15
WCI 08011167 WCI 08011167 Contact Us For Availability
15
WCI 08011153 WCI 08011153 Contact Us For Availability
15
WCI 08011225 WCI 08011225 Contact Us For Availability
15
WCI 3205383 WCI 3205383 Contact Us For Availability
16
REFRIGERATOR DOOR - WHEAT WCI 3205071 Contact Us For Availability
16
MULLION - WHEAT WCI G185150-09 Contact Us For Availability
16
WCI 08011205 WCI 08011205 Contact Us For Availability
16
WCI 5303211328 WCI 5303211328 Contact Us For Availability
17
BEARING-HINGE (8) WCI G185123 Contact Us For Availability
17
WCI 3205085 WCI 3205085 Contact Us For Availability
17
WCI 3204976 WCI 3204976 Contact Us For Availability
17A
SCREW COVER - WHEAT (NON-ILLUSTRATED) WCI 3001699 Contact Us For Availability
17A
SCREW-TIMER MTG (2) (NON-ILLUSTRATED) WCI 08011119 Contact Us For Availability
18
PLUG-WHEAT (8) WCI 5308000180 Contact Us For Availability
18
WCI 08011173 WCI 08011173 Contact Us For Availability
18
WCI 08011178 WCI 08011178 Contact Us For Availability
18
COVER-TERMINAL WCI 3204977 Contact Us For Availability
19
WCI 5303211312 WCI 5303211312 Contact Us For Availability
19
SCREW-HINGE MTG (2) WCI 3205083 Contact Us For Availability
19
LIGHT SOCKET WCI 08011171 Contact Us For Availability
19
STRAP-COVER MTG WCI 08007439 Contact Us For Availability
20
WCI 5303211315 WCI 5303211315 Contact Us For Availability
20
WCI G185091 WCI G185091 Contact Us For Availability
21
WCI 5308000184 WCI 5308000184 Contact Us For Availability
21
PLUG-WHEAT (2) WCI 5308000176 Contact Us For Availability
21
DRAIN HOSE WCI 08011149 Contact Us For Availability
22
WCI 3205084 WCI 3205084 Contact Us For Availability
22
WCI 08011151 WCI 08011151 Contact Us For Availability
22
WCI 08011157 WCI 08011157 Contact Us For Availability
23
WCI 5308011745 WCI 5308011745 Contact Us For Availability
23
WASHER-HINGE PIN WCI G185082 Contact Us For Availability
23
WCI 5303211317 WCI 5303211317 Contact Us For Availability
24
WCI 3204929 WCI 3204929 Contact Us For Availability
24
WCI 3001706 WCI 3001706 Contact Us For Availability
25
WCI 08011192 WCI 08011192 Contact Us For Availability
25
WCI 08011170 WCI 08011170 Contact Us For Availability
26
STOP-MULLION MTG WCI 08011211 Contact Us For Availability
26
DRAIN TOUGH WCI 08011216 Contact Us For Availability
27
SCREW-PANEL ASSY (3) WCI 08011124 Contact Us For Availability
27
WCI 08011136 WCI 08011136 Contact Us For Availability
27A
WCI 3204989 WCI 3204989 Contact Us For Availability
28
TOP PANEL-REFR WCI 08011195 Contact Us For Availability
28
WCI 3204684 WCI 3204684 Contact Us For Availability
29
WCI 08011194 WCI 08011194 Contact Us For Availability
29
EVAPORATOR ASSEMBLY-INCLUDES HEAT EXCH WCI 3203857 Contact Us For Availability
30
WCI 08011193 WCI 08011193 Contact Us For Availability
31
WCI 08011200 WCI 08011200 Contact Us For Availability
31
WCI 5308011209 WCI 5308011209 Contact Us For Availability
32
WCI 3205110 WCI 3205110 Contact Us For Availability
33
WCI 08011177 WCI 08011177 Contact Us For Availability
33
WCI 08011624 WCI 08011624 Contact Us For Availability
34
WCI 08011172 WCI 08011172 Contact Us For Availability
34
WCI 5303211319 WCI 5303211319 Contact Us For Availability
35
SCREW-HINGE MTG (2) WCI 5303211326 Contact Us For Availability
36
HINGE COVER-WHEAT WCI 3001696 Contact Us For Availability
× ![]()
