Model Whirlpool RSWA228AAM REFRIGERATOR – Common Parts & Diagrams

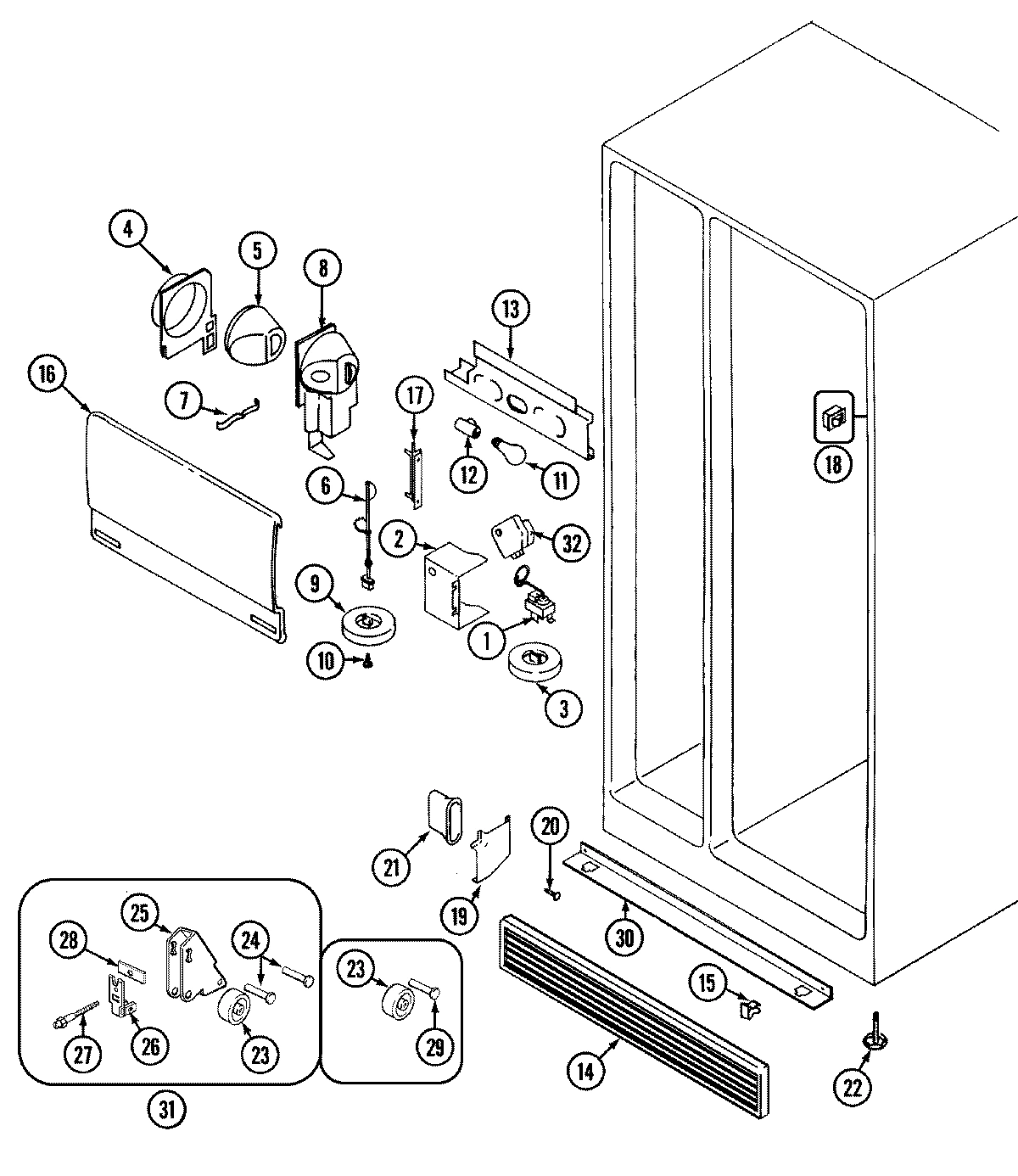

03 - FRESH FOOD COMPARTMENT

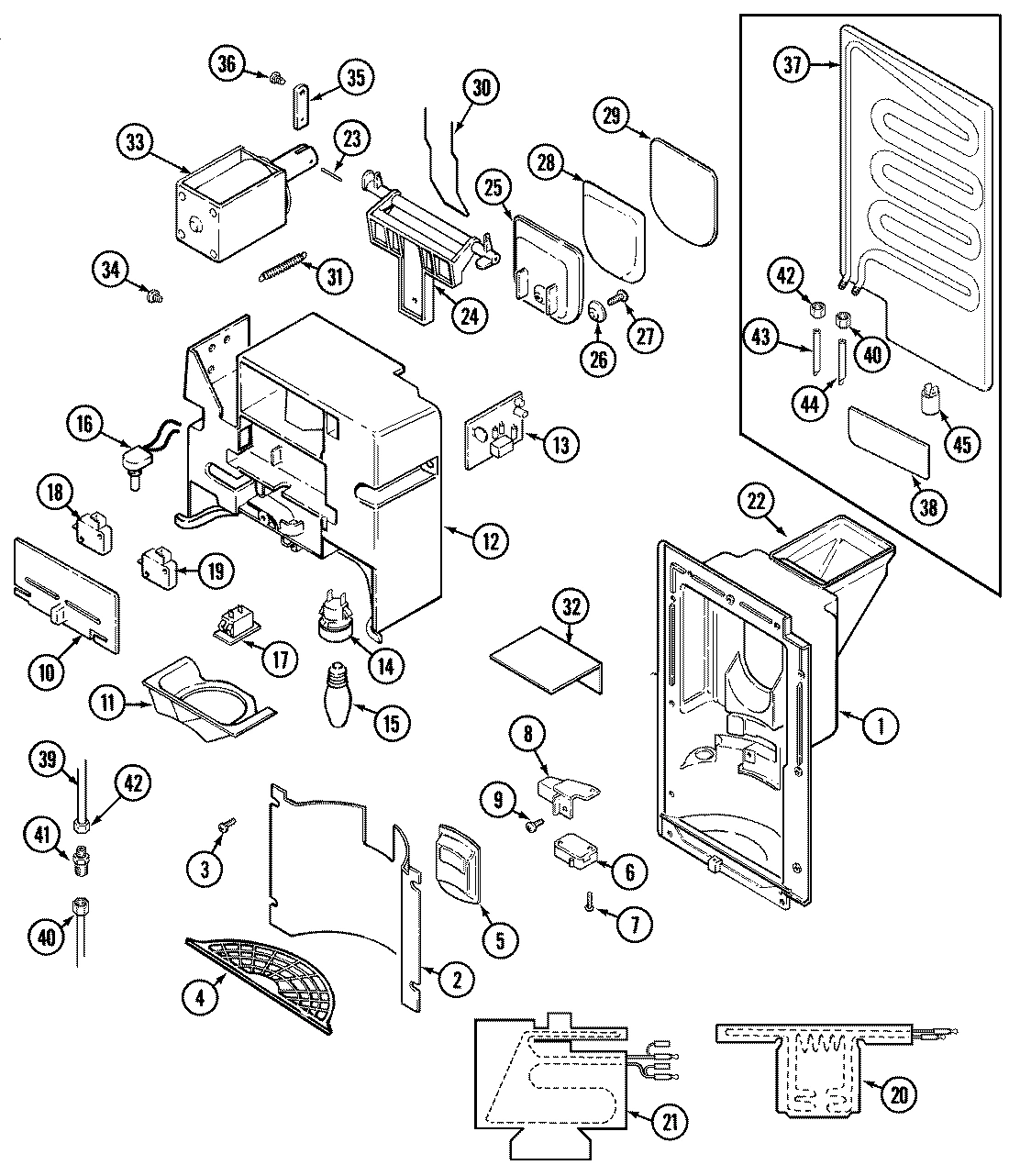

05 - ICE & WATER DISPENSER
09 - UNIT COMPARTMENT & SYSTEM
06 - ICE CRUSHER & BIN

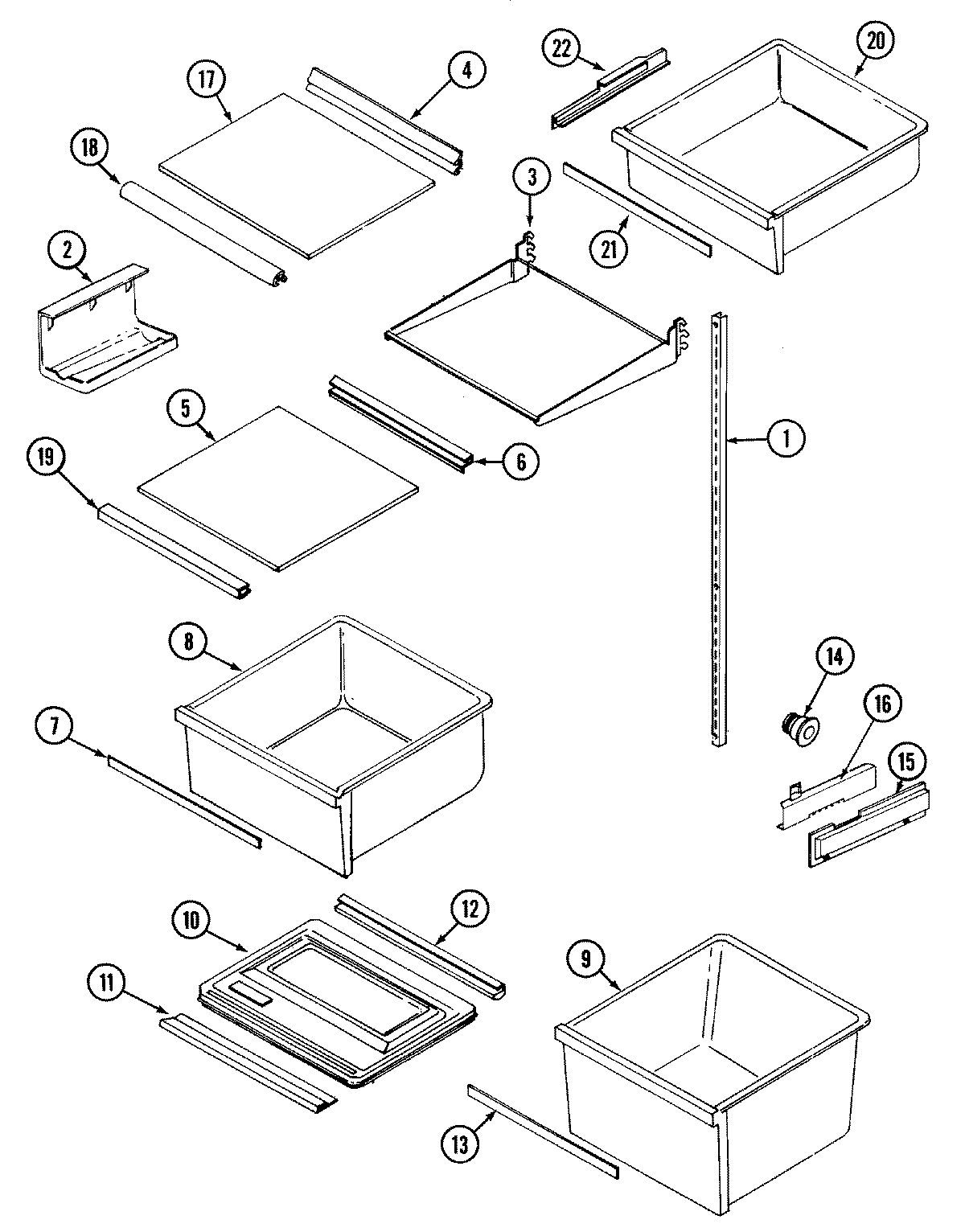

08 - SHELVES & ACCESSORIES

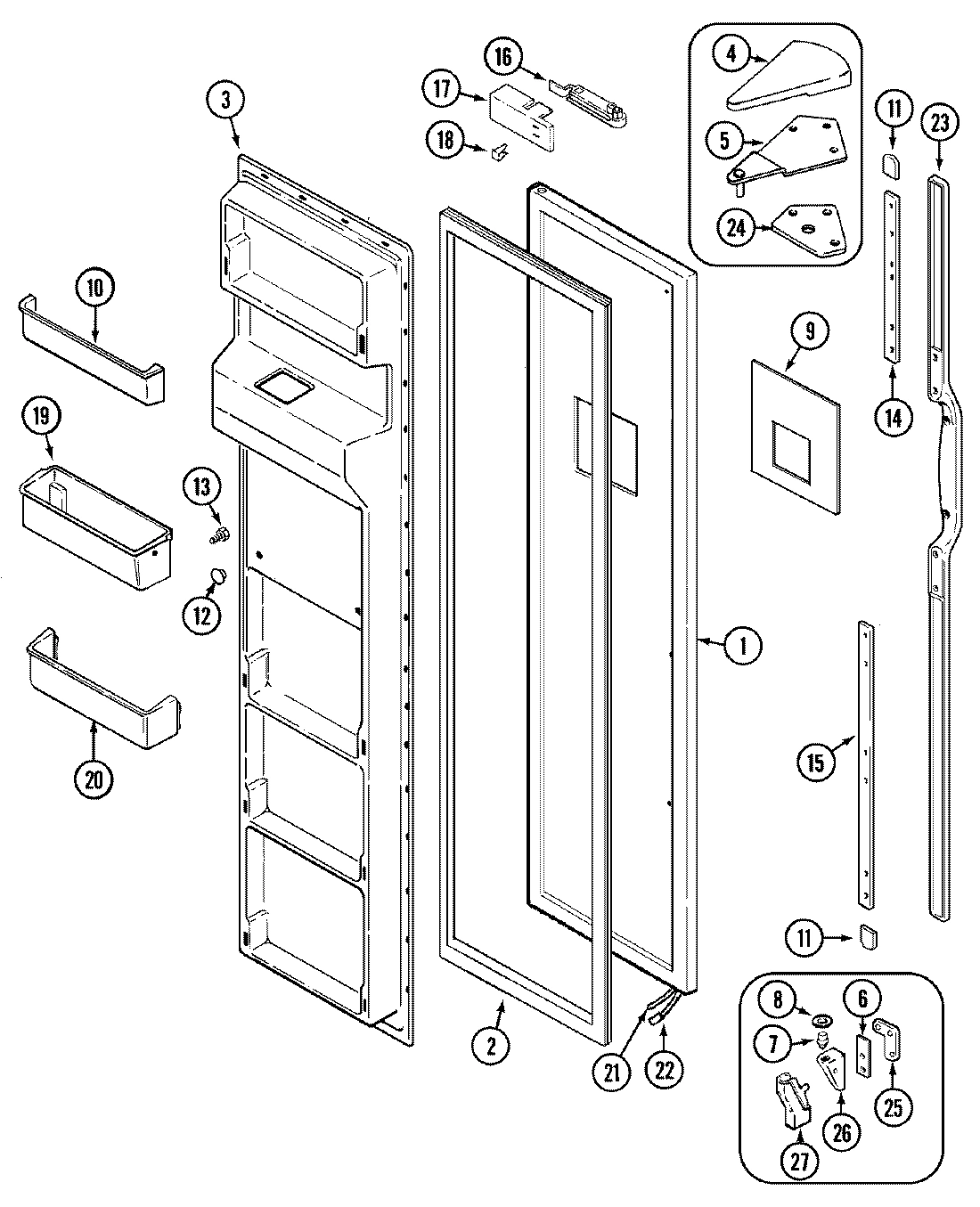

02 - FREEZER DOOR

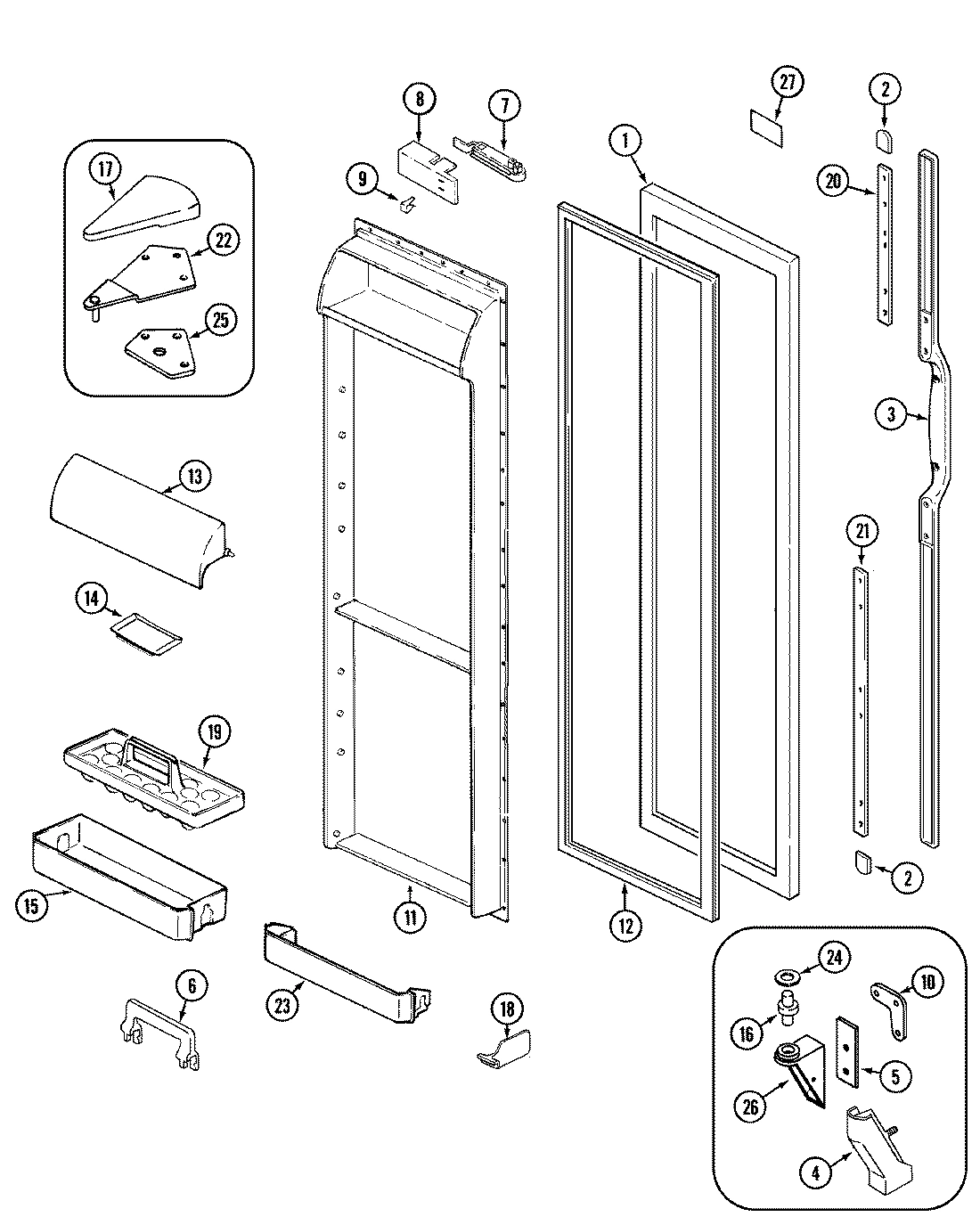

04 - FRESH FOOD DOOR

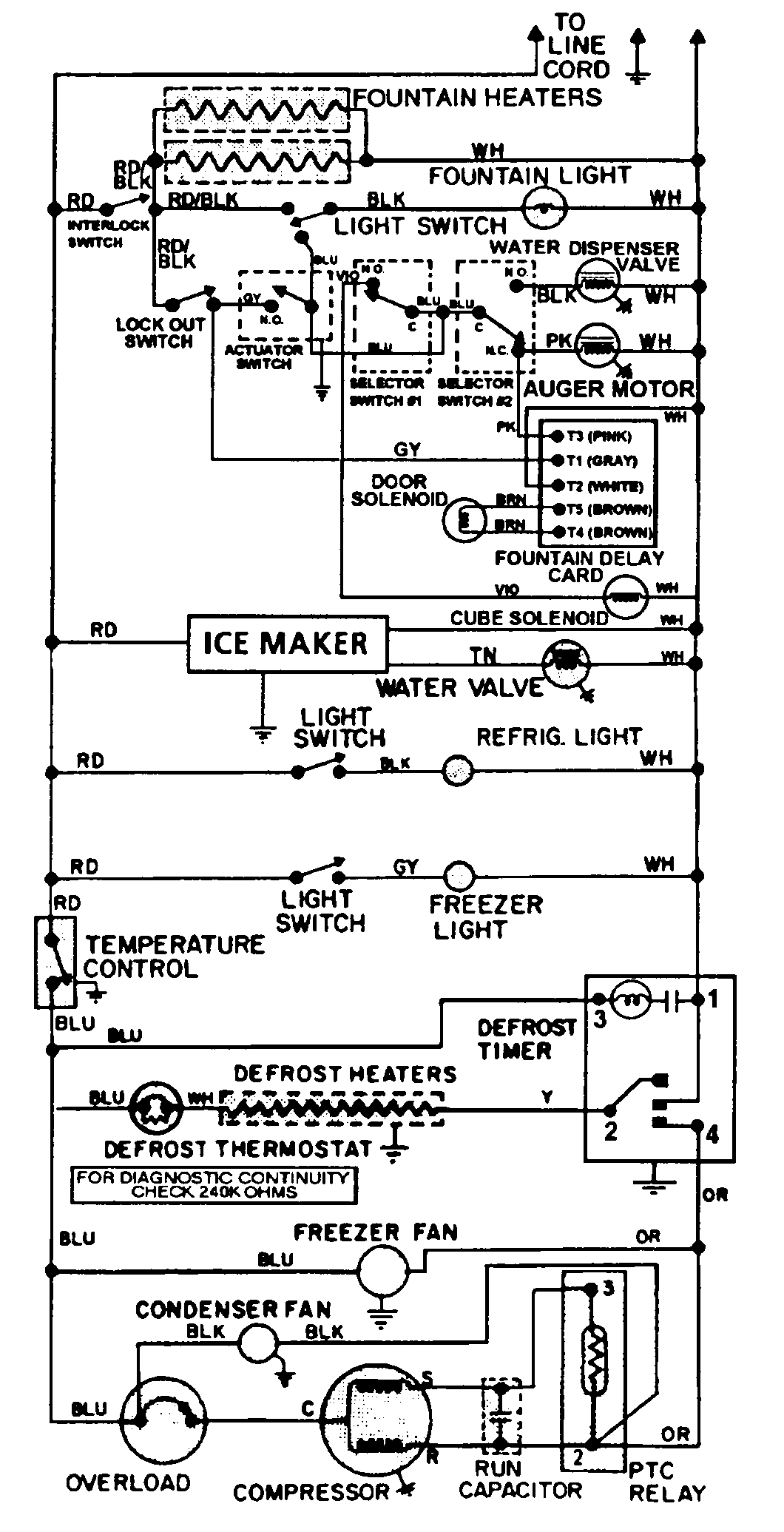

10 - WIRING INFORMATION

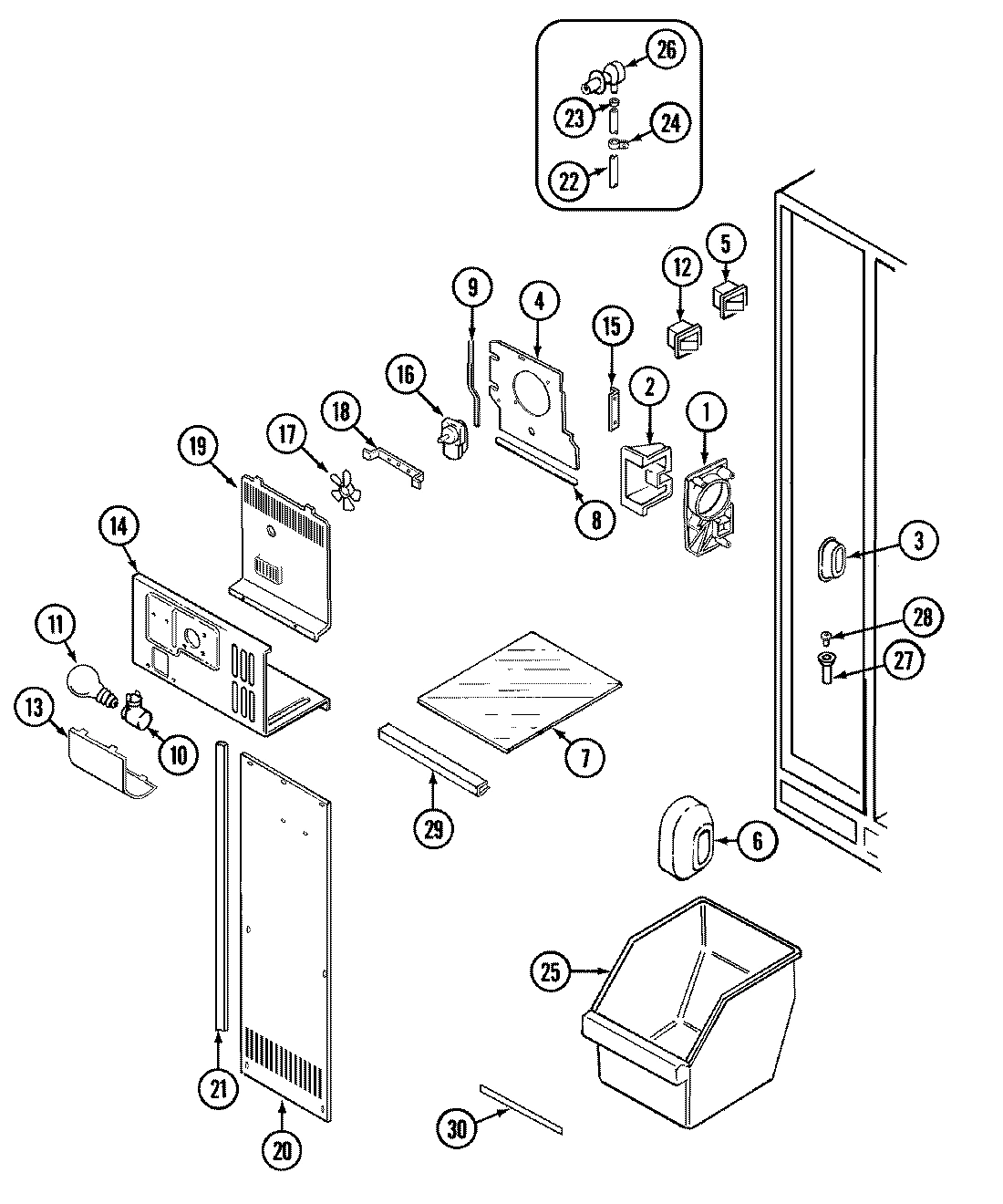

01 - FREEZER COMPARTMENT
07 - ICE MAKER
Common parts from model Whirlpool RSWA228AAM REFRIGERATOR
1
SCREW WPL 4000171 Contact Us For Availability
1
KIT, FOUNTAIN ASSY. WPL 12000057 Contact Us For Availability
1
INSULATION, FTN. BACK (UPPER) WPL 696841 Contact Us For Availability
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
1
INSULATION, BONNET TOP WPL 698411 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000058 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
BIN, ICE WPL 697191 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72341104AM Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723412AM Contact Us For Availability
1
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
2
LINER, FOUNTAIN WPL 696864 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
FRONT, ICE BIN WPL 6987525 Contact Us For Availability
2
HOLDER, BEVERAGE WPL 696151 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
END CAP, HANDLE WPL 695901 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
COVER, ICE MAKER WPL 683282 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
DOOR, ICE ACCESS WPL 6992016 Contact Us For Availability
3
FRAME, SHELF WPL 701067 Contact Us For Availability
3
INSULATION, LINER SUPPORT WPL 61001405 Contact Us For Availability
3
INSULATION, LINER SUPPORT WPL 61001406 Contact Us For Availability
3
LINER, FRZ. DOOR WPL 692521 Contact Us For Availability
3
KIT, HANDLE ASSY (ALMOND) WPL 12000043 Contact Us For Availability
3
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
4
GRILL WPL 672234 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
BUMPER, DOOR WPL 282726 Contact Us For Availability
4
TRIM, SHELF (REAR) WPL 701105 Contact Us For Availability
4
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
PAD, ACTUATOR WPL 696823 Contact Us For Availability
5
OVERLOAD WPL 61001785 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
5
HOUSING, CRUSHER WPL 697561 Contact Us For Availability
5
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
5
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680582 Contact Us For Availability
5
TUBE, FILL WPL 676761 Contact Us For Availability
6
DAMPER, FRZ. CONTROL WPL 676091 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
6
RING, SNAP WPL 697041 Contact Us For Availability
6
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
6
RETAINER, BOTTLE WPL 697951 Contact Us For Availability
6
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
WASHER, RETAINER WPL 697031 Contact Us For Availability
7
PIN, HINGE WPL 700601 Contact Us For Availability
7
SCREW WPL 4140041 Contact Us For Availability
7
CLOSER, DOOR WPL 692581 Contact Us For Availability
7
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
8
SCREW WPL 4150171 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
8
TUBING, TANK TO VALVE WPL 671876 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability
8
PAN, CRISPER WPL 66636140 Contact Us For Availability
8
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
8
INSULATION, CLOSER WPL 526131 Contact Us For Availability
8
ELEMENT WPL 700491 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
RING, DRIVE WPL 700272 Contact Us For Availability
9
PAN, CRISPER WPL 66636138 Contact Us For Availability
9
SCREW WPL 41400435 Contact Us For Availability
9
ESCUTCHEON (ALM) WPL 7031811 Contact Us For Availability
9
BRACKET, CLOSER WPL 692611 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW WPL 6527574 Contact Us For Availability
10
SLIDE, SELECTOR (ALM) WPL 696816 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
MOTOR, AUGER WPL 697331 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 701221 Contact Us For Availability
10
COVER, MEAT PAN WPL 656086 Contact Us For Availability
10
FRONT, PICK OFF WPL 6987022 Contact Us For Availability
10
SCREW WPL 6527559 Contact Us For Availability
10
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
11
SCREW WPL 652755 Contact Us For Availability
11
LINER, F.F. DOOR----NA WPL 692431 Contact Us For Availability
11
INSULATION, LINER SUPPORT WPL 692642 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
12
BRACKET, FOUNTAIN (ALM) WPL 700229 Contact Us For Availability
12
BRACKET, FOUNTAIN WPL 703249 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
12
ROD, CRUSHER CONTROL WPL 697141 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
12
STUD, PICK-OFF SHELF WPL 656602 Contact Us For Availability
12
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
13
HOUSING, LITE & WIRE WPL 691932 Contact Us For Availability
13
BOARD, PC WPL 697514 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684456 Contact Us For Availability
13
BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability
13
SCREW WPL 4000141 Contact Us For Availability
13
WASHER WPL 4200281 Contact Us For Availability
13
DOOR, DAIRY WPL 6905831 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
14
KICKPLATE WPL 689815 Contact Us For Availability
14
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
14
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
SPRING, CONTROL ROD WPL 697171 Contact Us For Availability
14
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 697231 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
15
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
15
BULB, LIGHT WPL 631791 Contact Us For Availability
15
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
15
AUGER, ICE DISPENSER WPL 697071 Contact Us For Availability
15
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
15
CONTROL HOUSING WPL 657372 Contact Us For Availability
15
SHELF, PICK-OFF WPL 6987250 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
16
SHIELD, LIGHT REF WPL 691942 Contact Us For Availability
16
SWITCH, LIGHT WPL 698324 Contact Us For Availability
16
SWITCH, LIGHT (W/NUT) WPL 698326 Contact Us For Availability
16
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
16
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
16
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS, FREEZER WPL 701801 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
WASHER, CONE STOP WPL 696981 Contact Us For Availability
17
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
17
GLASS, DELI WPL 6813928 Contact Us For Availability
17
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
18
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SCREW WPL 998645 Contact Us For Availability
18
IMPELLER WPL 700361 Contact Us For Availability
18
TRIM, SHELF FRONT WPL 701075 Contact Us For Availability
18
ORGANIZER WPL 697592 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
19
COVER, AIR RETURN WPL 699821 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702631 Contact Us For Availability
19
PLATE, DRIVE WPL 697551 Contact Us For Availability
19
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
19
SHELF, PICK OFF WPL 6987317 Contact Us For Availability
19
TRAY, EGG WPL 600661 Contact Us For Availability
19
SHIELD, FAN WPL 61001024 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
20
HEATER, FOUNTAIN WPL 697961 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
20
PLATE, IMPELLER WPL 697011 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
PAN, DELI WPL 66636141 Contact Us For Availability
20
TRIM, HANDLE EXT. (UPPER) WPL 695863 Contact Us For Availability
20
FRONT, PICK OFF WPL 6987021 Contact Us For Availability
20
COVER, COIL LOWER WPL 697252 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
HEATER, FOUNTAIN WPL 697971 Contact Us For Availability
21
TUBING, COIL TO FOUNTAIN WPL 6718729 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
21
NUT, AUGER WPL 697091 Contact Us For Availability
21
INSERT, CRISPER HANDLE WPL 6812499 Contact Us For Availability
21
SCREW WPL 6527580 Contact Us For Availability
21
TRIM, HANDLE EXT. (LOWER) WPL 695864 Contact Us For Availability
21
CLIP WPL 693141 Contact Us For Availability
22
FUNNEL-KIT WPL 675792 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
BLADE, CRUSHER WPL 697061 Contact Us For Availability
22
RAIL, DELI PAN WPL 688052 Contact Us For Availability
22
HINGE, UPPER WPL 5370922 Contact Us For Availability
22
SCREW WPL 6527552 Contact Us For Availability
22
WIRE HARNESS, DOOR WPL 698041 Contact Us For Availability
23
WHEEL WPL 698121 Contact Us For Availability
23
PIN, SPRING WPL 672913 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
BLADE, CRUSHER WPL 697021 Contact Us For Availability
23
FRONT, PICK-OFF WPL 698718 Contact Us For Availability
23
CLAMP, SPRING WPL 603334 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
STRIKE, ICE DOOR WPL 696757 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
24
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
SCREW WPL 652751 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
BLADE, CRUSHER WPL 697023 Contact Us For Availability
25
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
25
DRAWER, FRZ. WPL 6651226 Contact Us For Availability
25
DRAWER, FRZ. WPL 66636131 Contact Us For Availability
26
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
26
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
26
HINGE, LOWER (ZINC) WPL 695163 Contact Us For Availability
26
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
27
COVER WPL 663393 Contact Us For Availability
27
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
27
SCREW WPL 6527556 Contact Us For Availability
27
NAMEPLATE (ALM) WPL 6698230 Contact Us For Availability
27
TUBE, DRAIN WPL 2652711 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501316 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501325 Contact Us For Availability
28
BEARING, SPACER WPL 696971 Contact Us For Availability
28
GROMMET WPL 525261 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
29
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
29
TRIM, SHELF WPL 701371 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 61001031 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
SPACER, BLADE WPL 696962 Contact Us For Availability
30
INSERT, DRAWER HANDLE WPL 6812496 Contact Us For Availability
31
WHEEL ASSY. WPL 628307 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
31
PIN, ICE DOOR WPL 679061 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
TIMER, DEFROST WPL 682333 Contact Us For Availability
32
FOIL, FOUNTAIN FRONT WPL 5380838 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
32
SCREW WPL 406026103 Contact Us For Availability
32
SOLENOID WPL 697301 Contact Us For Availability
33
SOLENOID (115V) WPL 678833 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
YOKE ASSY. WPL 7235350 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
34
GUIDE, YOKE WPL 697151 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SCREW WPL 41501335 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
SCREW WPL 40002636 Contact Us For Availability
36
RAIL, ICE BIN WPL 697102 Contact Us For Availability
37
SCREW WPL 40004828 Contact Us For Availability
37
TANK, WATER WPL 690659 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
38
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
41
UNION, REDUCING WPL 676121 Contact Us For Availability
45
NYLON NUT WPL 1953036 Contact Us For Availability
NI
NUT, WIRE WPL 271165 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 695912 Contact Us For Availability
NI
WIRE HARNESS, SWITCH WPL 698012 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 699021 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 699031 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1084293 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002361 Contact Us For Availability
× ![]()
Login and Registration Form
