Model Whirlpool RSW24A REFRIGERATOR – Common Parts & Diagrams

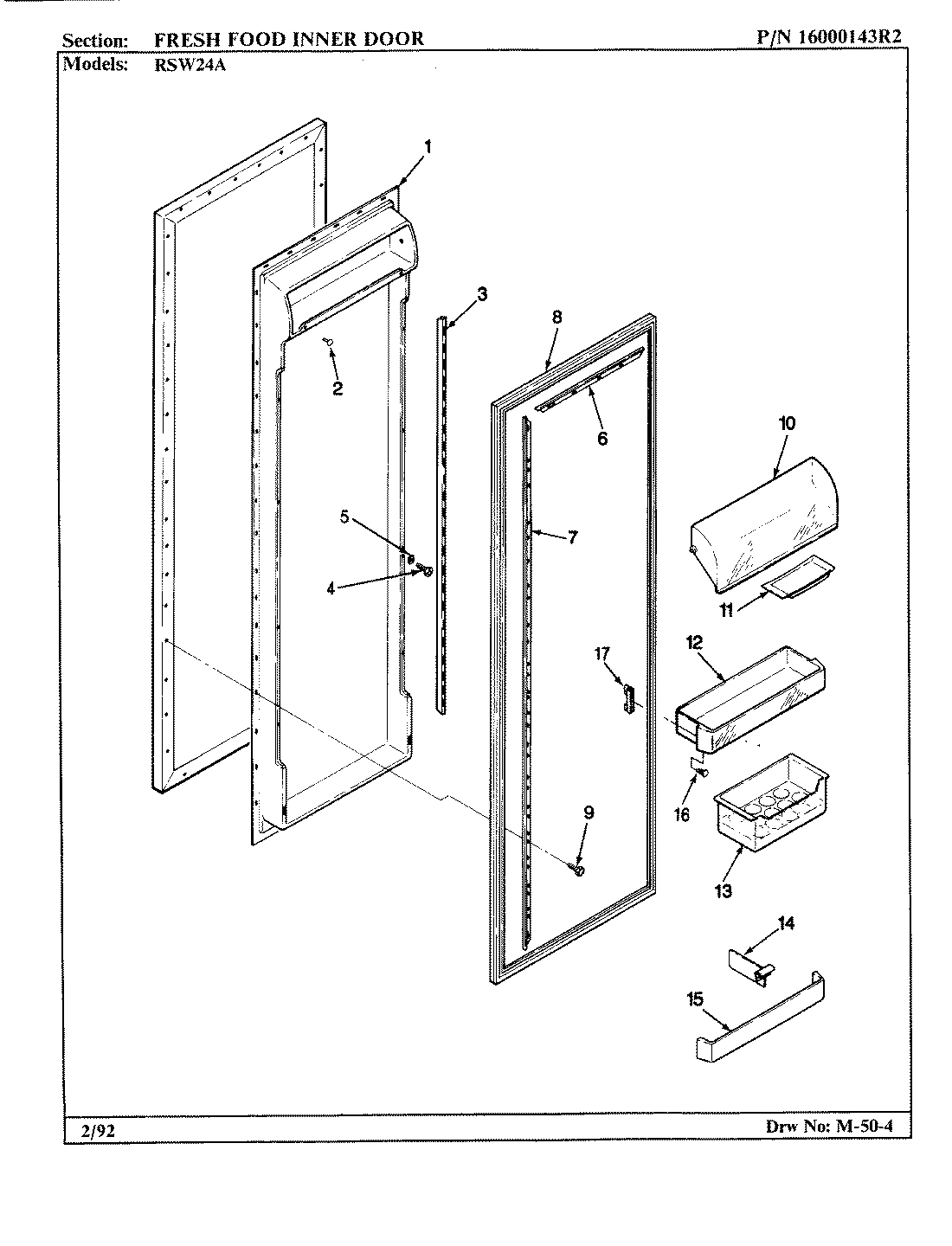

06 - FRESH FOOD INNER DOOR
01 - CARTONS

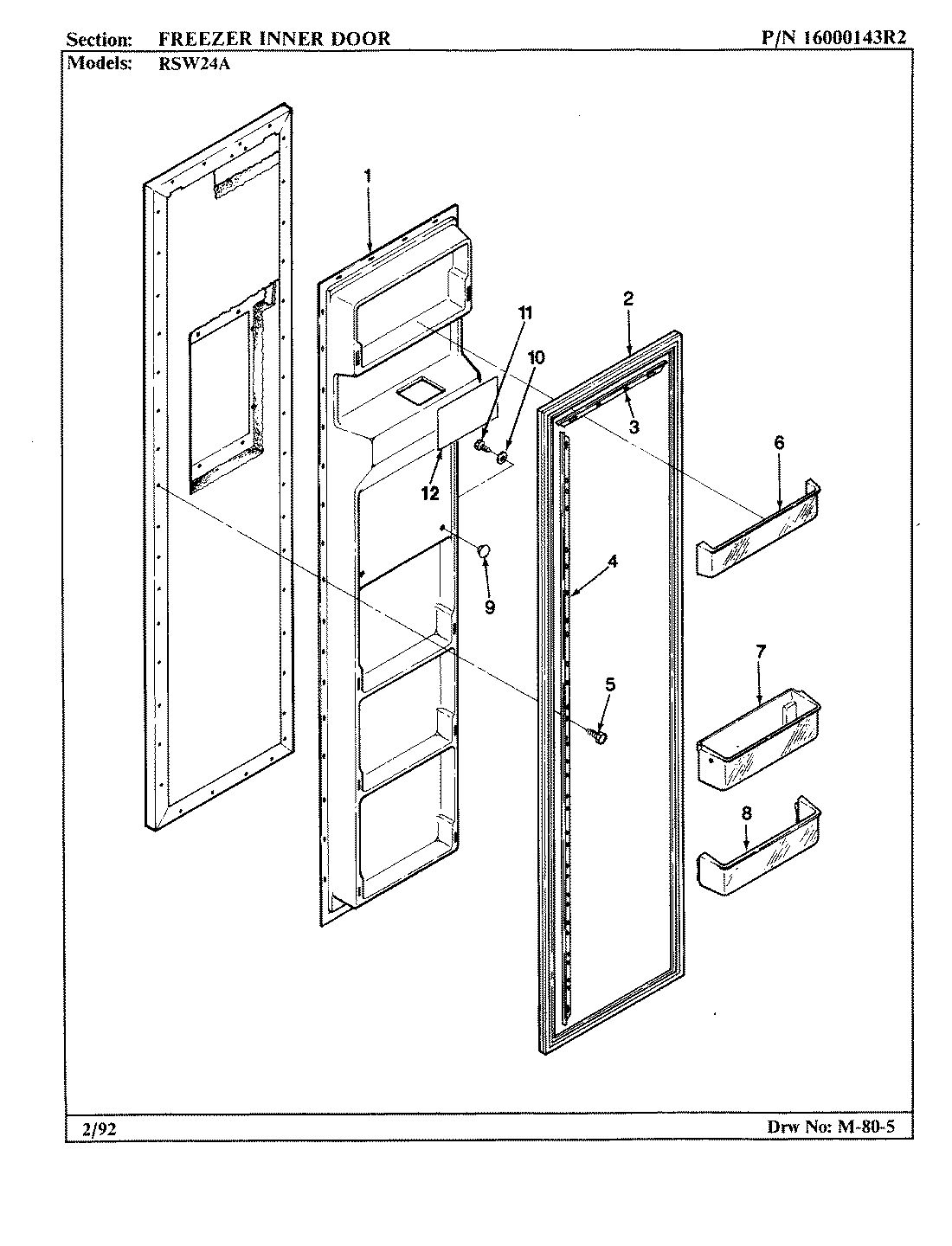

03 - FREEZER INNER DOOR

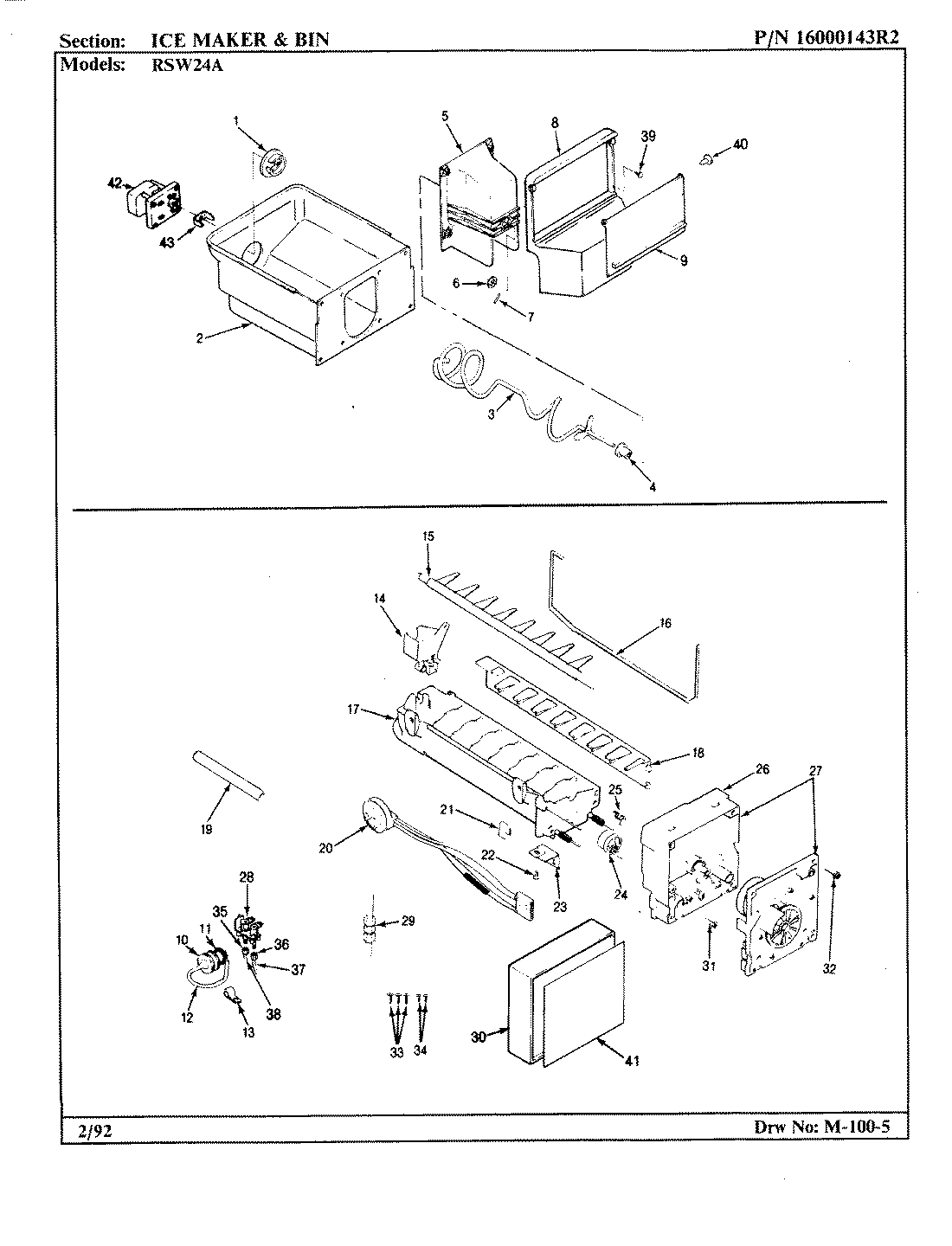

09 - ICE MAKER & BIN

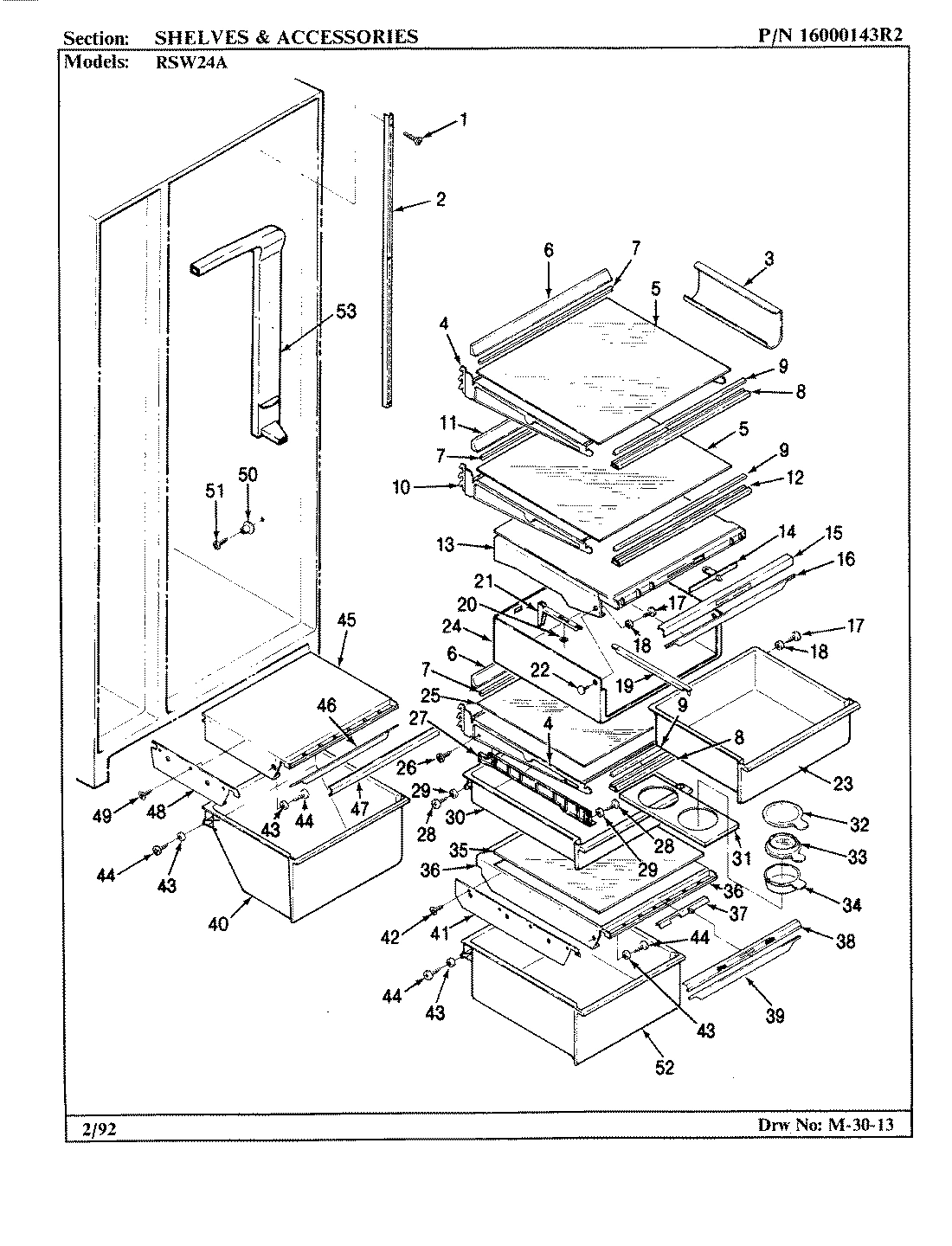

10 - SHELVES & ACCESSORIES

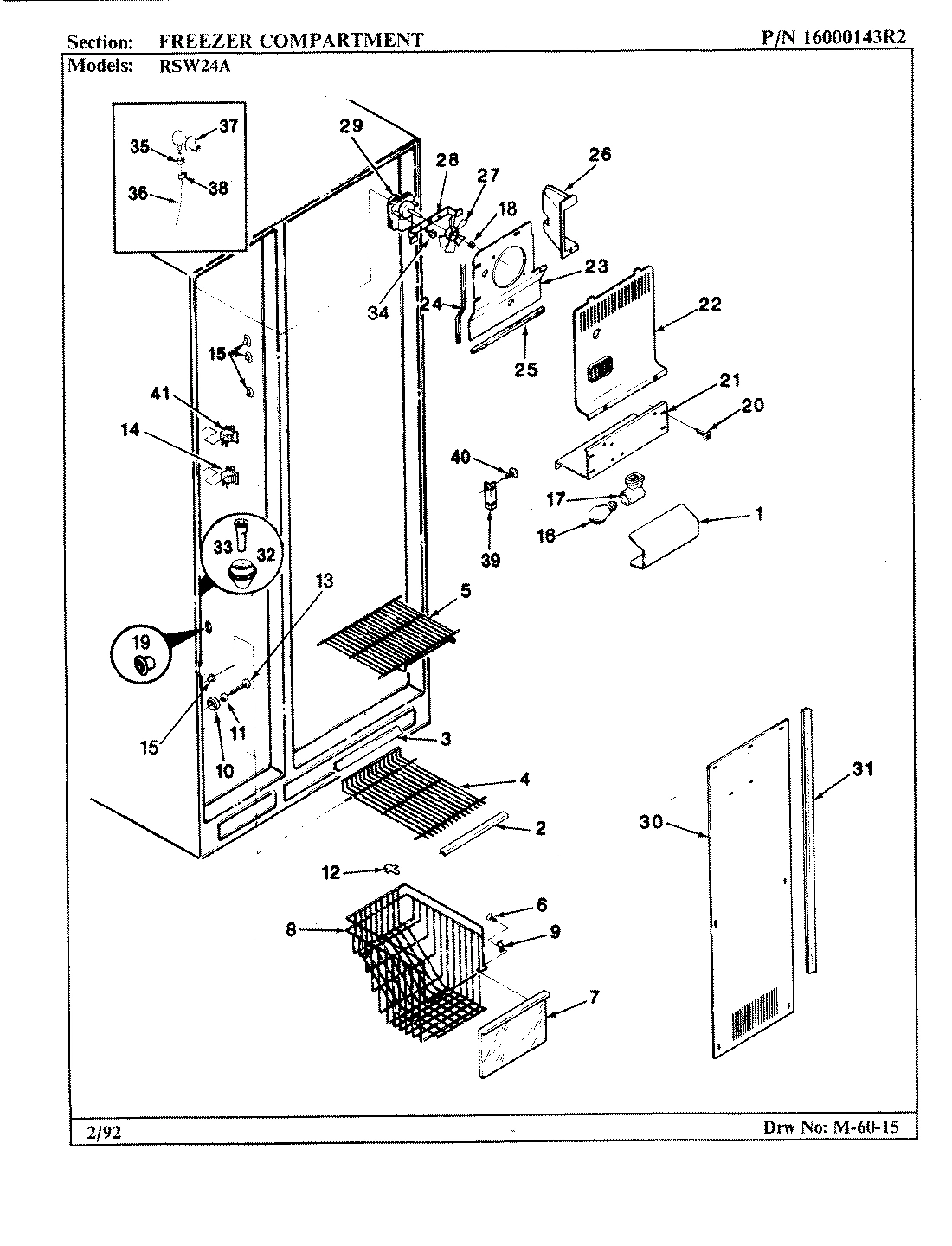

02 - FREEZER COMPARTMENT

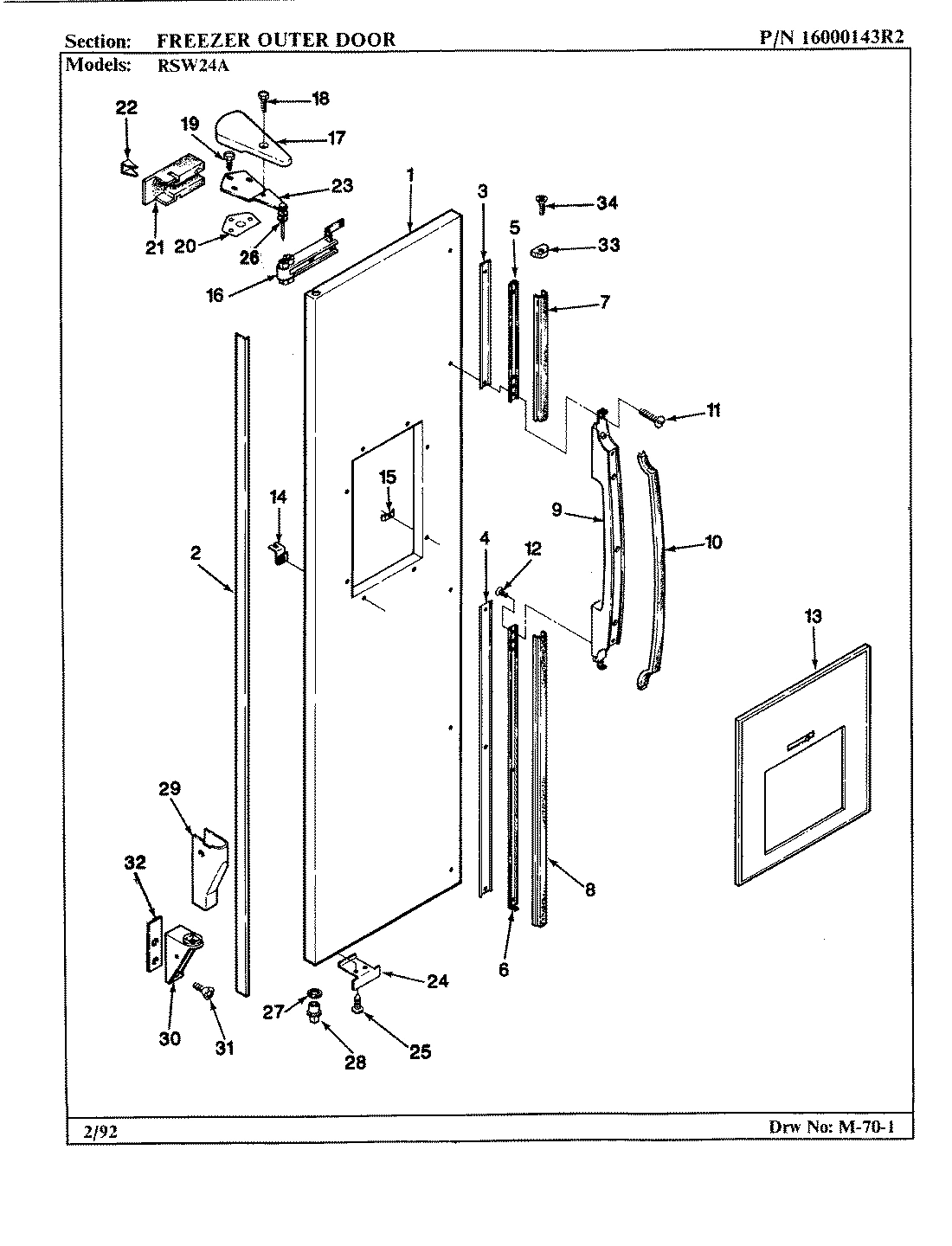

04 - FREEZER OUTER DOOR

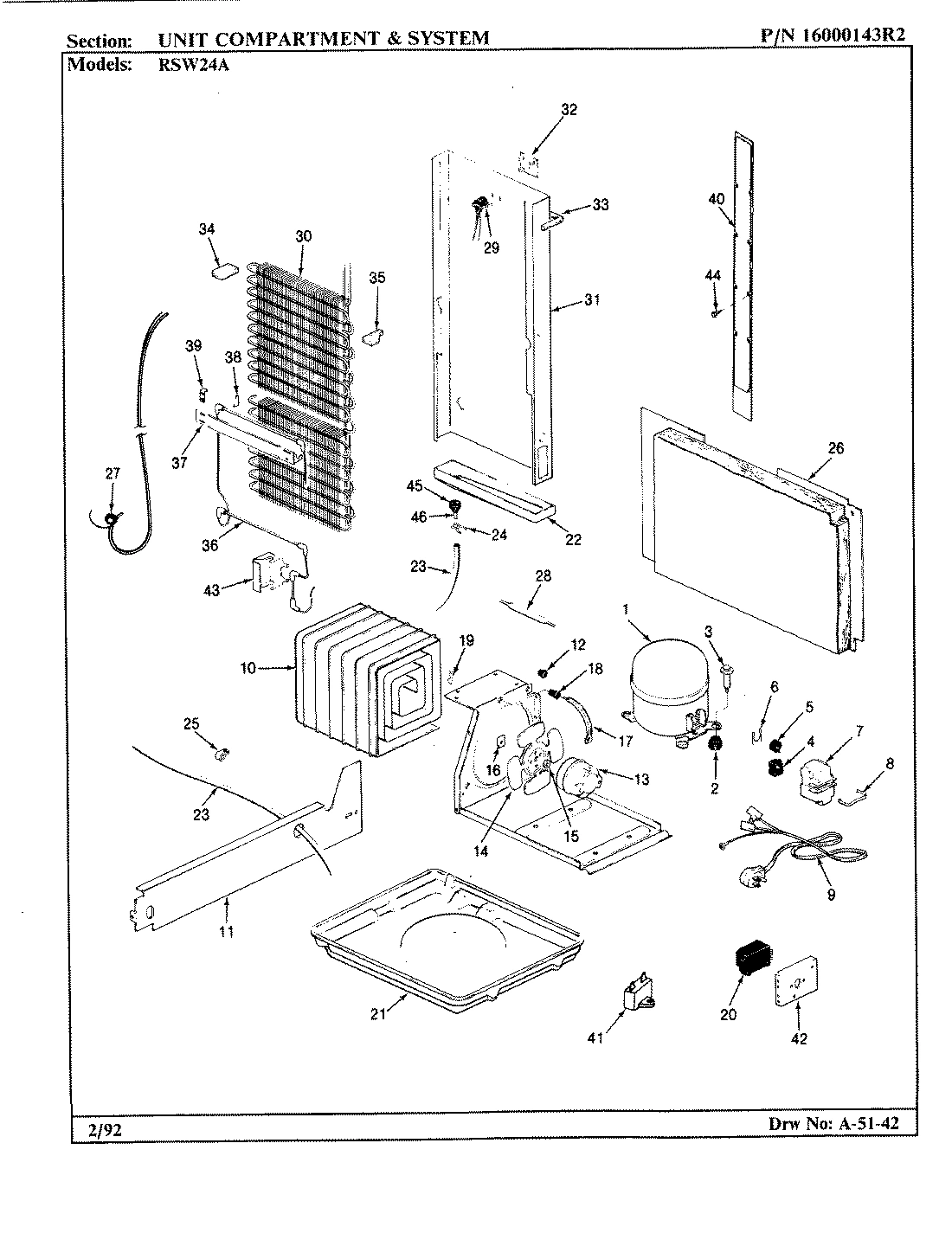

11 - UNIT COMPARTMENT & SYSTEM

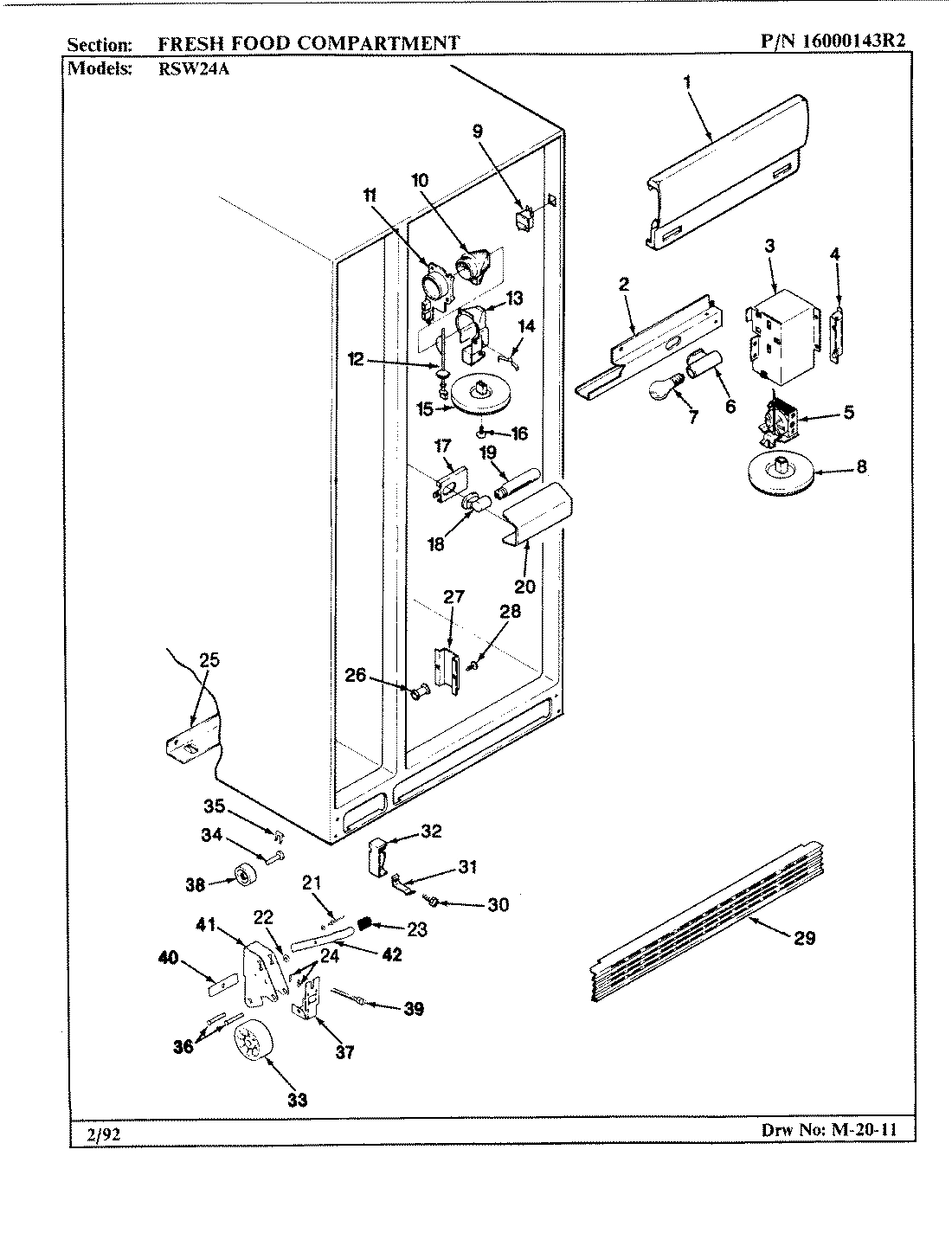

05 - FRESH FOOD COMPARTMENT

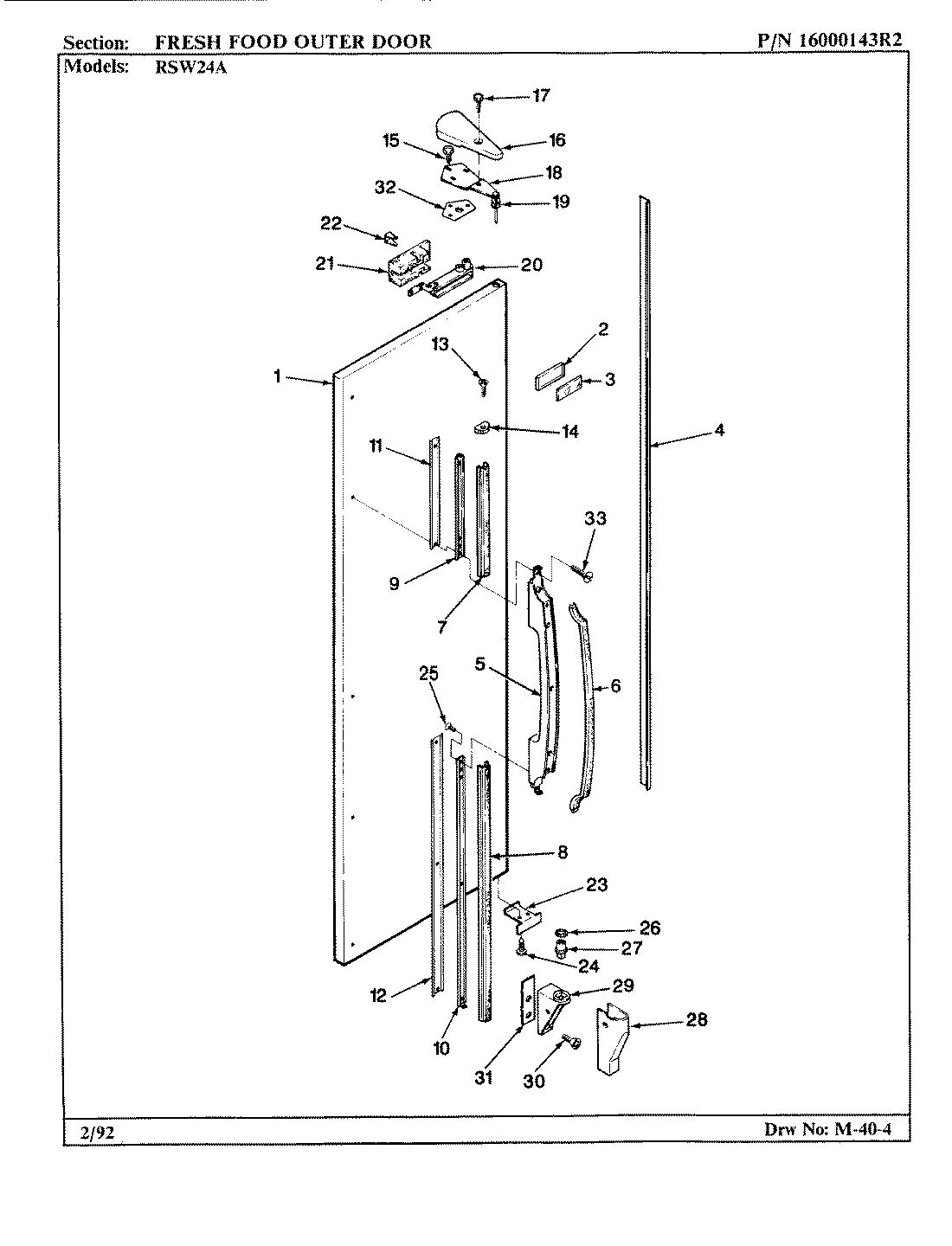

07 - FRESH FOOD OUTER DOOR

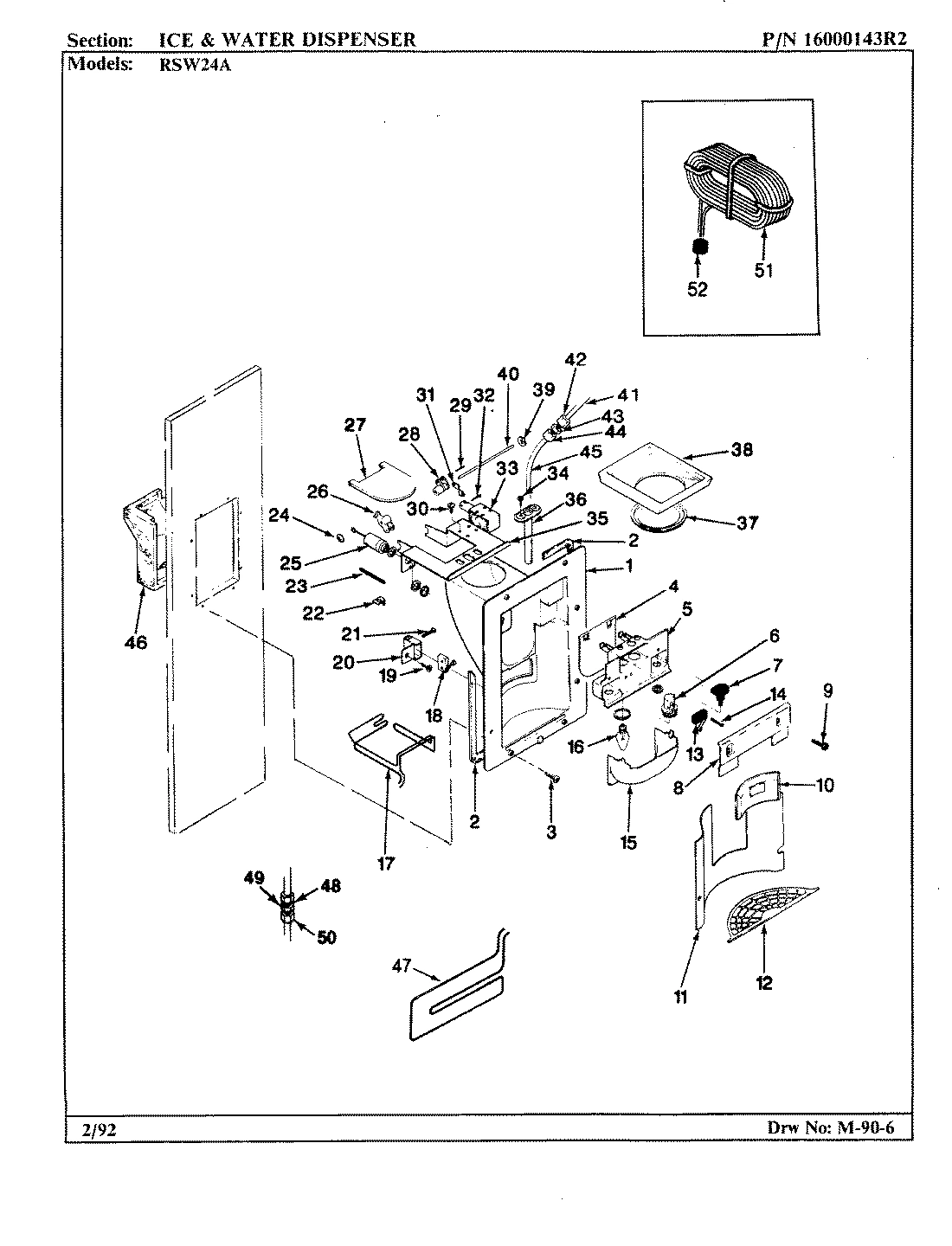

08 - ICE & WATER DISPENSER
Common parts from model Whirlpool RSW24A REFRIGERATOR
1
LINER, DOOR WPL 670171 Contact Us For Availability
1
RING, DRIVE WPL 630171 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
SHIELD, LIGHT WPL 672921 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 7204116AM Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 7204116WW Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720414WW Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
1
INSERT, LIGHT SHIELD WPL 674764 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 7204114AM Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 7204114WW Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 720416WW Contact Us For Availability
1
FOUNTAIN WPL 675131 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 677454 Contact Us For Availability
2
BIN, ICE WPL 678301 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
TRIM, FRZ. SHELF FRONT WPL 671762 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LIGHT HOUSING WPL 671882 Contact Us For Availability
2
BEZEL, NAMEPLATE WPL 676731 Contact Us For Availability
2
SEAL,FOUNTAIN WPL 675101 Contact Us For Availability
3
RETAINER, DOOR SEAL WPL 670324 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673081 Contact Us For Availability
3
TRIM, FRZ. SHELF RIGHT WPL 671772 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
3
INSERT, NAMEPLATE WPL 671941 Contact Us For Availability
3
SCREW WPL 4090131 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
4
RETAINER, DOOR SEAL WPL 670321 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
FRAME, SHELF WPL 672732 Contact Us For Availability
4
SHELF, FRZ. WPL 671782 Contact Us For Availability
4
TRIM, DOOR WPL 666514 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
RIVET WPL 440011103 Contact Us For Availability
4
DEFLECTOR ICE WPL 675381 Contact Us For Availability
4
WEIGHT DEFLECTOR----NA WPL 675401 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
5
SCREW WPL 652755 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
GLASS, CANTILEVER WPL 672676 Contact Us For Availability
5
SHELF, FRZ. DISPENSER WPL 671792 Contact Us For Availability
5
BRACKET, HANDLE WPL 671563 Contact Us For Availability
5
HANDLE, DOOR WPL 671511 Contact Us For Availability
5
SHIM, HANDLE WPL 673851 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 5288411 Contact Us For Availability
5
SCREW WPL 4050131 Contact Us For Availability
6
RETAINER, DOOR SEAL WPL 670322 Contact Us For Availability
6
FRONT, PICK OFF FRZ. WPL 670851 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
TRIM, CANTILEVER WPL 673095 Contact Us For Availability
6
SCREW WPL 4060081 Contact Us For Availability
6
BRACKET, HANDLE WPL 671564 Contact Us For Availability
6
SCREW WPL 6527544 Contact Us For Availability
6
INSERT, HANDLE (BLK) WPL 678821 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
CLIP WPL 550422 Contact Us For Availability
6
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
7
SHELF, PICK OFF FOUNTAIN WPL 670921 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
SHELF SEAL WPL 672665 Contact Us For Availability
7
FRONT WPL 676552 Contact Us For Availability
7
TRIM, EXTENSION WPL 677026 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
TRIM, EXTENSION UPPER WPL 671556 Contact Us For Availability
7
SWITCH, PUSH WPL 673401 Contact Us For Availability
8
GASKET WPL 677453 Contact Us For Availability
8
FRONT, PICK OFF FRZ. WPL 670891 Contact Us For Availability
8
FRONT, ICE BIN WPL 679031 Contact Us For Availability
8
TRIM, CANTILEVER SHELF WPL 677835 Contact Us For Availability
8
BASKET, FRZ. WPL 671212 Contact Us For Availability
8
TRIM EXTENSION WPL 677027 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
KNOB, CONTROL WPL 671451 Contact Us For Availability
8
TRIM, EXTENSION LOWER WPL 671557 Contact Us For Availability
8
COVER, SWITCH BRACKET WPL 672851 Contact Us For Availability
9
STUD, PICK-OFF SHELF WPL 656602 Contact Us For Availability
9
SCREW WPL 405022103 Contact Us For Availability
9
DOOR, DISPENSER WPL 690382 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672655 Contact Us For Availability
9
CLIP,FRZ BASKET WPL 671221 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
CLAMP WPL 538101 Contact Us For Availability
9
BRACKET, HANDLE UPPER WPL 671561 Contact Us For Availability
10
DOOR, DAIRY WPL 670415 Contact Us For Availability
10
WASHER WPL 4200281 Contact Us For Availability
10
NUT, INLET TUBING WPL 246851 Contact Us For Availability
10
FRAME, MEAT SHELF WPL 672742 Contact Us For Availability
10
ROLLER,WHEEL BASKET WPL 671231 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
BRACKET, HANDLE LOWER WPL 671562 Contact Us For Availability
10
ACTUATOR PAD WPL 675342 Contact Us For Availability
11
TRAY, BUTTER WPL 672161 Contact Us For Availability
11
SCREW WPL 4000141 Contact Us For Availability
11
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
11
TRIM, CANTILEVER WPL 673097 Contact Us For Availability
11
PLUG BUTTON WPL 676881 Contact Us For Availability
11
SPACE ROLLER WPL 671241 Contact Us For Availability
11
SHIM, TRIM LOCK WPL 672996 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
LINER,FOUNTAIN WPL 675111 Contact Us For Availability
12
SHELF, PICK OFF REF WPL 670901 Contact Us For Availability
12
INSERT WPL 676141 Contact Us For Availability
12
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
12
TRIM, CANTILEVER SHELF WPL 677837 Contact Us For Availability
12
CLIP, BASKET STOP WPL 674881 Contact Us For Availability
12
SHIM, TRIM LOCK WPL 672997 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
13
TRAY, EGG WPL 672151 Contact Us For Availability
13
CLAMP, TUBING WPL 535168 Contact Us For Availability
13
MEAT KEEPER RAIL WPL 676491 Contact Us For Availability
13
SCREW WPL 6527519 Contact Us For Availability
13
SCREW WPL 405004103 Contact Us For Availability
13
ESCUTCHEON ASSY. WPL 675802 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675602 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
SCREW WPL 4140041 Contact Us For Availability
13
SWITCH, SELECTOR WPL 672831 Contact Us For Availability
14
ORGANIZER,P.O. SHELF WPL 670271 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
ENDCAP, HANDLE WPL 673801 Contact Us For Availability
14
SCREW WPL 6527527 Contact Us For Availability
15
FRONT,PICK OFF SHELF WPL 670841 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
TRIM, MEAT KEEPER WPL 670712 Contact Us For Availability
15
CUP, SHELF WPL 674661 Contact Us For Availability
15
SCREW WPL 9986107 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
KNOB, CONTROL WPL 671452 Contact Us For Availability
15
FUNNEL ICE WPL 675361 Contact Us For Availability
16
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
16
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
16
BULB, LIGHT WPL 319561 Contact Us For Availability
16
COVER, UPPER HINGE (ALM.) WPL 672293 Contact Us For Availability
16
COVER, UPPER HINGE(WHT.) WPL 672294 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
BULB, LIGHT WPL 631791 Contact Us For Availability
17
HOOK,P.O.SHELF (RIGHT) WPL 670431 Contact Us For Availability
17
HOOK,P.O. SHELF (LEFT) WPL 670432 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
GREASE, SILICONE WPL 950991 Contact Us For Availability
17
SOCKET, LIGHT WPL 605771 Contact Us For Availability
17
SCREW, HINGE COVER WPL 4030601 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
WIRE HARNESS, WAIST WPL 674081 Contact Us For Availability
17
HEATER,FOUNTAIN(UPPER) WPL 673941 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
WIRE HARNESS FRZ. WPL 690471 Contact Us For Availability
18
HINGE, TOP WPL 674564 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
18
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
18
ACTUATOR SWITCH ASSEMBLY WPL 72054206 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
19
LINKAGE, MEAT KEEPER WPL 670731 Contact Us For Availability
19
RETAINER WPL 676851 Contact Us For Availability
19
SCREW WPL 40001512 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
WASHER WPL 521851 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
NUT WPL 431019511 Contact Us For Availability
20
DOOR CLOSURE WPL 544852 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 665568 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
BRACKET,ACTUATOR WPL 673431 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
ACTUATOR, MEAT KEEPER WPL 670723 Contact Us For Availability
21
BRACKET, MOTOR WPL 672951 Contact Us For Availability
21
INSULATION DOOR WPL 676451 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
INSULATION, CLOSER WPL 526131 Contact Us For Availability
21
SCREW WPL 6527514 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
SHIELD, FAN WPL 672252 Contact Us For Availability
22
U-NUT GROUNDING WPL 537322 Contact Us For Availability
22
BRACKET, CLOSER WPL 526141 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
22
LOCKWASHER WPL 420003905 Contact Us For Availability
22
CORD WPL 2967525 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
MEAT PAN ASSY. WPL 676501 Contact Us For Availability
23
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
23
COVER, COIL WPL 672974 Contact Us For Availability
23
STOP, DOOR WPL 690221 Contact Us For Availability
23
HOSE, DRAIN WPL 2691125 Contact Us For Availability
23
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
23
SPRING, EXTENSION WPL 673391 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
HOUSING, MEAT PAN WPL 670691 Contact Us For Availability
24
SEAL, FOAM WPL 6632515 Contact Us For Availability
24
SCREW WPL 6527548 Contact Us For Availability
24
CLIP, HANDLE WPL 673861 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
NUT, PUSH ON WPL 431015511 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
GLASS, CANTILEVER WPL 672677 Contact Us For Availability
25
SEAL WPL 6632520 Contact Us For Availability
25
SCREW, BRACKET TO HANDLE WPL 6527531 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SCREW WPL 6527542 Contact Us For Availability
25
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
25
DASHPOT,TIME DELAY WPL 672861 Contact Us For Availability
26
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
26
SCREW WPL 6527532 Contact Us For Availability
26
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
WASHER WPL 521852 Contact Us For Availability
26
COVER, UNIT COMPARTMENT WPL 677863 Contact Us For Availability
26
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
26
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
26
ARM DASHPOT WPL 673371 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
SLIDE RAIL WPL 676581 Contact Us For Availability
27
RAIL WPL 676582 Contact Us For Availability
27
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
27
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950902 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
27
PIN, HINGE WPL 689771 Contact Us For Availability
27
DOOR, ICE CHUTE WPL 678001 Contact Us For Availability
28
VALVE WPL 675591 Contact Us For Availability
28
SCREW WPL 652756 Contact Us For Availability
28
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
28
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
28
PIN, LOWER HINGE WPL 689761 Contact Us For Availability
28
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
28
ARM SOLENOID WPL 673381 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
MOTOR,EVAPORATOR FAN WPL 557358 Contact Us For Availability
29
SCREW, HINGE COVER (BLACK) WPL 6527547 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
GRILL, KICKPLATE WPL 670235 Contact Us For Availability
29
HINGE, LOWER WPL 689752 Contact Us For Availability
29
SPRING, PIN WPL 672912 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
PAN, CRISPER WPL 6765014 Contact Us For Availability
30
SCREW WPL 4000211 Contact Us For Availability
30
COVER, COIL LOWER WPL 673353 Contact Us For Availability
30
HINGE, LOWER WPL 689751 Contact Us For Availability
30
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
30
EVAPORATOR WPL RA4364310 Contact Us For Availability
30
SCREW WPL 4060125 Contact Us For Availability
31
SCREW WPL 951051 Contact Us For Availability
31
ORGANIZER, MICRO WPL 671642 Contact Us For Availability
31
COIL COVER, GASKET WPL 675621 Contact Us For Availability
31
TAPPING PLATE WPL 671031 Contact Us For Availability
31
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
31
SHIM WPL 690311 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
31
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
31
LINK ICE DOOR WPL 672211 Contact Us For Availability
32
SCREW WPL 951061 Contact Us For Availability
32
COVER, PLASTIC WPL 676321 Contact Us For Availability
32
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
32
RIVET WPL 440015300 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
END CAP (L) WPL 678542 Contact Us For Availability
32
COTTER PIN WPL 492001703 Contact Us For Availability
33
SCREW WPL 4000221 Contact Us For Availability
33
COVER, GLASS WPL 676301 Contact Us For Availability
33
SCREW,HANDLE BOTTOM (HEX HEAD) WPL 6527529 Contact Us For Availability
33
CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability
33
ENDCAP, HANDLE WPL 673803 Contact Us For Availability
33
SEAL WPL 6632518 Contact Us For Availability
33
SEAL AIR RETURN WPL 676931 Contact Us For Availability
33
WHEEL FRONT WPL 674551 Contact Us For Availability
33
SCREW WPL 4060321 Contact Us For Availability
33
SOLENOID WPL 675431 Contact Us For Availability
33
COVER WPL 676591 Contact Us For Availability
34
SCREW WPL 4010181 Contact Us For Availability
34
DISH, MICRO WPL 676311 Contact Us For Availability
34
SCREW, HANDLE END CAP WPL 4140047 Contact Us For Availability
34
WIRE HARNESS WPL 677331 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
AXLE WPL 625802 Contact Us For Availability
34
SCREW WPL 405012103 Contact Us For Availability
35
GLASS, CRISPER SHELF WPL 674896 Contact Us For Availability
35
CLAMP, SPRING WPL 603334 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
35
BRACKET, FOUNTAIN WPL 673461 Contact Us For Availability
36
SHELF, CRISPER WPL 678912 Contact Us For Availability
36
HEATER, DEFROST WPL 5276415 Contact Us For Availability
36
AXLE WHEEL WPL 675291 Contact Us For Availability
36
SPOUT FOUNTAIN WPL 675371 Contact Us For Availability
36
RETAINER TUBE WPL 677281 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
TUBING, VALVE TO COIL WPL 671875 Contact Us For Availability
37
HUMIDITY CONTROL WPL 674911 Contact Us For Availability
37
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
37
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
37
SEAL, ICE CHUTE WPL 672621 Contact Us For Availability
38
FUNNEL-KIT WPL 675792 Contact Us For Availability
38
TRIM, CRISPER WPL 672042 Contact Us For Availability
38
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
WHEEL, ROLLER WPL 674552 Contact Us For Availability
38
CHUTE, ICE FOUNTAIN WPL 672491 Contact Us For Availability
38
INSULATION, FOUNTAIN WPL 675892 Contact Us For Availability
39
BUMPER, DOOR WPL 282726 Contact Us For Availability
39
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 678721 Contact Us For Availability
39
WIRE HARNESS, COMPRESSOR WPL 688411 Contact Us For Availability
39
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
39
NUT, PUSH-ON WPL 431028511 Contact Us For Availability
40
PIN, ICE DOOR WPL 679061 Contact Us For Availability
40
PAN, CRISPER WPL 6765013 Contact Us For Availability
40
SCREW WPL 4000261 Contact Us For Availability
40
COVER, BACK WIRE WPL 670941 Contact Us For Availability
40
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
40
SHAFT, ICE DOOR WPL 672893 Contact Us For Availability
41
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
41
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
BRACKET, WHEEL WPL 678061 Contact Us For Availability
41
TUBING PLASTIC-FTN/DOOR PANEL WPL 671872 Contact Us For Availability
42
MOTOR, AUGER WPL 651861 Contact Us For Availability
42
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
42
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
43
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
43
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
43
UNION, REDUCING WPL 676121 Contact Us For Availability
44
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
44
SCREW WPL 6527534 Contact Us For Availability
45
SHELF, CRISPER WPL 672024 Contact Us For Availability
45
GROMMET WPL 525261 Contact Us For Availability
45
VINYL SLEEVE WPL 2608829 Contact Us For Availability
45
TUBING WPL 675799 Contact Us For Availability
46
SEAL WPL 677315 Contact Us For Availability
46
DRAIN TUBE WPL 265279 Contact Us For Availability
46
INSULATION FOUNTAIN WPL 671701 Contact Us For Availability
47
TRIM CRISPER LOWER WPL 672047 Contact Us For Availability
47
FOAM SEAL WPL 6632532 Contact Us For Availability
47
HEATER WPL 689411 Contact Us For Availability
47
INSULATION WPL 689421 Contact Us For Availability
48
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
48
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
49
SCREW WPL 6527528 Contact Us For Availability
49
UNION REDUCING WPL 675661 Contact Us For Availability
50
SUPPORT, CRISPER WPL 671621 Contact Us For Availability
50
NUT, COMPRESSION (3/8``) WPL 676101 Contact Us For Availability
51
SCREW WPL 40002612 Contact Us For Availability
51
SCREW WPL 4000256 Contact Us For Availability
51
TUBING ASSY WPL 72028102 Contact Us For Availability
52
PAN, CRISPER WPL 6765011 Contact Us For Availability
52
WIRE HARNESS FOUNTAIN WPL 679121 Contact Us For Availability
53
TUNNEL, AIR WPL 675262 Contact Us For Availability
NI
CLIP SHIPPING WPL 649352 Contact Us For Availability
NI
SCREW WPL 6527536 Contact Us For Availability
NI
BASE CRATE WPL 674113 Contact Us For Availability
NI
SPACER FRONT WPL 674141 Contact Us For Availability
NI
RAIL FOAM PACKIN WPL 674151 Contact Us For Availability
NI
CARTON SXS WPL 6741616 Contact Us For Availability
NI
CAP CARTON WPL 674173 Contact Us For Availability
NI
PAD, GLASS SHELF WPL 674391 Contact Us For Availability
NI
PAD, COMPARTMENT WPL 674471 Contact Us For Availability
NI
PAD, MICRO DISH WPL 674481 Contact Us For Availability
NI
PAD, FRZ. COMPT. WPL 677391 Contact Us For Availability
NI
SPACER CRATE BASE WPL 690671 Contact Us For Availability
NI
SPACER CRATE BASE WPL 690681 Contact Us For Availability
NI
SEE NOTE WPL Y00000000 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070781 Contact Us For Availability
× ![]()
Login and Registration Form
