Model Electrolux RSG192NCD1 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

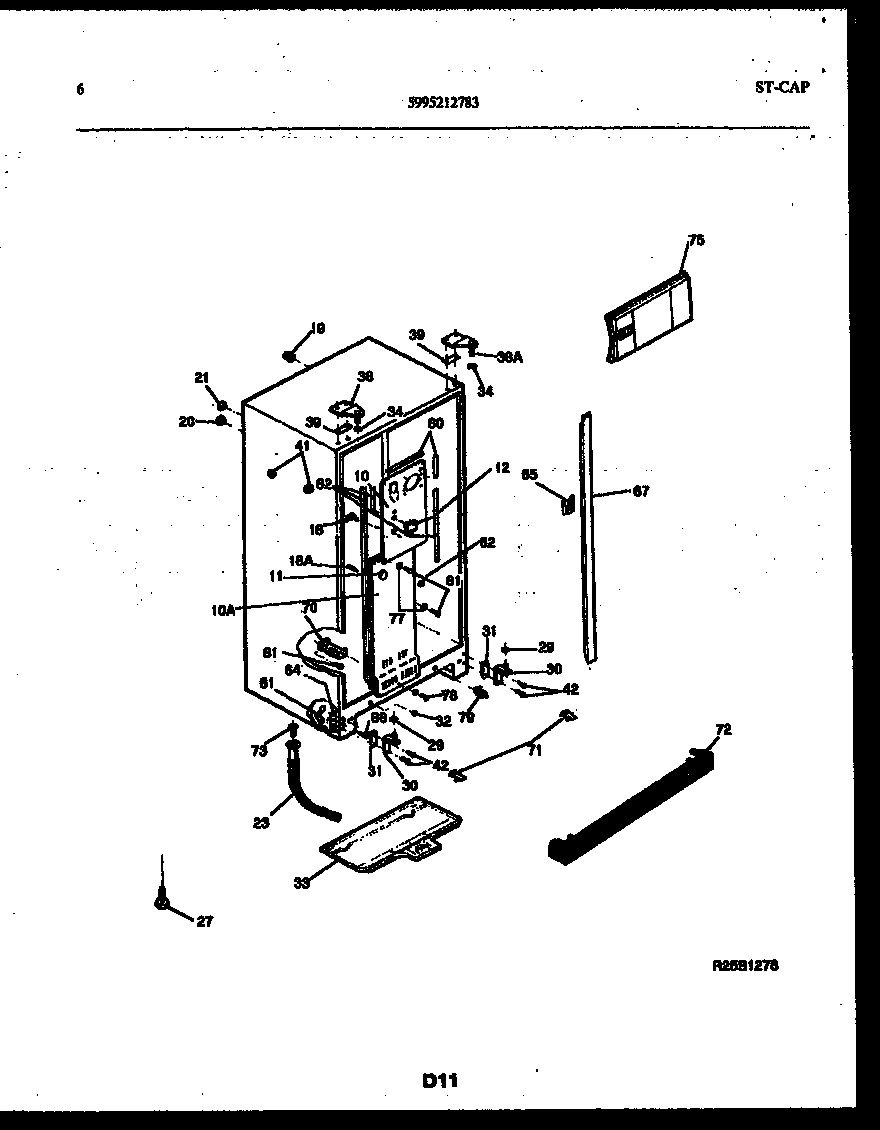

04 - CABINET PARTS
05 - CABINET PARTS

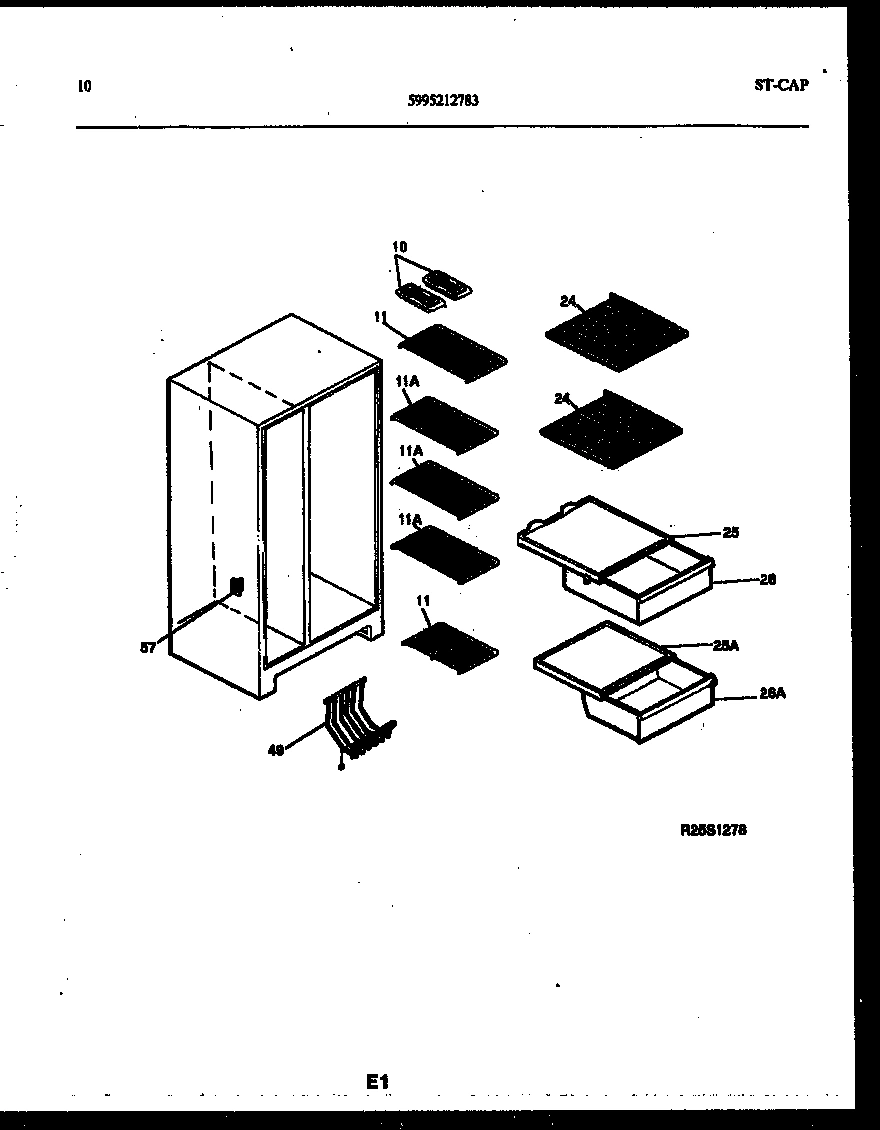

06 - SHELVES AND SUPPORTS

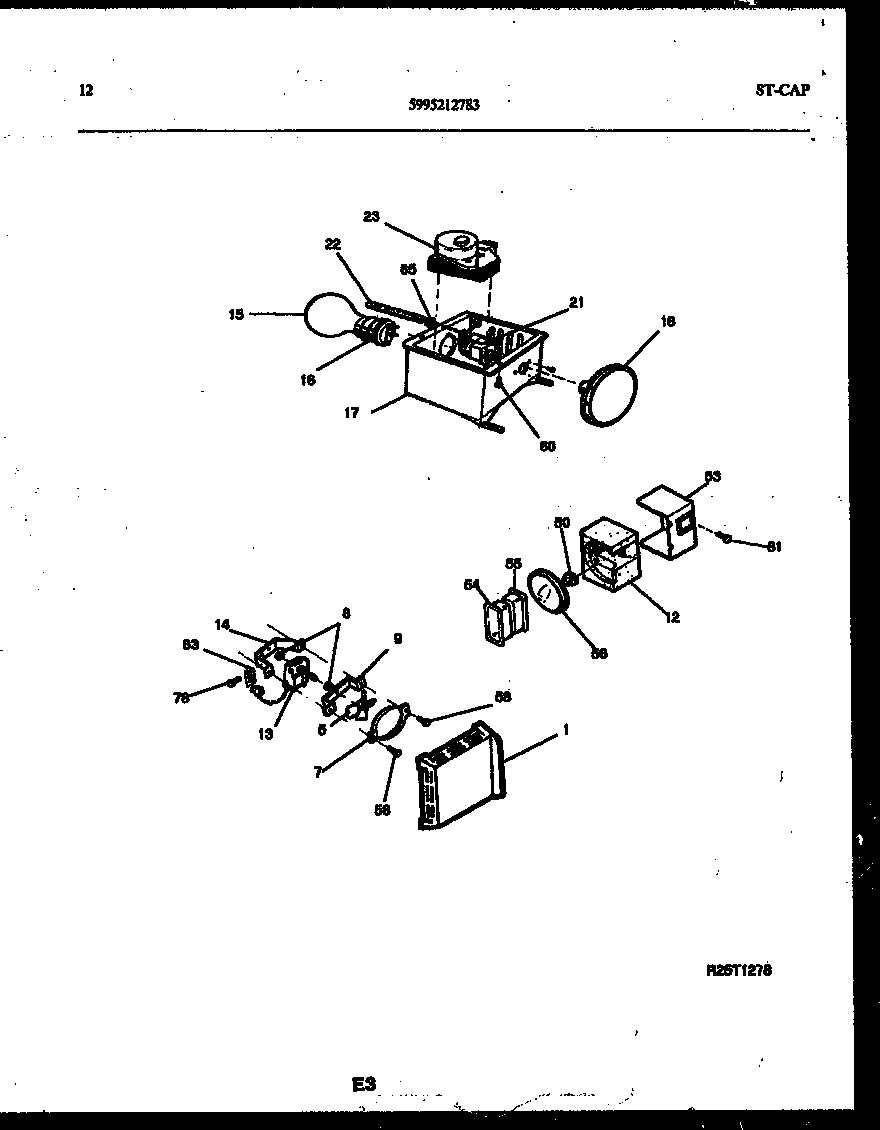

07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

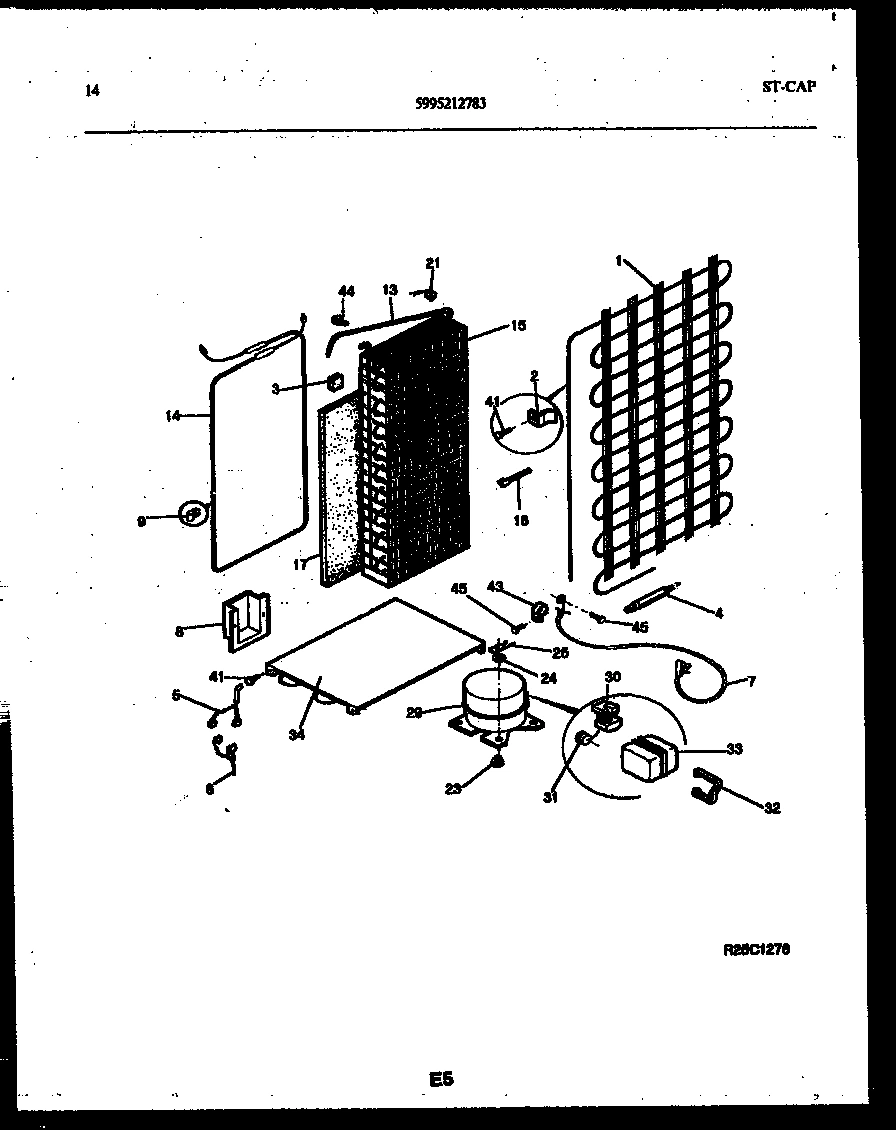

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RSG192NCD1 REFRIGERATOR
*55755
INSULATION, DOOR, FIBERGLASS, (BULK) WCI 5303007739 Contact Us For Availability
*55760
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*55760
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*55766
HOT TUBE REPAIR KIT, SERVICE WCI 5300189379 Contact Us For Availability
*55766
INSULATOR-FRZR COIL-TOP WCI 5308009619 Contact Us For Availability
1
WCI 5316465401 WCI 5316465401 Contact Us For Availability
1
WCI 5308017228 WCI 5308017228 Contact Us For Availability
2
GASKET-REFR DOOR, MAGNETIC WCI 5303201013 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303274656 WCI 5303274656 Contact Us For Availability
3
BLOCK-COIL (4) WCI 5308000828 Contact Us For Availability
4
WCI 5303280725 WCI 5303280725 Contact Us For Availability
5
WCI 5316101801 WCI 5316101801 Contact Us For Availability
5
WIRING HARNESS, CONTROLS WCI 5300191442 Contact Us For Availability
6
WCI 5316108001 WCI 5316108001 Contact Us For Availability
6
WIRING HARNESS, COMPR/LIGHT SW WCI 5300165845 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 5303280631 WCI 5303280631 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
SUPPORT-DEFROST HTR WCI 5308002777 Contact Us For Availability
10
COVER-EVAP COIL, UPPER WCI 5317835501 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
10A
WCI 5308000823 WCI 5308000823 Contact Us For Availability
11
WCI 5303275313 WCI 5303275313 Contact Us For Availability
11A
WCI 5303275314 WCI 5303275314 Contact Us For Availability
12
PLUG-DECORATIVE, ICE MAKER HOLE WCI 08012270 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5308017565 Contact Us For Availability
14
WCI 5303007568 WCI 5303007568 Contact Us For Availability
14
PLUG-BUTTON, REFR/FZR DOOR WCI 5315230801 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303916946 WCI 5303916946 Contact Us For Availability
15
WCI 5303916605 WCI 5303916605 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
WCI 5308010238 WCI 5308010238 Contact Us For Availability
17
WCI 5303275517 WCI 5303275517 Contact Us For Availability
17
INSULATOR-EVAP WCI 5303001235 Contact Us For Availability
17A
INSULATOR-CONTRL BOX, REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
18
WCI 5308009803 WCI 5308009803 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308010380 WCI 5308010380 Contact Us For Availability
18A
SUPPORT-EVAP COVER WCI 5303001250 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5308010239 WCI 5308010239 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
21
SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 WCI 5308013645 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303274947 WCI 5303274947 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BEARING-HINGE UPPER WCI 5303001022 Contact Us For Availability
22
BEARING-HINGE WCI 5308012007 Contact Us For Availability
22
WCI 5303274945 WCI 5303274945 Contact Us For Availability
23
WCI 5303001020 WCI 5303001020 Contact Us For Availability
23
WCI 5303209723 WCI 5303209723 Contact Us For Availability
23A
WCI 5303001558 WCI 5303001558 Contact Us For Availability
24
SHELF-SLIDING, REFR, (2) WCI 5303275315 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 5308008727 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 5316391601 Contact Us For Availability
26
WCI 5303208353 WCI 5303208353 Contact Us For Availability
26A
WCI 5303208354 WCI 5303208354 Contact Us For Availability
27
SCREW-LEVELING WCI 3018437 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5308950223 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN WCI 5303001271 Contact Us For Availability
31
WCI 5303271616 WCI 5303271616 Contact Us For Availability
31
SHIM-LOWER HINGE WCI 5303001272 Contact Us For Availability
32
PLUG-BUTTON, CABINET BASE WCI 5316584601 Contact Us For Availability
33
PAN-DEFROST WCI 5308000086 Contact Us For Availability
33A
WCI 08000099 WCI 08000099 Contact Us For Availability
34
WCI 5308000186 No Longer Available
34
WCI 5308000790 WCI 5308000790 Contact Us For Availability
34
DEFROST PLATE & TUBE ASSY WCI 5300188724 Contact Us For Availability
35
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
38
BRACKET-UPPER HINGE, LH WCI 5303001062 Contact Us For Availability
38A
WCI 5308012934 WCI 5308012934 Contact Us For Availability
38C
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
42
SCREW-LWR HINGE MTG, REC HEX HEAD, 1/4(AB) X WCI 5303001041 Contact Us For Availability
49
TRIVET/BASKET WCI 3006453 Contact Us For Availability
49A
CAP-PROTECTOR, (4) (NON-ILLUSTRATED) WCI 5303207490 Contact Us For Availability
50
WCI 5300185373 WCI 5300185373 Contact Us For Availability
53
WCI 5303211383 WCI 5303211383 Contact Us For Availability
54
WCI 5303001276 WCI 5303001276 Contact Us For Availability
55
WCI 5303001277 WCI 5303001277 Contact Us For Availability
55A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
56
WCI 5316521701 WCI 5316521701 Contact Us For Availability
57
WCI 5303271652 WCI 5303271652 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
61
NUT, STUD SPEED, .094, (2) WCI 5300077210 Contact Us For Availability
62
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
64
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
65
CLIP-MULLION MTG, (3) WCI 5303001281 Contact Us For Availability
65
WCI 5303274946 WCI 5303274946 Contact Us For Availability
65A
CLIP-MULLION MTG, (3) (NON-ILLUSTRATED) WCI 5300169100 Contact Us For Availability
67
WCI 5303916448 WCI 5303916448 Contact Us For Availability
68
PIN, SHOULDER, 3/32 X 5/8, (2) WCI 5308000013 Contact Us For Availability
70
BRACKET-COVER MTG WCI 5308000738 Contact Us For Availability
71
WCI 5308000091 WCI 5308000091 Contact Us For Availability
72
WCI 5303016726 WCI 5303016726 Contact Us For Availability
73
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
75
WCI 5303275432 WCI 5303275432 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
79A
CLIP-CABLE, LIGHT SWITCH (NON-ILLUSTRATED) WCI 08009775 Contact Us For Availability
80
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
82
GASKET KIT, COIL COVER WCI 5303001233 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
