Model Electrolux RSG192GCD1A REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

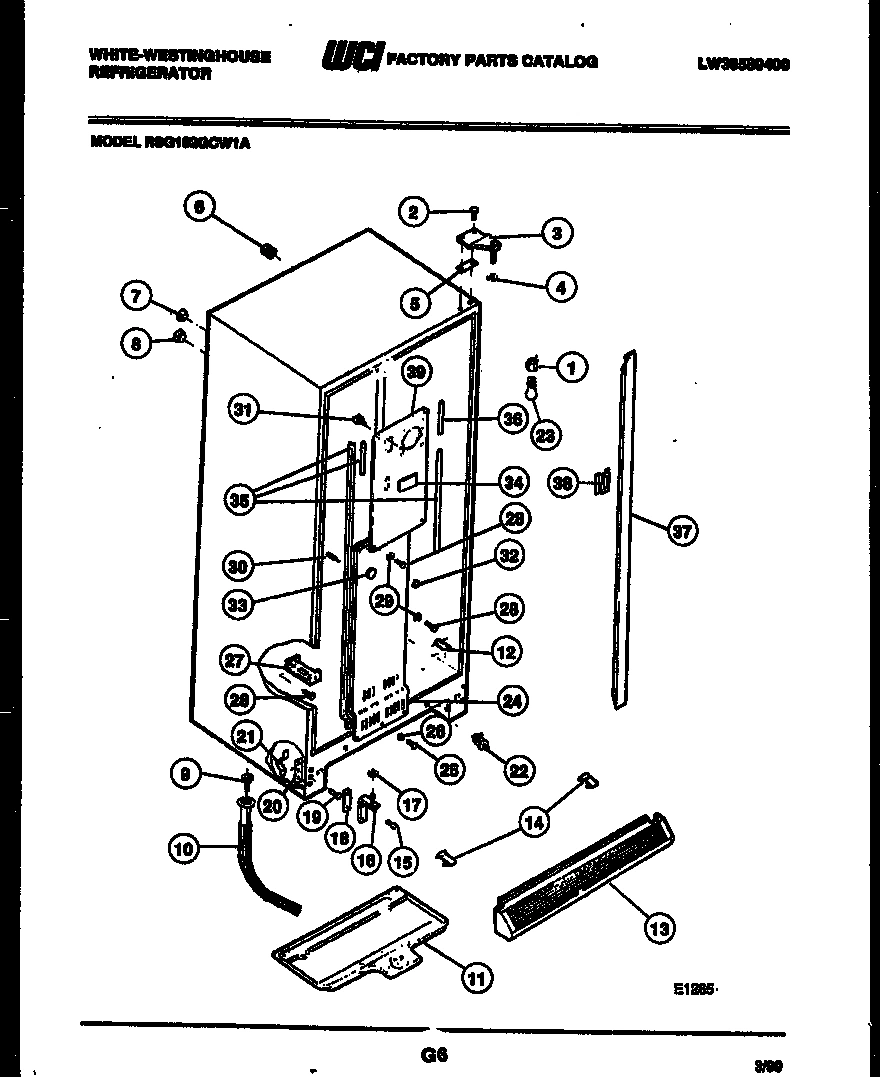

04 - CABINET PARTS

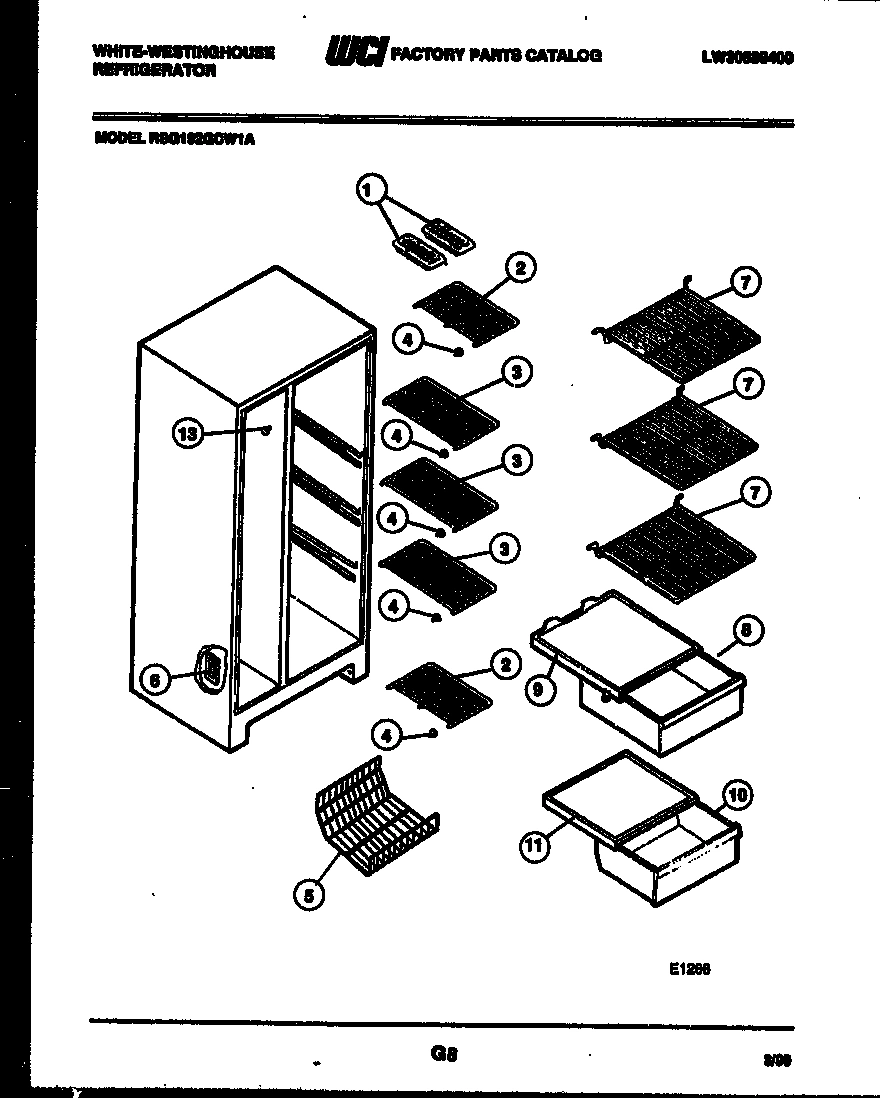

05 - SHELVES AND SUPPORTS

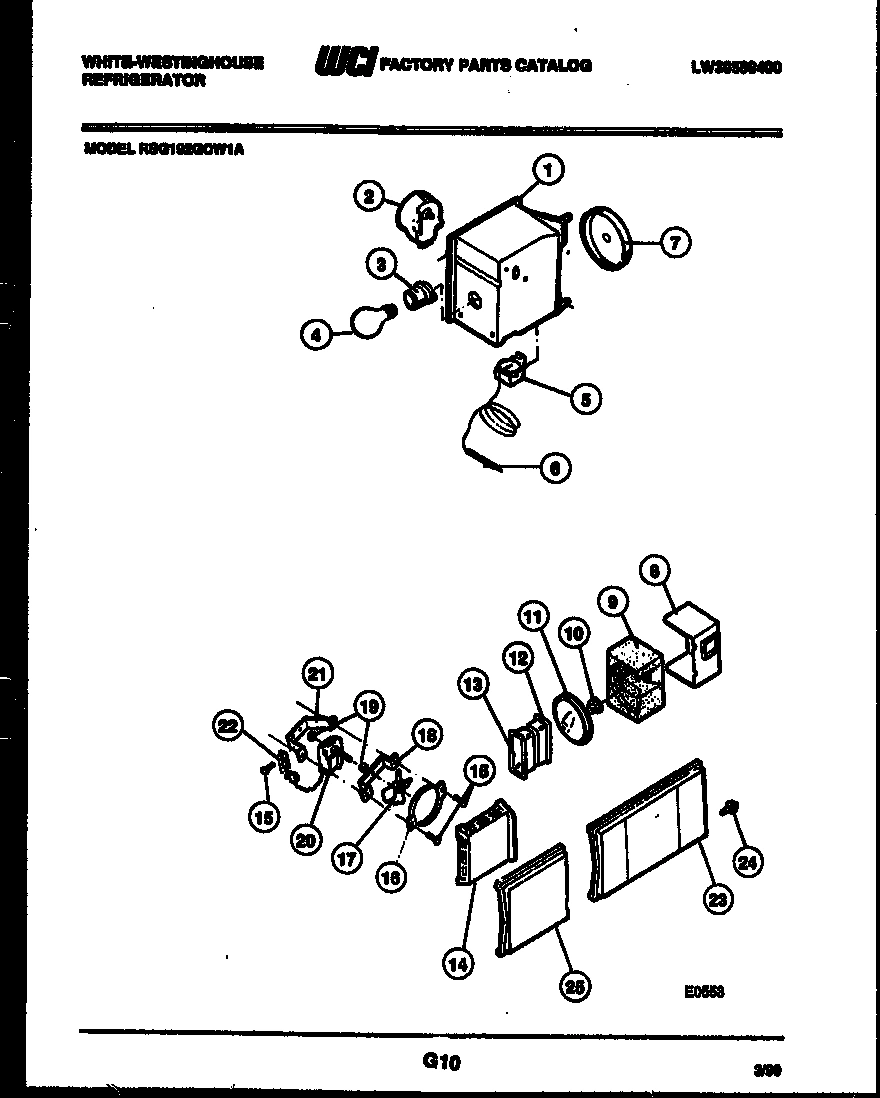

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

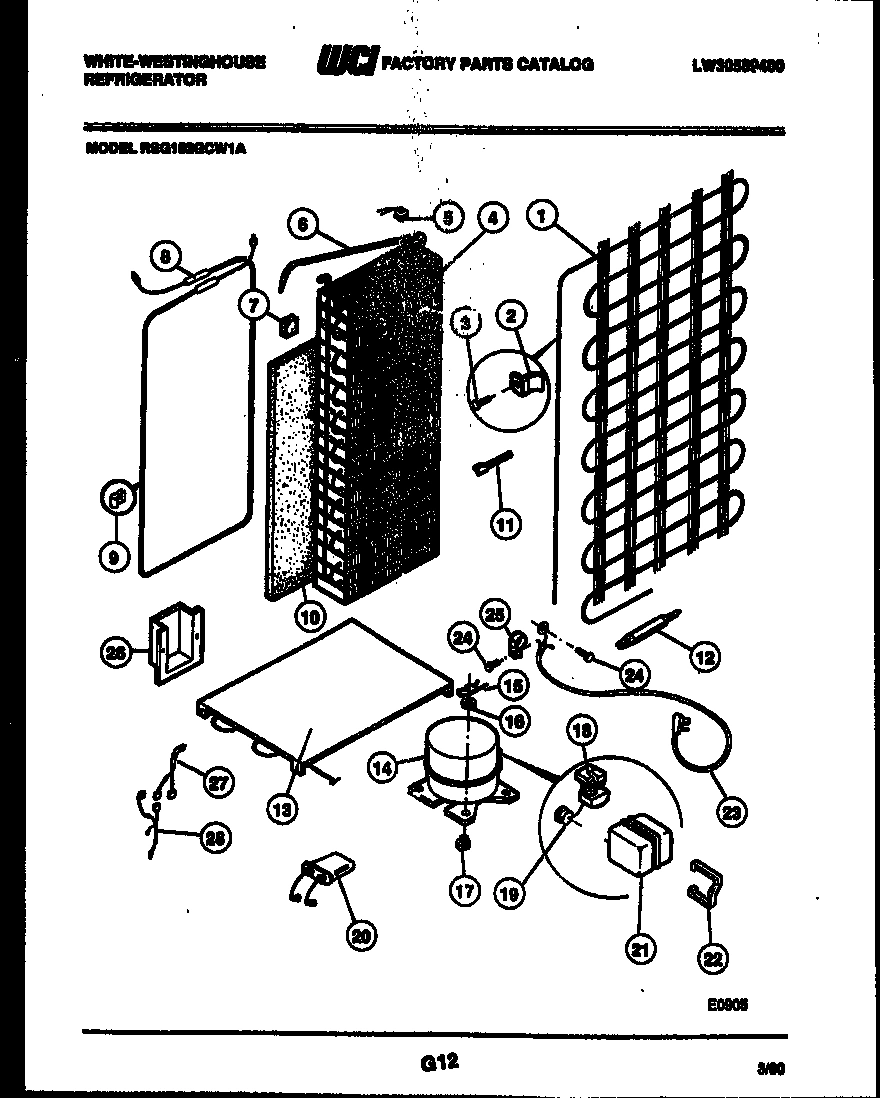

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RSG192GCD1A REFRIGERATOR
*26429
CLIP-CABLE (2) WCI 08009775 Contact Us For Availability
1
WCI 5303916708 WCI 5303916708 Contact Us For Availability
1
CONTROL BOX WCI 5308017561 Contact Us For Availability
1
WCI 5308017228 WCI 5308017228 Contact Us For Availability
1A
PLUG - DOOR BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
1A
HOT TUBE REPAIR KIT-SERVICE (NON-ILLUSTRATED) WCI 5300189379 Contact Us For Availability
1B
INSULATOR-BOX REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
2
WCI 5303001022 WCI 5303001022 Contact Us For Availability
2
SHELF-FREEZER SMALL (2) WCI G168748-01 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
2A
HINGE BEARING - LOWER (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
3
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
3
SCREW, HANDLE (2) WCI 5308013645 Contact Us For Availability
3
HINGE-TOP RS WCI 5308012934 Contact Us For Availability
3
SHELF-FREEZER LARGE (3) WCI G168748-02 Contact Us For Availability
3A
HINGE-TOP LS (NON-ILLUSTRATED) WCI 5303001062 Contact Us For Availability
3B
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 Contact Us For Availability
4
INSULATION, BULK WCI 5303007739 Contact Us For Availability
4
WCI 5303916605 WCI 5303916605 Contact Us For Availability
5
WCI 5308000068 WCI 5308000068 Contact Us For Availability
5
WCI 5303200272 WCI 5303200272 Contact Us For Availability
5
SHIM-TOP HINGE (2) WCI 5303001037 Contact Us For Availability
5
TRIVET SHELF-FREEZER WCI G167018 Contact Us For Availability
5A
CAP-PROTECTOR TRIVET (4) (NON-ILLUSTRATED) WCI 5303207490 Contact Us For Availability
5A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
SCREW-CLOSER MOUNTING WCI 5306588927 Contact Us For Availability
6
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
6
FERRULE-AIR WCI 5308000808 Contact Us For Availability
6
WCI 5308017565 WCI 5308017565 Contact Us For Availability
7
WCI 5303201811 WCI 5303201811 Contact Us For Availability
7
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
7
SHELF-REFR (3) WCI G169226-03 Contact Us For Availability
7
WCI 5308000778 WCI 5308000778 Contact Us For Availability
7
WCI 5308000828 WCI 5308000828 Contact Us For Availability
8
WCI 5303007568 WCI 5303007568 Contact Us For Availability
8
INNER PANEL-REFRIGERATOR WCI 5303016725 Contact Us For Availability
8
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
8
PAN-UPPER WCI G179707-08 Contact Us For Availability
8
BOX-DAMPER ASSEMBLY WCI 5303001252 Contact Us For Availability
9
WCI 5316473116 WCI 5316473116 Contact Us For Availability
9
WCI 5308000853 WCI 5308000853 Contact Us For Availability
9
COVER-PAN UPPER WCI 5308008727 Contact Us For Availability
9
WCI 5308000771 WCI 5308000771 Contact Us For Availability
9
WCI 5308002777 WCI 5308002777 Contact Us For Availability
10
RACK-REFRIGERATOR DOOR (4) WCI G161019-16 Contact Us For Availability
10
PAN-LOWER WCI G179708-08 Contact Us For Availability
10
WCI 5308013429 WCI 5308013429 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
11
SUPPORT-RS (4) WCI 5316101801 Contact Us For Availability
11
WCI 5308000086 WCI 5308000086 Contact Us For Availability
11
COVER-PAN LOWER WCI 5316391601 Contact Us For Availability
11
WCI 5316521701 WCI 5316521701 Contact Us For Availability
12
PLUG-IM MOUNTING HOLES (3) WCI 5308016571 Contact Us For Availability
12
SUPPORT-LS (4) WCI 5316108001 Contact Us For Availability
12
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
13
WCI 5308000790 WCI 5308000790 Contact Us For Availability
13
GRILLE WCI 5303016726 Contact Us For Availability
13
WCI 5303001276 WCI 5303001276 Contact Us For Availability
13
DEFROST PLATE WCI 5300188724 Contact Us For Availability
13A
GASKET-FERRULE (NON-ILLUSTRATED) WCI 5303001280 Contact Us For Availability
14
WCI 5308000091 WCI 5308000091 Contact Us For Availability
14
COVER-FAN ASSEMBLY WCI 5316465401 Contact Us For Availability
14
WCI 08950223 WCI 08950223 Contact Us For Availability
15
HANDLE-ALMOND WCI 3016496 Contact Us For Availability
15
SCREW-HINGE MOUNTING (4) WCI 5303001041 Contact Us For Availability
15
CLIP (4) WCI 5308003596 Contact Us For Availability
16
WCI 5308000124 WCI 5308000124 Contact Us For Availability
16
WCI 5303001271 WCI 5303001271 Contact Us For Availability
16
WASHER (4) WCI 5308003633 Contact Us For Availability
17
WCI 5303001038 WCI 5303001038 Contact Us For Availability
18
WCI 5303007173 WCI 5303007173 Contact Us For Availability
18
SHIM-BOTTOM HINGE (6) WCI 5303001272 Contact Us For Availability
18
WCI 5303001226 WCI 5303001226 Contact Us For Availability
19
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
20
TWIN NUT (4) WCI 5303001273 Contact Us For Availability
20
CAPACITOR ASSY WCI 5303916391 Contact Us For Availability
21
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
21
WCI 5303001227 WCI 5303001227 Contact Us For Availability
22
WCI 5308000107 WCI 5308000107 Contact Us For Availability
23
LIGHT SHIELD-REFRIGERATOR WCI 5316441928 Contact Us For Availability
23
WCI 5316254901 WCI 5316254901 Contact Us For Availability
24
WCI 5308017223 WCI 5308017223 Contact Us For Availability
24
SUPPORT-LIGHT SHIELD FRZR & REFR SECT WCI 5303001213 Contact Us For Availability
25
SCREW-8-32 X 9/16 BRACKET CON MTG WCI 5303001230 Contact Us For Availability
25
WCI 5316445232 WCI 5316445232 Contact Us For Availability
26
WASHER-NO. 10 EXT TOOTH (2) WCI 5308009617 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
27
WCI 5308000738 WCI 5308000738 Contact Us For Availability
27
WIRING HARNESS-CONTROL WCI 5303015098 Contact Us For Availability
27A
CLIP-HARNESS (NON-ILLUSTRATED) WCI 5308017046 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
29
WASHER-3/16 NYLON WCI 5303001216 Contact Us For Availability
30
SUPPORT-COIL COVER (5) WCI 5303001250 Contact Us For Availability
31
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
32
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
33
PLUG-SHORT TEST HOLE WCI 5303203044 Contact Us For Availability
34
PLUG-DECORATIVE WCI 5316541602 Contact Us For Availability
35
WCI 5303001233 WCI 5303001233 Contact Us For Availability
36
GASKET-COVER UPPER (2) WCI 5303001219 Contact Us For Availability
37
WCI 5303916447 WCI 5303916447 Contact Us For Availability
37
WCI 5303916448 WCI 5303916448 Contact Us For Availability
38
CLIP-MULLION MOUNTING (3) WCI 5300169100 Contact Us For Availability
38A
CLIP-MULLION MOUNTING (3) (NON-ILLUSTRATED) WCI 5303001281 Contact Us For Availability
39
COVER-UPPER COIL WCI 5303006543 Contact Us For Availability
× ![]()
