Model Whirlpool RSD2400CAL REFRIGERATOR – Common Parts & Diagrams

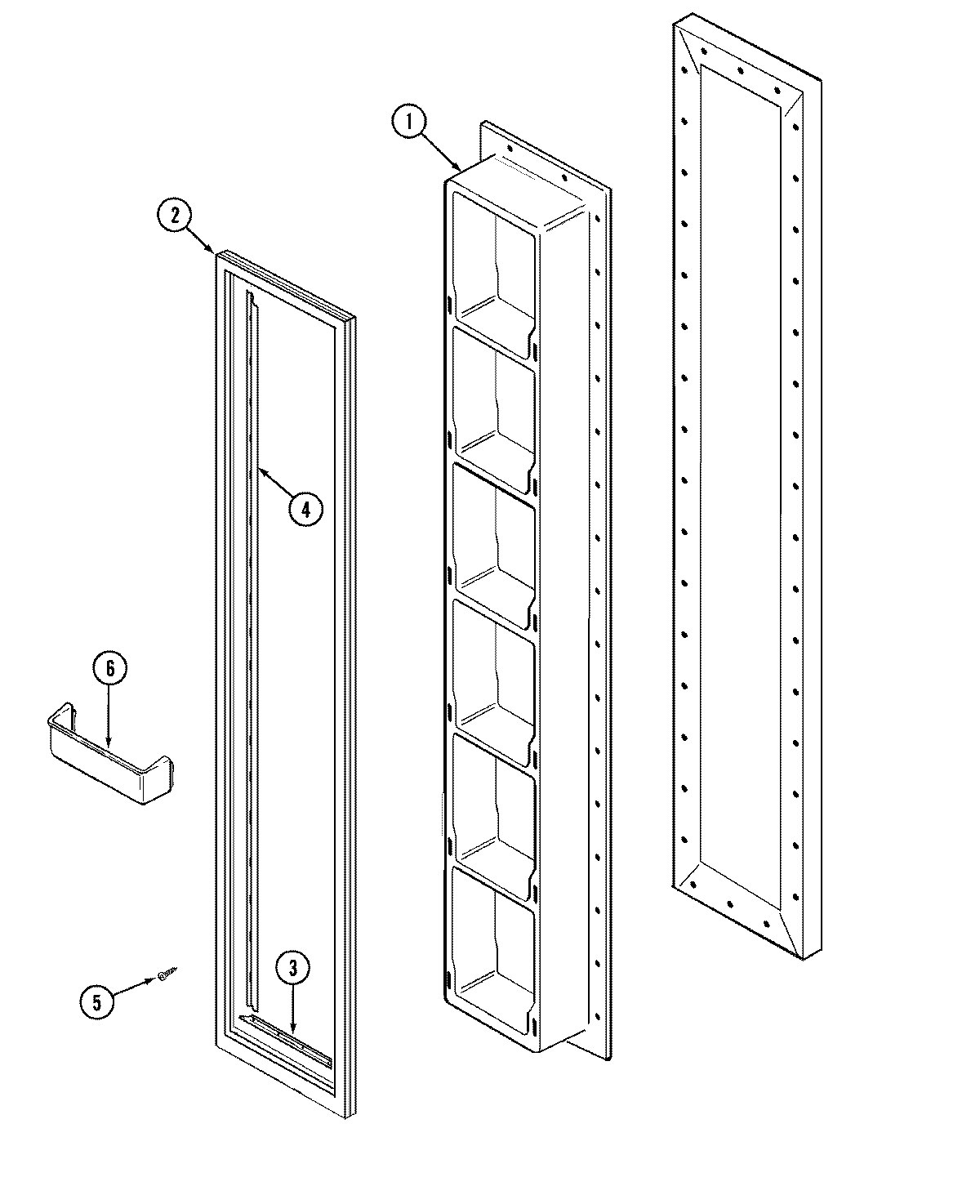

02 - FREEZER INNER DOOR

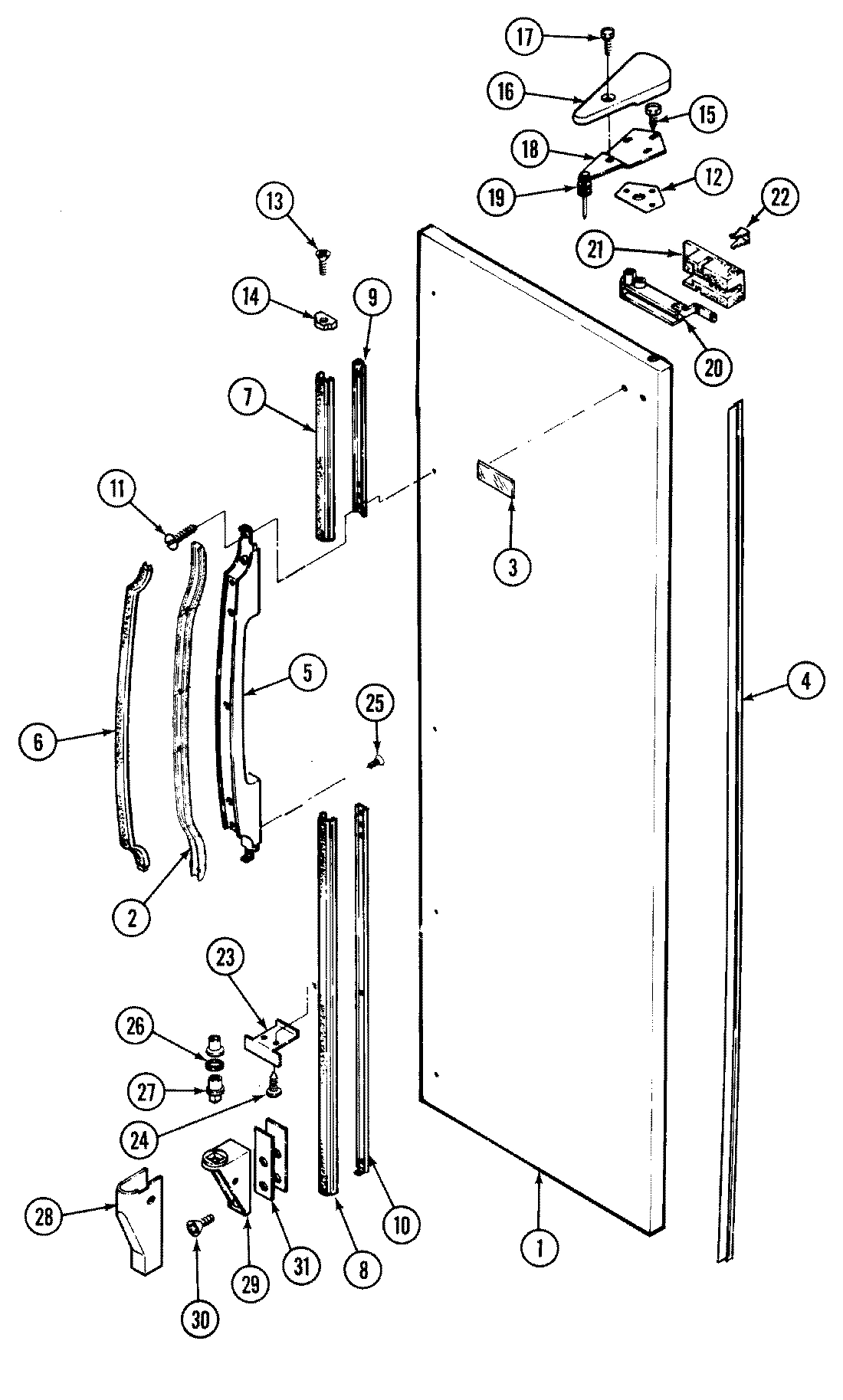

06 - FRESH FOOD OUTER DOOR

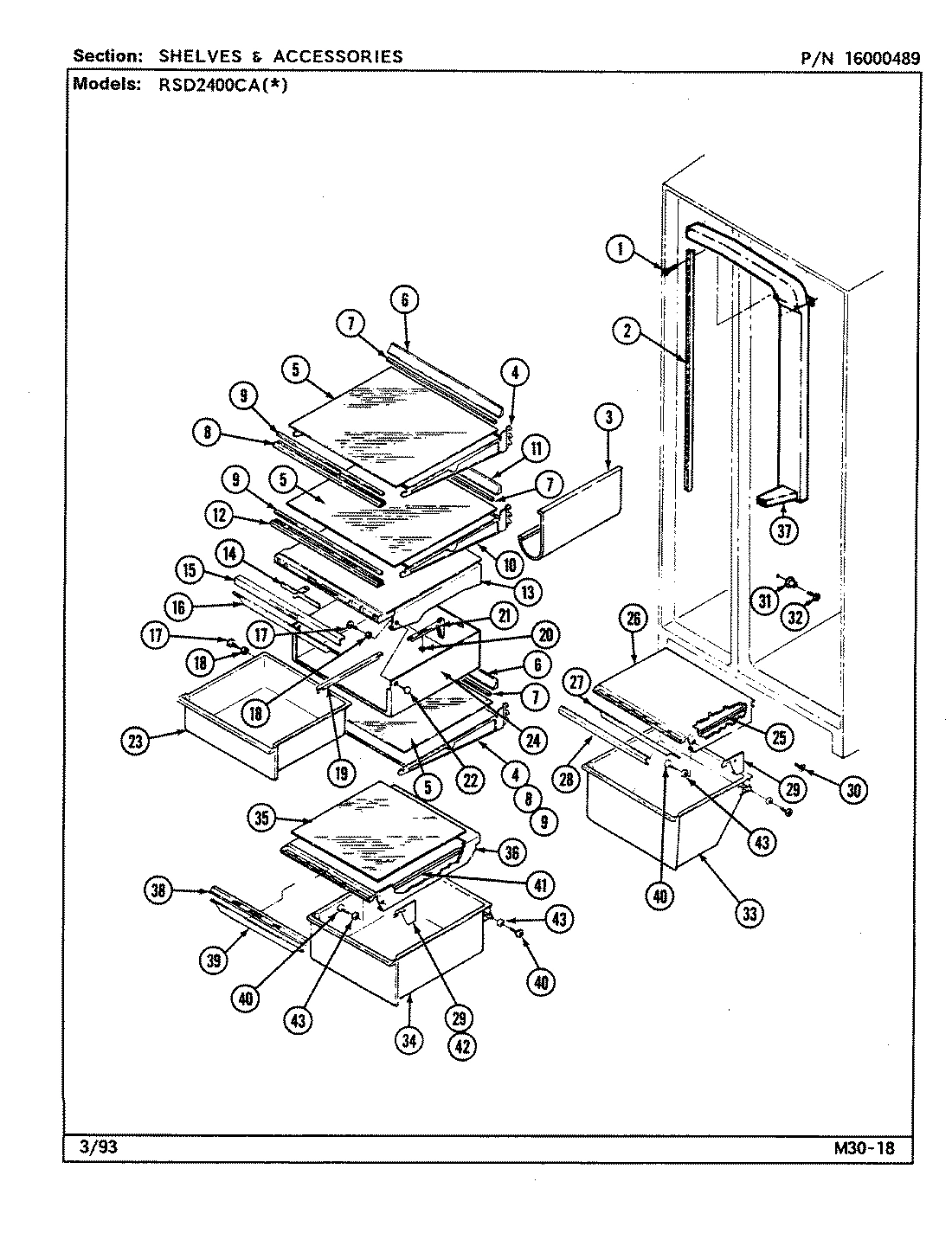

08 - SHELVES & ACCESSORIES

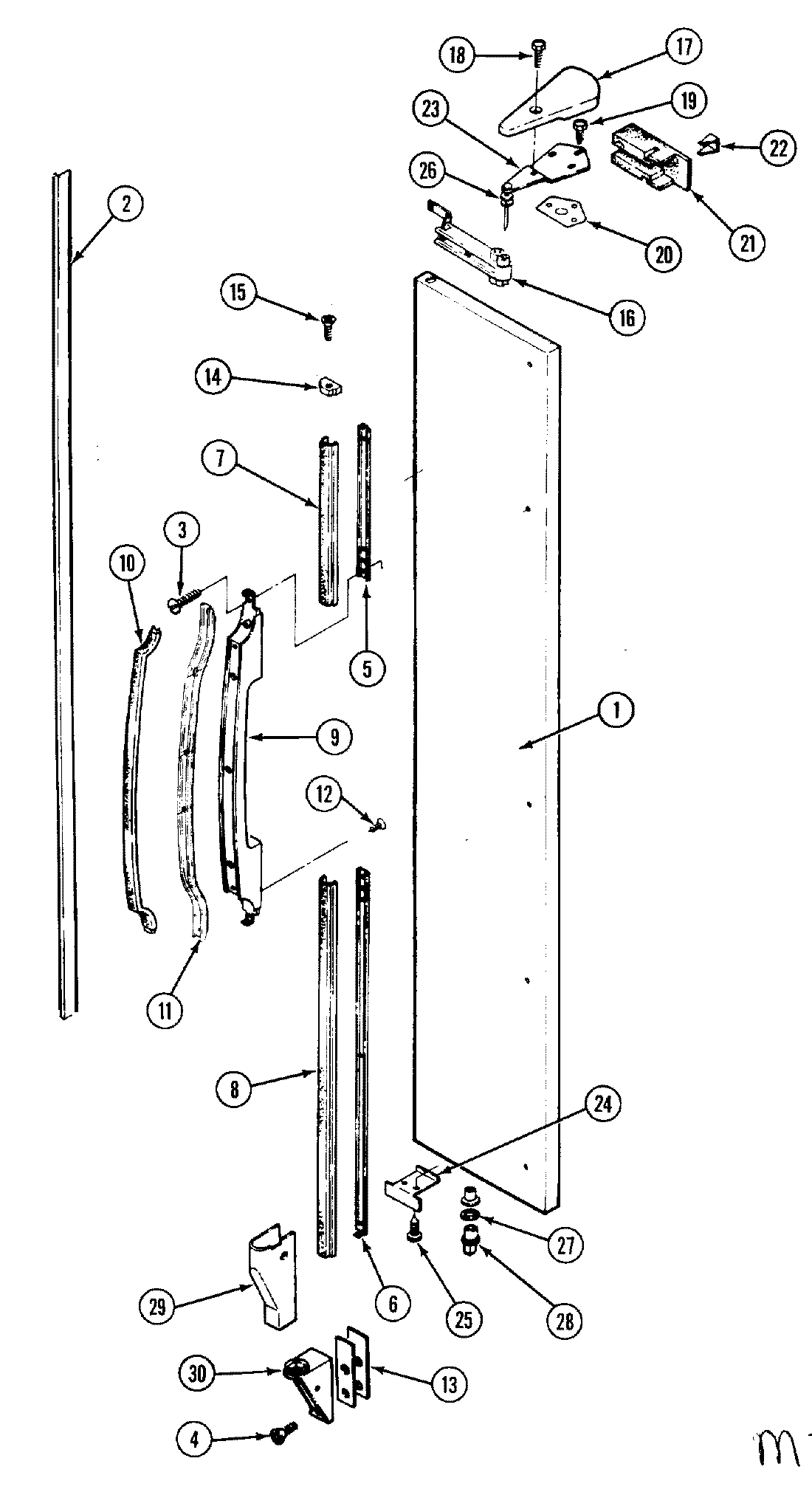

03 - FREEZER OUTER DOOR

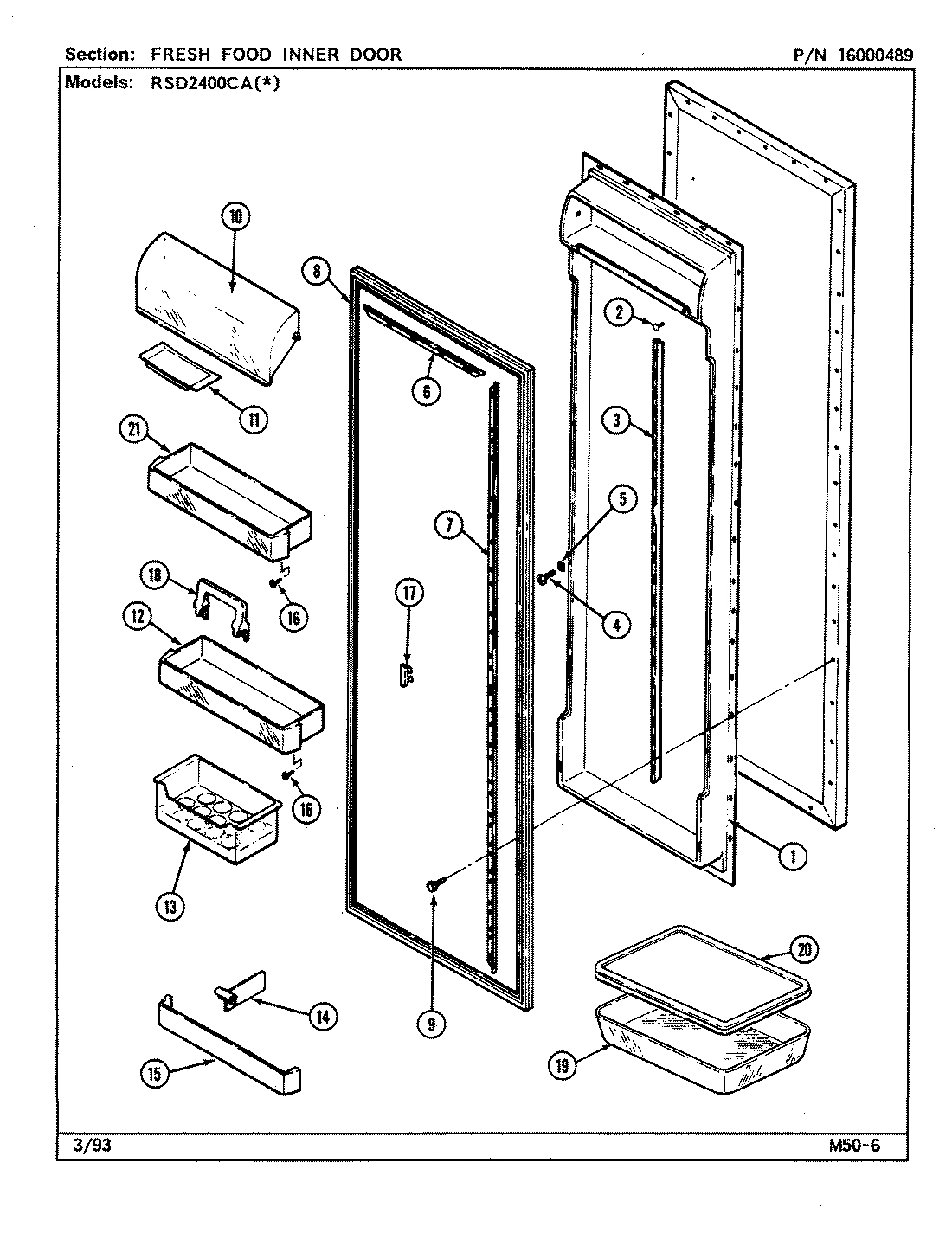

05 - FRESH FOOD INNER DOOR

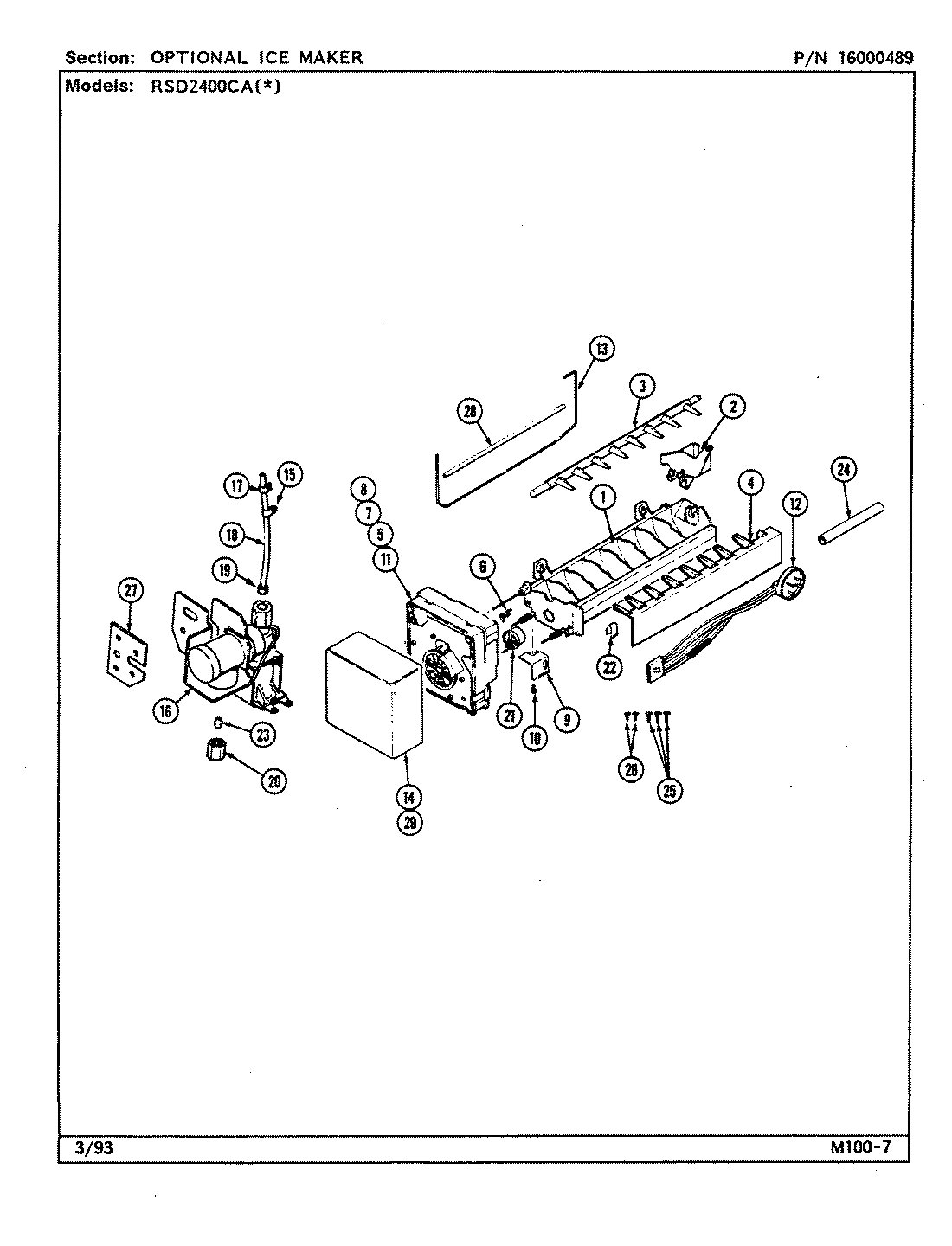

07 - OPTIONAL ICE MAKER KIT

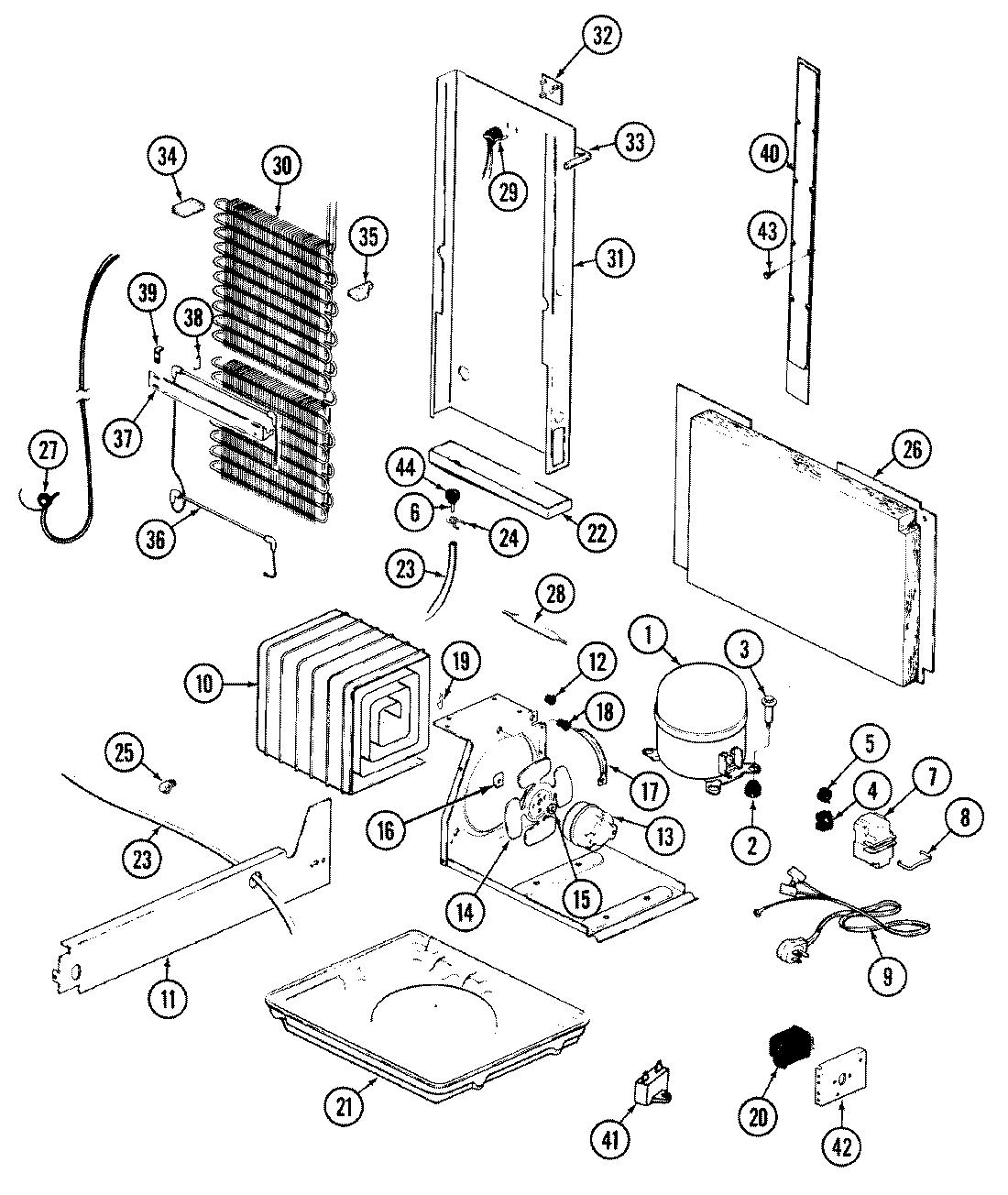

09 - UNIT COMPARTMENT & SYSTEM

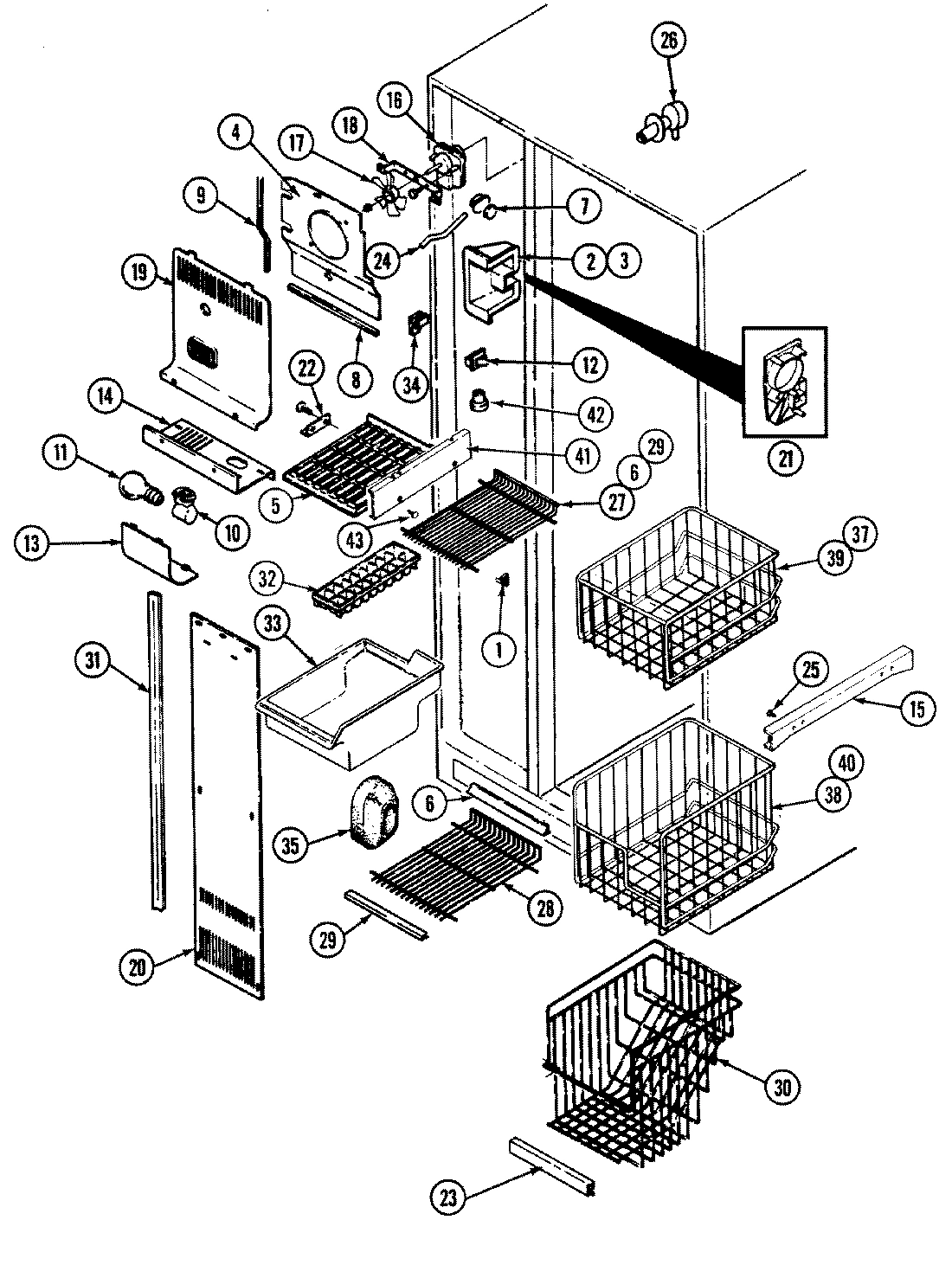

01 - FREEZER COMPARTMENT

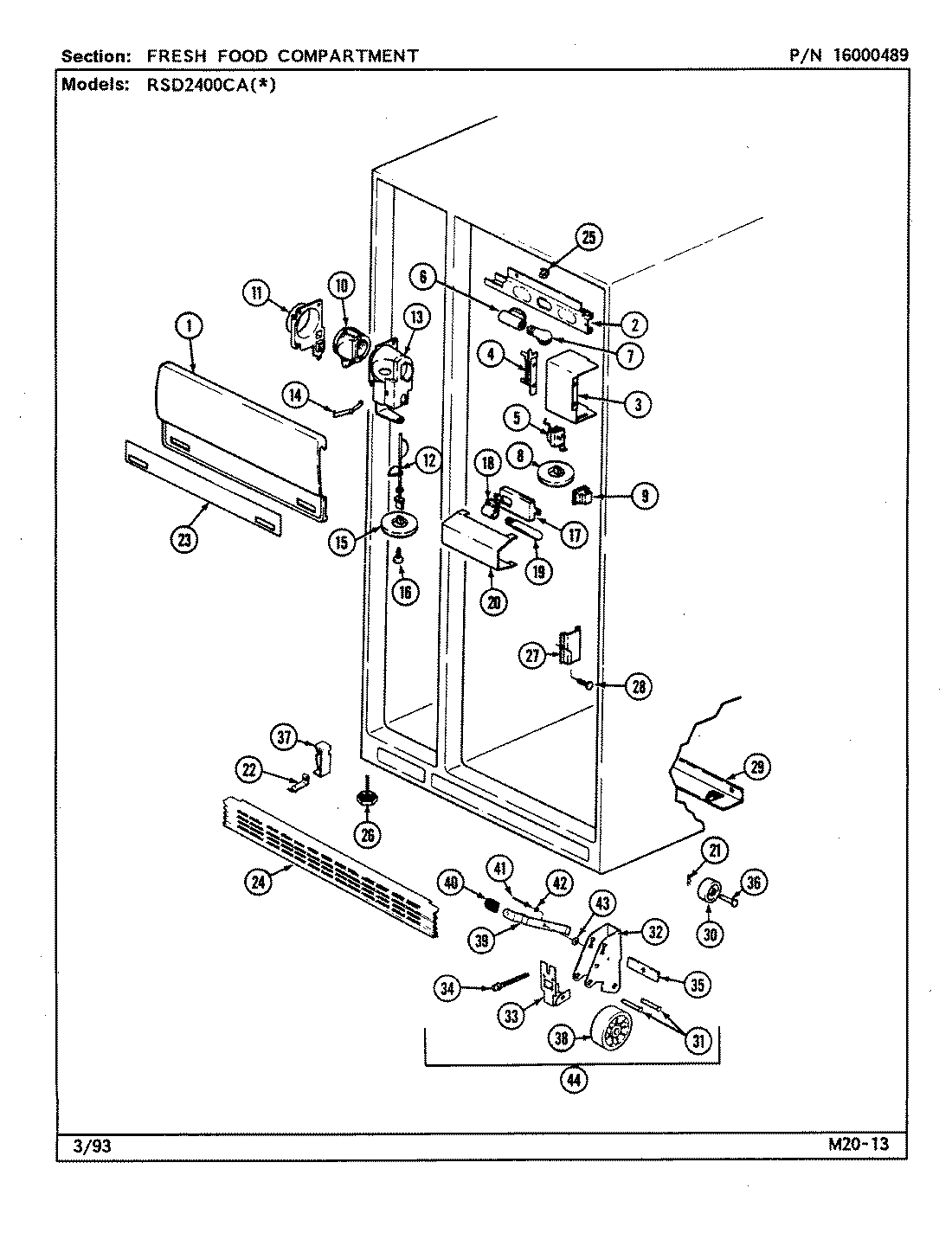

04 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RSD2400CAL REFRIGERATOR
1
PANEL, F.F. DOOR (ALM) WPL 723412AM Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72341101AM Contact Us For Availability
1
LINER, F.F. DOOR WPL 692411 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000038 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 700242 Contact Us For Availability
2
TRIM, DOOR WPL 692654 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability
3
RETAINER, GASKET WPL 699924 Contact Us For Availability
3
NAMEPLATE (ALM) WPL 699953 Contact Us For Availability
3
SCREW WPL 6527565 Contact Us For Availability
3
ANCHOR, SCREW WPL 694772 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673085 Contact Us For Availability
3
RAIL, P O DOOR WPL 673161 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
4
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
4
FRAME, SHELF WPL 672732 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL UPPER WPL 672976 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
5
SHIM, TRIM LOCK (UPR) WPL 679261 Contact Us For Availability
5
SHELF, CANT GLASS WPL 6726712 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
5
SHELF, ICE TRAY WPL 671144 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
6
FRONT, PICK-OFF SHELF WPL 698704 Contact Us For Availability
6
SHIM, TRIM LOCK (LWR) WPL 679262 Contact Us For Availability
6
TRIM, SHELF WPL 6730940 Contact Us For Availability
6
RETAINER, GASKET WPL 699922 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
TUBE, DRAIN WPL 2652711 Contact Us For Availability
6
TRIM, FRZ. SHELF WPL 671777 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
7
RETAINER, GASKET WPL 699921 Contact Us For Availability
7
TRIM, EXTENSION (UPR - ALM) WPL 6793212 Contact Us For Availability
7
SHELF SEAL WPL 672665 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
CAP, CONNECTOR WPL 681871 Contact Us For Availability
7
BULB, LIGHT WPL 319561 Contact Us For Availability
8
TRIM, EXTENSION (LWR - ALM) WPL 6793213 Contact Us For Availability
8
TRIM, CANT SHELF FRONT WPL 6778327 Contact Us For Availability
8
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL WPL 689466 Contact Us For Availability
8
KNOB, CONTROL WPL 671455 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
HANDLE WPL 679221 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672655 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
CLAMP WPL 538101 Contact Us For Availability
9
SEAL WPL 6632520 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
INSERT, HANDLE (ALM) WPL 679243 Contact Us For Availability
10
FRAME, MEAT SHELF WPL 672742 Contact Us For Availability
10
DOOR, DAIRY WPL 699182 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436443 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
11
FRAME,HANDLE WPL 679201 Contact Us For Availability
11
TRIM, MEAT SHELF WPL 6730941 Contact Us For Availability
11
CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability
11
TRAY, BUTTER WPL 672161 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
12
SCREW WPL 6527544 Contact Us For Availability
12
TRIM, CANT SHELF FRONT WPL 6778328 Contact Us For Availability
12
SHELF, PICK-OFF WPL 698724 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
13
SCREW WPL 6527559 Contact Us For Availability
13
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
13
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
13
SUPPORT, MEAT PAN WPL 6764911 Contact Us For Availability
13
TRAY, EGG WPL 672152 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 6756010 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
14
ENDCAP, HANDLE WPL 679282 Contact Us For Availability
14
SLIDE, CONTROL WPL 674912 Contact Us For Availability
14
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
SUPPORT, LIGHT SHIELD WPL 673453 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
15
SCREW WPL 41400435 Contact Us For Availability
15
TRIM, MEAT PAN SUPPORT WPL 670718 Contact Us For Availability
15
FRONT, PICK-OFF WPL 698715 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
GLIDE, BASKET WPL 695191 Contact Us For Availability
15
KNOB, CONTROL WPL 671456 Contact Us For Availability
16
CLOSER, DOOR WPL 692581 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
16
RIVET WPL 5992017 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
17
COVER, UPPER HINGE (ALM) WPL 695183 Contact Us For Availability
17
SCREW WPL 652756 Contact Us For Availability
17
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
17
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SCREW WPL 4080621 Contact Us For Availability
18
RETAINER, BOTTLE WPL 697951 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
19
SCREW WPL 6527552 Contact Us For Availability
19
LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability
19
DISH, MICROWAVE WPL 698521 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
SHIELD, FAN WPL 672252 Contact Us For Availability
19
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
20
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
NUT WPL 431019511 Contact Us For Availability
20
COVER, PLASTIC WPL 698531 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 695436 Contact Us For Availability
20
COVER, LOWER COIL WPL 673351 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
21
INSULATION, CLOSER WPL 526131 Contact Us For Availability
21
ELEMENT WPL 700491 Contact Us For Availability
21
ACTUATOR WPL 6707210 Contact Us For Availability
21
SHELF, PICK-OFF WPL 698725 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
22
BRACKET, CLOSER WPL 692611 Contact Us For Availability
22
PLUG BUTTON WPL 676883 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
RIVET WPL 440015300 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
22
SCREW WPL 4000171 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
23
HINGE, UPPER WPL 5370922 Contact Us For Availability
23
SLEEVE, DOOR HANDLE WPL 672392 Contact Us For Availability
23
PAN, MEAT WPL 699283 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
23
HOSE, DRAIN WPL 2691125 Contact Us For Availability
23
TRIM, FRZ SHELF FRONT WPL 6717654 Contact Us For Availability
23
INSERT, LIGHT SHIELD WPL 674768 Contact Us For Availability
24
STOP, DOOR WPL 692562 Contact Us For Availability
24
HOUSING, MEAT PAN WPL 6706910 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
TUBE, FILL WPL 676761 Contact Us For Availability
24
KICKPLATE WPL 6702314 Contact Us For Availability
25
SCREW WPL 6527548 Contact Us For Availability
25
CLIP, HANDLE WPL 673861 Contact Us For Availability
25
SEAL WPL 697791 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SCREW WPL 4000221 Contact Us For Availability
25
CLIP WPL 550422 Contact Us For Availability
26
WASHER WPL 521851 Contact Us For Availability
26
SHELF, CRISPER (LOWER) WPL 678926 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
COVER, UNIT COMPARTMENT WPL 691393 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
27
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
27
SCREW WPL 406026103 Contact Us For Availability
27
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
WIRE TIE WPL 662231 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950902 Contact Us For Availability
27
SHELF, FRZ. WPL 6717810 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
28
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
28
TRIM, CRISPER SHELF WPL 6720414 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
SHELF, WIRE WPL 671788 Contact Us For Availability
29
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
29
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
29
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
29
SCREW WPL 4000211 Contact Us For Availability
29
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
29
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
29
DUCT, AIR WPL 670613 Contact Us For Availability
29
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
TRIM, FRZ SHELF FRONT WPL 6717657 Contact Us For Availability
29
SCREW WPL 6527542 Contact Us For Availability
29
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
30
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
30
EVAPORATOR WPL RA4364310 Contact Us For Availability
30
BASKET, FRZ WIRE WPL 693502 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
32
SCREW WPL 40002612 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
TRAY, ICE WPL 592815 Contact Us For Availability
32
BRACKET, WHEEL WPL 678061 Contact Us For Availability
33
PAN, CRISPER WPL 699288 Contact Us For Availability
33
SEAL WPL 6632518 Contact Us For Availability
33
SEAL AIR RETURN WPL 676931 Contact Us For Availability
33
PAN, ICE WPL 699191 Contact Us For Availability
33
SCREW WPL 652751 Contact Us For Availability
33
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
34
PAN, CRISPER WPL 699284 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
SUPPORT ICE SHELF WPL 671431 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
35
GLASS, CRISPER SHELF WPL 6748910 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
SHELF, CRISPER (UPPER) WPL 678914 Contact Us For Availability
36
HEATER, DEFROST WPL 698482 Contact Us For Availability
36
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
37
TUNNEL, AIR WPL 675262 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
37
TRIM, FRZ SHELF FRONT WPL 6717651 Contact Us For Availability
37
END CAP, KICKPLATE (RT-ALM) WPL 678545 Contact Us For Availability
37
END CAP, KICKPLATE (LT-ALM) WPL 678546 Contact Us For Availability
38
TRIM WPL 6720431 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
BASKET, PIZZA WPL 693492 Contact Us For Availability
38
WHEEL WPL 698122 Contact Us For Availability
39
SEAL, CRISPER PAN WPL 697987 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
BASKET, FRZ WIRE WPL 693482 Contact Us For Availability
39
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
40
SCREW WPL 6527534 Contact Us For Availability
40
COVER, BACK WIRE WPL 670941 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 692141 Contact Us For Availability
40
TRIM, FRZ SHELF FRONT WPL 6717652 Contact Us For Availability
40
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
41
SEAL, CRISPER WPL 697792 Contact Us For Availability
41
CAPACITOR, RUN WPL 658896 Contact Us For Availability
41
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
41
RIVET WPL 263972 Contact Us For Availability
42
SCREW WPL 6527528 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
42
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
42
LOCKWASHER WPL 420003905 Contact Us For Availability
43
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
43
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
43
WASHER WPL 420007400 Contact Us For Availability
44
GROMMET WPL 525261 Contact Us For Availability
44
WHEEL ASSY.(L) WPL 723195 Contact Us For Availability
44
WHEEL ASSY.(R) WPL 723196 Contact Us For Availability
NI
SCREW, ANCHOR WPL 603194 Contact Us For Availability
× ![]()
Login and Registration Form
