Model Whirlpool RSD22A REFRIGERATOR – Common Parts & Diagrams

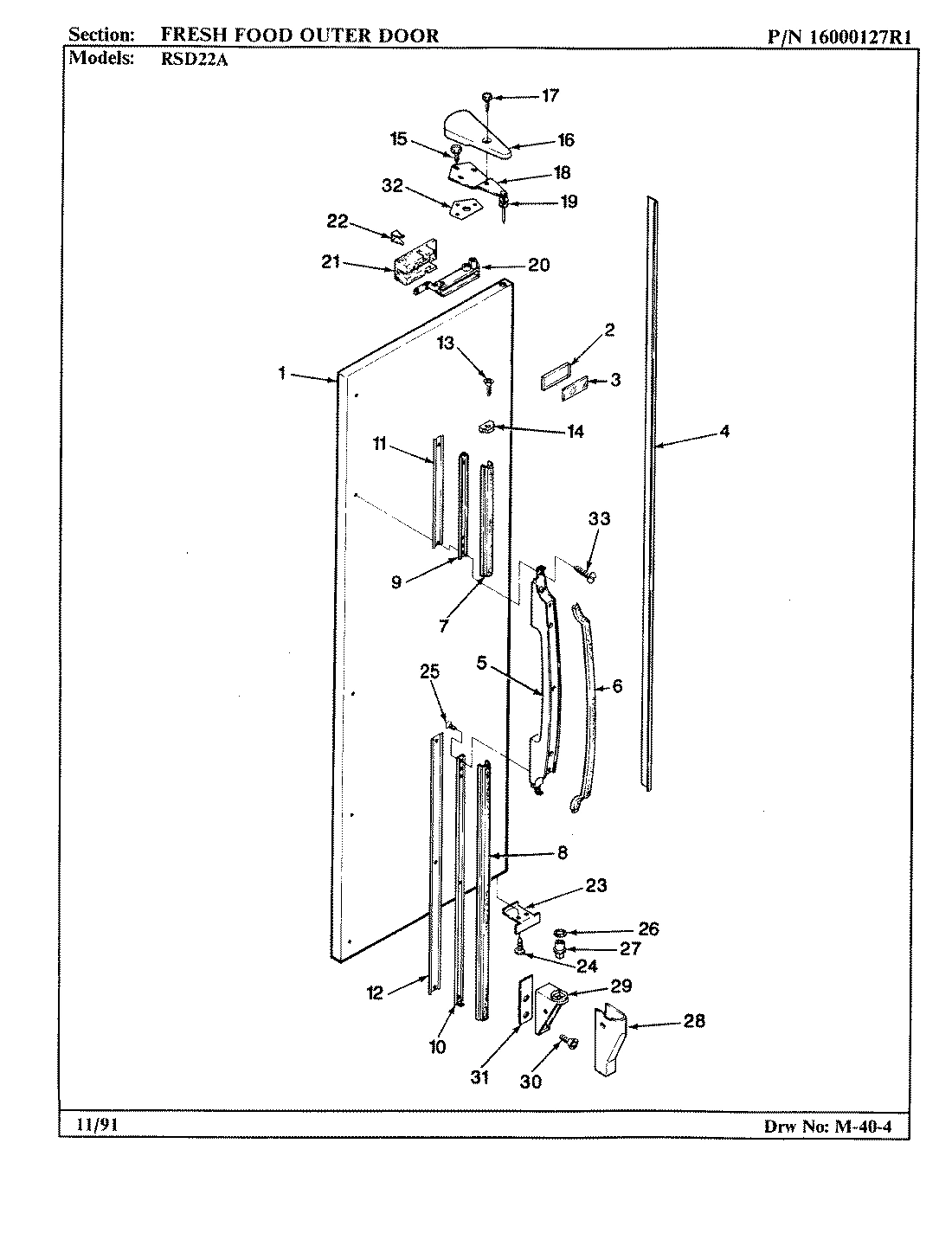

07 - FRESH FOOD OUTER DOOR
01 - CARTONS

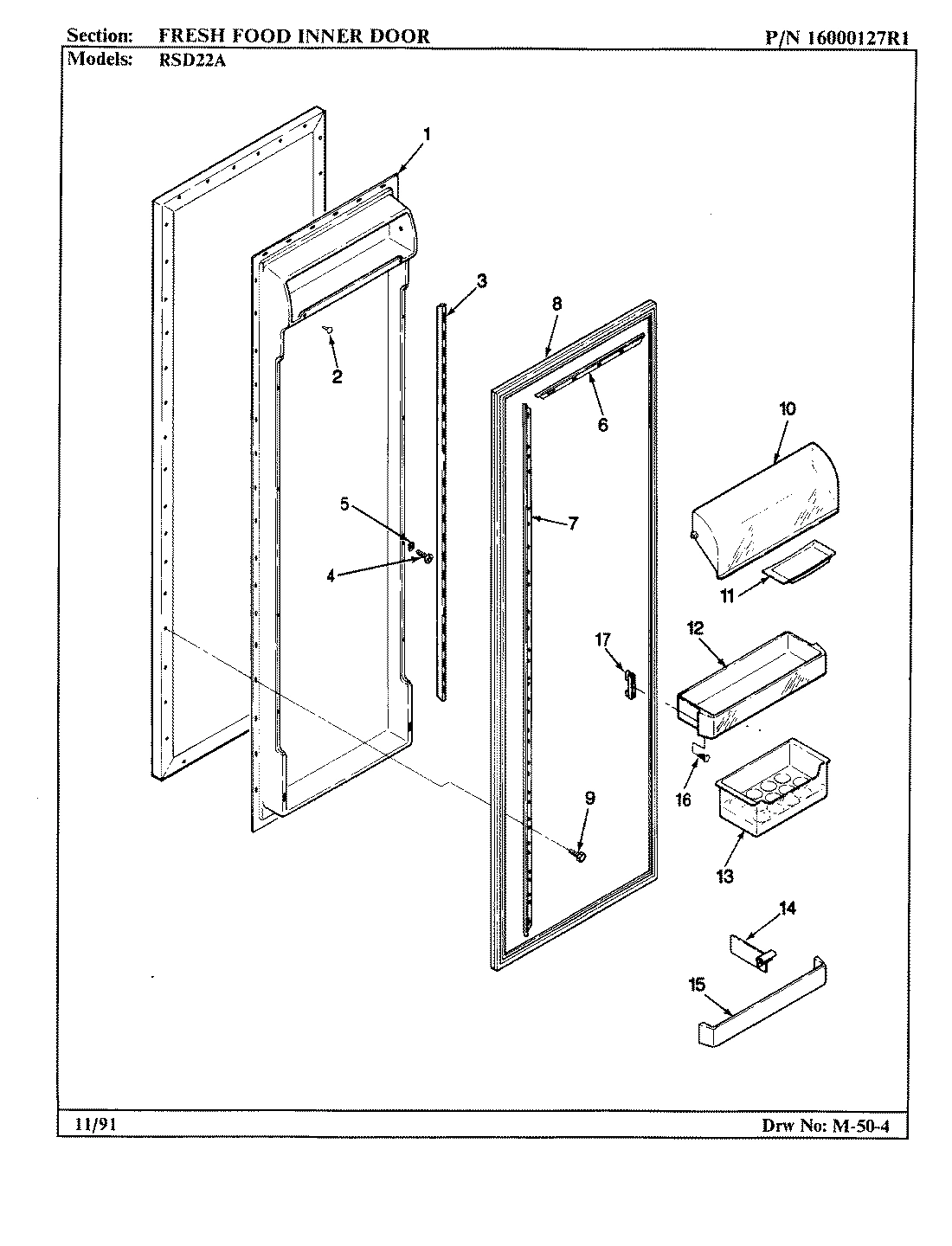

06 - FRESH FOOD INNER DOOR

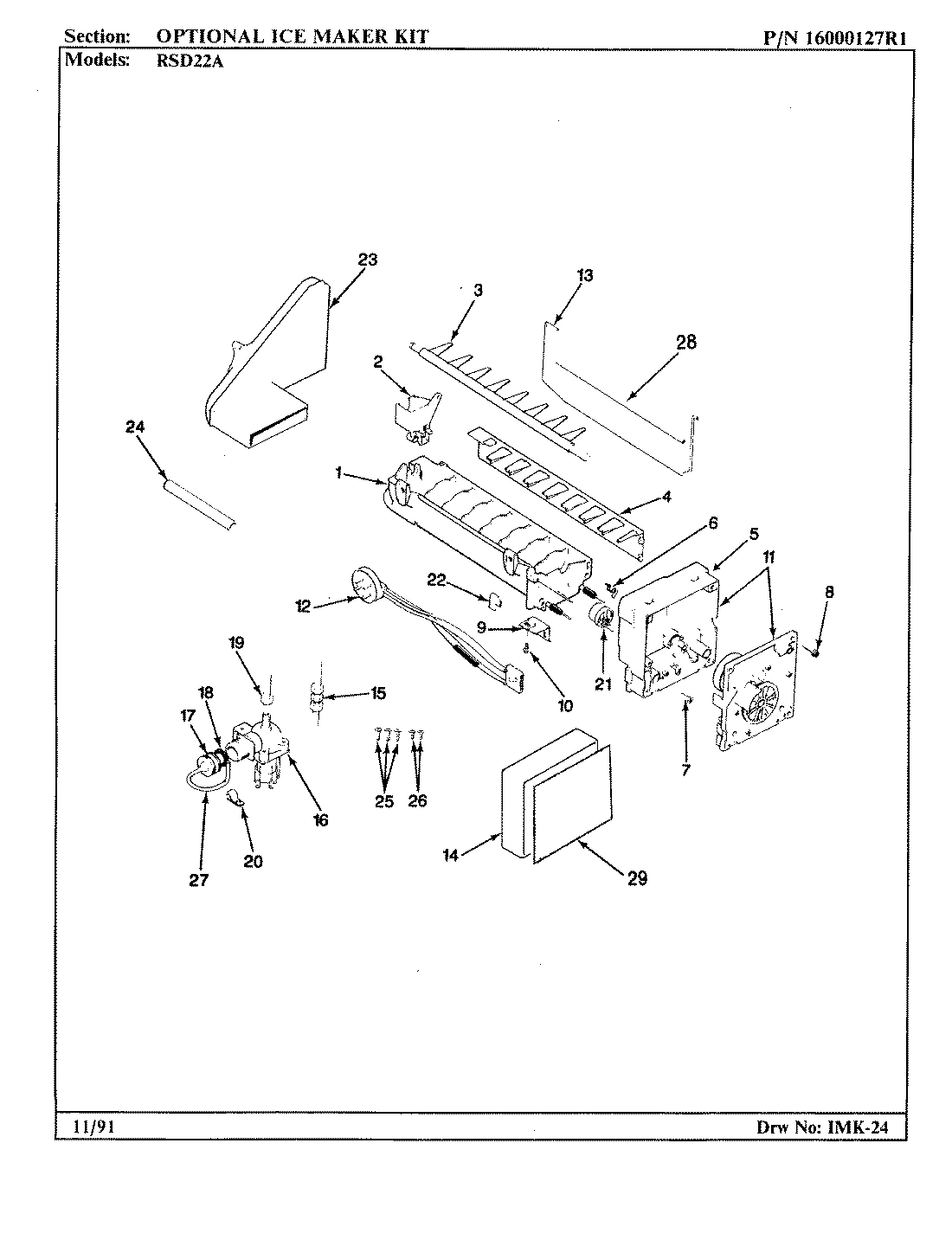

08 - OPTIONAL ICE MAKER KIT

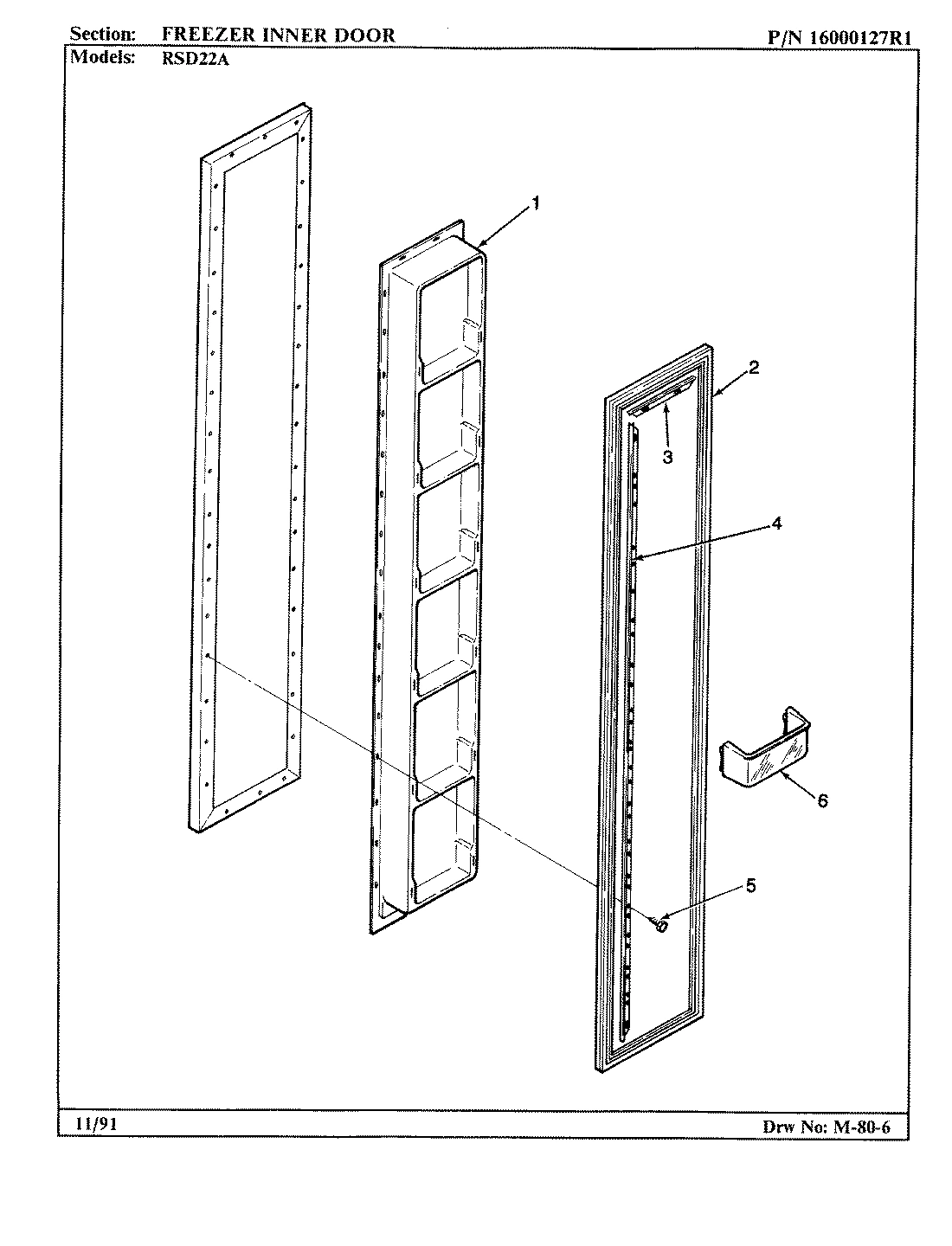

03 - FREEZER INNER DOOR

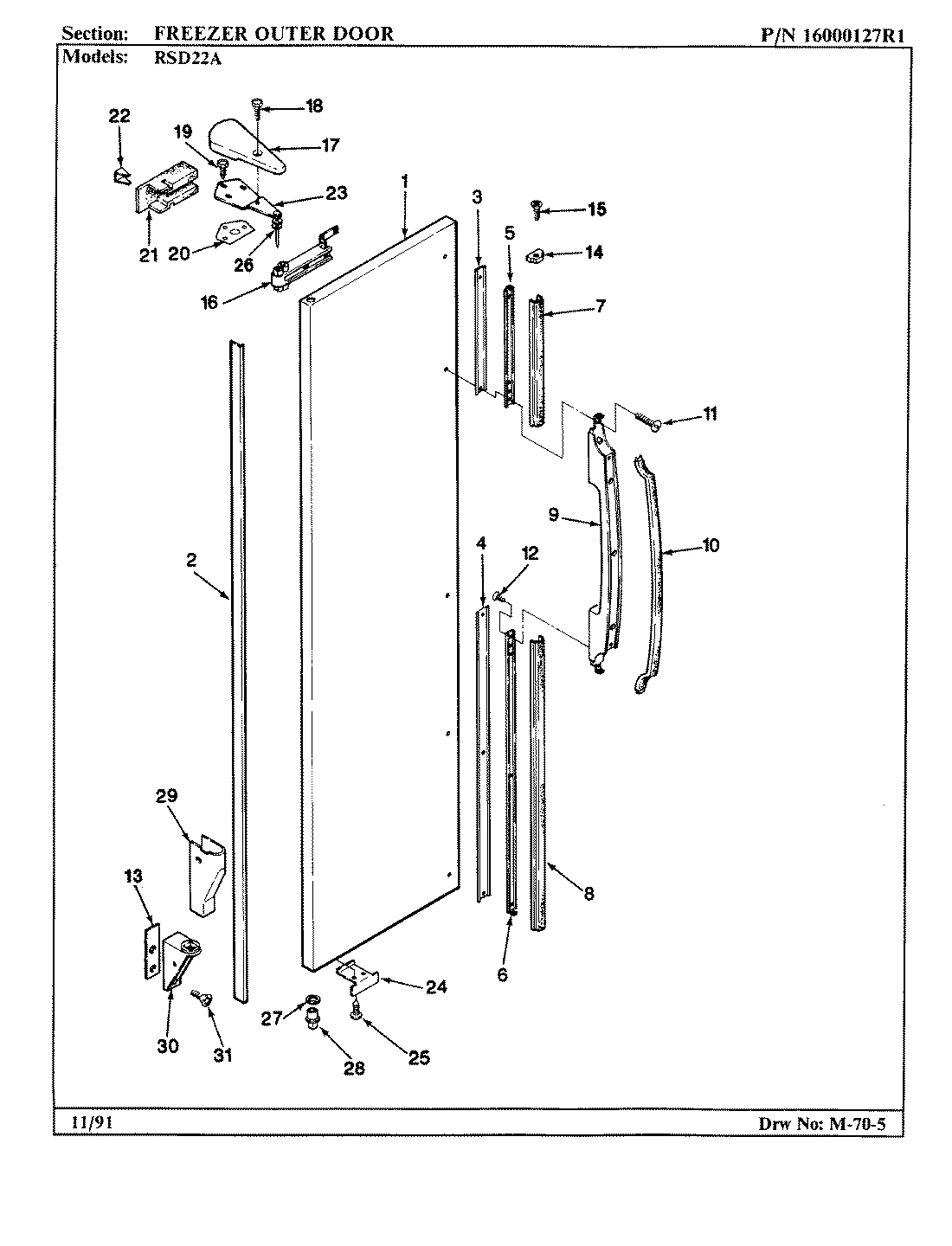

04 - FREEZER OUTER DOOR

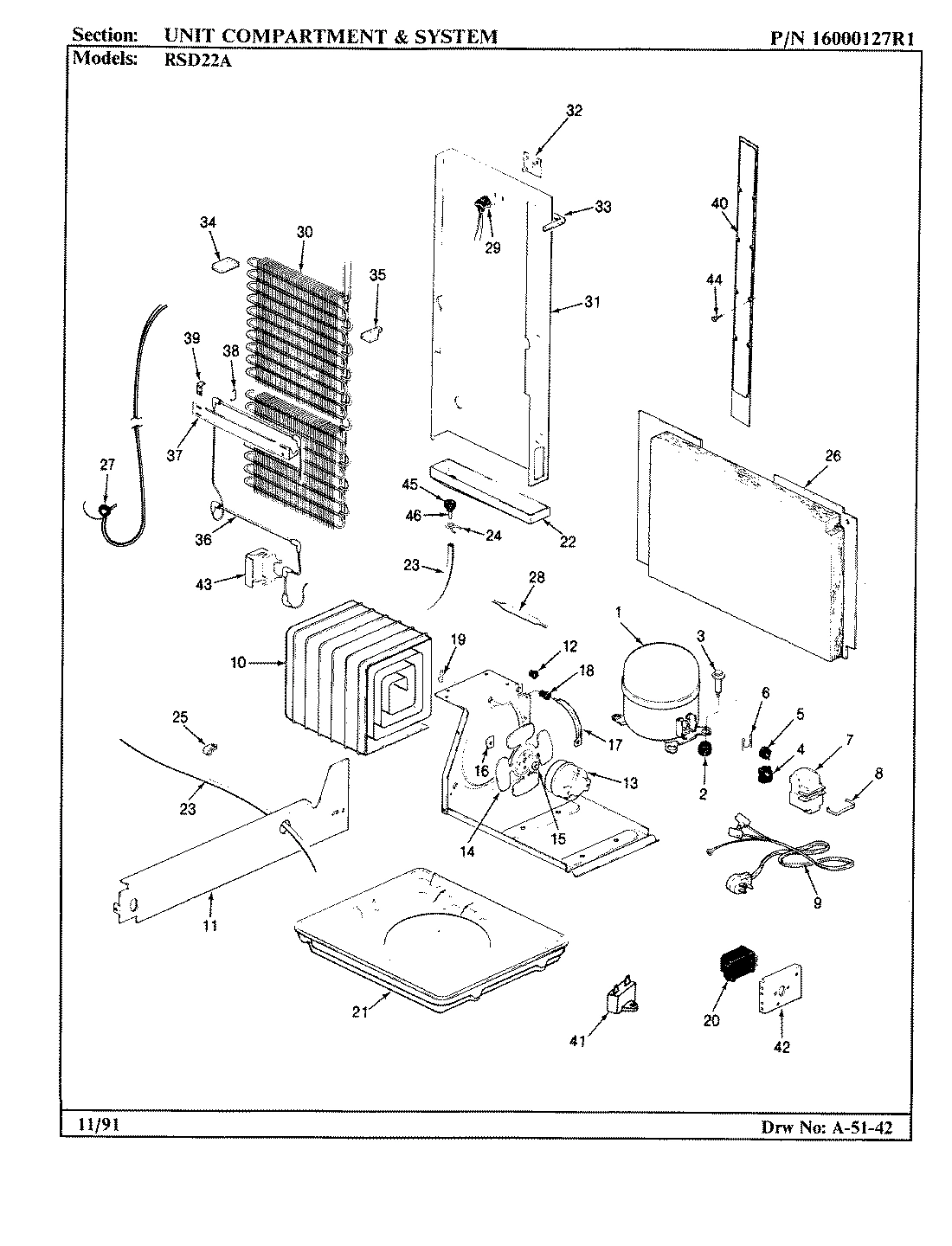

10 - UNIT COMPARTMENT & SYSTEM

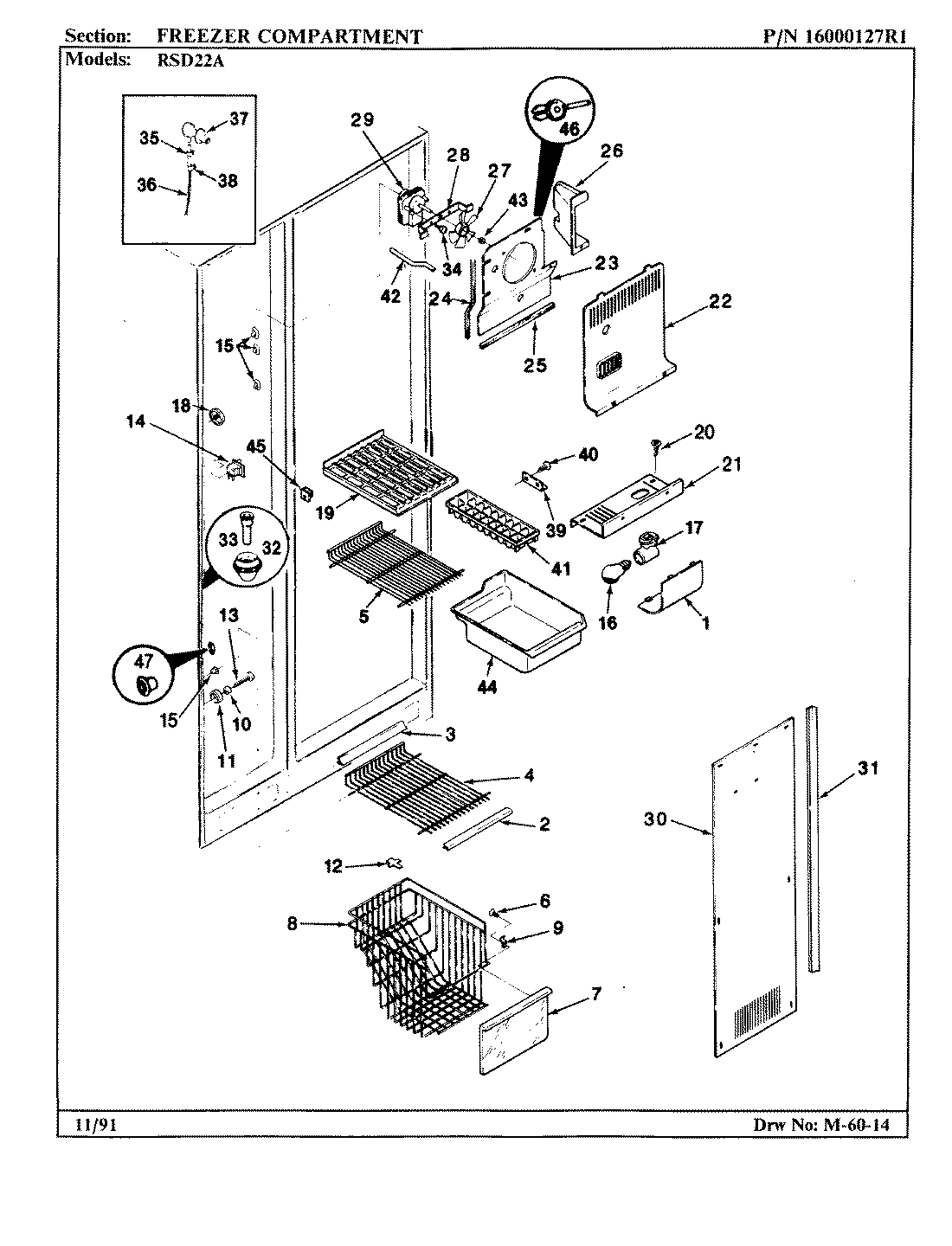

02 - FREEZER COMPARTMENT

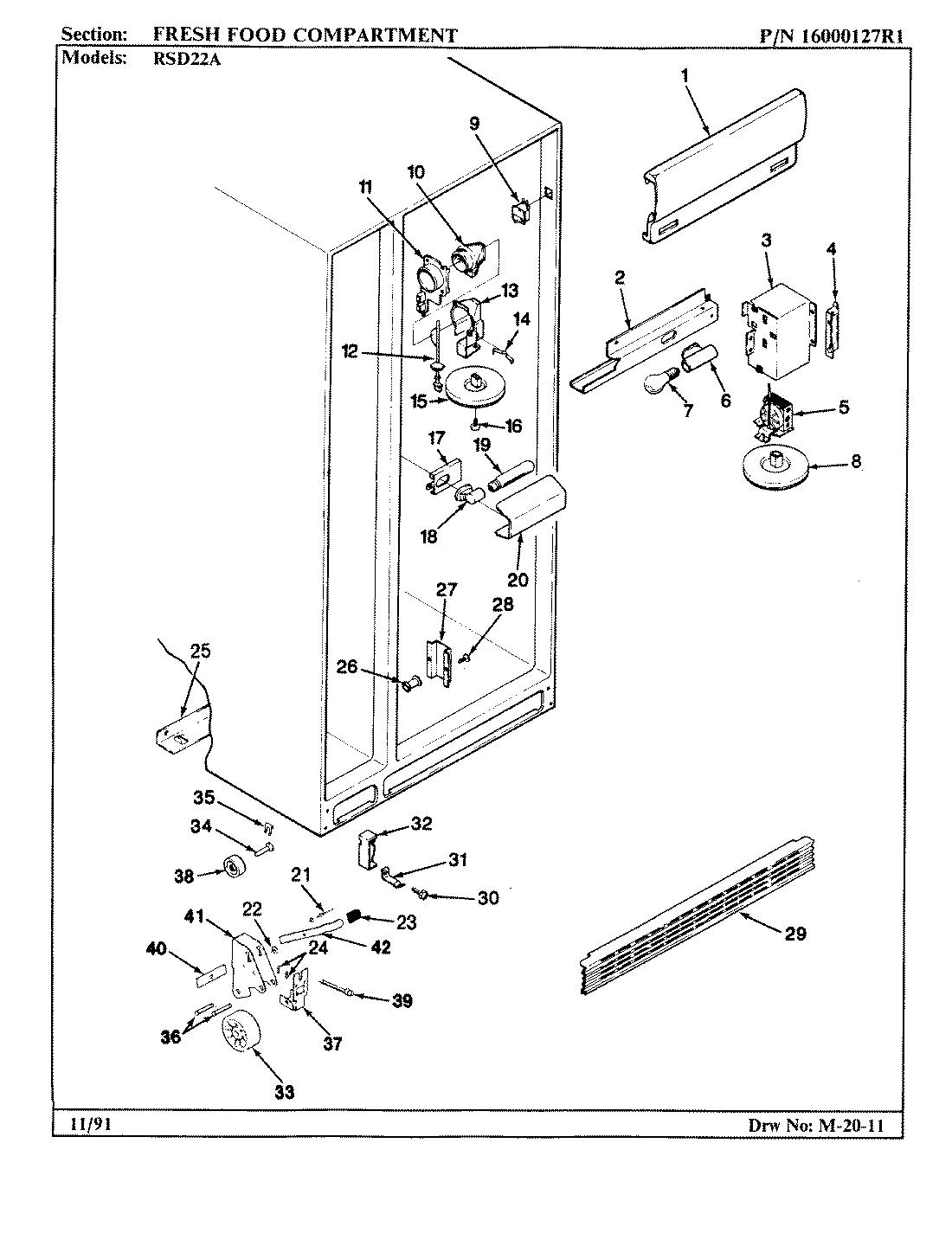

05 - FRESH FOOD COMPARTMENT

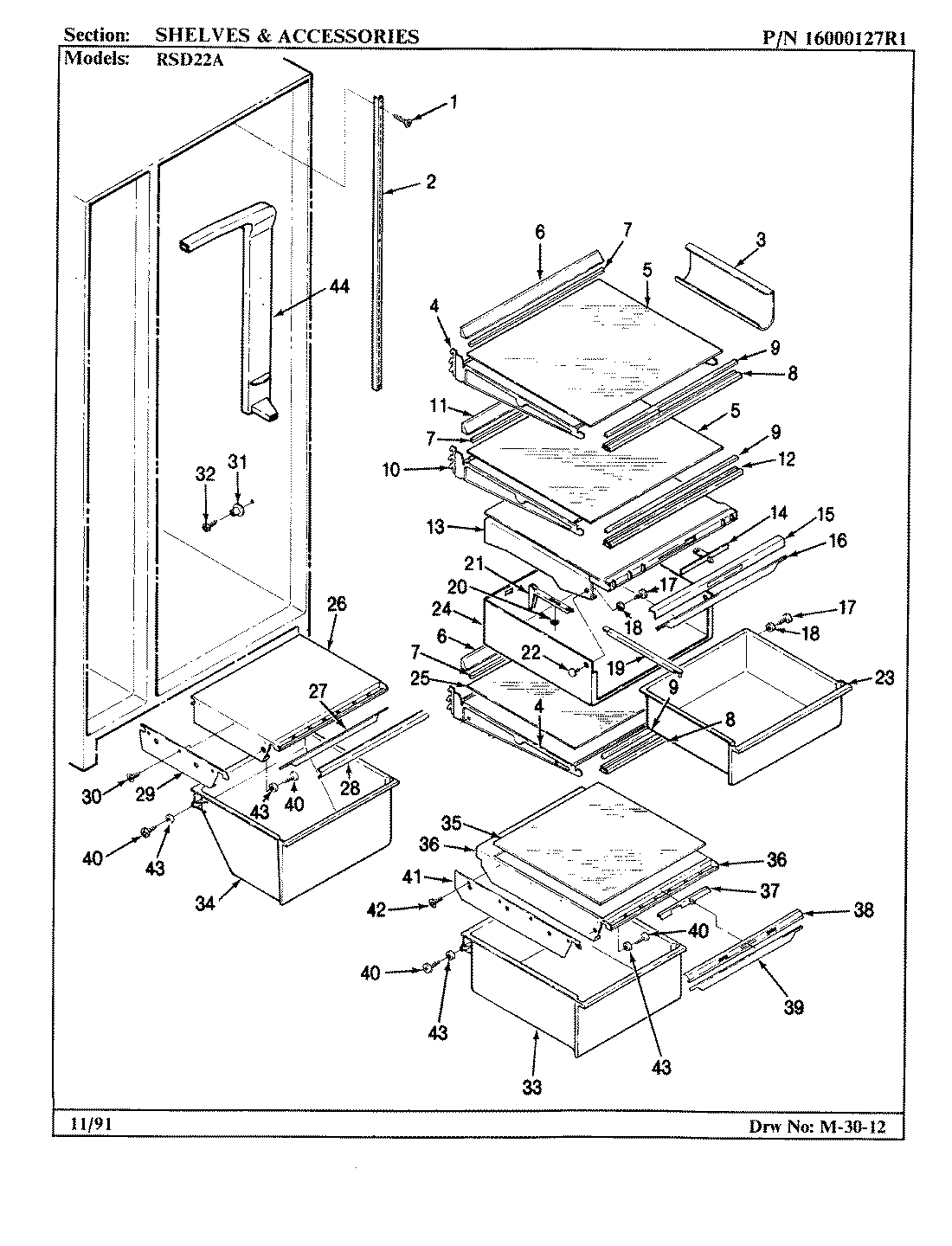

09 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RSD22A REFRIGERATOR
1
PANEL, F.F. DOOR (WHT) WPL 7204114WW Contact Us For Availability
1
LINER, DOOR WPL 670591 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
LINER, FRZ.DOOR WPL 670141 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720419AM Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720419WW Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
SHIELD, LIGHT WPL 672921 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
1
INSERT, LIGHT SHIELD WPL 674764 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
2
BEZEL, NAMEPLATE WPL 676731 Contact Us For Availability
2
TRIM, DOOR WPL 666514 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 677452 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
TRIM, FRZ. SHELF FRONT WPL 671761 Contact Us For Availability
2
LIGHT HOUSING WPL 671882 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
3
INSERT, NAMEPLATE WPL 671941 Contact Us For Availability
3
SHIM, TRIM LOCK WPL 672996 Contact Us For Availability
3
RAIL, P O DOOR WPL 673161 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
RETAINER, DOOR SEAL WPL 670325 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
TRIM, FRZ. SHELF FRONT WPL 671771 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673081 Contact Us For Availability
4
SHIM, TRIM LOCK WPL 672997 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
4
RETAINER, DOOR SEAL WPL 670321 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
SHELF, FRZ. (No.2,3,4,5) WPL 671787 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
FRAME, SHELF WPL 672732 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
5
SCREW WPL 652755 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
BRACKET, HANDLE WPL 671563 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
SHELF, FRZ. WPL 671789 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 5288412 Contact Us For Availability
6
RETAINER, DOOR SEAL WPL 670322 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
FRONT, PICK OFF FRZ. WPL 670861 Contact Us For Availability
6
BRACKET, HANDLE WPL 671564 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
SCREW WPL 4060081 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
TRIM, CANTILEVER WPL 673095 Contact Us For Availability
7
TRIM, EXTENSION UPPER WPL 671556 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
TRIM, EXTENSION WPL 677026 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
FRONT WPL 676551 Contact Us For Availability
7
SHELF SEAL WPL 672665 Contact Us For Availability
8
TRIM, EXTENSION LOWER WPL 671557 Contact Us For Availability
8
GASKET WPL 677453 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
TRIM EXTENSION WPL 677027 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BASKET, WIRE WPL 671211 Contact Us For Availability
8
KNOB, CONTROL WPL 671451 Contact Us For Availability
8
TRIM, CANTILEVER SHELF WPL 677835 Contact Us For Availability
9
HANDLE, DOOR WPL 671511 Contact Us For Availability
9
SHIM, HANDLE WPL 673851 Contact Us For Availability
9
BRACKET, HANDLE UPPER WPL 671561 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
CLAMP WPL 538101 Contact Us For Availability
9
CLIP,FRZ BASKET WPL 671221 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672655 Contact Us For Availability
10
SCREW WPL 6527544 Contact Us For Availability
10
INSERT, HANDLE (BLK) WPL 678821 Contact Us For Availability
10
BRACKET, HANDLE LOWER WPL 671562 Contact Us For Availability
10
DOOR, DAIRY WPL 670415 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
ROLLER,WHEEL BASKET WPL 671231 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
FRAME, MEAT SHELF WPL 672742 Contact Us For Availability
11
SCREW,HANDLE BOTTOM (HEX HEAD) WPL 6527529 Contact Us For Availability
11
CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability
11
TRAY, BUTTER WPL 672161 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
SPACE ROLLER WPL 671241 Contact Us For Availability
11
TRIM, CANTILEVER WPL 673097 Contact Us For Availability
12
SCREW, BRACKET TO HANDLE WPL 6527531 Contact Us For Availability
12
SHELF, PICK OFF REF WPL 670901 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
CLIP, BASKET STOP WPL 674881 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
TRIM, CANTILEVER SHELF WPL 677837 Contact Us For Availability
13
SCREW WPL 4140041 Contact Us For Availability
13
SCREW WPL 6527559 Contact Us For Availability
13
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
13
SHIM WPL 690311 Contact Us For Availability
13
TRAY, EGG WPL 672151 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675605 Contact Us For Availability
13
SCREW WPL 6527519 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
MEAT KEEPER RAIL WPL 676491 Contact Us For Availability
14
ENDCAP, HANDLE WPL 673803 Contact Us For Availability
14
ORGANIZER,P.O. SHELF WPL 670271 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability
15
FRONT,PICK OFF SHELF WPL 670841 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
SCREW, HANDLE END CAP WPL 4140047 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
CUP, SHELF WPL 674661 Contact Us For Availability
15
KNOB, CONTROL WPL 671452 Contact Us For Availability
15
TRIM, MEAT KEEPER WPL 670712 Contact Us For Availability
16
SHIM, TRIM LOCK WPL 672993 Contact Us For Availability
16
DOOR CLOSURE WPL 544852 Contact Us For Availability
16
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
BULB, LIGHT WPL 319561 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
17
COVER, UPPER HINGE(WHT.) WPL 672294 Contact Us For Availability
17
HOOK,P.O.SHELF (RIGHT) WPL 670431 Contact Us For Availability
17
HOOK,P.O. SHELF (LEFT) WPL 670432 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
COVER, UPPER HINGE (ALM.) WPL 672293 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
WIRE HARNESS, WAIST WPL 674081 Contact Us For Availability
17
SCREW WPL 652756 Contact Us For Availability
18
SCREW, HINGE COVER WPL 4030601 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
19
SCREW WPL 998687 Contact Us For Availability
19
WASHER WPL 521851 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
CUP, SHELF WPL 603131 Contact Us For Availability
19
SHELF, ICE TRAY WPL 671143 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
LINKAGE, MEAT KEEPER WPL 670731 Contact Us For Availability
20
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 665568 Contact Us For Availability
20
SCREW, SUPPORT BRACKET WPL 40001412 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
NUT WPL 431019511 Contact Us For Availability
21
INSULATION, CLOSER WPL 526131 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
INSULATION DOOR WPL 676451 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
SUPPORT, LIGHT SHIELD WPL 673441 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
ACTUATOR, MEAT KEEPER WPL 670723 Contact Us For Availability
22
BRACKET, CLOSER WPL 526141 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
RIVET WPL 440015300 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
SEAL,FAN SHIELD WPL 6632522 Contact Us For Availability
22
SHIELD, FAN WPL 672251 Contact Us For Availability
22
PLUG BUTTON WPL 676881 Contact Us For Availability
22
LOCKWASHER WPL 420003905 Contact Us For Availability
23
HINGE, TOP WPL 674564 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
23
DUCT, AIR WPL 670613 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
COVER, COIL WPL 672973 Contact Us For Availability
23
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
23
MEAT PAN ASSY. WPL 676501 Contact Us For Availability
24
STOP, DOOR WPL 690221 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
24
HOUSING, MEAT PAN WPL 670691 Contact Us For Availability
25
SCREW WPL 6527548 Contact Us For Availability
25
CLIP, HANDLE WPL 673861 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SEAL (44``) WPL 6632521 Contact Us For Availability
25
SCREW WPL 6527542 Contact Us For Availability
25
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
25
GLASS, CANTILEVER WPL 672676 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
WASHER WPL 521852 Contact Us For Availability
26
COVER, UNIT COMPARTMENT WPL 677862 Contact Us For Availability
26
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
26
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
26
SHELF, CRISPER WPL 678922 Contact Us For Availability
27
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
27
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
27
INLET TUBE ASSY WPL 602193 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
28
PIN, HINGE WPL 689771 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
28
TRIM CRISPER LOWER WPL 672047 Contact Us For Availability
29
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
29
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
MOTOR,EVAPORATOR FAN WPL 557358 Contact Us For Availability
29
GRILL, KICKPLATE WPL 670239 Contact Us For Availability
30
HINGE, LOWER WPL 689752 Contact Us For Availability
30
SCREW WPL 4000211 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
SCREW WPL 40001512 Contact Us For Availability
30
COVER, COIL LOWER WPL 673352 Contact Us For Availability
31
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
COIL COVER, GASKET WPL 675621 Contact Us For Availability
31
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
31
SUPPORT, CRISPER WPL 671621 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
GROMMET WPL 525261 Contact Us For Availability
32
END CAP (R) WPL 678541 Contact Us For Availability
32
END CAP (L) WPL 678542 Contact Us For Availability
32
SCREW WPL 40002612 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
SEAL AIR RETURN WPL 676931 Contact Us For Availability
33
DRAIN TUBE WPL 265279 Contact Us For Availability
33
WHEEL FRONT WPL 674551 Contact Us For Availability
33
PAN, CRISPER WPL 6765011 Contact Us For Availability
34
SCREW WPL 998645 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
AXLE WPL 625802 Contact Us For Availability
34
PAN, CRISPER WPL 6765013 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
CLAMP, SPRING WPL 603334 Contact Us For Availability
35
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
35
GLASS, CRISPER SHELF WPL 674896 Contact Us For Availability
36
FUNNEL-KIT WPL 675792 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
AXLE WHEEL WPL 675291 Contact Us For Availability
36
SHELF, CRISPER WPL 678912 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
37
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
37
HUMIDITY CONTROL WPL 674911 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
38
WHEEL, ROLLER WPL 674552 Contact Us For Availability
38
TRIM, CRISPER WPL 672042 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 678711 Contact Us For Availability
39
WIRE HARNESS, COMPRESSOR WPL 688411 Contact Us For Availability
39
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
39
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
39
SEAL WPL 677315 Contact Us For Availability
40
COVER, BACK WIRE WPL 670941 Contact Us For Availability
40
SCREW WPL 4000261 Contact Us For Availability
40
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
40
SCREW WPL 6527534 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
TRAY, ICE WPL 592815 Contact Us For Availability
41
BRACKET, WHEEL WPL 678061 Contact Us For Availability
41
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
41
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
42
PLUG, TUBE WPL 675933 Contact Us For Availability
42
TUBE, FILL WPL 676761 Contact Us For Availability
42
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
42
SCREW WPL 6527528 Contact Us For Availability
43
WASHER, SPRING WPL 420092900 Contact Us For Availability
43
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
44
PAN, ICE WPL 671401 Contact Us For Availability
44
TUNNEL, AIR WPL 675261 Contact Us For Availability
45
SCREW WPL 4000161 Contact Us For Availability
45
SUPPORT ICE SHELF WPL 671431 Contact Us For Availability
46
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
47
U-NUT GROUNDING WPL 537322 Contact Us For Availability
47
CLIP, MULLION WPL 670601 Contact Us For Availability
47
PLUG BUTTON WPL 675571 Contact Us For Availability
47
RETAINER WPL 676851 Contact Us For Availability
NI
CLIP SHIPPING WPL 649352 Contact Us For Availability
NI
SCREW WPL 6527536 Contact Us For Availability
NI
CRATE BASE SXS WPL 674112 Contact Us For Availability
NI
SPACER FRONT WPL 674141 Contact Us For Availability
NI
RAIL FOAM PACKIN WPL 674151 Contact Us For Availability
NI
CARTON SXS WPL 6741615 Contact Us For Availability
NI
CAP CARTON WPL 674172 Contact Us For Availability
NI
PAD, GLASS SHELF WPL 674401 Contact Us For Availability
NI
PAD, SHELF WPL 674443 Contact Us For Availability
NI
PAD, SHELF WPL 674444 Contact Us For Availability
NI
PAD, FRZ. COMPT. WPL 677381 Contact Us For Availability
NI
SPACER CRATE BASE WPL 690671 Contact Us For Availability
NI
SPACER CRATE BASE WPL 690681 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070751 Contact Us For Availability
× ![]()
Login and Registration Form
