Model Whirlpool RSD2200EAE REFRIGERATOR – Common Parts &amp; Diagrams

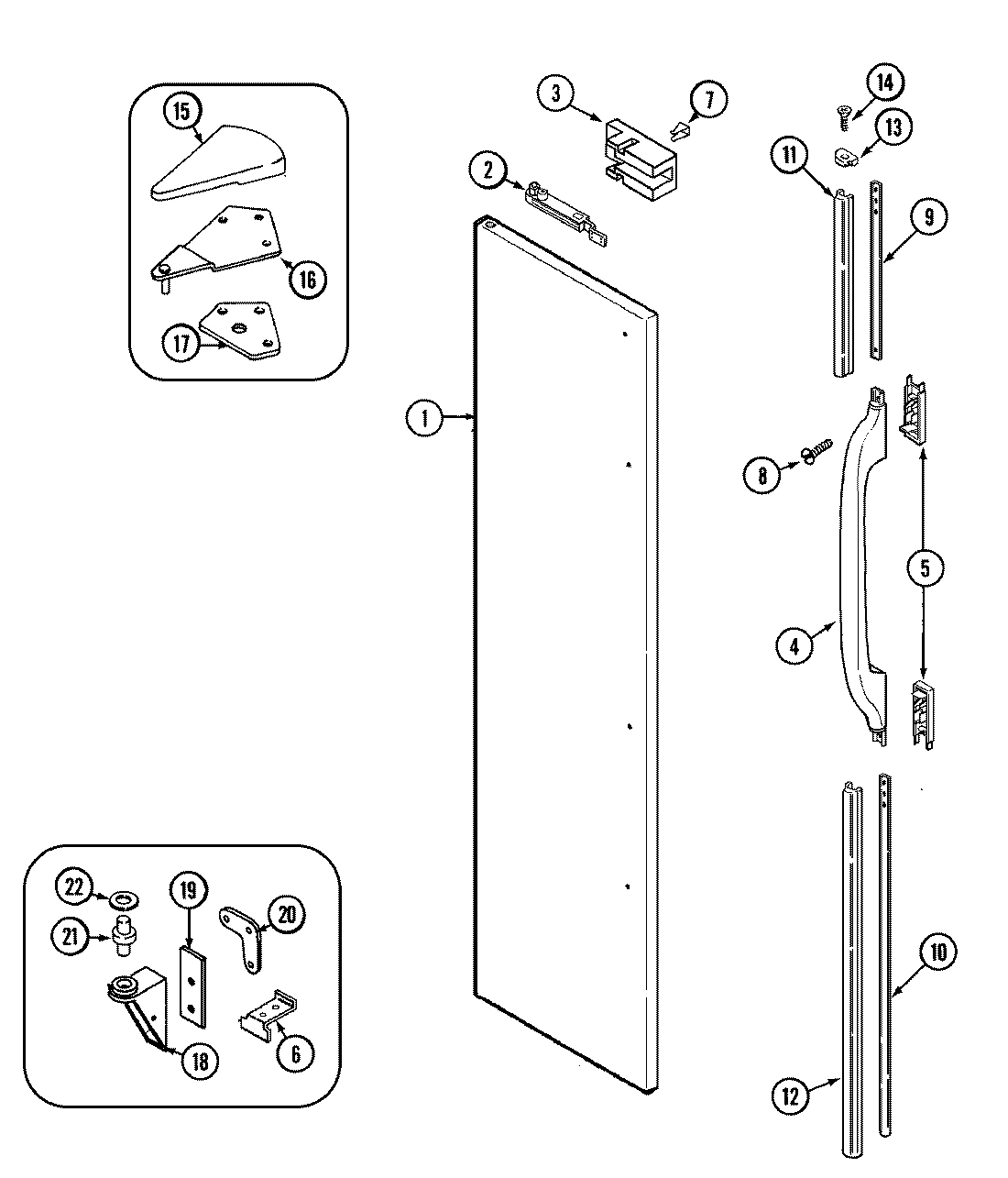

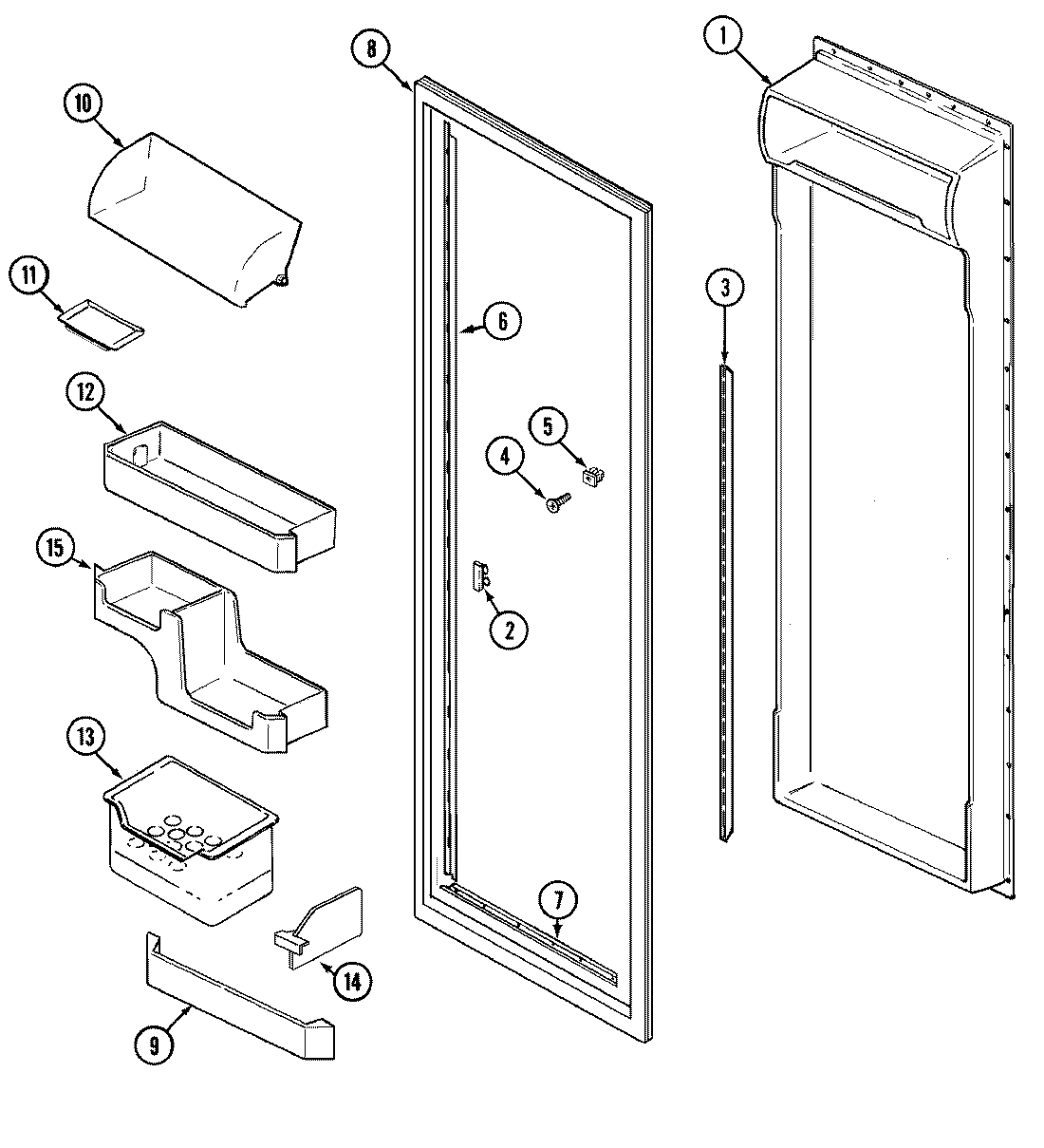

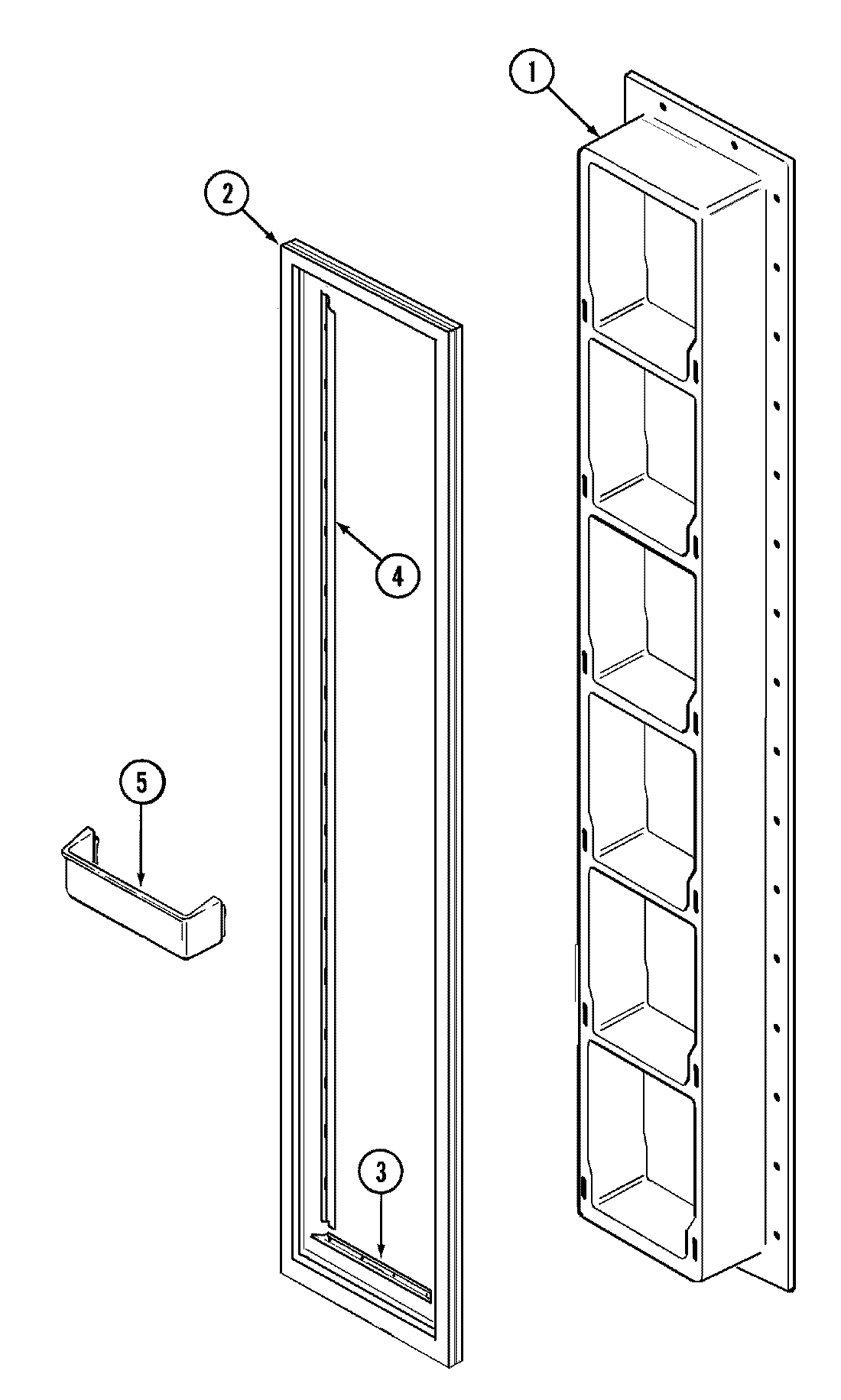

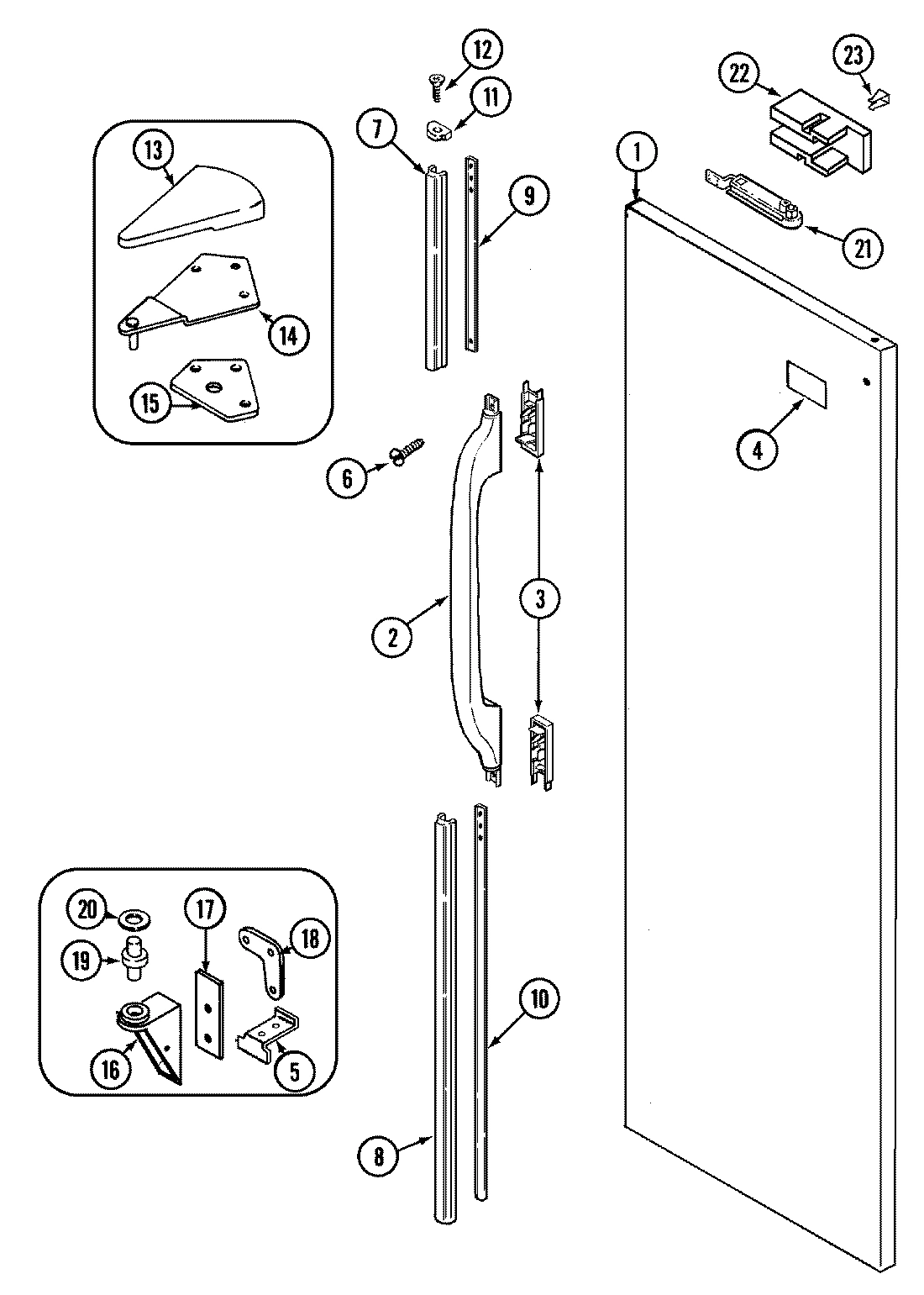

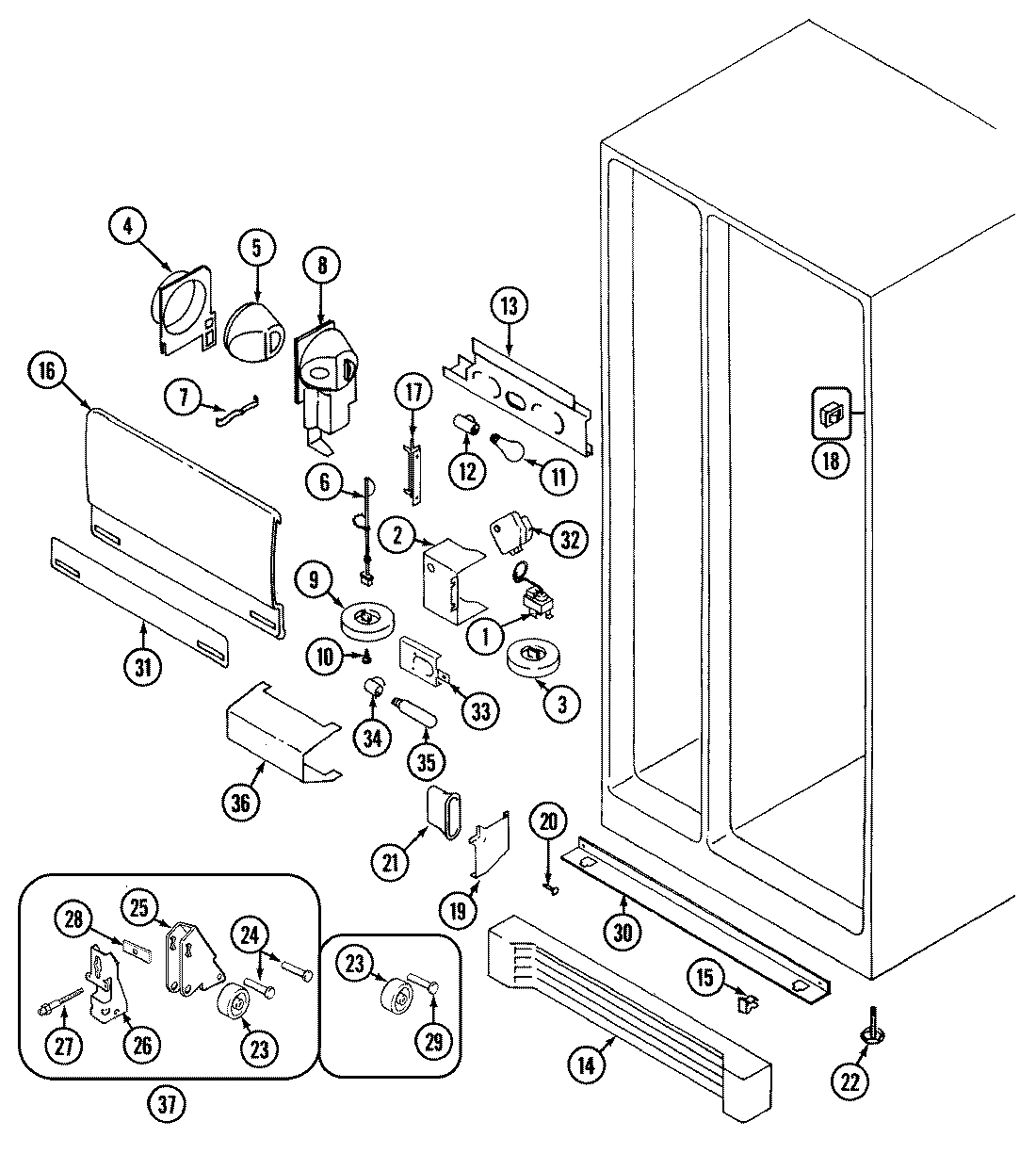

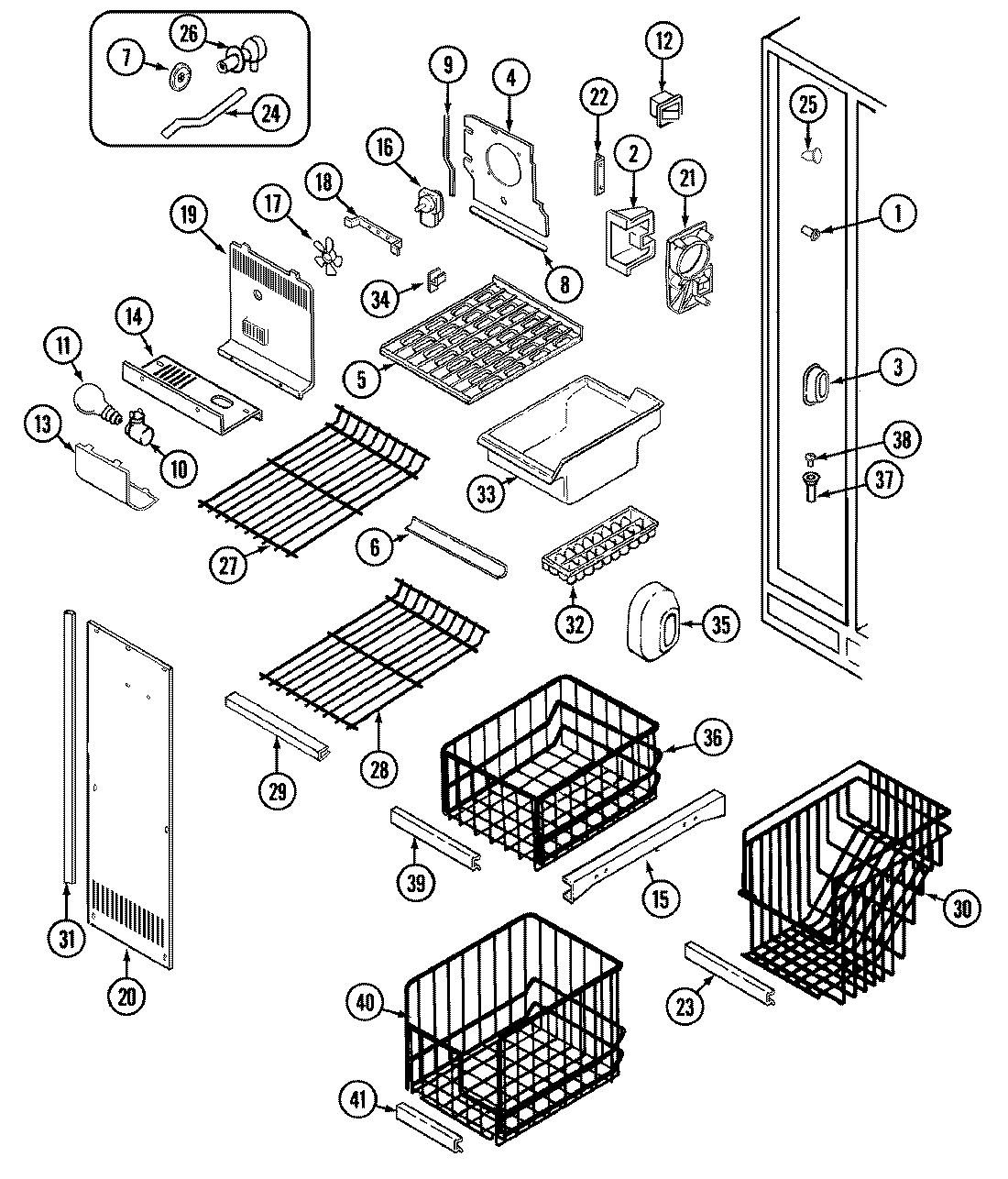

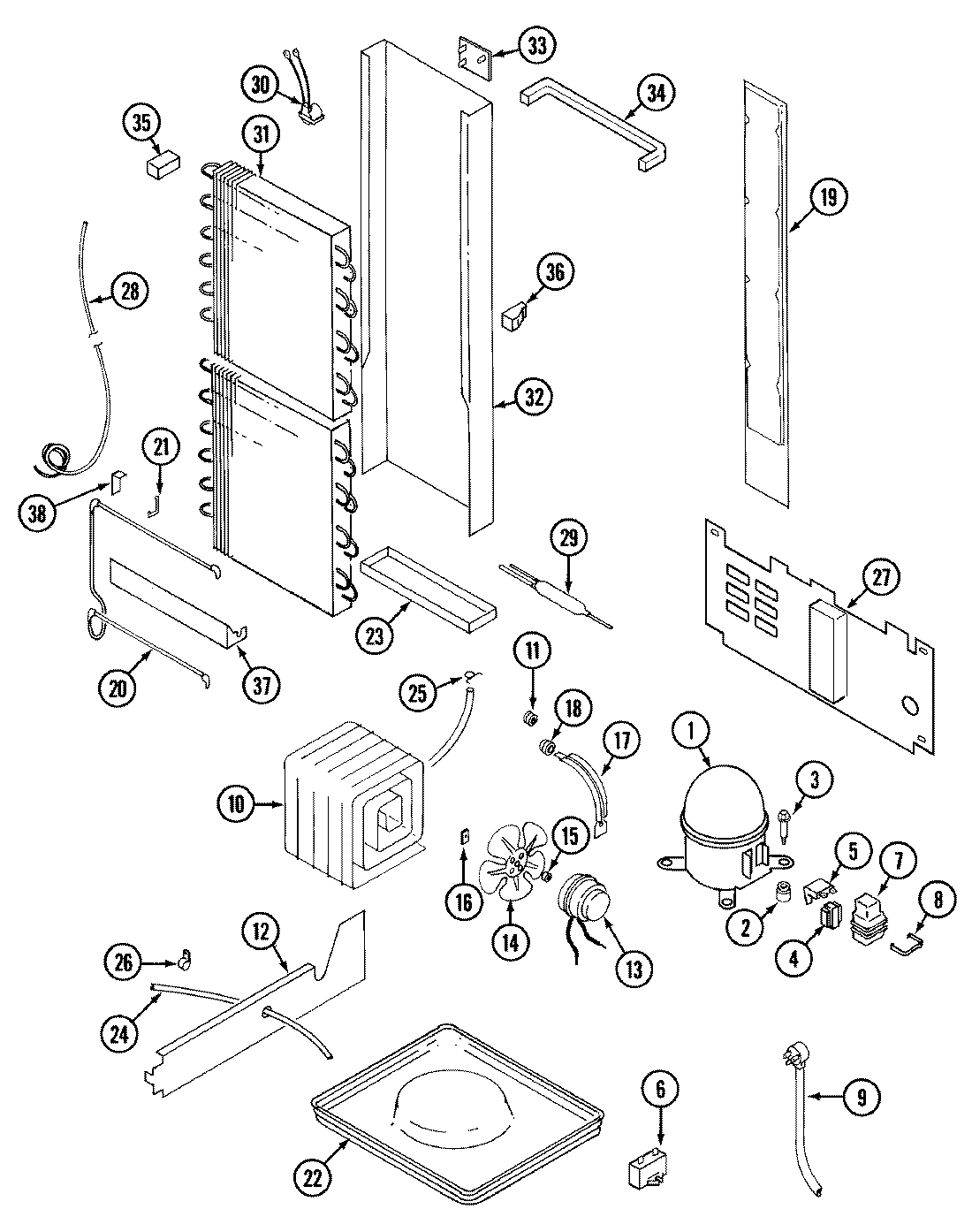

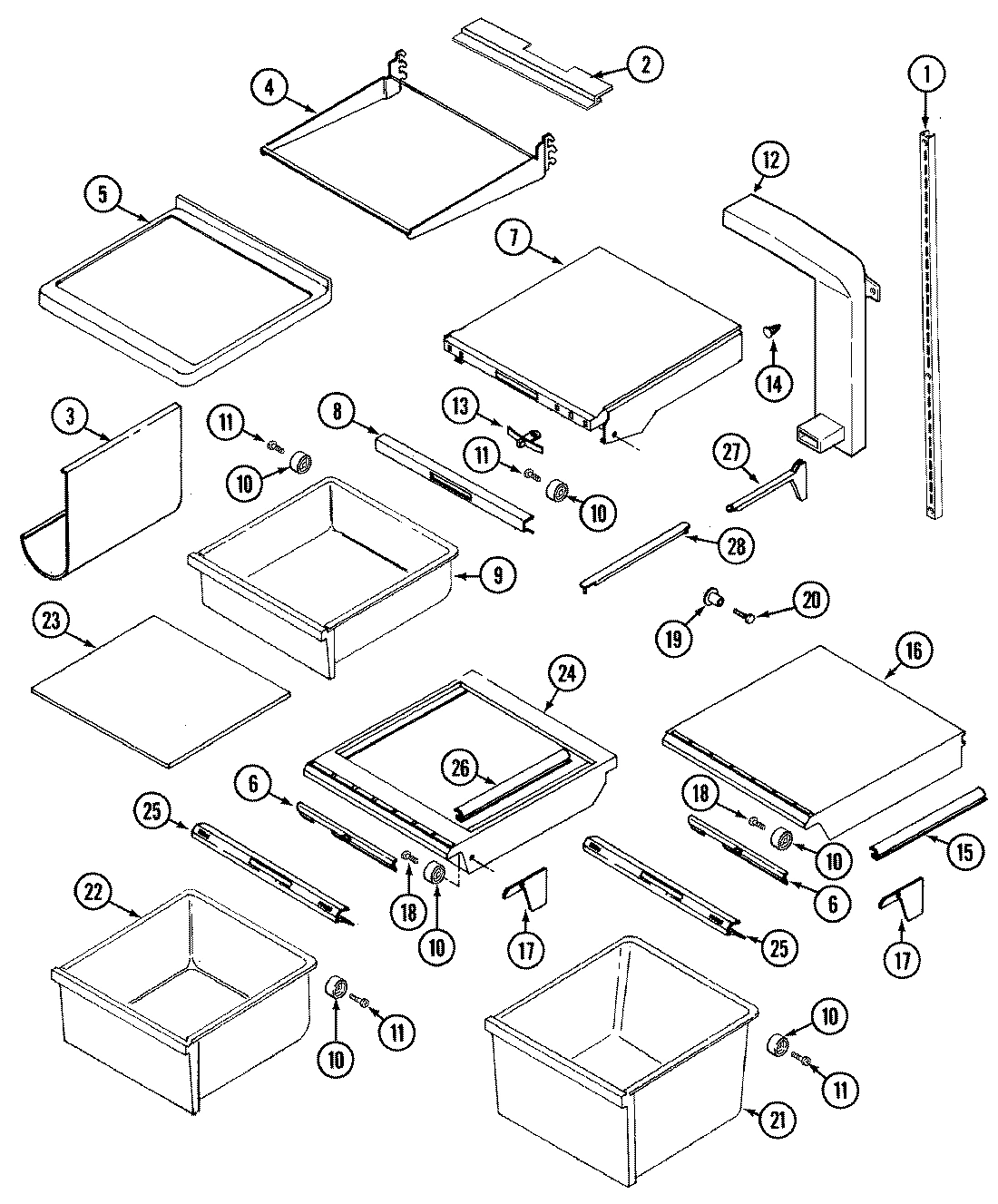

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 72341100WW Contact Us For Availability

1

SCREW WPL 4010241 Contact Us For Availability

1

CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability

1

PANEL, F.F. DOOR (WHT) WPL 723412WW Contact Us For Availability

1

SCREW WPL 40003728 Contact Us For Availability

1

RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability

1

CUP, SHELF WPL 674661 Contact Us For Availability

1

LINER, FRZ. DOOR WPL 692451 Contact Us For Availability

1

LINER, F.F. DOOR WPL 692411 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

HANDLE (WHT) WPL 61001729 Contact Us For Availability

2

HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability

2

BAFFLE, MEAT SHELF WPL 703332 Contact Us For Availability

2

SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability

2

GASKET WPL 700241 Contact Us For Availability

2

RIVET WPL 5992017 Contact Us For Availability

2

HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability

2

HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

END CAP, HANDLE WPL 61001728 Contact Us For Availability

3

KNOB, CONTROL WPL 671455 Contact Us For Availability

3

HOLDER, WINE BOTTLE WPL 61001622 Contact Us For Availability

3

RETAINER, AIR RETURN WPL 700341 Contact Us For Availability

3

RETAINER, GASKET WPL 699925 Contact Us For Availability

3

RAIL, SHELF SUPPORT WPL 61001705 Contact Us For Availability

3

SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $59.86

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability

4

NAMEPLATE (WHT) WPL 61001543 Contact Us For Availability

4

FRAME, SHELF WPL 703102 Contact Us For Availability

4

FRAME, MEAT SHELF WPL 703104 Contact Us For Availability

4

COVER, COIL (UPPER) WPL 672975 Contact Us For Availability

4

SCREW WPL 40002728 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

SCREW WPL 6527548 Contact Us For Availability

5

STOP, DOOR WPL 692562 Contact Us For Availability

5

INSULATION, HOUSING WPL 587671 Contact Us For Availability

5

SHELF, SLIDE WPL 703071 Contact Us For Availability

5

CUP, SHELF WPL 603131 Contact Us For Availability

5

SHELF WPL 671146 Contact Us For Availability

5

FRONT ASSY, PICKOFF WPL 698705 Contact Us For Availability

5

GROMMET, PICK-OFF WPL 671441 Contact Us For Availability

5

OVERLOAD WPL 61001627 Contact Us For Availability

6

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.55

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

BAFFLE WPL 686101 Contact Us For Availability

6

SLIDE, CONTROL WPL 674913 Contact Us For Availability

6

TRIM, SHELF WPL 701362 Contact Us For Availability

6

RETAINER, GASKET WPL 699921 Contact Us For Availability

6

CAPACITOR, RUN WPL 658898 Contact Us For Availability

7

TUBE, FILL WPL 676663 Contact Us For Availability

7

CLIP, FILL TUBE WPL 678771 Contact Us For Availability

7

TRIM, EXTENSION (UPR - WHT) WPL 679328 Contact Us For Availability

7

SPRING, BAFFLE WPL 526481 Contact Us For Availability

7

SUPPORT, MEAT PAN WPL 6764911 Contact Us For Availability

7

CAP, CONNECTOR WPL 681871 Contact Us For Availability

7

RETAINER, GASKET WPL 699922 Contact Us For Availability

7

COVER, TERMINAL WPL 665892 Contact Us For Availability

8

DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability

8

DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability

8

DUCT, AIR WPL 670613 Contact Us For Availability

8

TRIM, EXTENSION (LWR - WHT) WPL 679329 Contact Us For Availability

8

SCREW WPL 4150171 Contact Us For Availability

8

HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability

8

TRIM, MEAT PAN SUPPORT WPL 702814 Contact Us For Availability

8

SEAL WPL 689464 Contact Us For Availability

8

GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SHIM, TRIM LOCK (UPR) WPL 679261 Contact Us For Availability

9

KNOB, CONTROL WPL 671456 Contact Us For Availability

9

PAN, MEAT WPL 6992826 Contact Us For Availability

9

SEAL (44``) WPL 6632521 Contact Us For Availability

9

FRONT, PICK-OFF WPL 698715 Contact Us For Availability

9

CORD, POWER WPL 528903 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SHIM, TRIM LOCK (LWR) WPL 679262 Contact Us For Availability

SCREW WPL 4000011 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

ROLLER WPL 674232 Contact Us For Availability

BUMPER, DOOR WPL 282726 Contact Us For Availability

DOOR, DAIRY WPL 699182 Contact Us For Availability

SCREW WPL 4140011 Contact Us For Availability

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

CONDENSER WPL 649981 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability

ENDCAP, HANDLE WPL 679282 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

SCREW WPL 652756 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

ARM, SENSOR WPL 681121 Contact Us For Availability

SOCKET, LIGHT WPL 298131 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

TUNNEL, AIR WPL 675264 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

SHELF, PICK-OFF WPL 698724 Contact Us For Availability

BAFFLE, AIR DIVIDER WPL 61001533 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

COVER, ICE MAKER WPL 683282 Contact Us For Availability

SCREW WPL 4080621 Contact Us For Availability

COVER, UPPER HINGE (WHT) WPL 695184 Contact Us For Availability

HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 670743 Contact Us For Availability

SHIELD, LIGHT WPL 672921 Contact Us For Availability

TRAY, EGG WPL 672152 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability

HINGE UPPER WPL 5370926 Contact Us For Availability

SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability

KICKPLATE W/CLIPS (WHT) WPL 702888 Contact Us For Availability

SCREW WPL 40001531 Contact Us For Availability

SUPPORT, LIGHT SHIELD WPL 61001701 Contact Us For Availability

ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability

BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

SCREW WPL 4010171 Contact Us For Availability

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

CLIP, KICKPLATE WPL 702851 Contact Us For Availability

SEAL WPL 697791 Contact Us For Availability

SCREW WPL 4000221 Contact Us For Availability

GLIDE, BASKET WPL 695191 Contact Us For Availability

SHELF, PICK-OFF WPL 61001732 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $98.90

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.76

CLAMP, SPRING WPL 603334 Contact Us For Availability

SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability

HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability

SHIELD, LIGHT WPL 671134 Contact Us For Availability

SHELF, CRISPER (LOWER) WPL 678926 Contact Us For Availability

SCREW WPL 4030671 Contact Us For Availability

WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability

TUBE WPL 675796 No Longer Available

SHIM, LOWER HINGE WPL 695101 Contact Us For Availability

SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability

SCREW WPL 6527528 Contact Us For Availability

SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability

SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability

BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

SCREW WPL 6527559 Contact Us For Availability

TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability

SCREW WPL 6527534 Contact Us For Availability

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

PIN, LOWER HINGE WPL 698451 Contact Us For Availability

COVER, AIR RETURN WPL 699821 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

SHIELD, FAN WPL 672251 Contact Us For Availability

COVER, BACK WIRE WPL 670941 Contact Us For Availability

WIRE HARNESS, MAIN WPL 702642 Contact Us For Availability

W10772617 Whirlpool Outer Tub Backorder WPL W10772617 $365.40

WP61001846 Whirlpool Refrigerator Heater In Stock WPL WP61001846 $22.16

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

WASHER, LOWER HINGE WPL 674832 Contact Us For Availability

SCREW WPL 40001536 Contact Us For Availability

COVER, COIL LOWER WPL 673352 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

CLOSER, DOOR WPL 692581 Contact Us For Availability

SCREW WPL 41400435 Contact Us For Availability

TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability

PAN, CRISPER (LOWER) WPL 6992835 Contact Us For Availability

ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability

CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability

TROUGH, WATER INLET WPL 61001305 Contact Us For Availability

INSULATION, CLOSER WPL 526131 Contact Us For Availability

ELEMENT WPL 700491 Contact Us For Availability

LEG, LEVELING WPL 686641 Contact Us For Availability

PAN, CRISPER WPL 699284 Contact Us For Availability

BRACKET, SUPPORT WPL 61001703 Contact Us For Availability

PAN, DRAIN WPL 682361 Contact Us For Availability

BRACKET, CLOSER WPL 692611 Contact Us For Availability

WHEEL WPL 698121 Contact Us For Availability

GLASS, CRISPER SHELF WPL 6748910 Contact Us For Availability

TRIM, SHELF WPL 7013515 Contact Us For Availability

TROUGH, DRAIN WPL 535231 Contact Us For Availability

PIN, WHEEL WPL 649651 Contact Us For Availability

SHELF, CRISPER (UPPER) WPL 678914 Contact Us For Availability

PLUG, TUBE WPL 675933 Contact Us For Availability

TUBE, FILL WPL 676761 Contact Us For Availability

HOSE, DRAIN WPL 2691118 Contact Us For Availability

SCREW WPL 652751 Contact Us For Availability

BRACKET, WHEEL WPL 678062 Contact Us For Availability

TRIM, CRISPER SHELF----NA WPL 703377 Contact Us For Availability

PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability

CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability

FACEPLATE, BRACKET WPL 702301 Contact Us For Availability

SEAL, CRISPER WPL 697792 Contact Us For Availability

GROMMET WPL 692191 Contact Us For Availability

CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability

SCREW, WHEEL ADJUSTMENT WPL 61001126 Contact Us For Availability

ACTUATOR WPL 6707210 Contact Us For Availability

SHELF, FRZ. WPL 671789 Contact Us For Availability

SCREW WPL 652755 Contact Us For Availability

COVER, UNIT COMPARTMENT WPL 61001634 Contact Us For Availability

TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability

NUT WPL 431019511 Contact Us For Availability

LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability

SHELF, FRZ. (No.2,3,4,5) WPL 671787 Contact Us For Availability

COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability

HEAT EXCHANGER WPL 6501325 Contact Us For Availability

WIRE TIE WPL 662231 Contact Us For Availability

29

PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability

29

TRIM, SHELF WPL 7013518 Contact Us For Availability

29

DRIER WPL 139001 Contact Us For Availability

RAIL, HORIZONTAL SUPPORT WPL 61001031 Contact Us For Availability

SCREW WPL 6527542 Contact Us For Availability

BASKET, FRZ WIRE WPL 693501 Contact Us For Availability

THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability

31

INSERT, LIGHT SHIELD WPL 6747610 Contact Us For Availability

31

CLIP WPL 693141 Contact Us For Availability

31

EVAPORATOR WPL 5255121 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

TRAY, ICE WPL 592812 Contact Us For Availability

HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability

33

BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability

33

PAN, ICE WPL 699191 Contact Us For Availability

33

BOARD, TERMINAL WPL 558781 Contact Us For Availability

34

SCREW WPL 4000161 Contact Us For Availability

34

SUPPORT ICE SHELF WPL 671431 Contact Us For Availability

34

SEAL WPL 6632517 Contact Us For Availability

35

BULB, LIGHT WPL 201746 Contact Us For Availability

35

INSULATION, AIR RETURN WPL 678371 Contact Us For Availability

35

SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability

36

SHIELD, LIGHT WPL 672421 Contact Us For Availability

36

BASKET, FRZ WIRE WPL 693481 Contact Us For Availability

36

SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

WHEEL ASSY. WPL 61001108 Contact Us For Availability

TUBE, DRAIN WPL 2652711 Contact Us For Availability

REFLECTOR WPL 2991512 Contact Us For Availability

38

GROMMET WPL 525261 Contact Us For Availability

38

BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability

39

TRIM, SHELF WPL 7013512 Contact Us For Availability

40

BASKET, PIZZA WPL 693491 Contact Us For Availability

41

TRIM, PIZZA BASKET WPL 7013514 Contact Us For Availability

NI

WIRING INFORMATION WPL 15001827 Contact Us For Availability

NI

GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability

NI

MANUAL, USE & CARE WPL 61001679 Contact Us For Availability
