Model Whirlpool RSD2200CAW REFRIGERATOR – Common Parts & Diagrams

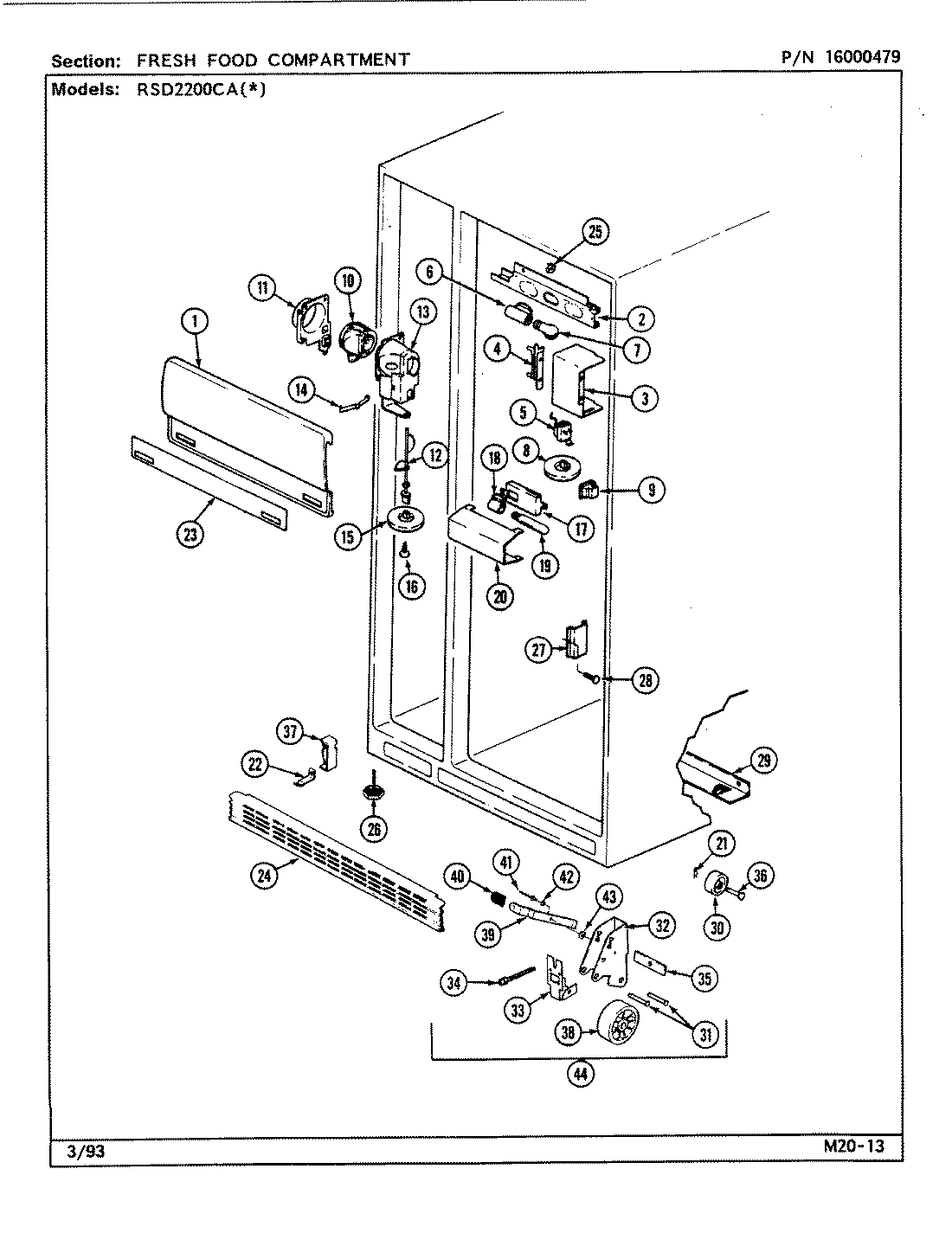

01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RSD2200CAW REFRIGERATOR
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
2
HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
7
BULB, LIGHT WPL 319561 Contact Us For Availability
8
KNOB, CONTROL WPL 671455 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
12
BAFFLE WPL 686101 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
15
KNOB, CONTROL WPL 671456 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
18
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
21
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
22
SCREW WPL 4000171 Contact Us For Availability
22
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
23
INSERT, LIGHT SHIELD WPL 674768 Contact Us For Availability
25
CLIP WPL 550422 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
29
SCREW WPL 6527542 Contact Us For Availability
29
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
32
SCREW WPL 652751 Contact Us For Availability
32
BRACKET, WHEEL WPL 678061 Contact Us For Availability
33
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
38
WHEEL WPL 698122 Contact Us For Availability
39
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
40
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
41
RIVET WPL 263972 Contact Us For Availability
42
LOCKWASHER WPL 420003905 Contact Us For Availability
43
WASHER WPL 420007400 Contact Us For Availability
44
WHEEL ASSY.(L) WPL 723195 Contact Us For Availability
44
WHEEL ASSY.(R) WPL 723196 Contact Us For Availability
× ![]()
