LG RSCGD21 Guide Robot 2nd Gen. Parts List

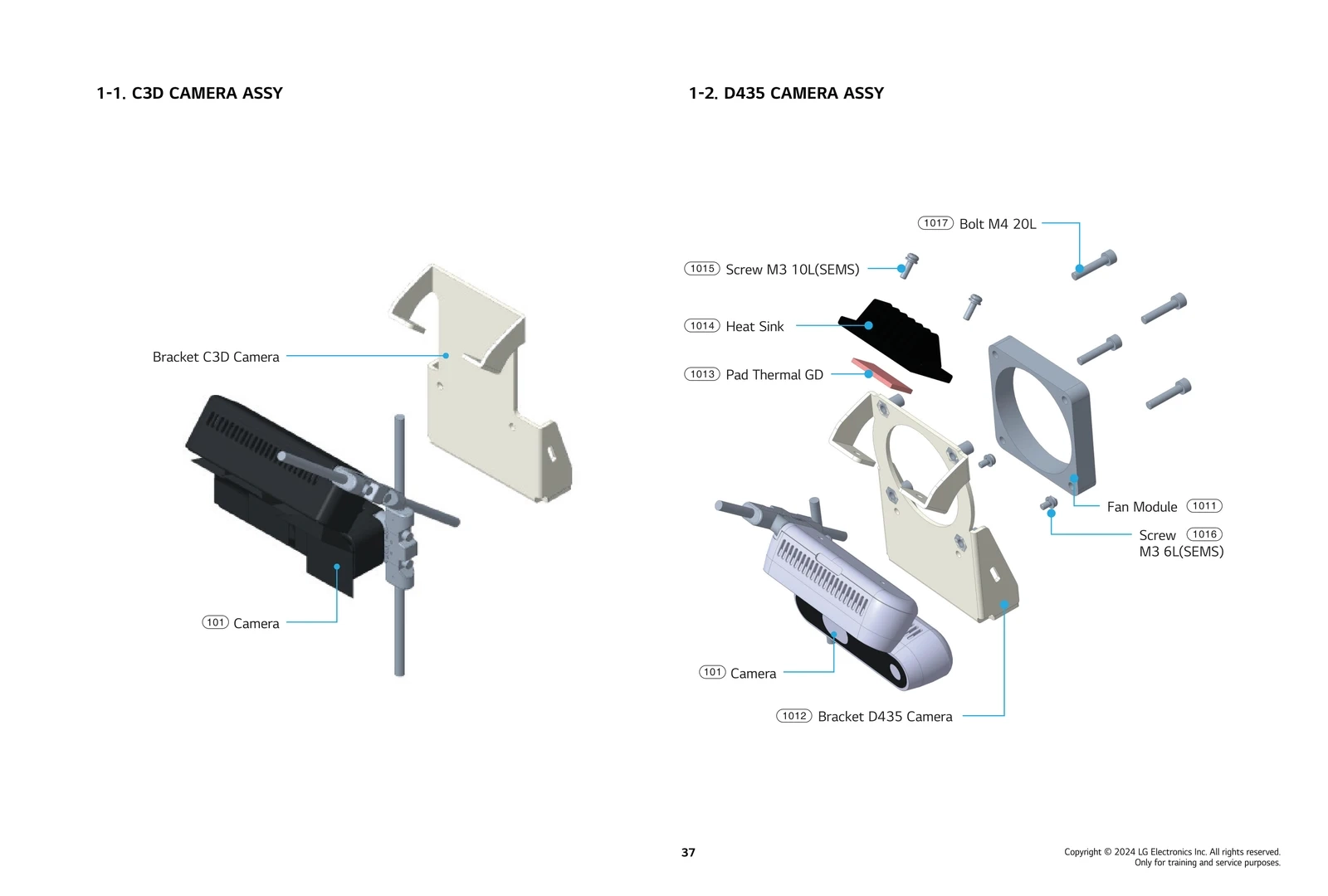

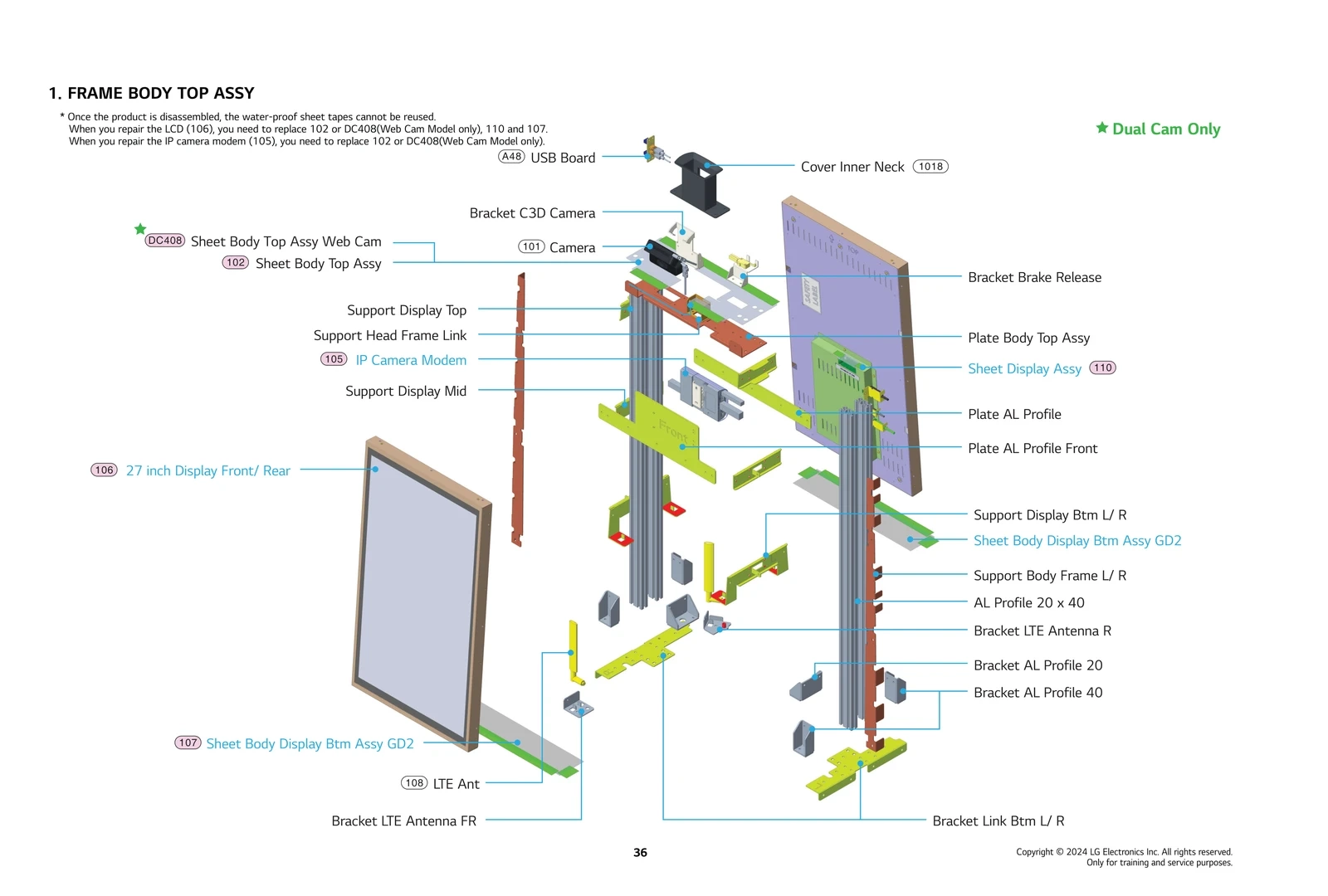

101

Camera Module Backorder LGE EBP64157601 $328.03

View on Model

102

Plate Assembly Backorder LGE AGU30035601 $55.75

View on Model

105

Camera Module Backorder LGE EBP64154801 $610.76

View on Model

106

Module,Hybrid Touch LCD LGE EAT65179901 Contact Us For Availability

View on Model

107

Plate Assembly LGE AGU30040401 Contact Us For Availability

View on Model

108

Antenna,Bar LGE EAA65968601 Contact Us For Availability

View on Model

110

Plate Assembly LGE AGU30035701 Contact Us For Availability

View on Model

201

AGU30035801 LG Plate Assembly Backorder LGE AGU30035801 $18.10

View on Model

202

Speaker Assembly,Outsourcing Backorder LGE COV37471002 $22.20

View on Model

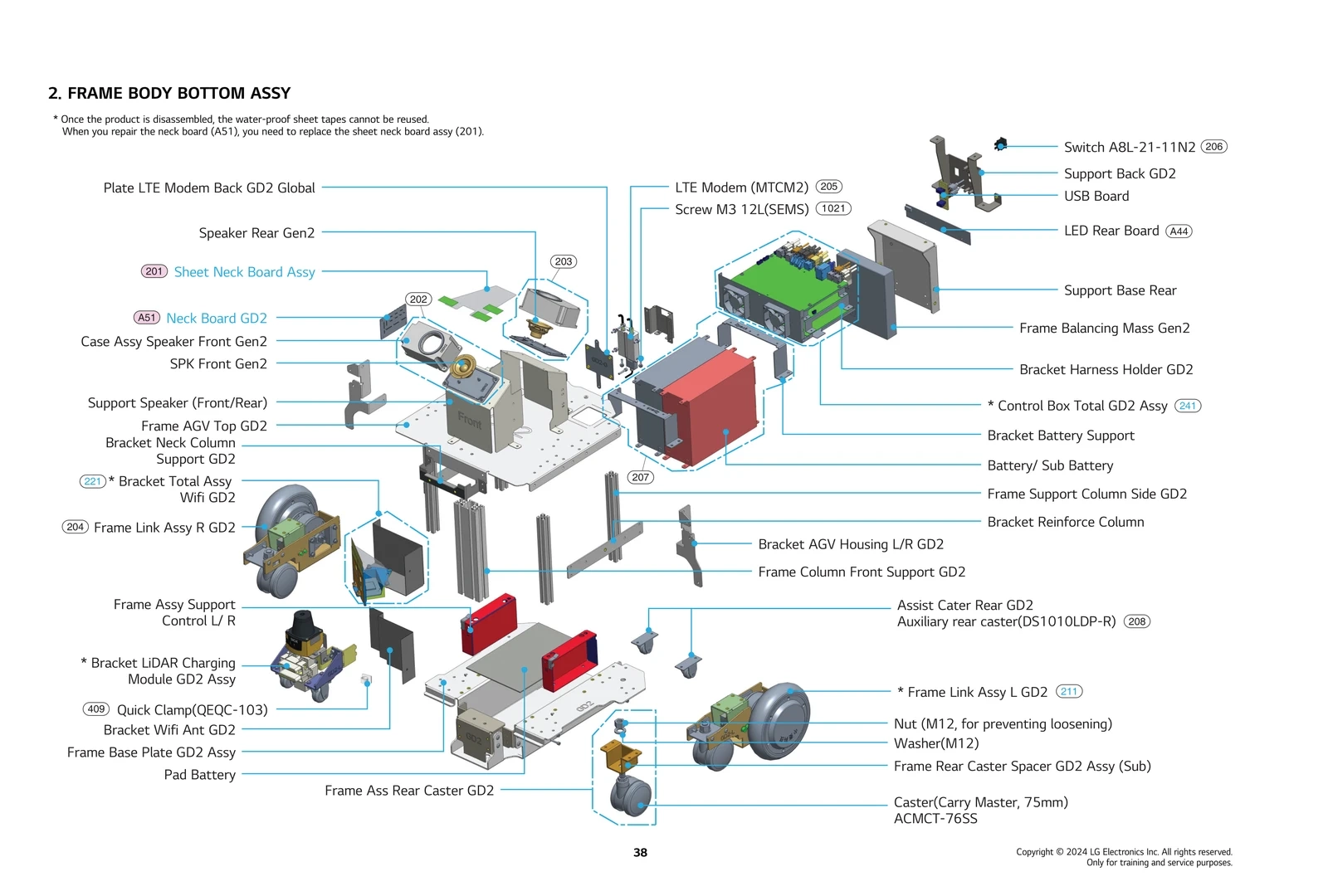

203

Speaker Assembly,Outsourcing LGE COV37471102 Contact Us For Availability

View on Model

204

FRAME ASSEMBLY,OUTSOURCING Backorder LGE COV37470701 $839.13

View on Model

205

MODEM LGE EBM61623702 Contact Us For Availability

View on Model

206

SWITCH,PUSH BUTTON Backorder LGE EBF64557401 $2.64

View on Model

207

Battery Assembly,Outsourcing Backorder LGE COV37471301 $1,691.55

View on Model

208

Wheel,Caster Backorder LGE MKB62883401 $18.10

View on Model

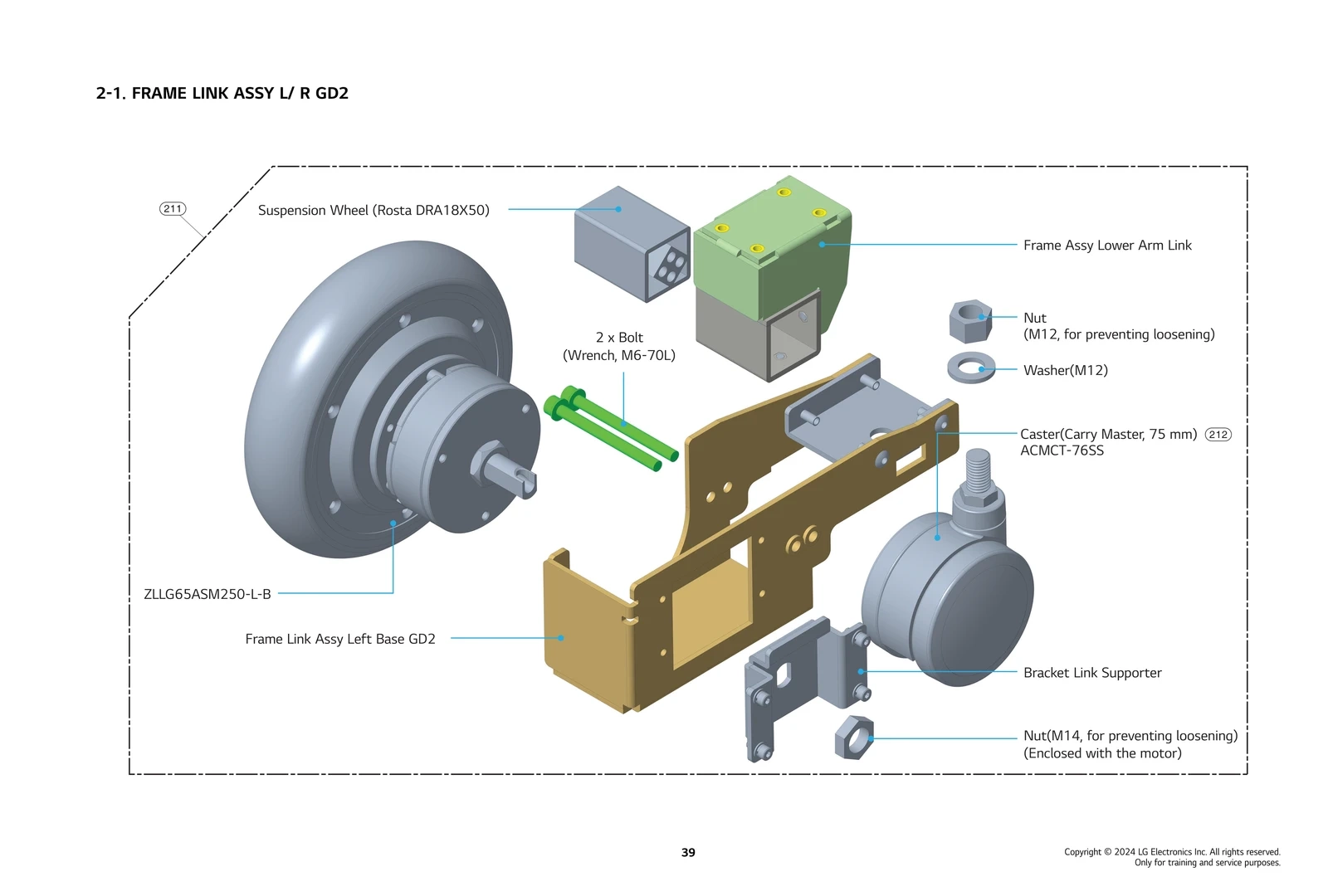

211

Frame Assembly,Outsourcing LGE COV37470601 Contact Us For Availability

View on Model

212

Wheel,Caster LGE MKB62883201 Contact Us For Availability

View on Model

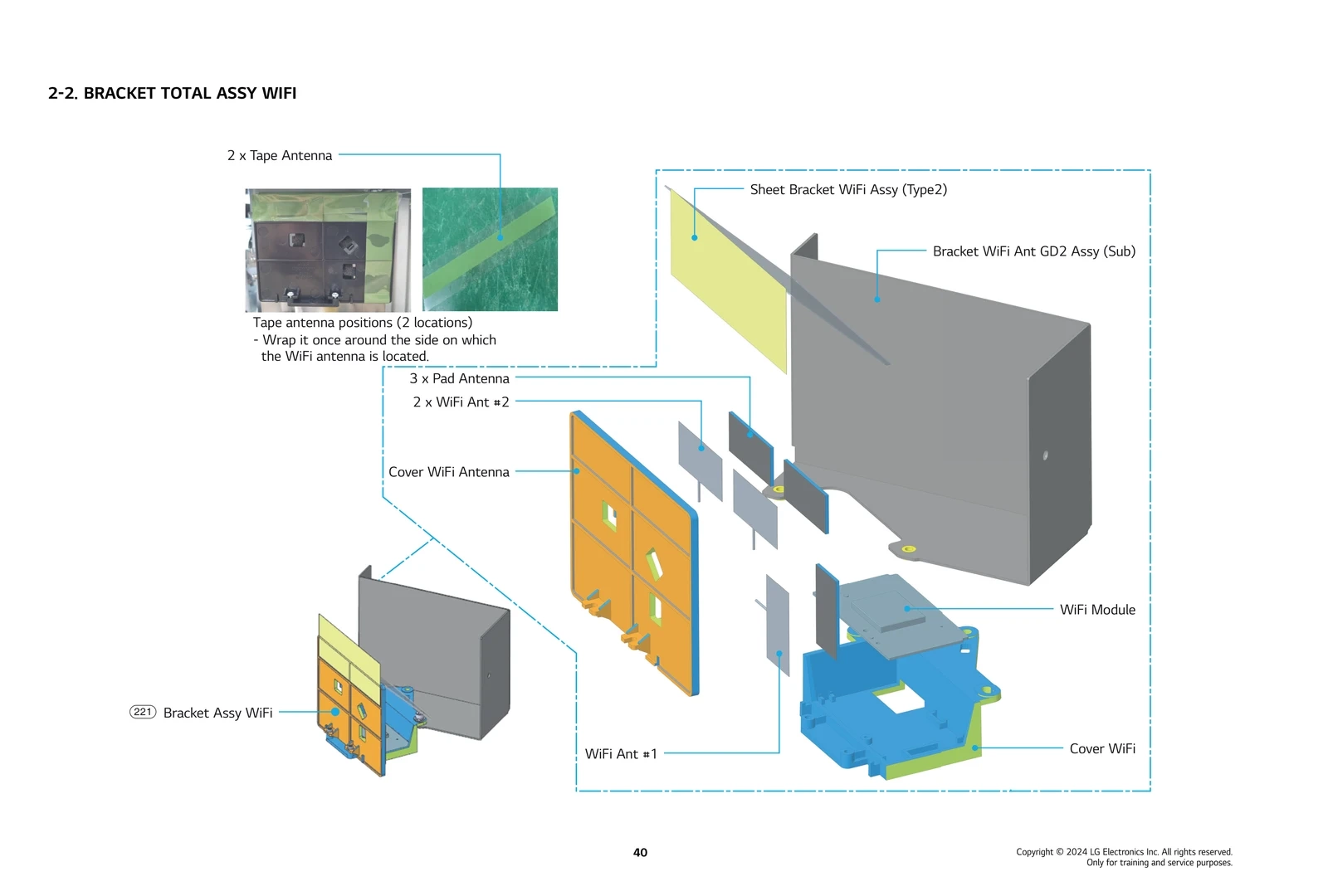

221

Bracket Assembly,Outsourcing Backorder LGE COV37472901 $229.31

View on Model

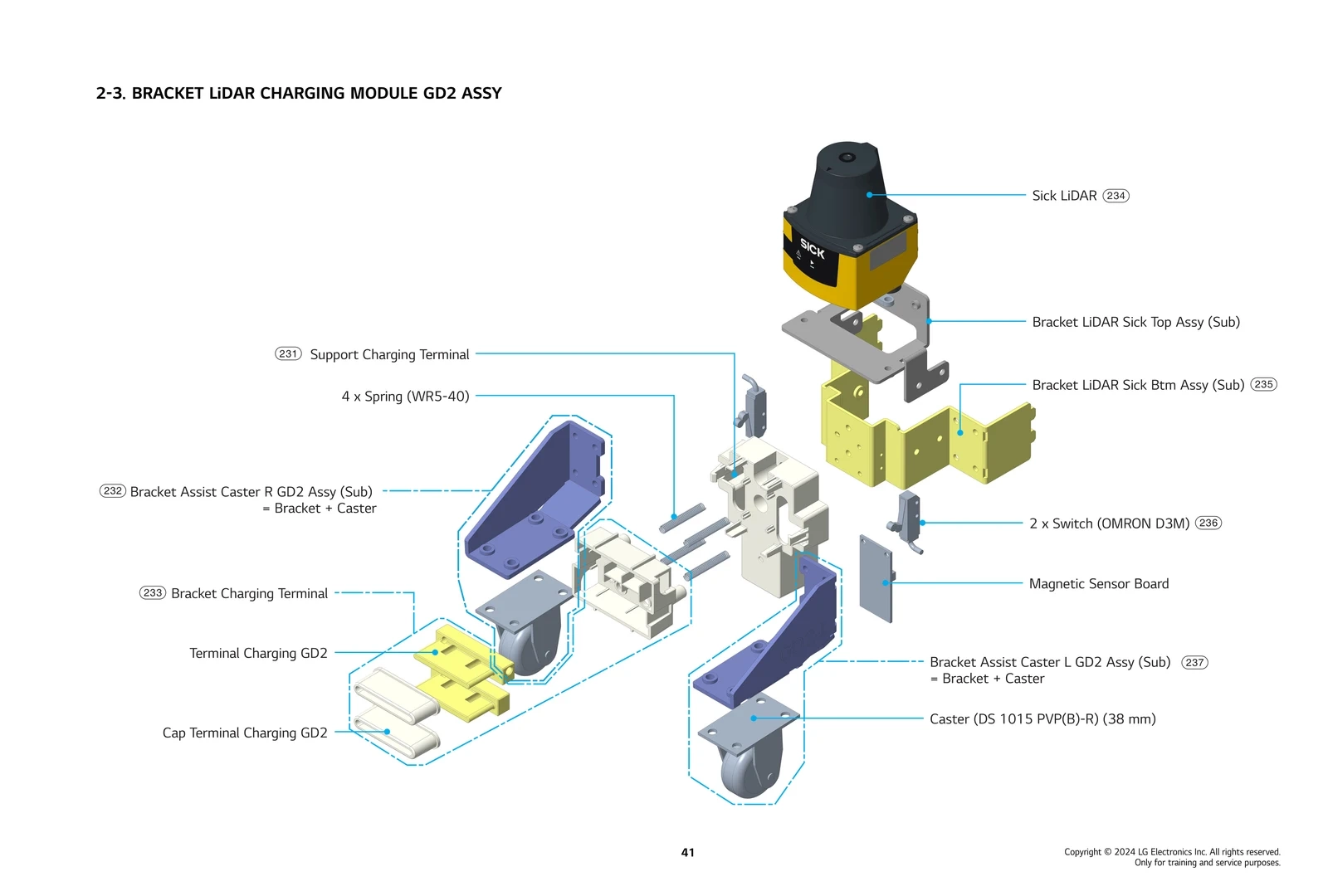

231

Supporter LGE MJH66238901 Contact Us For Availability

View on Model

232

Bracket Assembly Backorder LGE ABA30059201 $140.67

View on Model

233

Bracket Assembly Backorder LGE ABA30054301 $76.65

View on Model

234

LiDAR LGE EBD64412901 Contact Us For Availability

View on Model

235

Bracket Assembly,Sub LGE ABA30053601 Contact Us For Availability

View on Model

236

EBF64557301 LG Switch,Push Button Backorder LGE EBF64557301 $1.52

View on Model

237

Bracket Assembly LGE ABA30059101 Contact Us For Availability

View on Model

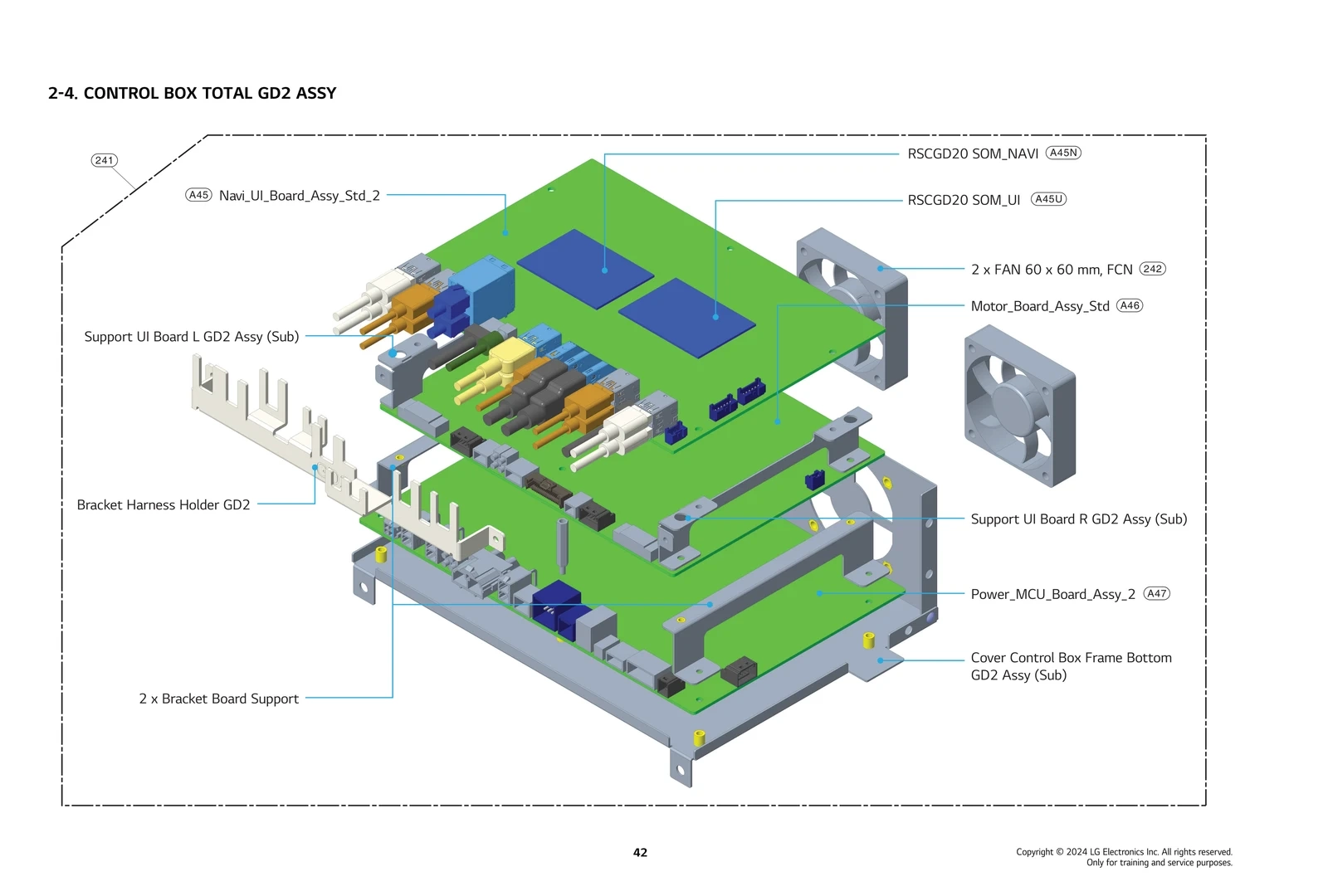

241

Cover,Outsourcing LGE COV37468301 Contact Us For Availability

View on Model

242

Fan Module Backorder LGE EAL62721602 $125.08

View on Model

242

Fan Module LGE EAL62721601 Contact Us For Availability

View on Model

301

Camera Module LGE EBP64154701 Contact Us For Availability

View on Model

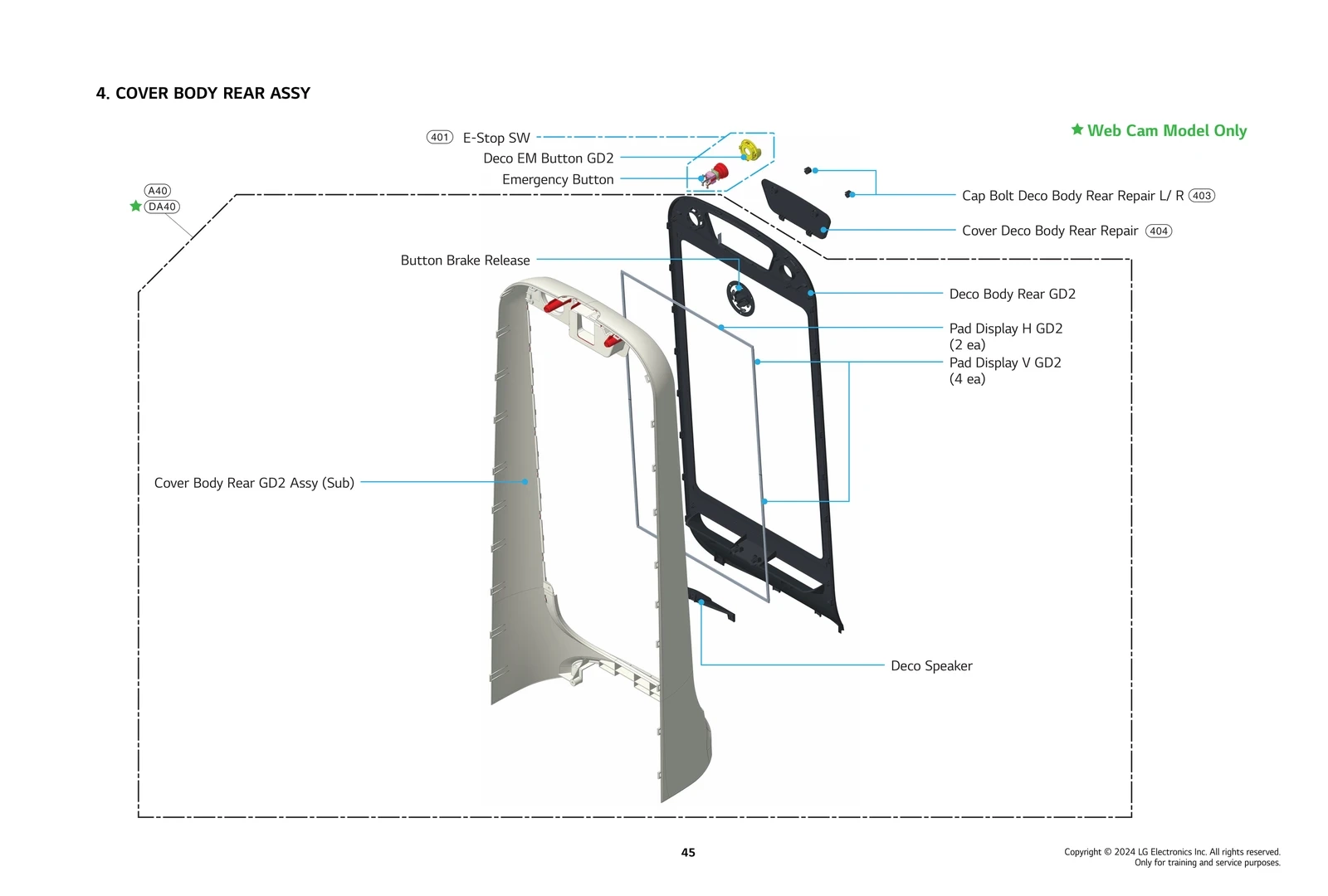

304

COVER Backorder LGE MCK71573401 $39.44

View on Model

401

Decor Assembly,Outsourcing LGE COV37471201 Contact Us For Availability

View on Model

403

Decor LGE MCR68430401 Contact Us For Availability

View on Model

404

Cover LGE MCK71564401 Contact Us For Availability

View on Model

409

Clamp,Wire LGE MBU64447601 Contact Us For Availability

View on Model

1011

Fan Module Backorder LGE EAL62727501 $140.67

View on Model

1012

Bracket Assembly,Sub LGE ABA30095701 Contact Us For Availability

View on Model

1013

Sheet,Thermal Backorder LGE MHK67887701 $7.94

View on Model

1014

Heat Sink LGE MED65497901 Contact Us For Availability

View on Model

1015

FAB34975602 LG Screw,Customized Backorder LGE FAB34975602 $3.33

View on Model

1016

Screw,Customized LGE FAB34970603 Contact Us For Availability

View on Model

1017

Bolt,Customized LGE FAA34338504 Contact Us For Availability

View on Model

1018

Cover Assembly,Sub LGE ACQ30443202 Contact Us For Availability

View on Model

1019

Decor LGE MCR68467401 Contact Us For Availability

View on Model

1021

Screw,Customized LGE FAB34970602 Contact Us For Availability

View on Model

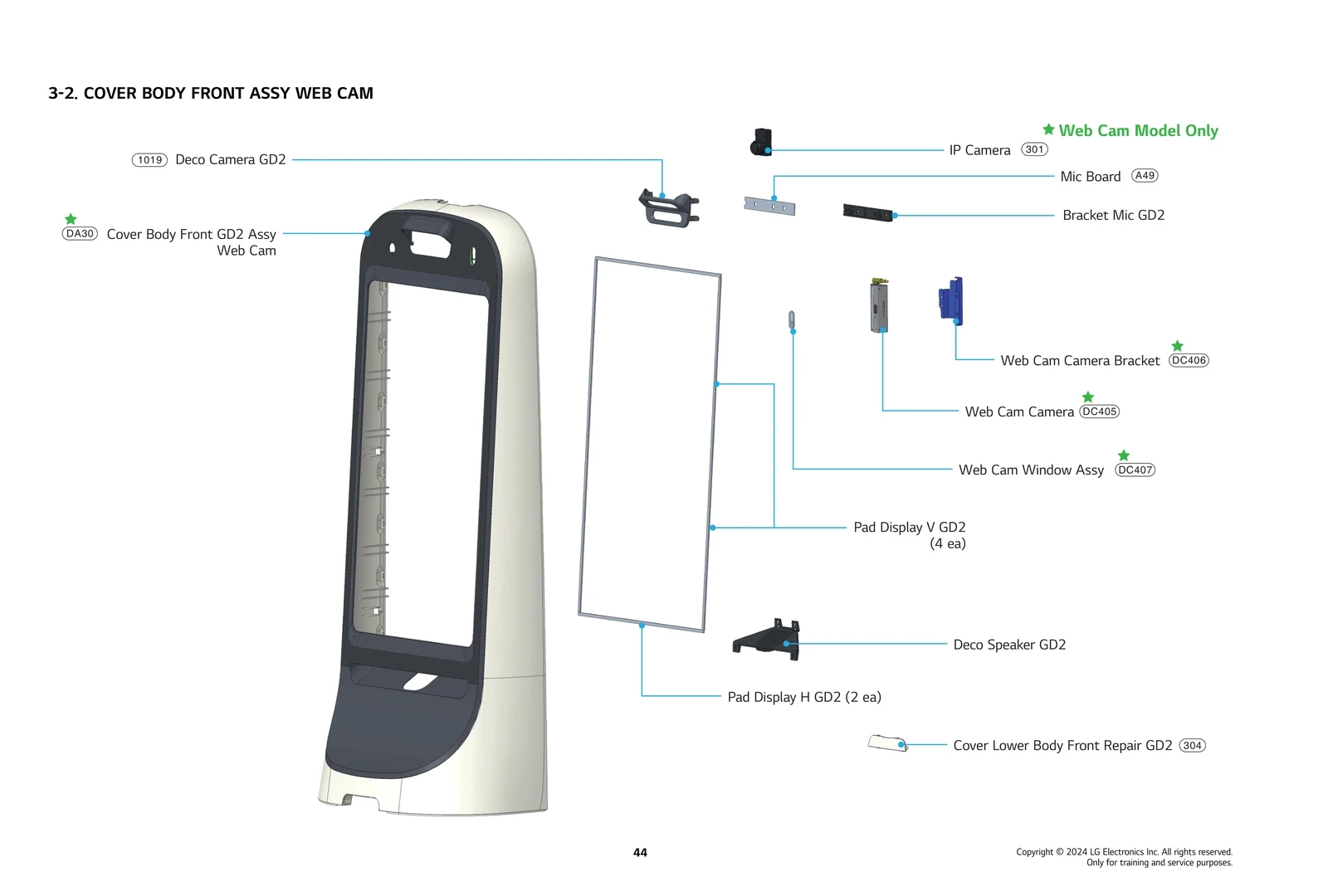

A30

Cover,Outsourcing LGE COV37930601 Contact Us For Availability

View on Model

A40

Cover Assembly LGE ACQ30444701 Contact Us For Availability

View on Model

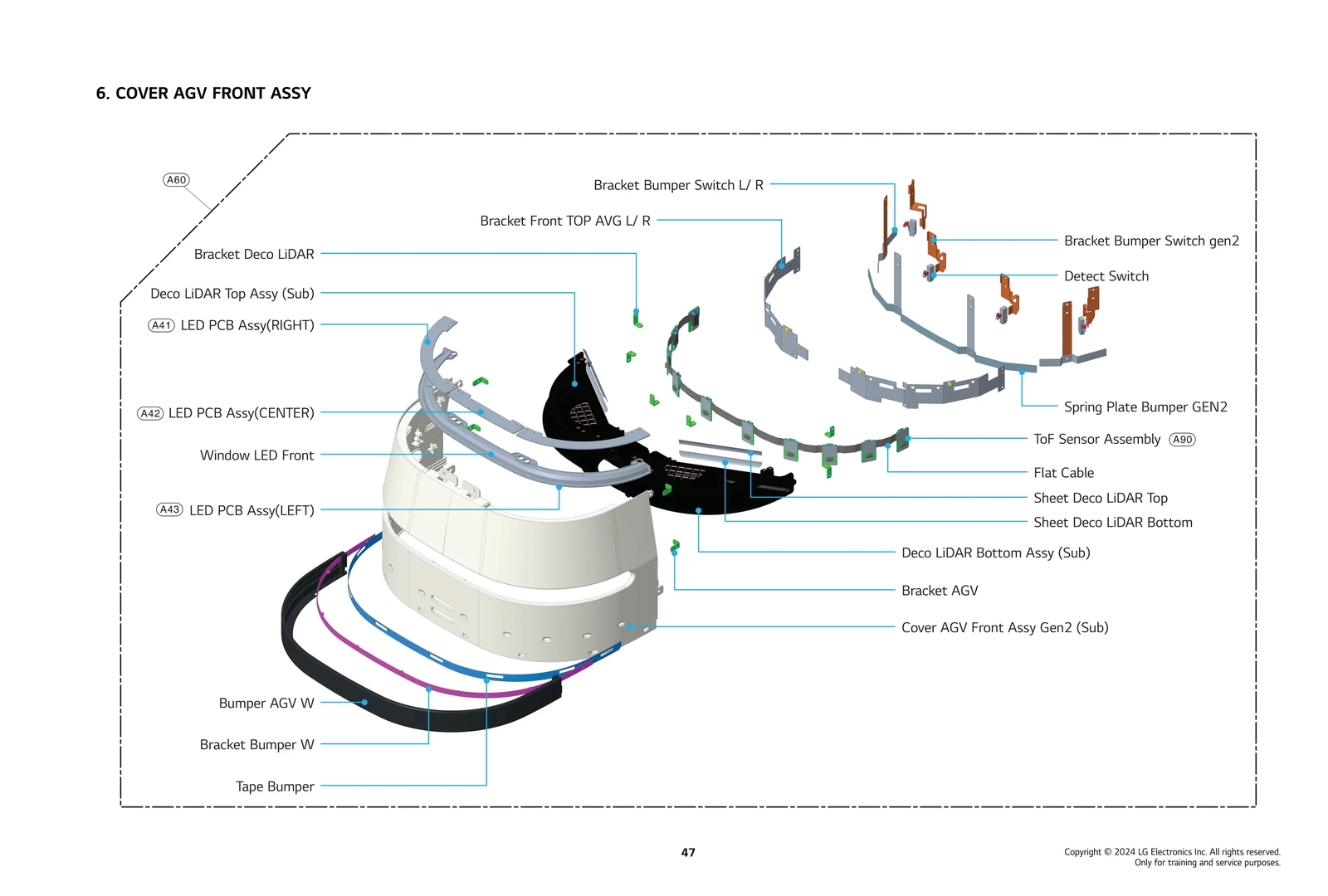

A41

PCB Assembly LGE EBR31303301 Contact Us For Availability

View on Model

A42

PCB Assembly Backorder LGE EBR31303501 $156.03

View on Model

A43

PCB Assembly LGE EBR31303401 Contact Us For Availability

View on Model

A44

PCB Assembly LGE EBR31303601 Contact Us For Availability

View on Model

A45

PCB Assembly LGE EBR34487001 Contact Us For Availability

View on Model

A45N

PCB Assembly,Module LGE EBR41431002 Contact Us For Availability

View on Model

A45U

PCB Assembly,Module LGE EBR41431003 Contact Us For Availability

View on Model

A46

PCB Assembly LGE EBR31303102 Contact Us For Availability

View on Model

A47

PCB Assembly LGE EBR33408801 Contact Us For Availability

View on Model

A48

PCB Assembly LGE EBR34487301 Contact Us For Availability

View on Model

A49

PCB Assembly LGE EBR34487101 Contact Us For Availability

View on Model

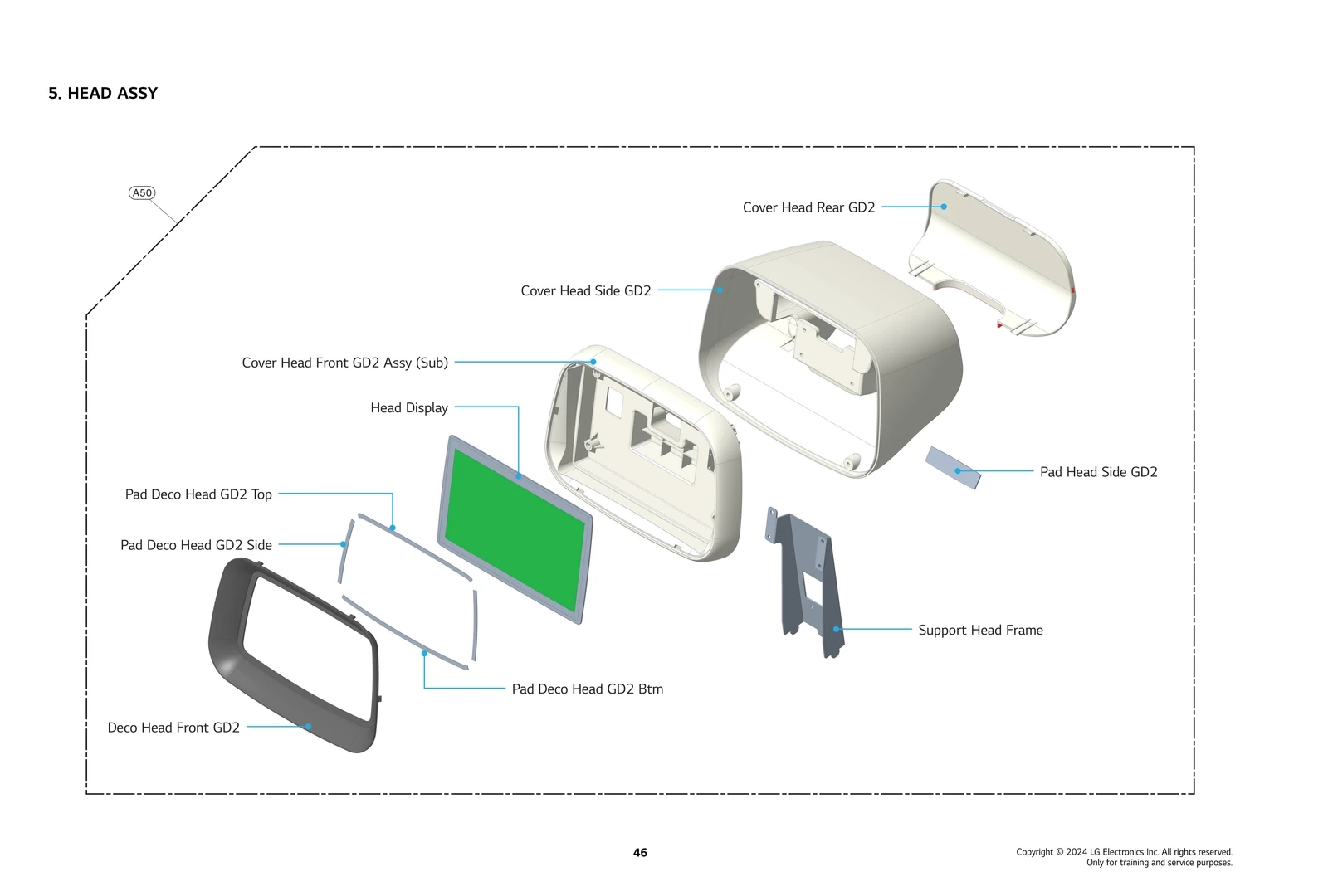

A50

Cover,Outsourcing LGE COV37469201 Contact Us For Availability

View on Model

A51

PCB Assembly LGE EBR33814701 Contact Us For Availability

View on Model

A60

Cover,Outsourcing LGE COV37469301 Contact Us For Availability

View on Model

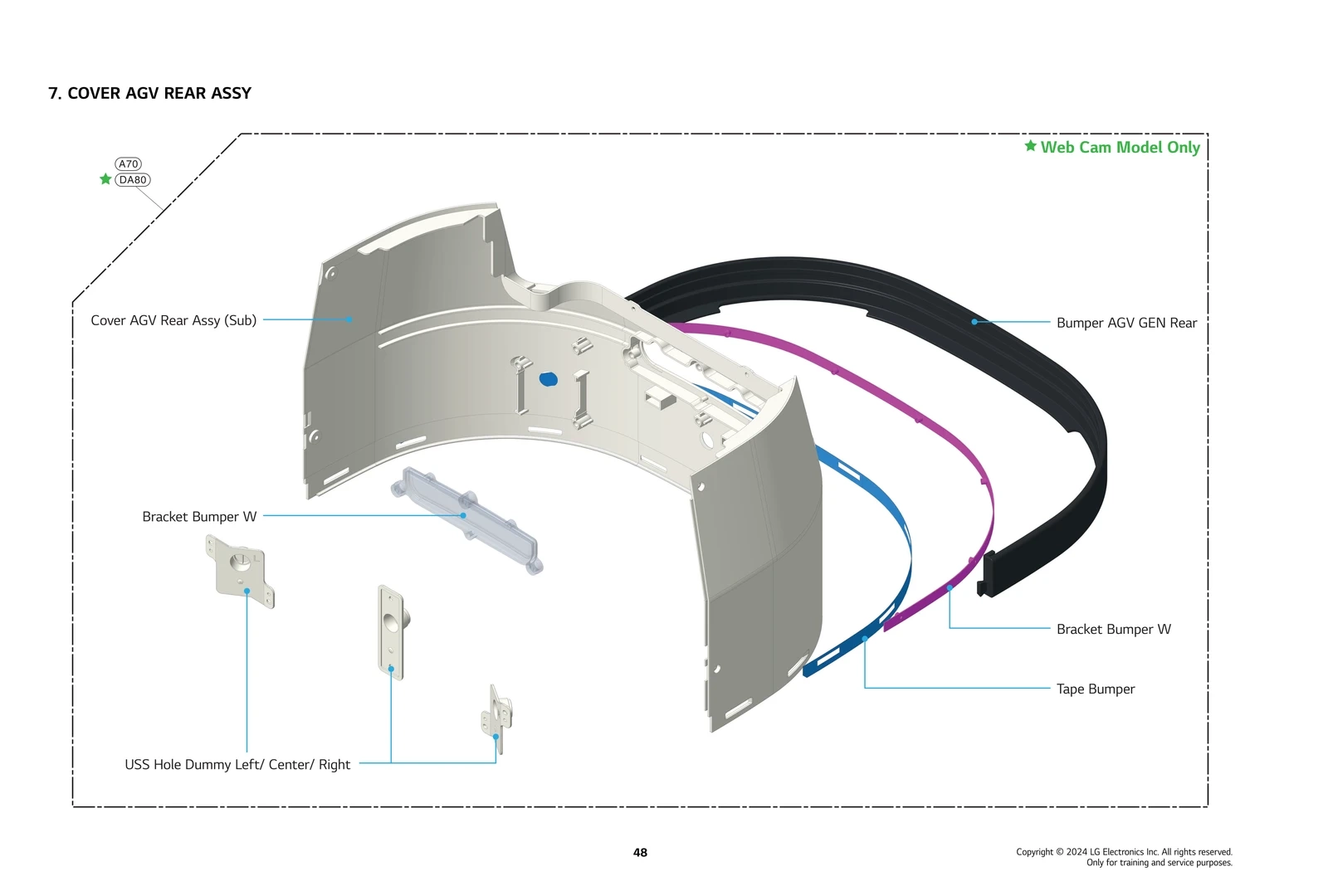

A70

Cover Assembly LGE ACQ30444201 Contact Us For Availability

View on Model

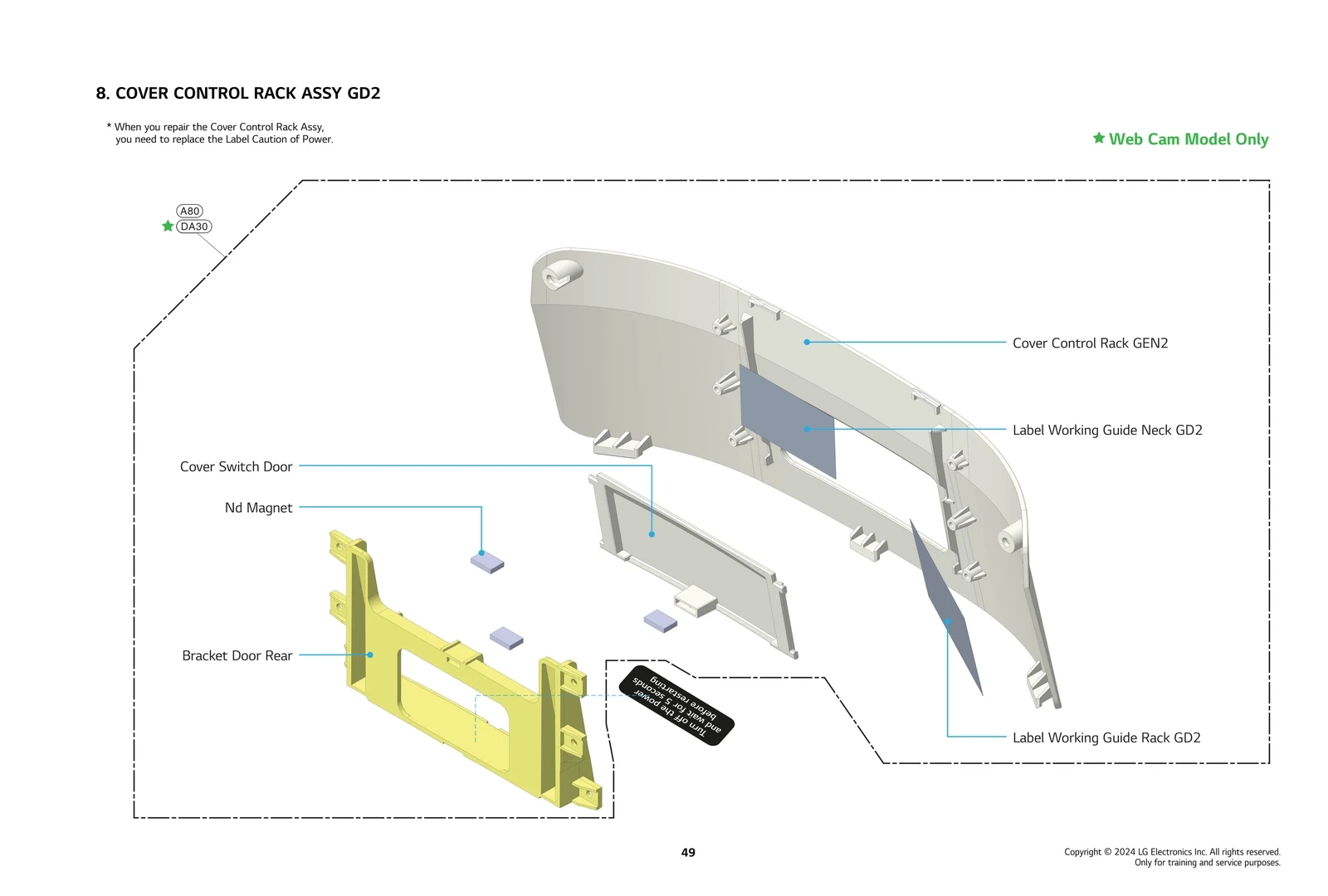

A80

Cover Assembly Backorder LGE ACQ30444101 $199.51

View on Model

A90

PCB Assembly LGE EBR33408901 Contact Us For Availability

View on Model

DA30

Cover,Outsourcing LGE COV37930602 Contact Us For Availability

View on Model

DA40

Cover Assembly LGE ACQ30444702 Contact Us For Availability

View on Model

DA80

Cover Assembly Backorder LGE ACQ30444102 $199.51

View on Model

DC405

Camera Module LGE EBP64157001 Contact Us For Availability

View on Model

DC406

Bracket LGE MAZ67820901 Contact Us For Availability

View on Model

DC407

Window Assembly LGE AJX75341201 Contact Us For Availability

View on Model

DC408

Plate Assembly LGE AGU30035602 Contact Us For Availability

View on Model

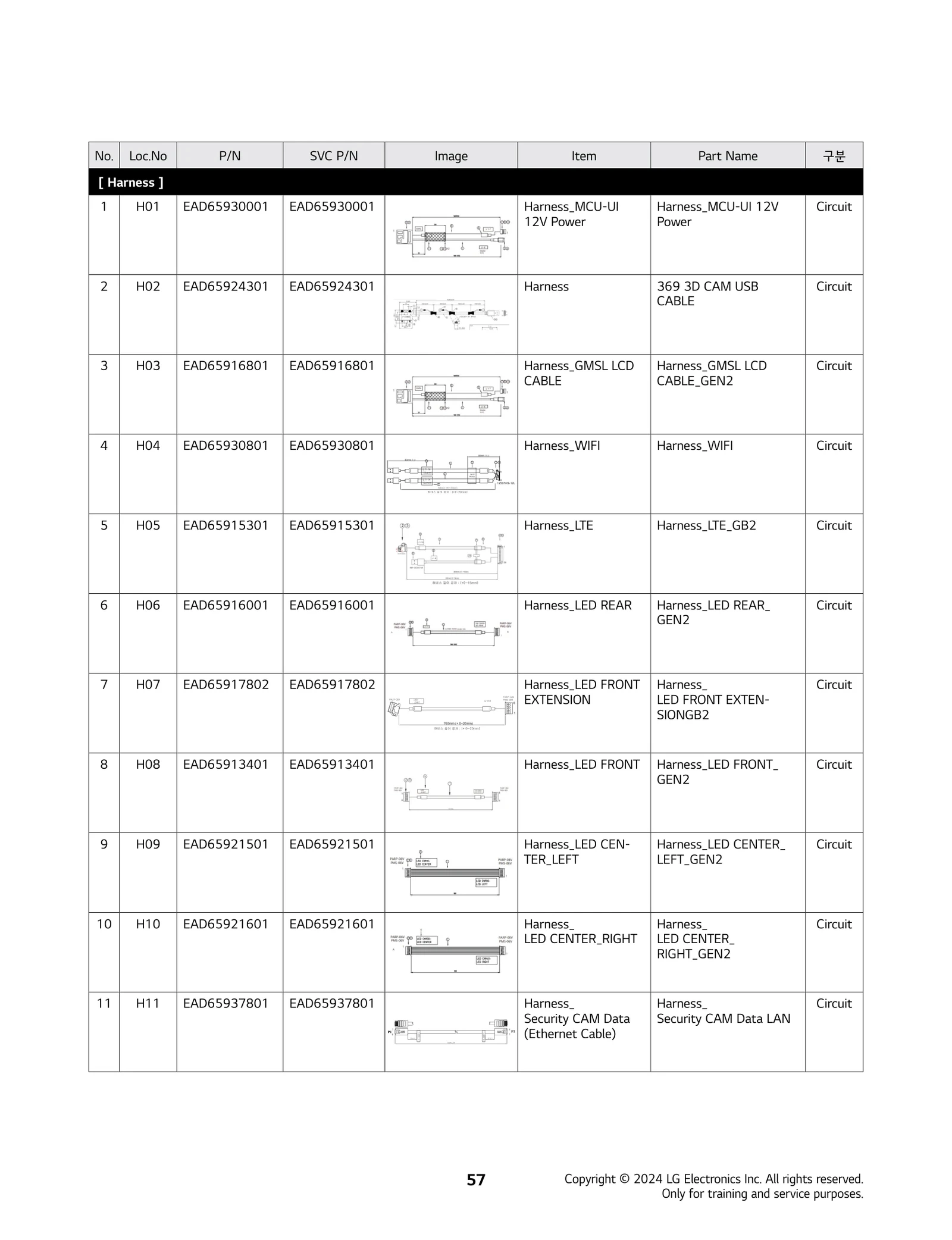

H01

HARNESS,SINGLE Backorder LGE EAD65930001 $98.10

View on Model

H02

Harness,Single LGE EAD65924301 Contact Us For Availability

View on Model

H03

Harness,Multi LGE EAD65916801 Contact Us For Availability

View on Model

H04

Harness,Multi LGE EAD65930801 Contact Us For Availability

View on Model

H05

EAD65915301 LG Harness,Multi Backorder LGE EAD65915301 $156.03

View on Model

H06

Harness,Single LGE EAD65916001 Contact Us For Availability

View on Model

H07

Harness,Single LGE EAD65917802 Contact Us For Availability

View on Model

H08

Harness,Single LGE EAD65913401 Contact Us For Availability

View on Model

H09

Harness,Single LGE EAD65921501 Contact Us For Availability

View on Model

H10

Harness,Single LGE EAD65921601 Contact Us For Availability

View on Model

H11

Cable,Assembly LGE EAD65937801 Contact Us For Availability

View on Model

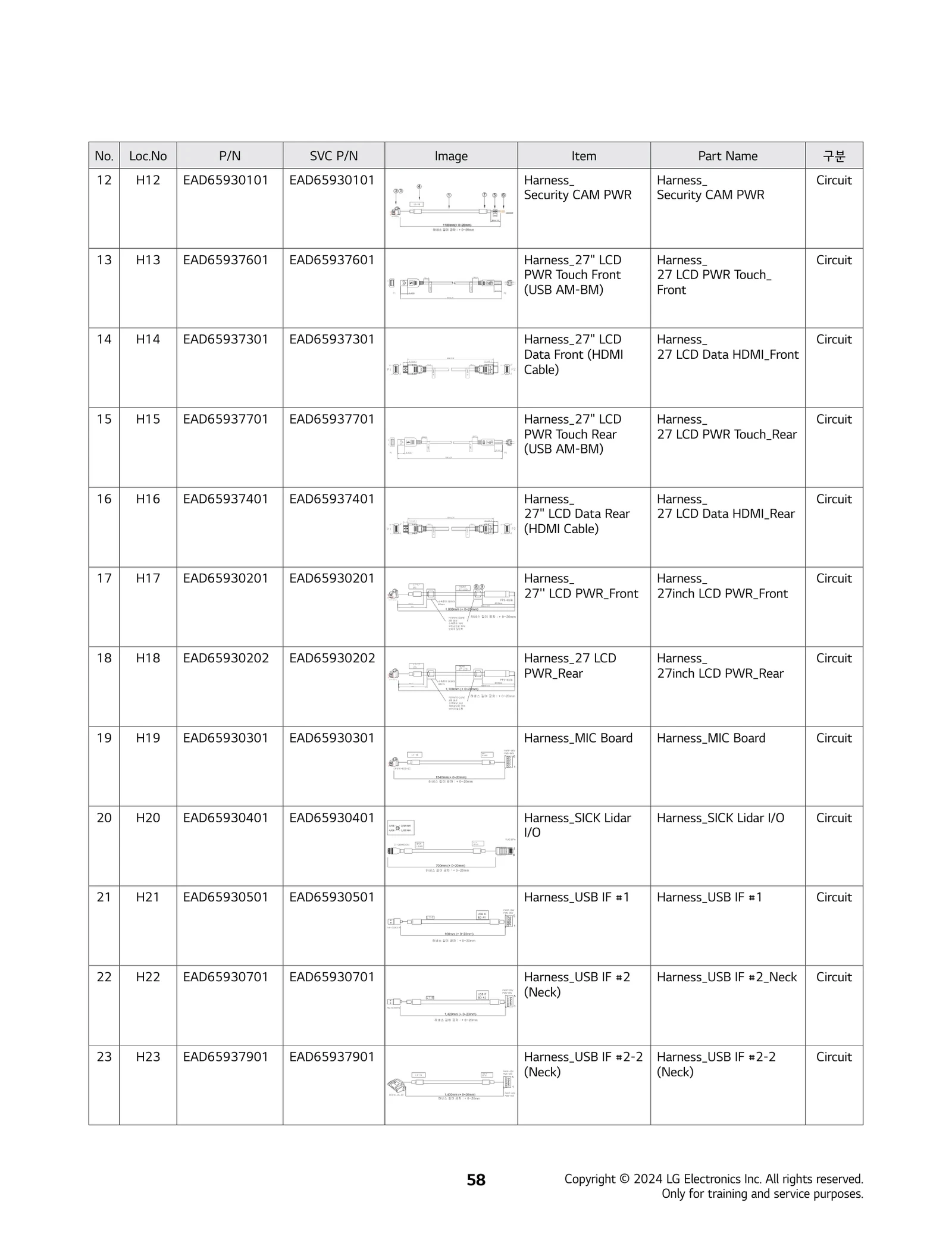

H12

Harness,Single LGE EAD65930101 Contact Us For Availability

View on Model

H13

Cable,Assembly LGE EAD65937601 Contact Us For Availability

View on Model

H14

Cable,Assembly LGE EAD65937301 Contact Us For Availability

View on Model

H15

Cable,Assembly LGE EAD65937701 Contact Us For Availability

View on Model

H16

CABLE,ASSEMBLY Backorder LGE EAD65937401 $26.48

View on Model

H17

EAD65930201 LG Harness,Single Backorder LGE EAD65930201 $171.49

View on Model

H18

Harness,Single Backorder LGE EAD65930202 $171.49

View on Model

H19

Harness,Single LGE EAD65930301 Contact Us For Availability

View on Model

H20

Harness,Single LGE EAD65930401 Contact Us For Availability

View on Model

H21

Harness,Single LGE EAD65930501 Contact Us For Availability

View on Model

H22

Harness,Single Backorder LGE EAD65930701 $125.08

View on Model

H23

Harness,Single LGE EAD65937901 Contact Us For Availability

View on Model

H24

Harness,Single LGE EAD65913502 Contact Us For Availability

View on Model

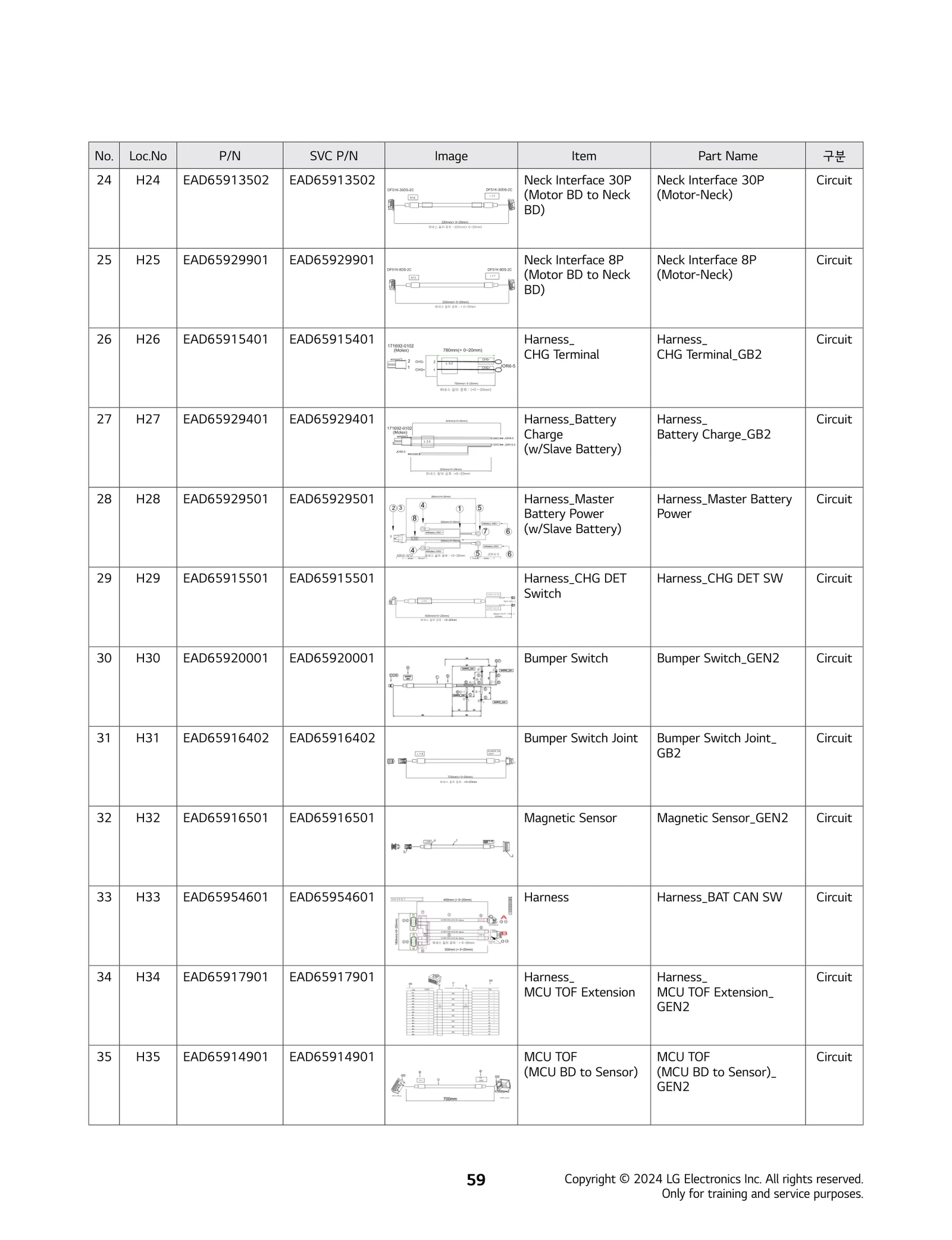

H25

Harness,Single LGE EAD65929901 Contact Us For Availability

View on Model

H26

Harness,Multi Backorder LGE EAD65915401 $110.25

View on Model

H27

Harness,Multi LGE EAD65929401 Contact Us For Availability

View on Model

H28

Harness,Multi Backorder LGE EAD65929501 $140.67

View on Model

H29

Harness,Single LGE EAD65915501 Contact Us For Availability

View on Model

H30

Harness,Multi LGE EAD65920001 Contact Us For Availability

View on Model

H31

Harness,Single LGE EAD65916402 Contact Us For Availability

View on Model

H32

Harness,Single LGE EAD65916501 Contact Us For Availability

View on Model

H33

Harness,Multi LGE EAD65954601 Contact Us For Availability

View on Model

H34

Harness,Single LGE EAD65917901 Contact Us For Availability

View on Model

H35

Harness,Multi Backorder LGE EAD65914901 $243.97

View on Model

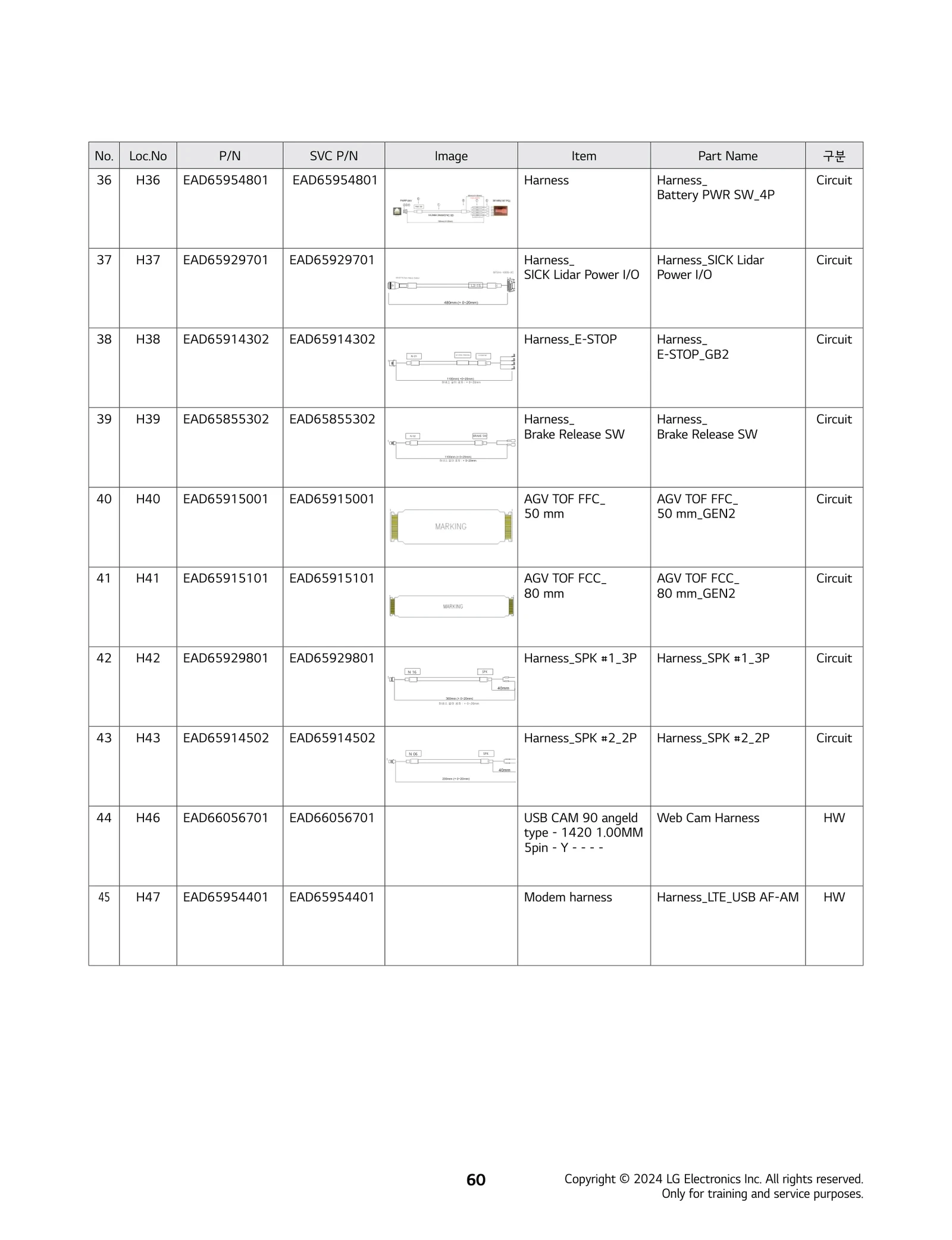

H36

Harness,Single LGE EAD65954801 Contact Us For Availability

View on Model

H37

Harness,Single LGE EAD65929701 Contact Us For Availability

View on Model

H38

Harness,Single LGE EAD65914302 Contact Us For Availability

View on Model

H39

Harness,Single LGE EAD65855302 Contact Us For Availability

View on Model

H40

Harness,Single LGE EAD65915001 Contact Us For Availability

View on Model

H41

Harness,Single LGE EAD65915101 Contact Us For Availability

View on Model

H42

Harness,Single Backorder LGE EAD65929801 $74.77

View on Model

H43

Harness,Single LGE EAD65914502 Contact Us For Availability

View on Model

H46

Harness,Single LGE EAD66056701 Contact Us For Availability

View on Model

H47

Harness,Single LGE EAD65954401 Contact Us For Availability

View on Model

Model LG RSCGD21 Guide Robot 2nd Gen. – Common Parts & Diagrams

Common parts from model LG RSCGD21 Guide Robot 2nd Gen.
