Model Whirlpool RS677PXYQ1 – Common Parts & Diagrams
01 - CONTROL PANEL
03 - OVEN, LIT/OPTIONAL

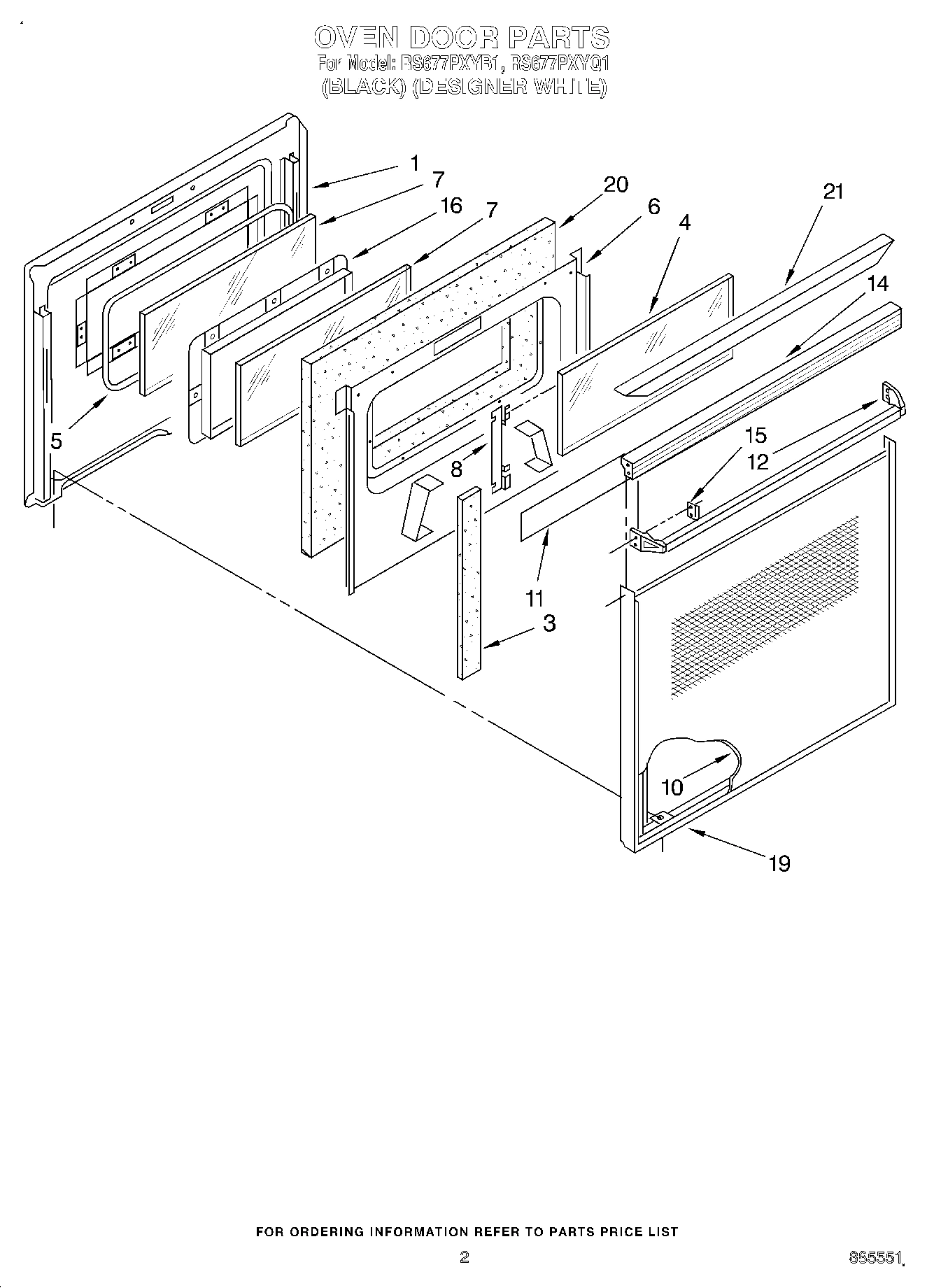

02 - OVEN DOOR

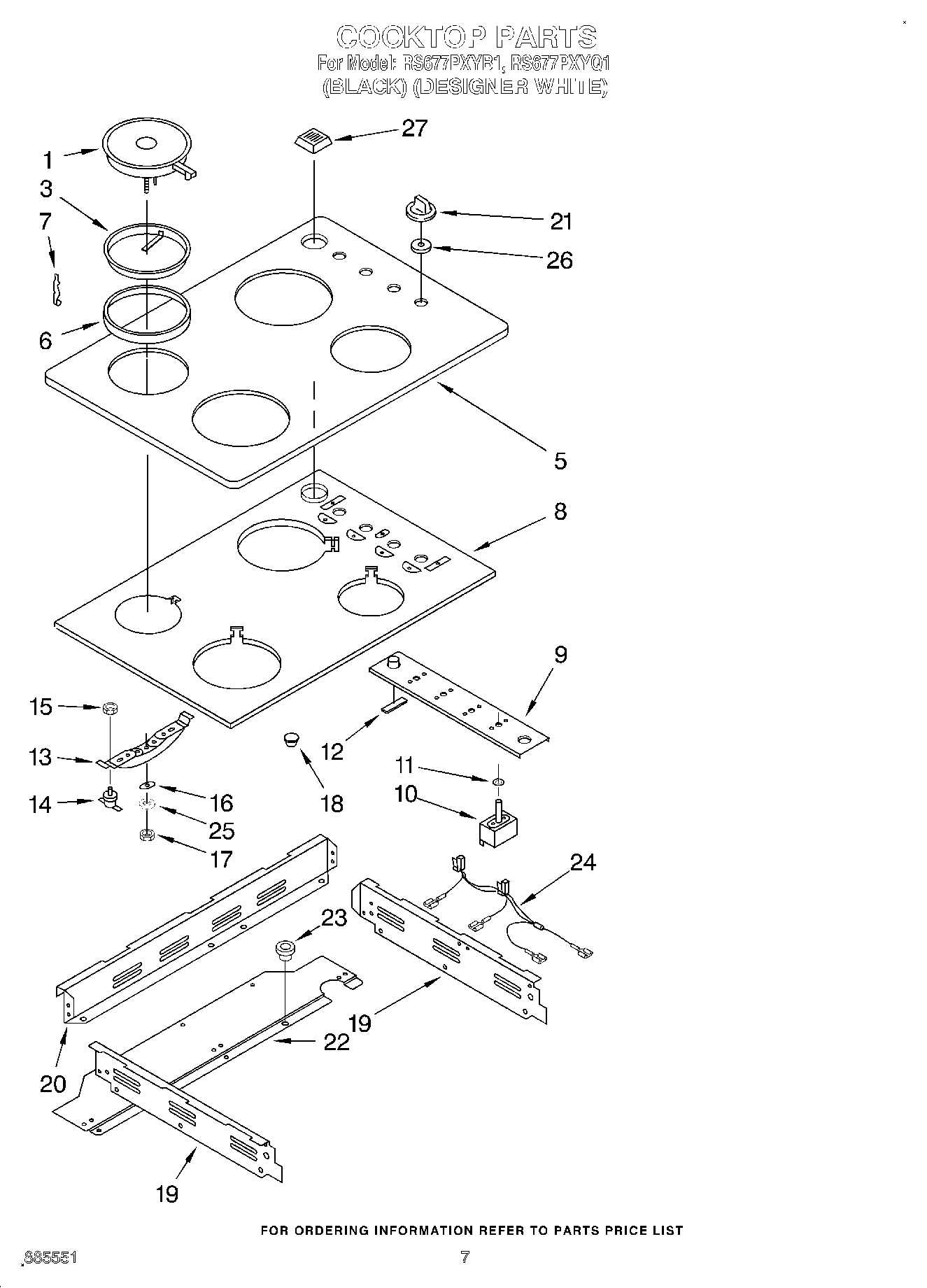

05 - COOKTOPS

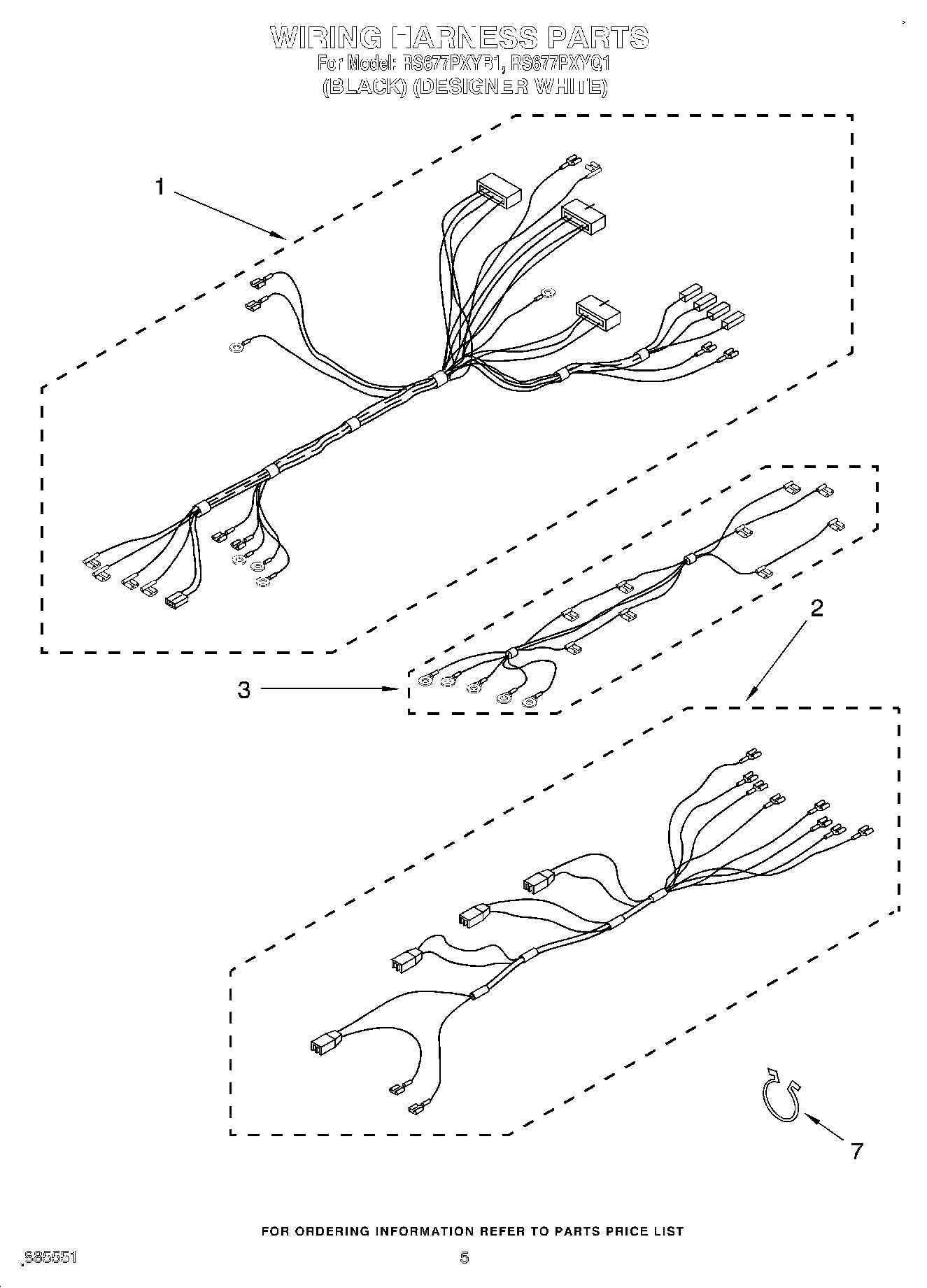

04 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RS677PXYQ1
WPL LIT3147396 WPL LIT3147396 Contact Us For Availability
WPL LIT3181454 WPL LIT3181454 Contact Us For Availability
WPL LIT3182756 WPL LIT3182756 Contact Us For Availability
WPL LIT3183769 WPL LIT3183769 Contact Us For Availability
WPL LIT885551 WPL LIT885551 Contact Us For Availability
1
Frame, Front WPL 3176698 Contact Us For Availability
1
Liner, Door WPL 3148165 Contact Us For Availability
1
Unit, Surface (8`` (2)) WPL 3183694 Contact Us For Availability
1
Harness, Wire (Main) WPL 3183289 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147825 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Gasket (6`` (2)) WPL 3147187 Contact Us For Availability
3
Gasket (8`` (2)) WPL 3147188 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3147269 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Glass, Top (Black) WPL 3148925 Contact Us For Availability
5
Glass, Top (White) WPL 3148926 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal (6`` (2)) WPL 3148561 Contact Us For Availability
6
Seal (8`` (2)) WPL 3148562 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Hook, Seal (4) WPL 3148563 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
7
RS677PXYB1 WPL 3171507 Contact Us For Availability
7
RS677PXYQ1 WPL 3183146 Contact Us For Availability
8
Gasket, Door WPL 3185197 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Plate, Backup WPL 3147038 Contact Us For Availability
9
Panel, Control (White) WPL 3182302 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Screw (3) WPL 254225 Contact Us For Availability
9
Bracket, Switch WPL 3147735 Contact Us For Availability
10
Switch, Infinite (6`` (2)) WPL 3148949 Contact Us For Availability
10
Switch, Infinite (8`` (2)) WPL 3148950 Contact Us For Availability
10
Control, Electronic (Black) WPL 3169256 Contact Us For Availability
10
Control, Electronic (White) WPL 3169257 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3149049 Contact Us For Availability
11
Shield, Control WPL 3183992 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Seal, Shaft (4) WPL 309839 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Door (Black) WPL 3148228 Contact Us For Availability
12
Handle, Door (Platinum) WPL 3149354 Contact Us For Availability
12
Tape, Foam WPL 3147485 Contact Us For Availability
13
Bracket, Mounting 6``(2) WPL 3147703 Contact Us For Availability
13
Bracket, Mounting 8`` (2) WPL 3147704 Contact Us For Availability
14
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
14
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Grey) WPL 3149355 Contact Us For Availability
14
Protector, Thermo (4) WPL 3148397 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
15
Switch, Rocker (White) WPL 3182718 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Nut (4) WPL 3147190 Contact Us For Availability
16
Support, Top Rail WPL 312752 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
16
Spring, Leaf (4) WPL 3147191 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Nut (4) WPL 3147189 Contact Us For Availability
18
Lens (2) WPL 309221 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
19
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
20
Baffle, Insulation WPL 311256 Contact Us For Availability
20
Screw (2) WPL 3148442 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
20
Rail, Back WPL 3147061 Contact Us For Availability
21
Knob, Control (4) (Black) WPL 3183120 Contact Us For Availability
21
Cap, Top WPL 3181363 Contact Us For Availability
22
Cover, Top WPL 3147566 Contact Us For Availability
23
Tube, Vent Extension WPL 3184323 Contact Us For Availability
23
Bushing WPL 258109 Contact Us For Availability
24
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Light, Indicator WPL 3149039 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Washer (4) WPL 3148615 Contact Us For Availability
26
Seal, Switch WPL 3182435 Contact Us For Availability
27
Screw, 10-32 x 5/8 (4) WPL 3150532 Contact Us For Availability
27
Cover, Vent (Black) WPL 3182496 Contact Us For Availability
27
Cover, Vent (White) WPL 3182497 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
34
Safety Switch WPL 3178671 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 3183294 WPL 3183294 Contact Us For Availability
38
WPL 3184039 WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 3182814 WPL 3182814 Contact Us For Availability
41
WPL 3148440 WPL 3148440 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
47
WPL 3149359 WPL 3149359 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310435 WPL 310435 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
× ![]()
