Model Whirlpool RS676PXV2 – Common Parts & Diagrams
03 - CONTROL PANEL
05 - WIRING HARNESS, OPTIONAL

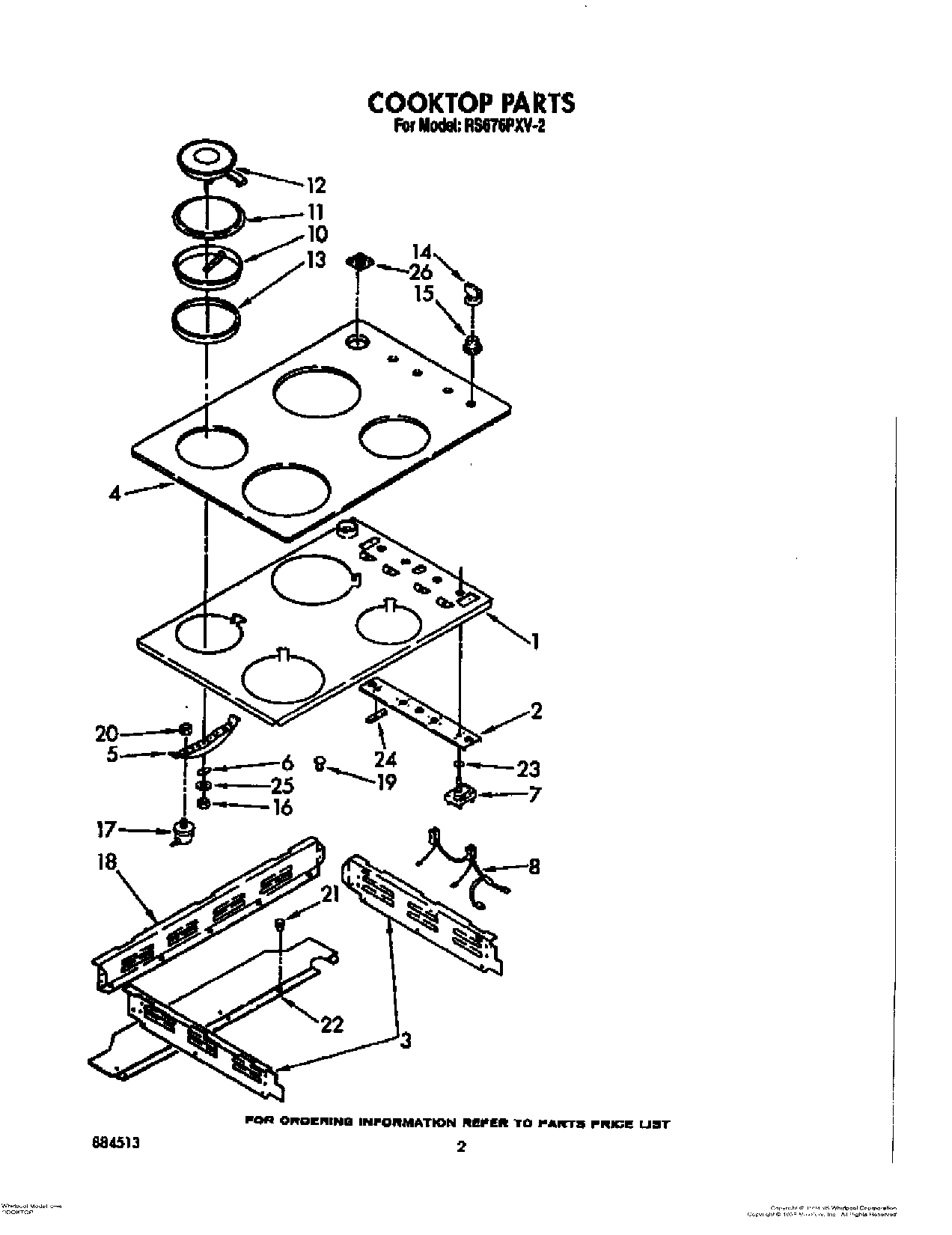

02 - COOKTOP

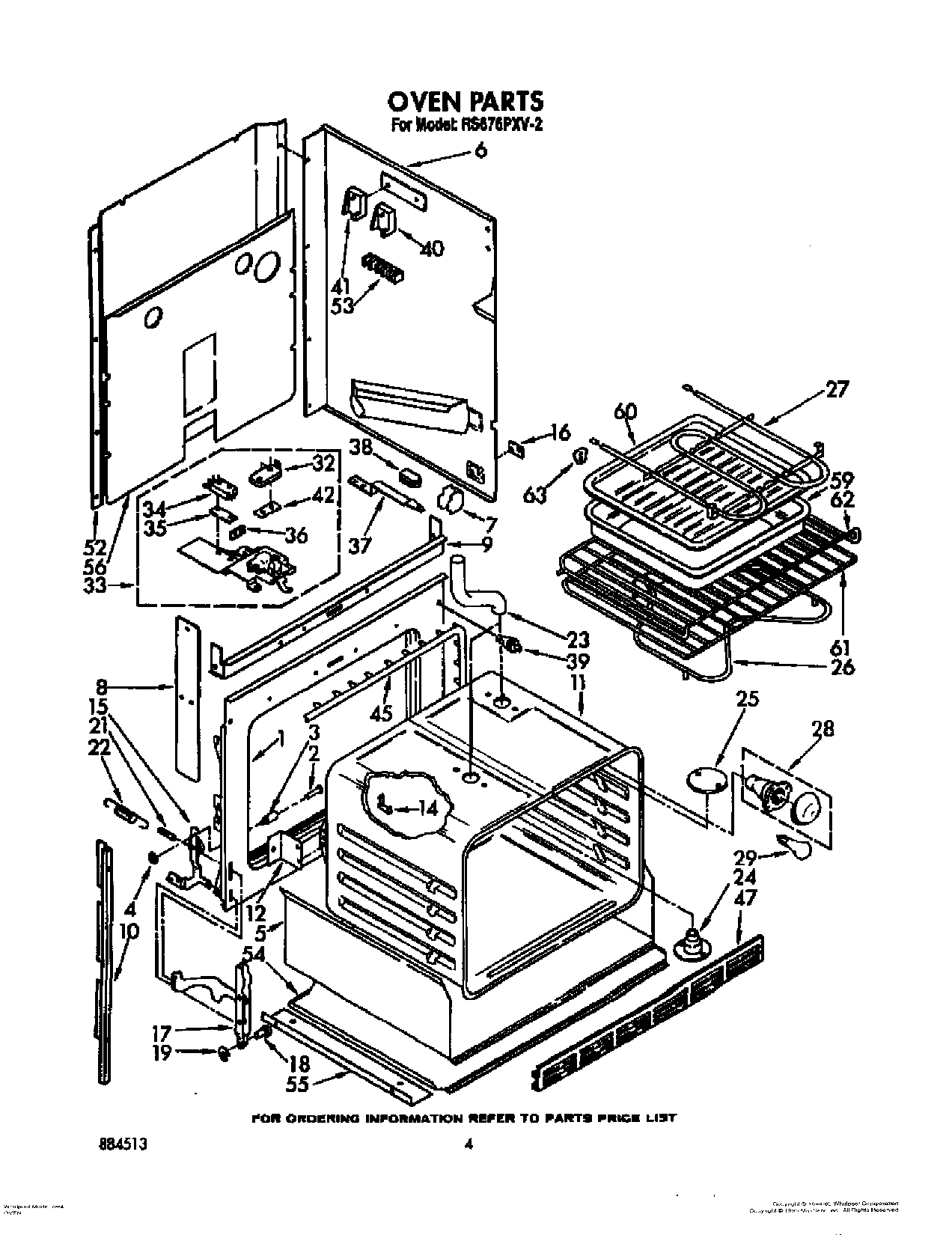

04 - OVEN

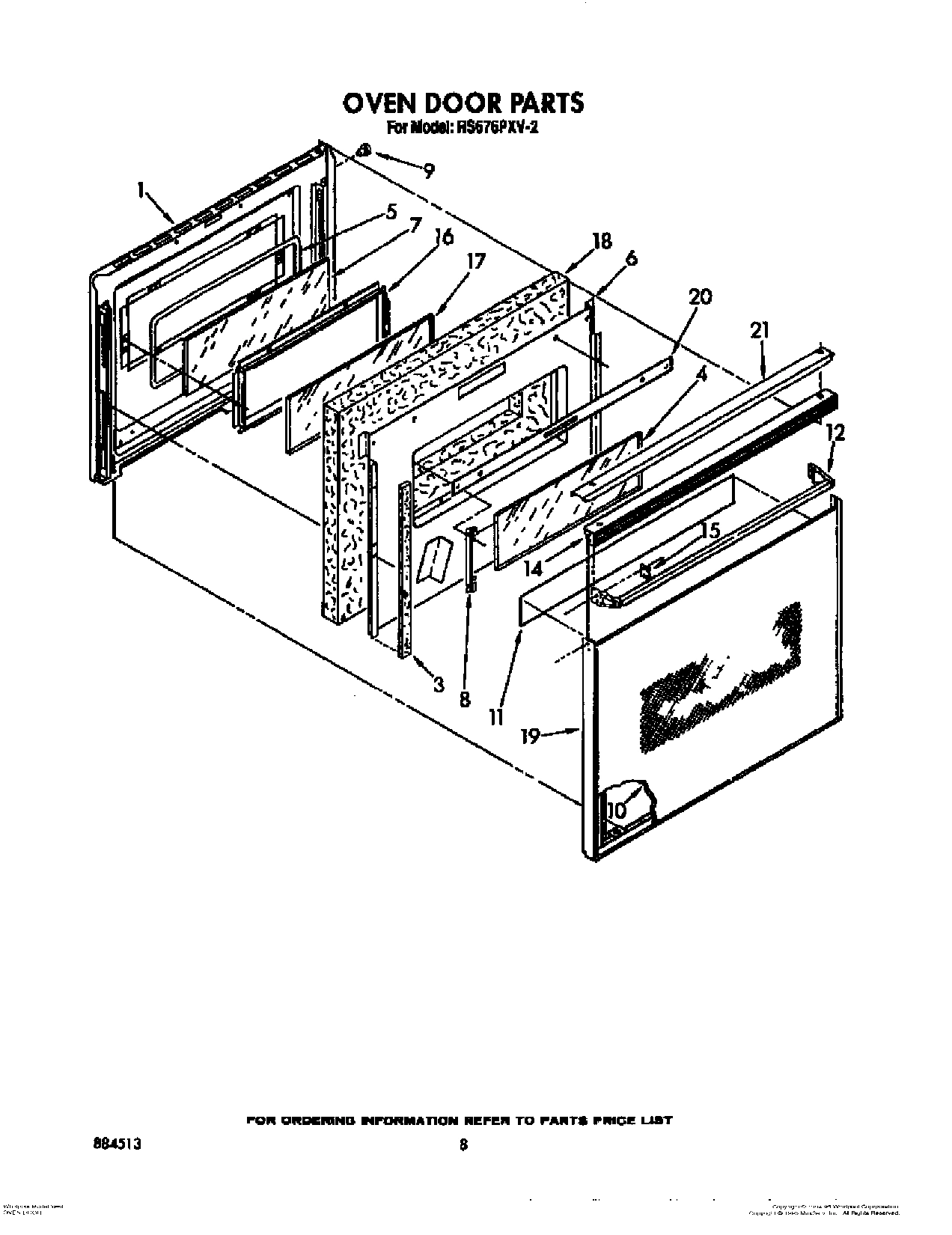

06 - OVEN DOOR
Common parts from model Whirlpool RS676PXV2
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147390 WPL LIT3147390 Contact Us For Availability
WPL LIT3148643 WPL LIT3148643 Contact Us For Availability
WPL LIT3149927 WPL LIT3149927 Contact Us For Availability
WPL LIT884513 WPL LIT884513 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
1
Plate, Backup WPL 3147038 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Screw, 10 x 1/2 (9) WPL 307748 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147825 Contact Us For Availability
2
Bracket, Switch WPL 3147735 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3147269 Contact Us For Availability
3
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
3
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Cooktop, Glass WPL 3148924 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Bracket, Element (6`` Burner) WPL 3147703 Contact Us For Availability
5
Bracket, Element (8`` Burner) WPL 3147704 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Spring, Leaf WPL 3147191 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Switch, Infinite (6`` Unit (2)) WPL 3148949 Contact Us For Availability
7
Switch, Infinite (8`` Unit (2)) WPL 3148950 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCU WPL 799344 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
white WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
16 Ga. 80 Degrees C. Rating Blue WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Yellow 12 Ga. 150 Degrees C. Rating WPL 242832 Contact Us For Availability
8
Rotisserie Kit WPL 261881 Contact Us For Availability
8
Harvest Gold WPL 261890 Contact Us For Availability
8
Harvest Gold WPL 261891 Contact Us For Availability
8
Toast WPL 285365 Contact Us For Availability
8
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
8
Platinum WPL 285368 Contact Us For Availability
8
Adapter WPL 3147832 Contact Us For Availability
8
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
8
Leveler (Primer) WPL 350941 Contact Us For Availability
8
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
8
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
8
PAINT, PRESSURIZED SPRAY (12 oz.) (Black) WPL 786020 Contact Us For Availability
8
ebony (microwave) WPL 786032 Contact Us For Availability
8
WPL 799832 WPL 799832 Contact Us For Availability
8
WPL 832985 WPL 832985 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Light, Indicator WPL 3149039 Contact Us For Availability
8
Insulation Baffle WPL 311256 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Baffle, Top WPL 310693 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Gasket, Ring (6`` Burner) WPL 3147187 Contact Us For Availability
10
Gasket, Ring (8`` Burner) WPL 3147188 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Panel, Black Glass WPL 3149049 Contact Us For Availability
11
Pan, Surface (6`` Ring) WPL 3148486 Contact Us For Availability
11
Pan, Surface (8`` Ring) WPL 3148489 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3185062 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
12
Handle, Door WPL 3149354 Contact Us For Availability
13
Seal, Silicone (8`` Burner) WPL 3148561 Contact Us For Availability
13
Seal, Silicone (6`` Burner) WPL 3148562 Contact Us For Availability
14
Knob, Control WPL 3150020 Contact Us For Availability
14
Frame, Door Top WPL 3149355 Contact Us For Availability
15
Clip, Mtg. Handle WPL 3148282 Contact Us For Availability
15
Seal, Switch Shaft (4) WPL 3149899 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Nut, Metric (4) WPL 3147189 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Thermostat WPL 3148397 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Rail, Support WPL 3147061 Contact Us For Availability
18
Insulation WPL 3147951 Contact Us For Availability
19
Light Lens (2) WPL 319221 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Door WPL 3148235 Contact Us For Availability
20
screw (2) WPL 254225 Contact Us For Availability
20
Nut, Thermostat (4) WPL 3147190 Contact Us For Availability
20
Shield WPL 3148680 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
21
Cap, Top Door WPL 3181363 Contact Us For Availability
22
Cover, Top Rear WPL 3147566 Contact Us For Availability
23
Escutcheon, Thermostat WPL 3149172 Contact Us For Availability
23
Seal, Switch (4) WPL 309839 Contact Us For Availability
23
Tube, Vent WPL 3147220 Contact Us For Availability
24
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
24
Tape, Foam WPL 3147485 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Knob, Control (2) WPL 3150372 Contact Us For Availability
25
Washer, Flat (4) WPL 3148615 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Set, Button (4) WPL 3149177 Contact Us For Availability
26
Cover, Vent WPL 3147037 Contact Us For Availability
27
Bracket, Control (2) WPL 3148634 Contact Us For Availability
27
Screw, 10-32 x 1/2 (4) WPL 3150532 Contact Us For Availability
28
Knob, Bit Generator WPL 3149176 Contact Us For Availability
31
Support, Top Rail WPL 312752 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
32
Switch, Lock WPL 3148669 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
screw, 8 x 5/16 WPL 246135 Contact Us For Availability
38
Knob, Latch WPL 311253 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
40
Switch, Broil WPL 314209 Contact Us For Availability
41
screw WPL 314215 Contact Us For Availability
41
Switch, Bake WPL 314210 Contact Us For Availability
42
Scre WPL 313489 Contact Us For Availability
42
WPL 3147864 WPL 3147864 Contact Us For Availability
